Complete Gema & Trimac Powder Coating System for Sale
About this Private Treaty
State-of-the-Art 48” x 96” Powder Coat Paint System, Installed & Operational in 2021. System Comprised of: 2020 GEMA Electrostatic Powder Coat Paint System, w/ Automatic 10 Gun (5 Per Side) w/ OptiFlex Gun Control, (2) OptiFlex Handheld Guns; 2021 TRIMAC INDUSTRIAL SYSTEMS KEMAC Stainless-Steel 5-Stage Wash, 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT Infrared Dry-Off Oven, 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT Infrared Cure/Bake Oven. Complete Specs & Details to Follow.
Inspection
Qualified parties may schedule an in-person inspection, strictly by appointment only. Please schedule your inspection appointment in advance by calling +1-847-545-6374 or email jennifer@perfectionindustrial.com.
Removal
The buyer of the paint system agrees to have the complete paint system, including all components, removed from the plant by Friday, August 7. Additional details related to rigging and removal to be provided.
Featured Assets

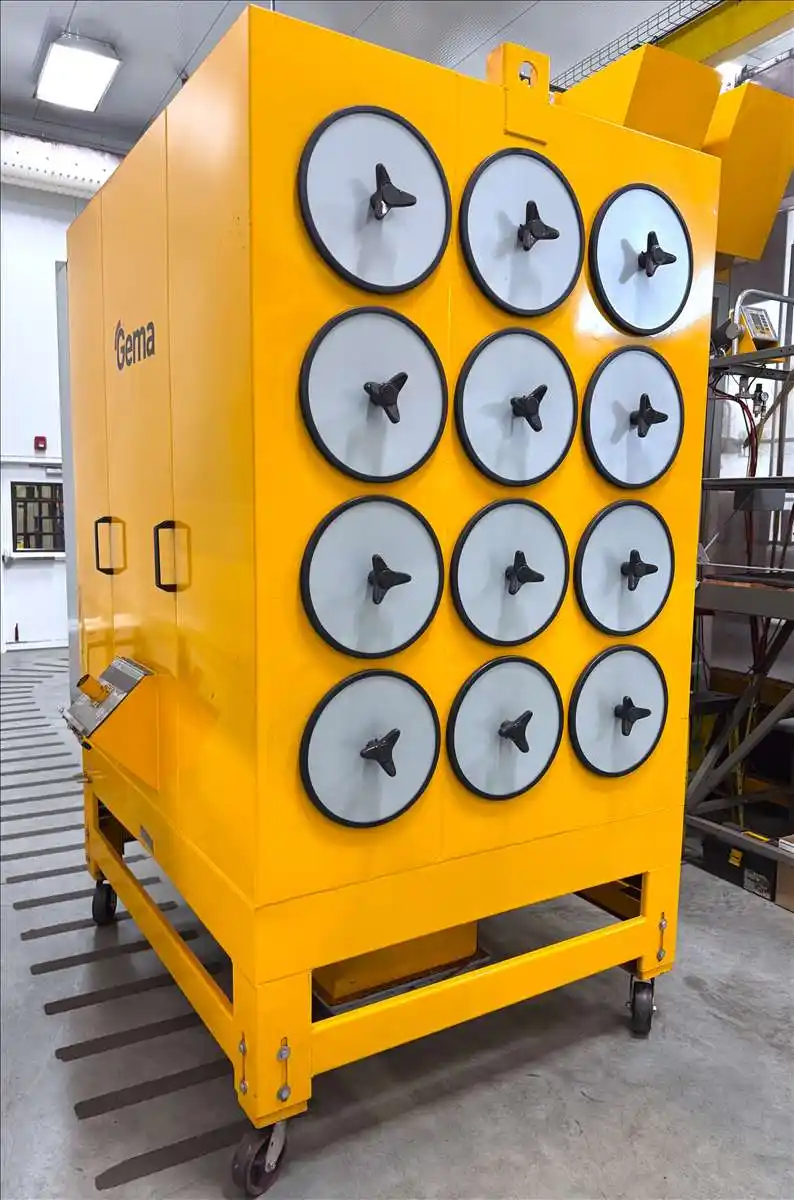

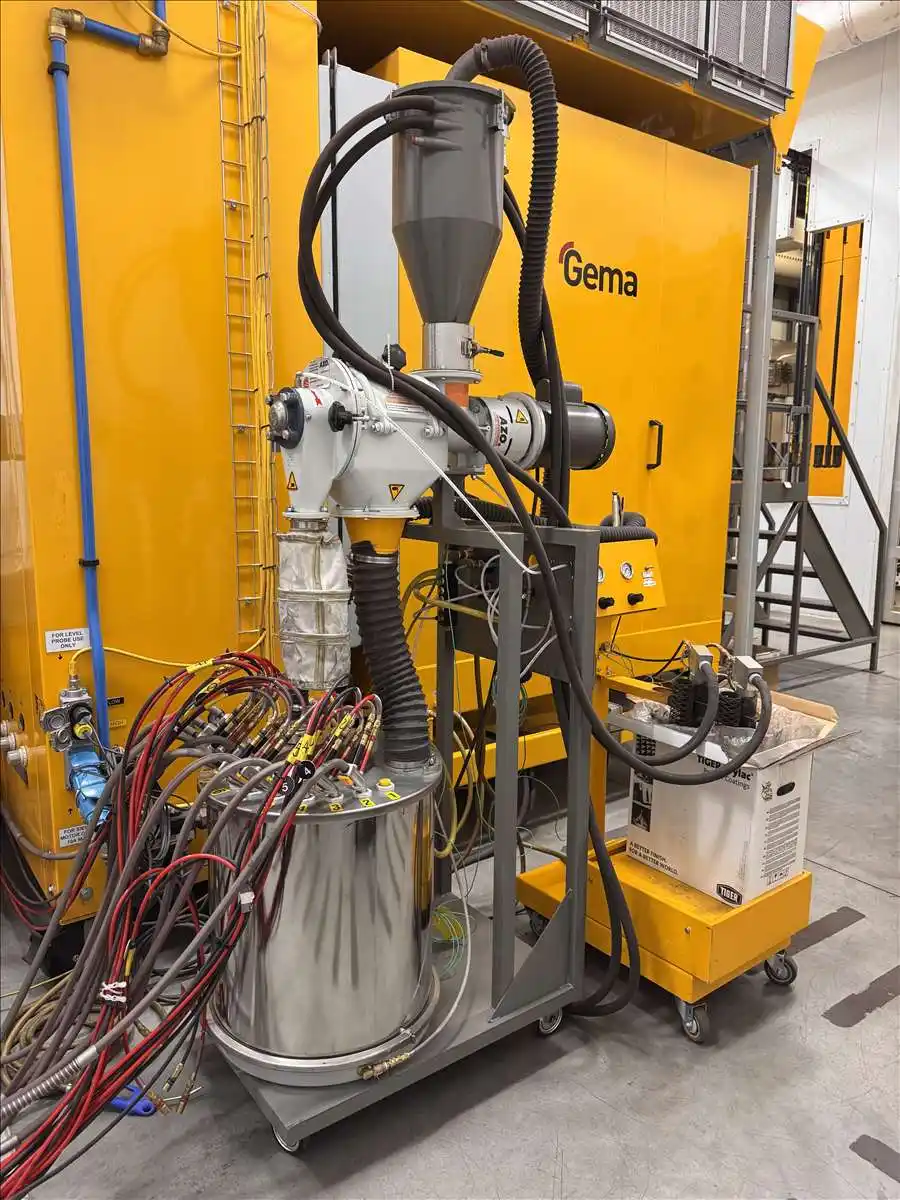

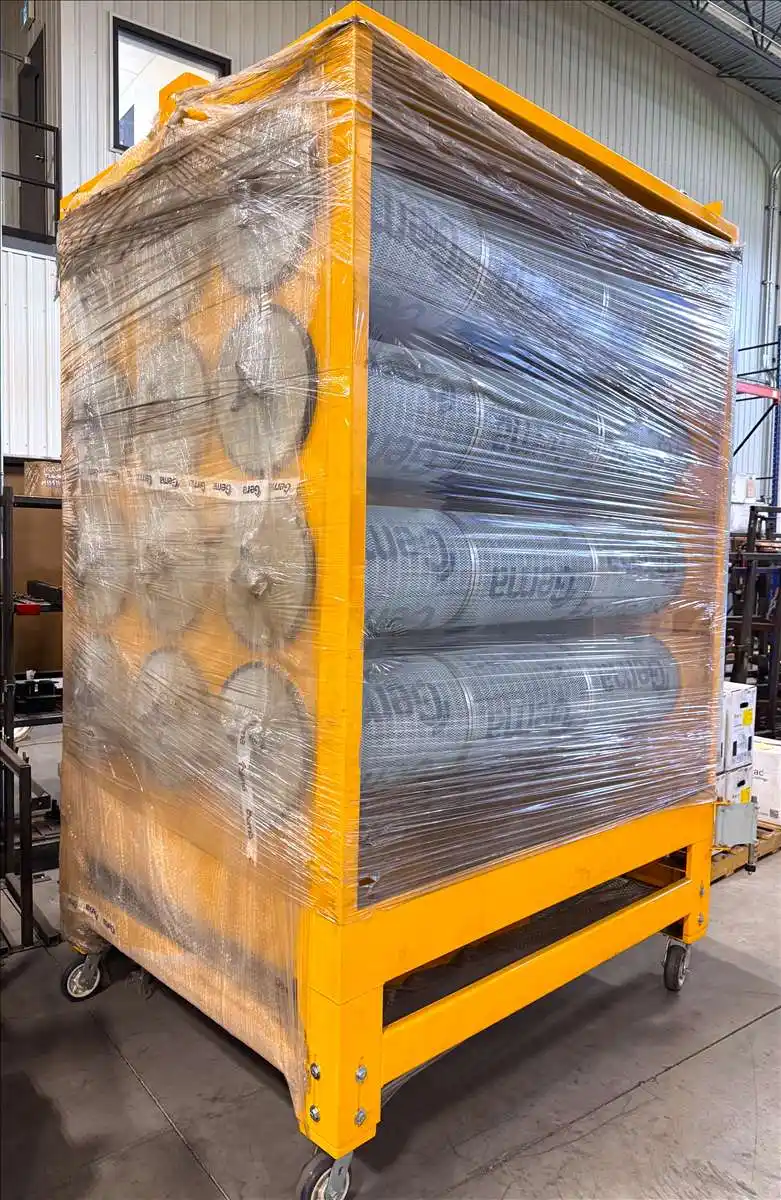

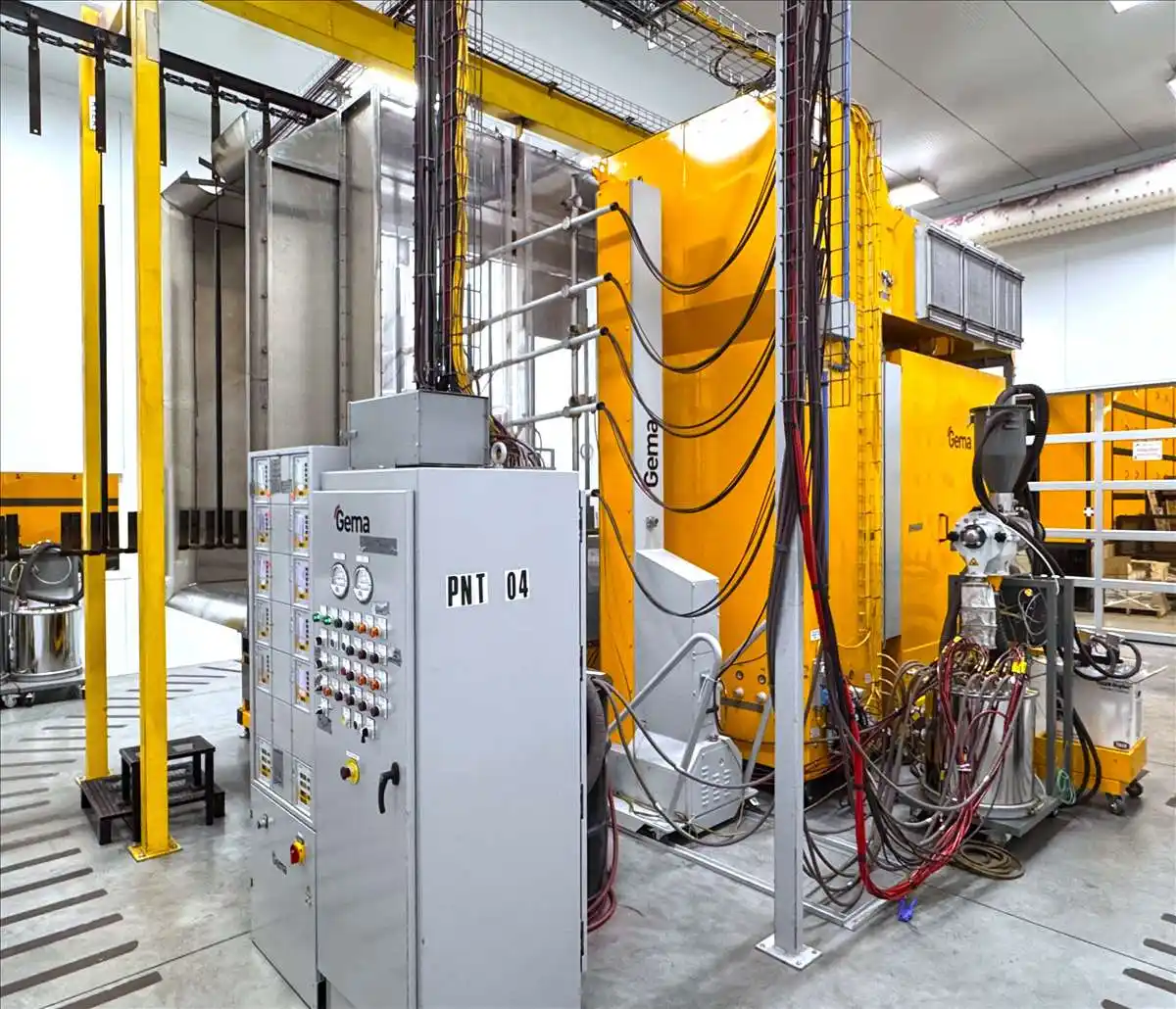

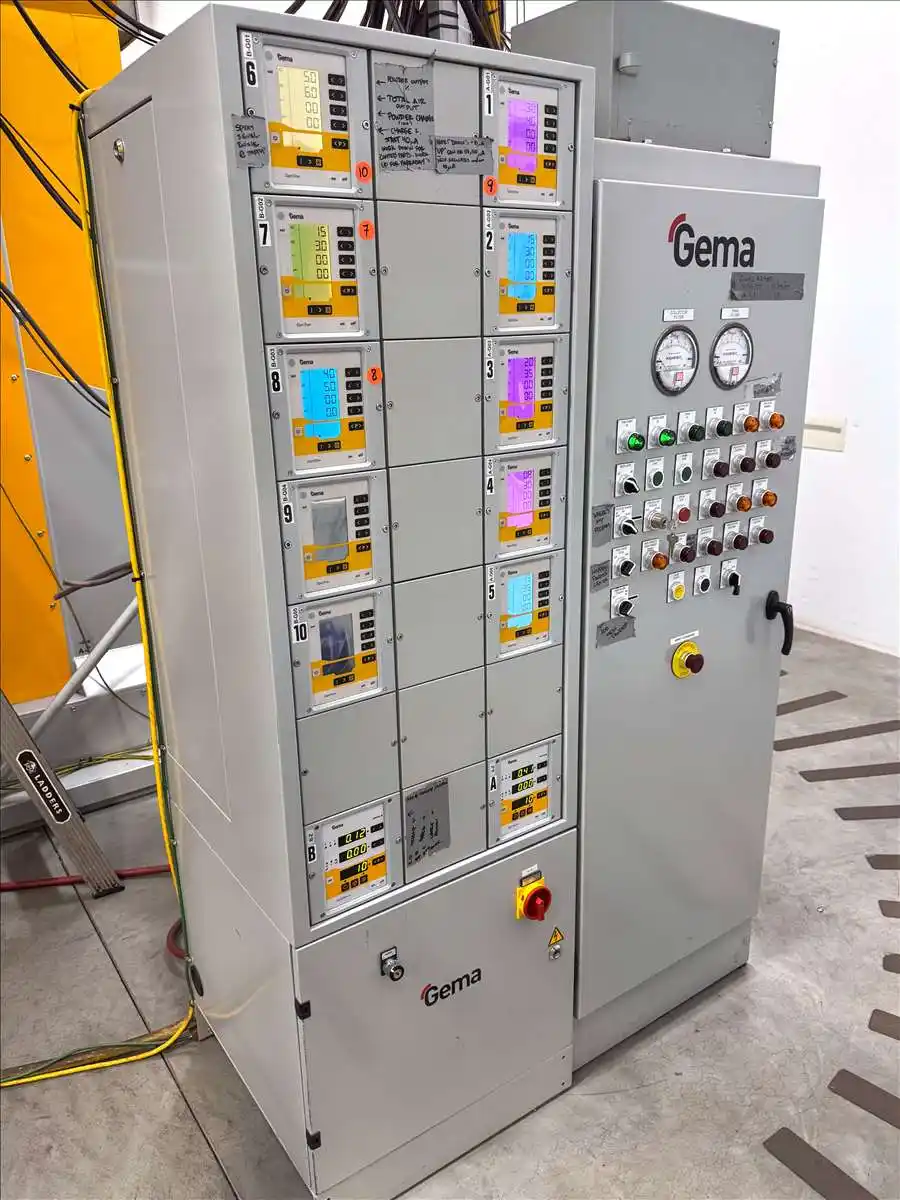

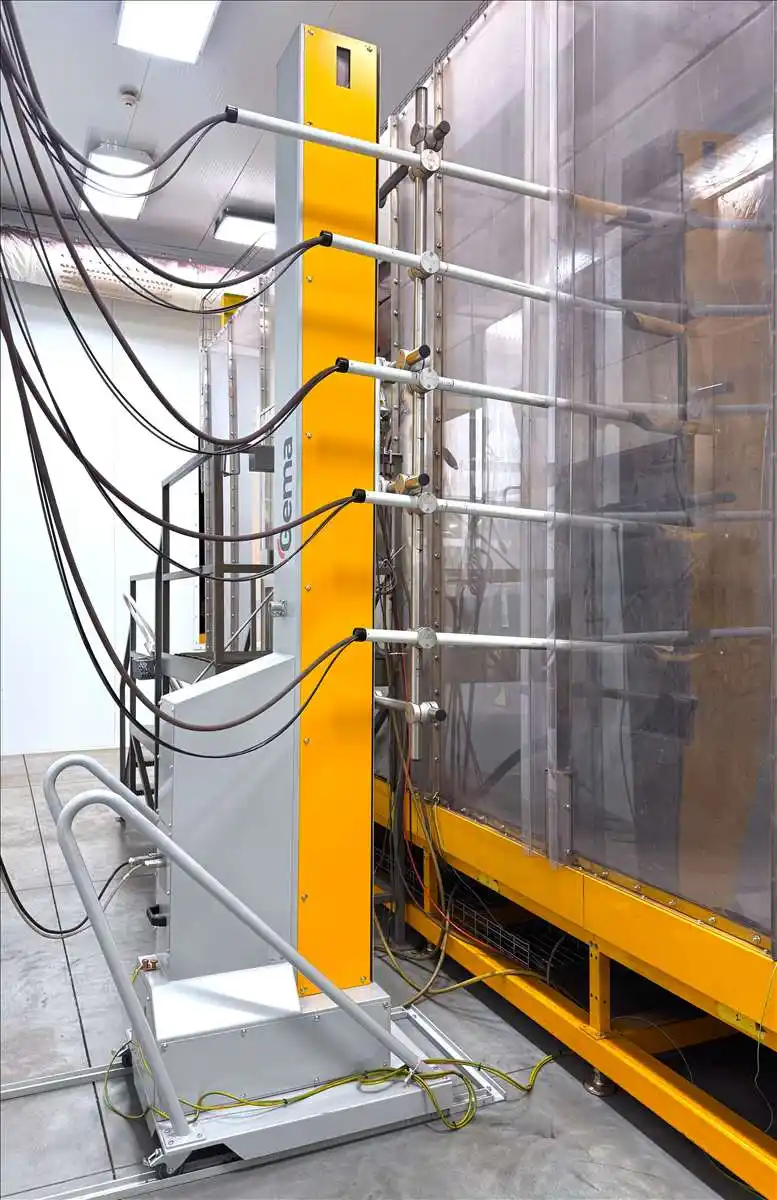

- 2021 Gema Smart-10K Electrostatic Powder Coat Paint System, w/ (2) 2020 GEMA Reciprocator ZA08-23 5-Gun Automatic Spray Systems w/ Gema OptiStar Guns Controls & (2) GEMA OptiMove Axis Controls, (2) GEMA OptiFlex Manual Guns w/ OptiStar CG13 Gun Controls, Reclaim System w/ (2) 12-Cartridge Filters, Powder Hopper, Thermal Wrap System, NEW - Never Used 12-Cartridge Filter Included

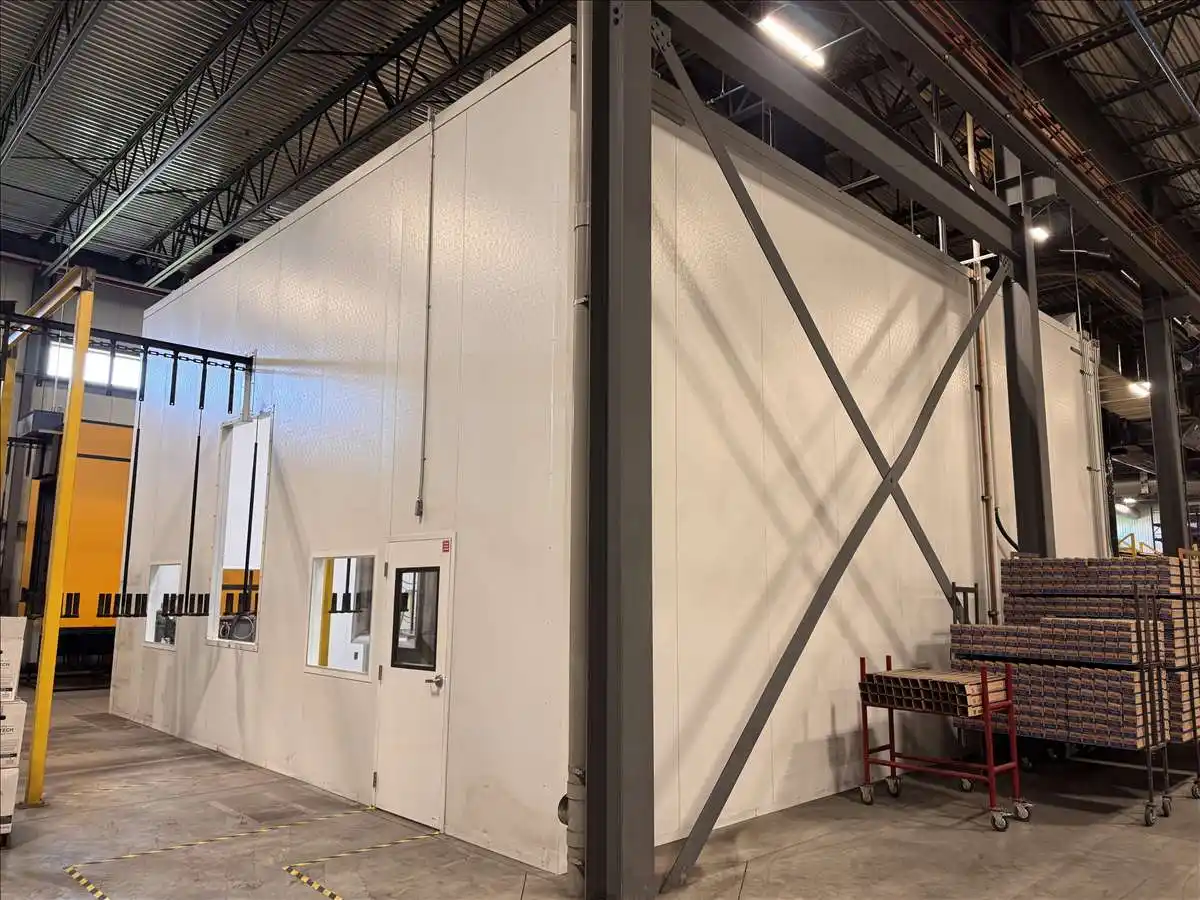

- Environmental Room - Approx. 30’8”W x 18’H x 30’8”L, Smooth White Steel/Foam/ Steel Tongue & Groove Panel, R-119 Encapsulated Insulation, Hi-Bay Lights, 10’ x 10’ Garage Door, (2) Man Doors

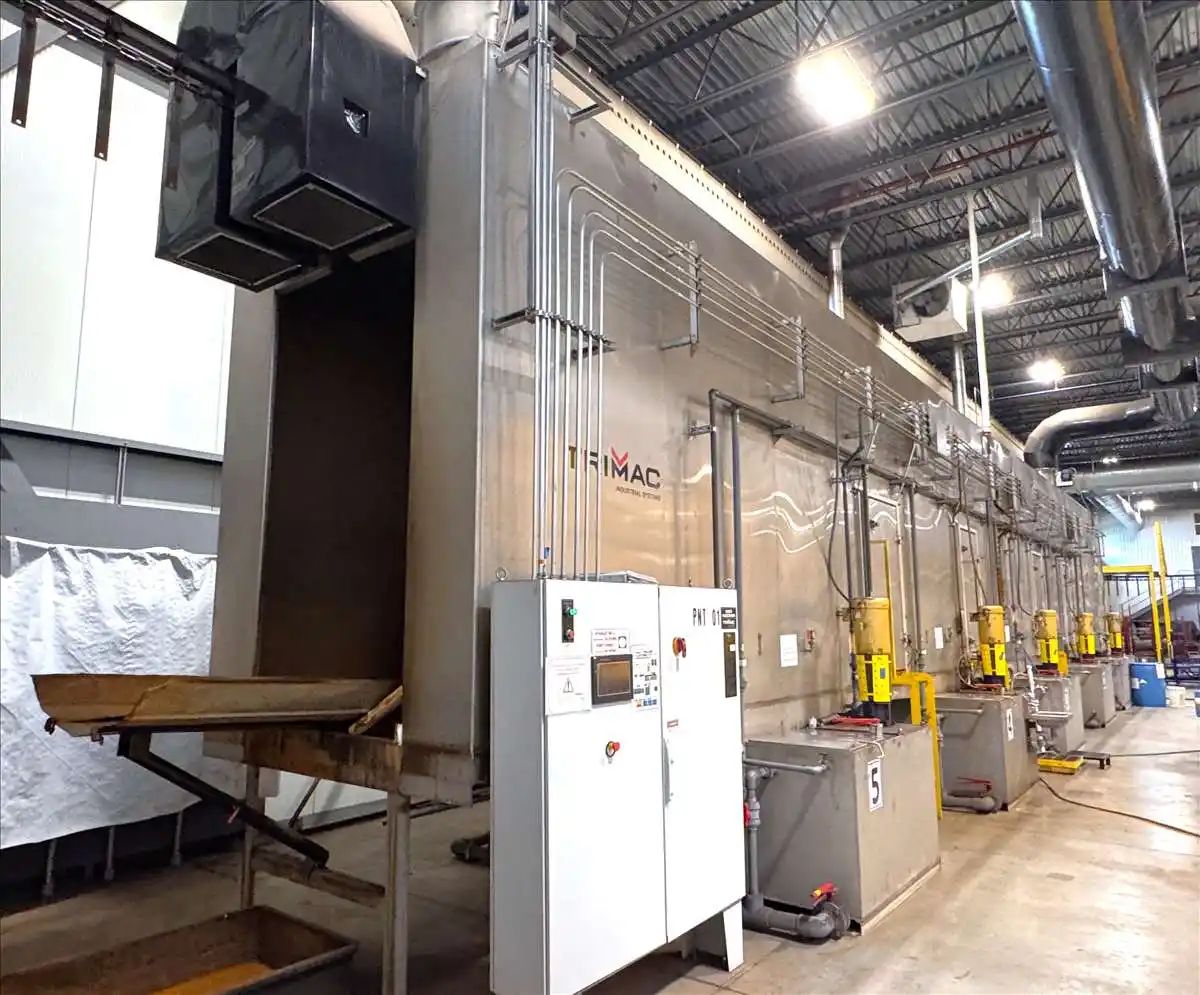

- 2021 Trimac Industrial Systems Kemac Stainless Steel 5-Stage Wash, w/ Stainless Steel Tanks & Tunnel, 8’ Drain Backs, 6 FPM Line Speed, (2) Head Stages, Coalescer. Stage I: Wash - 80 Seconds, 8’ Length, 1476 Gallon Tank, 140°F, 2.8 GPM Nozzles, (9) Risers, 172 Nozzles, 482 GPM Pump, 15 HP. Stage II: Rinse - 5’ Length, 50 Seconds, 950 Gallon Tank, Ambient, Drain - 8’ Length, 80 Seconds. Stage III: Phos - 5’ Length, 950 Gallon Tank, 50 Seconds, 120°F. Stage IV: Rinse - 5’ Length, 950 Gallon Tank, 5 Seconds. Stage V: Rinse - 5’ Length, 950 Gallon Tank, 50 Seconds, Ambient, Exit Drain - 8’ Length, 80 Seconds. Stages 2-5: 2.8 GPM Nozzles, (6) Risers Each Stage, (114) Nozzles Each Stage, 319 GPM Pumps, 10 HP Motors, (2) 30” 6600 CFM Exhaust Fans, 13’6”H x 9’6”W x 76’L Overall Wash System Dimensions

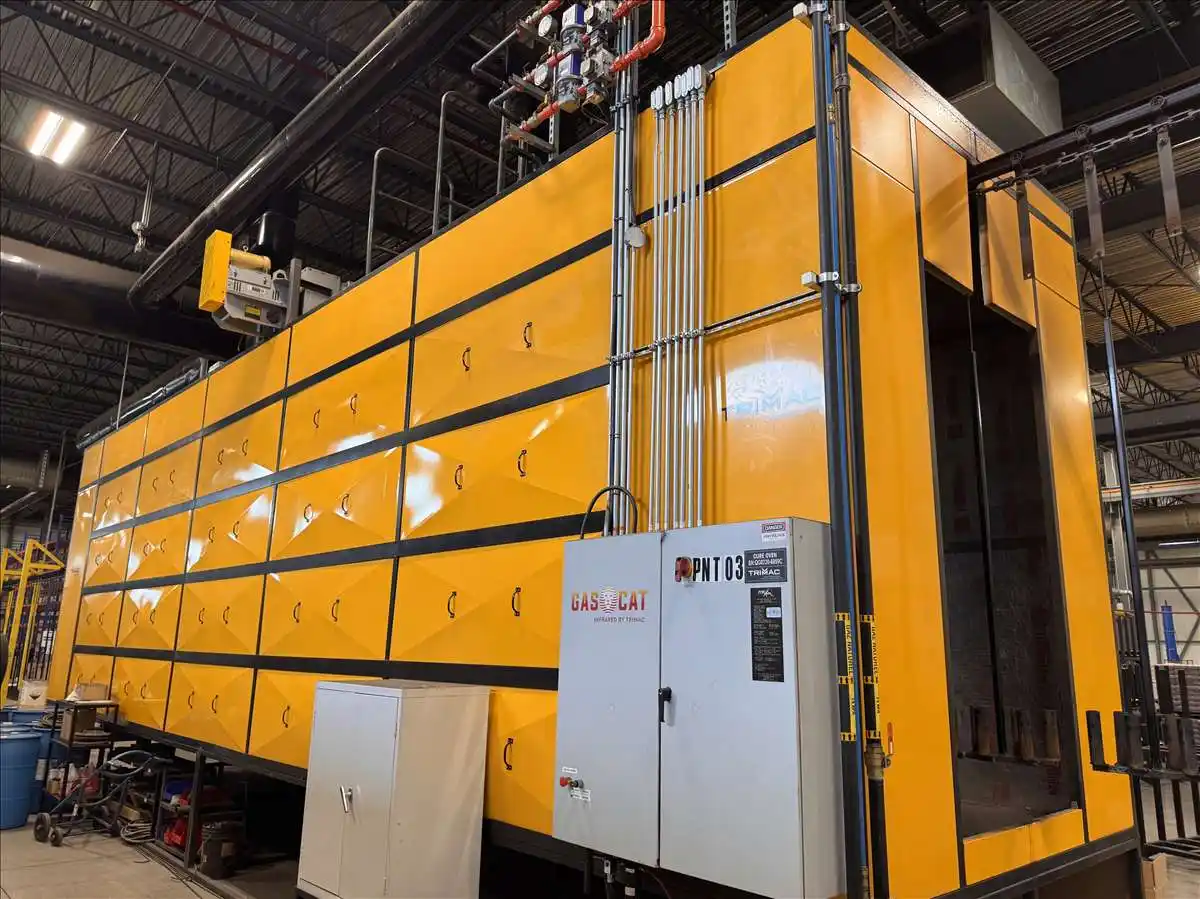

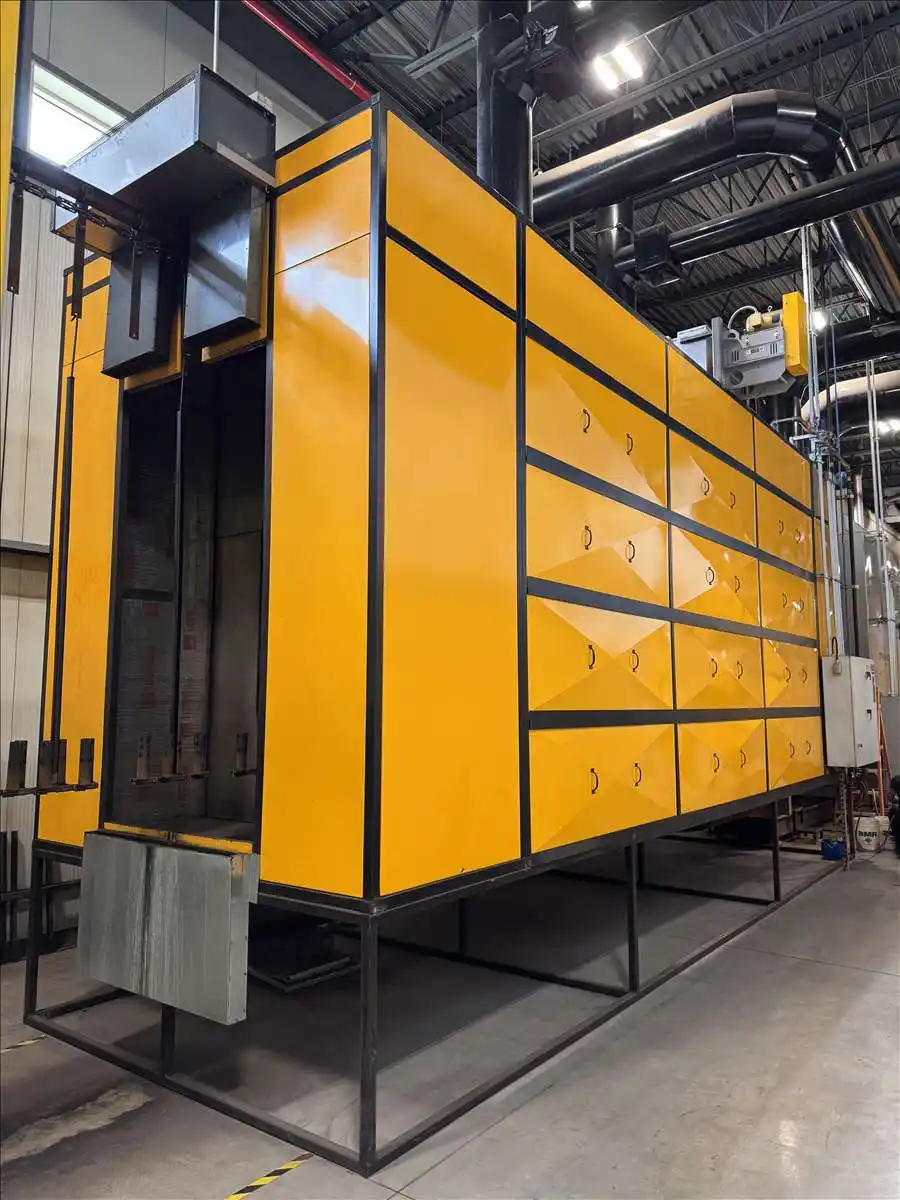

- 2021 Trimac Industrial Systems GAS CAT DRY Infrared Dry-Off Oven, w/ Thermal Wrap System w/ 3500 CFM High Temp. Recirculation w/ Adjustable Controls, Variable Speed Motor Control for Air Volume, High Reflective Aluminum Insulated Panel Construction, (16) 24” x 72” Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each, 192 Sq/ Ft. Catalytic Surface Area - Total of 1,152,000 BTU/Hr, 48” x 96” Opening, 8” x 18”H Hook Slot, 2.5 Minute Heated Process Time, 6 FPM Line Speed, (2) 1500 CFM Exhaust Fans, (2) 2500 CFM Recirculation Fans, 12’H x 7’2”W x 27’L Overall Dimensions
- 2021 Trimac Industrial Systems GAS CAT CURE Infrared Cure/Bake Oven, w/ Thermal Wrap System w/ 5000 CFM High Temp. Recirculation w/ Adjustable Controls, Variable Speed Motor Control for Air Volume, (32) 24” x 72” Trimac Flamless Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each, 384 Sq. ft. Catalytic Surface Area- Total of 2,304,000 BTU/Hr. 4-Zone, 576,000 BTU/Hr Per Zone w/ (8) Emitters/Zone, 5 Minute Heated Process Time, 6 FPM Line Speed, (2) 1500 CFM Exhaust Fans, (2) 2500 CFM Recirculation Fans, High Reflective Aluminum Insulated Panel Construction, 48” x 96” Opening, 8” x 18”H Hook Slot, 12’H x 7’2”W x 42’L Overall Dimensions
- Conveyor System - Variable Speed 350’ Enclosed Track Monorail, w/ 125 Lbs. Max Weight/Hanger Point @ 8” Centers
