Inventory # 36075

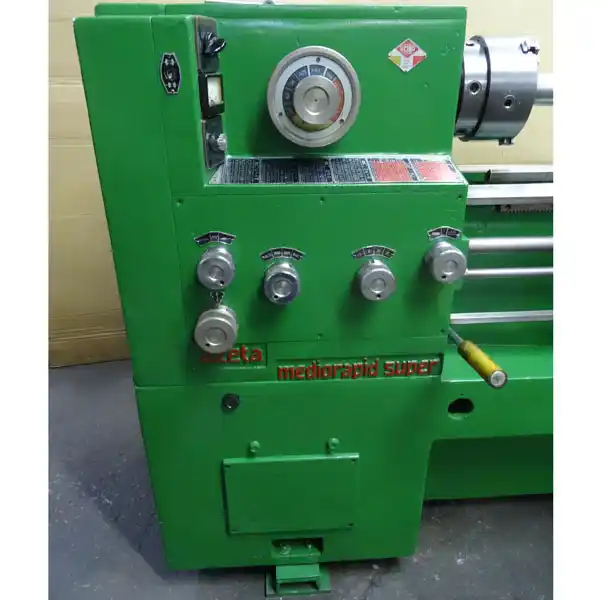

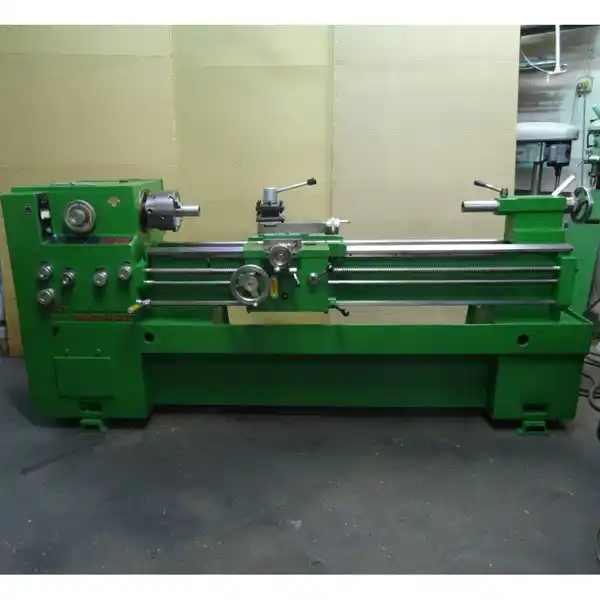

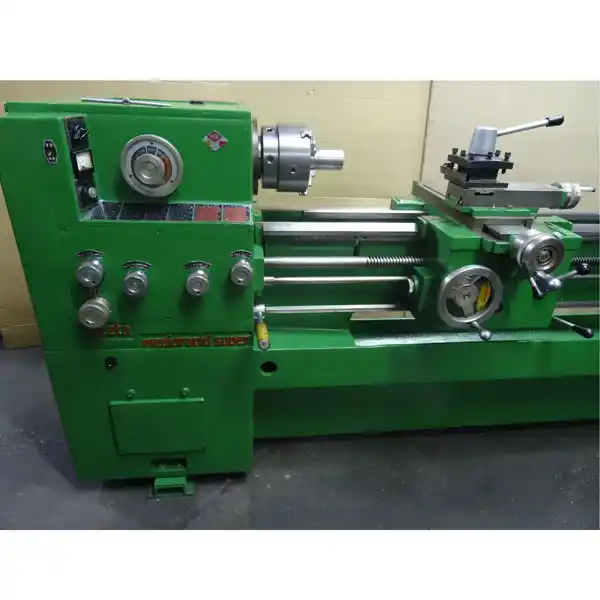

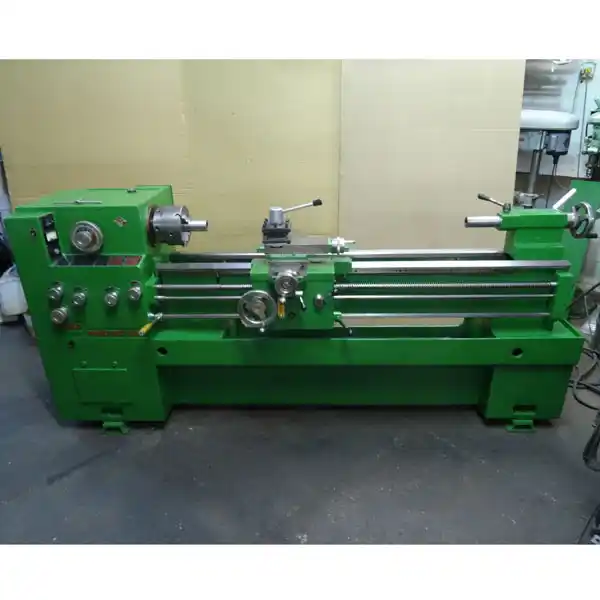

AZETA MEDIORAPID SUPER ENGINE LATHE

Request a Quote
Measurement

Specifications
  • Swing Over Bed: 14"
  • Swing Over Cross Slide: 8-3/8"
  • Bar Capacity Thru Spindle: 2-1/4"
  • Distance Between Centers: 59"
  • 3-Jaw Chuck Diameter: 8"
  • Opening Thru Chuck: 2-3/8"
  • Threads: Standard / Metric
  • Spindle Nose: 7" D-1-6 Camlock
  • Spindle Speeds: 26, 40, 60, 283, 425, 640, 930, 1400, 2100 RPM

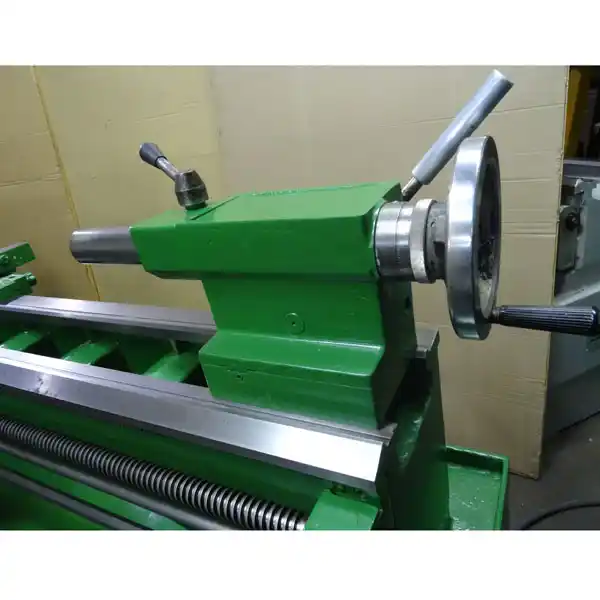

  • Tailstock Spindle Diameter: 2-3/16"
  • Tailstock Center: 3 MT
  • Tailstock Spindle Travel: 6-1/2"
  • Bed Width: 10-5/8"
  • Leadscrew Diameter: 1-3/8"
  • Feed Rod Diameter: 7/8"
  • Width of Bridge: 6-3/4"
  • Cross Slide Travel: 9-1/2"
  • Compound Rest Travel: 5"
  • Tool Block Capacity: 1-3/8"
  • Motor 7.5 HP
  • Motor Electricals: 230V / 3 / 23A
  • Motor Speed: 1155 RPM
  • Show More
  • Show Less
  • Swing Over Bed: 355.60mm
  • Swing Over Cross Slide: 212.73mm
  • Bar Capacity Thru Spindle: 57.15mm
  • Distance Between Centers: 1498.60mm
  • 3-Jaw Chuck Diameter: 203.20mm
  • Opening Thru Chuck: 60.33mm
  • Threads: Standard / Metric
  • Spindle Nose: 177.80mm D-1-6 Camlock
  • Spindle Speeds: 26, 40, 60, 283, 425, 640, 930, 1400, 2100 RPM
  • Tailstock Spindle Diameter: 55.56mm
  • Tailstock Center: 3 MT
  • Tailstock Spindle Travel: 165.10mm
  • Bed Width: 269.88mm
  • Leadscrew Diameter: 34.93mm
  • Feed Rod Diameter: 22.23mm
  • Width of Bridge: 171.45mm
  • Cross Slide Travel: 241.30mm
  • Compound Rest Travel: 127.00mm
  • Tool Block Capacity: 34.93mm
  • Motor 5.59 kw
  • Motor Electricals: 230V / 3 / 23A
  • Motor Speed: 1155 RPM
  • Show More
  • Show Less
Equipped With

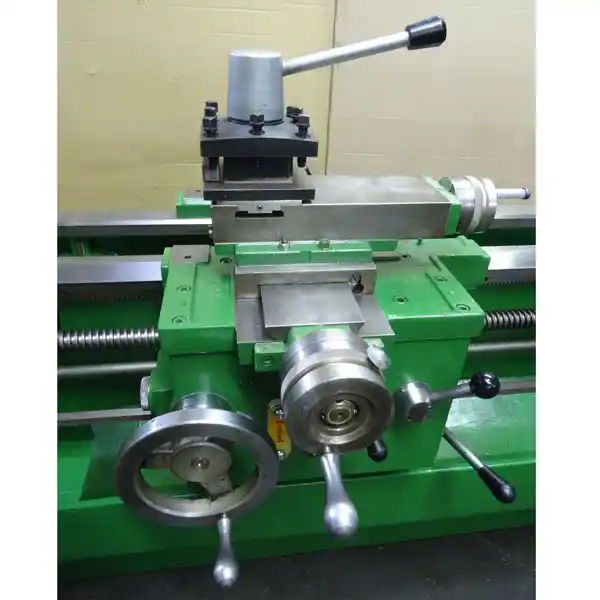

  • 4-Way Tool Post
  • 2V, 2 Flat Induction Hardened Ways
  • 4-Way Tool Post
  • 2V, 2 Flat Induction Hardened Ways
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
