Inventory # 45115 Year: 2014

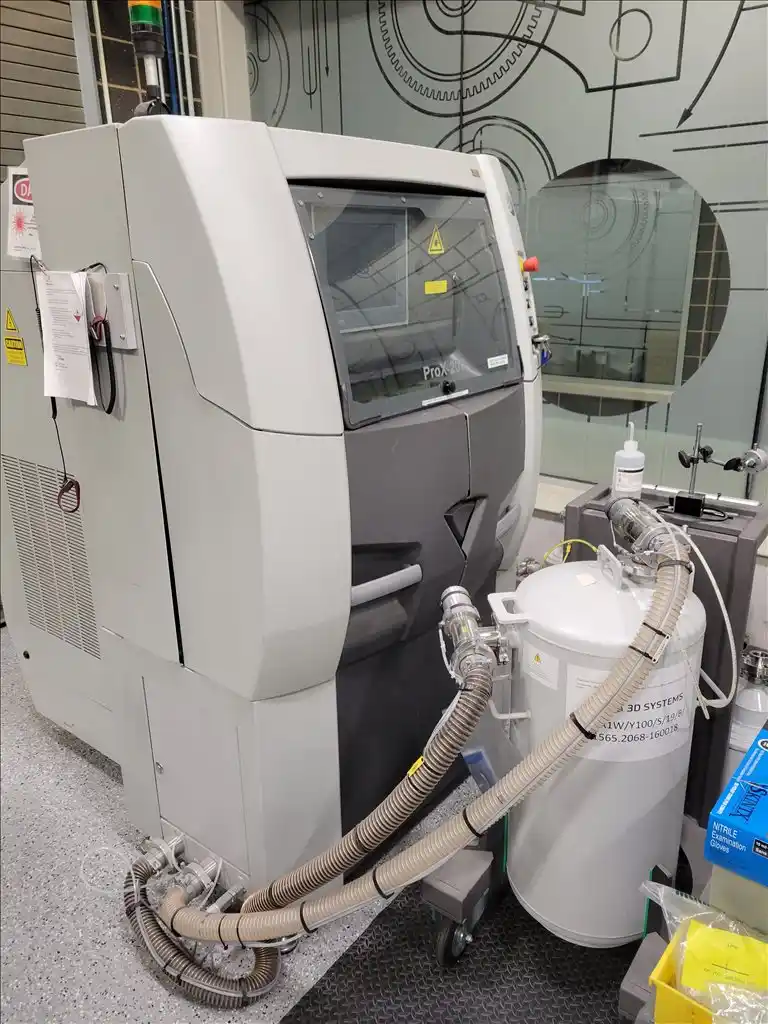

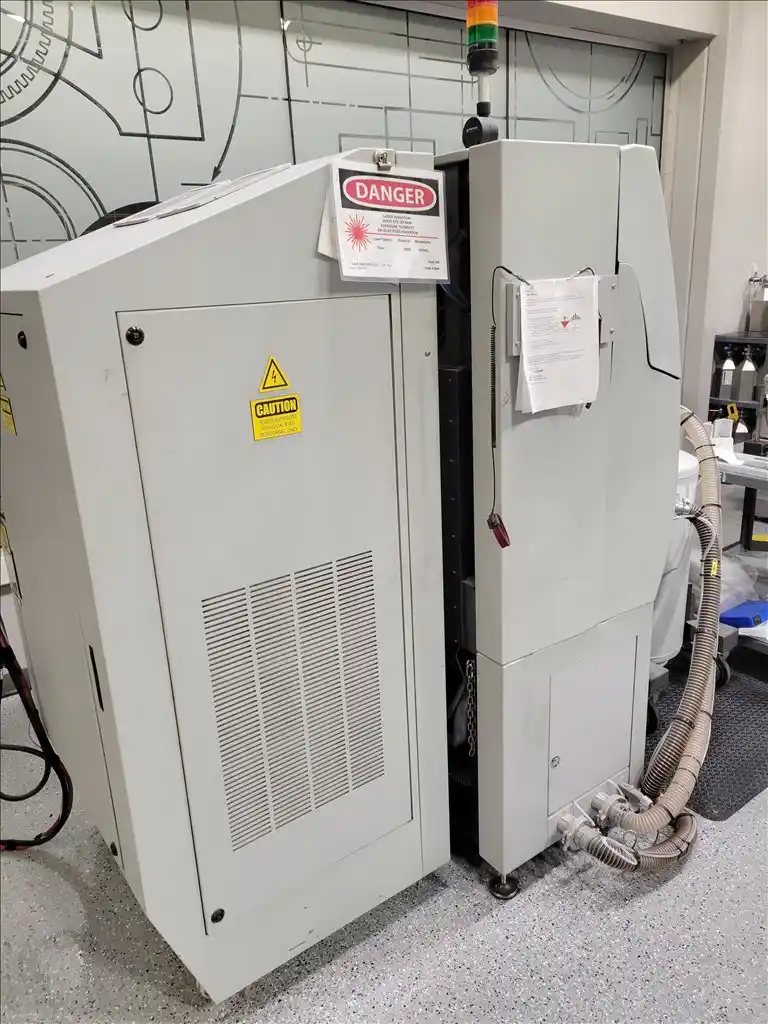

3D Systems Prox 200 Dmls (Direct Metal Laser Sintering) 3D Printer
Specifications
- Build Envelope: 5.51" x 5.51" x 3.94"
- Repeatability (X,Y,Z): .000787"
- Minimum Detail Resolution (X): .00394"
- Minimum Detail Resolution (Y): .00394"
- Minimum Detail Resolution (Z): .000787"
- Minimum Layer Thickness: .000394"
- Maximum Layer Thickness: .00197"
- Fiber Laser Power: 300 W
- Laser Wavelength: .000042"
- Electrical: 400 V / 8 KVA / 3 ph
- Compressed Air Requirements: 87 - 116 PSI
- Show More
- Show Less
- Build Envelope: 139.95mm x 139.95mm x 100.08mm
- Repeatability (X,Y,Z): 20um
- Minimum Detail Resolution (X): 100um
- Minimum Detail Resolution (Y): 10um
- Minimum Detail Resolution (Z): 20um
- Minimum Layer Thickness: 10um
- Maximum Layer Thickness: 50um
- Fiber Laser Power: 300 W
- Laser Wavelength: 1070nm
- Electrical: 400 V / 8 KVA / 3 ph
- Compressed Air Requirements: 6 - 8 BAR
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
