Inventory # 45014 Year: 1998

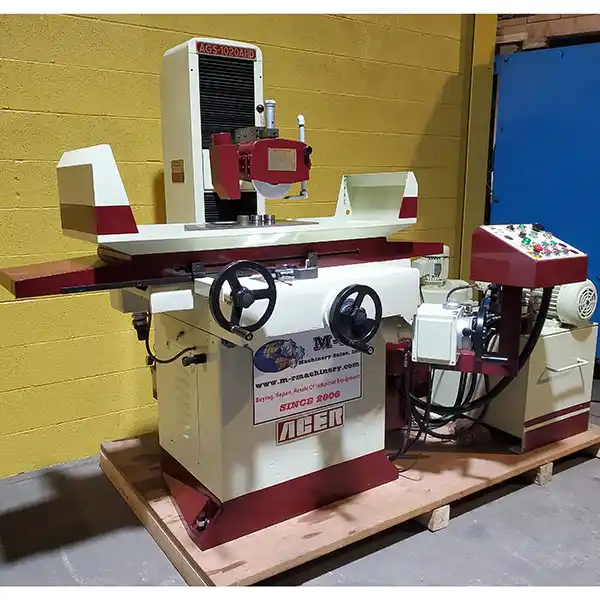

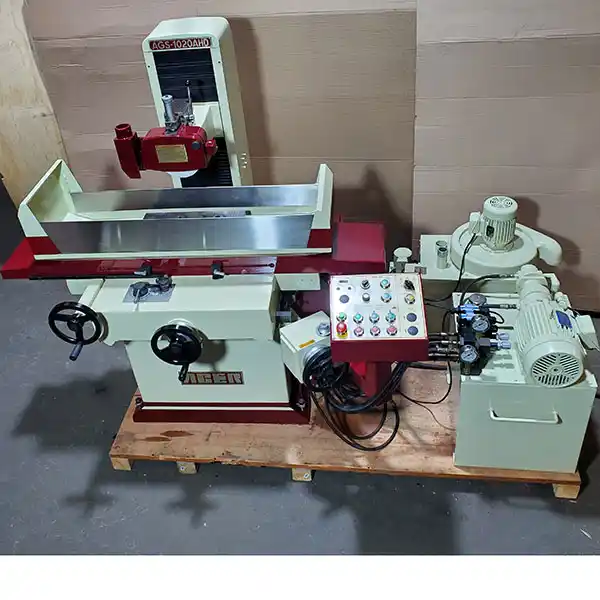

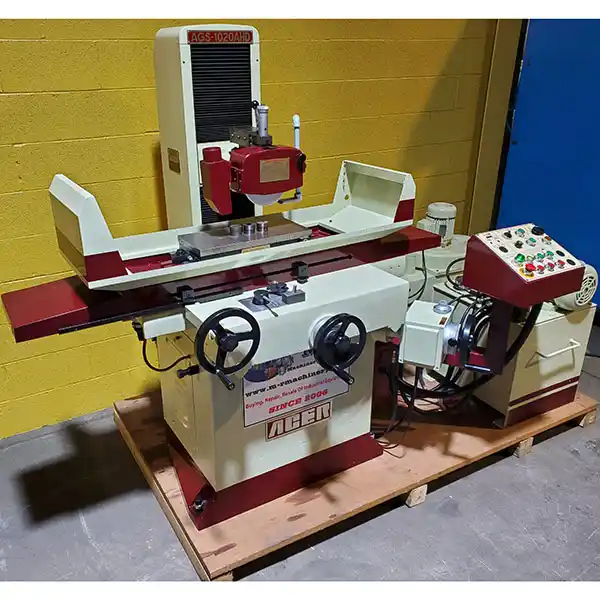

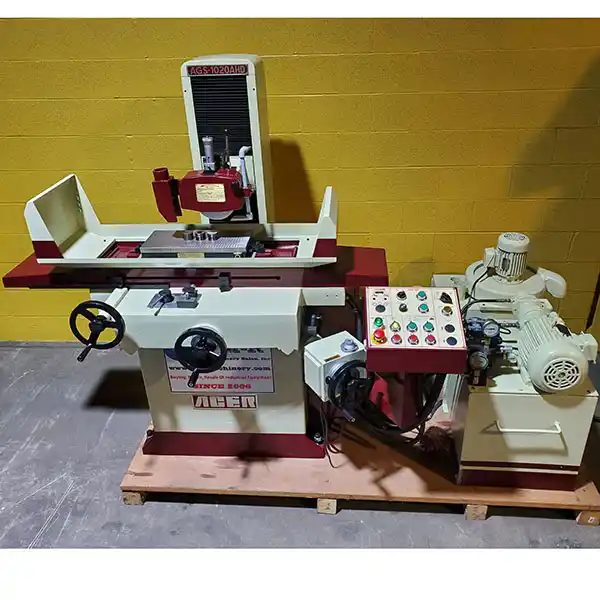

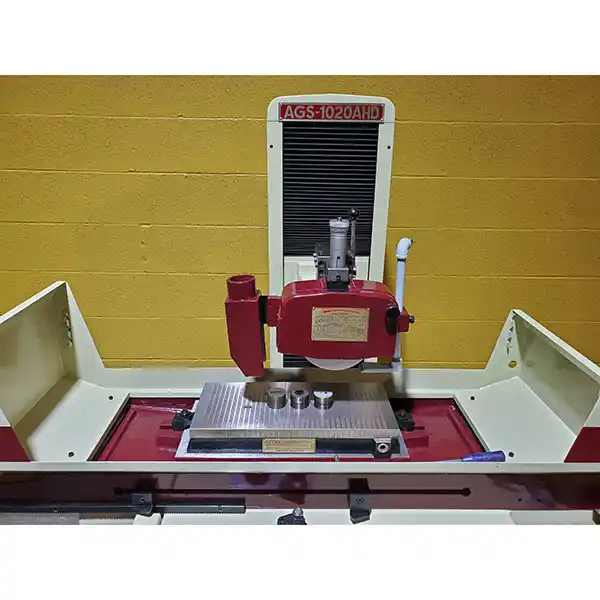

Acer AGS-1020AHD Surface Grinder
Specifications
- Max Surface Grind (W x L): 10" x 20"
- Height Travel From Table Top to Center of Spindle: 19-1/2"
- Variable Table Speed, Hydraulic: 16 FPM - 80 FPM
- Max Table Travel: 20-1/2"
- Automatic Cross Feed Increment: 0 - 1"
- Max Cross Travel: 11"
- Downfeed Handwheel Per Graduation: 0.0005"
- Per Revolution: 0.1"
- Crossfeed Handwheel Per Graduation: 0.001"
- Per Revolution: 0.2"
- Automatic Incremental Downfeed: 0.001" to 0.0001"
- Spindle Motor: 2 hp
- Standard Grinding Wheel: 8"D x 3/4" x 1-1/4"
- Max Table Load Capacity Including Chuck: 700 lbs
- Show More
- Show Less
- Max Surface Grind (W x L): 254.00mm x 508.00mm
- Height Travel From Table Top to Center of Spindle: 495.30mm
- Variable Table Speed, Hydraulic: 81.28 mm/sec - 406.40 mm/sec
- Max Table Travel: 520.70mm
- Automatic Cross Feed Increment: 0 - 25.40mm
- Max Cross Travel: 279.40mm
- Downfeed Handwheel Per Graduation: 0.01mm
- Per Revolution: 2.54mm
- Crossfeed Handwheel Per Graduation: 0.03mm
- Per Revolution: 5.08mm
- Automatic Incremental Downfeed: 0.03mm to 0.00mm
- Spindle Motor: 1.49 kw
- Standard Grinding Wheel: 203.20mm D x 19.05mm x 31.75mm
- Max Table Load Capacity Including Chuck: 317.45 kg
- Show More
- Show Less
Equipped With
- Automatic Incremental Downfeed (Surface and Plunge)
- Hydraulic Power Longitudinal Feed
- Power Crossfeed
- 8" x 18" Manual Chuck
- Combination Coolant System and Dust Collector
- Over the Wheel Dresser
- Auto Lube System
- External Hydraulic System
- Show More
- Show Less
- Automatic Incremental Downfeed (Surface and Plunge)
- Hydraulic Power Longitudinal Feed
- Power Crossfeed
- 203.20mm x 457.20mm Manual Chuck
- Combination Coolant System and Dust Collector
- Over the Wheel Dresser
- Auto Lube System
- External Hydraulic System
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
