Inventory # 47370 Year: 2014

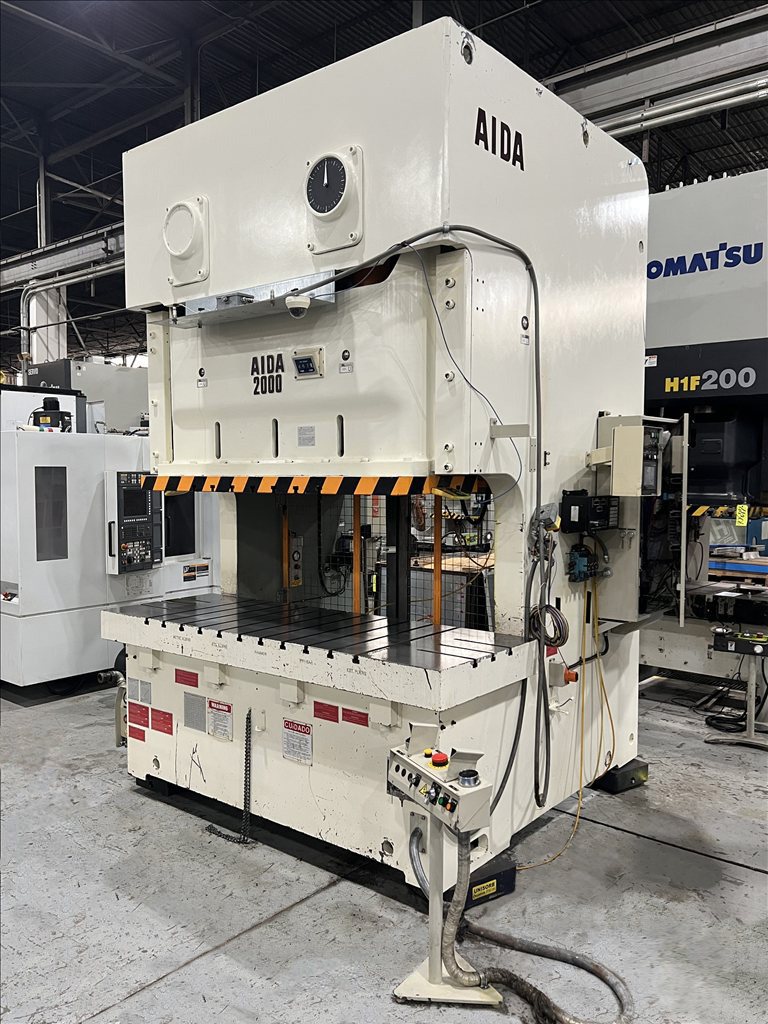

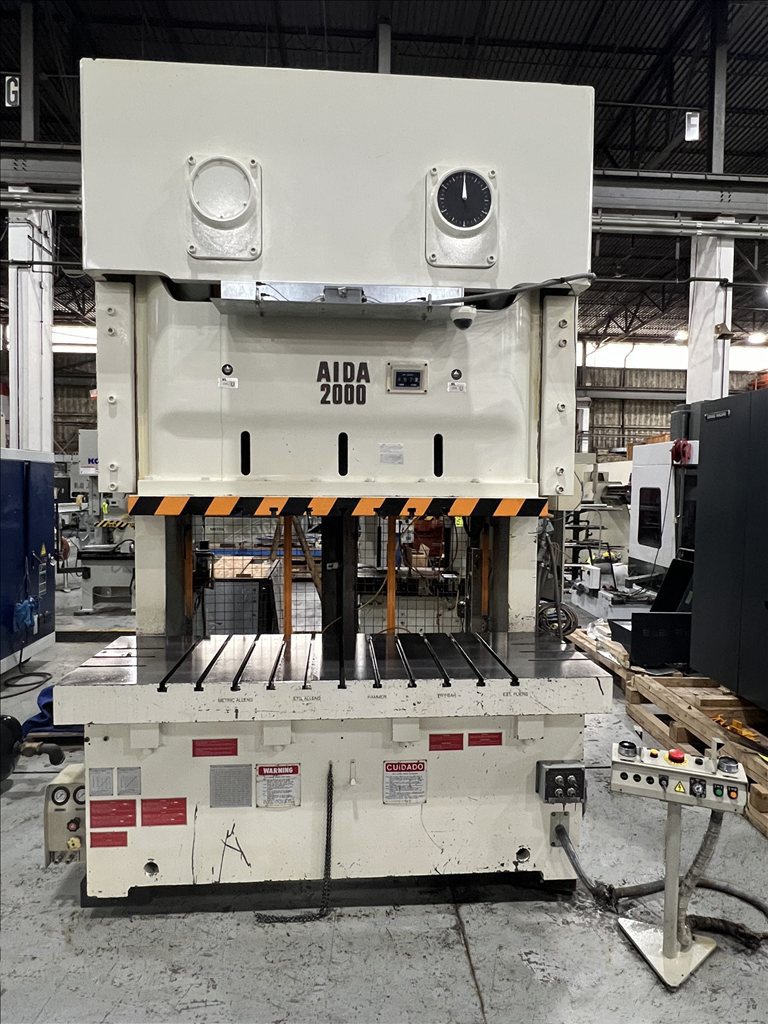

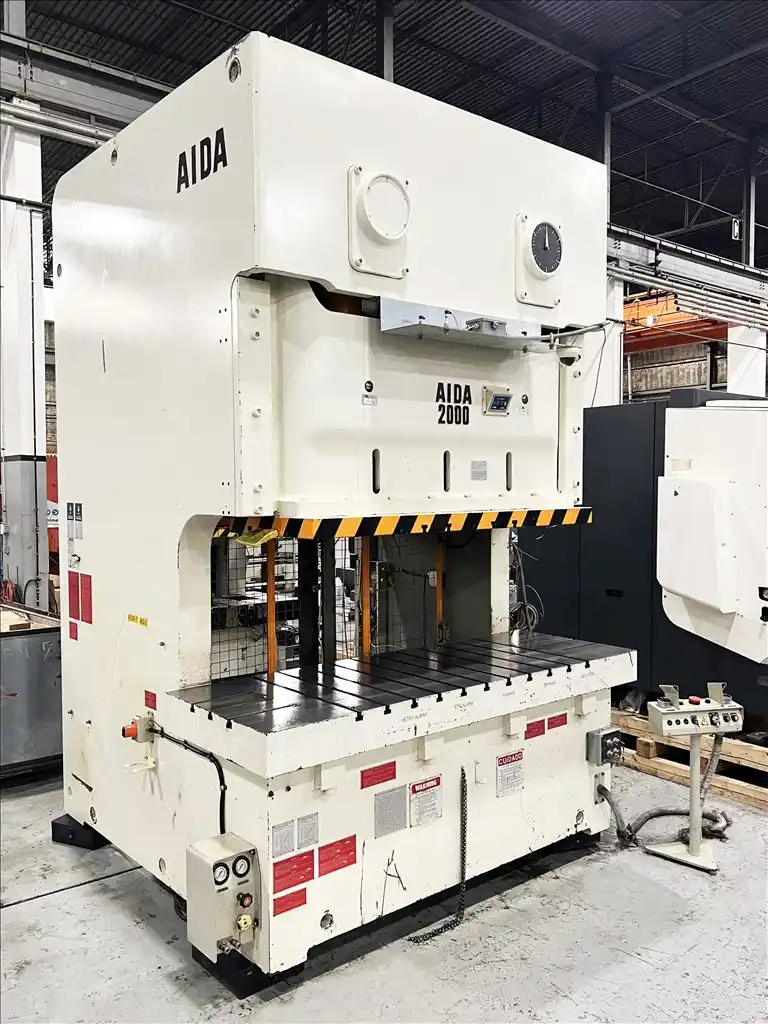

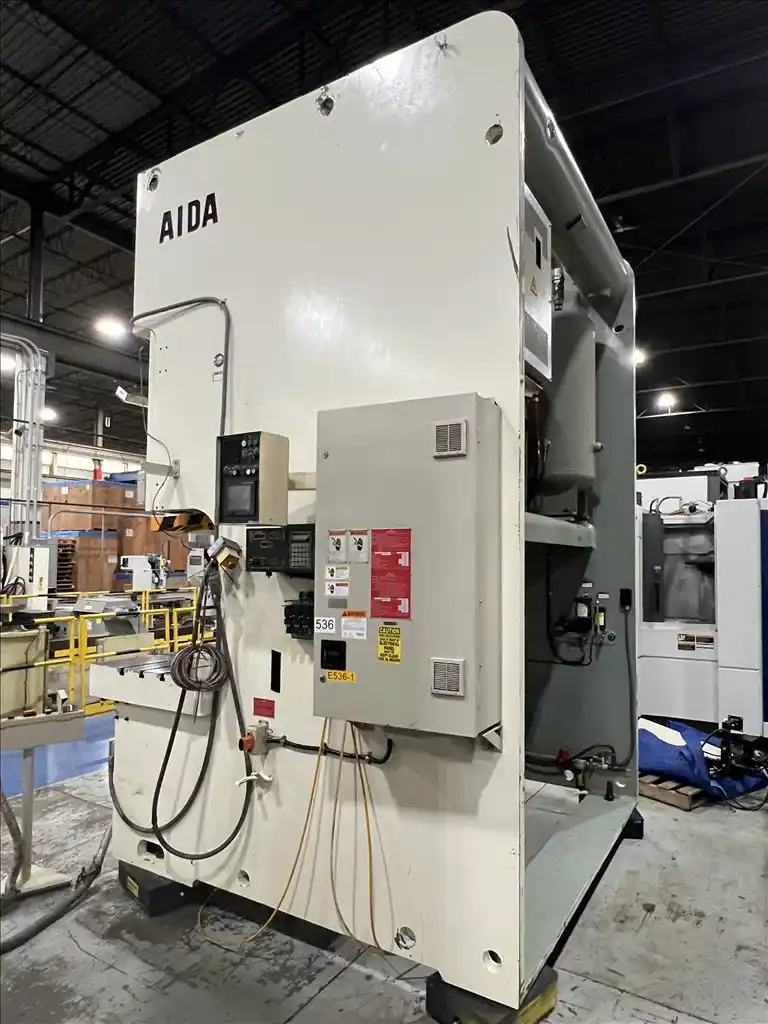

Aida NC2-2000(2)E Double Crank Gap Frame Press

Request a Quote
Measurement

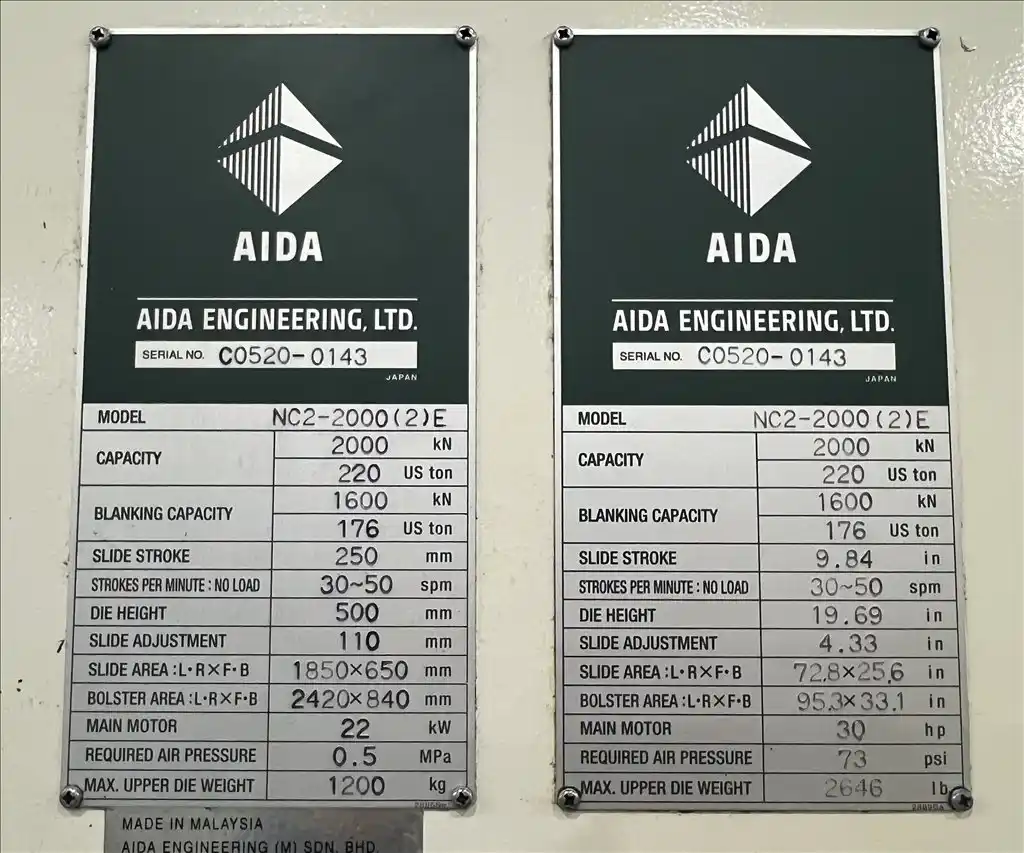

Specifications
  • Capacity: 220 Ton
  • Blanking Capacity: 176 Ton
  • Stroke Length: 9.8"
  • Shut Height: 26.4"

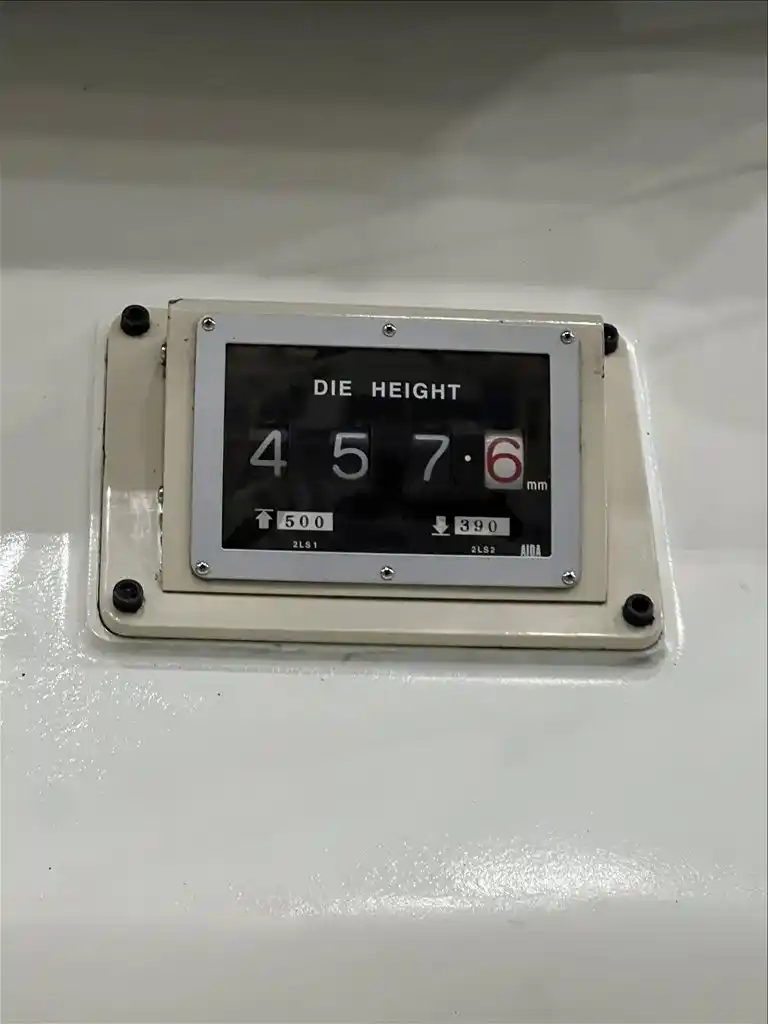

  • Die Height: 19.7"
  • Stroke Adjustment: 4.3"
  • Stroke Speed: 30-50 SPM

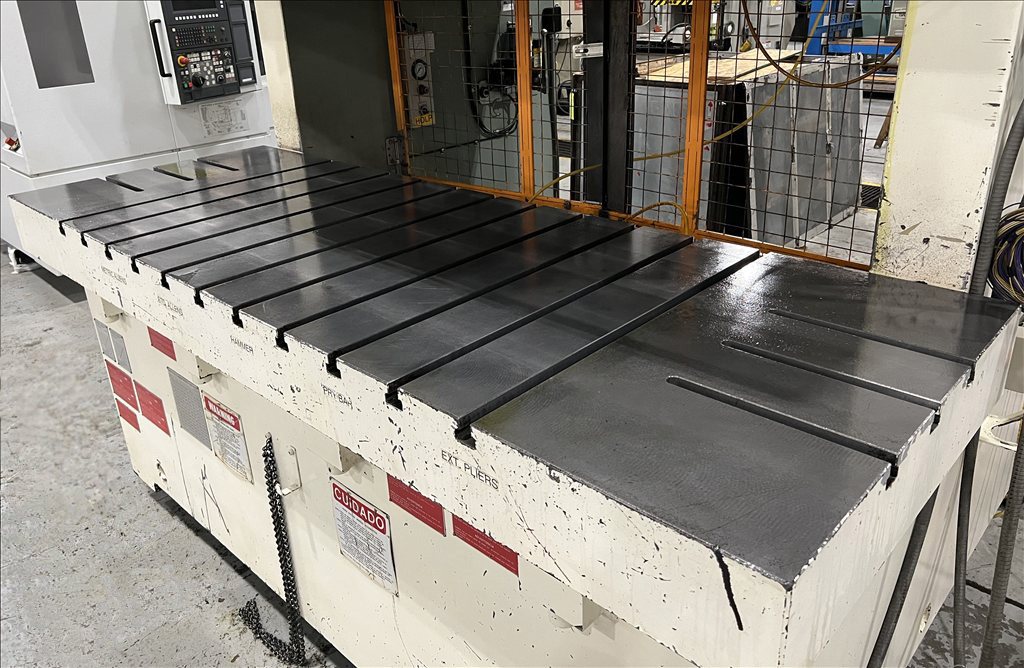

  • Bolster Area (L-R x F-B): 95.2" x 33.1"
  • Bolster Thickness: 6.7"

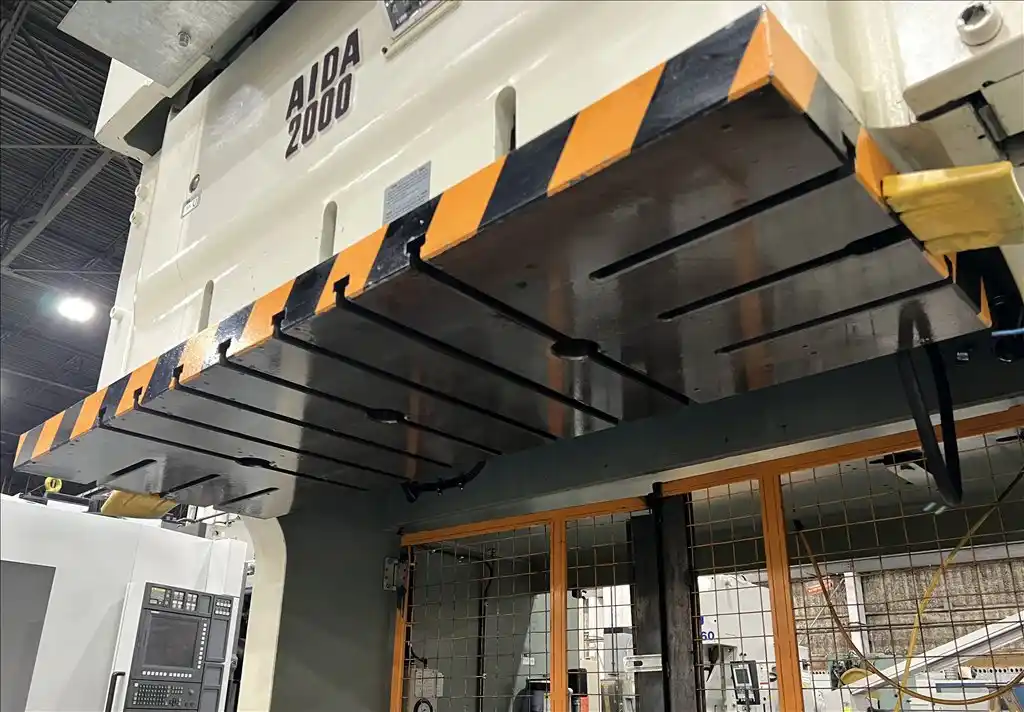

  • Ram Area (L-R x F-B): 72.8" x 25.6"
  • Required Air Pressure: 73 PSI
  • Max. Upper Die Weight: 2645 Lbs
  • Show More
  • Show Less
  • Capacity: 200 Metric Ton
  • Blanking Capacity: 160 Metric Ton
  • Stroke Length: 250 mm
  • Shut Height: 670 mm
  • Die Height: 500 mm
  • Stroke Adjustment: 110 mm
  • Stroke Speed: 30-50 SPM
  • Bolster Area (L-R x F-B): 2418 mm x 840 mm
  • Bolster Thickness: 170 mm
  • Ram Area (L-R x F-B): 1850 mm x 650 mm
  • Required Air Pressure: 5.13 kgs./sq.cm.
  • Max. Upper Die Weight: 1200 kg
  • Show More
  • Show Less
Equipped With

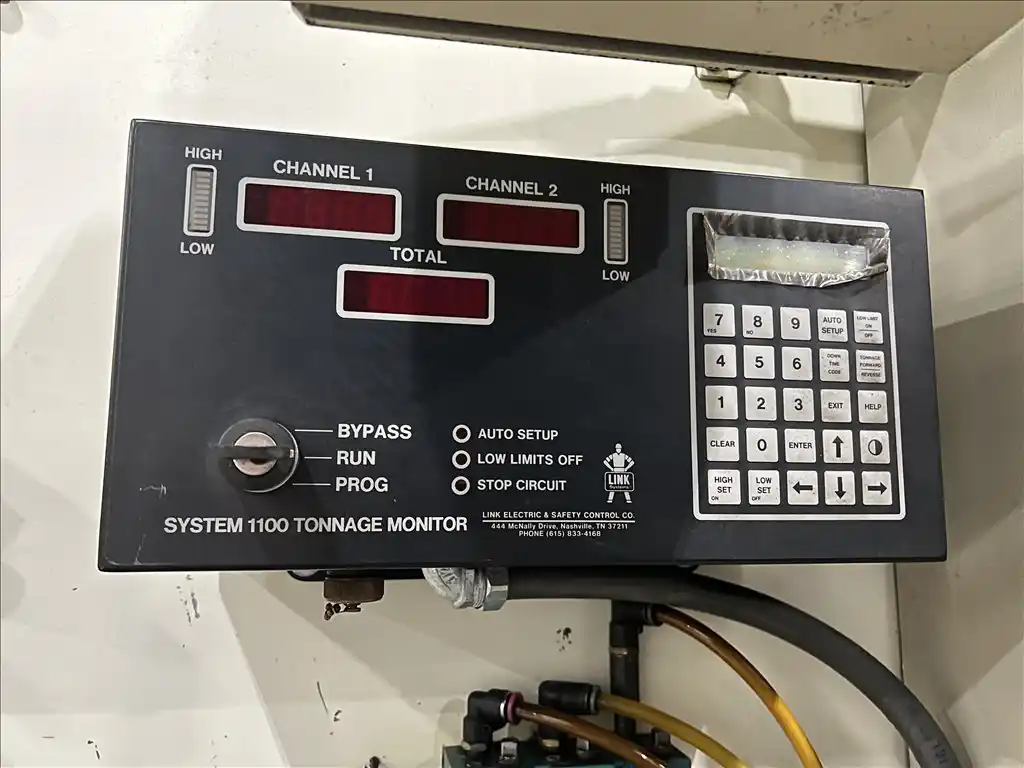

  • System 1100 Tonnage Monitor
  • Link Black Max Light Curtains
  • System 997.81 Metric Tonnage Monitor
  • Link Black Max Light Curtains
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
