Inventory # 45170 Year: N/A

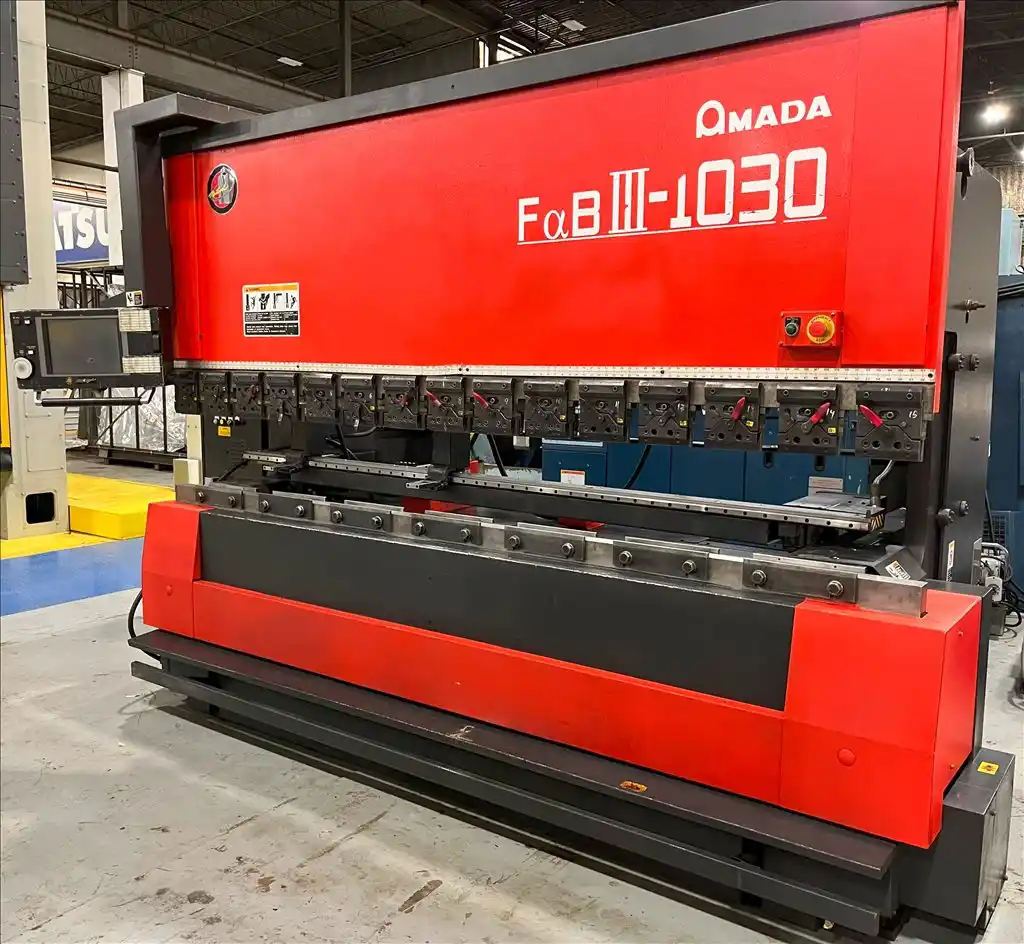

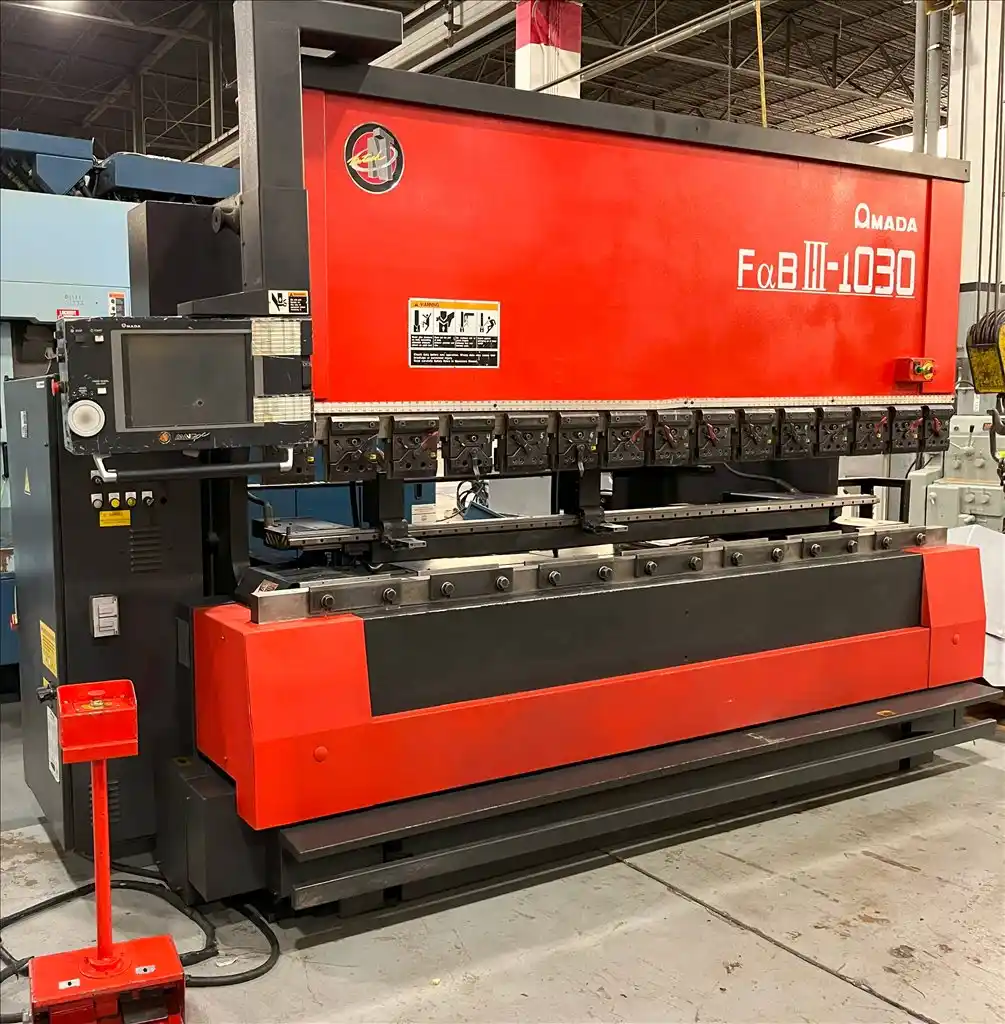

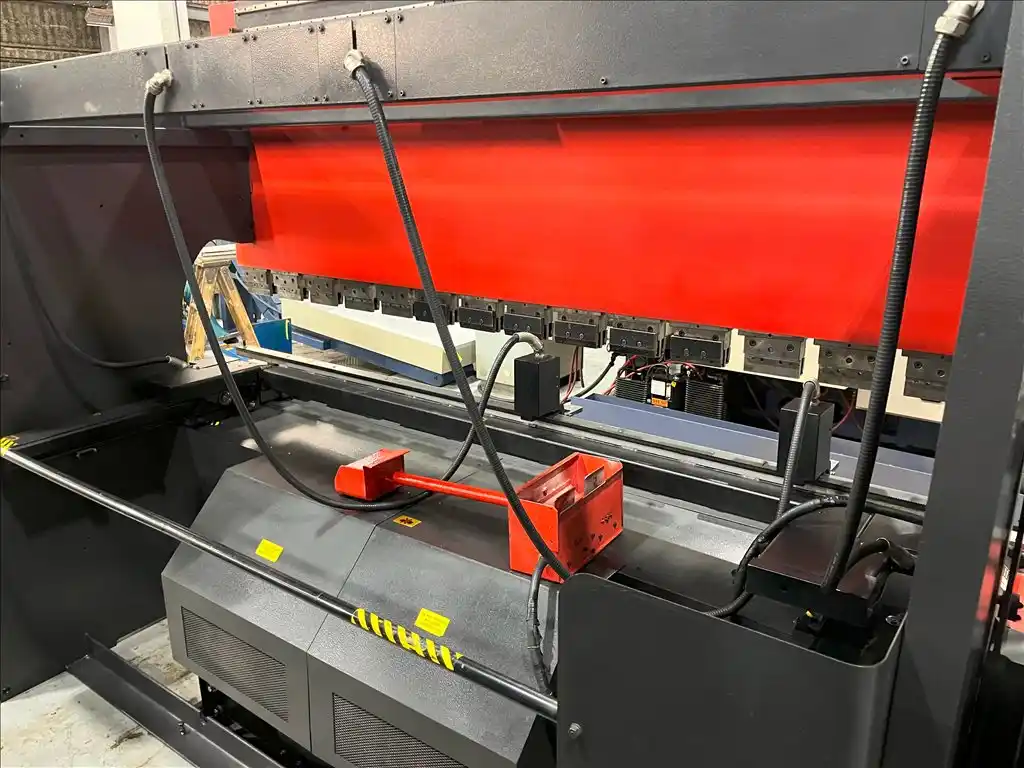

Amada FBD III-1030NT 8-Axis Upacting CNC Hydraulic Press Brake
Specifications
- Capacity: 110 Ton
- Table Length: 118.1"
- Max Bending Length: 118.1"
- Distance Between Uprights: 106.3"
- Throat Depth: 15.75"
- Length of Stroke: 5.91"
- Open Height: 16.54"
- Show More
- Show Less
- Capacity: 100 Metric Ton
- Table Length: 2999.74mm
- Max Bending Length: 2999.74mm
- Distance Between Uprights: 2700.02mm
- Throat Depth: 400.05mm
- Length of Stroke: 150.11mm
- Open Height: 420.12mm
- Show More
- Show Less
Equipped With
- Amada AMNC PC CNC Control

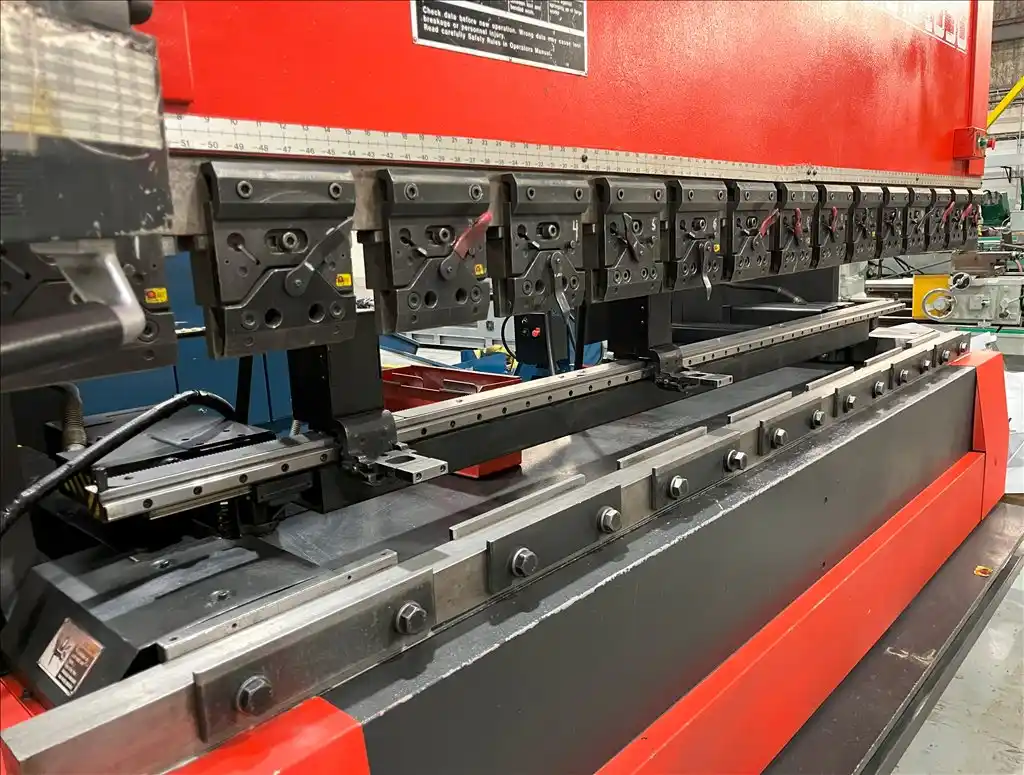

- Z II Type Amada One Touch Die Clamps

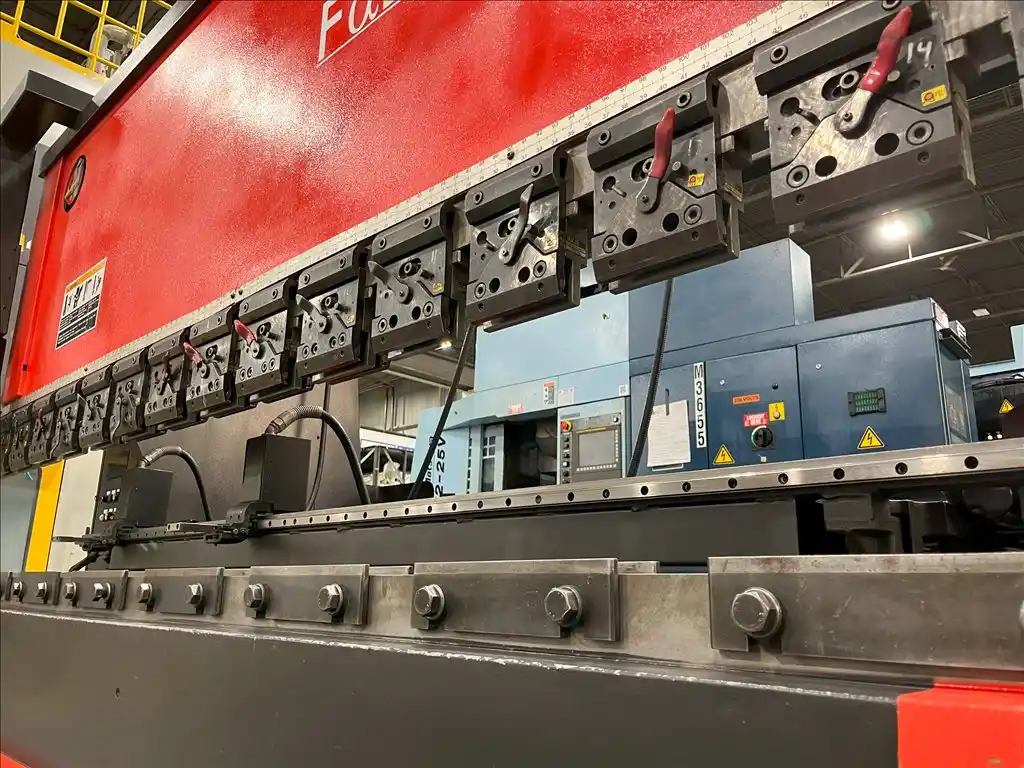

- 6-Axis Backgauge
- Amada AMNC PC CNC Control
- Z II Type Amada One Touch Die Clamps
- 6-Axis Backgauge
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
