Inventory # 46141 Year: 2008

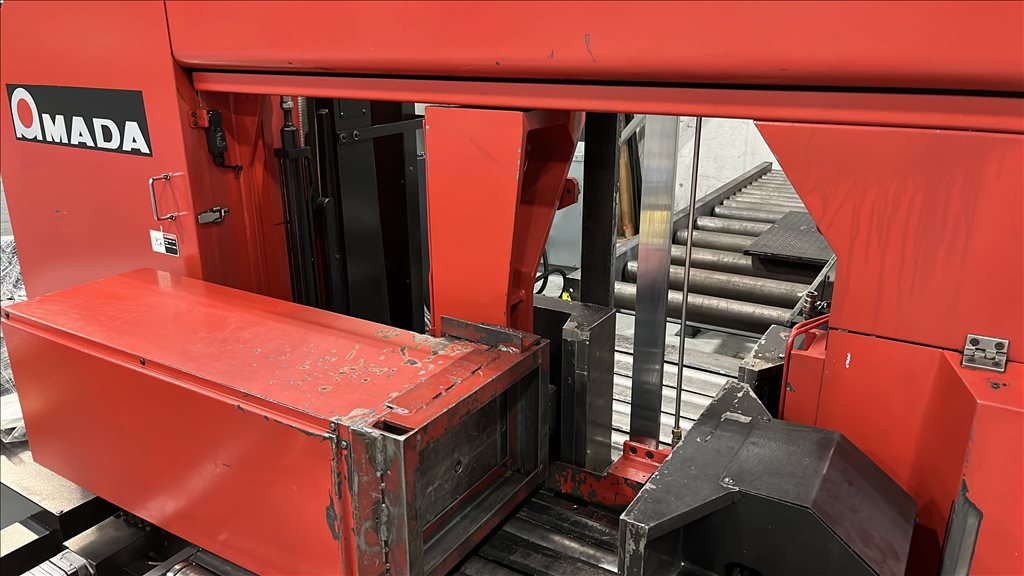

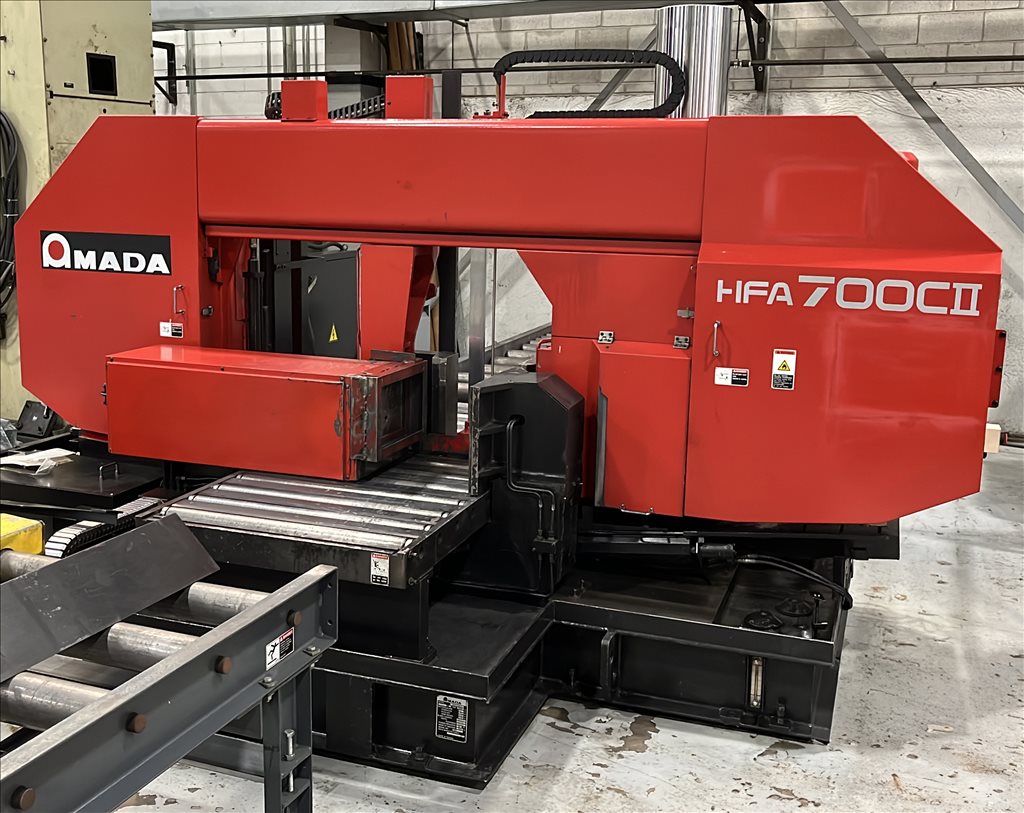

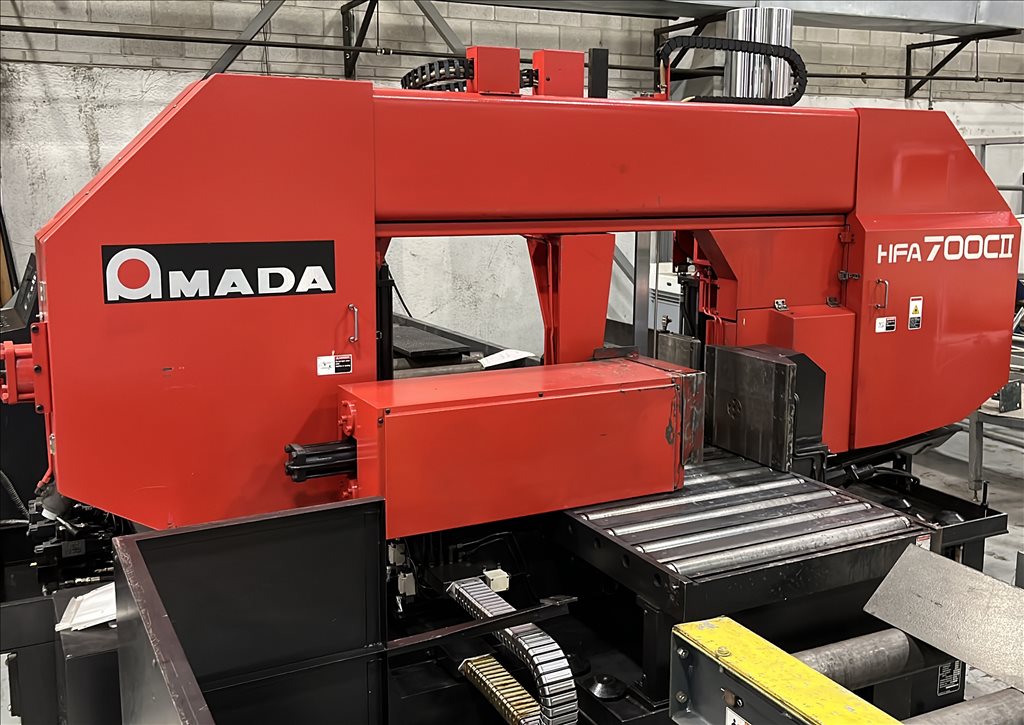

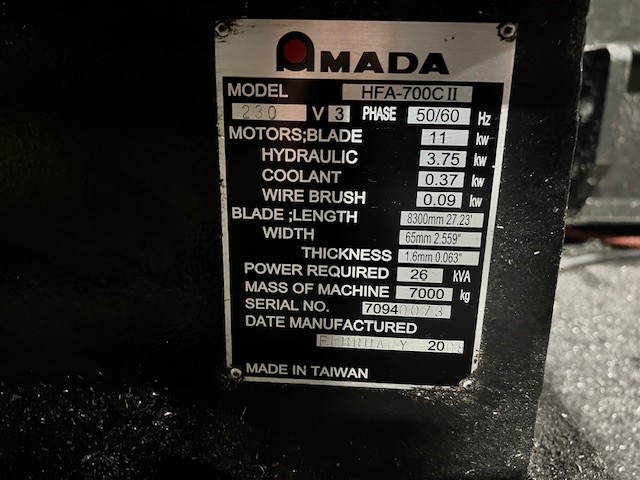

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com AMADA HFA700CII CNC HORIZONTAL BANDSAW

Request a Quote
Measurement

Specifications
  • Round (Diameter): 11.4" - 28"
  • Rectangle (W x H): 32" x 28"
  • Work Load Capacity: 17,637 lbs
  • Blade Size: 27'3" x 0.063" x 2-5/8"
  • Blade Speed: 49 fpm - 394 fpm by Inverter
  • Tension Control: Hydraulic
  • Vise Operation Type: Front and Rear Vise
  • Vise Operation Control: Hydraulic Full-Stroke Cylinder
  • Saw Blade Motor: 15 hp
  • Hydraulic Pump Motor: 5 hp
  • Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz
  • Power Requirement: 26 kVA
  • Show More
  • Show Less
  • Round (Diameter): 289.56mm - 711.20mm
  • Rectangle (W x H): 812.80mm x 711.20mm
  • Work Load Capacity: 7998.38 kg
  • Blade Size: 8305.80mm x 1.60mm x 66.68mm
  • Blade Speed: 248.92 mm/sec - 2001.52 mm/sec by Inverter
  • Tension Control: Hydraulic
  • Vise Operation Type: Front and Rear Vise
  • Vise Operation Control: Hydraulic Full-Stroke Cylinder
  • Saw Blade Motor: 11.19 kw
  • Hydraulic Pump Motor: 3.73 kw
  • Power Supply Voltage: AC220V10%, 3 PH, 60 Hz
  • Power Requirement: 26 kVA
  • Show More
  • Show Less
Equipped With

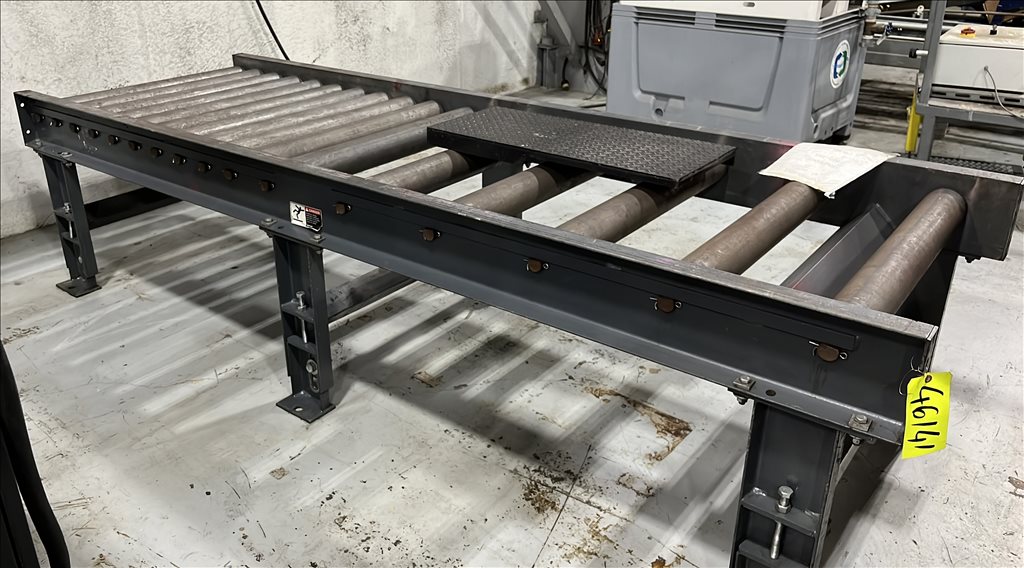

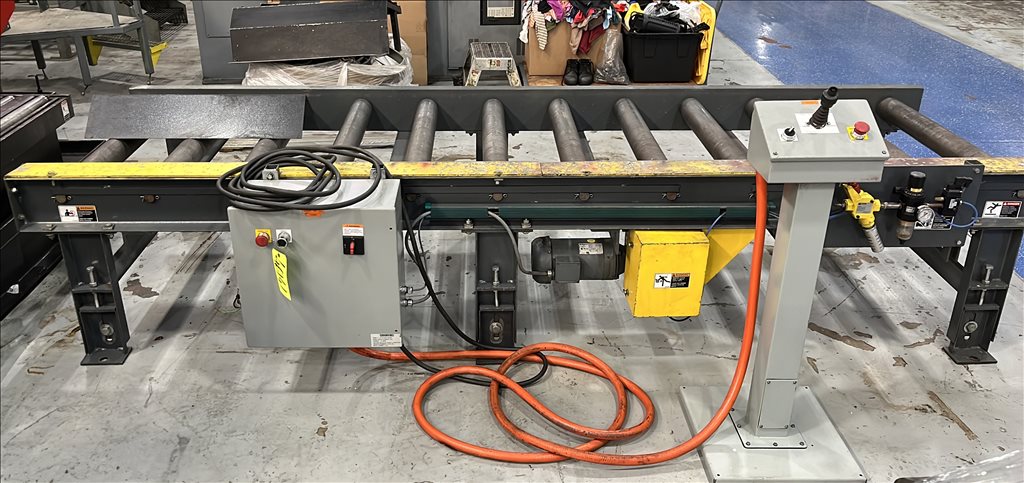

  • 12' Powered Infeed Conveyor
  • 10' Outfeed Conveyor
  • Automatically Positioned Guide Arm
  • Blade Deviation Monitor
  • Blade Speed Controlled by Inverter
  • Chip Conveyor
  • CNC Controlled Down Feed

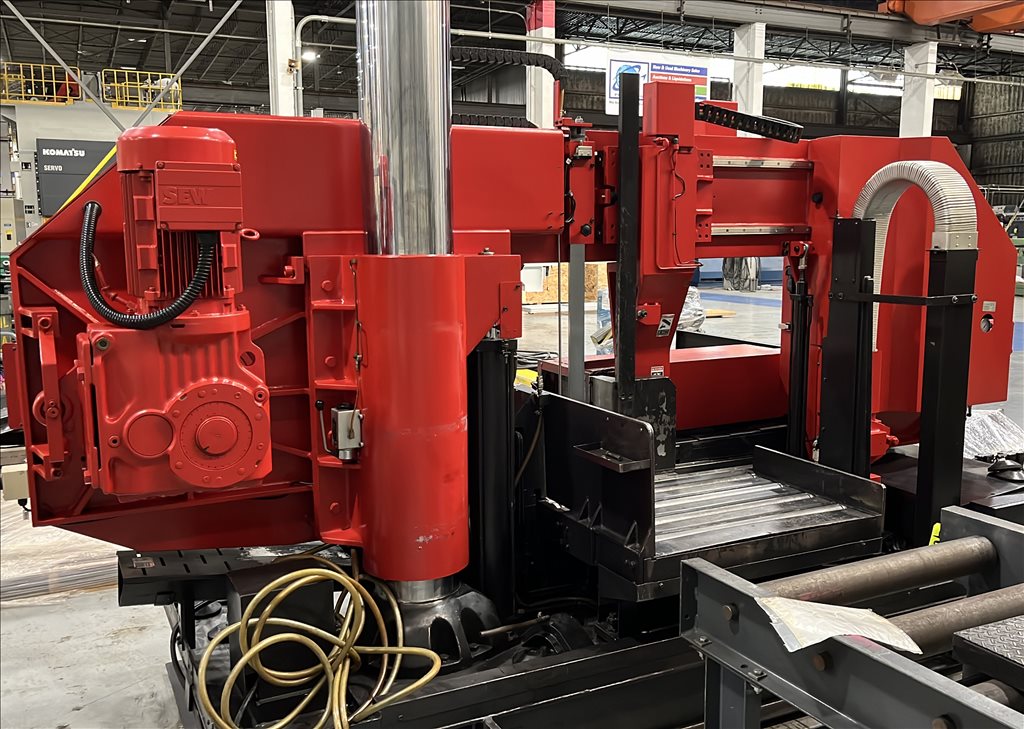

  • Drive by No Torque Loss Helical Bevel Gear

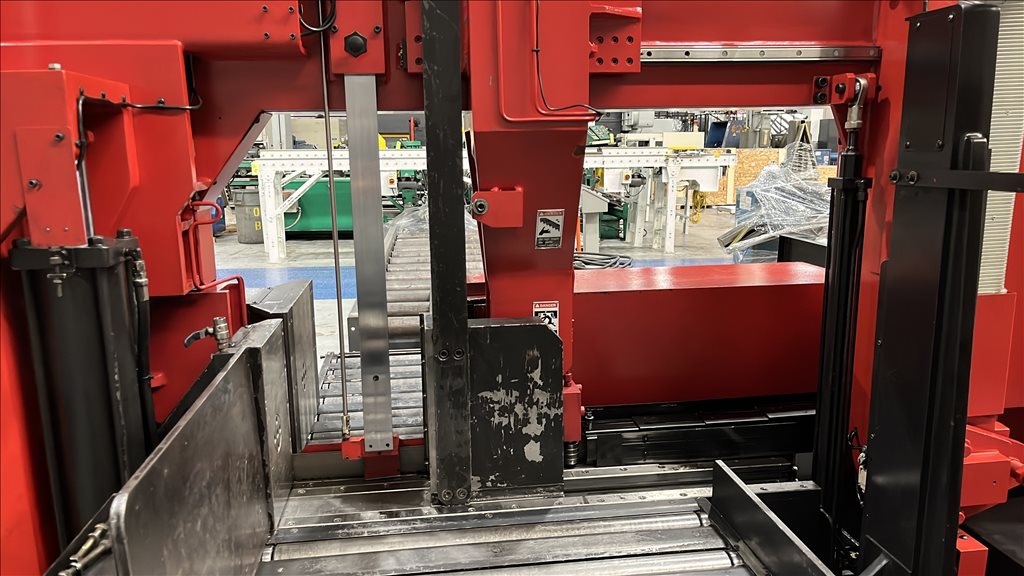

  • Full Stroke Vises
  • Hydraulic Blade Tensioning
  • Motion Detector
  • Piece Counter

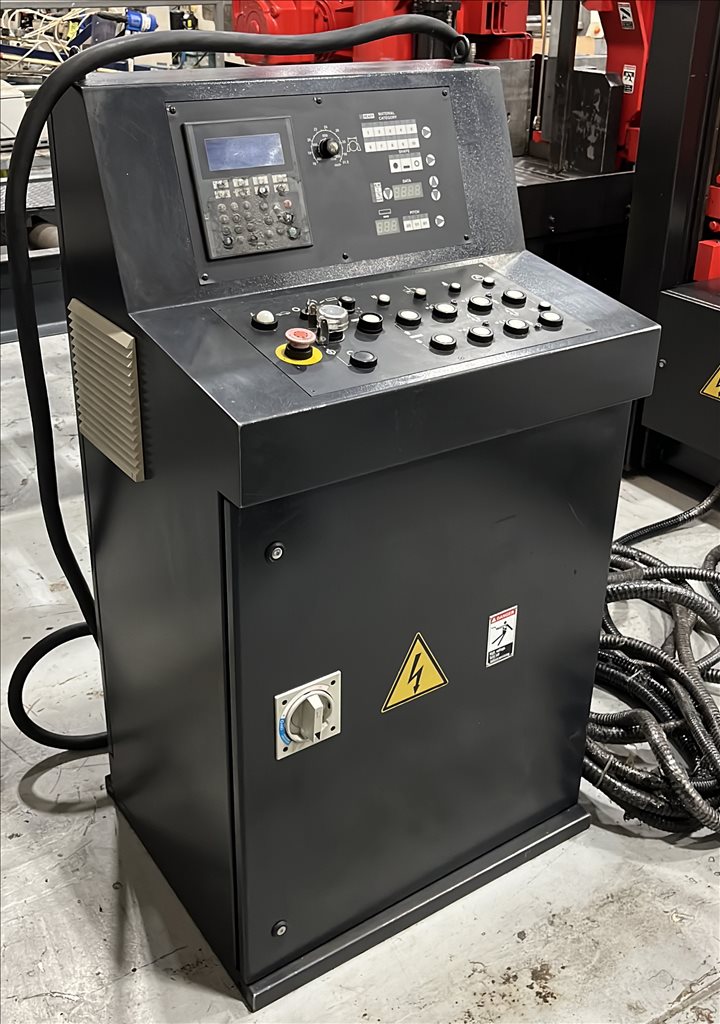

  • Programmable Operation by Micro-Processor
  • Vibration Damping Rollers
  • Wheel Cover Limit Switch
  • Show More
  • Show Less
  • 3657.60mmPowered Infeed Conveyor
  • 3048.00mmOutfeed Conveyor
  • Automatically Positioned Guide Arm
  • Blade Deviation Monitor
  • Blade Speed Controlled by Inverter
  • Chip Conveyor
  • CNC Controlled Down Feed
  • Drive by No Torque Loss Helical Bevel Gear
  • Full Stroke Vises
  • Hydraulic Blade Tensioning
  • Motion Detector
  • Piece Counter
  • Programmable Operation by Micro-Processor
  • Vibration Damping Rollers
  • Wheel Cover Limit Switch
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
