Inventory # 47937 Year: 2000

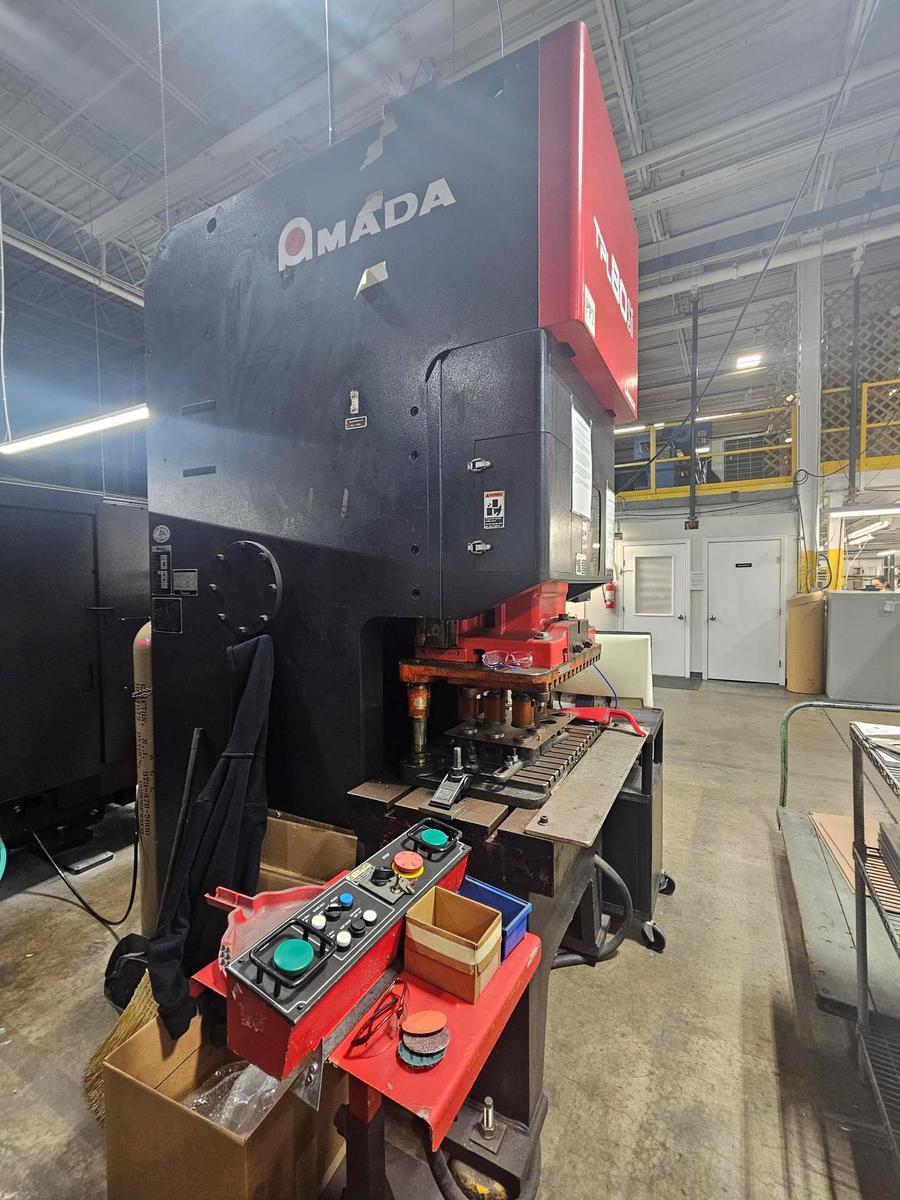

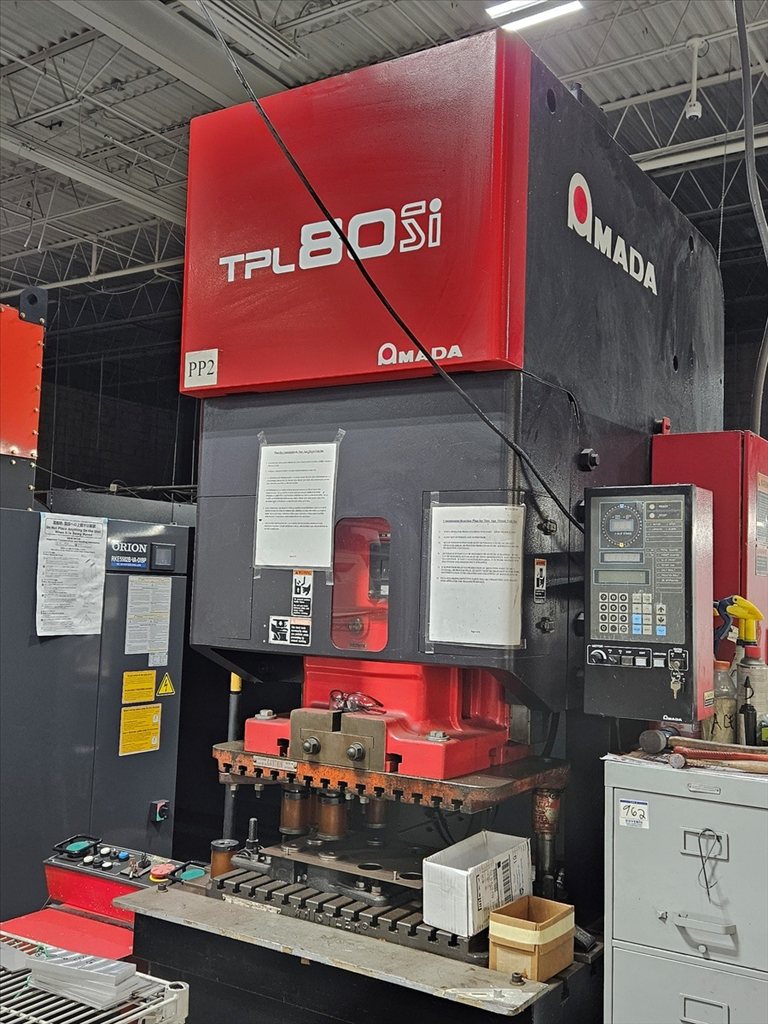

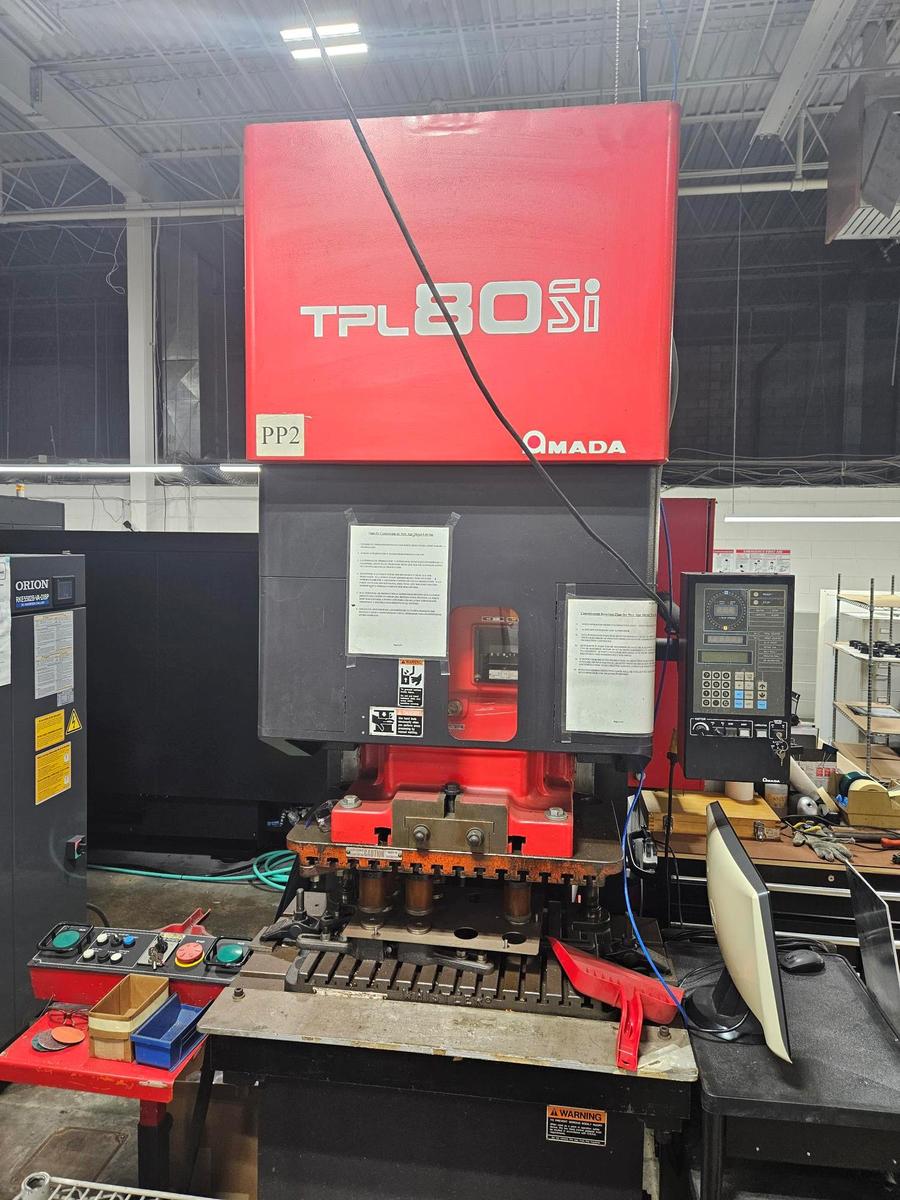

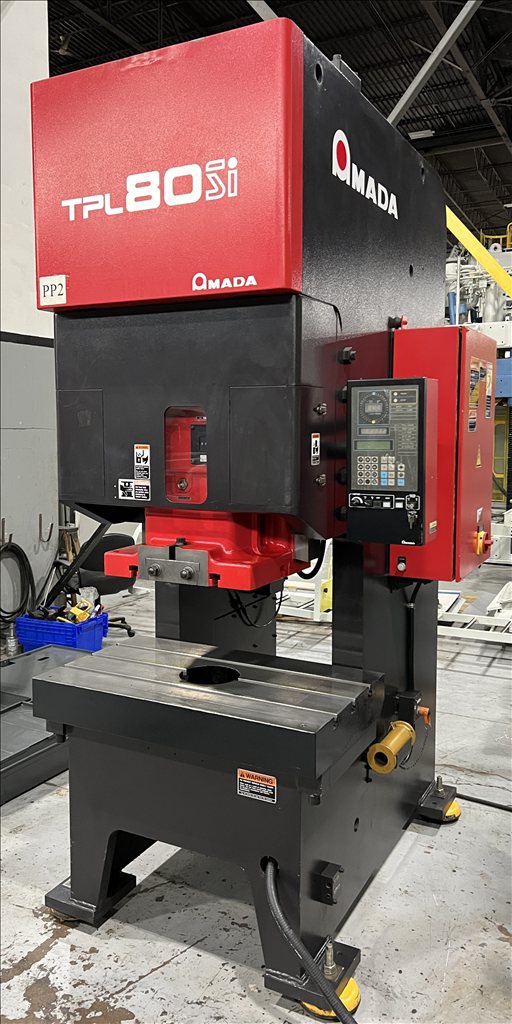

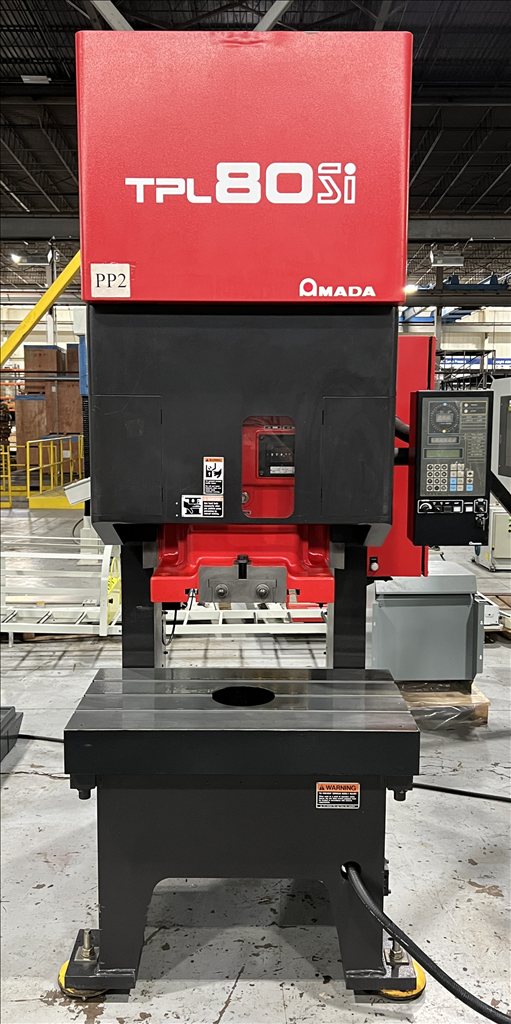

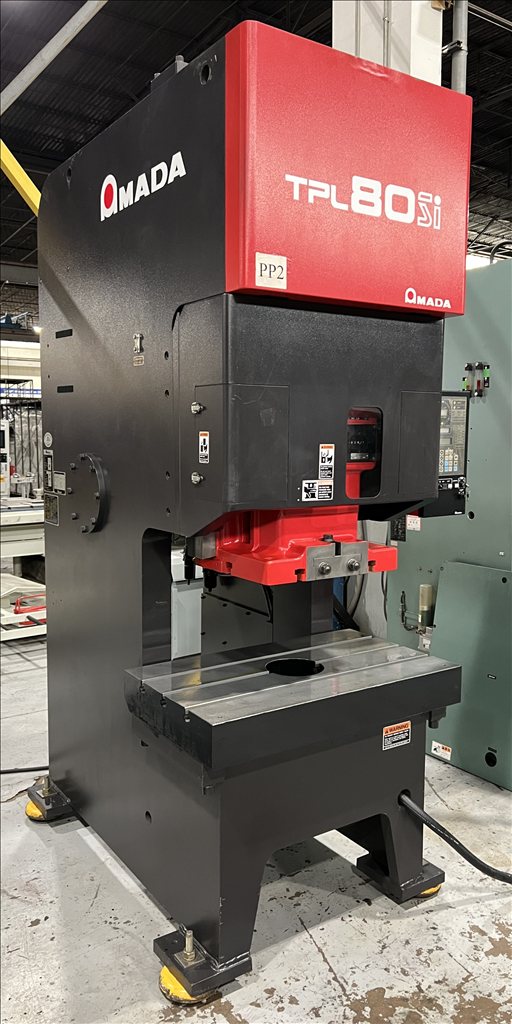

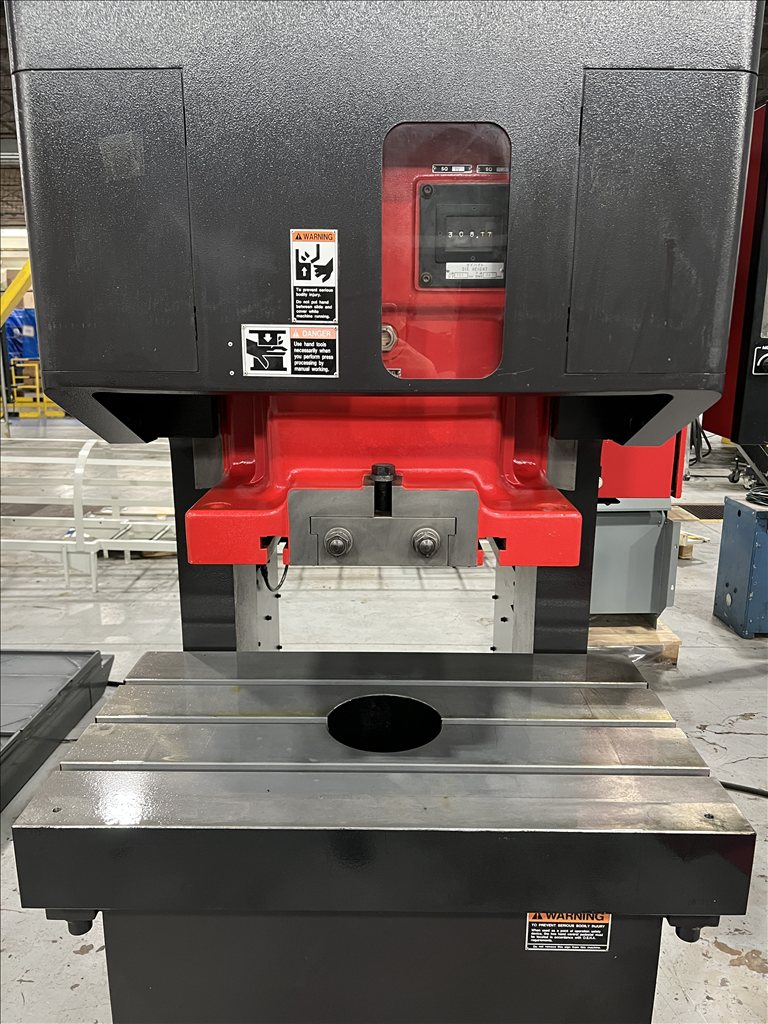

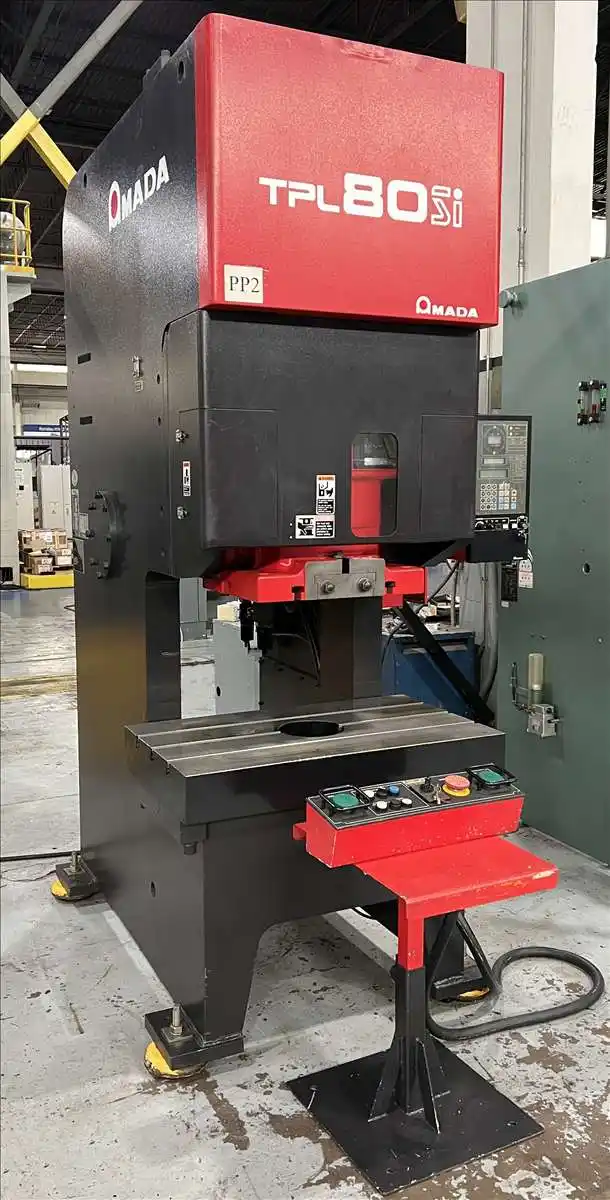

Amada TPL80SI Single Point, Link Drive, Gap Frame Press

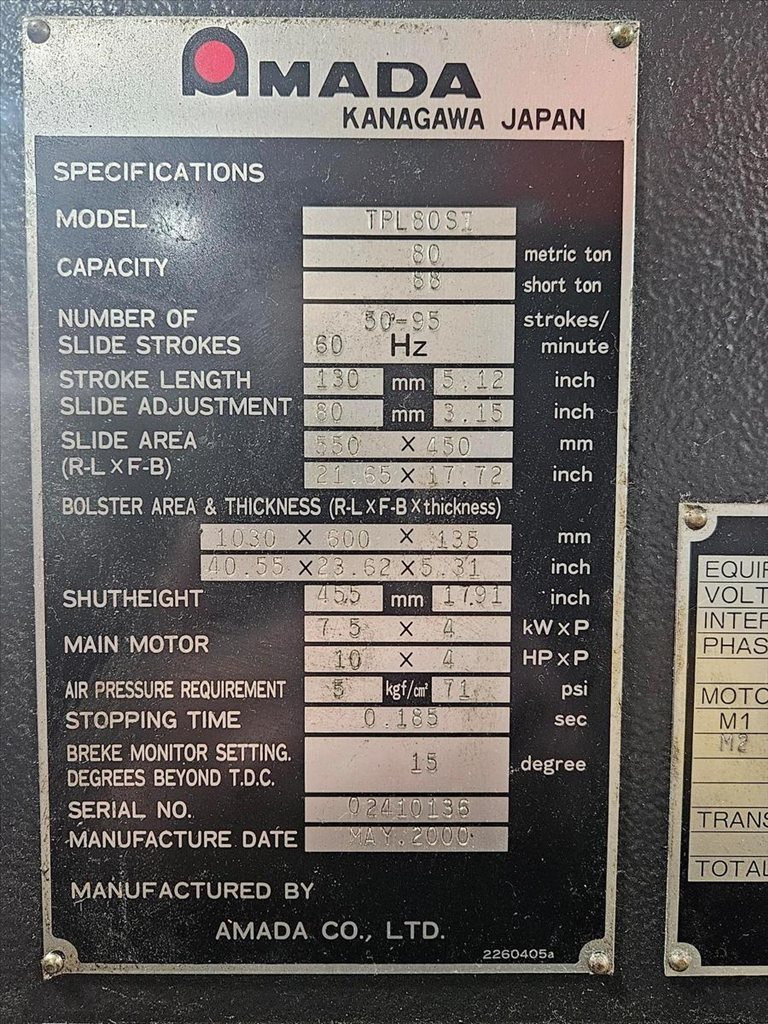

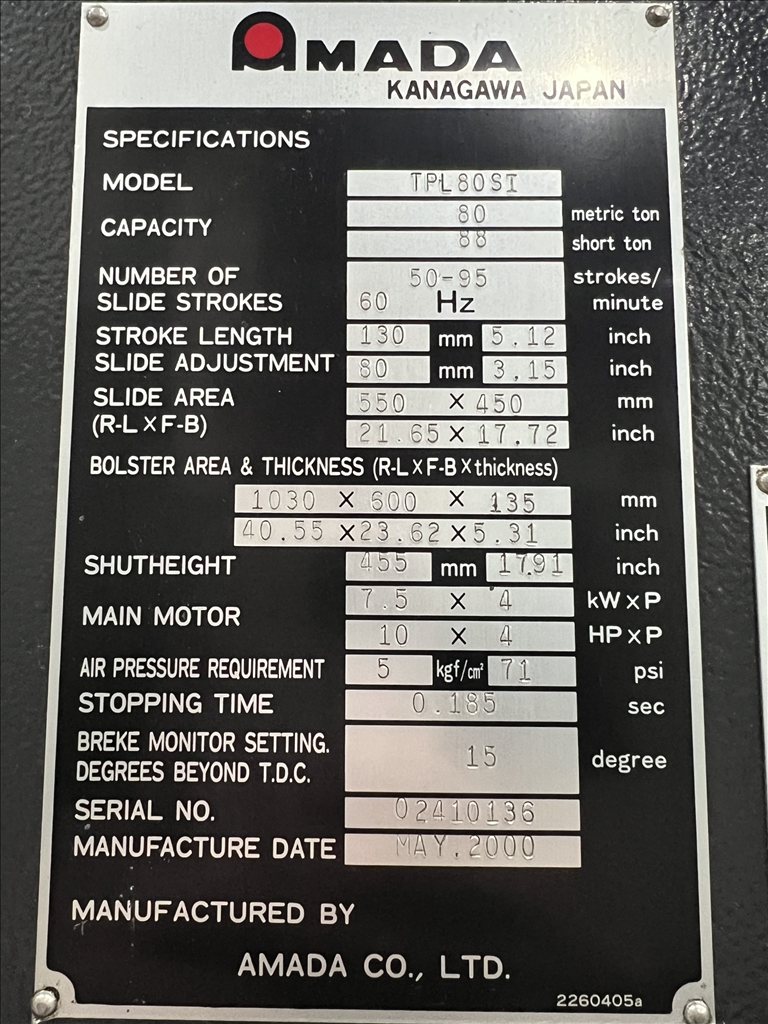

Specifications
- Press Capacity: 88 Short Tons
- Stroke: 5.1"
- Shut Height: 17.9"
- Speed: 50 - 95 SPM
- Bolster Area: 40.5" x 23.6"
- Bolster Thickness: 5.3"
- Slide Area: 21.7” x 17.7”
- Slide Adjustment: 3.2"
- Main Motor: 10 HP
- Show More
- Show Less
- Press Capacity: 88 Short Tons
- Stroke: 129.54mm
- Shut Height: 454.66mm
- Speed: 50 - 95 SPM
- Bolster Area: 1028.70mm x 599.44mm
- Bolster Thickness: 134.62mm
- Slide Area: 551.18mm x 449.58mm
- Slide Adjustment: 81.28mm
- Main Motor: 7.46 kw
- Show More
- Show Less
Equipped With

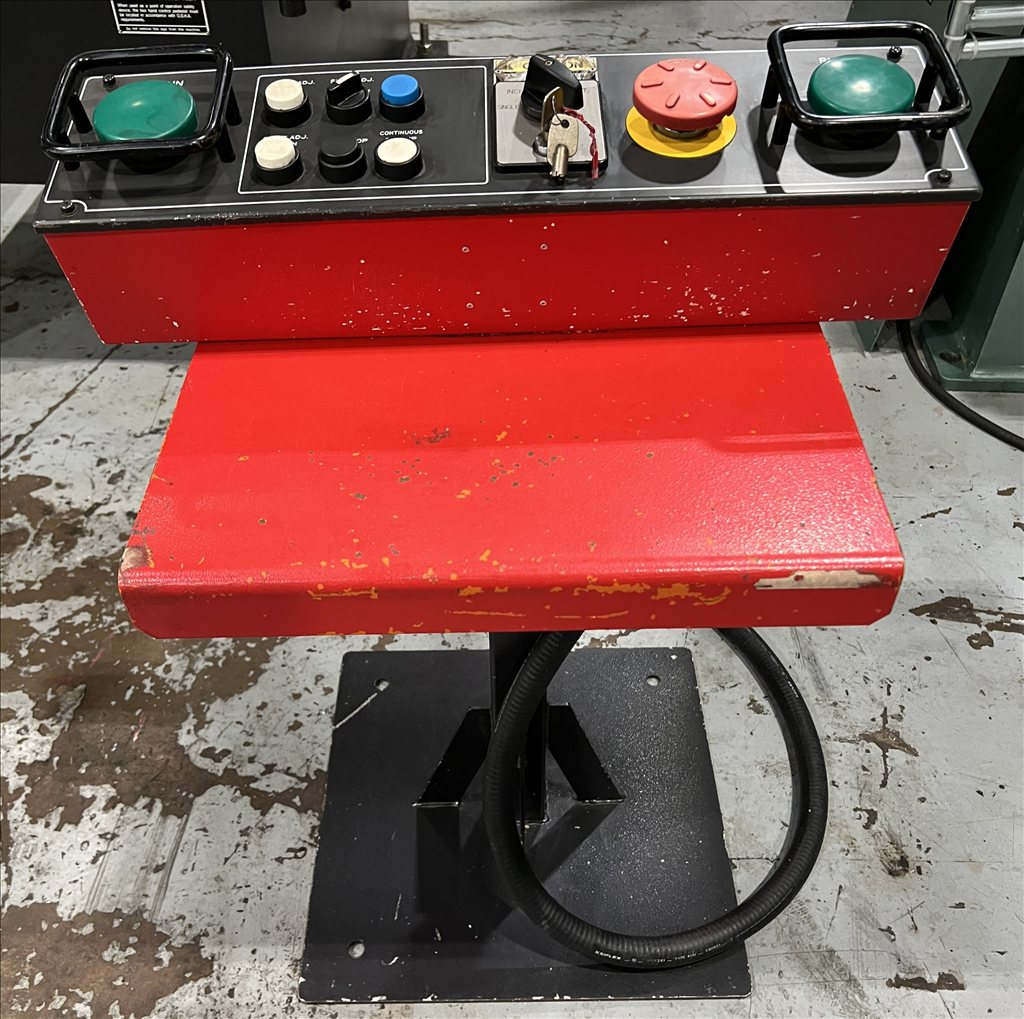

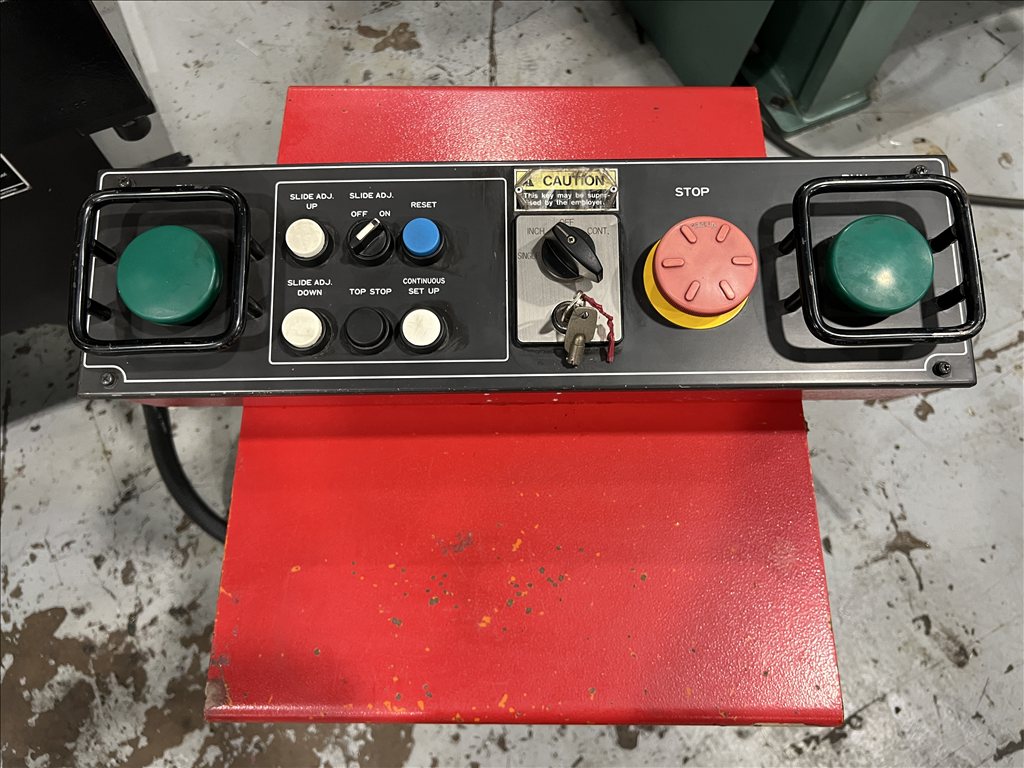

- Operator T-Stand w/ Palm Buttons
- Link Drive
- Air Counterbalance
- Wet Type Clutch & Brake

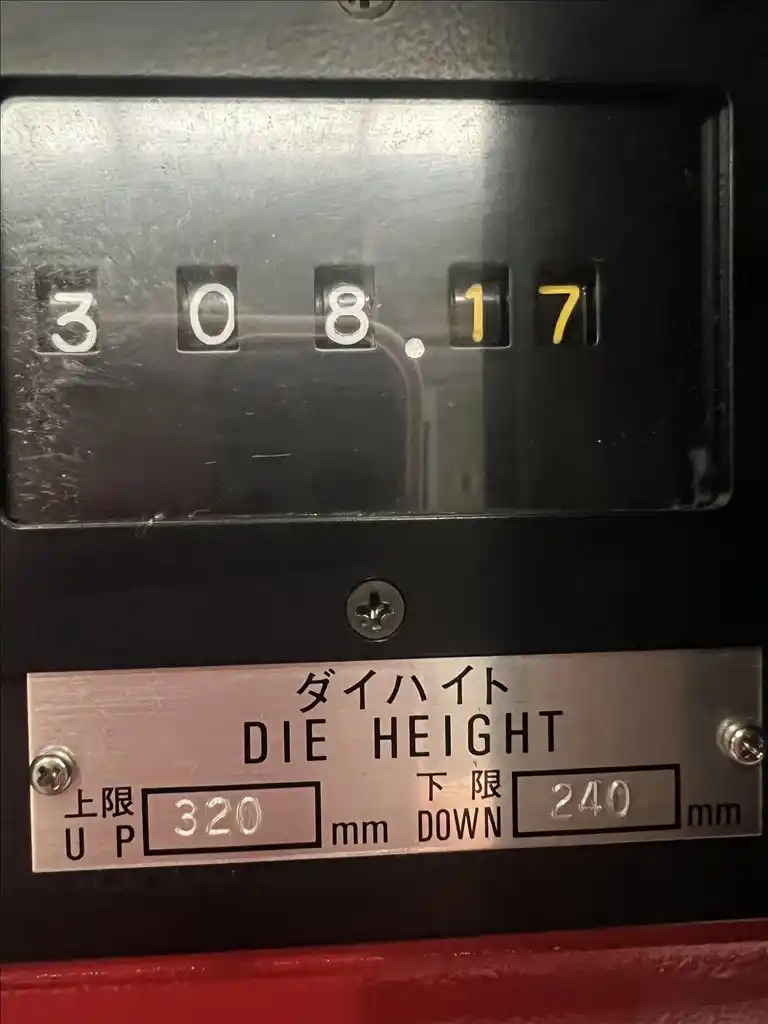

- Motorized Shut Height Adjustment

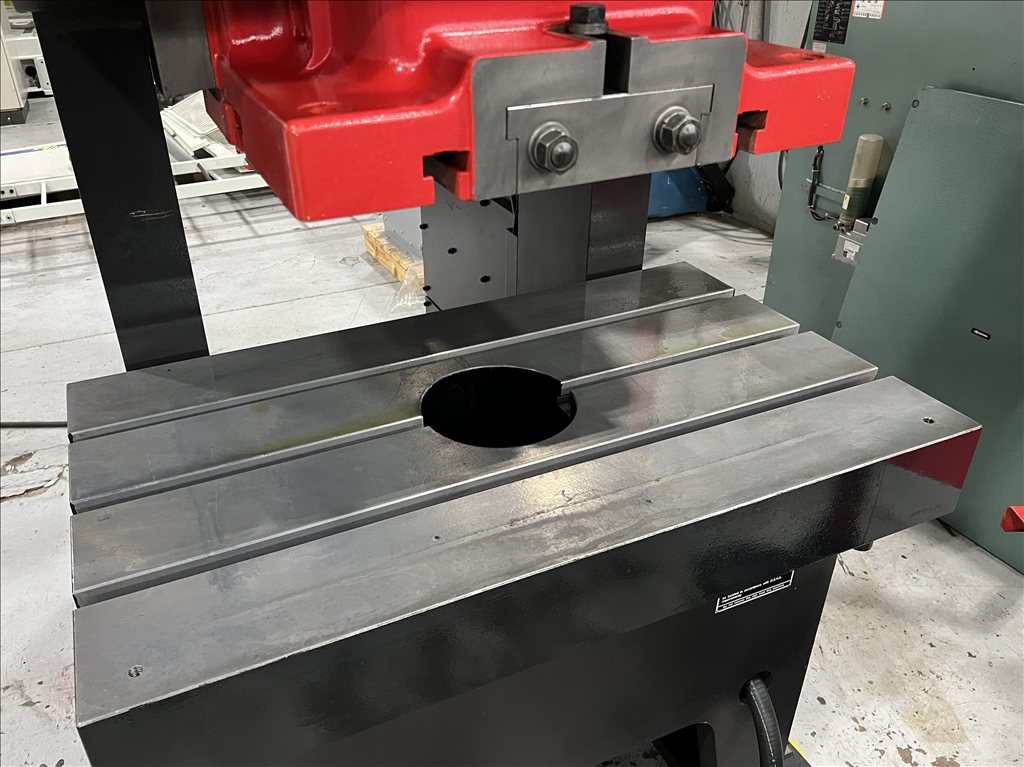

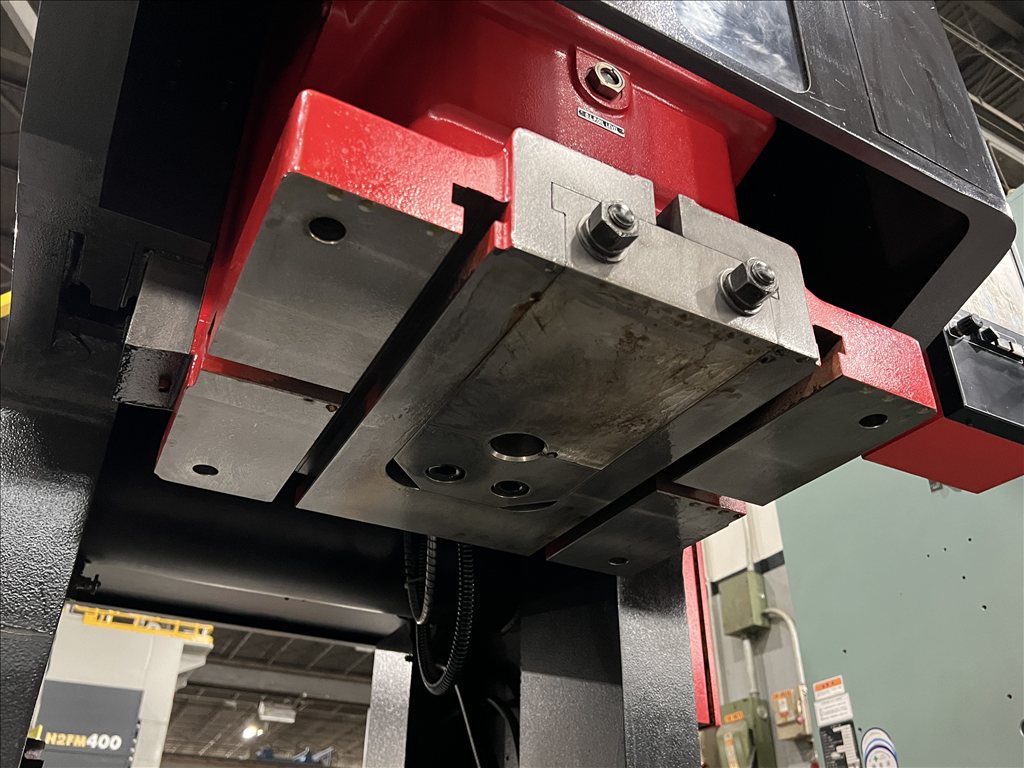

- T-Slotted Bolster & Slide
- Level Pads
- Show More
- Show Less
- Operator T-Stand w/ Palm Buttons
- Link Drive
- Air Counterbalance
- Wet Type Clutch & Brake
- Motorized Shut Height Adjustment
- T-Slotted Bolster & Slide
- Level Pads
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
