Inventory # 36797

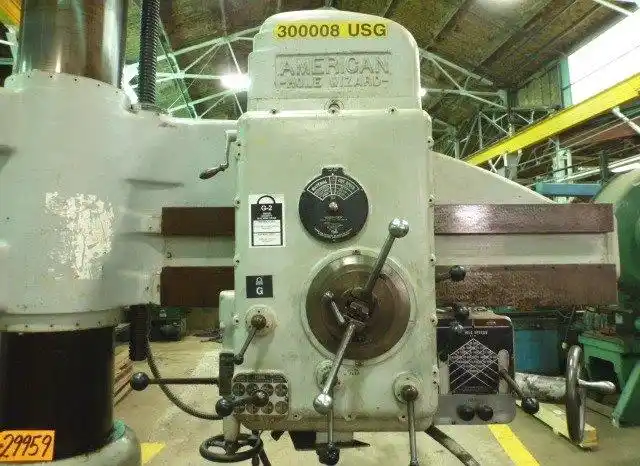

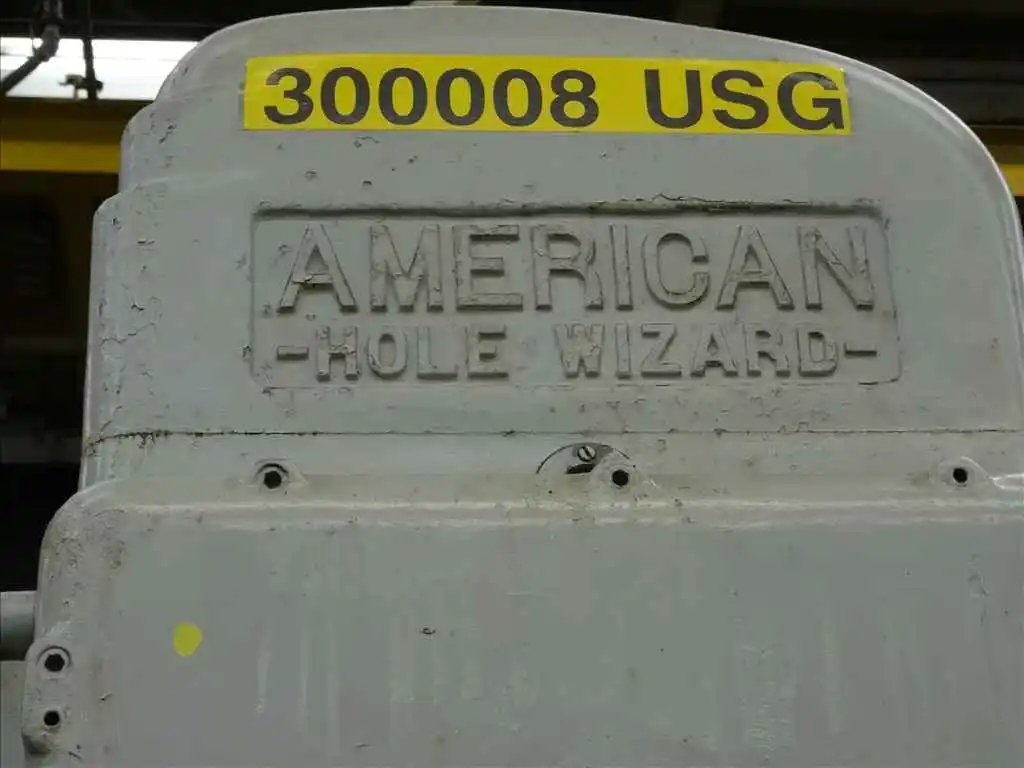

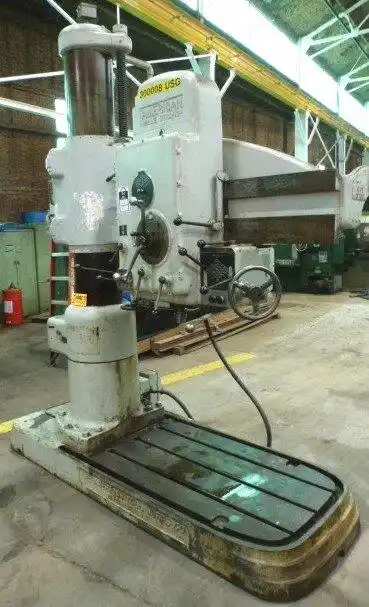

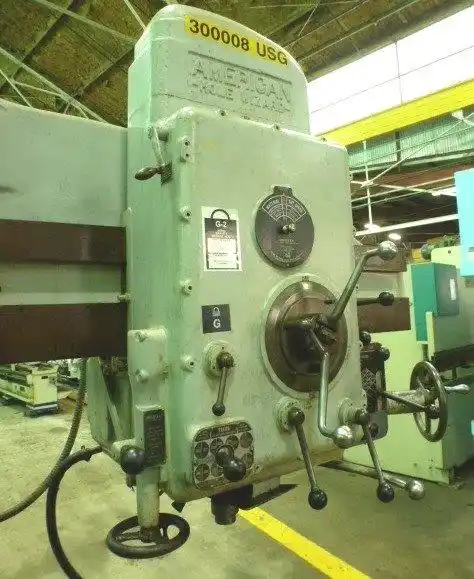

American Hole Wizard 4' X 13" Radial ARM Drill
Specifications

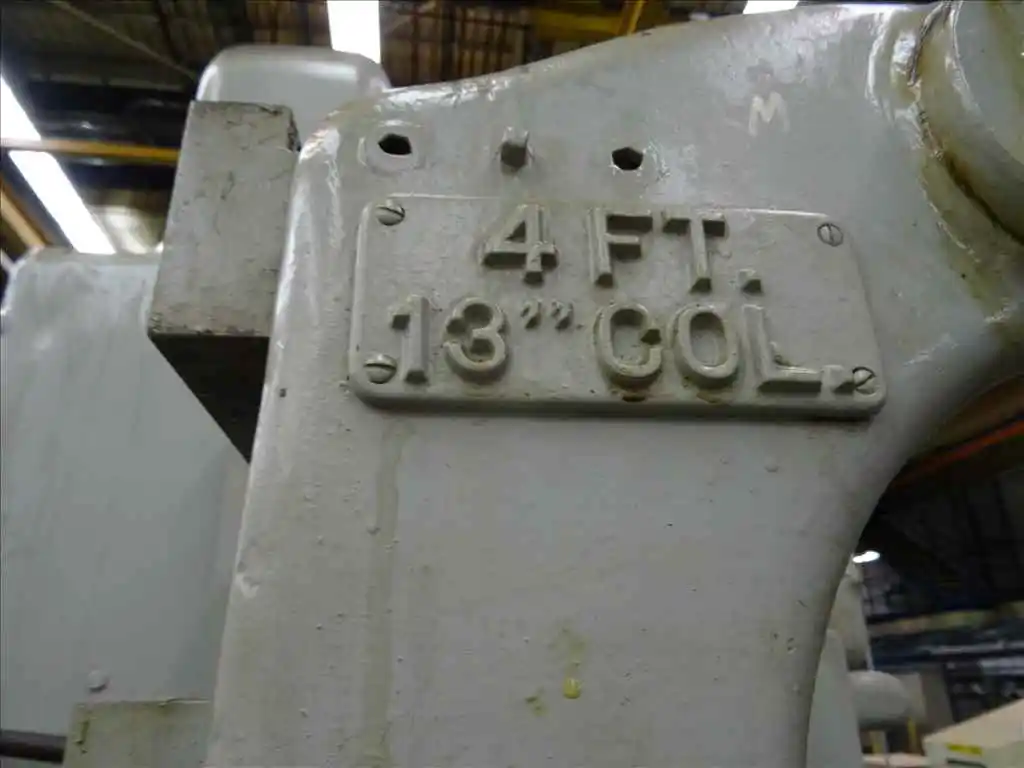

- Diameter of Column: 13"
- Drills to Center of Circle on Base: 96"
- Spindle to Base: 6" - 60"
- Spindle Speeds: 25 - 2000 RPM
- Spindle Travel: 18"
- Spindle Taper: #5MT

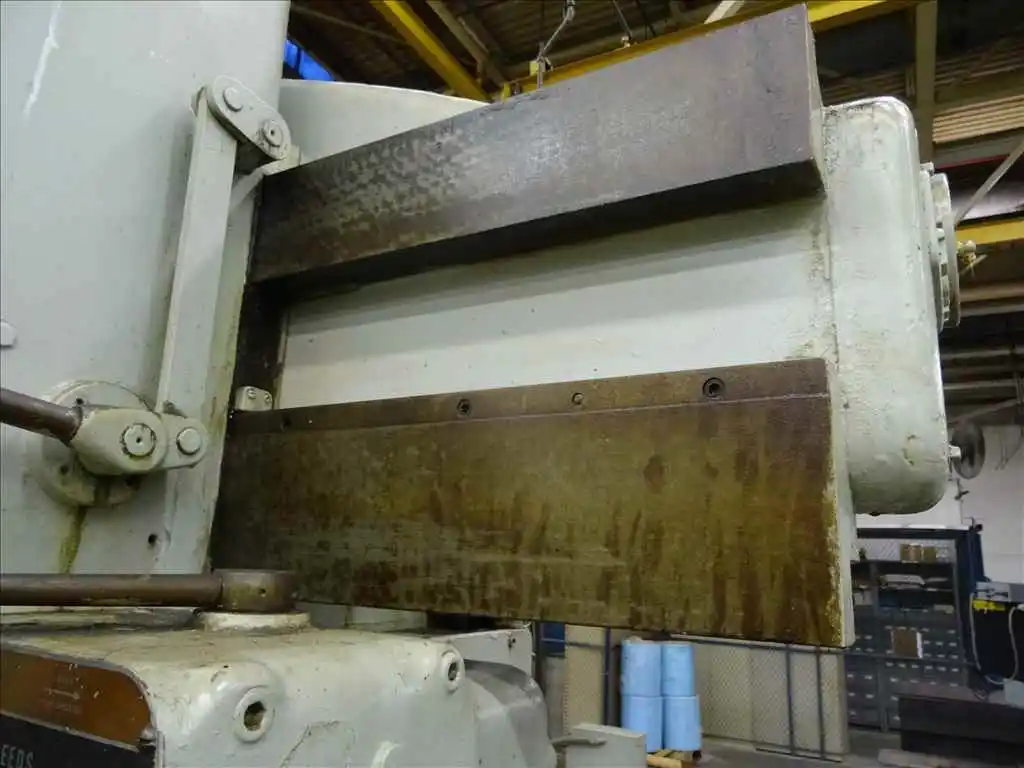

- Traverse of Drill Head on Arm: 34-3/4"
- Traverse of Arm on Column: 36"
- Number of Spindle Feeds: 16
- Tap Leads, Threads Per Inch: 8, 11-1/2, 14, 18
- Range of Feeds: .003" - .125"
- Height of Base: 8"
- Electricals: 220/440/3/60
- Show More
- Show Less
- Diameter of Column: 330.20mm
- Drills to Center of Circle on Base: 2438.40mm
- Spindle to Base: 152.40mm - 1524.00mm
- Spindle Speeds: 25 - 2000 RPM
- Spindle Travel: 457.20mm
- Spindle Taper: #5MT
- Traverse of Drill Head on Arm: 882.65mm
- Traverse of Arm on Column: 914.40mm
- Number of Spindle Feeds: 16
- Tap Leads, Threads Per Inch: 8, 11-1/2, 14, 18
- Range of Feeds: 0.08mm - 3.18mm
- Height of Base: 203.20mm
- Electricals: 220/440/3/60
- Show More
- Show Less
Equipped With
- 10 HP Motor
- Coolant Pump in Base
- Power Elevation
- Power Head Traverse
- Power Clamping
- Show More
- Show Less
- 7.46 kw Motor
- Coolant Pump in Base
- Power Elevation
- Power Head Traverse
- Power Clamping
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Cincinnati, oh
- Disclaimer: Preliminary Specifications....
