Inventory # 48520 Year: 2024

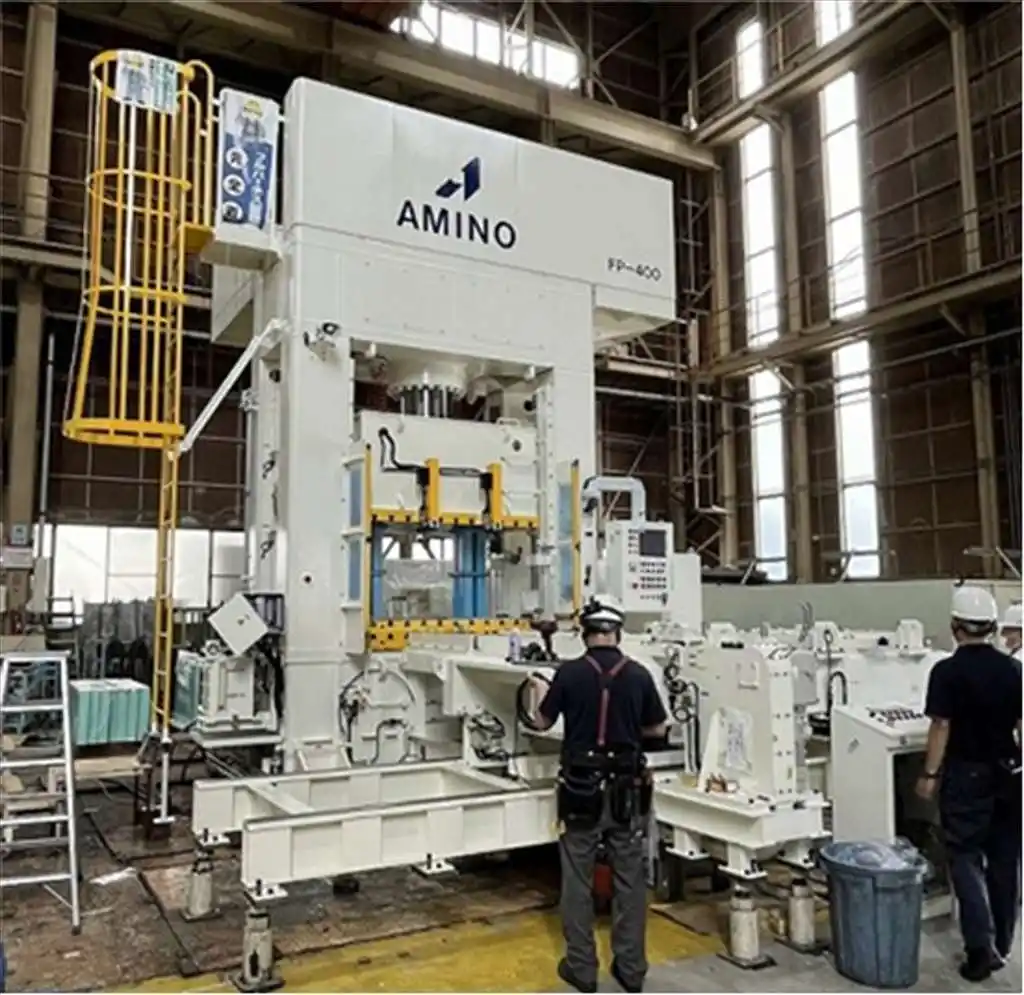

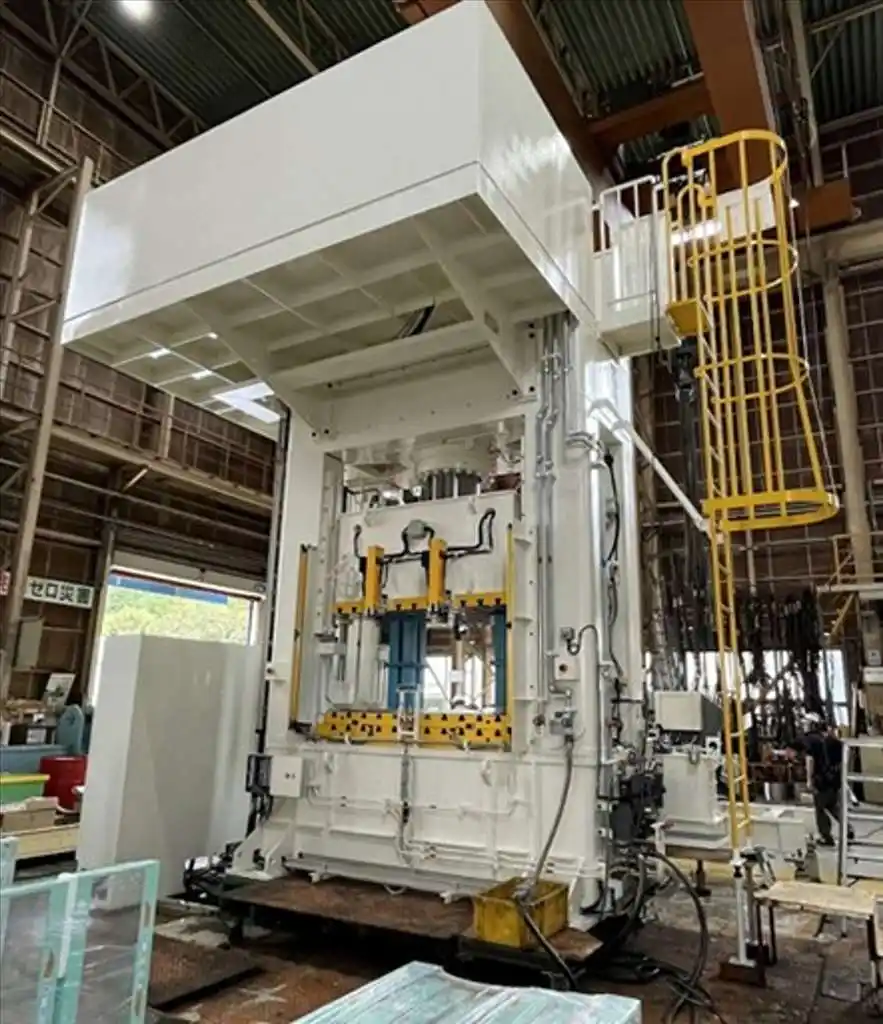

Amino FP-400 400 Ton Single Action Hydraulic Straight-Side Forming Press
Specifications
- Tonnage Capacity: 400 Ton
- Pull Up Capacity: 30 Ton
- Stroke: 19.7"
- Daylight: 50"
- Max. Total Die Weight: 4.8 Ton
- Max. Upper Die Weight: 1.5 Ton
- Approach Speed: 425 IPM
- Pressing Speed - Under 320 Tons: 23.6 IPM
- Pressing Speed - Over 321 Tons: 9 IPM
- Return Speed (Fast / Slow): 330 IPM / 141 IPM
- Bolster Area (L-R x F-B): 66.9" x 47.2"
- Slide Area (L-R x F-B): 66.9" x 47.2"
- Max. Dual Die Changer Weight: 6 Ton
- Main Motor: 50 HP
- Electrical: 480V / 60Hz
- Condition: Never Installed
- Show More
- Show Less
- Tonnage Capacity: 362.84 Metric Ton
- Pull Up Capacity: 27.21 Metric Ton
- Stroke: 500.38mm
- Daylight: 1270.00mm
- Max. Total Die Weight: 4.35 Metric Ton
- Max. Upper Die Weight: 1.36 Metric Ton
- Approach Speed: 179.92 mm/sec
- Pressing Speed - Under 290.27 Metric Tons: 9.99 mm/sec
- Pressing Speed - Over 291.18 Metric Tons: 3.81 mm/sec
- Return Speed (Fast / Slow): 139.70 mm/sec /59.69 mm/sec
- Bolster Area (L-R x F-B): 1699.26mm x 1198.88mm
- Slide Area (L-R x F-B): 1699.26mm x 1198.88mm
- Max. Dual Die Changer Weight: 5.44 Metric Ton
- Main Motor: 37.29 kw
- Electrical: 480V / 60Hz
- Condition: Never Installed
- Show More
- Show Less
Equipped With
- Dual Die Automatic Die Changer
- Hydraulic Die Clamping
- Gib Guided Slide
- Dual Die Automatic Die Changer
- Hydraulic Die Clamping
- Gib Guided Slide
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
