Inventory # 41005 Year: 2015

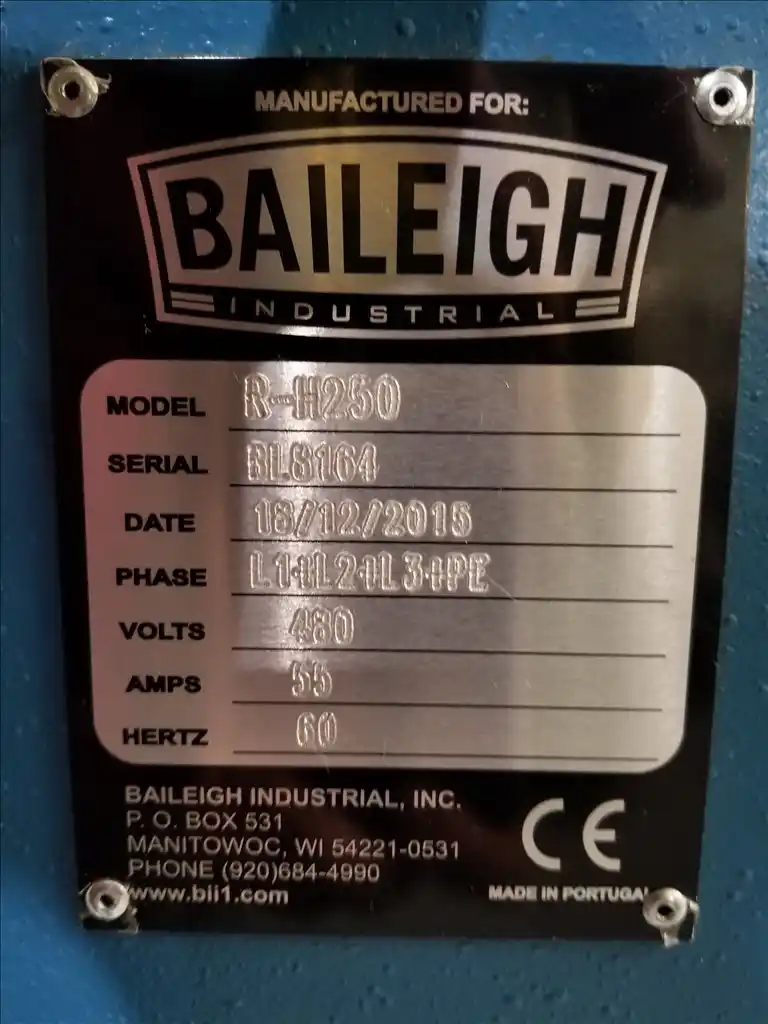

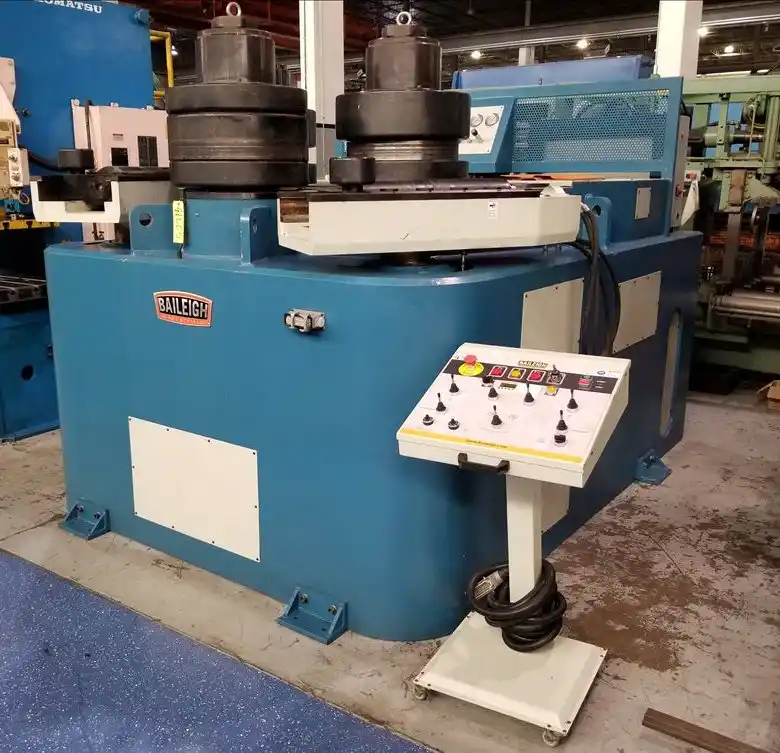

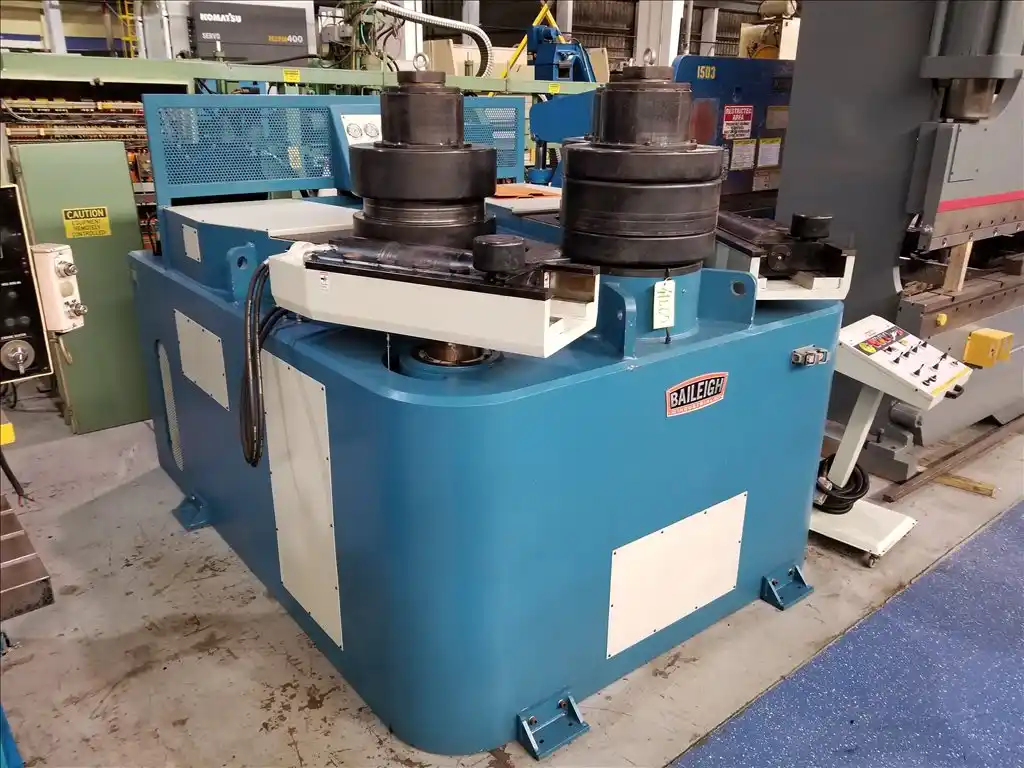

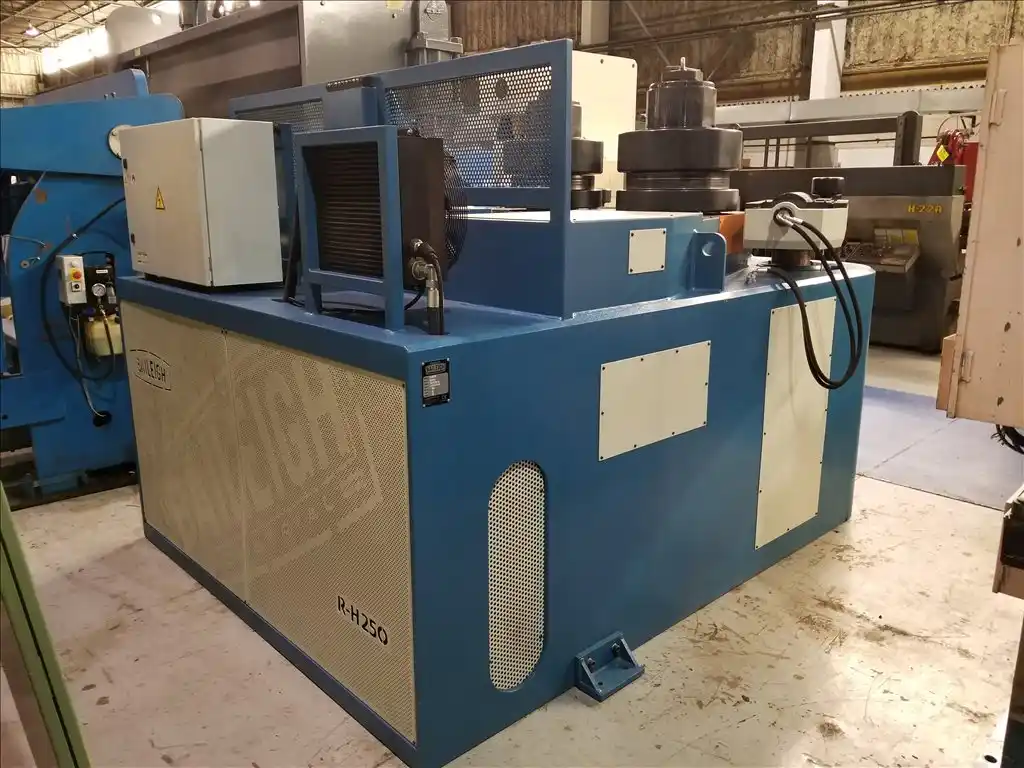

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Baileigh R-H250 Hydraulic Double Pinch Angle Bending Roll
Specifications
- Capacities
- Pipe: 8" x 0.322" Wall / 98" Min. Diameter
- Square Tube: 5.875" x 0.375" / 118" Min. Diameter
- Solid Round: 5" / 62" Min. Diameter
- Flat Bar Easy Way: 13.75" / 36" Min. Diameter
- Flat Bar Hard Way: 6.875" x 1.5" / 52" Min. Diameter
- Angle Iron: 5.875" x 5.875" x 0.375"
- Lower Shaft Diameter: 9.05"
- Upper Shaft Diameter: 9.84"
- Lower Roll Diameter: 15.354"
- Show More
- Show Less
- Capacities
- Pipe: 203.20mm x 8.18mm Wall / 2489.20mm Min. Diameter
- Square Tube: 149.23mm x 9.53mm / 2997.20mm Min. Diameter
- Solid Round: 127.00mm / 1574.80mm Min. Diameter
- Flat Bar Easy Way: 349.25mm / 914.40mm Min. Diameter
- Flat Bar Hard Way: 174.63mm x 38.10mm / 1320.80mm Min. Diameter
- Angle Iron: 149.23mm x 149.23mm x 9.53mm
- Lower Shaft Diameter: 229.87mm
- Upper Shaft Diameter: 249.94mm
- Lower Roll Diameter: 389.99mm
- Show More
- Show Less
Equipped With
- DRO

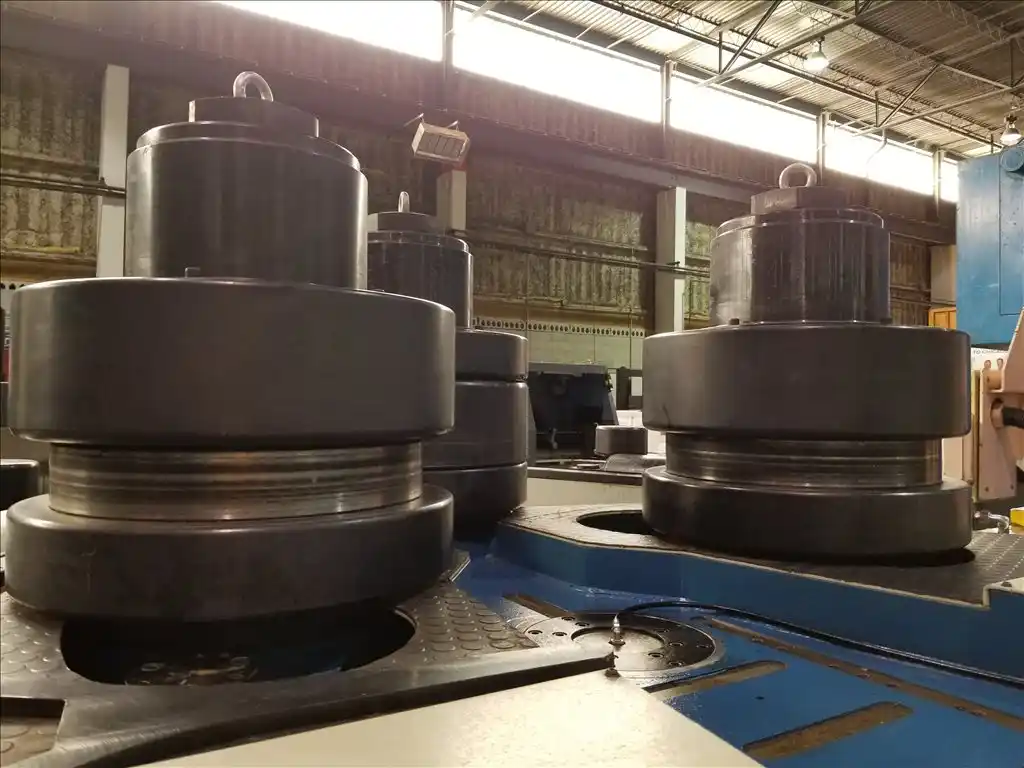

- (3) Hydraulic Driven Rolls w/ Double Pinch
- 40 HP Motor
- Hydraulic Roll Adjustment
- Foot Switch
- Show More
- Show Less
- DRO
- (3) Hydraulic Driven Rolls w/ Double Pinch
- 29.83 kw Motor
- Hydraulic Roll Adjustment
- Foot Switch
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
