Inventory # 47360 Year: 1967

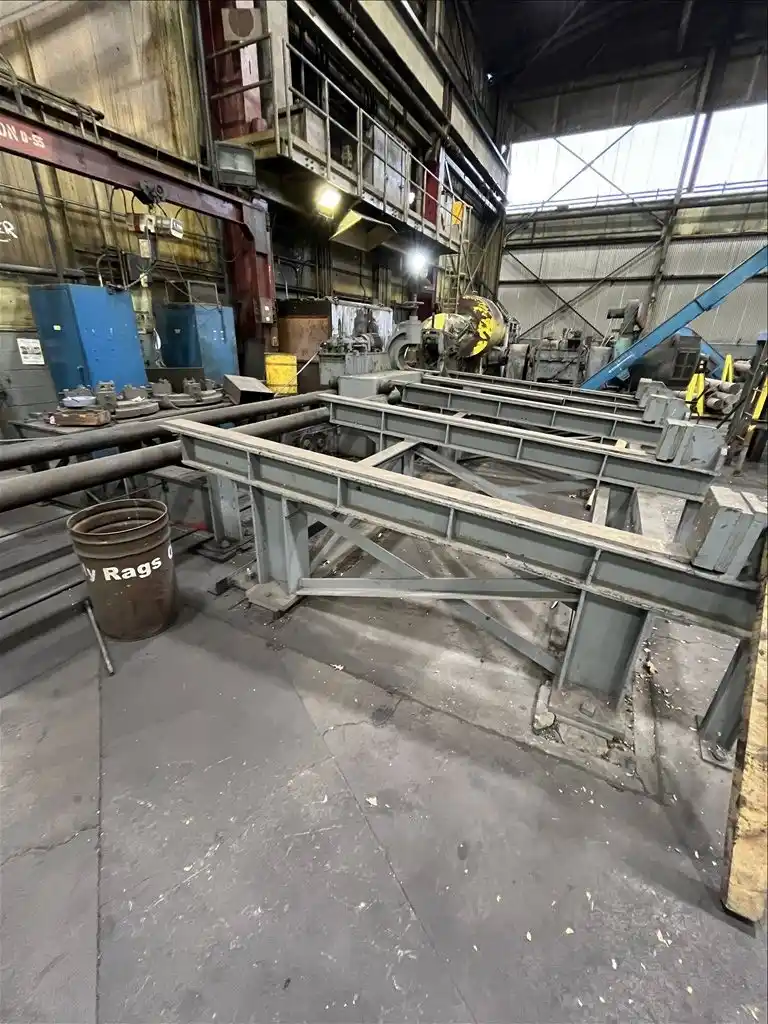

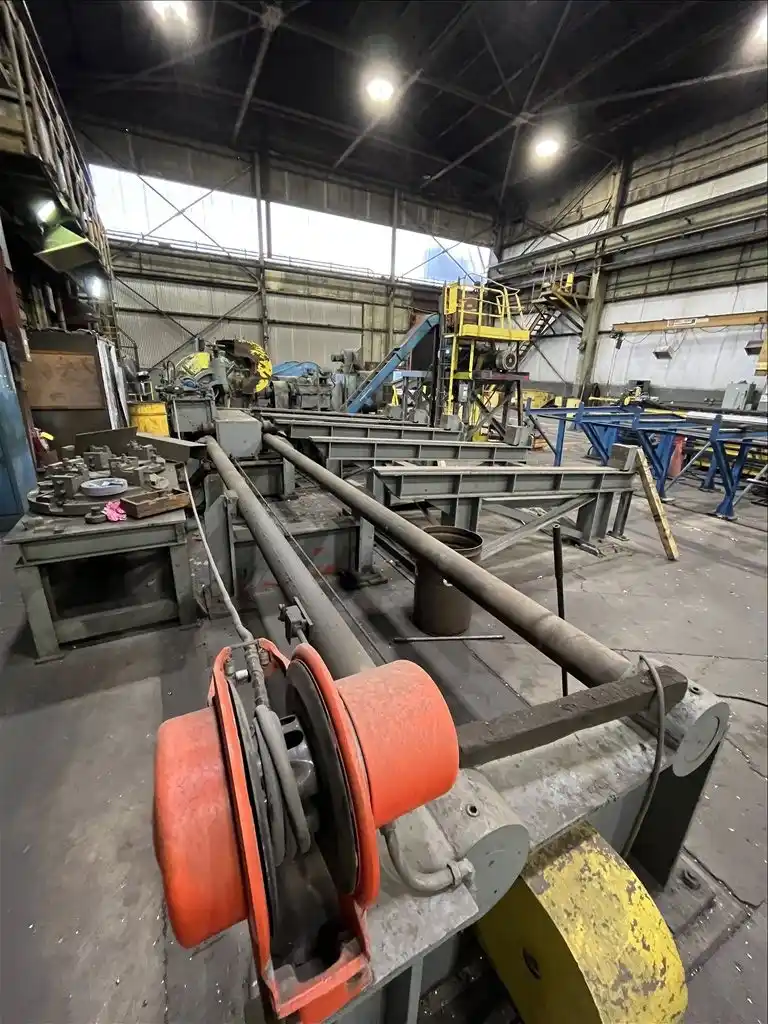

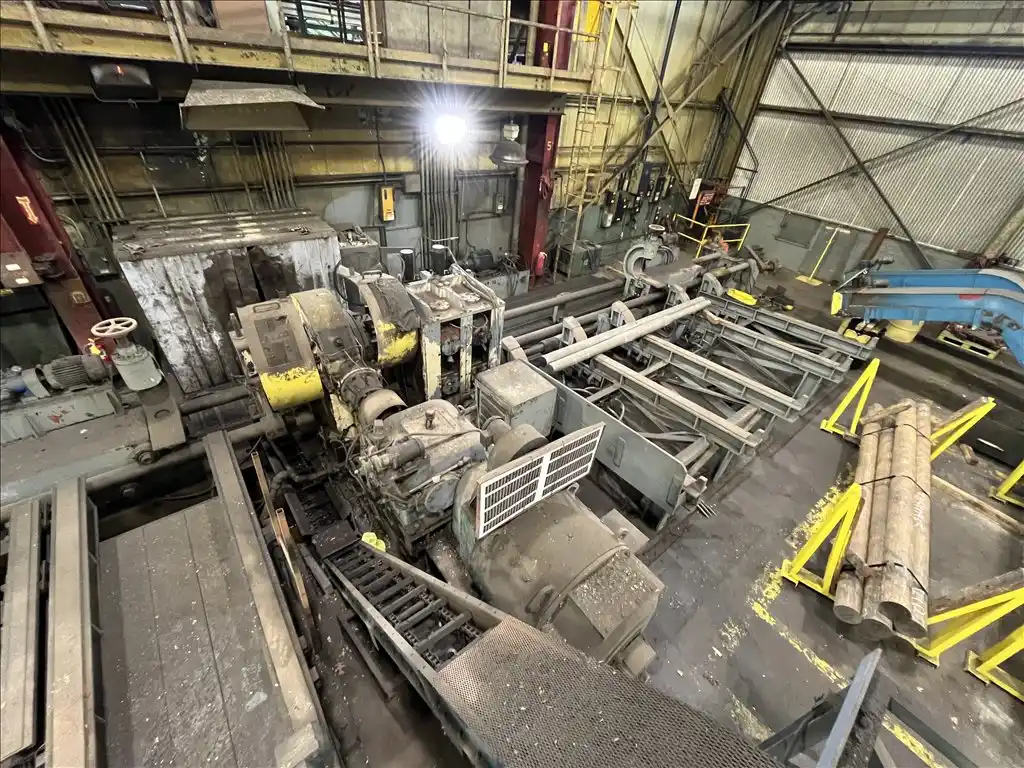

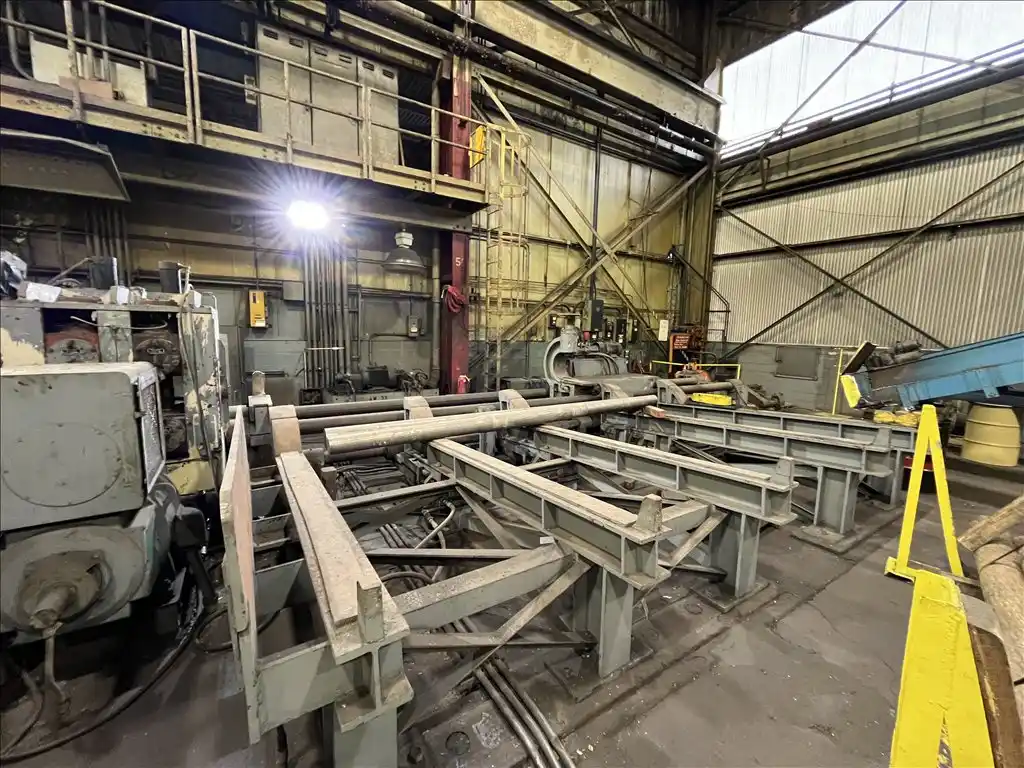

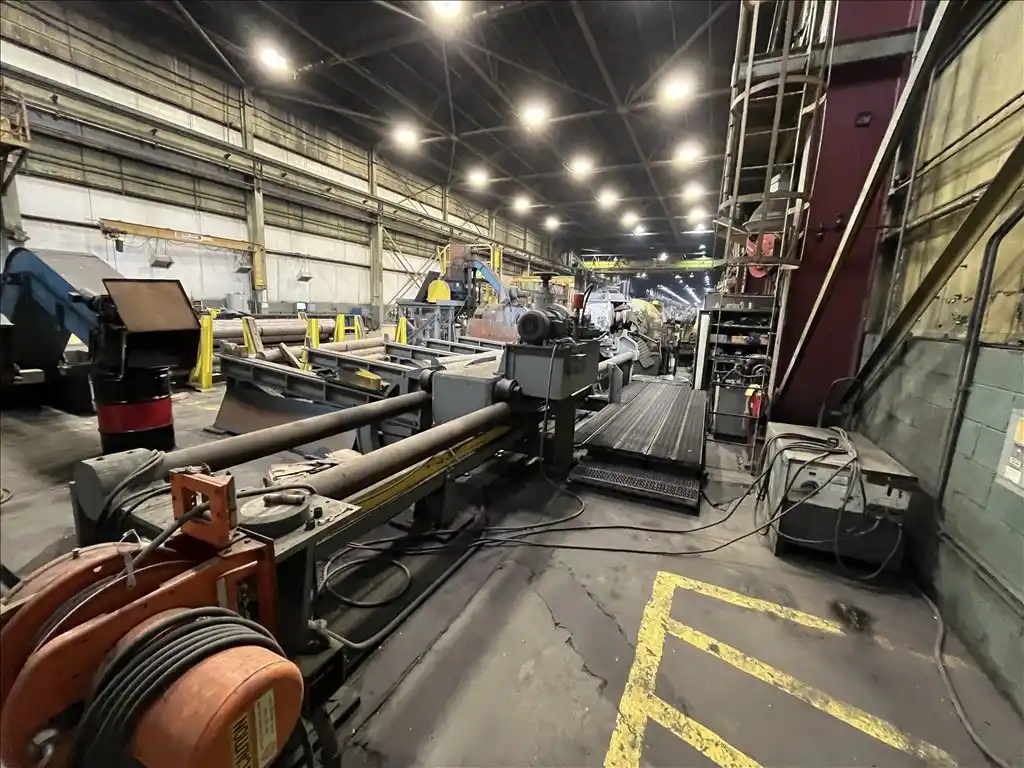

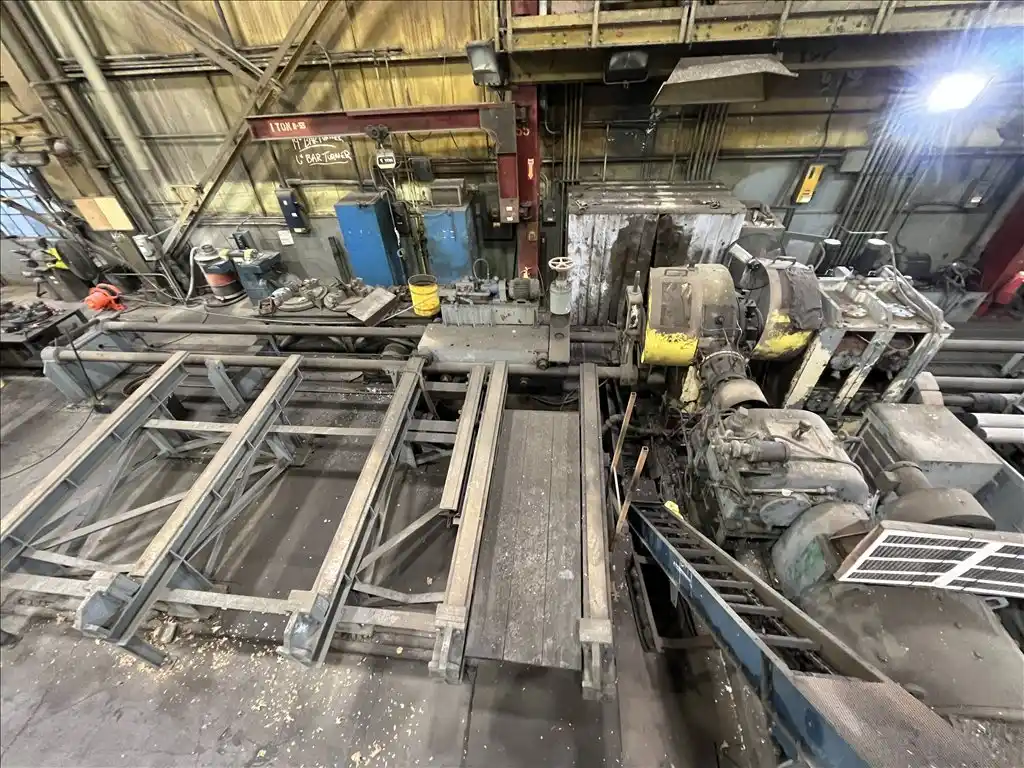

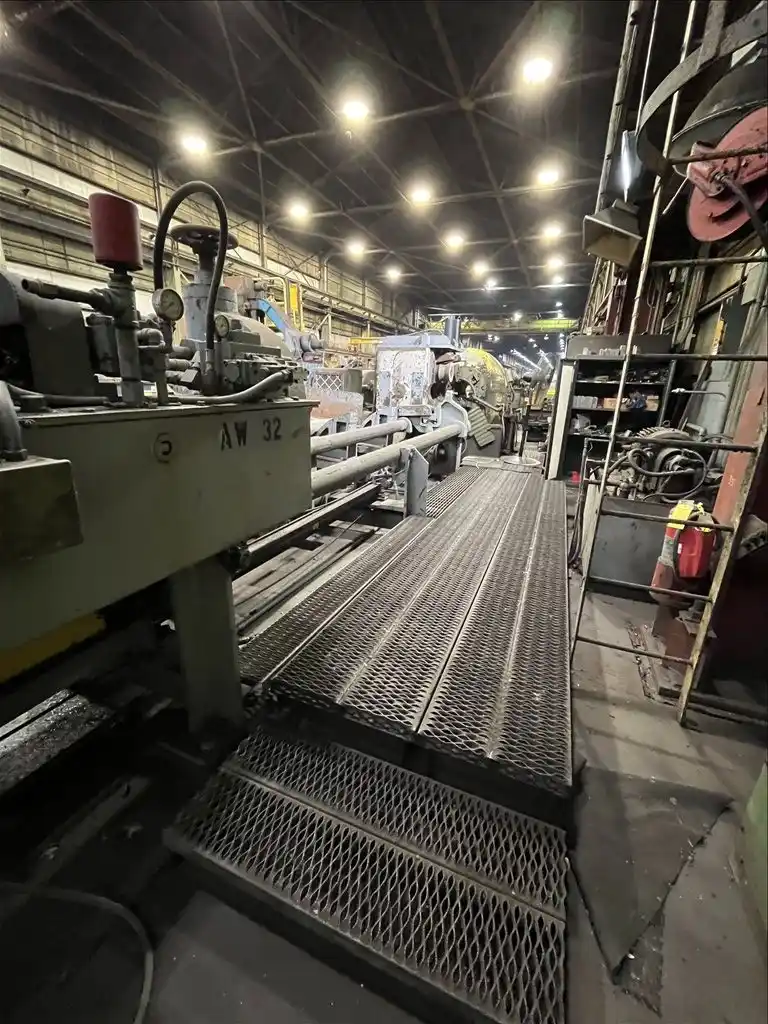

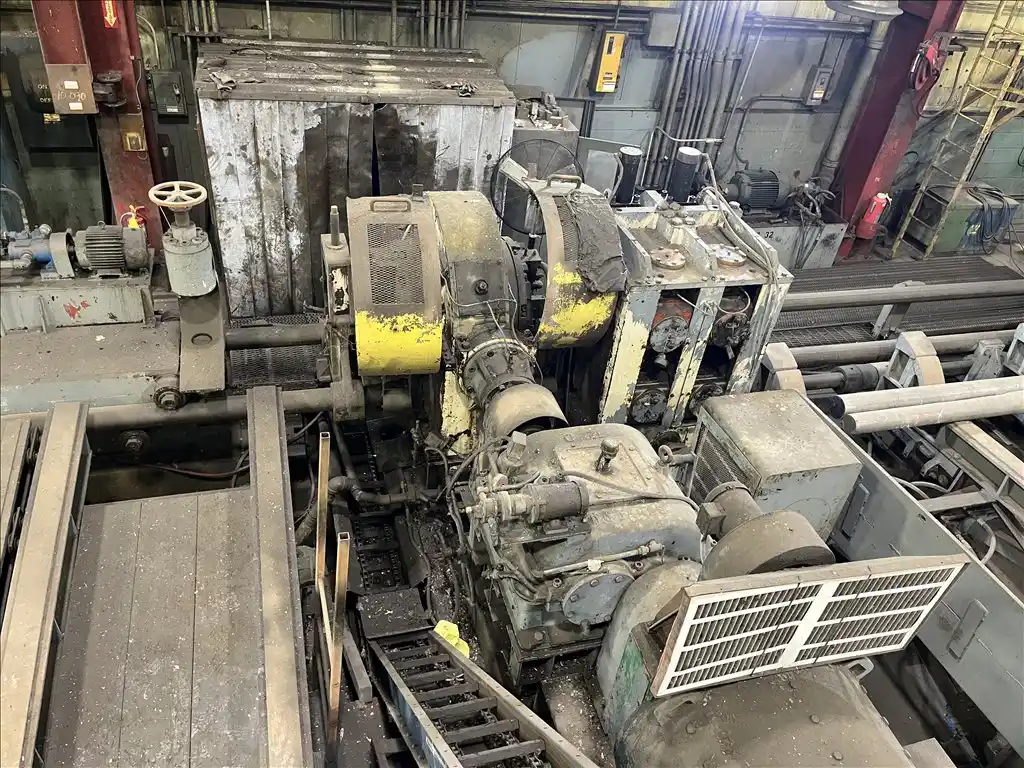

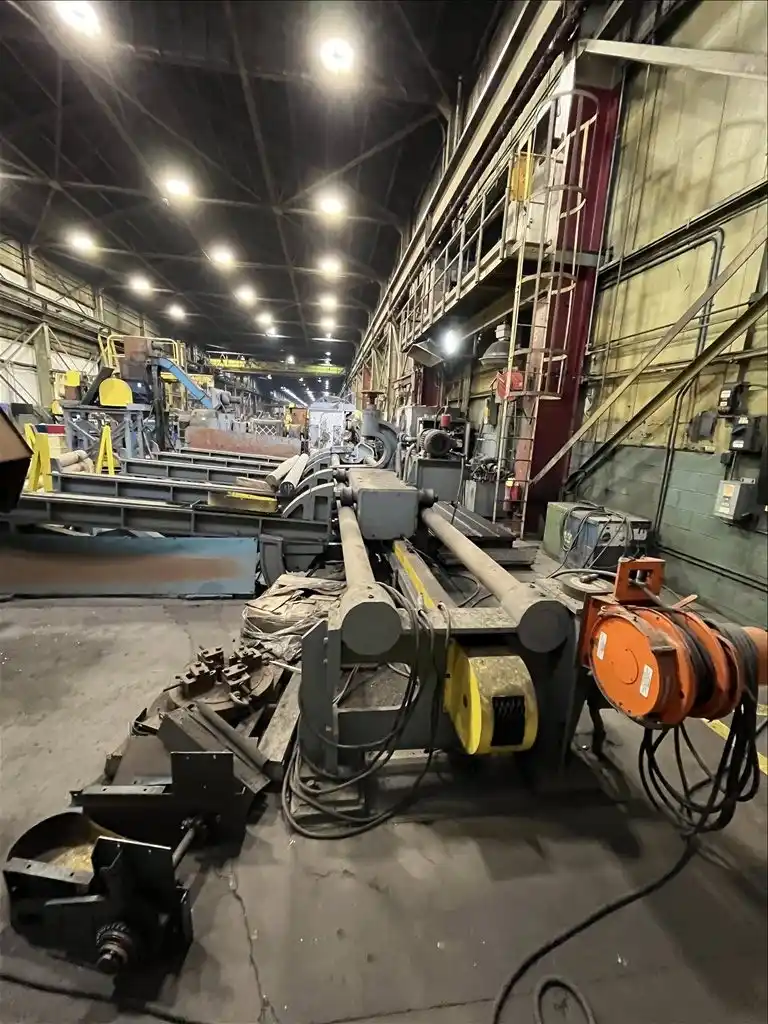

Blaw-Knox / Medart #14 RFRG Bar Turner / Peeler
Specifications
- Bar Size: 6" Dia. Min. to 14" Dia. Max. - Rough

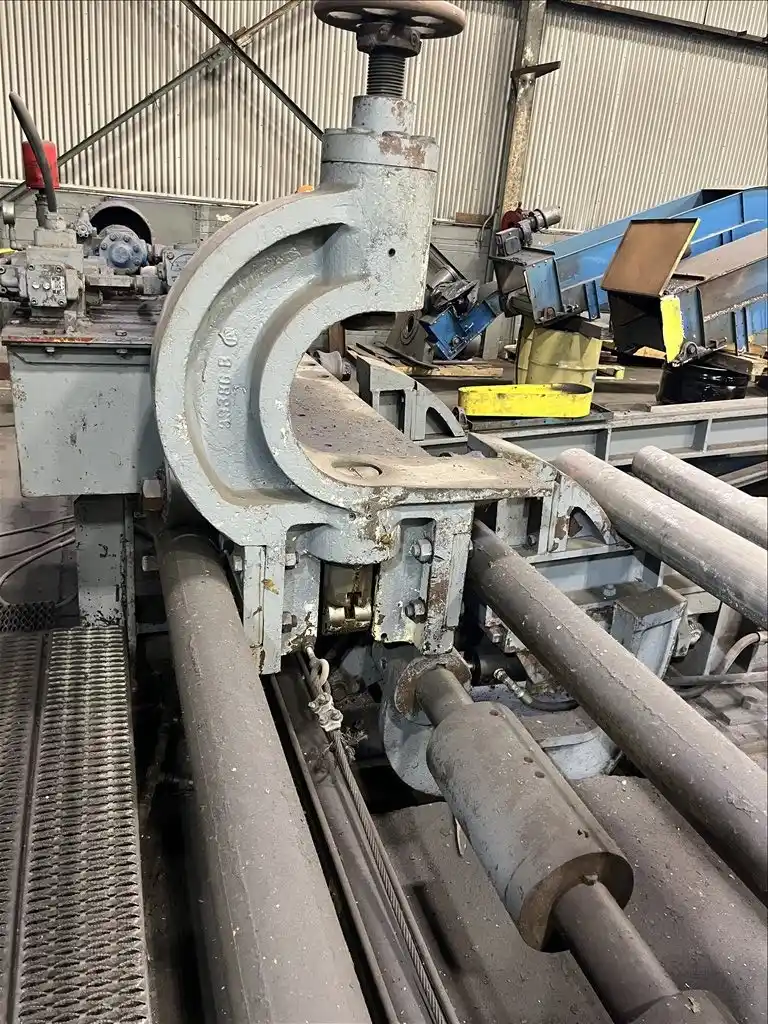

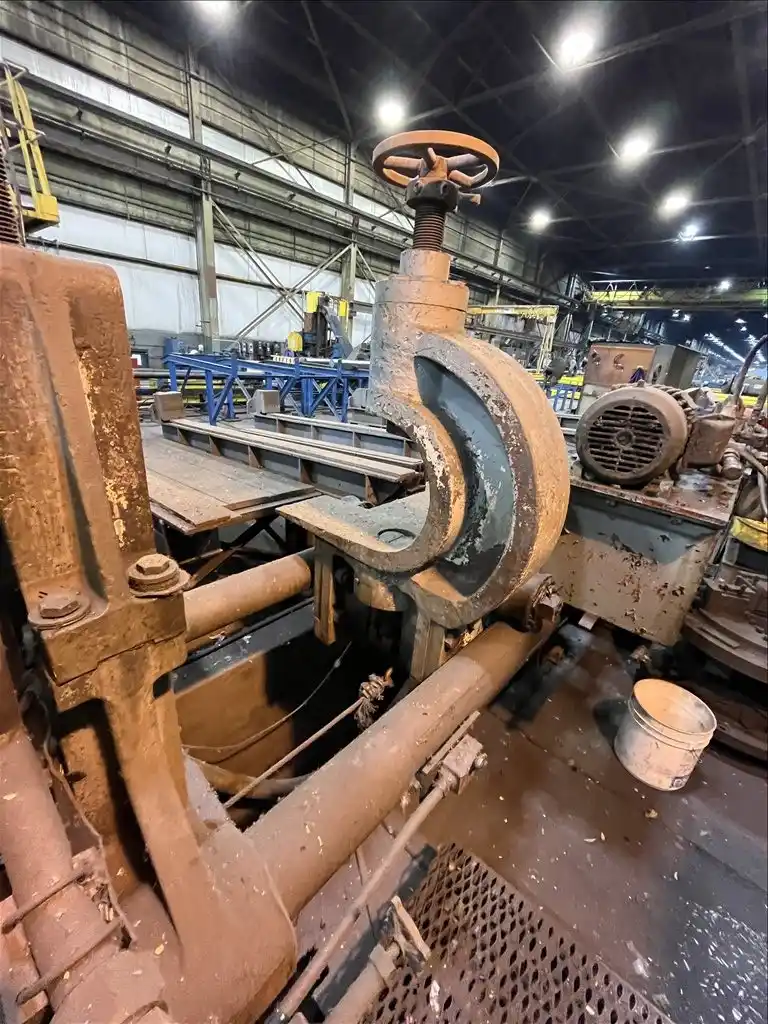

- Minimum Bar Length: 9' Feed Rolls to Grip

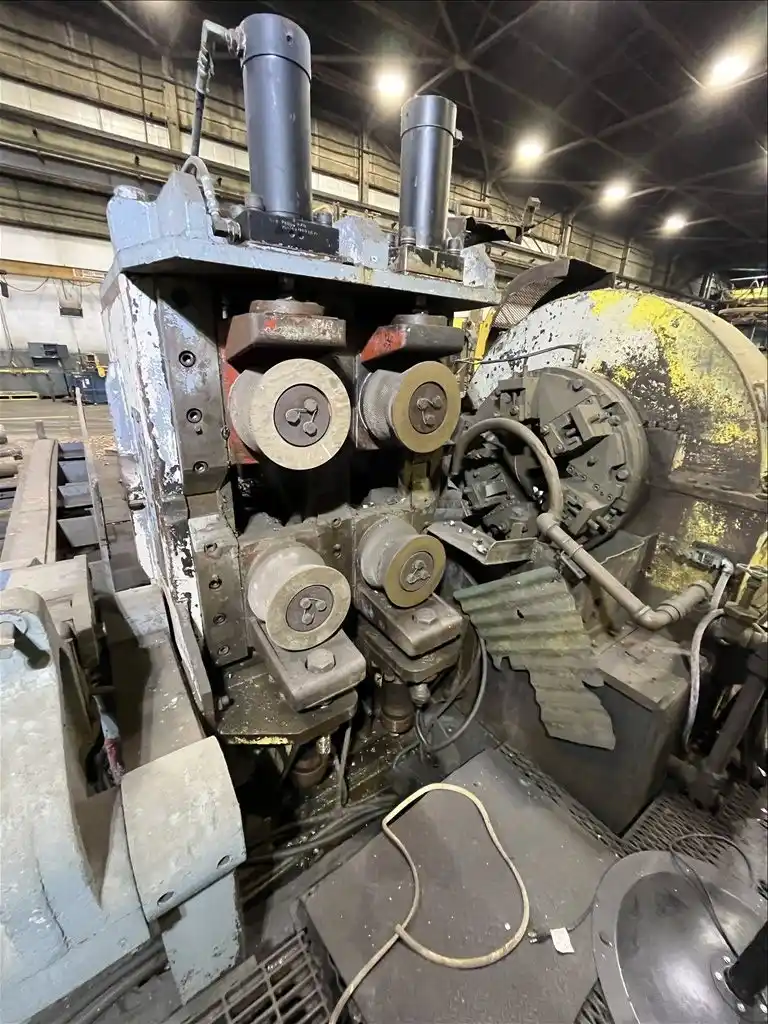

- Feed Rolls: 20 HP Motor - 35/300/1200 RPM

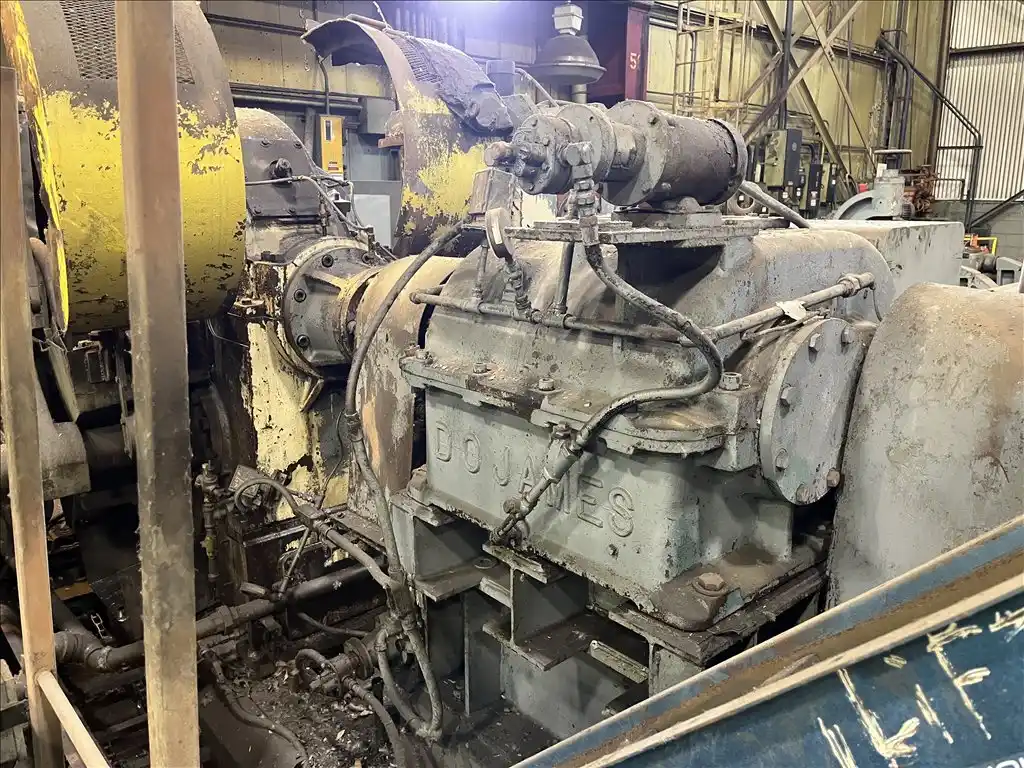

- Gear Ratio: 1:1536 Low - 1:500 High
- Thru Put Speed Low: 0.75 IPM to 24.4 IPM
- Thru Put Speed High: 2.3 IPM to 81.1 IPM

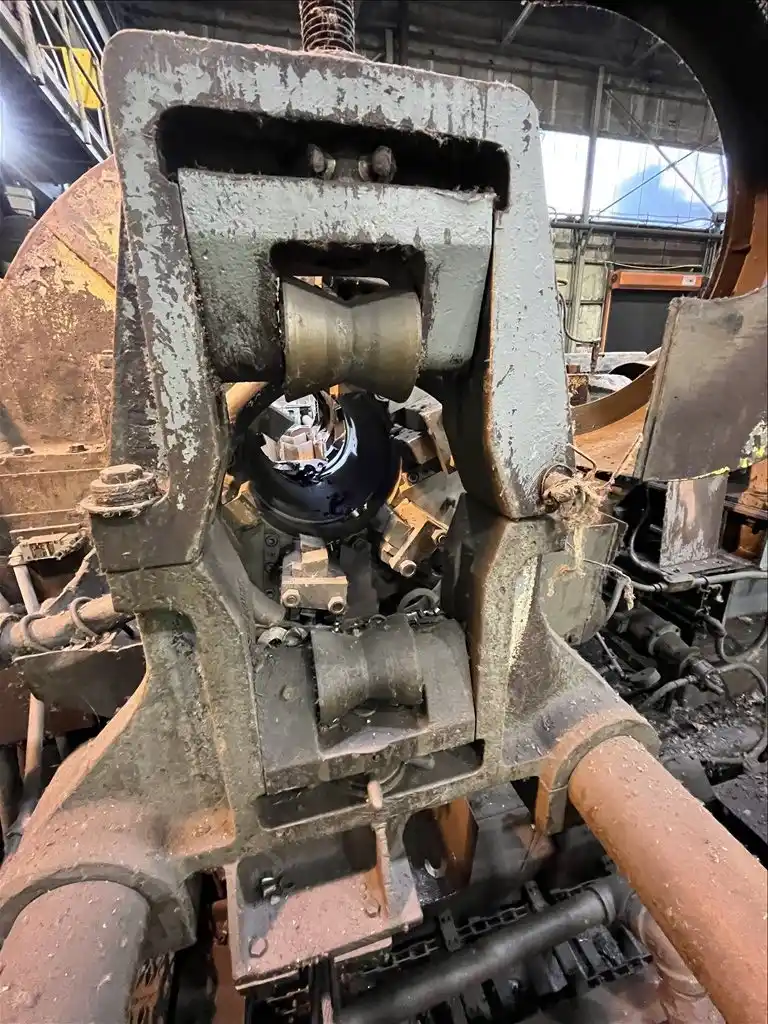

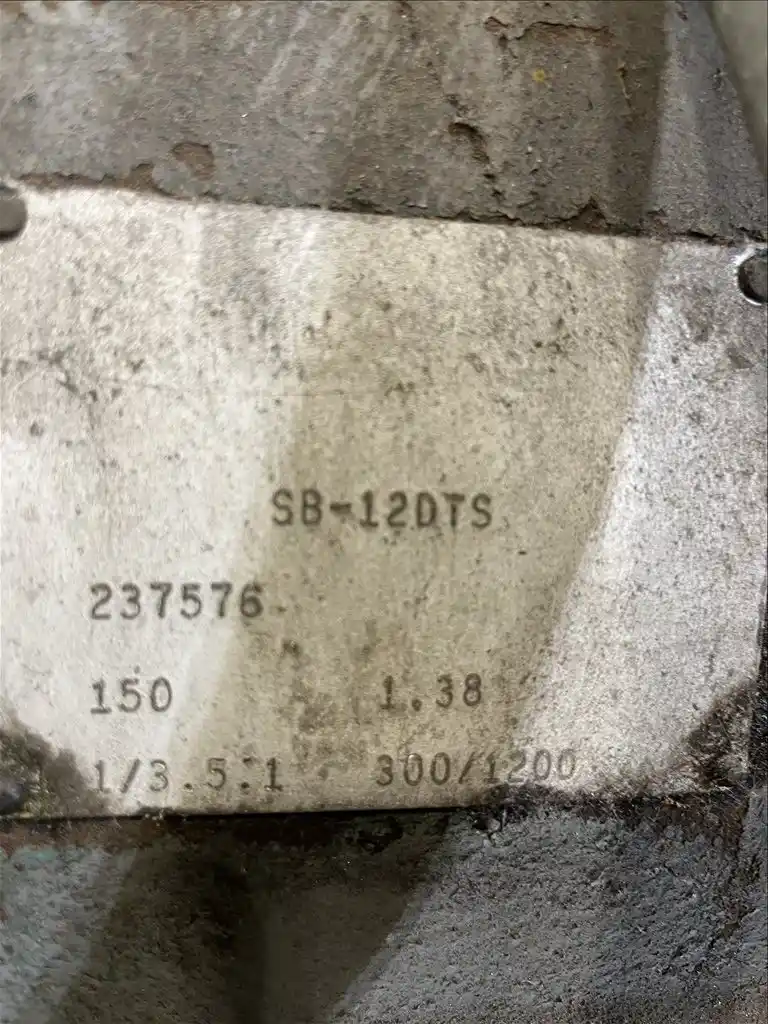

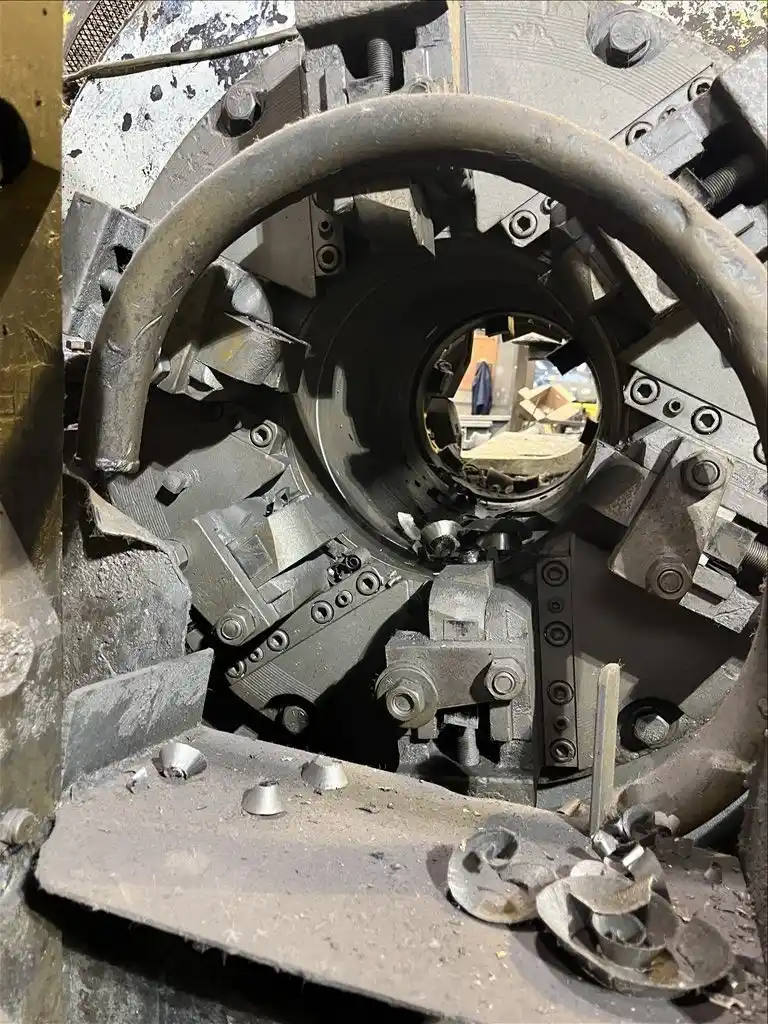

- Cutter Heads: 150 HP Motor, 30/300/1200 RPM
- Spindle Speeds Low: 1.54 RPM to 61.75 RPM
- Spindle Speeds High: 5.38 RPM to 216 RPM
- Approx. Overall Dimensions: 65'6" L x 17'6" W
- Show More
- Show Less
- Bar Size: 152.40mm Dia. Min. to 355.60mm Dia. Max. - Rough
- Minimum Bar Length: 2743.20mm Feed Rolls to Grip
- Feed Rolls: 14.91 kw Motor - 35/300/1200 RPM
- Gear Ratio: 1:1536 Low - 1:500 High
- Thru Put Speed Low: 0.32 mm/sec to10.33 mm/sec
- Thru Put Speed High: 0.97 mm/sec to34.33 mm/sec
- Cutter Heads: 111.86 kw Motor, 30/300/1200 RPM
- Spindle Speeds Low: 1.54 RPM to 61.75 RPM
- Spindle Speeds High: 5.38 RPM to 216 RPM
- Approx. Overall Dimensions: 19964.40mm L x5334.00mm W
- Show More
- Show Less
Equipped With

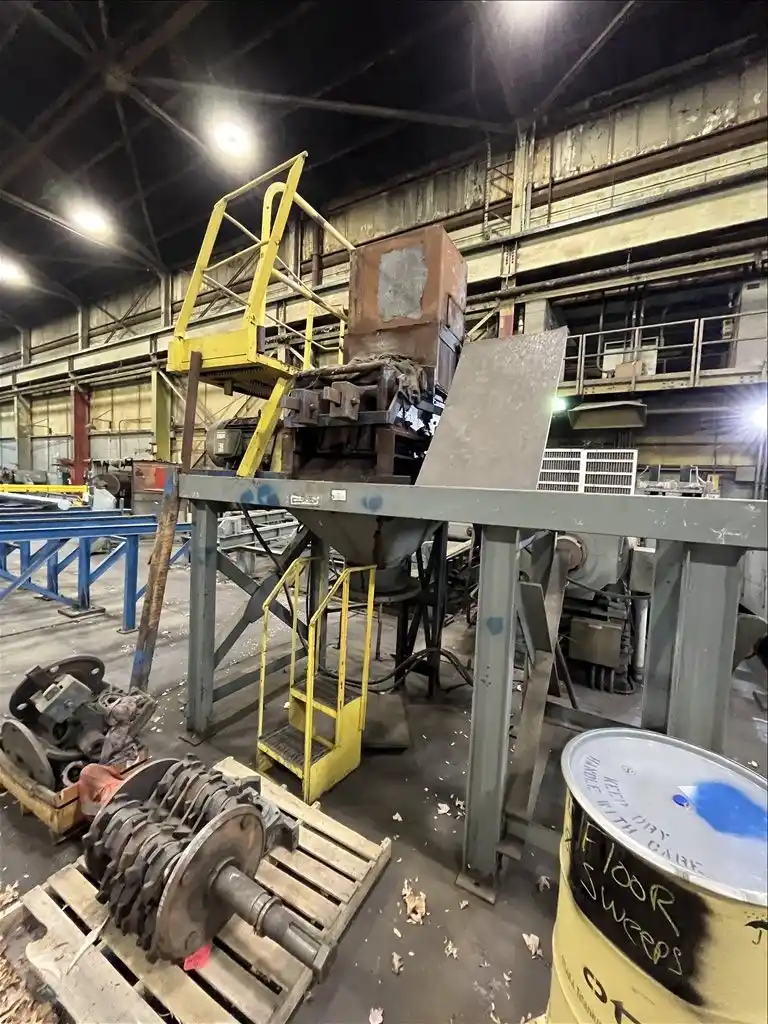

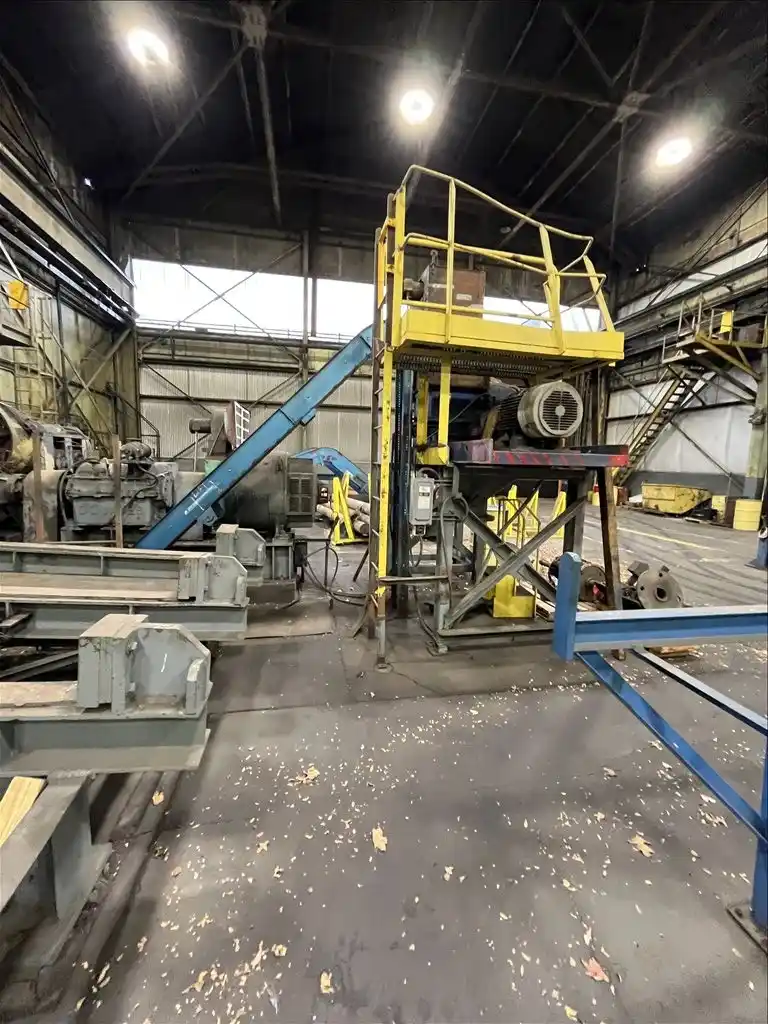

- Chip Conveyor

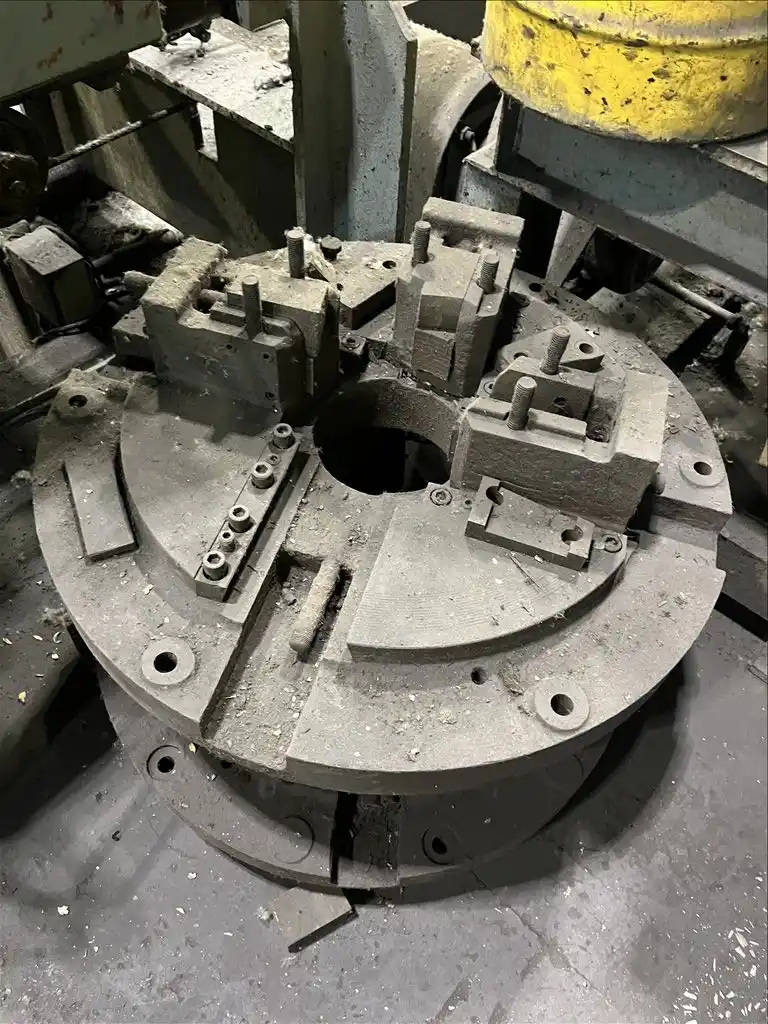

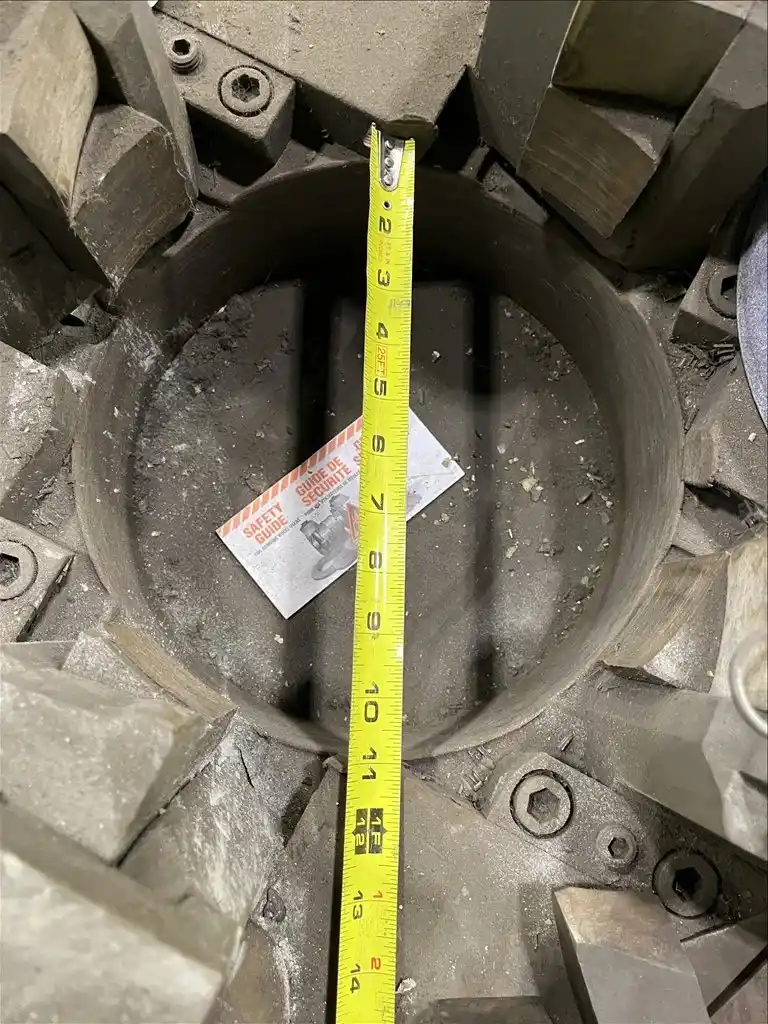

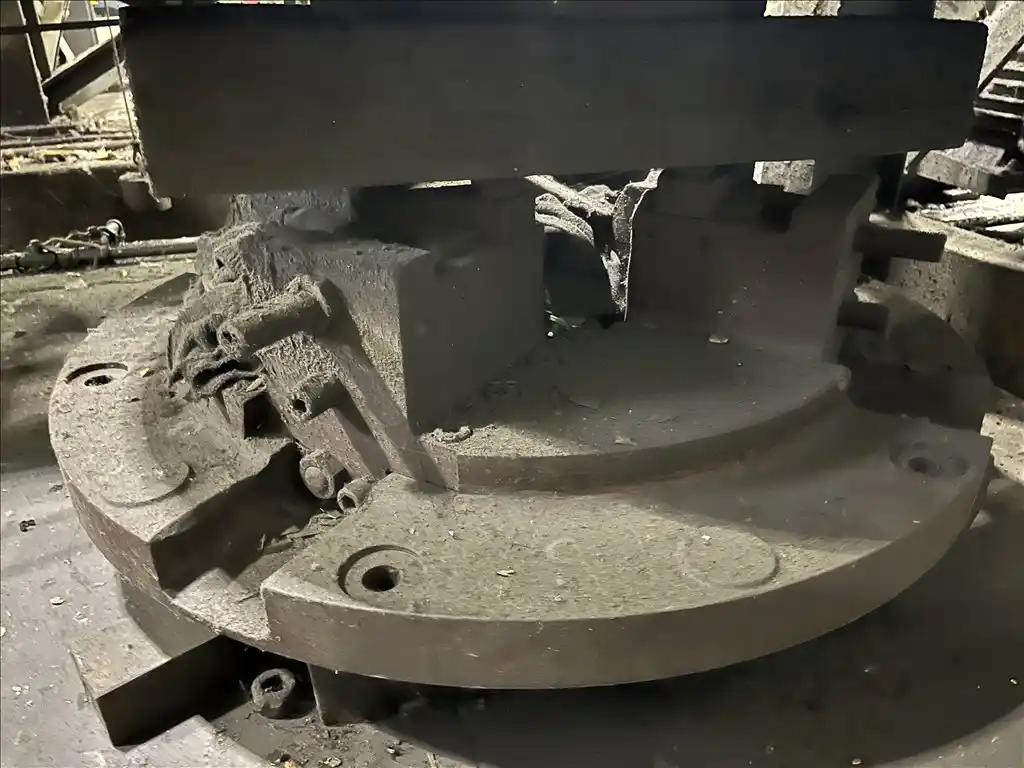

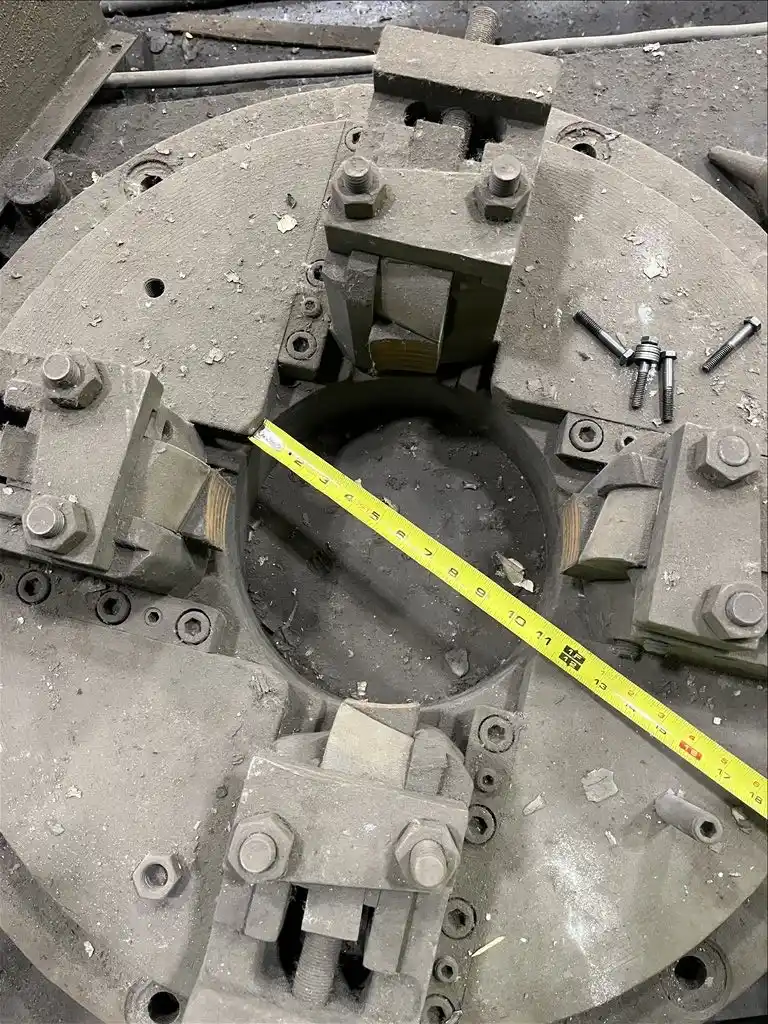

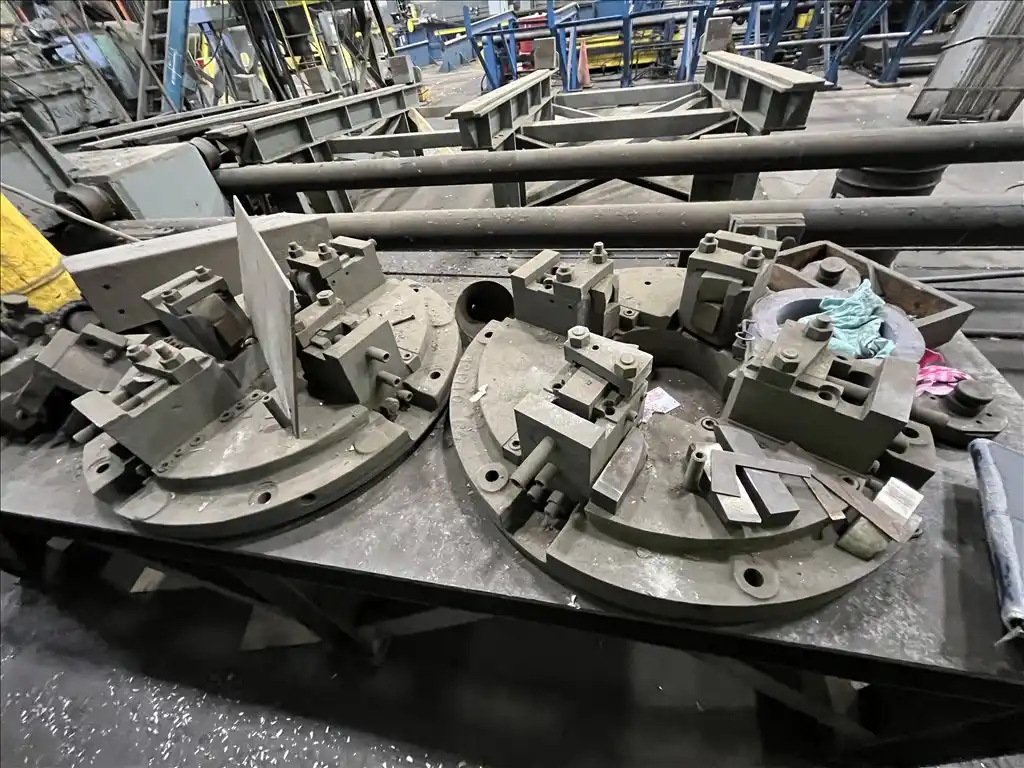

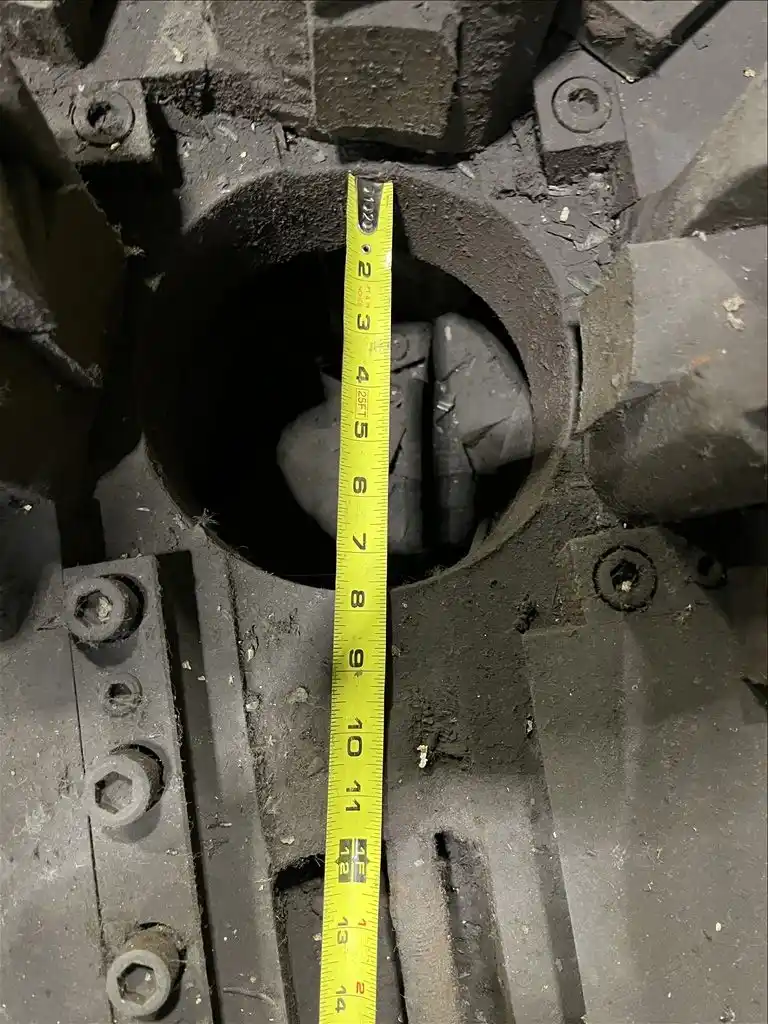

- (3) Sets of Heads for Different Sizes of Bar
- *Chip Crusher NOT Included*
- Chip Conveyor
- (3) Sets of Heads for Different Sizes of Bar
- *Chip Crusher NOT Included*
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
