Inventory # 43020

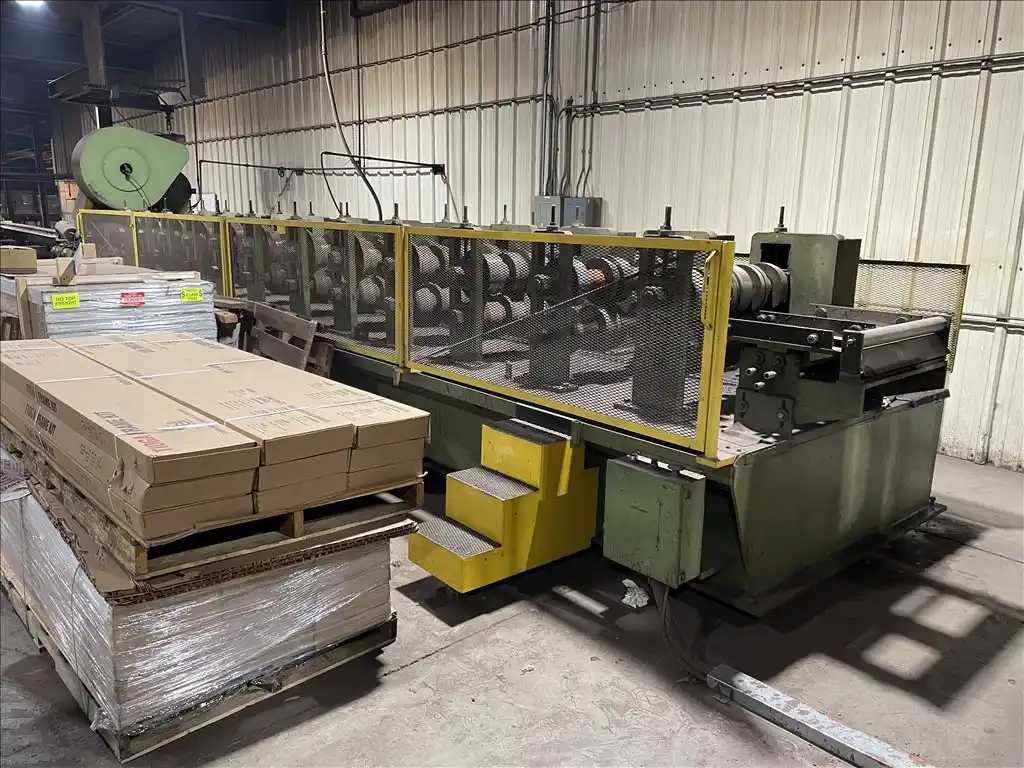

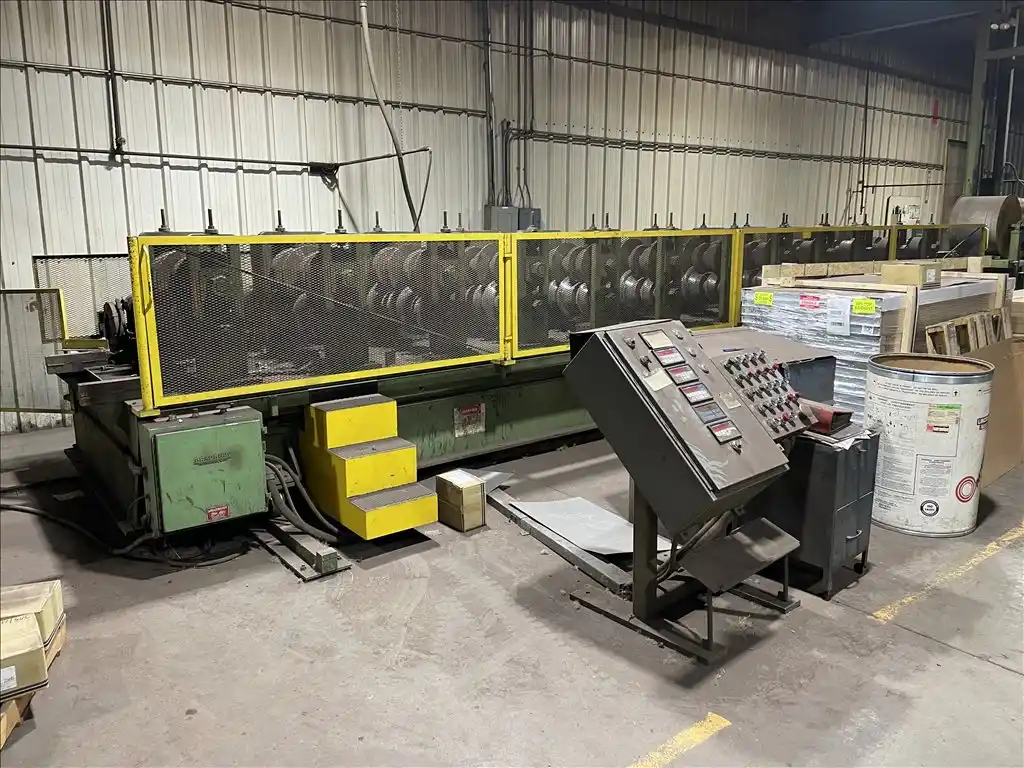

Bradbury D3-30-12 "ZEE Purlin" Tooled, Gear Driven Roll Forming Line
Specifications

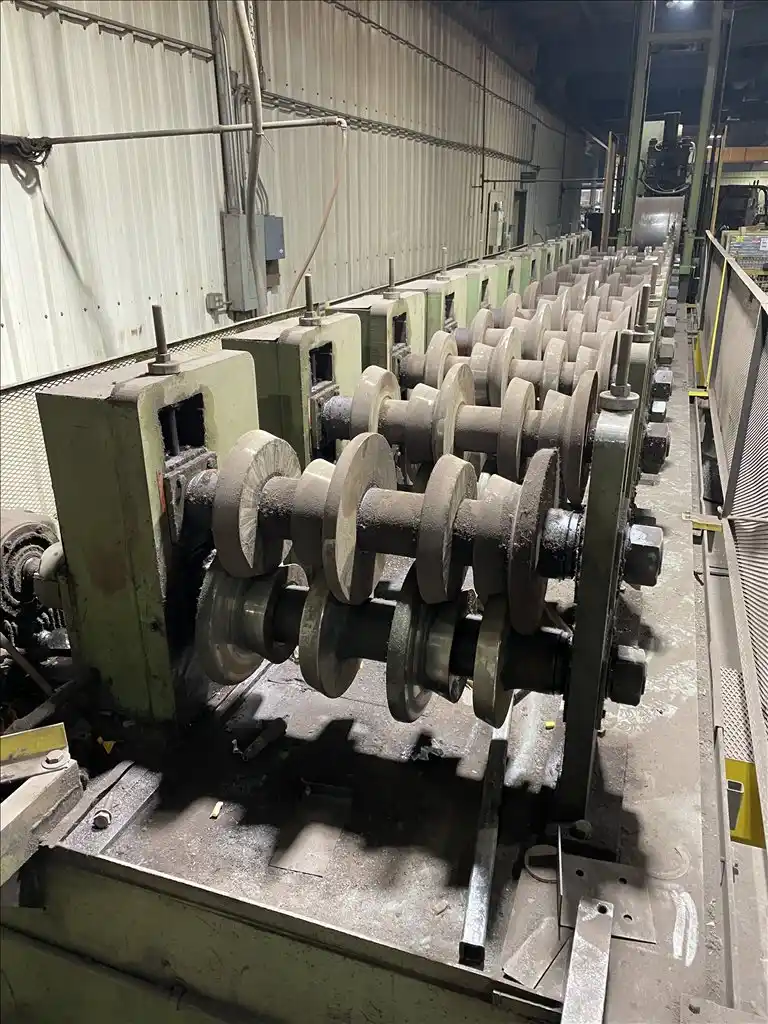

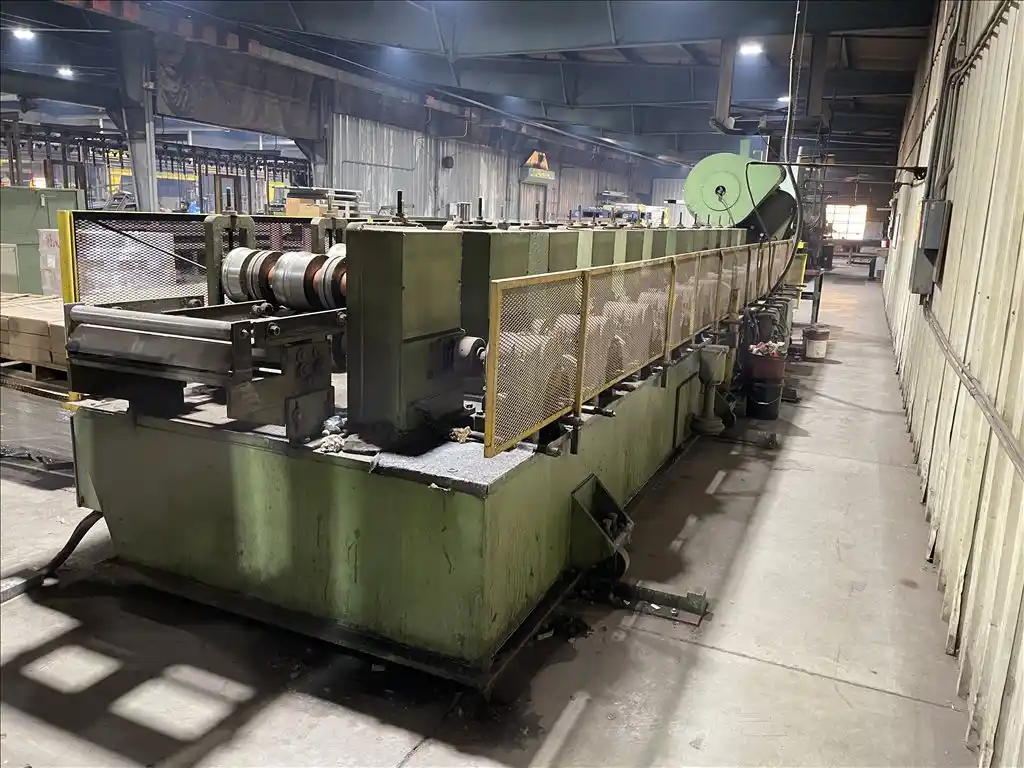

- Bradbury D3-30-12 Roll Forming Line Specifications
- Number of Stands: 12
- Roll Space: 30"
- Arbor Diameter: 4"
- Arbor Center to Center Distance: 28"
- Upper Arbor Adjustment: 6.5"
- Vertical Adjustment: 7" - 13.5"
- Line Speed: 80 FPM
- Overall Line Length: 110'
- Line Direction: L-R
- All Lower Arbors Power Driven
- Upper Arbor Stands 1, 2, 11, 12 Power Driven
- 60 HP Main Drive Motor
- 9" H x 2.75" Flange "Zee Purlin" Tooling: 12 Ga. - 16 Ga. Thickness
- 6.5" H x 2.5" Flange "Zee Purlin" Tooling:
12 Ga. - 16 Ga. Thickness - Bradbury 420-36 Powered Uncoiler w/ Coil Car
- Coil Capacity: 10,000 lbs
- Coil Width: 36"
- Coil I.D. Range: 17.5" - 25"
- Coil O.D.: 60"
- Pneumatic Hold Down
- Loop Control
- 15 HP Main Drive w/ Electric Brake
- Sliding Base
- Hydraulic Expansion
- Hydraulic Lift & Travel

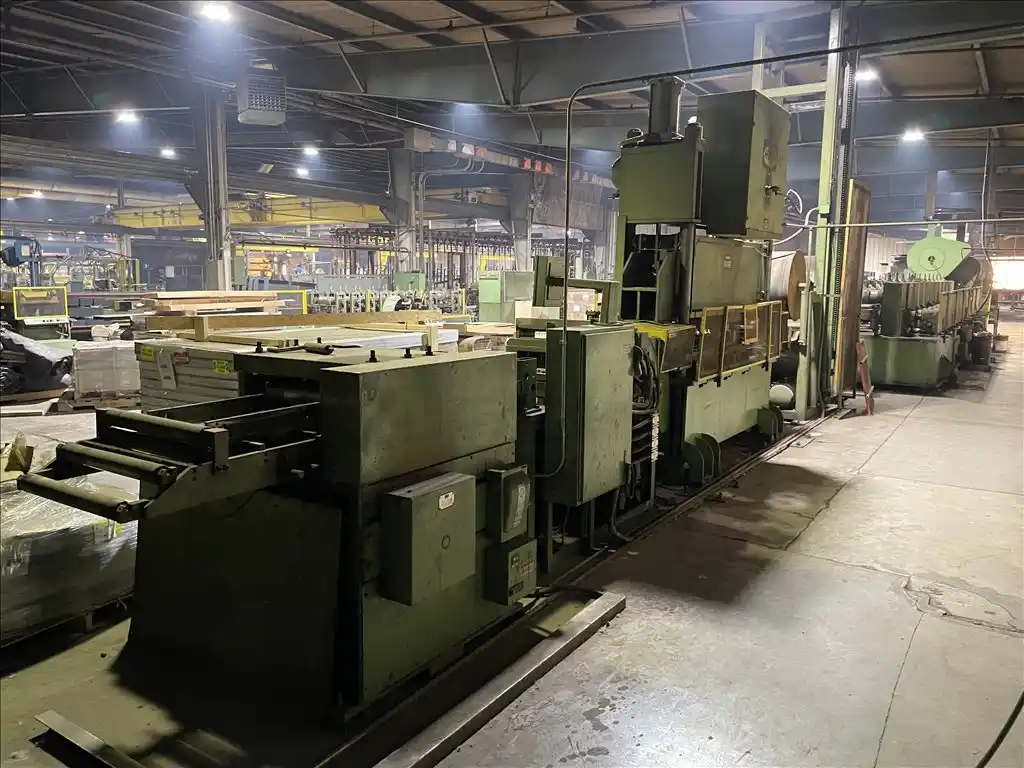

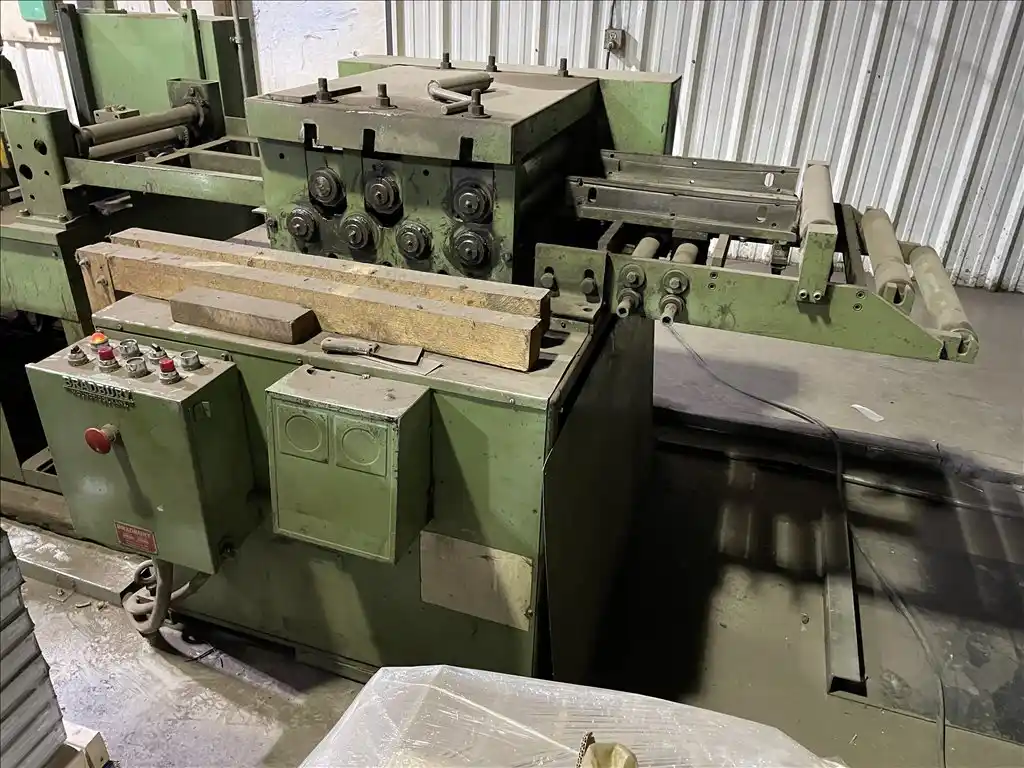

- Bradbury RS4-25-5 Powered Straightener
- Number of Rolls: 5
- Straightening Rolls Diameter: 4"
- Max. Width: 25"
- Main Motor: 7.5 HP
- 2-Speed Reducer
- Powered Driven Pinch Rolls

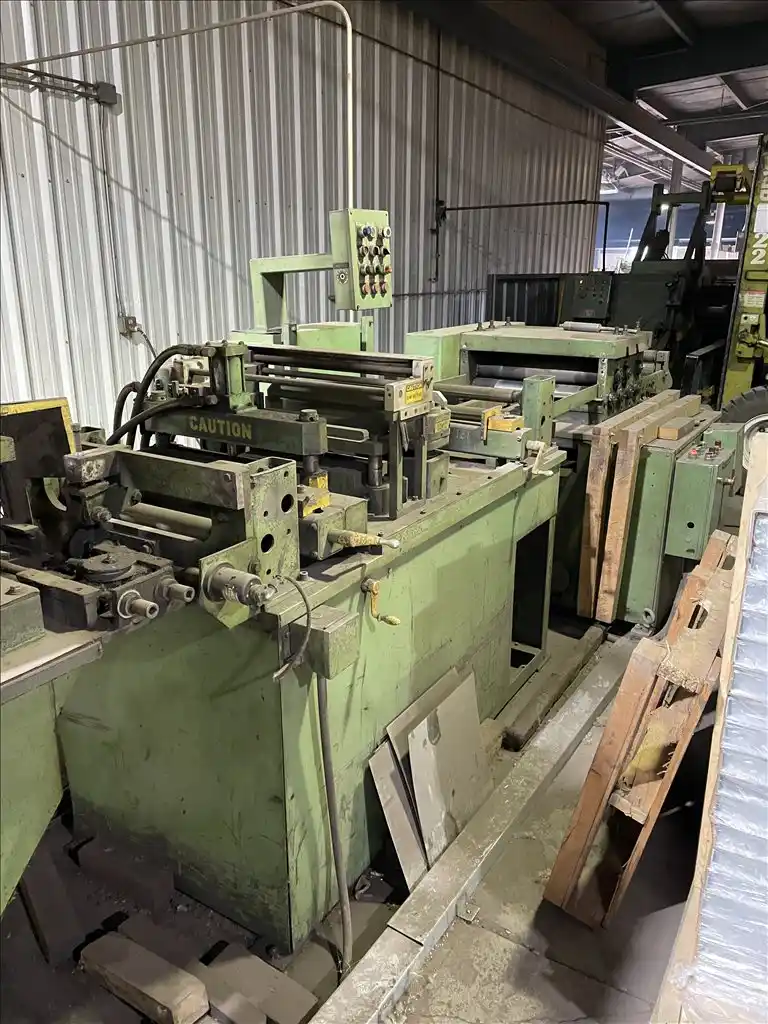

- Lee Schafer H40F Shear End Welder
- Thickness Capacity: 0.028" - 0.134"
- Hydraulic Squaring Shear & Welding Clamps
- Auto Tig Weld Cycle
- Adjustable Side Guides

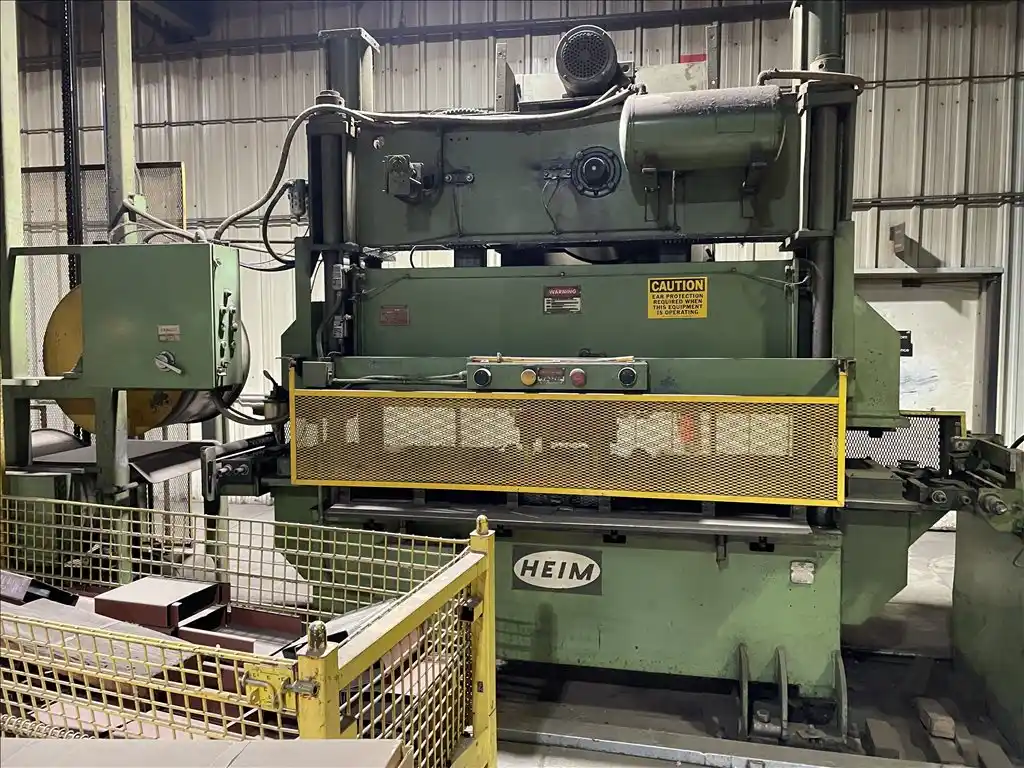

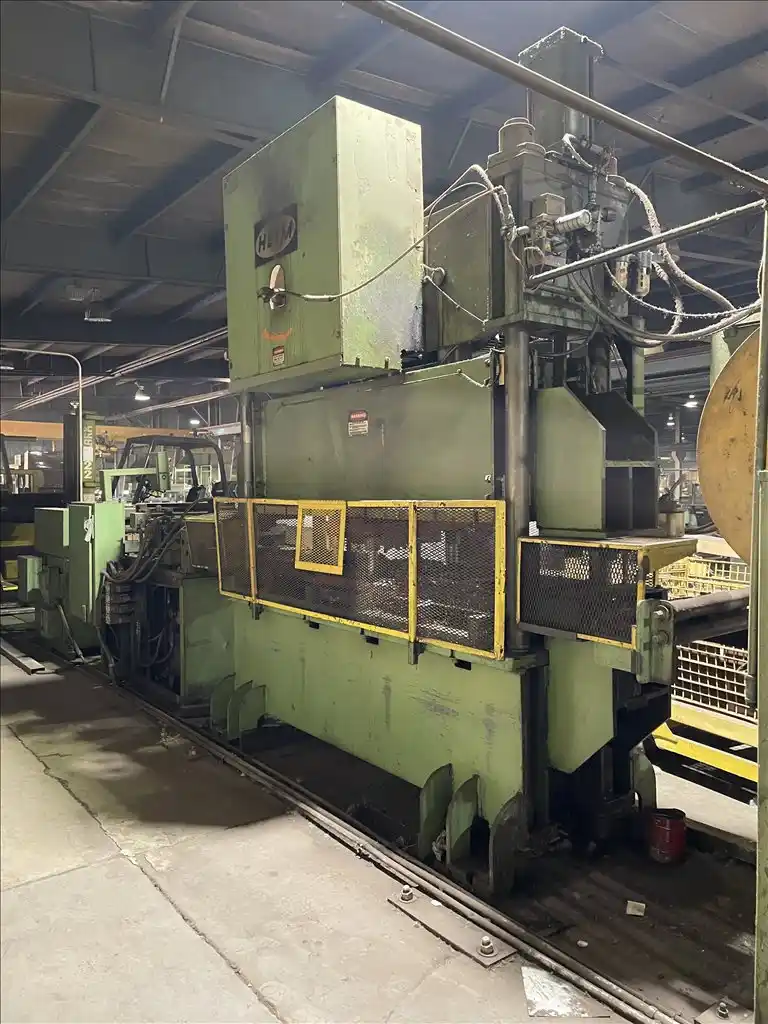

- Heim S100-30-80 Straight Side Notch & Pre-Punch Press
- Capacity: 100 Tons
- Bed Area 80" x 30"
- 10 hp Main Motor
- Punch Die w/ Manual Gauges (to change pattern)
- Air Clutch

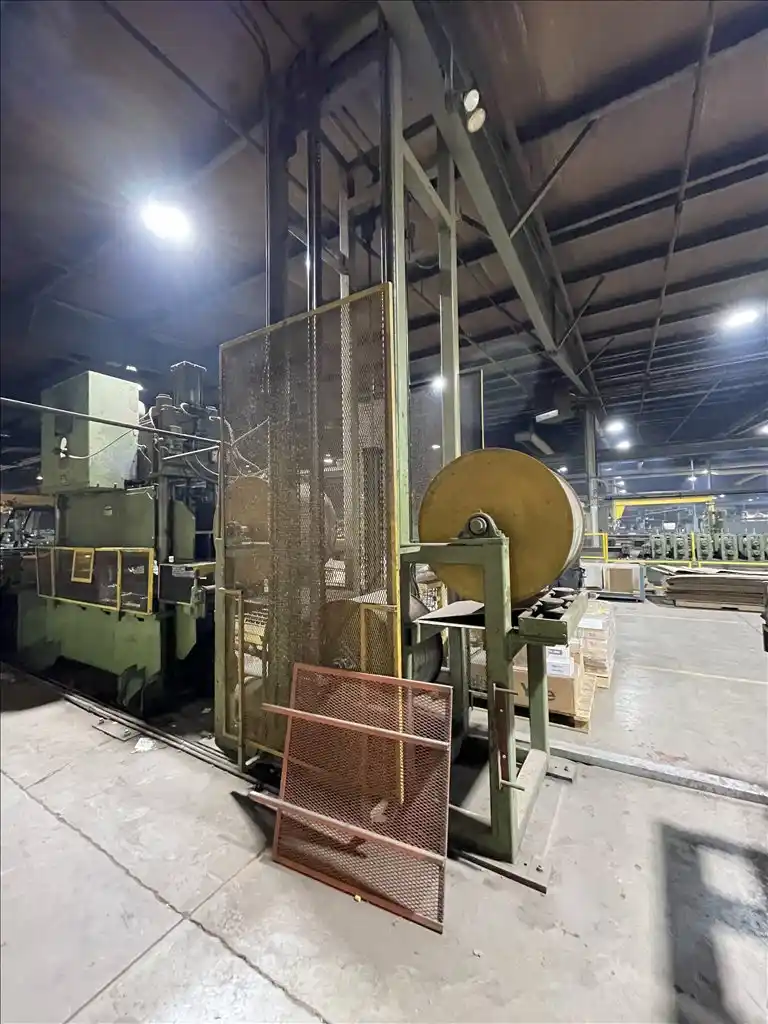

- 3-Drum Air Actuated Accumulator
- Allows Rollformer to run continuous during punching sequence

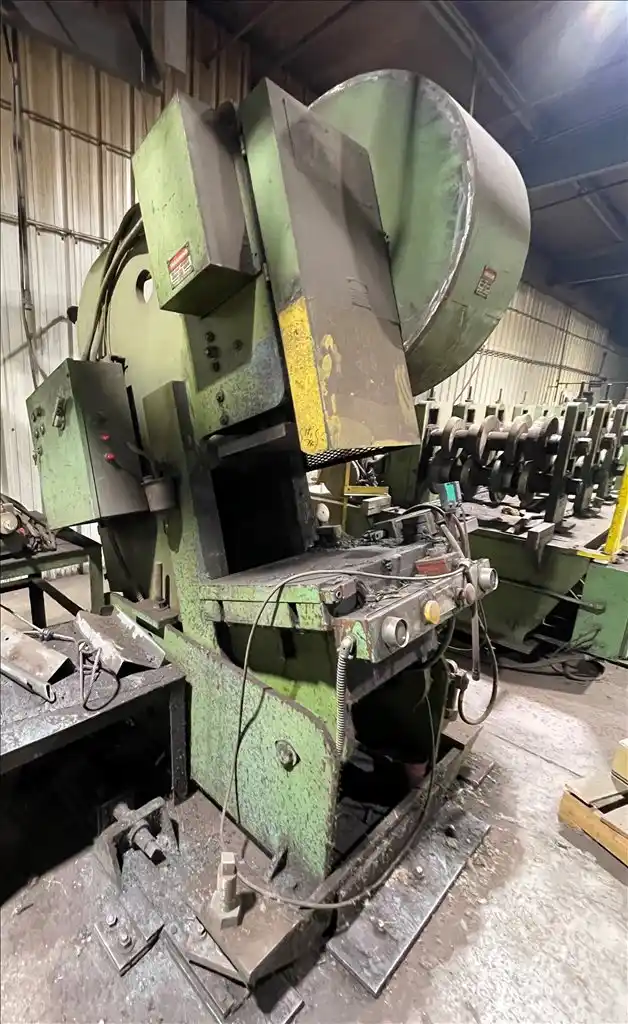

- Heim 7A OBI Cut-Off Punch Press
- Capacity: 70 Tons
- Tooled w/ Flying Cutoff Die
- Air Cylinder Die Return
- (4) Total Dies
- 30' Runout Conveyor
- Dump section, with pins
- Complete Control System w/ Operator's Desk
- Show More
- Show Less
- Bradbury D3-30-12 Roll Forming Line Specifications
- Number of Stands: 12
- Roll Space: 762.00mm
- Arbor Diameter: 101.60mm
- Arbor Center to Center Distance: 711.20mm
- Upper Arbor Adjustment: 165.10mm
- Vertical Adjustment: 177.80mm - 342.90mm
- Line Speed: 406.40 mm/sec
- Overall Line Length: 33528.00mm
- Line Direction: L-R
- All Lower Arbors Power Driven
- Upper Arbor Stands 1, 2, 11, 12 Power Driven
- 44.74 kw Main Drive Motor
- 228.60mm H x 69.85mm Flange Zee Purlin Tooling: 12 Ga. - 16 Ga. Thickness
- 165.10mm H x 63.50mm Flange Zee Purlin Tooling:
12 Ga. - 16 Ga. Thickness - Bradbury 420-36 Powered Uncoiler w/ Coil Car
- Coil Capacity: 4535.00 kg
- Coil Width: 914.40mm
- Coil I.D. Range: 444.50mm - 635.00mm
- Coil O.D.: 1524.00mm
- Pneumatic Hold Down
- Loop Control
- 11.19 kw Main Drive w/ Electric Brake
- Sliding Base
- Hydraulic Expansion
- Hydraulic Lift & Travel
- Bradbury RS4-25-5 Powered Straightener
- Number of Rolls: 5
- Straightening Rolls Diameter: 101.60mm
- Max. Width: 635.00mm
- Main Motor: 5.59 kw
- 2-Speed Reducer
- Powered Driven Pinch Rolls
- Lee Schafer H40F Shear End Welder
- Thickness Capacity: 0.71mm - 3.40mm
- Hydraulic Squaring Shear & Welding Clamps
- Auto Tig Weld Cycle
- Adjustable Side Guides
- Heim S100-30-80 Straight Side Notch & Pre-Punch Press
- Capacity: 90.71 Metric Tons
- Bed Area 2032.00mm x 762.00mm
- 7.46 kw Main Motor
- Punch Die w/ Manual Gauges (to change pattern)
- Air Clutch
- 3-Drum Air Actuated Accumulator
- Allows Rollformer to run continuous during punching sequence
- Heim 7A OBI Cut-Off Punch Press
- Capacity: 63.50 Metric Tons
- Tooled w/ Flying Cutoff Die
- Air Cylinder Die Return
- (4) Total Dies
- 9144.00mmRunout Conveyor
- Dump section, with pins
- Complete Control System w/ Operatorss Desk
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: Toledo, OH
- Disclaimer: Preliminary Specifications....
