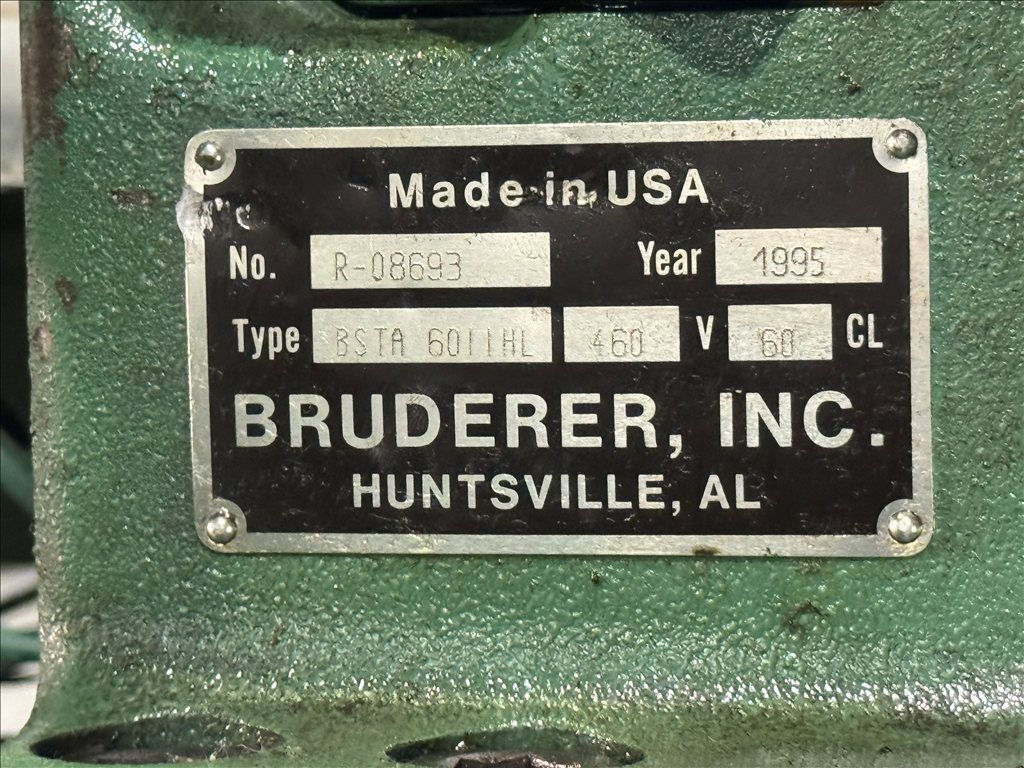

Inventory # 48193 Year: 1995

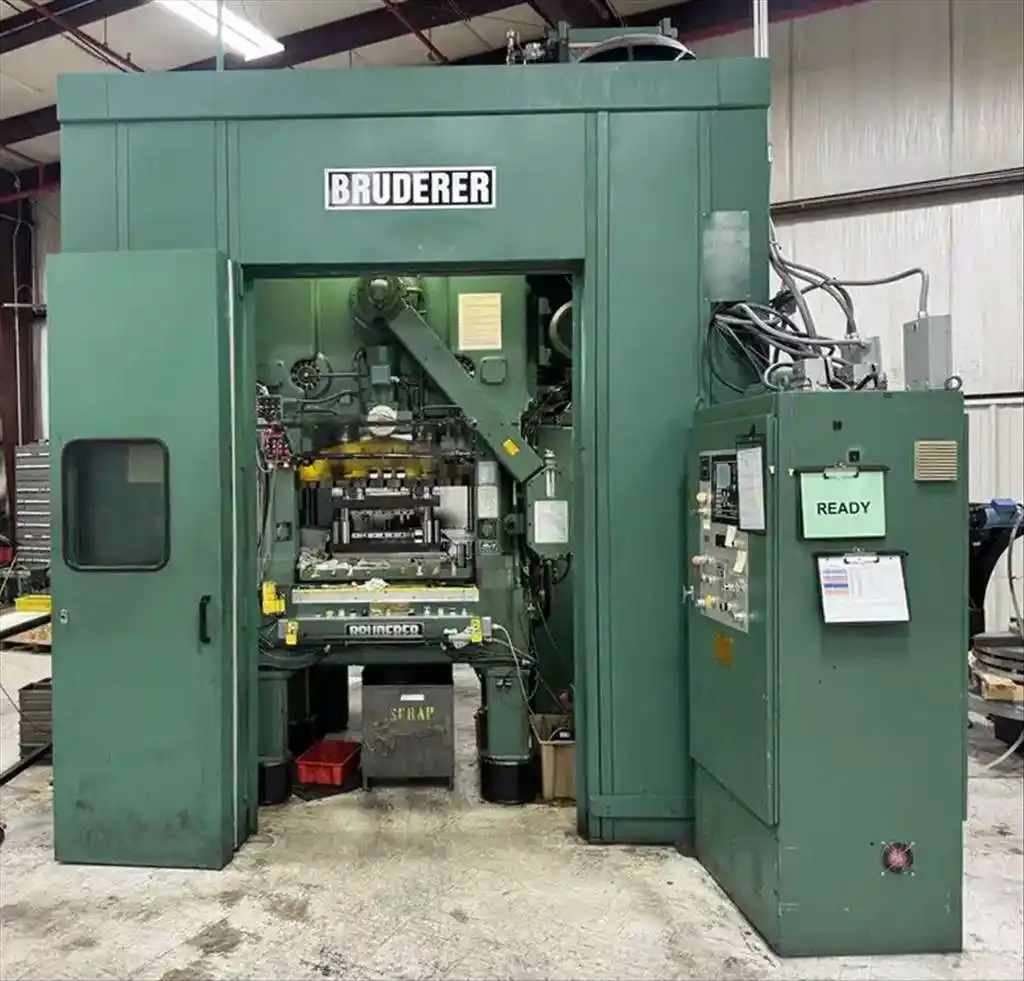

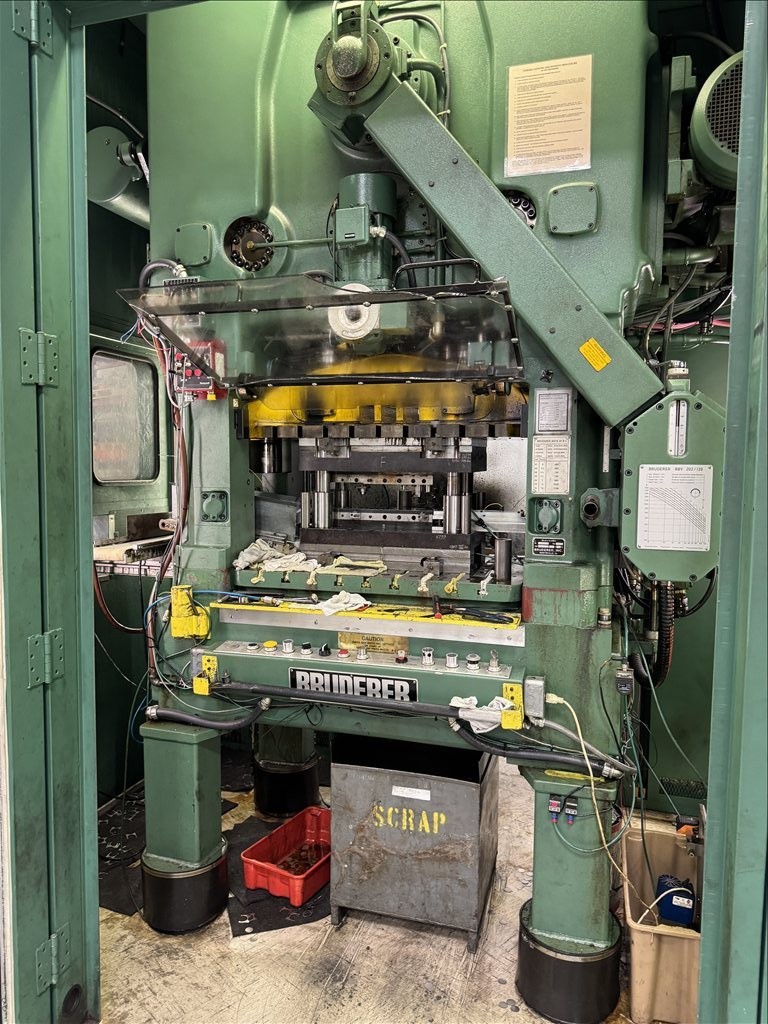

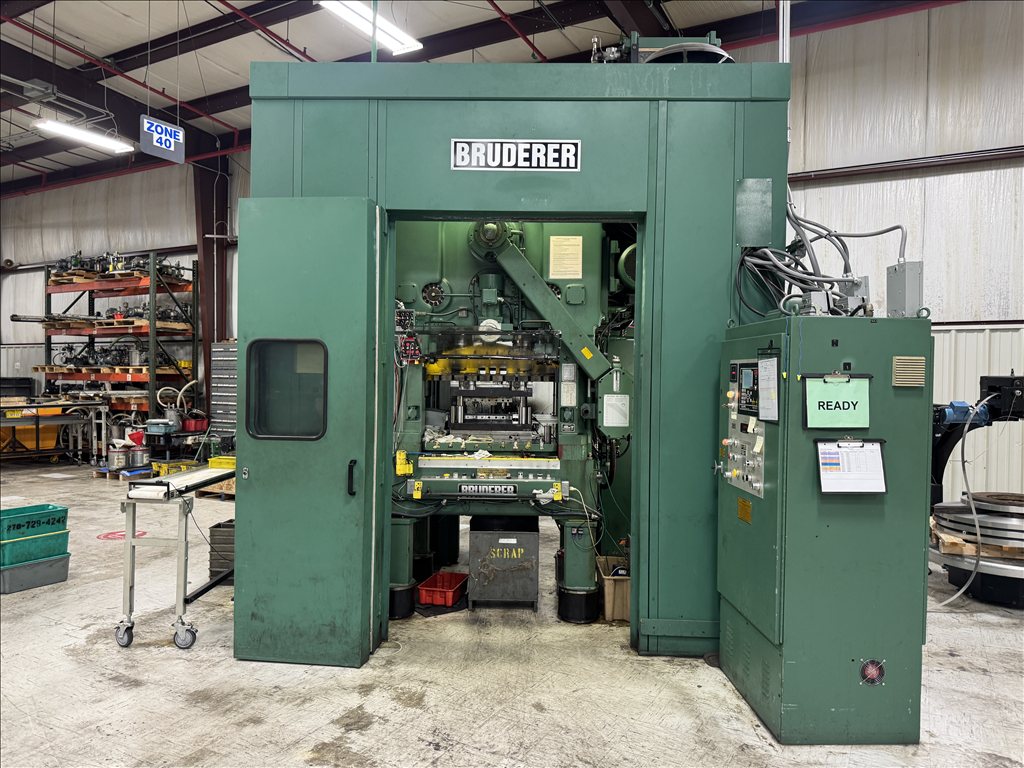

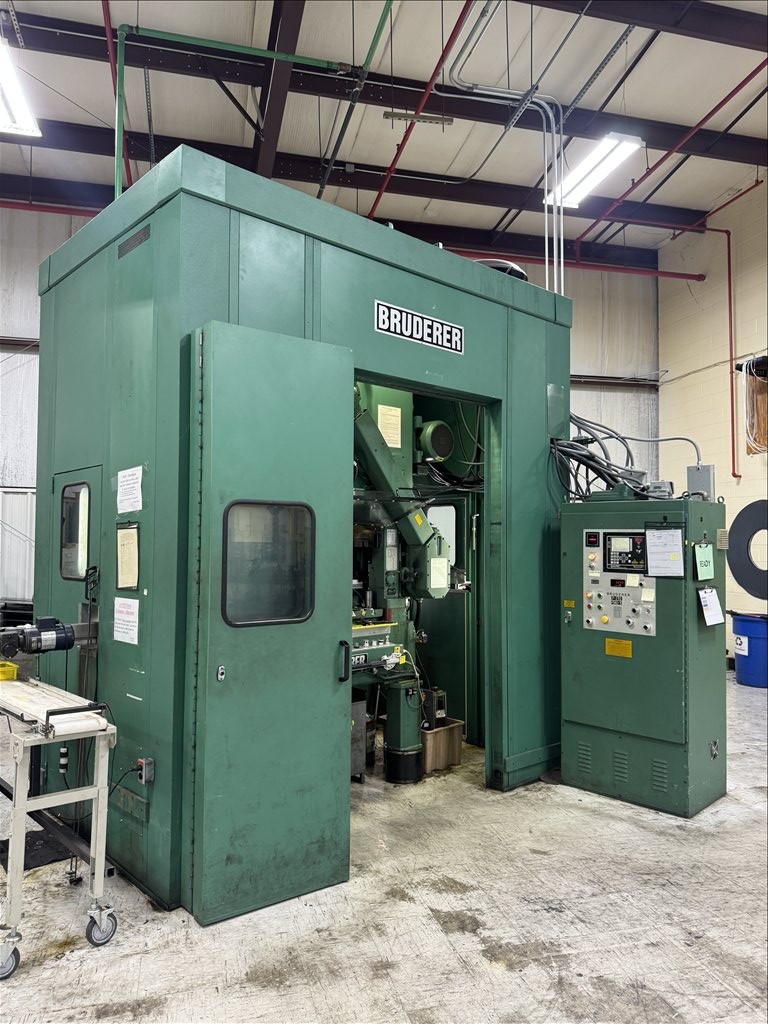

Bruderer BSTA 60IIHL High Speed Stamping Press

Request a Quote
Measurement

Specifications
  • Tonnage Capacity: 60 Ton
  • Adjustable Stroke: 5/8" - 2-1/2" (7 Positions)
  • Stroke Speed: 100 - 1120 SPM
  • Ram Adjustment: 2.5"
  • Lower Clamping Plate (R-L x F-B): 37" x 25.6"
  • Upper Clamping Plate (R-L x F-B): 31.9" x 16.5"
  • Bed Opening (L-R x H): 35.8" x 7.9"
  • Max. Strip Width Clearance: 10"
  • Strip Running Height From Clamping Plate: 2.4" - 5.5"
  • Max. Tool Width Clearance Between Columns: 37.4"
  • Show More
  • Show Less
  • Tonnage Capacity: 500kN
  • Adjustable Stroke: 15.88mm - 63.50mm (7 Positions)
  • Stroke Speed: 100 - 1120 SPM
  • Ram Adjustment: 63.50mm
  • Lower Clamping Plate (R-L x F-B): 939.80mm x 650.24mm
  • Upper Clamping Plate (R-L x F-B): 810.26mm x 419.10mm
  • Bed Opening (L-R x H): 909.32mm x 200.66mm
  • Max. Strip Width Clearance: 254.00mm
  • Strip Running Height From Clamping Plate: 60.96mm - 139.70mm
  • Max. Tool Width Clearance Between Columns: 949.96mm
  • Show More
  • Show Less
Equipped With

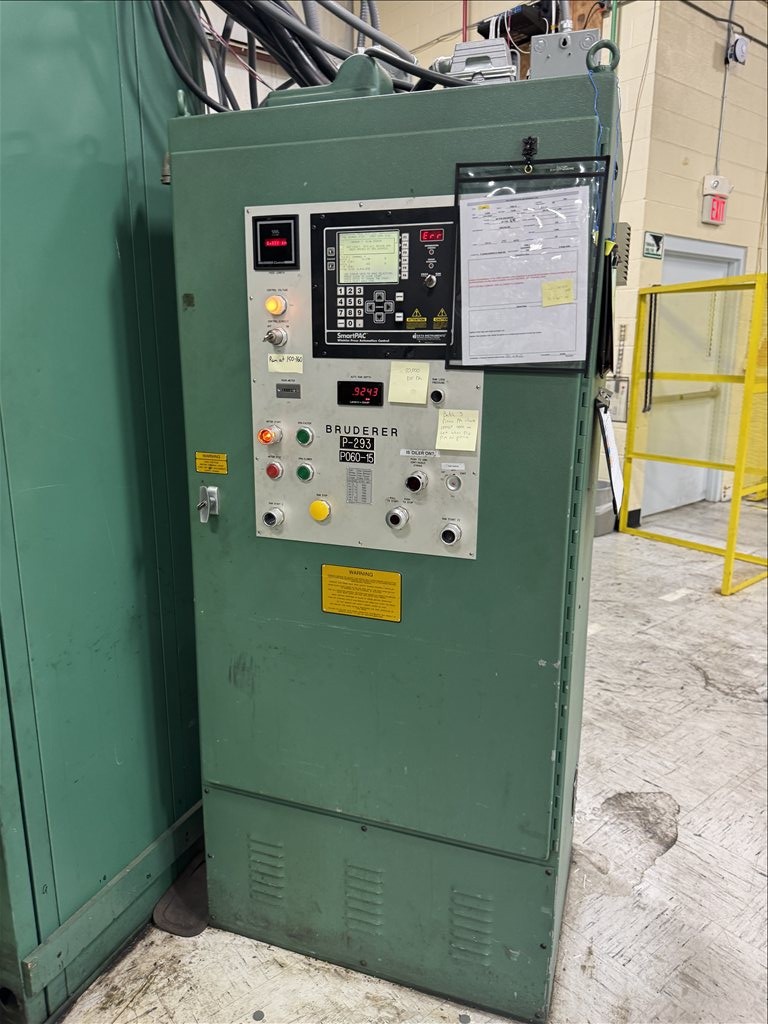

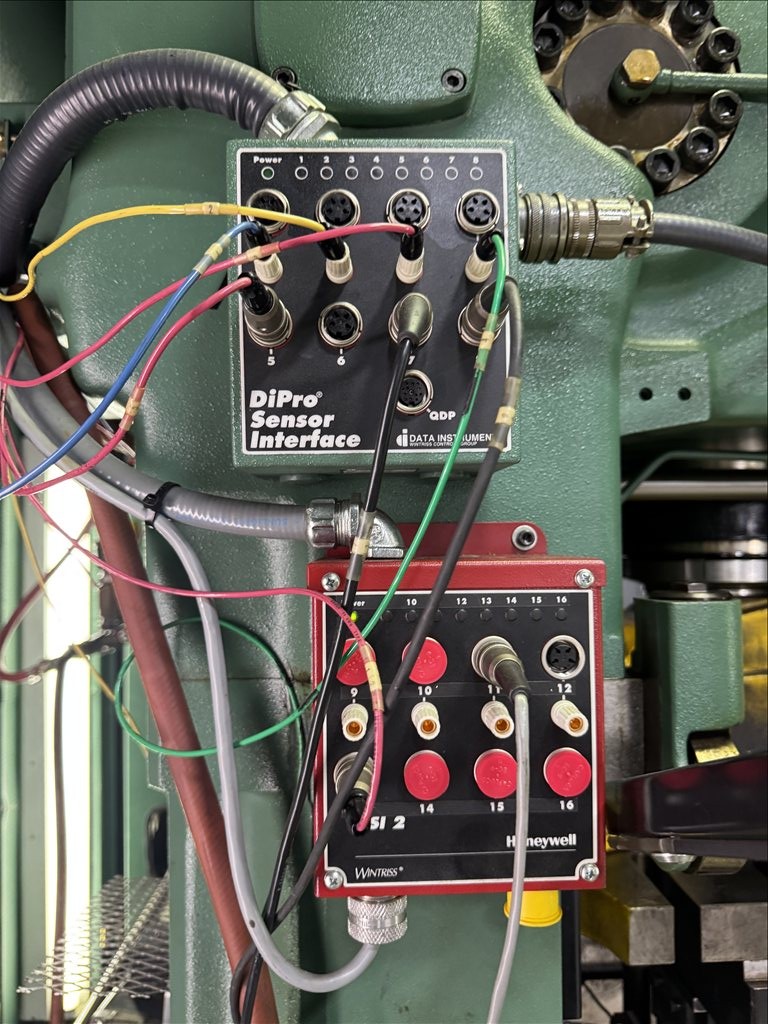

  • Bruderer Press Automation Control
  • Stroke Change Tool

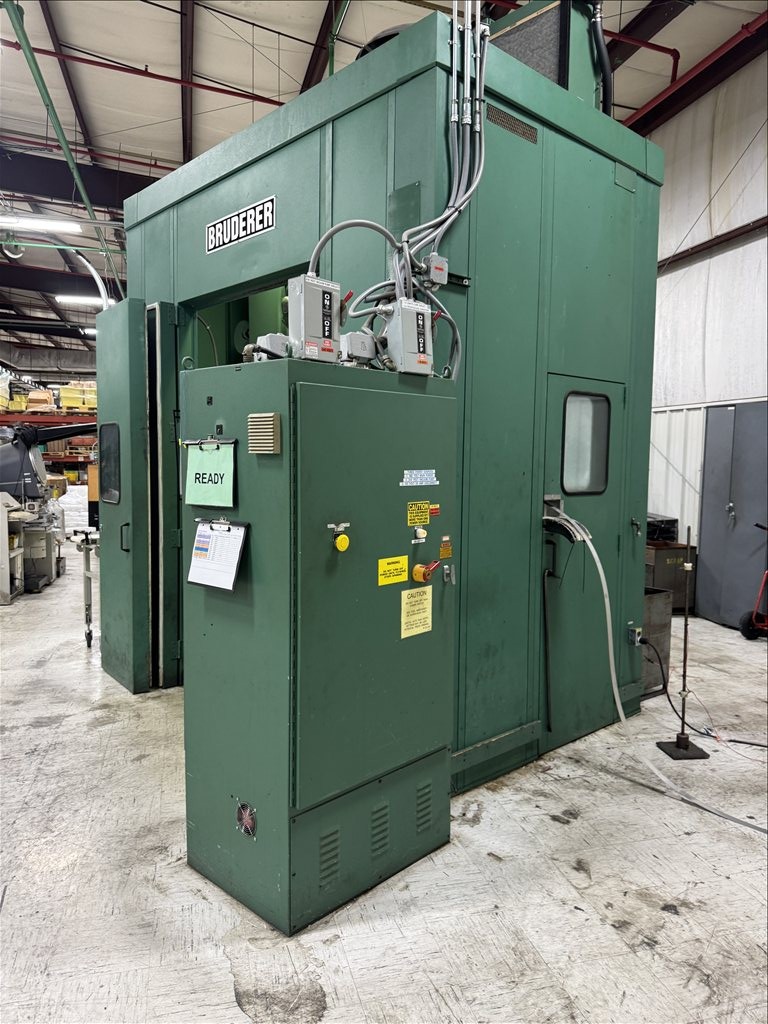

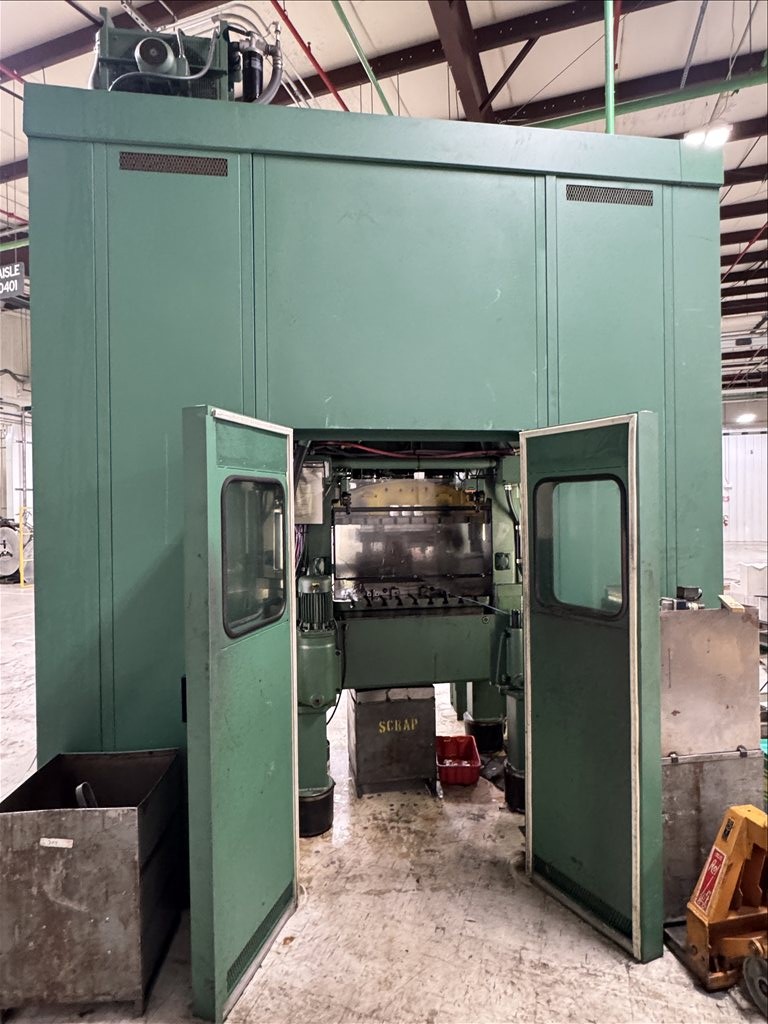

  • Sound Enclosure
  • Bruderer Press Automation Control
  • Stroke Change Tool
  • Sound Enclosure
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
