Inventory # 44640 Year: 2018

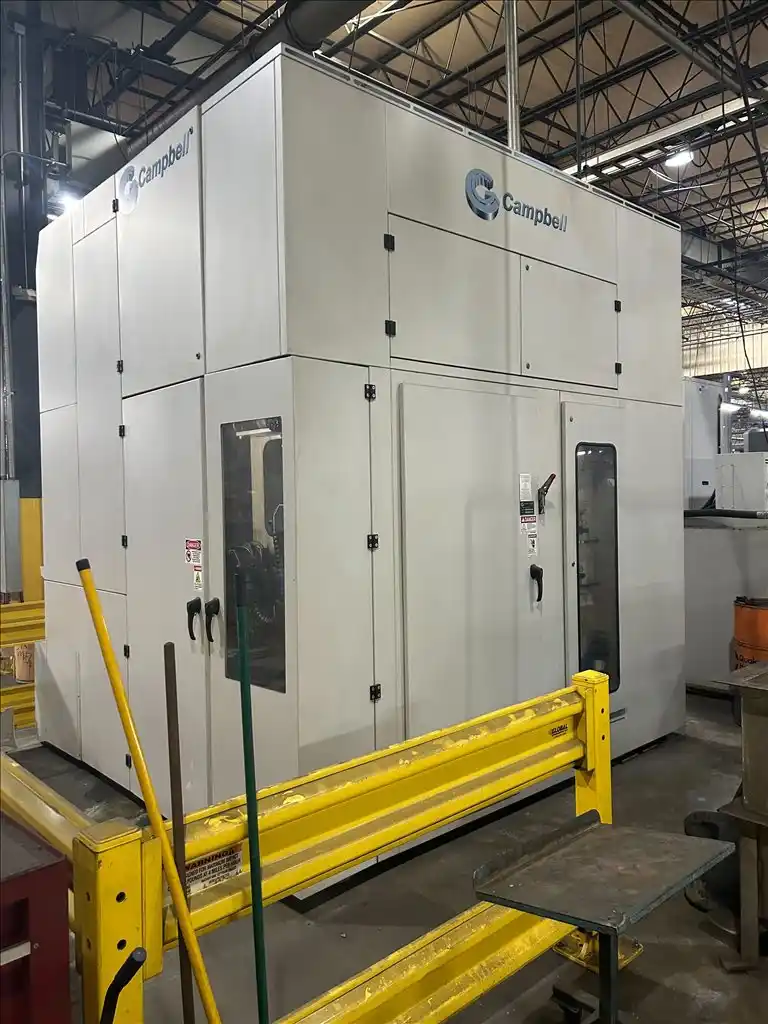

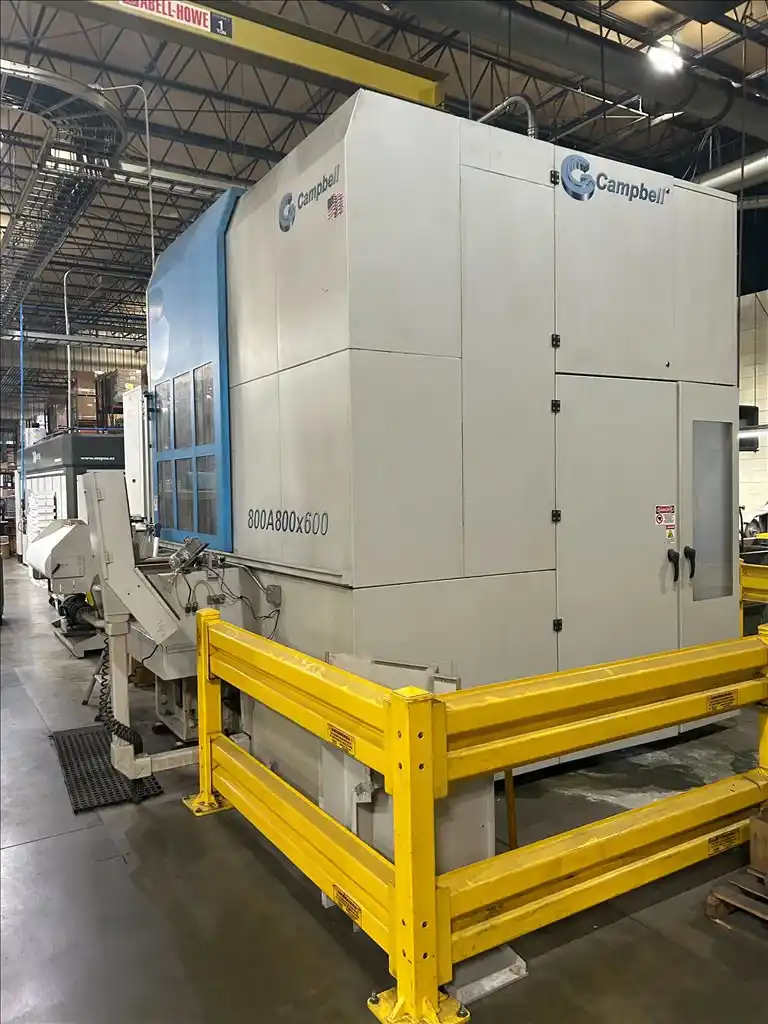

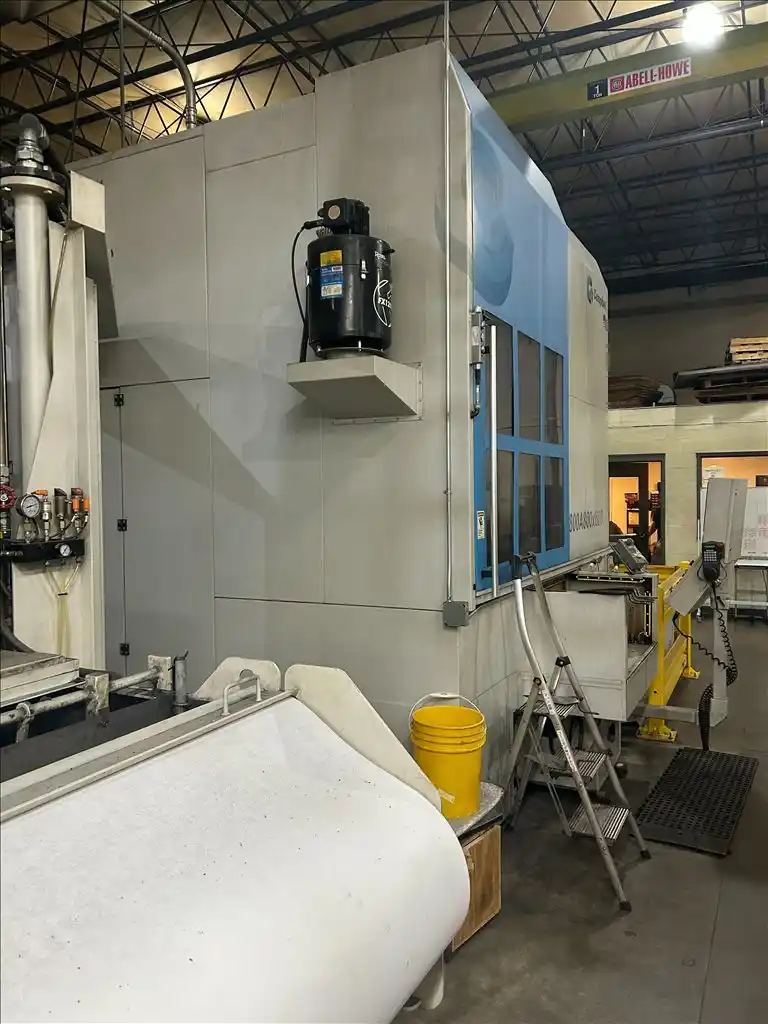

Campbell 800A 800X600 CNC Creep Feed Grinder
Specifications
- Work Envelope
- Length: 32"
- Width: 24"
- Height: 24"
- Axis
- X-Axis Travel: 32" + 8" Beyond Table Edge
- Y-Axis Travel: 24"
- Z-Axis Travel: 20"
- Rapid Traverse Speed: 300 IPM
- Positioning Accuracy: 0.0002"
- Grinding Spindle
- Power: 60 hp from 1200 to 3200 RPM
- Speed Range: 0 - 5000 RPM
- Run Out Both Radially and Axially: 0.0001"
- Wheel Size: Max 20" x 6" Wide
- Tool Connection: HSK 100

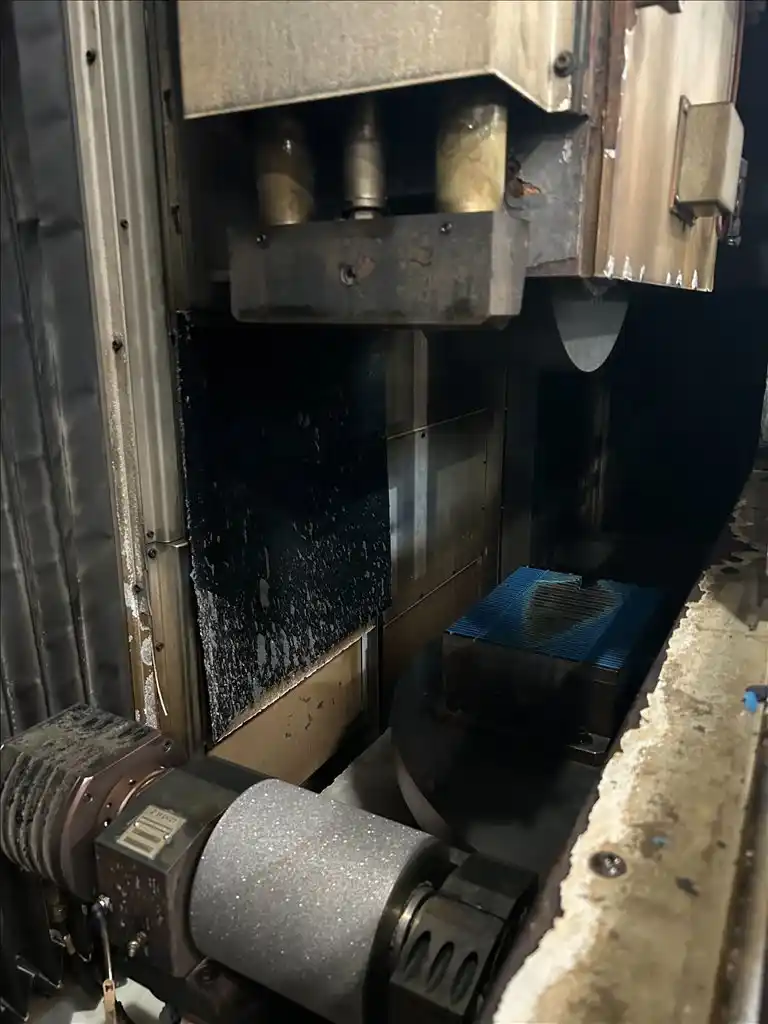

- Table Mounted Plunge Dresser
- Power: 5 hp
- RPM Range: 0 - 5500 RPM
- Run Out Both Radially and Axially: 0.0001"
- Bore Diameter: 2.05"
- Dia. Max. Roll: 6"
- Max Roll Width: 6-1/4"
- Dress Arbor: 1 Provided
- Dress Roll: 1 Provided
- Show More
- Show Less
- Work Envelope
- Length: 812.80mm
- Width: 609.60mm
- Height: 609.60mm
- Axis
- X-Axis Travel: 812.80mm + 203.20mm Beyond Table Edge
- Y-Axis Travel: 609.60mm
- Z-Axis Travel: 508.00mm
- Rapid Traverse Speed: 127.00 mm/sec
- Positioning Accuracy: 0.01mm
- Grinding Spindle
- Power: 44.74 kw from 1200 to 3200 RPM
- Speed Range: 0 - 5000 RPM
- Run Out Both Radially and Axially: 0.00mm
- Wheel Size: Max 508.00mm x 152.40mm Wide
- Tool Connection: HSK 100
- Table Mounted Plunge Dresser
- Power: 3.73 kw
- RPM Range: 0 - 5500 RPM
- Run Out Both Radially and Axially: 0.00mm
- Bore Diameter: 52.07mm
- Dia. Max. Roll: 152.40mm
- Max Roll Width: 158.75mm
- Dress Arbor: 1 Provided
- Dress Roll: 1 Provided
- Show More
- Show Less
Equipped With

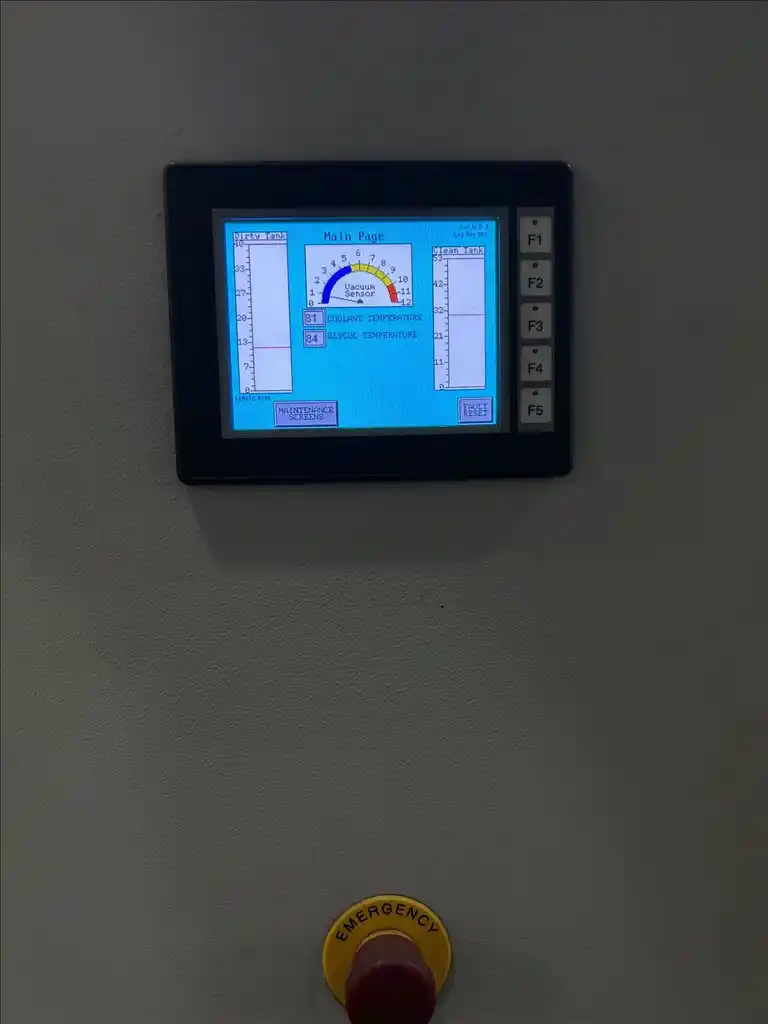

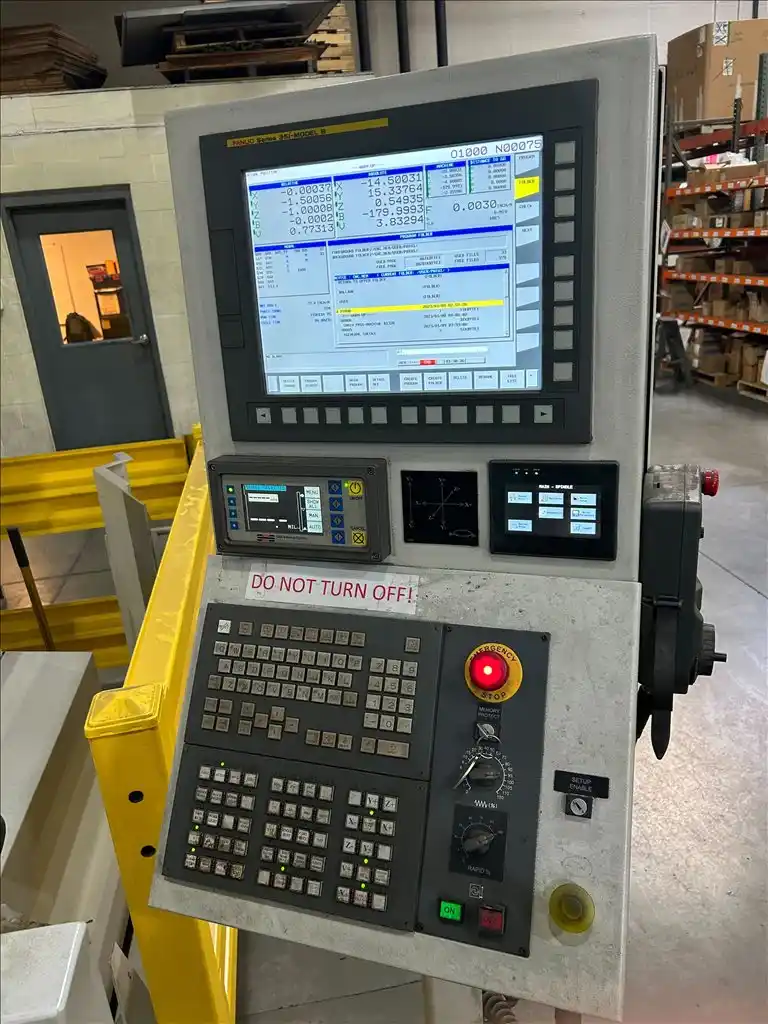

- Fanuc Series 35-i Model B CNC Control
- 180° Table Indexer w/ Two Fixture Assemblies
- Wheel Balancer System

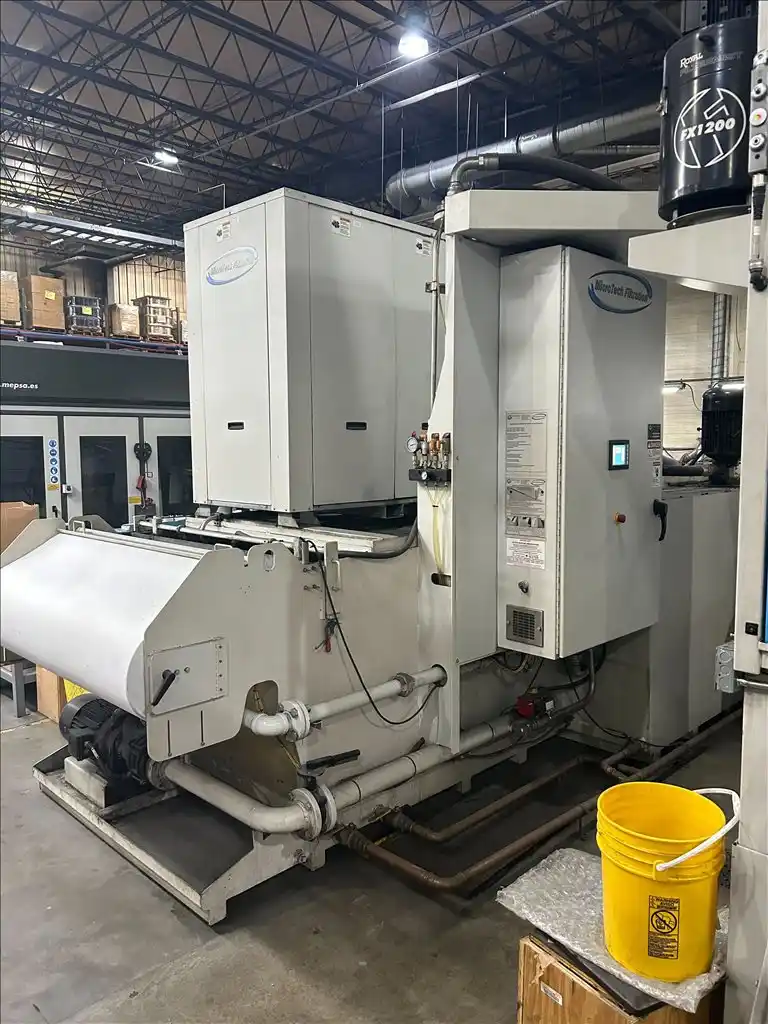

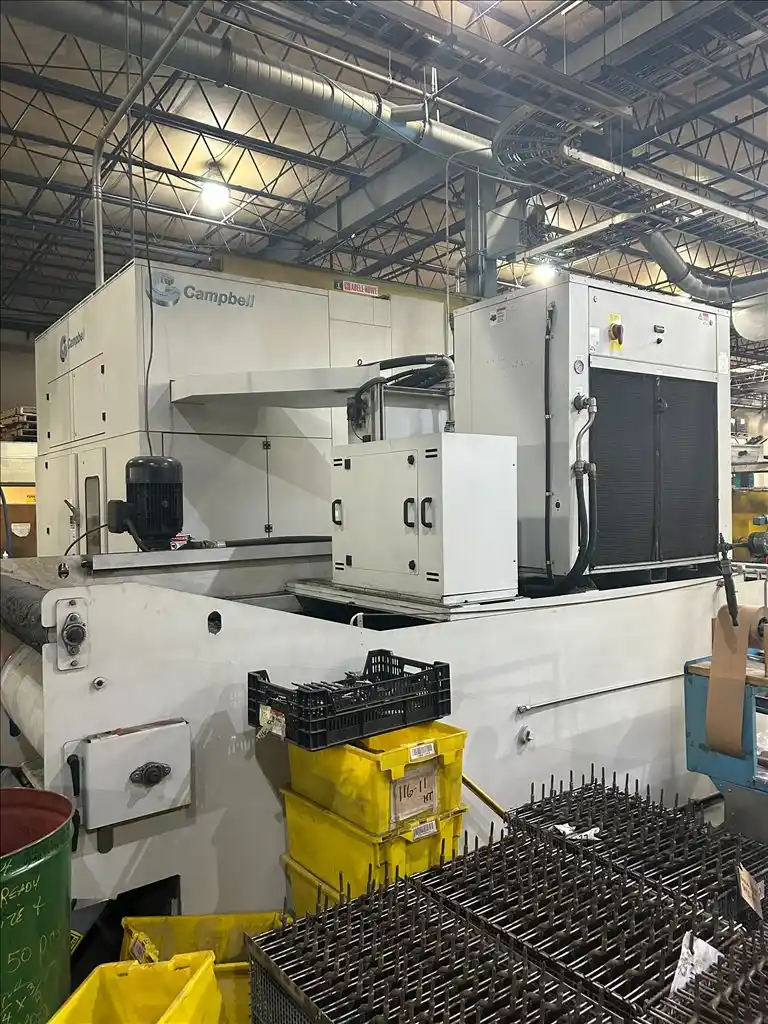

- Coolant System
- Chiller
- Mist Removal System
- Show More
- Show Less
- Fanuc Series 35-i Model B CNC Control
- 180° Table Indexer w/ Two Fixture Assemblies
- Wheel Balancer System
- Coolant System
- Chiller
- Mist Removal System
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
