Inventory # 45004

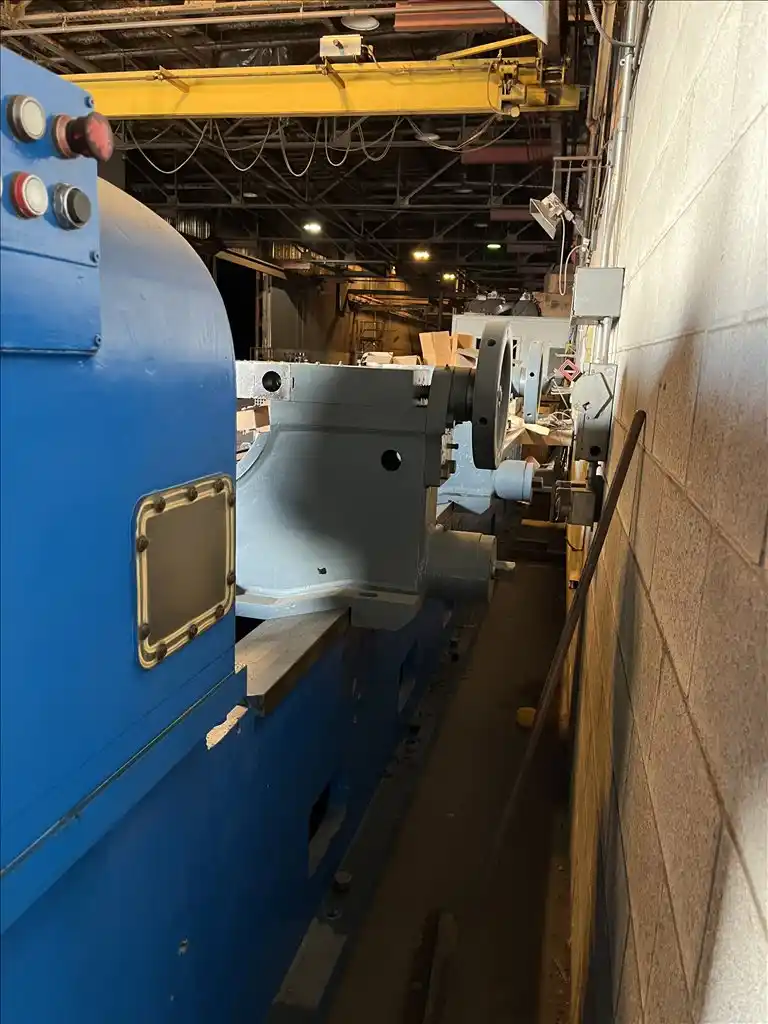

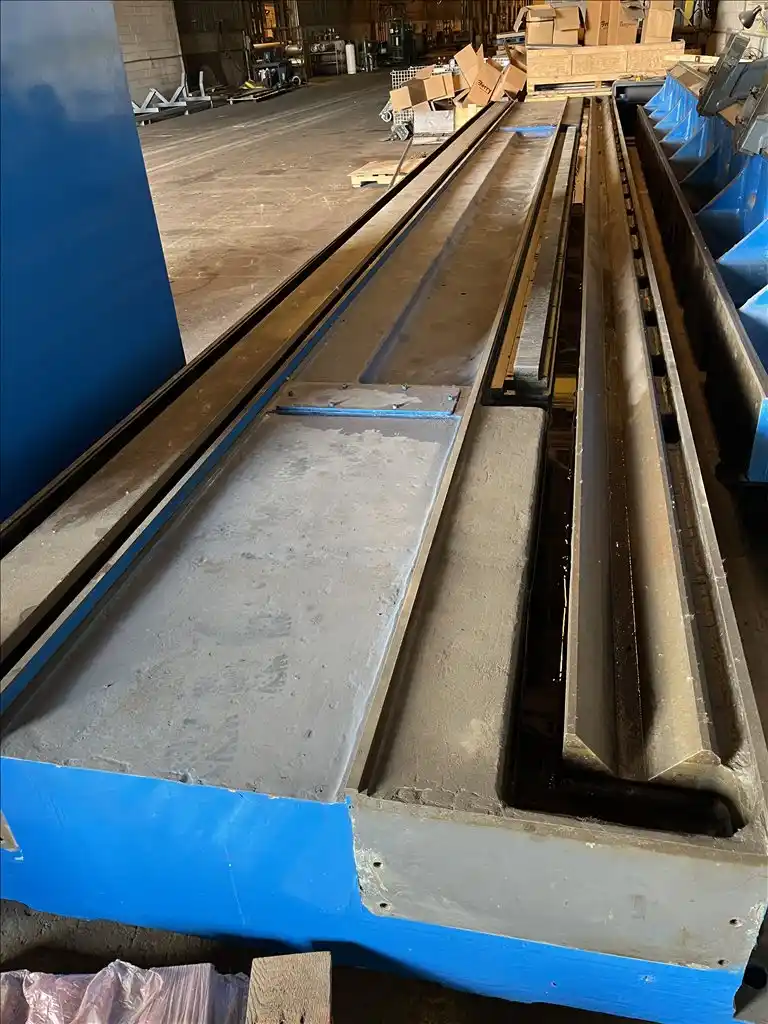

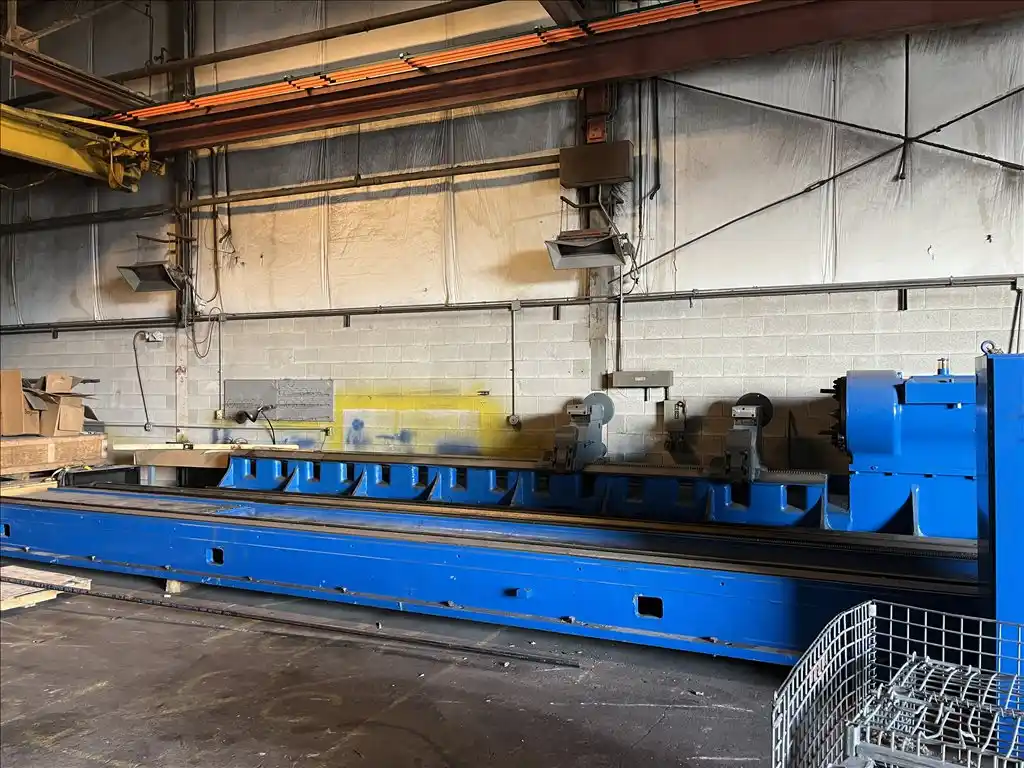

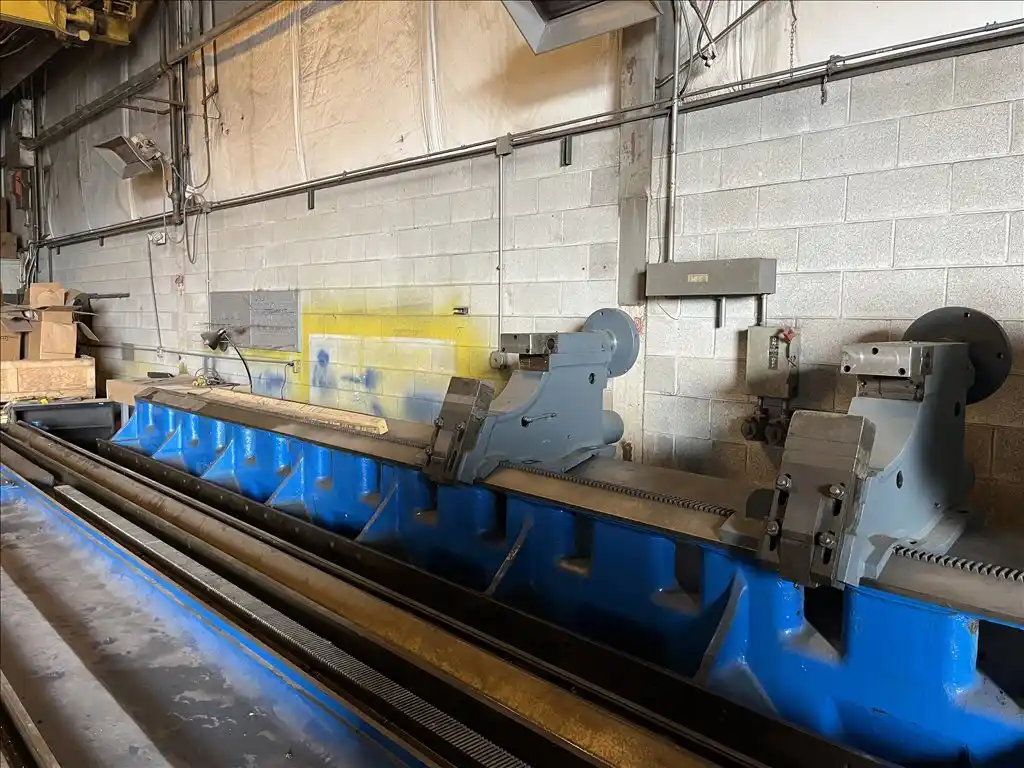

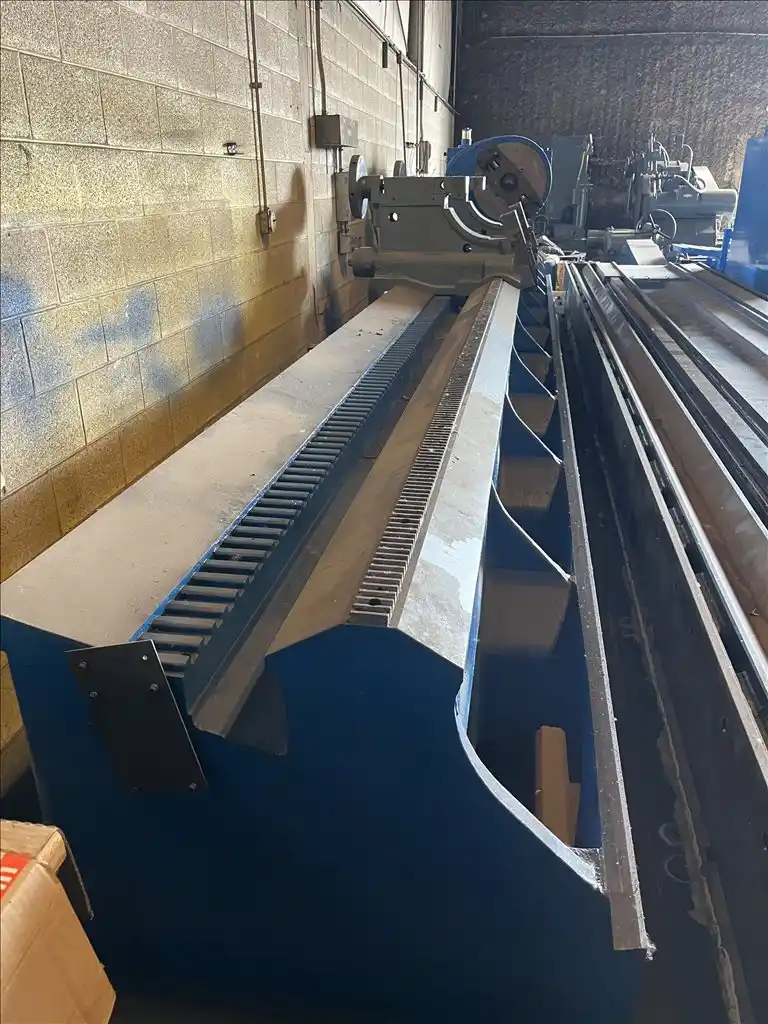

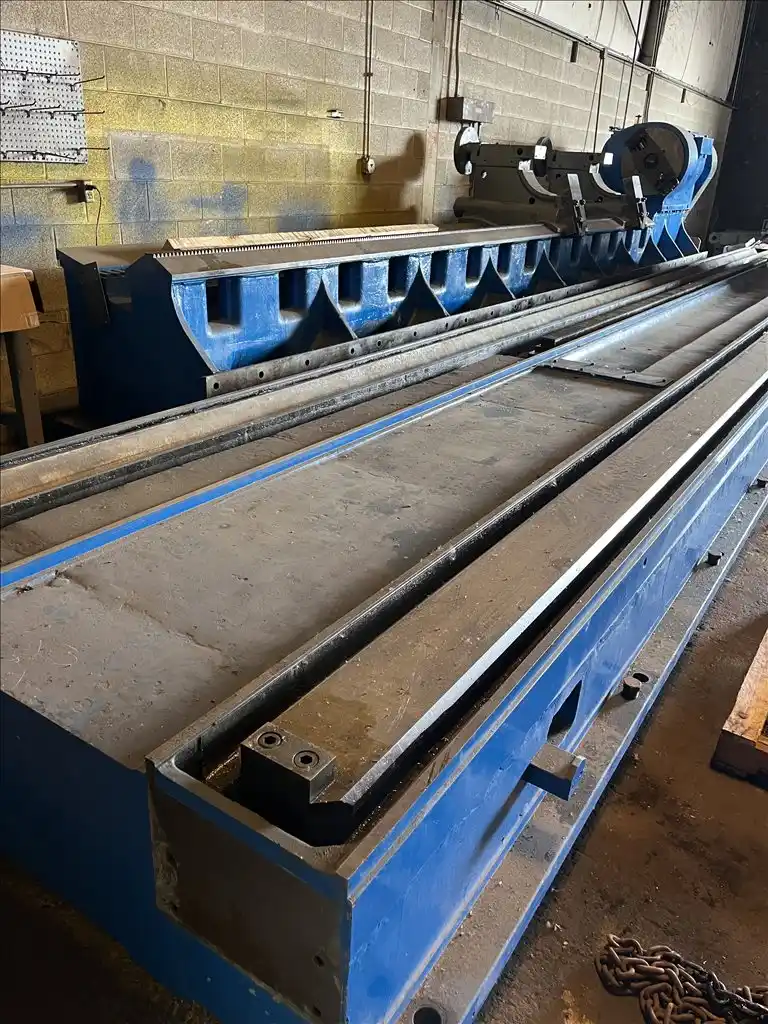

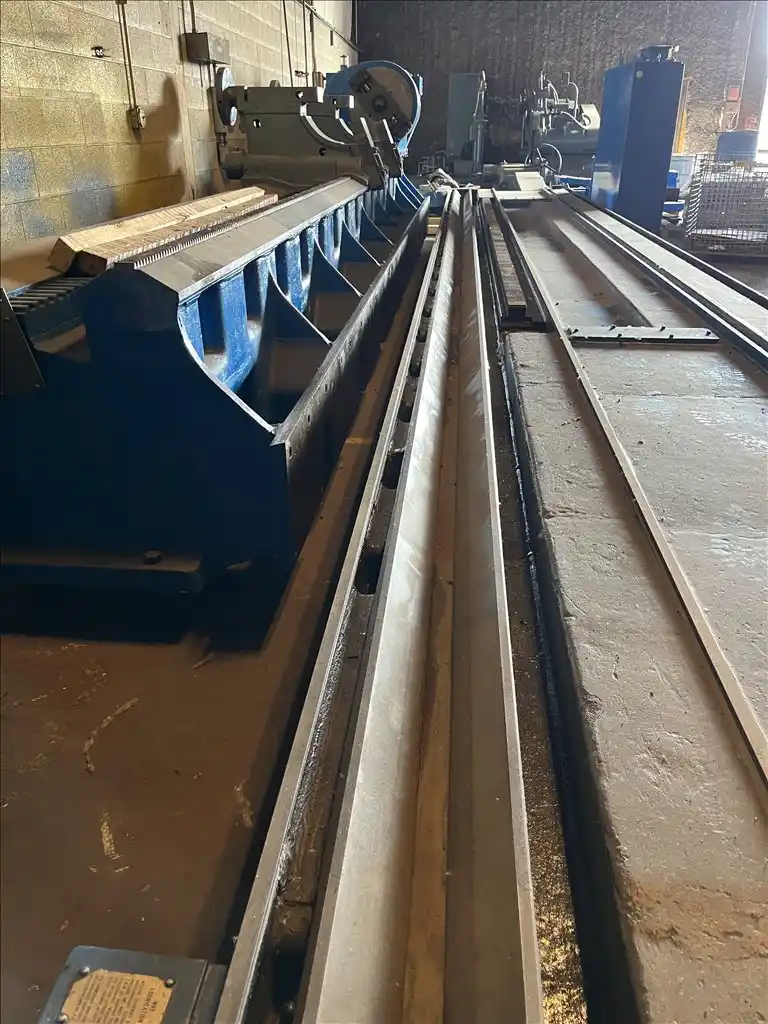

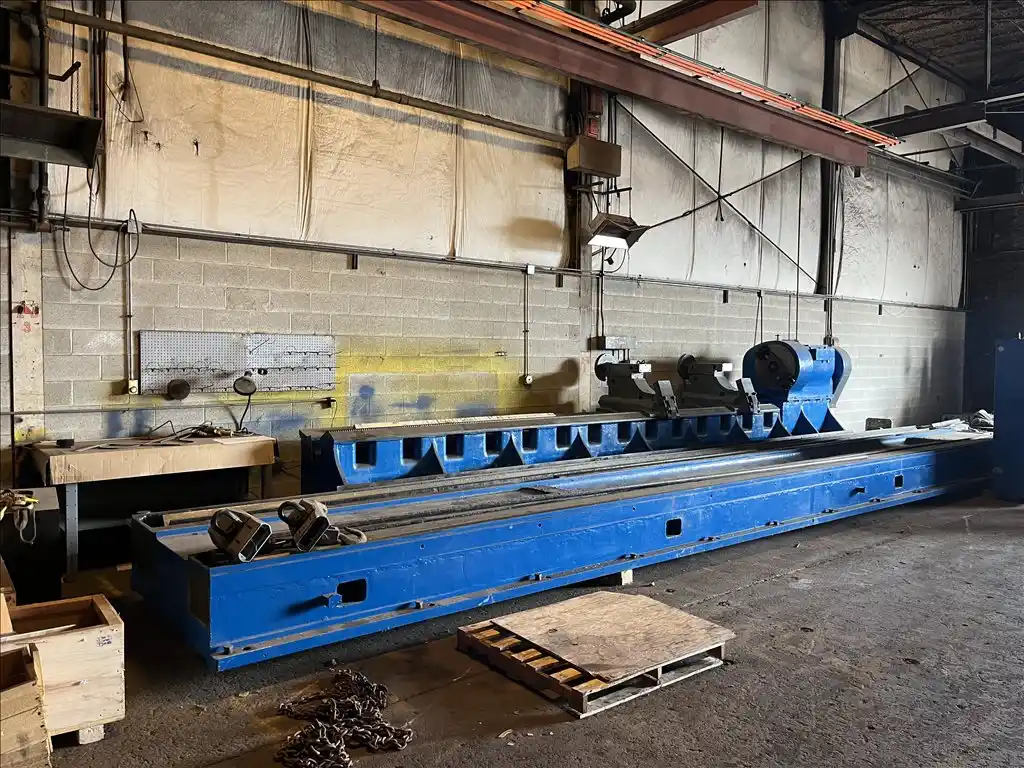

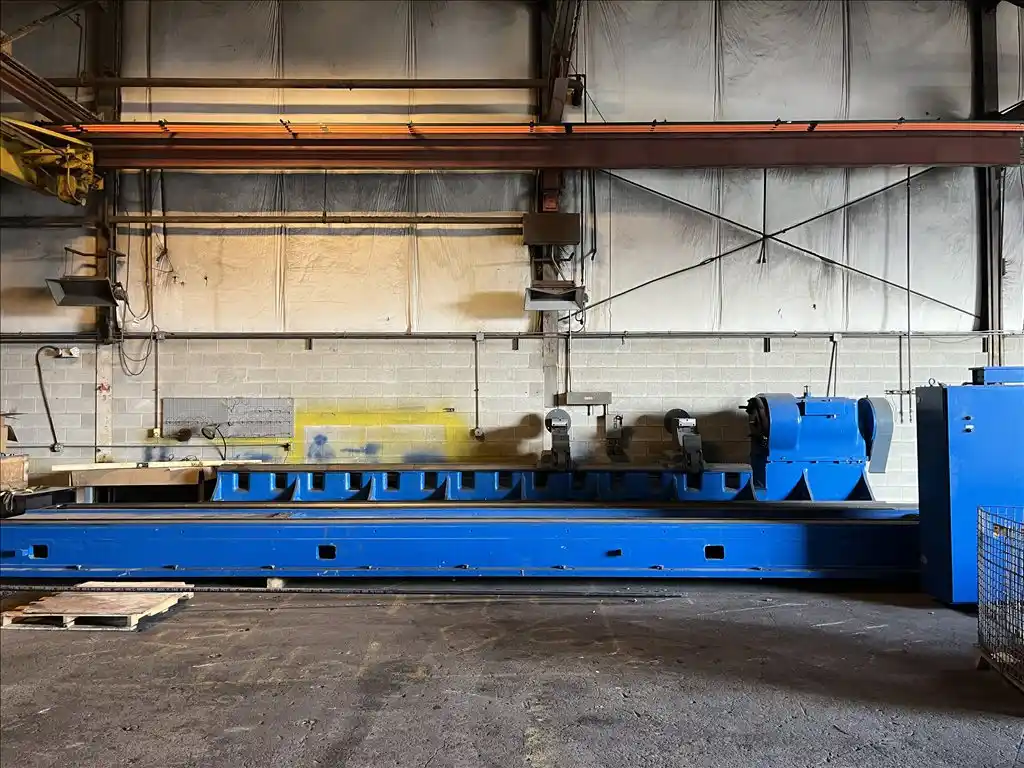

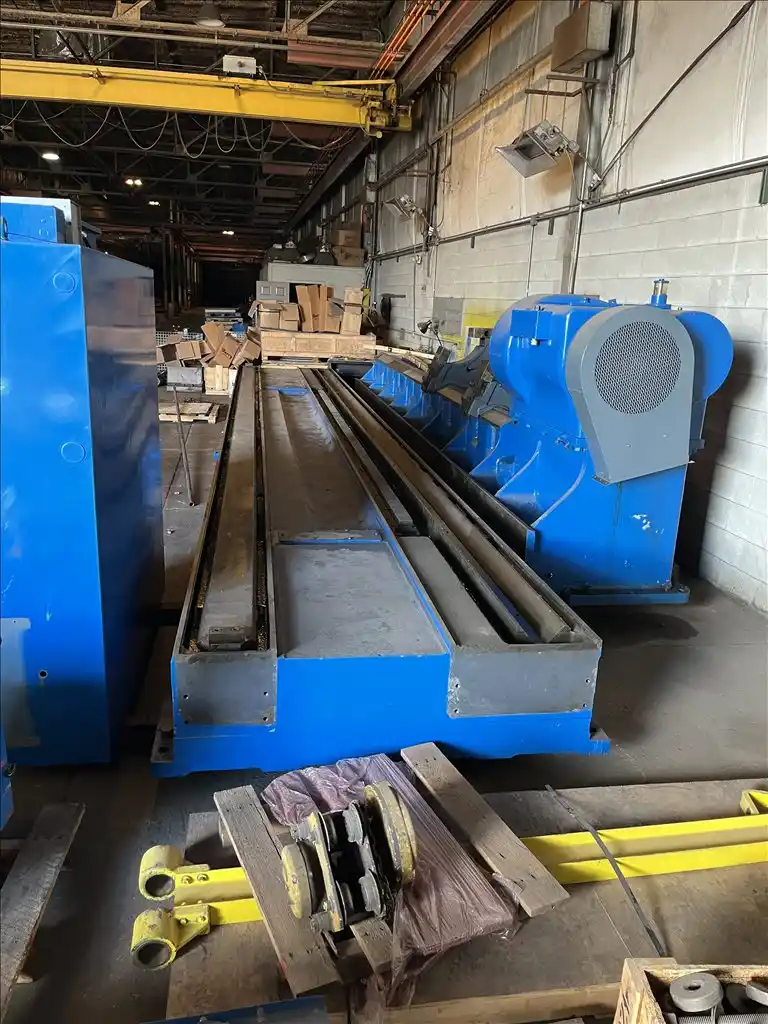

Cincinnati 36" X 192" Roll Grinder
Specifications
- Maximum Swing Over Bed: 36"
- Maximum Roll Length: 192"

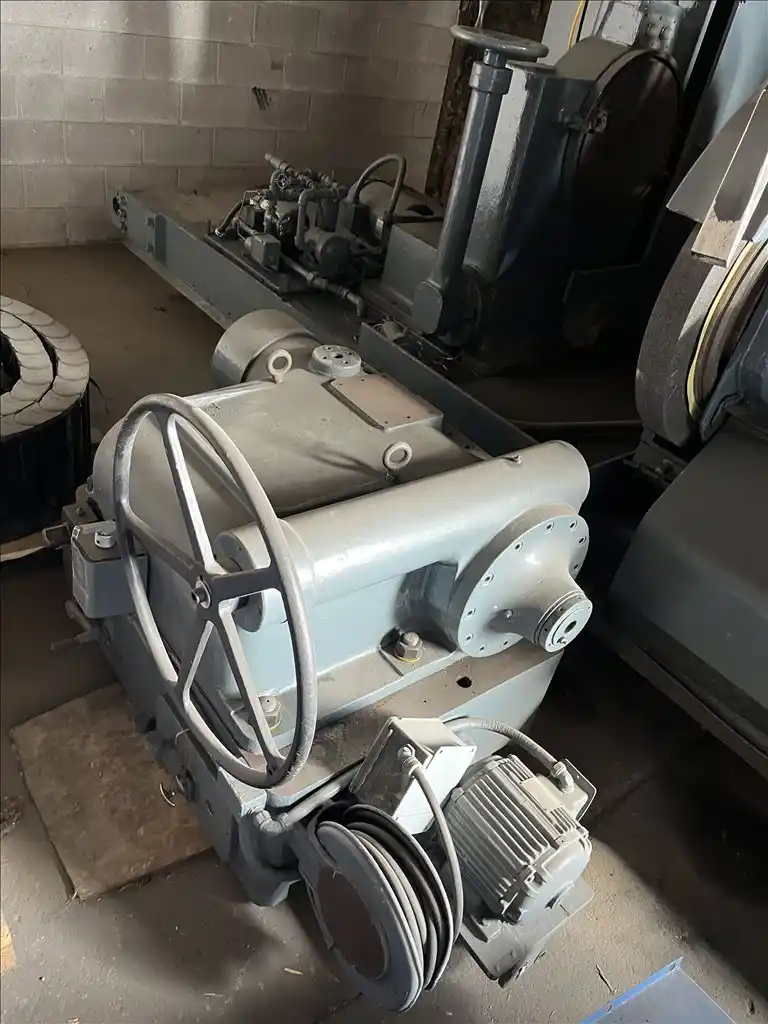

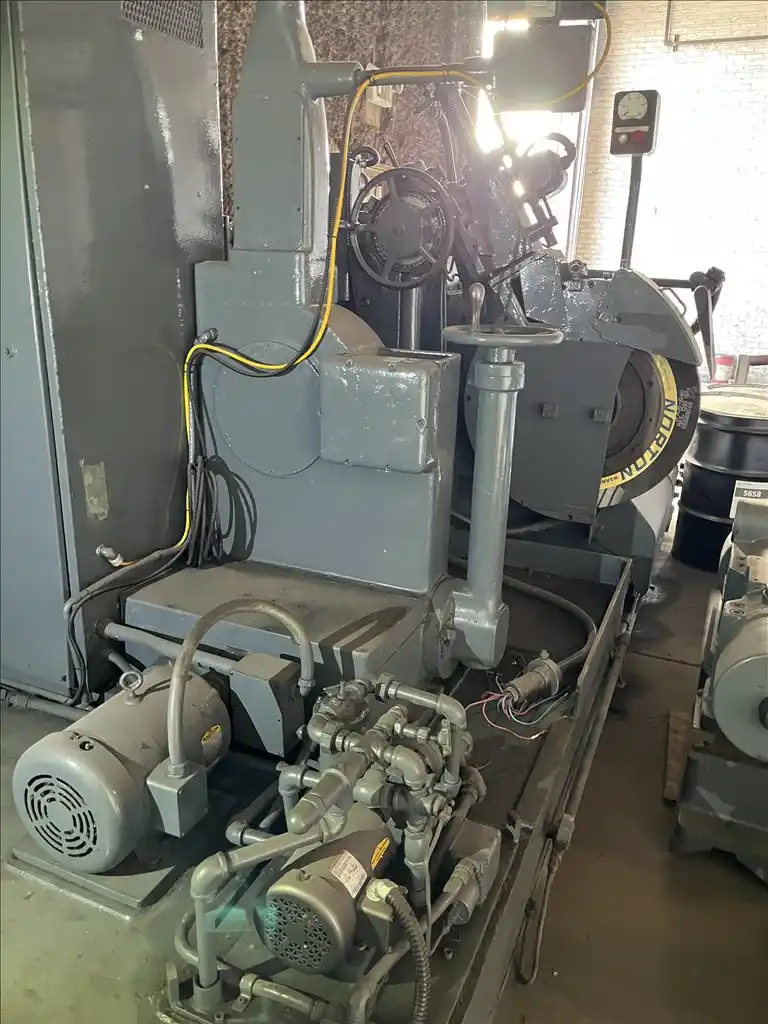

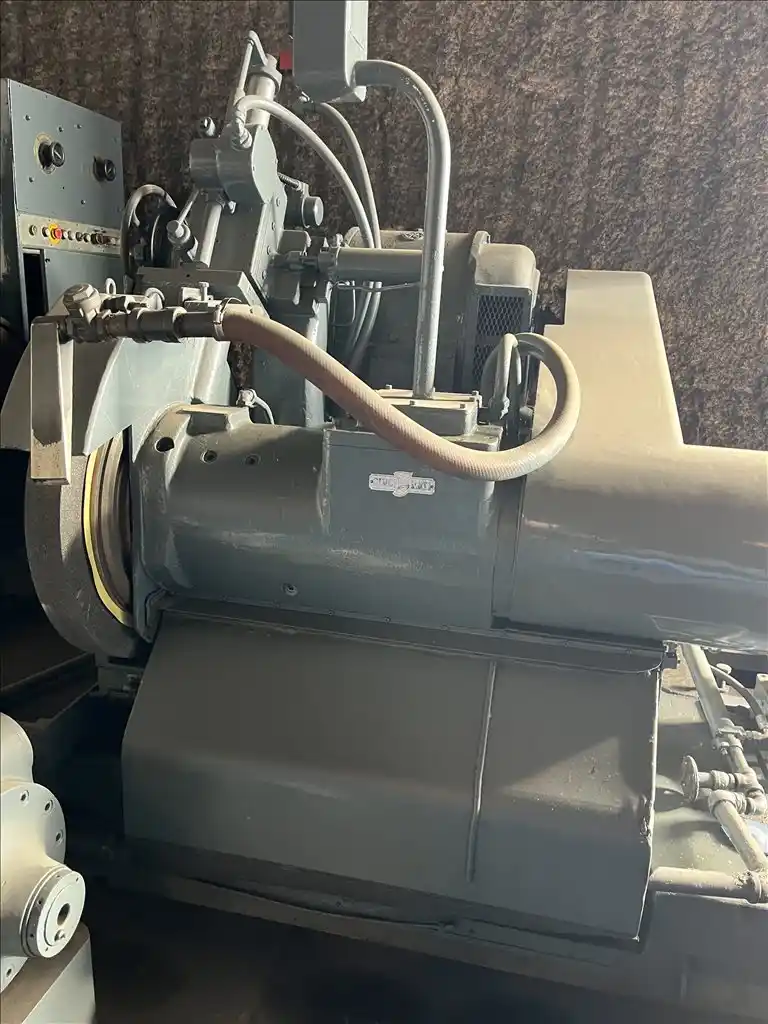

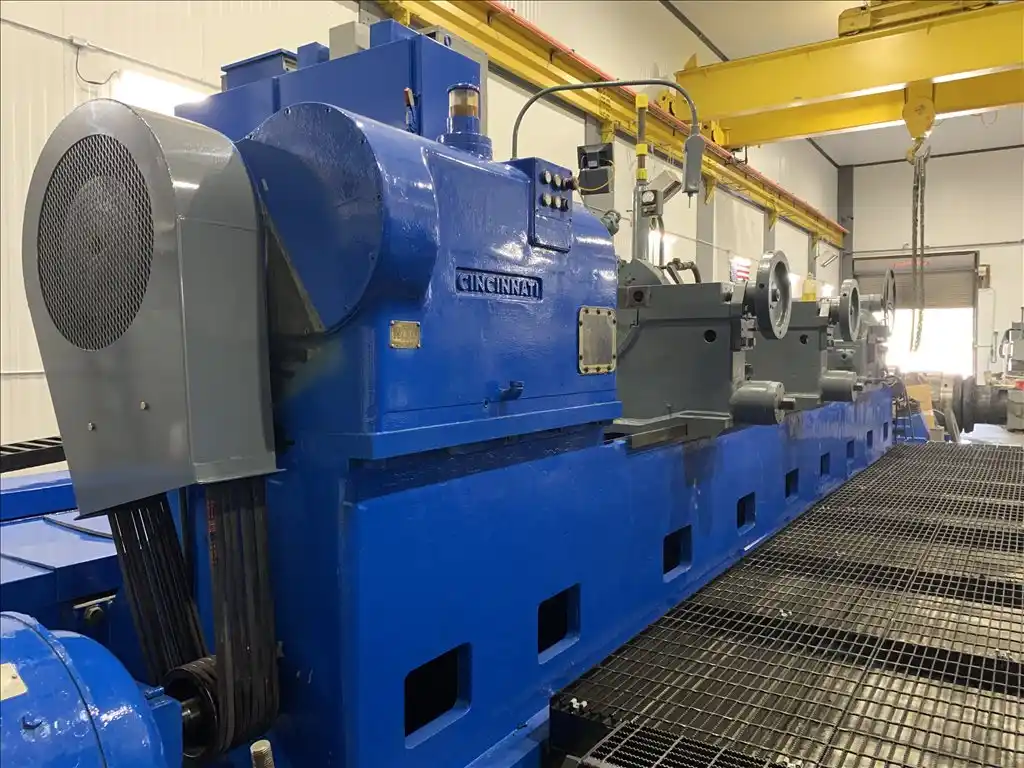

- Wheelhead
- Size of Grinding Wheel - std.: 36" x 4" x 20"
- Grinding Wheel Speed: 600 - 1800 RPM
- Weight of Wheelhead without Motor: 14,500 lbs

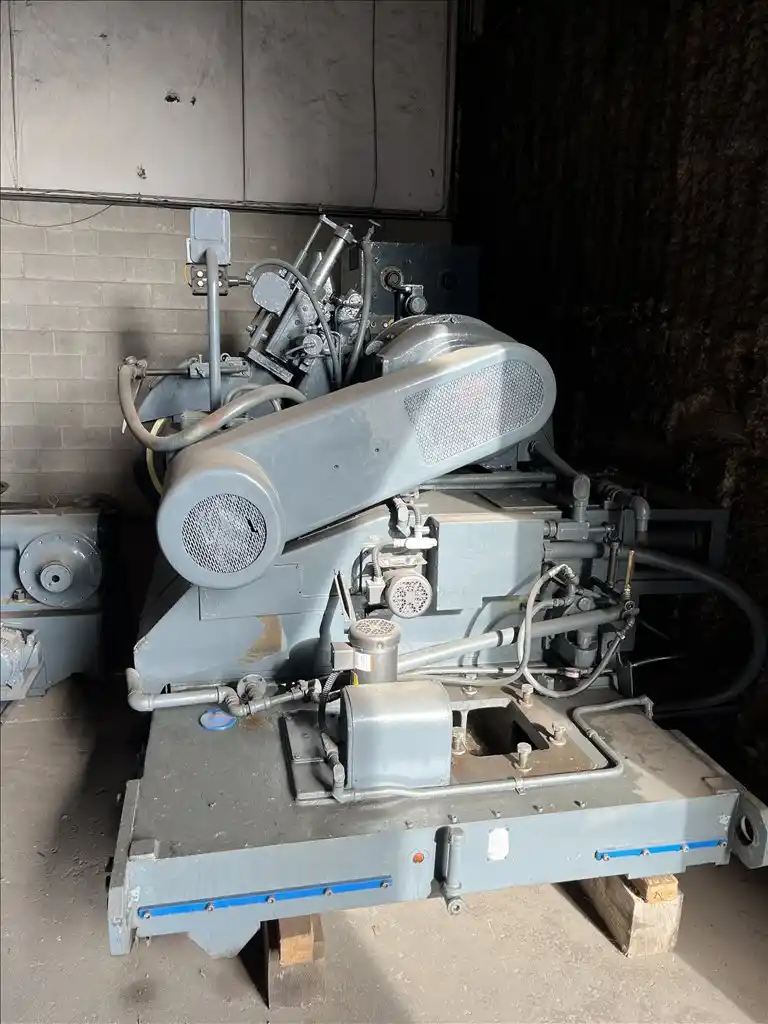

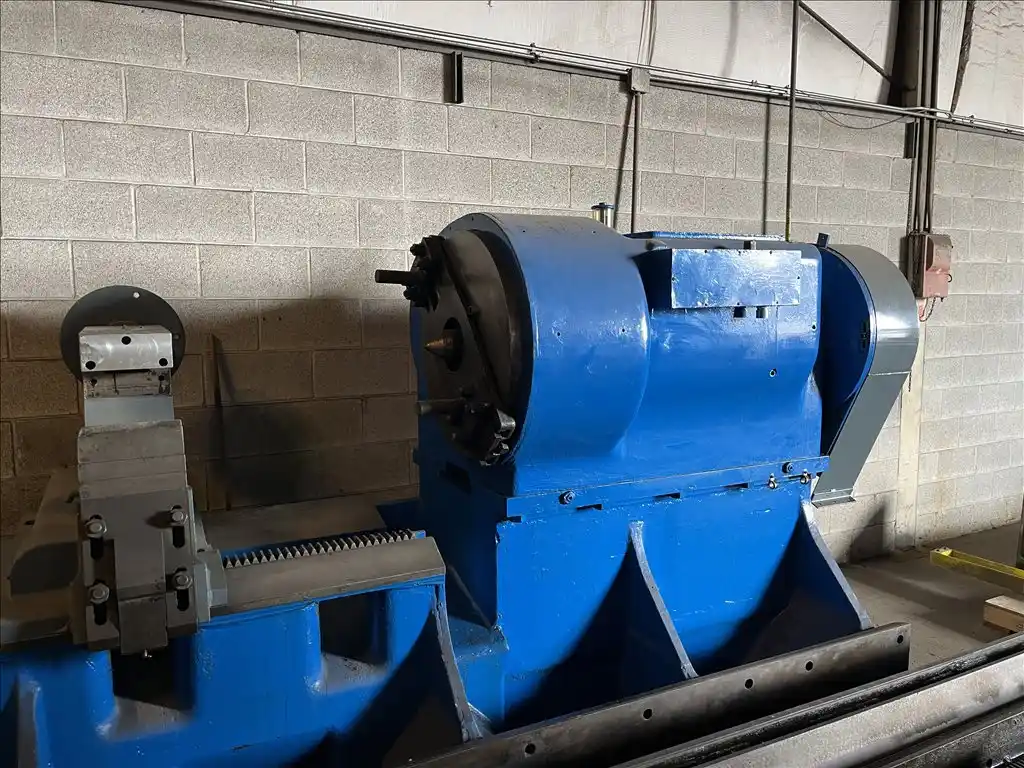

- Headstock
- Headstock Speed: 9 - 32 RPM

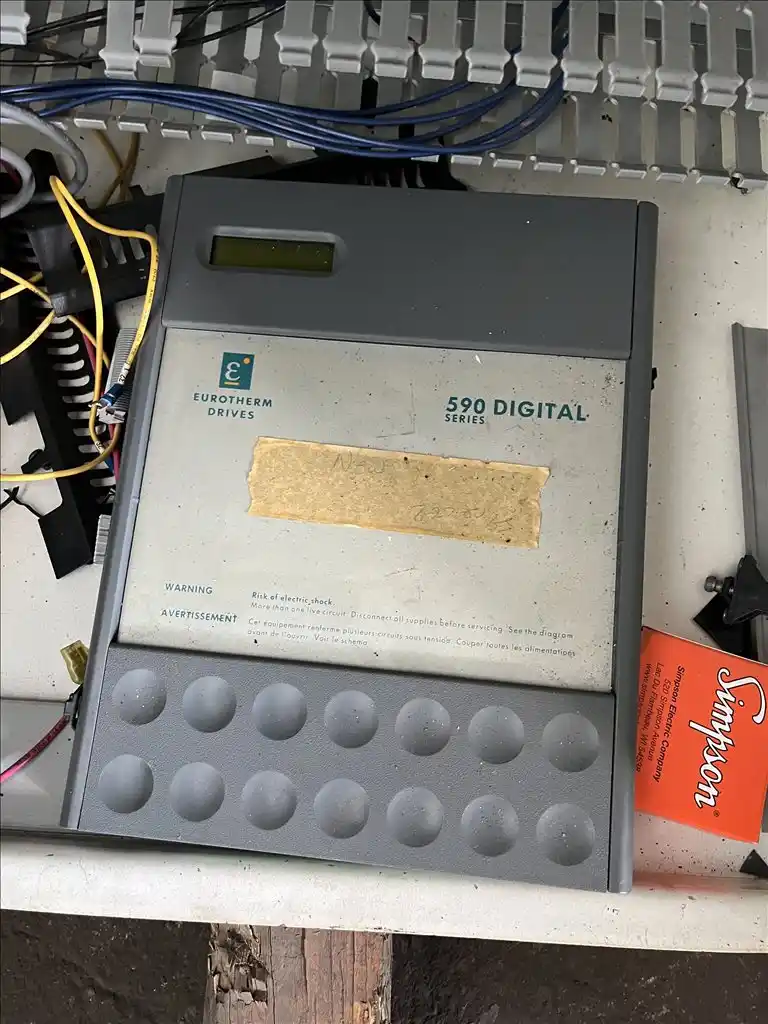

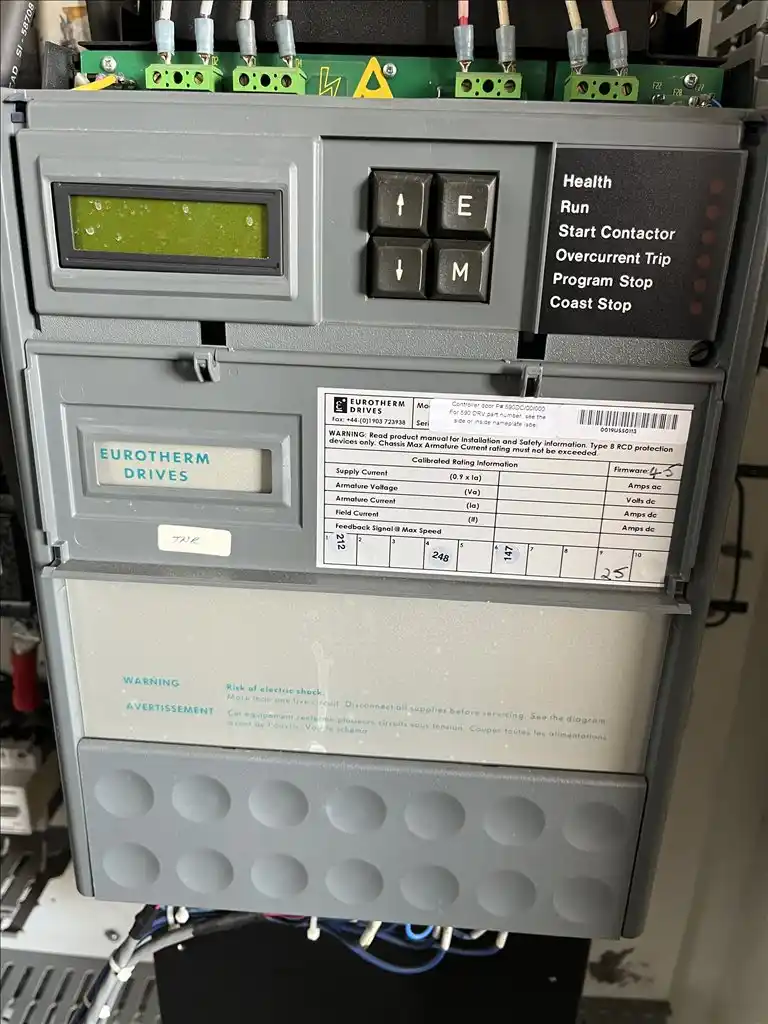

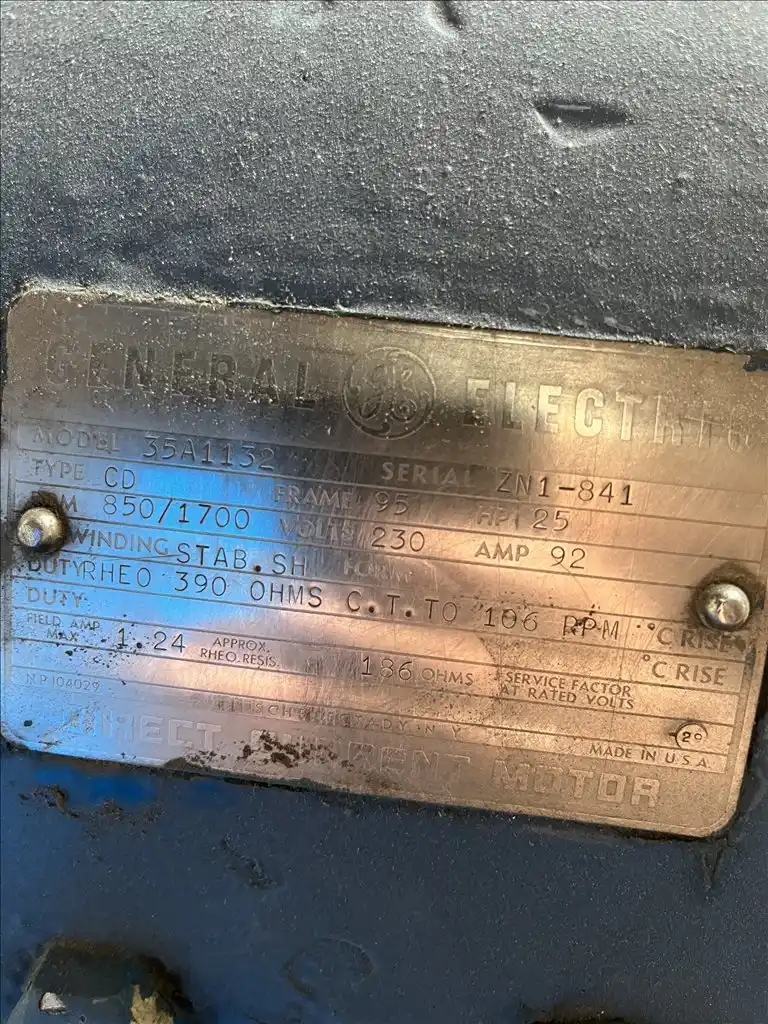

- Headstock Power: 15 hp DC
- Weight of Headstock: 14,000 lbs
- Infeed
- Infeed Increments, Programmable: .000010" - .004"
- Maximum Infeed Rate (Rapid): 30 IPM
- Footstock
- Work Center Diameter x Length: 6" x 20-1/8"
- Maximum Longitudinal Movement: 5"
- Weight: 6,600 lbs
- Show More
- Show Less
- Maximum Swing Over Bed: 914.40mm
- Maximum Roll Length: 4876.80mm
- Wheelhead
- Size of Grinding Wheel - std.: 914.40mm x 101.60mm x 508.00mm
- Grinding Wheel Speed: 600 - 1800 RPM
- Weight of Wheelhead without Motor: 6575.75 kg
- Headstock
- Headstock Speed: 9 - 32 RPM
- Headstock Power: 11.19 kw DC
- Weight of Headstock: 6349.00 kg
- Infeed
- Infeed Increments, Programmable: 0.00mm - 0.10mm
- Maximum Infeed Rate (Rapid): 12.70 mm/sec
- Footstock
- Work Center Diameter x Length: 152.40mm x 511.18mm
- Maximum Longitudinal Movement: 127.00mm
- Weight: 2993.10 kg
- Show More
- Show Less
Equipped With

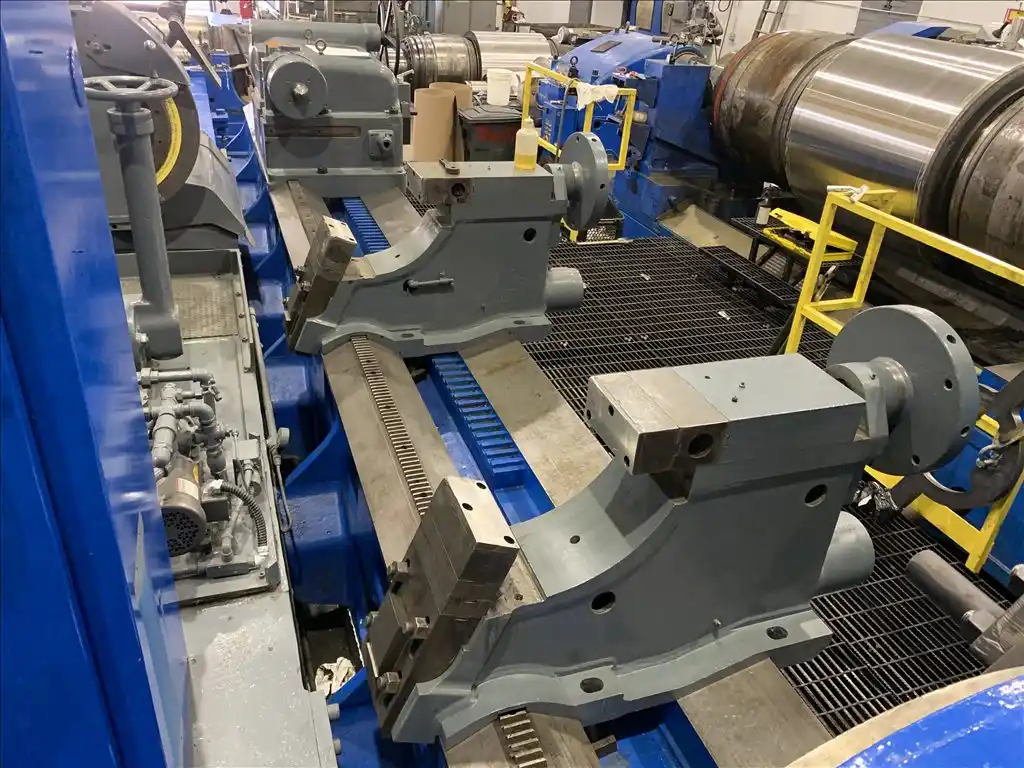

- 1 Pair Journal Rests
- 1 Wheel Hub
- 2 Centers
- 1 Equalizer Drive
- New Fagor Digital Readout on the Infeed Slide
- Way Covers
- Show More
- Show Less
- 1 Pair Journal Rests
- 1 Wheel Hub
- 2 Centers
- 1 Equalizer Drive
- New Fagor Digital Readout on the Infeed Slide
- Way Covers
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
