Inventory # 44795 Year: 1993

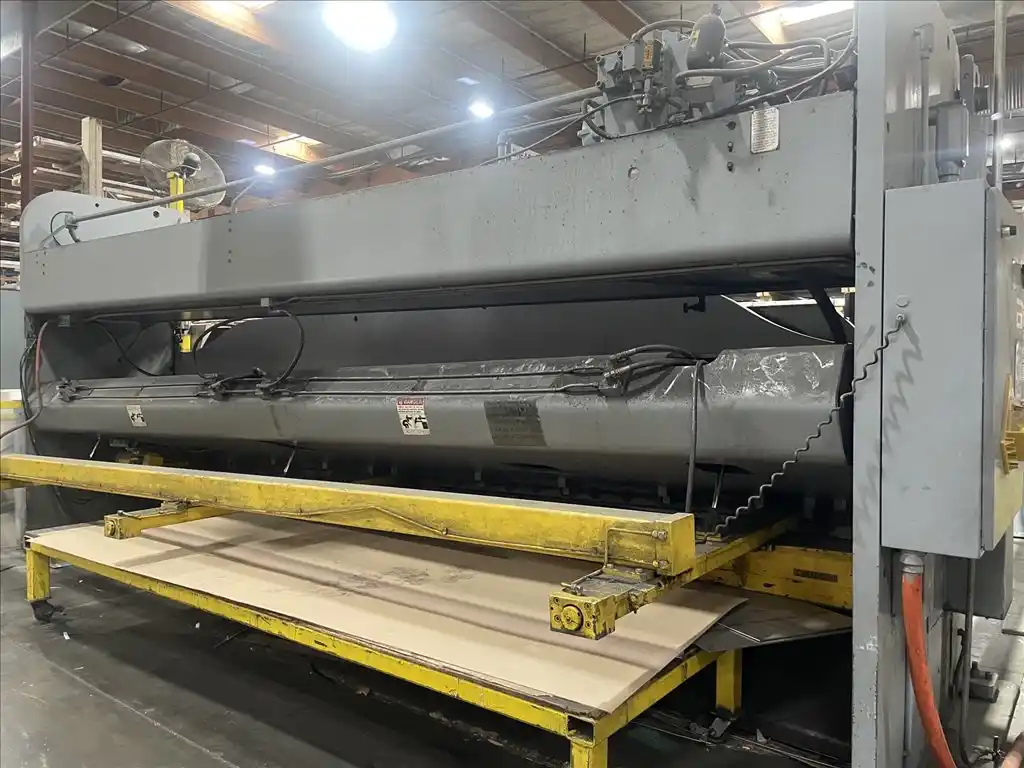

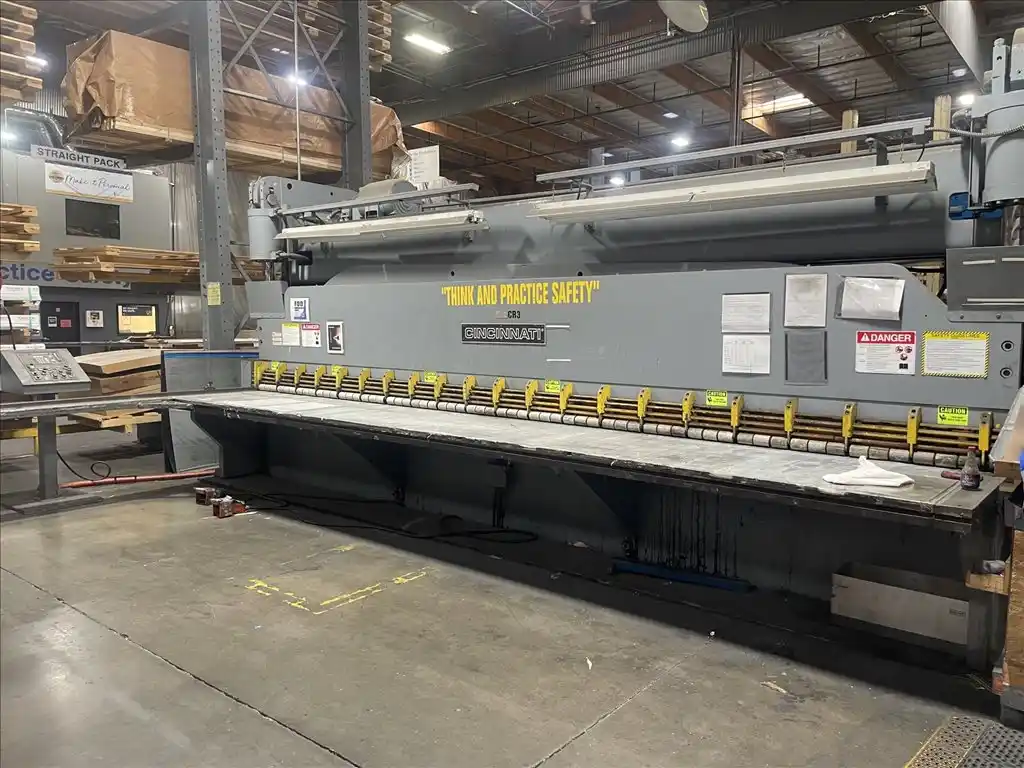

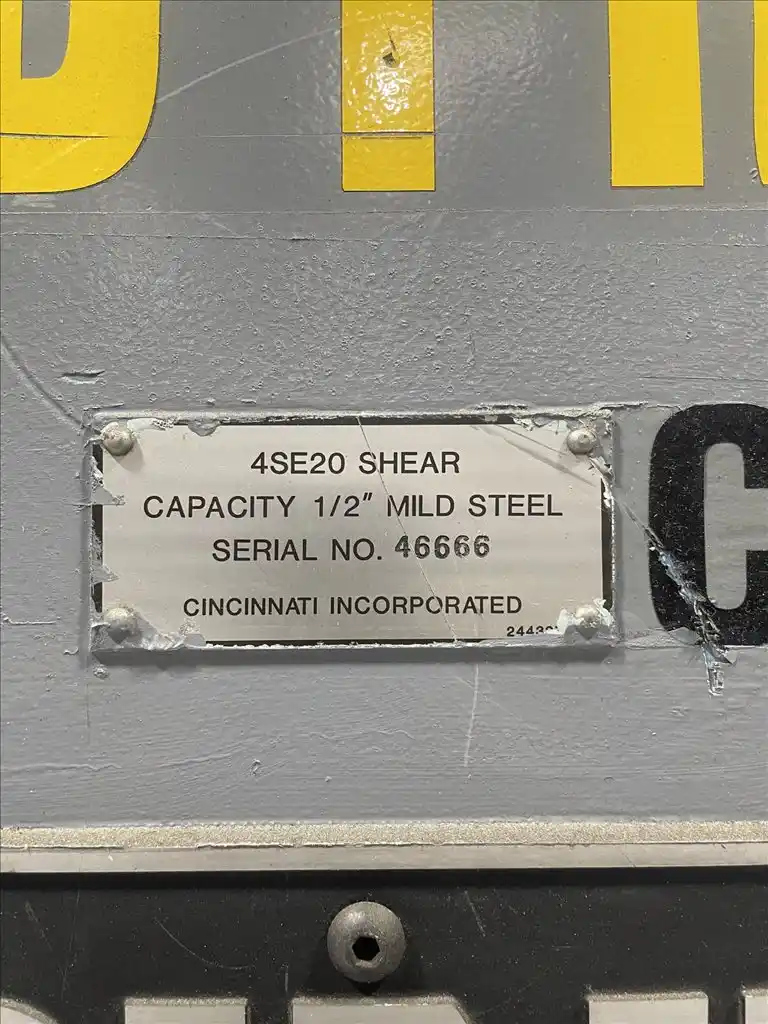

Cincinnati 4SE20 Hydraulic Shear

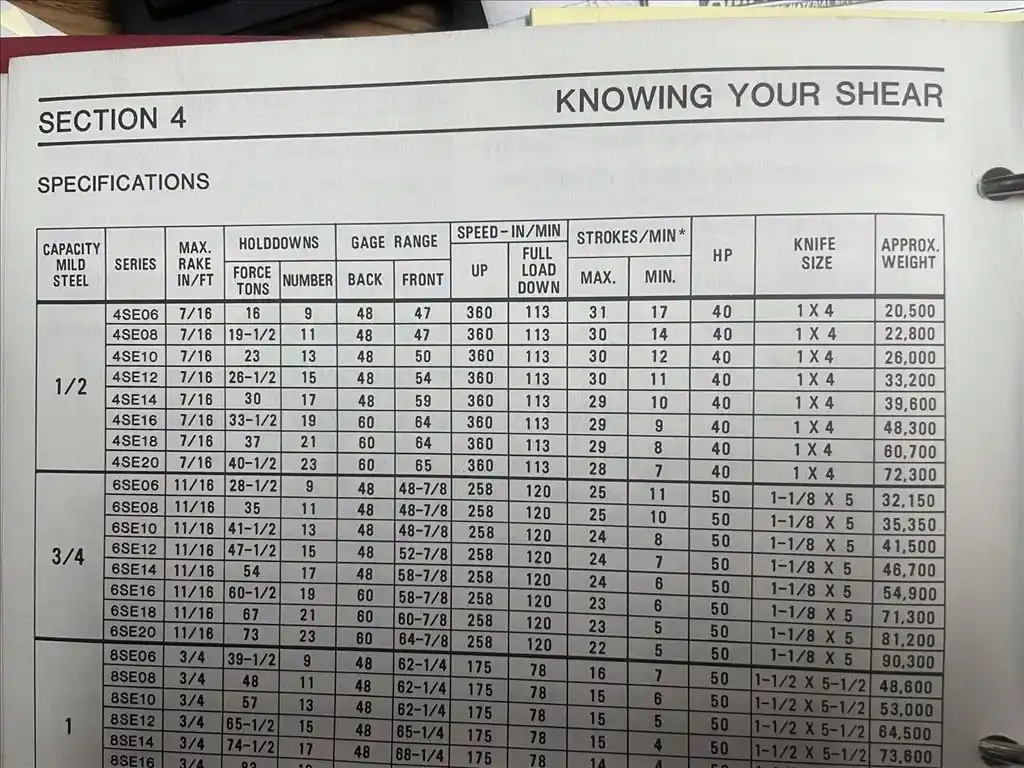

Specifications
- Capacity (Mild Steel): 1/2" x 20'
- Max Rake: 7/16" per Foot
- Holddown Force: 40.5 Ton
- Number of Holddowns: 23
- Backgauge Range: 60"
- Frontgauge Range: 65"
- Return Speed: 360 IPM
- Full Load Down Speed: 113 IPM
- Variable Stroke Speeds: 7-28 SPM
- Main Motor: 40 hp
- Knife Size: 1 x 4
- Show More
- Show Less
- Capacity (Mild Steel): 12.70mm x6096.00mm
- Max Rake: 11.11mm per Foot
- Holddown Force: 36.74 Metric Ton
- Number of Holddowns: 23
- Backgauge Range: 1524.00mm
- Frontgauge Range: 1651.00mm
- Return Speed: 152.40 mm/sec
- Full Load Down Speed: 47.84 mm/sec
- Variable Stroke Speeds: 7-28 SPM
- Main Motor: 29.83 kw
- Knife Size: 1 x 4
- Show More
- Show Less
Equipped With
- Front Operated Power Backgauge
- Pit Required
- Front Operated Power Backgauge
- Pit Required
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
