Inventory # 21111 Year: 1968

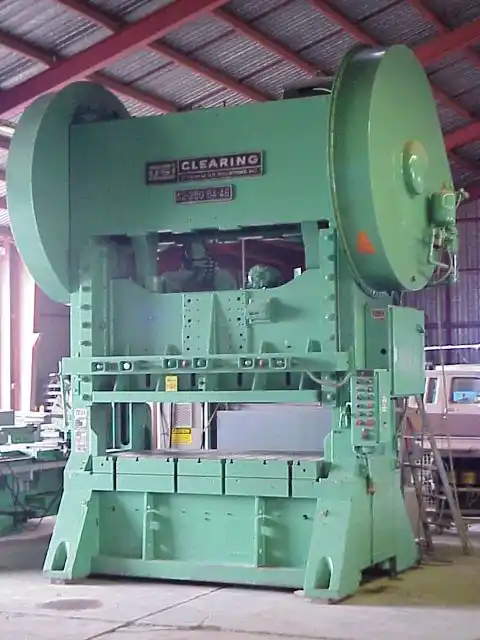

Clearing S2-250-84-48 Mechanical Straight-Side Double Crank Press

Request a Quote
Measurement

Specifications
  • Capacity: 250 Ton
  • Stroke: 12"
  • Shut Height Over Bed (SDAU): 32"
  • Motorized Slide Adjustment: 11"
  • Bed Area: 84" L-R x 48" F-B
  • Window Opening: 18" L-R x 18" F-B
  • Slide Face Area: 84" L-R x 48" F-B (T-Slotted)
  • Speed: 30 SPM
  • Bed Height: 33-5/8"
  • Air Friction Clutch and Brake with Selector Controls
  • Arranged for (4) Knockouts F-B
  • Enclosed Gears Running in Oil
  • Tie Rod Construction
  • Flush Floor Design
  • Show More
  • Show Less
  • Capacity: 226.78 Metric Ton
  • Stroke: 304.80mm
  • Shut Height Over Bed (SDAU): 812.80mm
  • Motorized Slide Adjustment: 279.40mm
  • Bed Area: 2133.60mm L-R x 1219.20mm F-B
  • Window Opening: 457.20mm L-R x 457.20mm F-B
  • Slide Face Area: 2133.60mm L-R x 1219.20mm F-B (T-Slotted)
  • Speed: 30 SPM
  • Bed Height: 854.08mm
  • Air Friction Clutch and Brake with Selector Controls
  • Arranged for (4) Knockouts F-B
  • Enclosed Gears Running in Oil
  • Tie Rod Construction
  • Flush Floor Design
  • Show More
  • Show Less
Equipped With
  • (2) Air Counterbalance Cylinders to Slide
  • T-Slotted Bolster (6" Thick)
  • T-Slotted 10" Ram Adaptor
  • Automatic Lubrication System
  • AC Main Drive Motor
  • Electrical Controls
  • Show More
  • Show Less
  • (2) Air Counterbalance Cylinders to Slide
  • T-Slotted Bolster ( 152.40mm Thick)
  • T-Slotted 254.00mm Ram Adaptor
  • Automatic Lubrication System
  • AC Main Drive Motor
  • Electrical Controls
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Casa Grande, AZ
  • Disclaimer: Preliminary Specifications....
