Inventory # 48000 Year: 2013

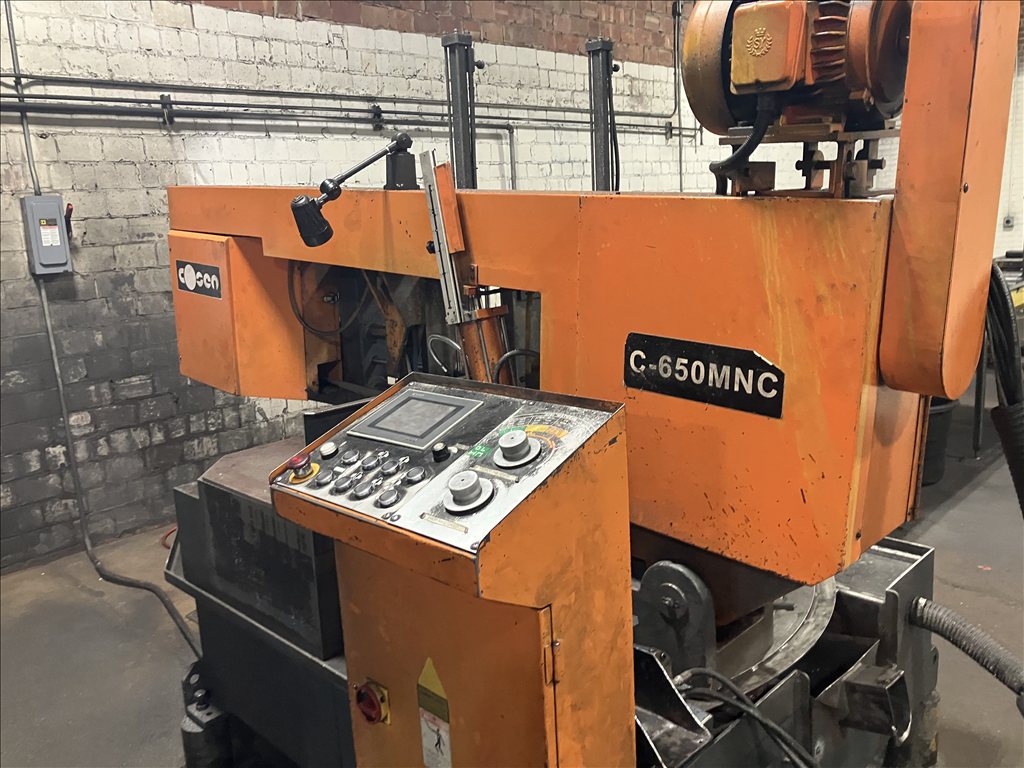

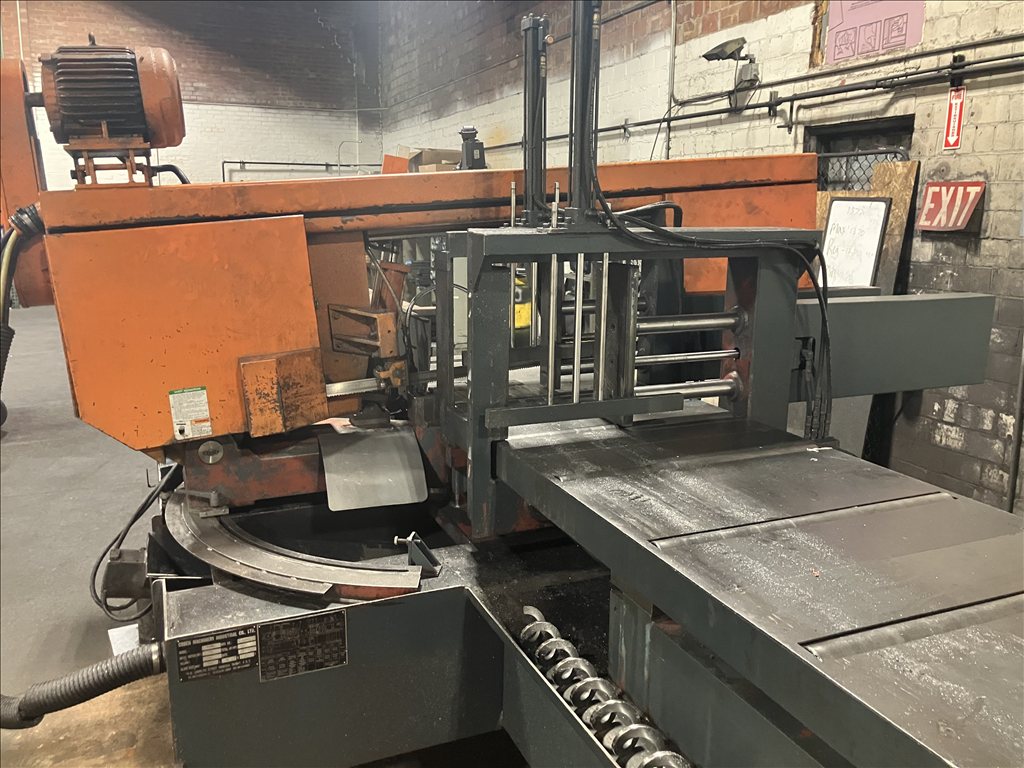

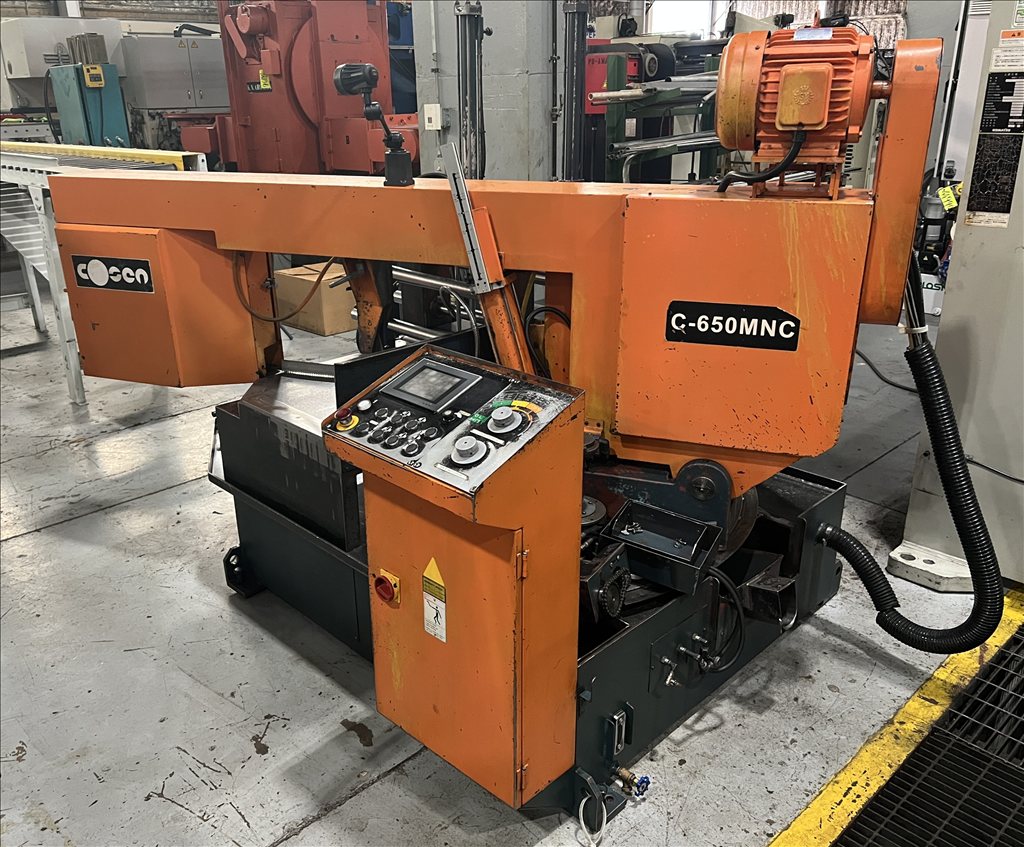

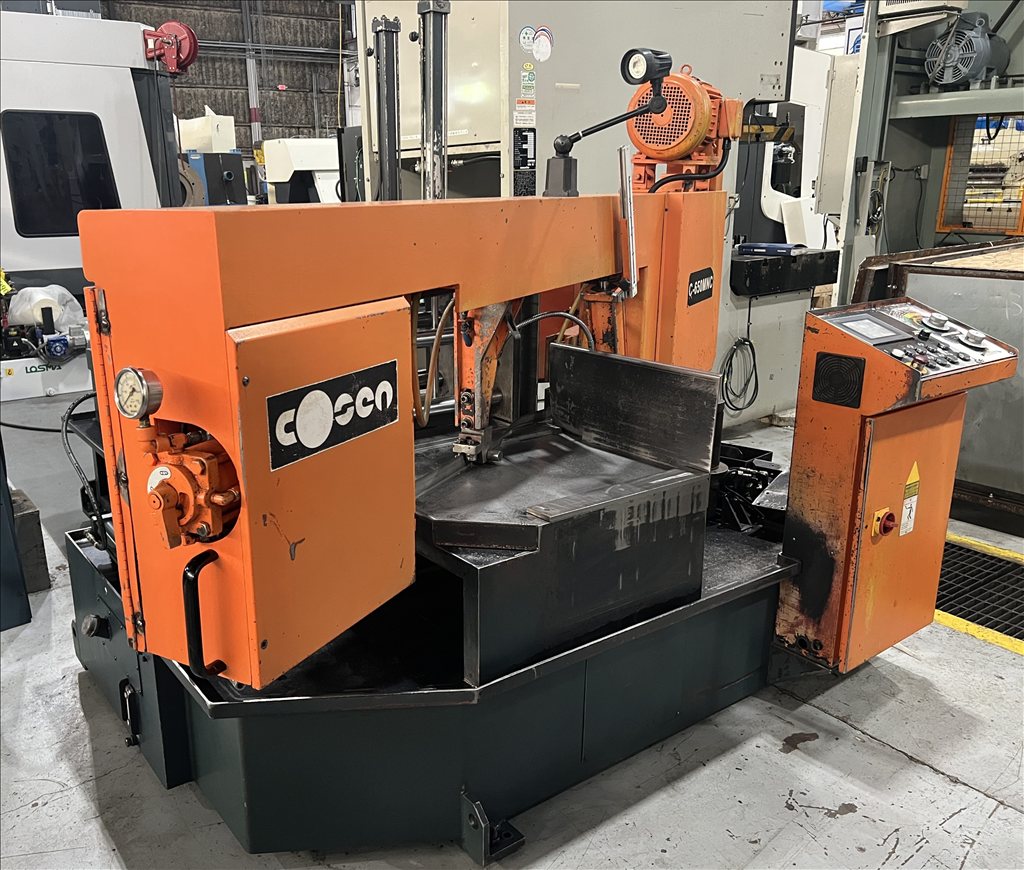

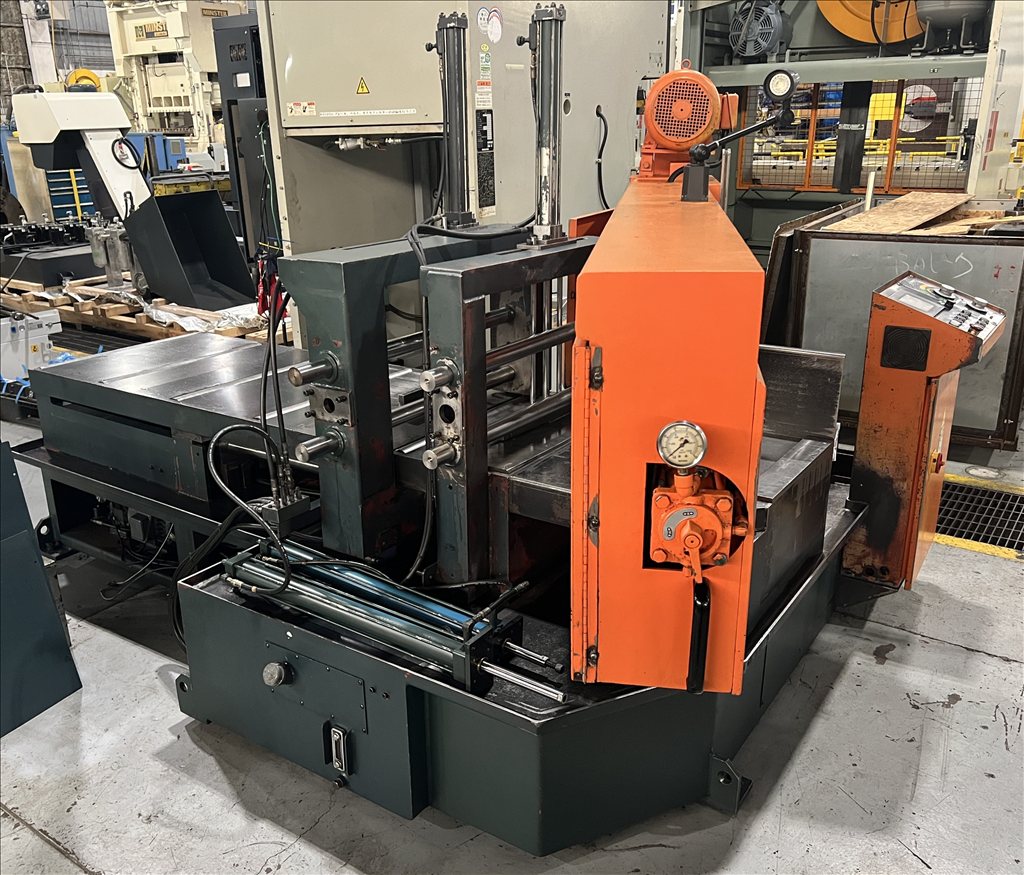

Cosen C-650MNC Automatic Miter Horizontal Band Saw

Request a Quote
Measurement

Specifications
  • Round Cutting Capacities
  • +60°: 10"
  • +45°: 16"
  • +0°: 16.5"
  • Rectangle Cutting Capacities
  • +60°: 16" x 10"
  • +45°: 16" x 16"
  • +0°: 15" x 25.6"
  • Blade Speed: 82 - 410 FPM
  • Blade Dimensions: 17'5" x 1.5" x 0.05"
  • Blade Motor: 7.5 HP
  • Workbed Height: 29.5"
  • Feed Stroke Length: 31.5"
  • Coolant Tank: 29.9 Gallons
  • Show More
  • Show Less
  • Round Cutting Capacities
  • +60°: 254.00mm
  • +45°: 406.40mm
  • +0°: 419.10mm
  • Rectangle Cutting Capacities
  • +60°: 406.40mm x 254.00mm
  • +45°: 406.40mm x 406.40mm
  • +0°: 381.00mm x 650.24mm
  • Blade Speed: 82 - 2082.80 mm/sec
  • Blade Dimensions: 5308.60mm x 38.10mm x 1.27mm
  • Blade Motor: 5.59 kw
  • Workbed Height: 749.30mm
  • Feed Stroke Length: 800.10mm
  • Coolant Tank: 115 liters
  • Show More
  • Show Less
Equipped With

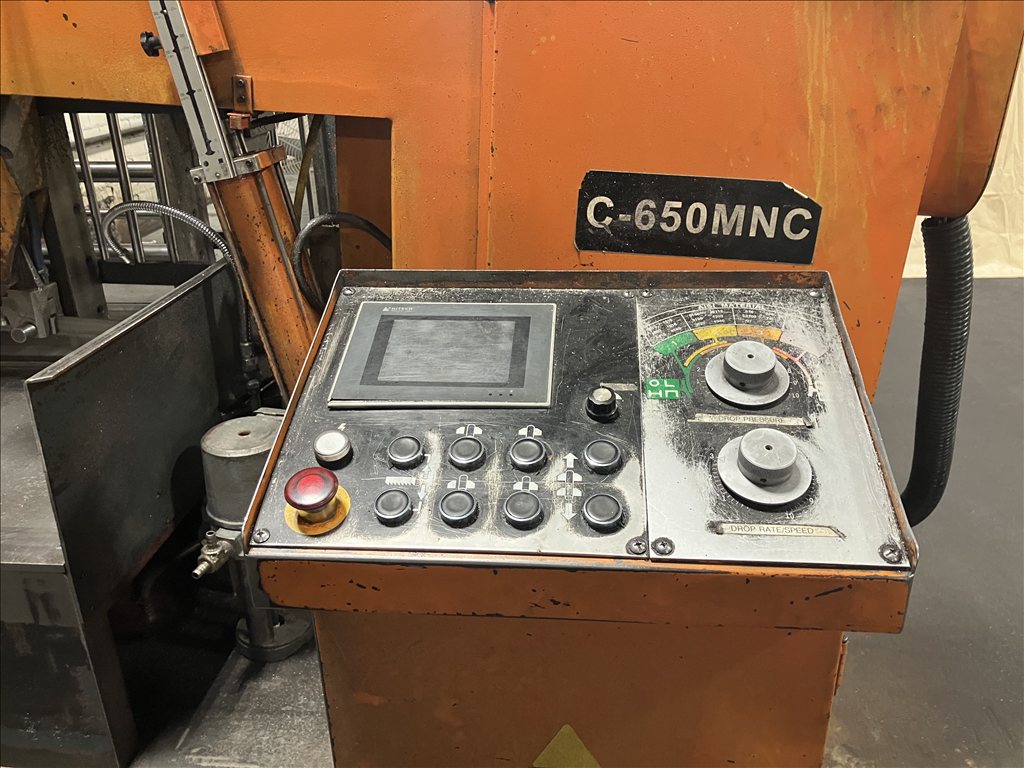

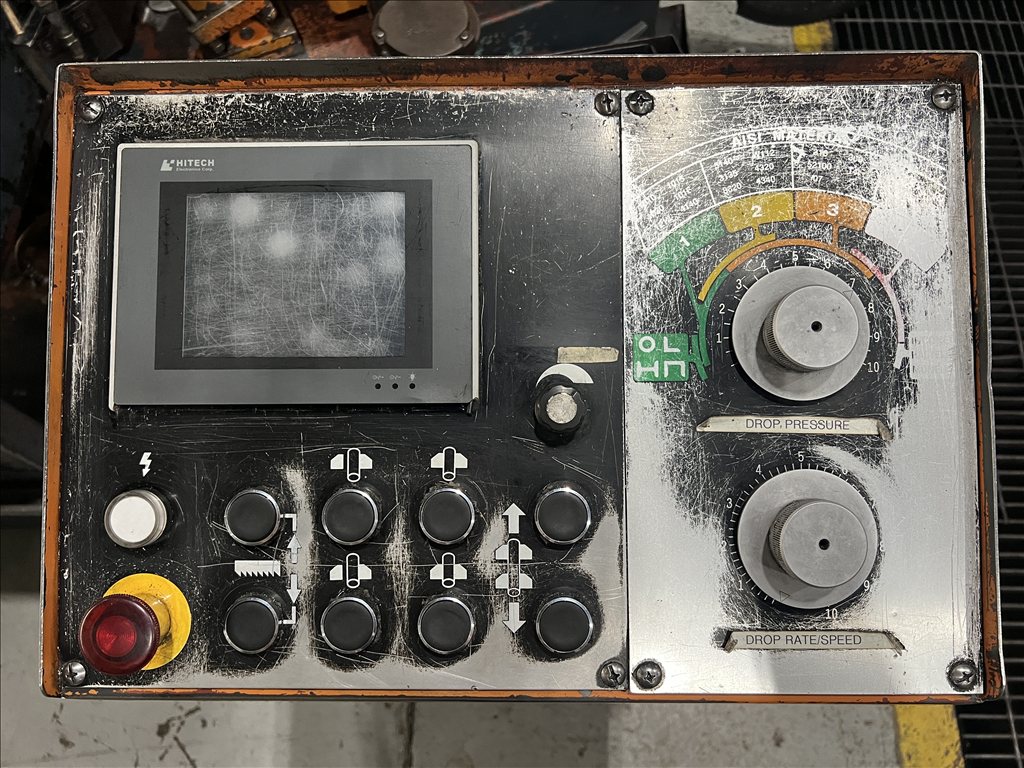

  • Smart NC-100 PLC Control
  • Coolant

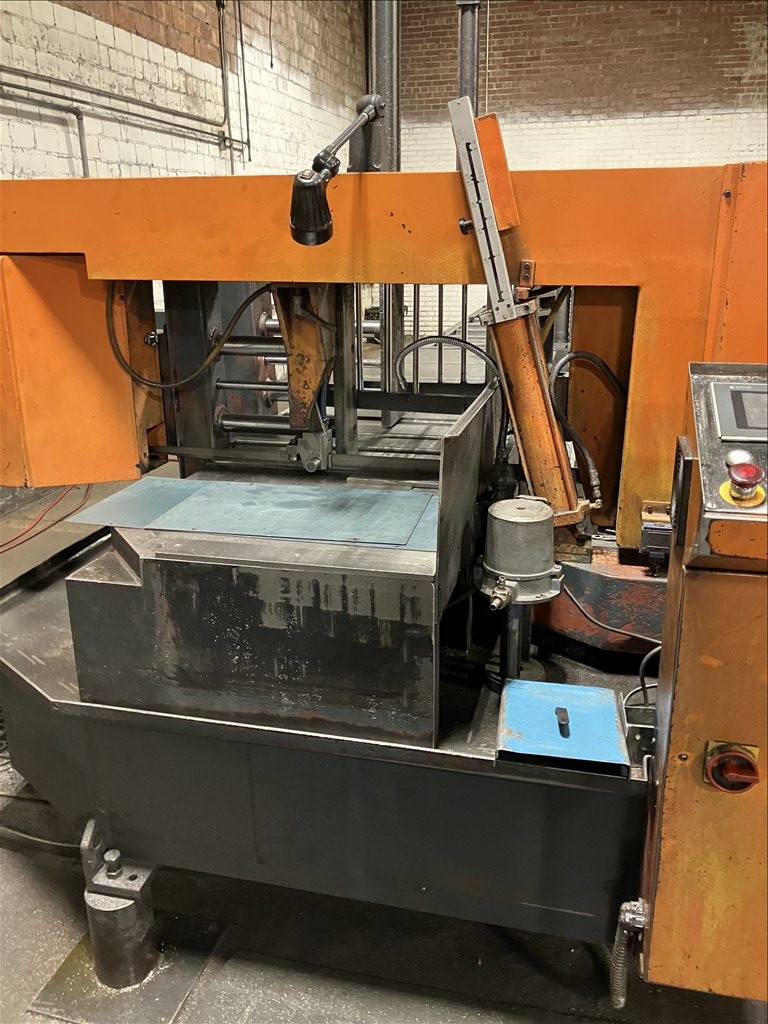

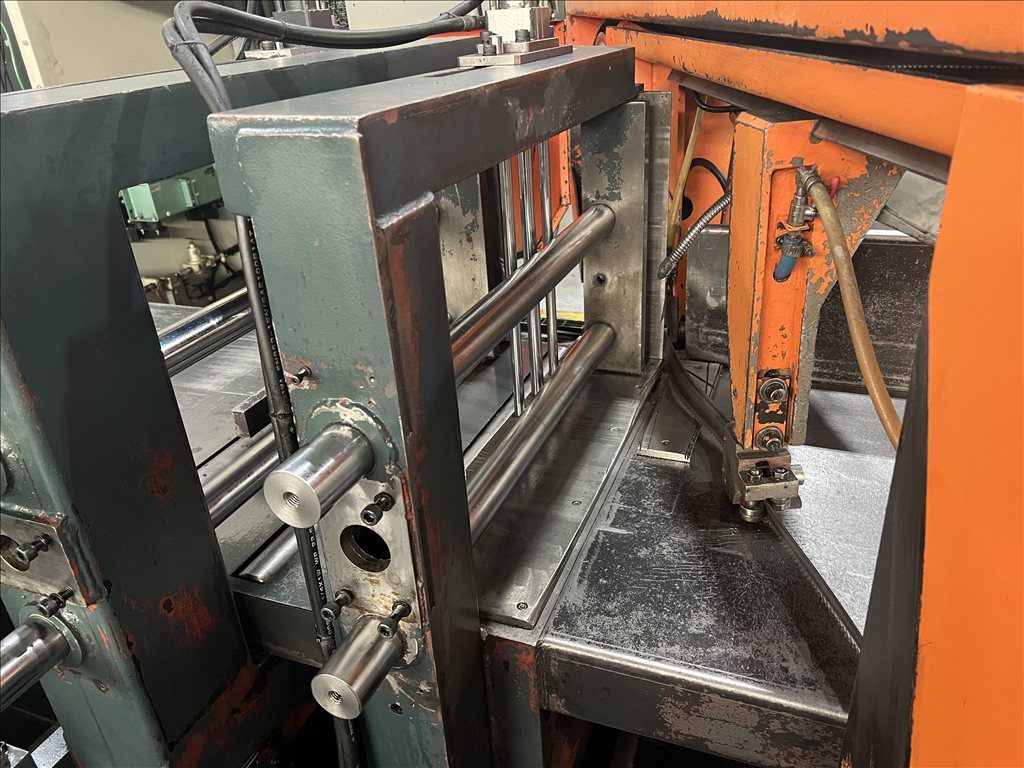

  • Cast Iron Hydraulic Vises
  • Inverter-Driven Blade System
  • Smart NC-100 PLC Control
  • Coolant
  • Cast Iron Hydraulic Vises
  • Inverter-Driven Blade System
More Info

This Cosen C-650MNC Automatic Miter Horizontal Band Saw is engineered for precision, reliability and consistent performance in mass fabrication environments. It’s ideal for fabricators, metal service centers and manufacturing shops seeking repeatable straight and angle cuts on bars, tubing and structural stock without the size extremes of heavy-duty production machines.

With its Smart NC-100 (SNC-100) control technology, this saw delivers many of the benefits of fully NC-controlled systems—program up to 100 jobs with automatic kerf compensation and indexing up to 999″ in length—at a fraction of the cost. The saw’s rigid cast-iron construction, hydraulic vising, inverter-driven blade system and heavy-duty gearbox ensure smooth cut quality, long service life and minimal downtime.

This used Cosen C-650MNC is available to inspect under power at our facility. For more precision sawing solutions, view our inventory of used horizontal band saws.

Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
