Inventory # 47679 Year: 1999

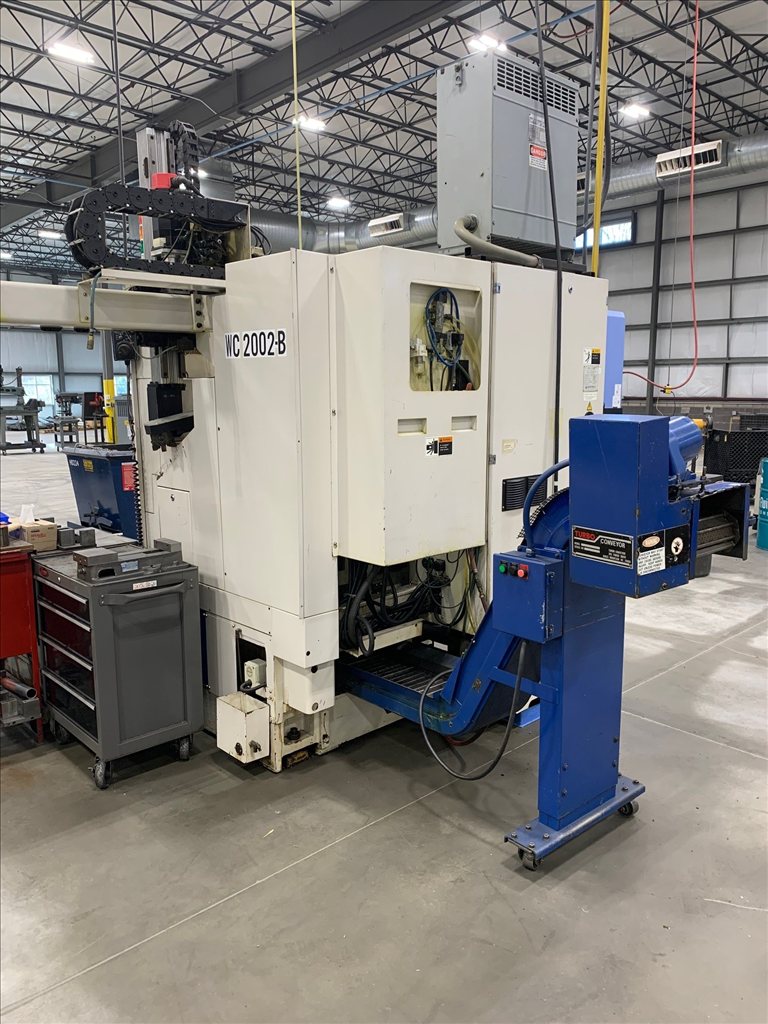

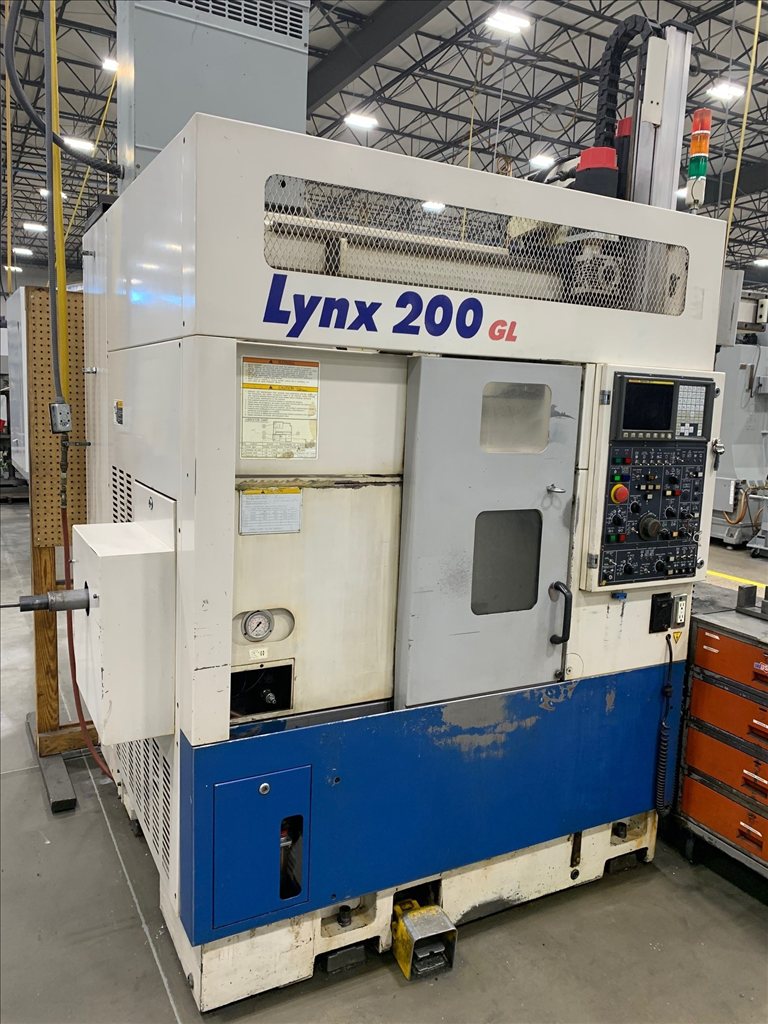

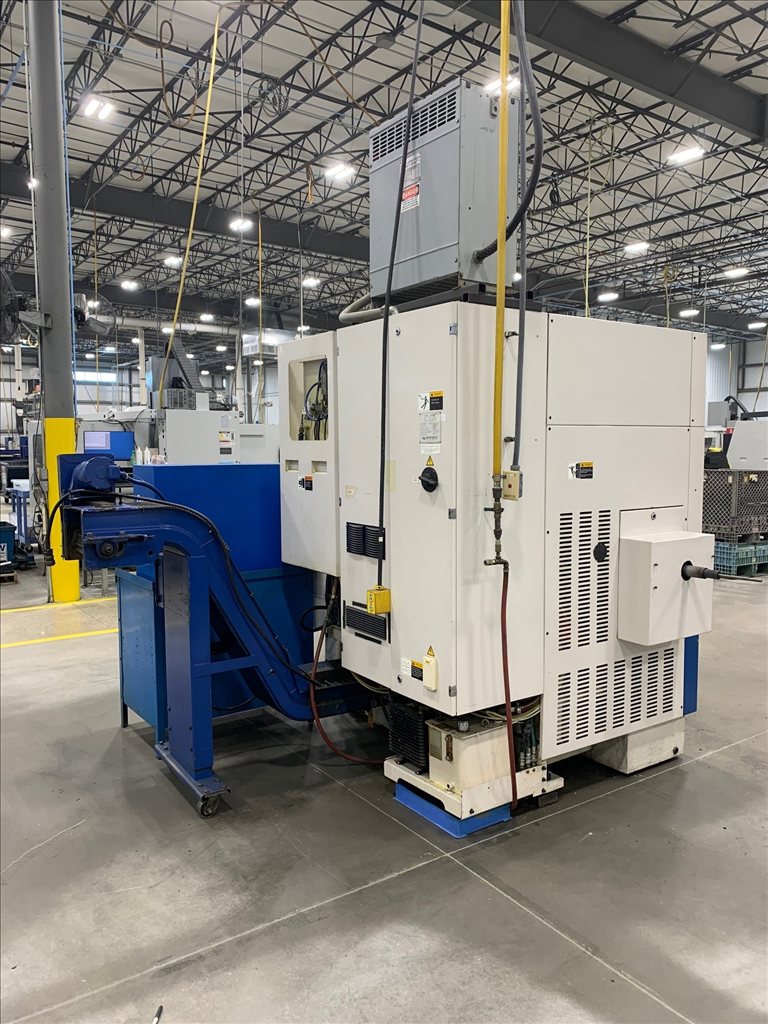

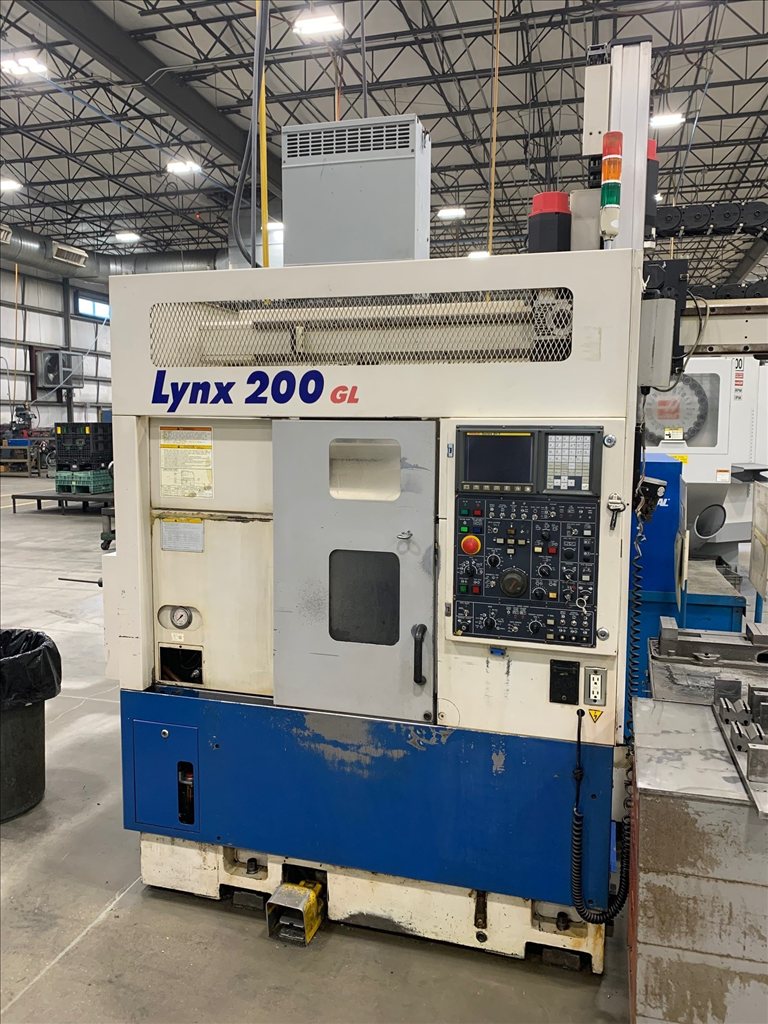

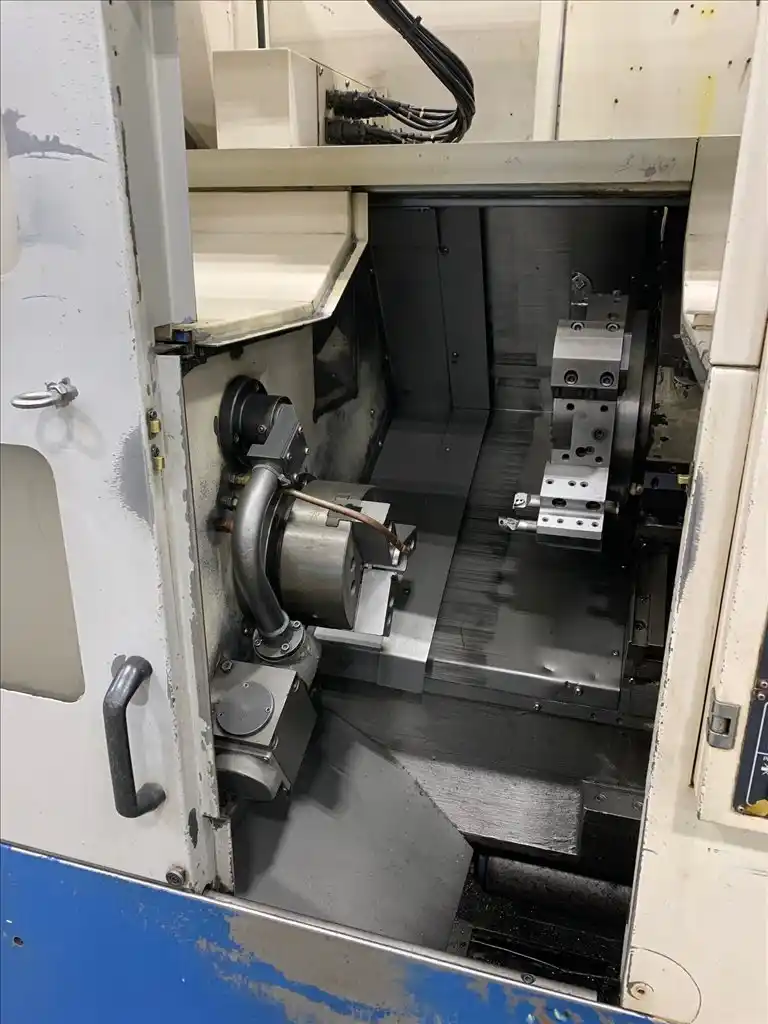

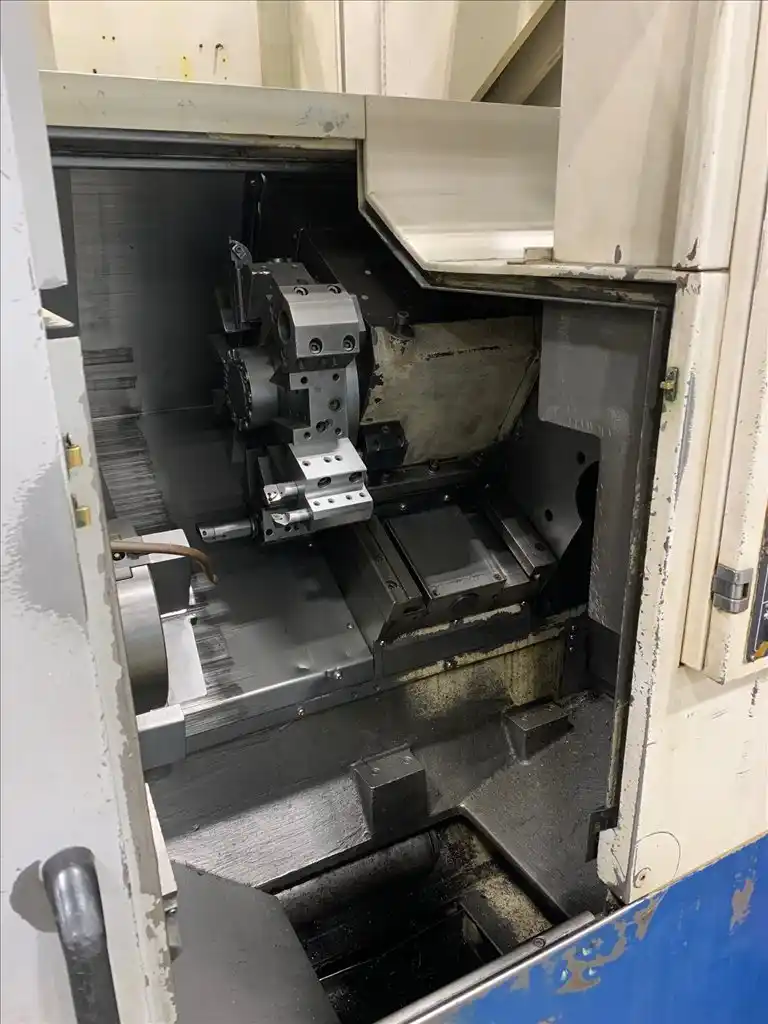

Daewoo Lynx 200B CNC Lathe
Specifications
- Max. Turning Diameter: 11"
- Max. Turning Length: 11.8"
- Distance Between Centers: 20"
- Max. Bar Capacity: 1.75"
- Swing Over Bed: 18"
- Chuck: 8" 3-Jaw
- Spindle Nose: A2-5
- Spindle Speed: 35 - 5000 RPM
- Spindle Motor: 15 HP
- Number of Turret Stations: 12
- X-Axis Travel: 6.3"
- Z-Axis Travel: 13"
- Rapid Traverse (X-Axis): 787 IPM
- Rapid Traverse (Z-Axis): 945 IPM
- Show More
- Show Less
- Max. Turning Diameter: 279.40mm
- Max. Turning Length: 299.72mm
- Distance Between Centers: 508.00mm
- Max. Bar Capacity: 44.45mm
- Swing Over Bed: 457.20mm
- Chuck: 203.20mm 3-Jaw
- Spindle Nose: A2-5
- Spindle Speed: 35 - 5000 RPM
- Spindle Motor: 11.19 kw
- Number of Turret Stations: 12
- X-Axis Travel: 160.02mm
- Z-Axis Travel: 330.20mm
- Rapid Traverse (X-Axis): 333.16 mm/sec
- Rapid Traverse (Z-Axis): 400.05 mm/sec
- Show More
- Show Less
Equipped With

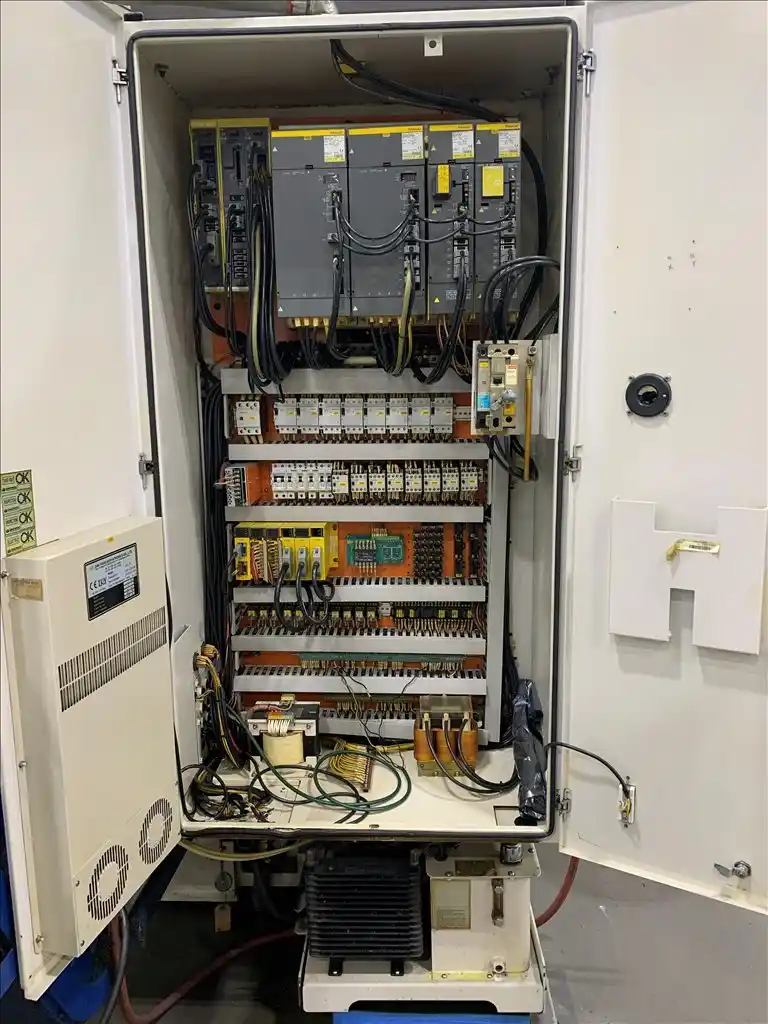

- Fanuc 21-T Series CNC Control
- Rigid Tapping

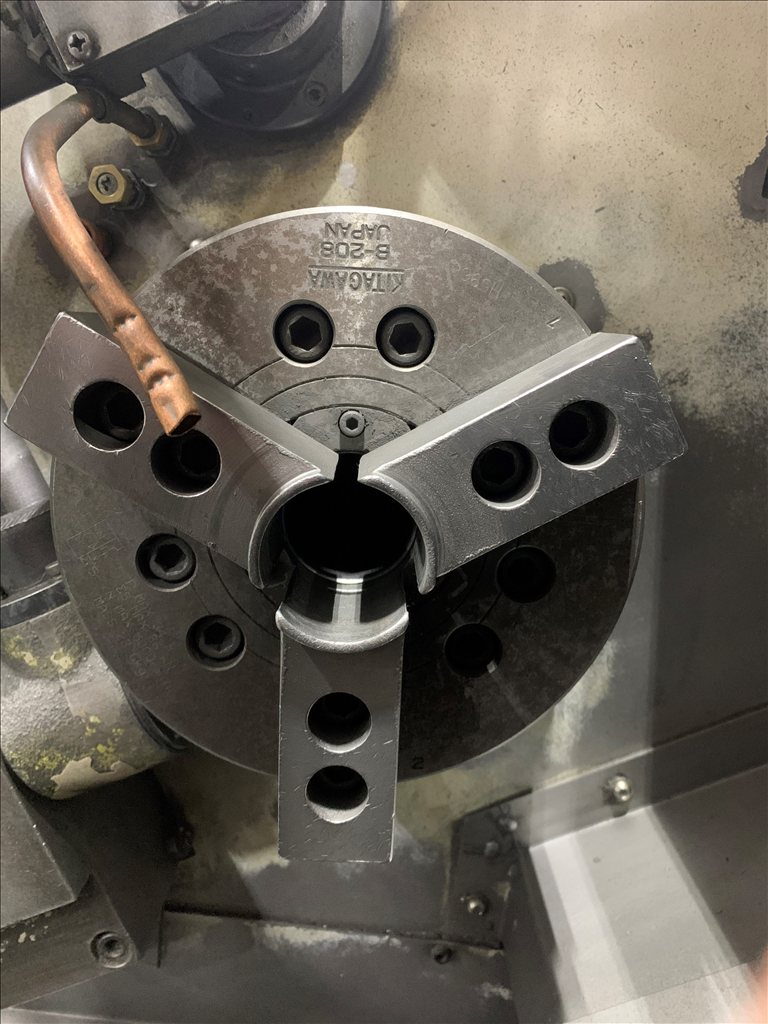

- B-208 Kitagawa Hydraulic Chuck
- Tool Presetter
- Parts Catcher
- RS-232
- Coolant System
- Turbo Chip Conveyor
- Foot Switch
- Additional Steel Chuck Jaws
- Show More
- Show Less
- Fanuc 21-T Series CNC Control
- Rigid Tapping
- B-208 Kitagawa Hydraulic Chuck
- Tool Presetter
- Parts Catcher
- RS-232
- Coolant System
- Turbo Chip Conveyor
- Foot Switch
- Additional Steel Chuck Jaws
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
