Inventory # 47545 Year: 2014

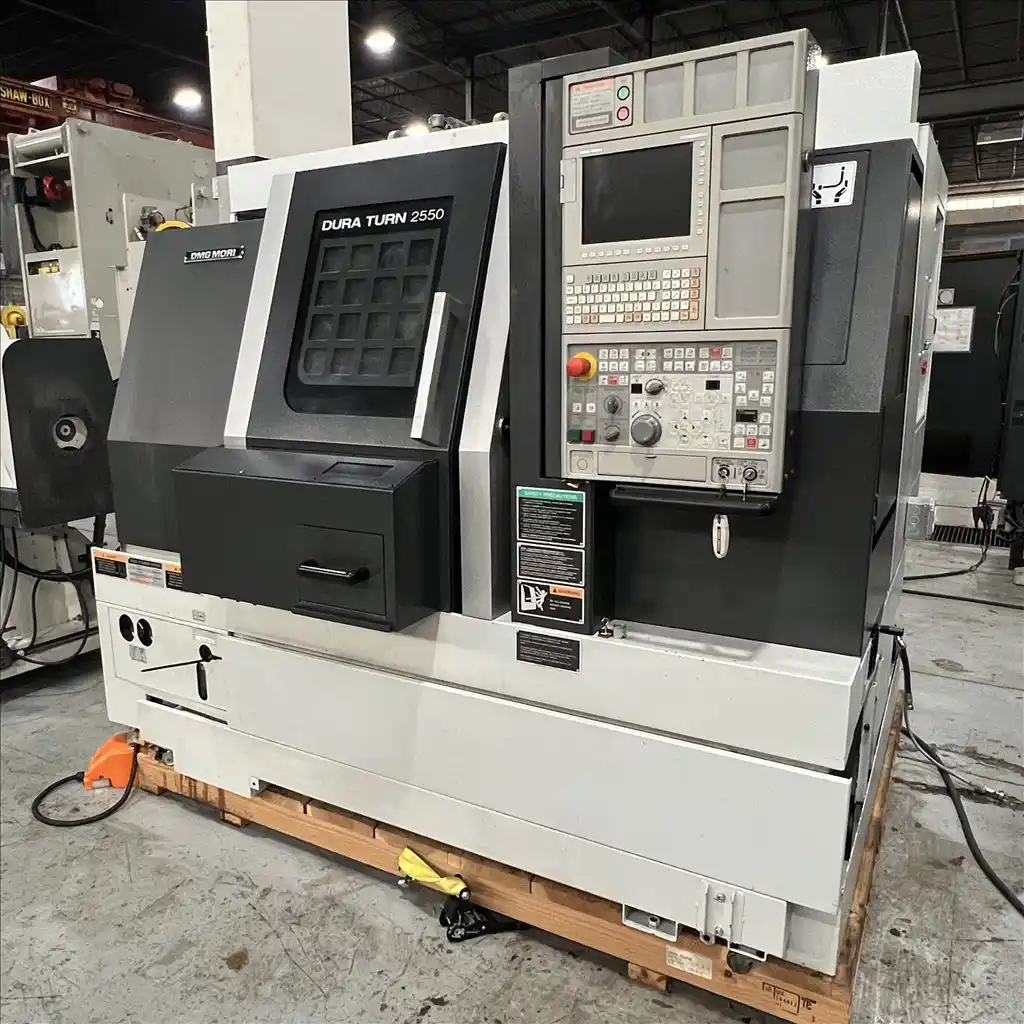

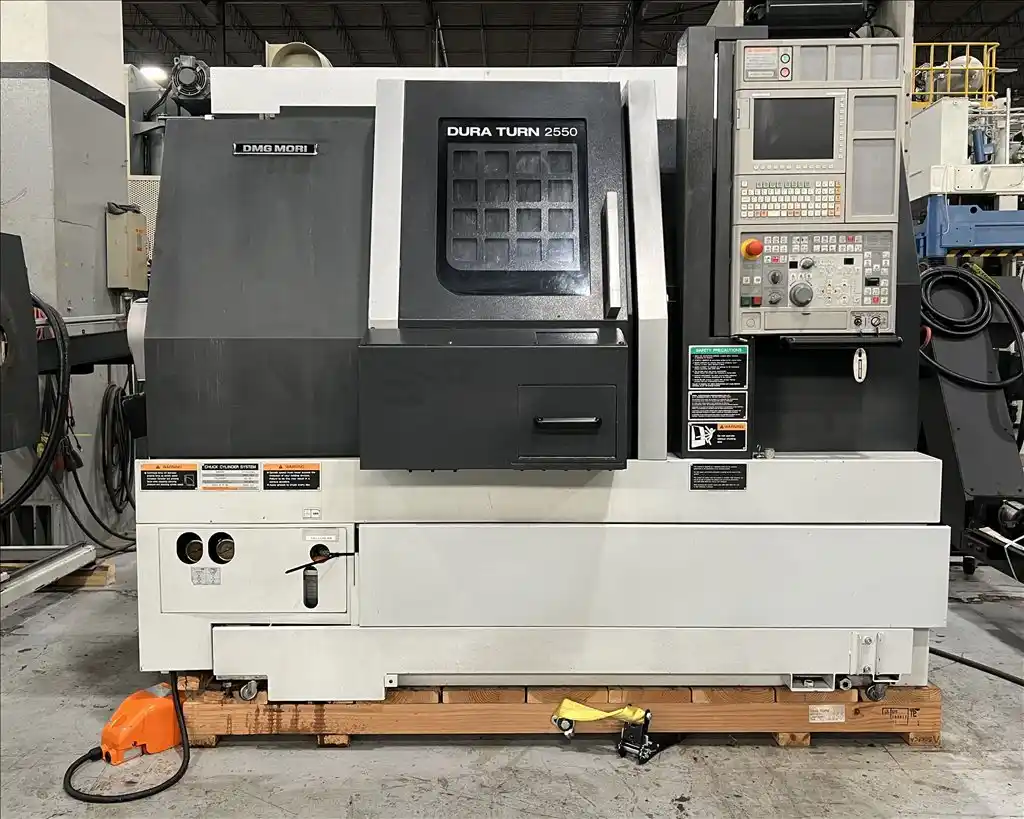

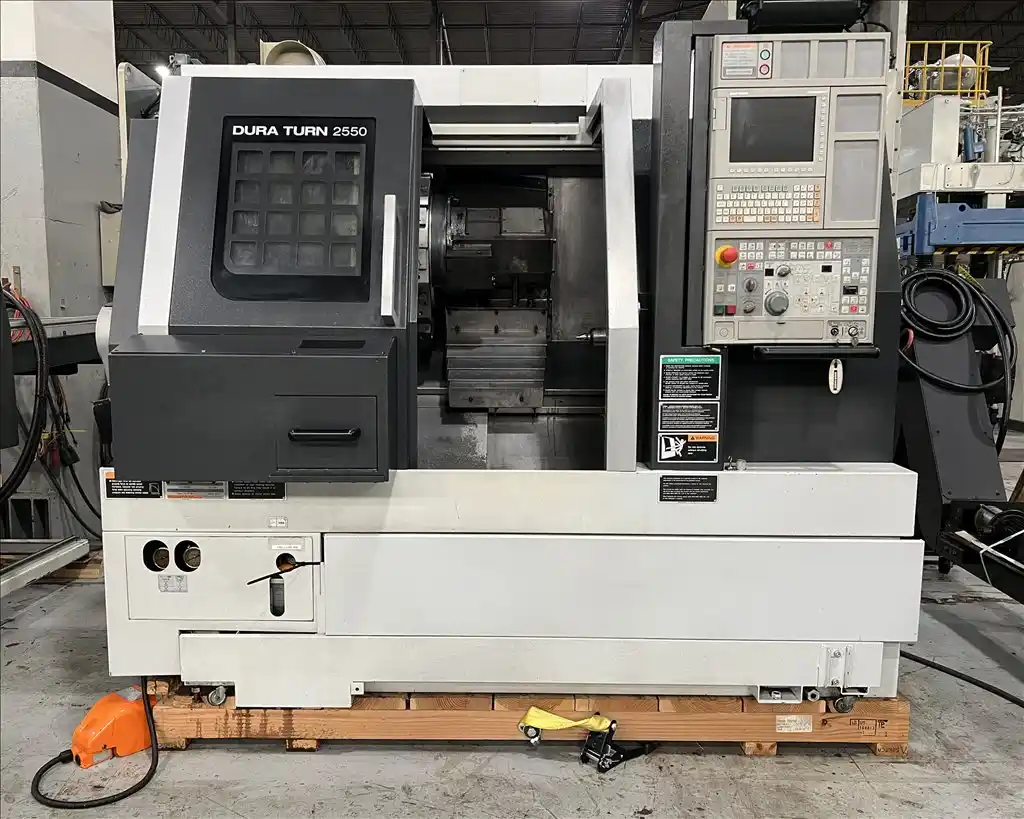

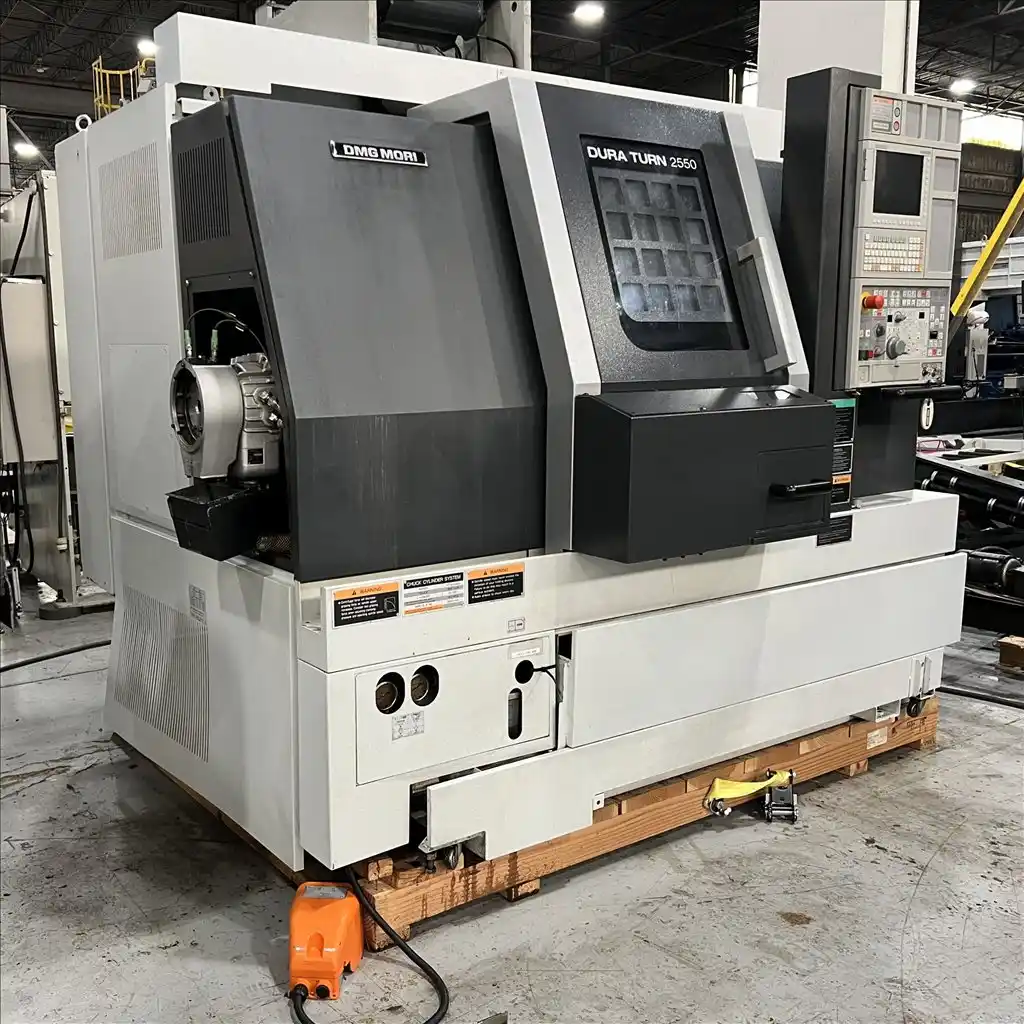

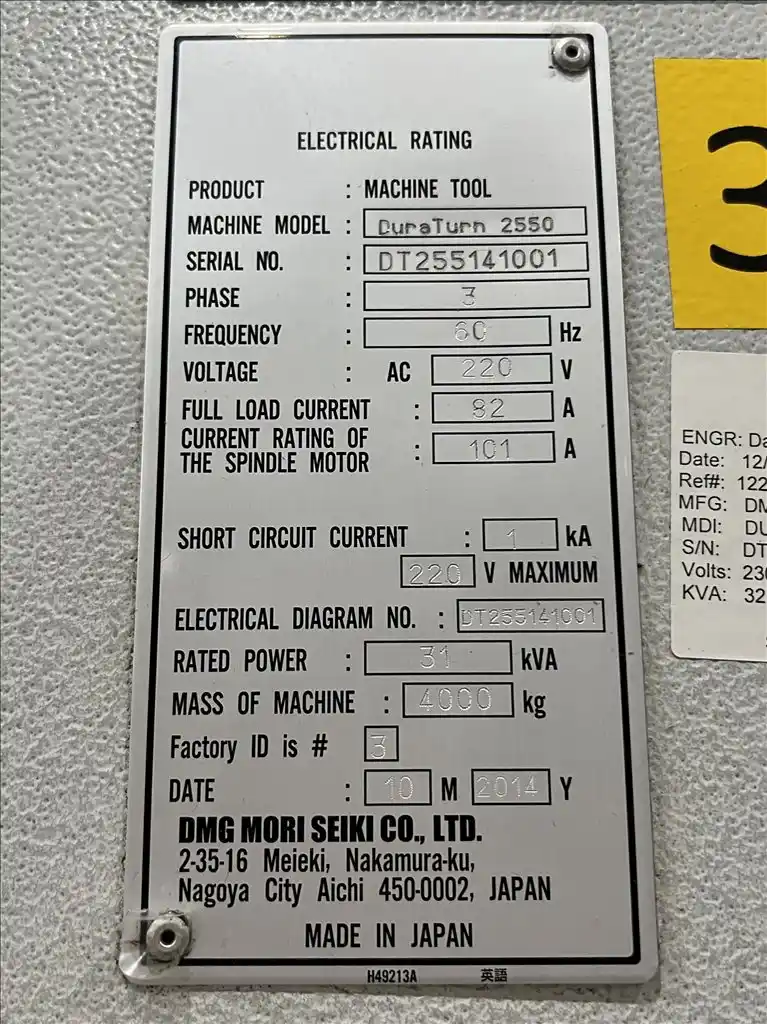

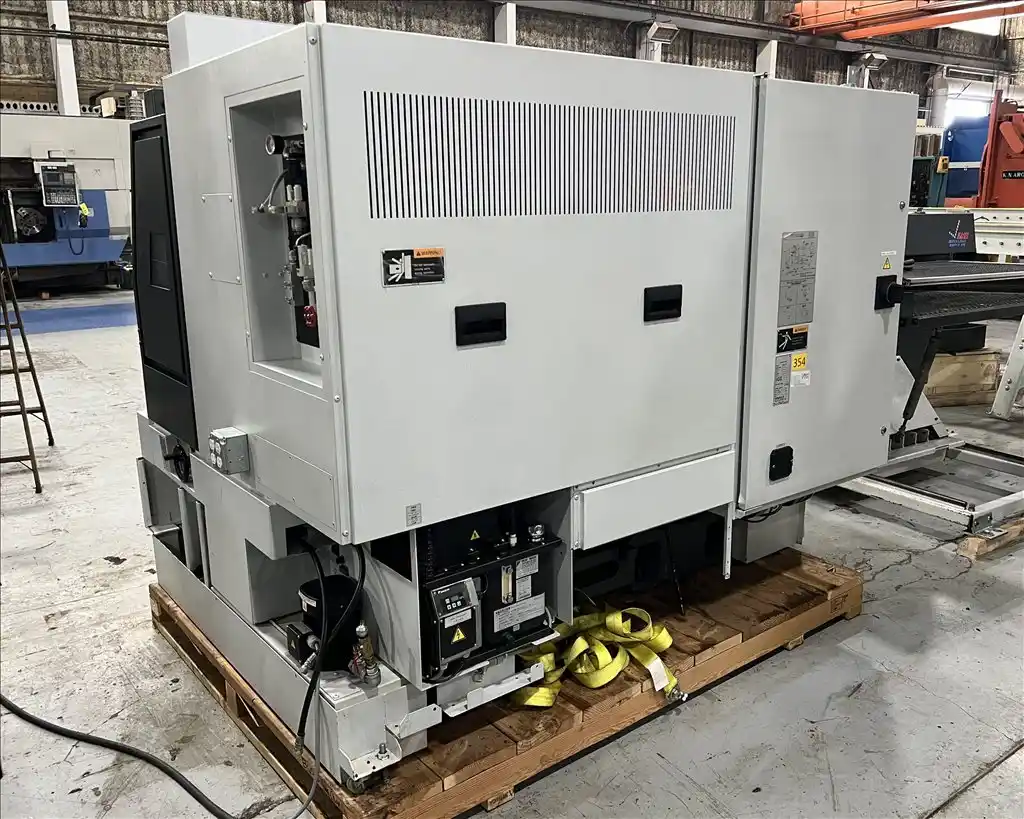

DMG Mori DuraTurn 2550 Turning Center w/ LNS Barfeed
Specifications
- Swing: 24"
- Max. Machining Length: 21"
- Max. Turning Diameter: 13.4"
- Bar Capacity: 3"
- X-Axis Travel: 8.5"
- Z-Axis Travel: 22.4"
- Rapid Traverse (X & Z): 945 IPM
- Spindle Speed: 3500 RPM
- Spindle Motor: 35 HP

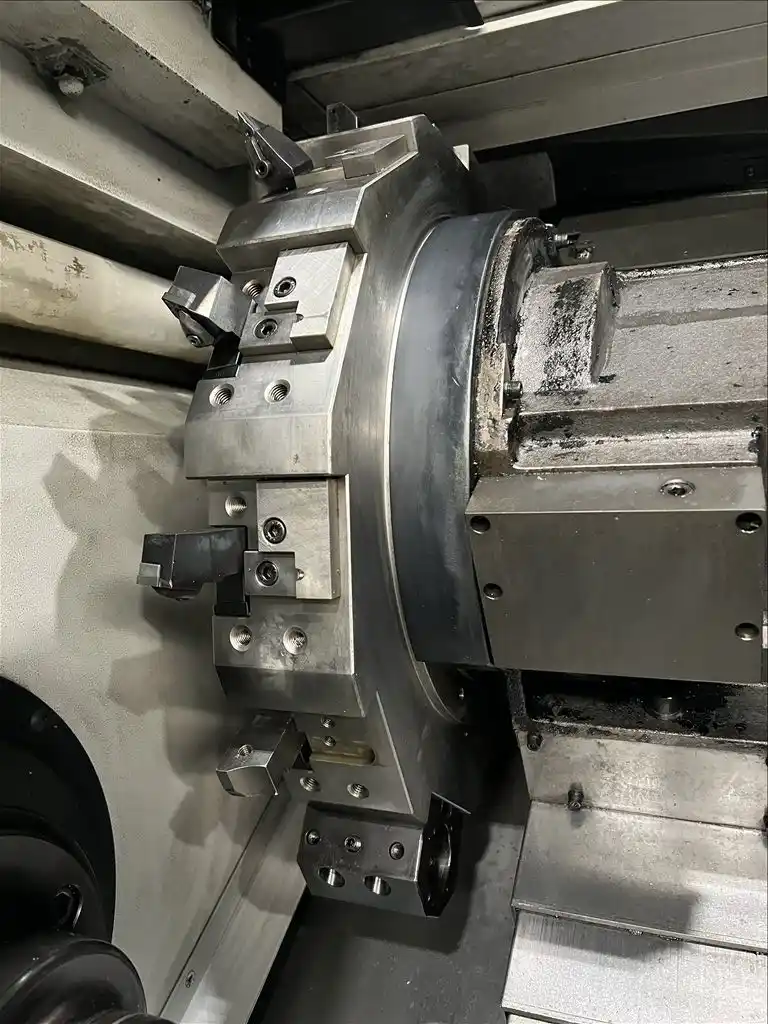

- Tooling: 12-ATC
- Show More
- Show Less
- Swing: 609.60mm
- Max. Machining Length: 533.40mm
- Max. Turning Diameter: 340.36mm
- Bar Capacity: 76.20mm
- X-Axis Travel: 215.90mm
- Z-Axis Travel: 568.96mm
- Rapid Traverse (X & Z): 400.05 mm/sec
- Spindle Speed: 3500 RPM
- Spindle Motor: 26.10 kw
- Tooling: 12-ATC
- Show More
- Show Less
Equipped With

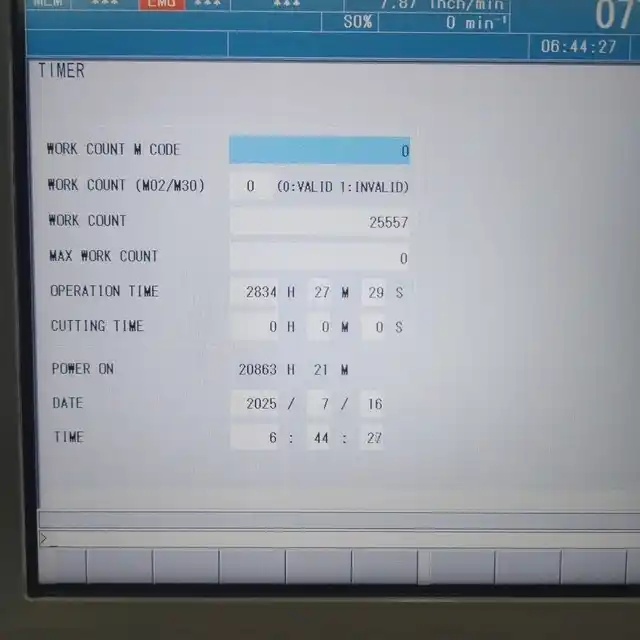

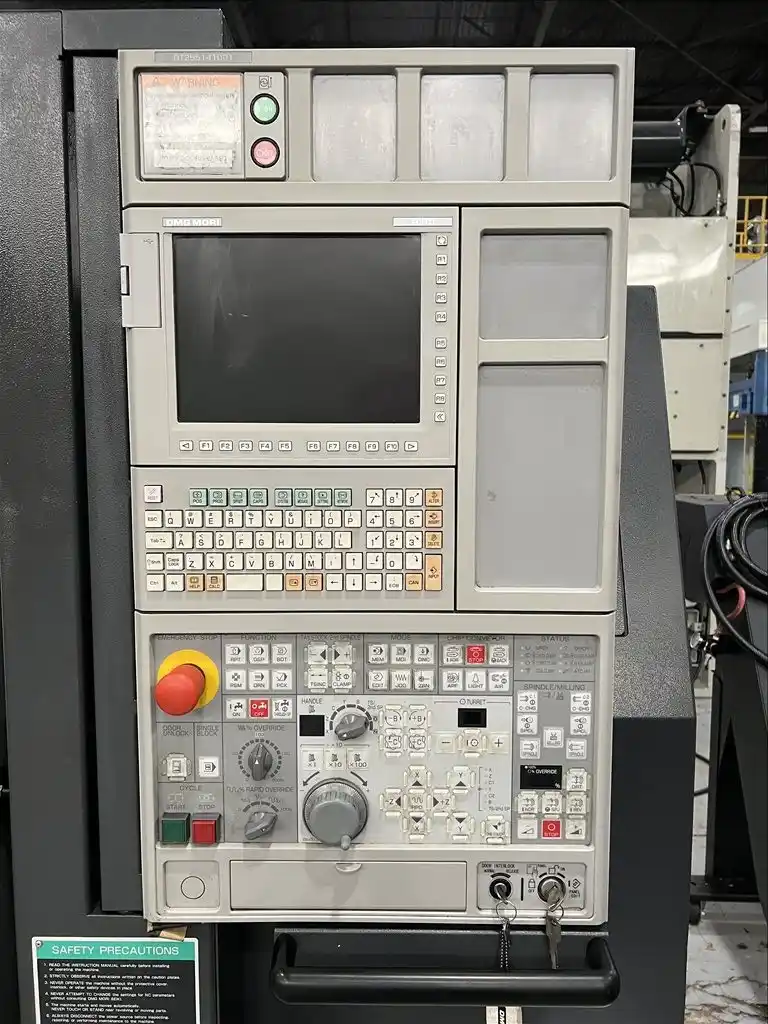

- DMG Mori / Fanuc FOiTD CNC Control

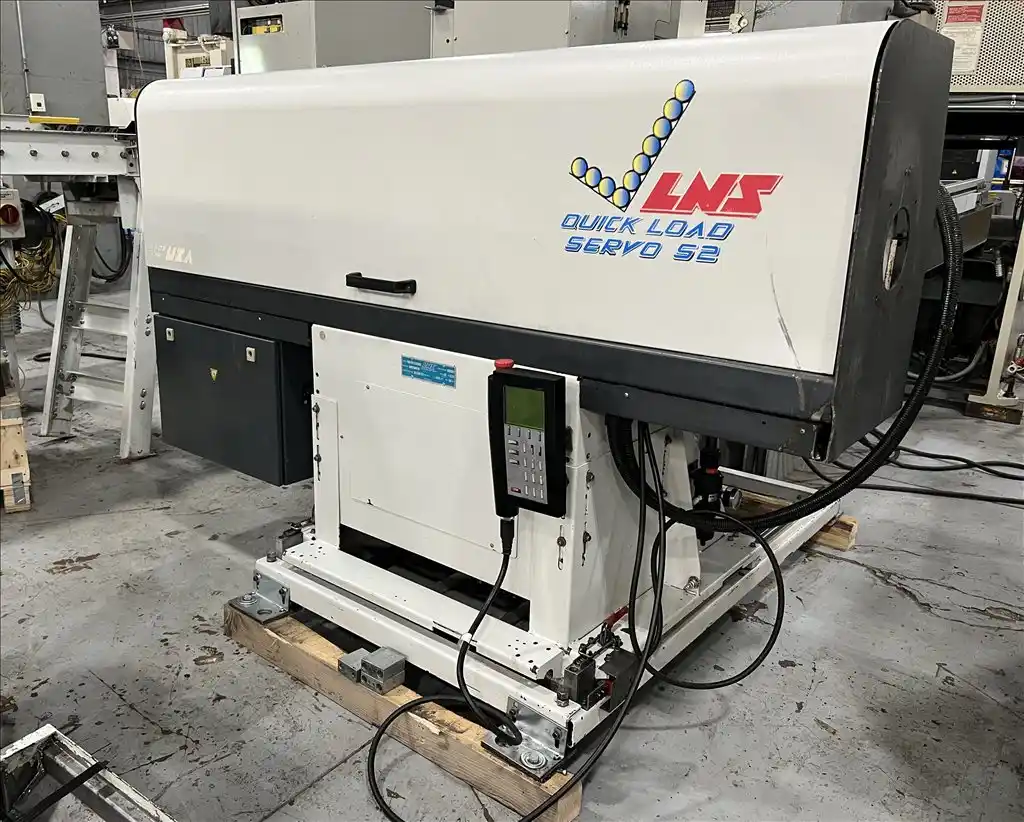

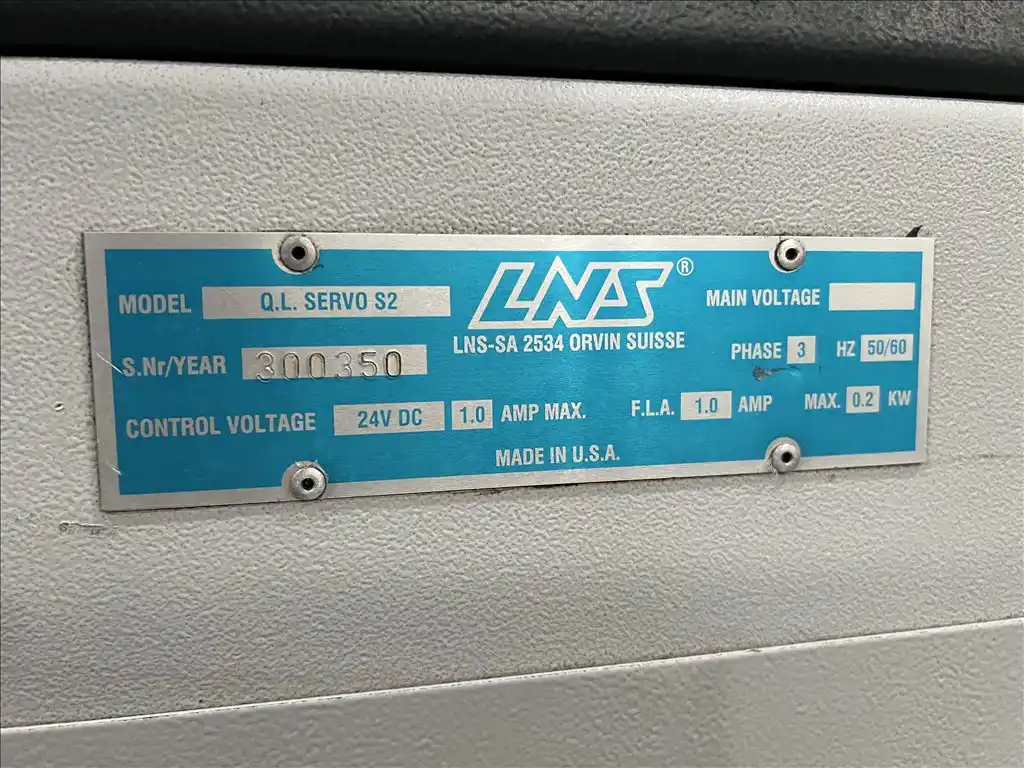

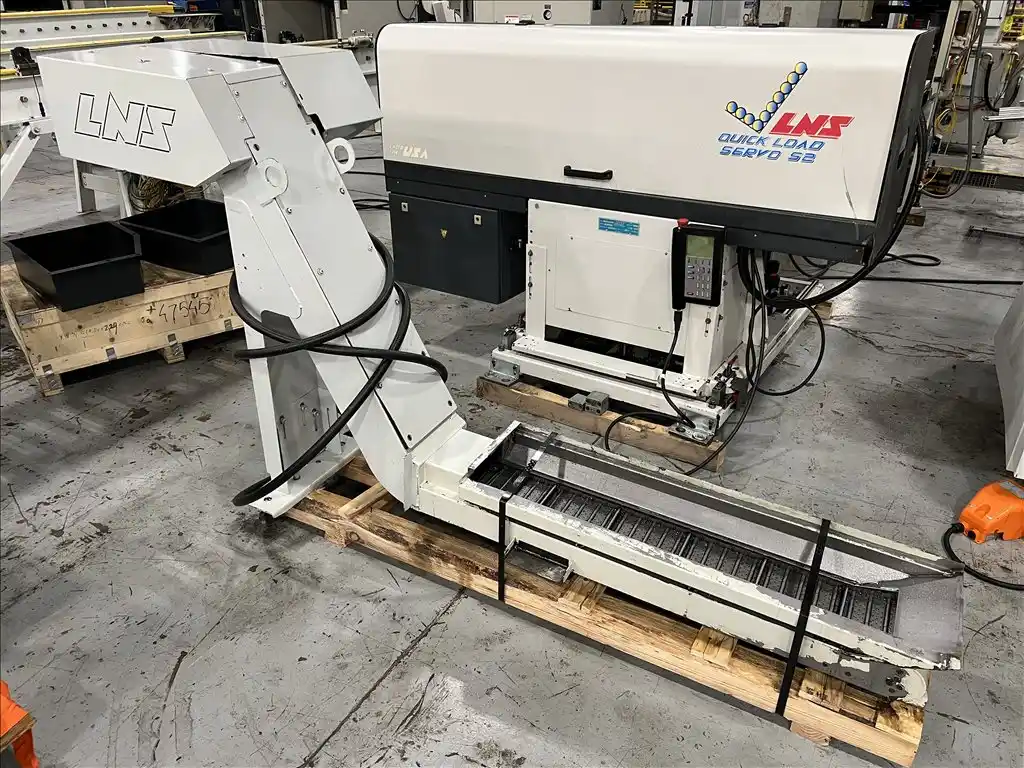

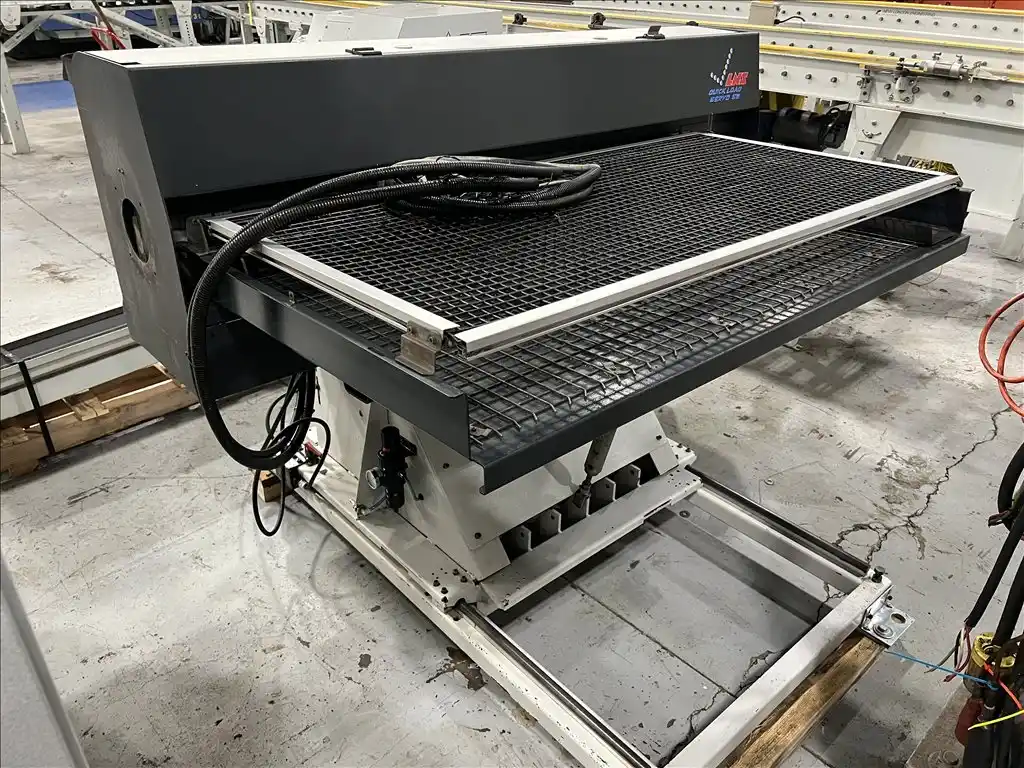

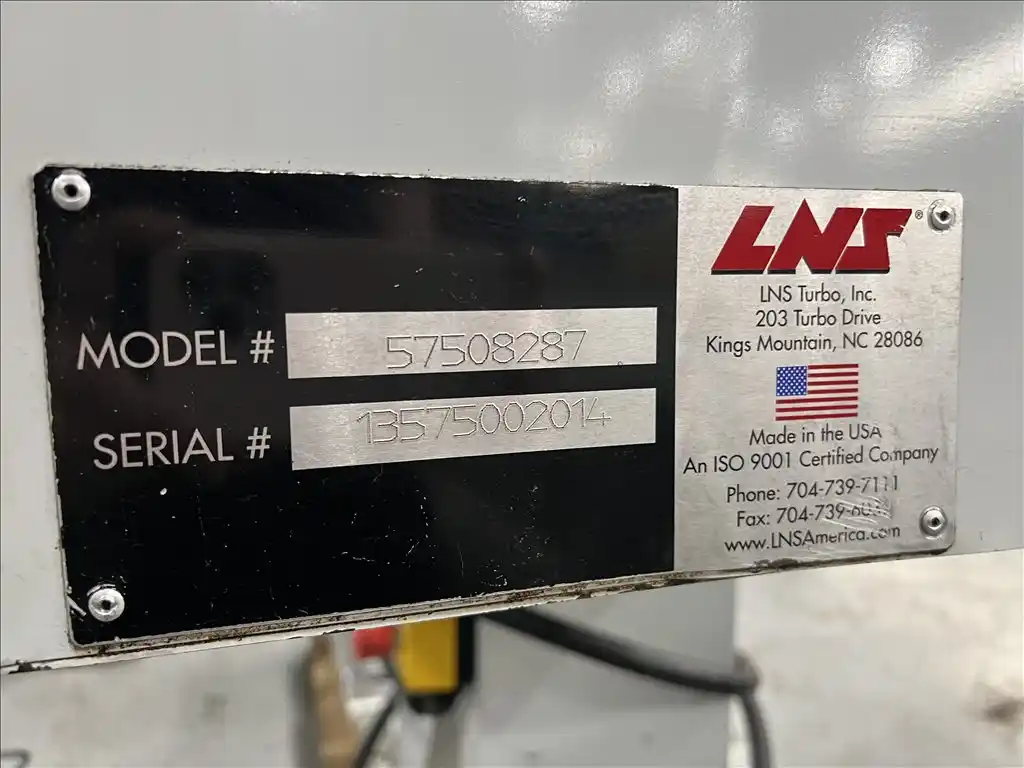

- LNS Quick Load Servo S2 Barfeed
- Chip Conveyor

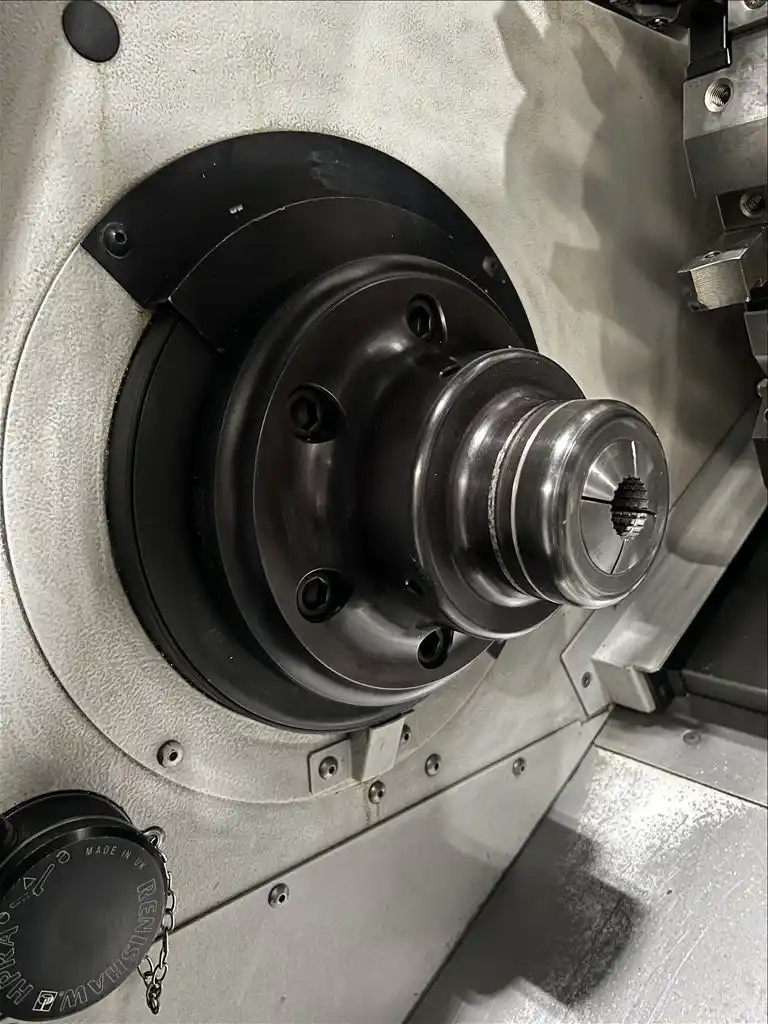

- Collet Chuck

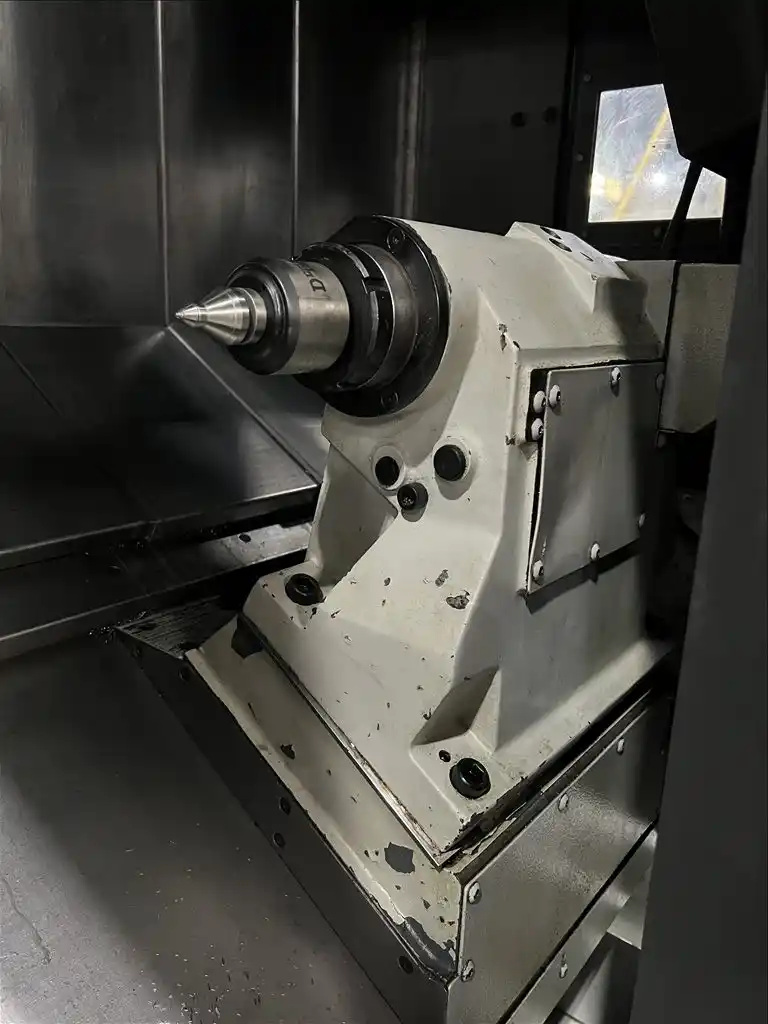

- Tailstock

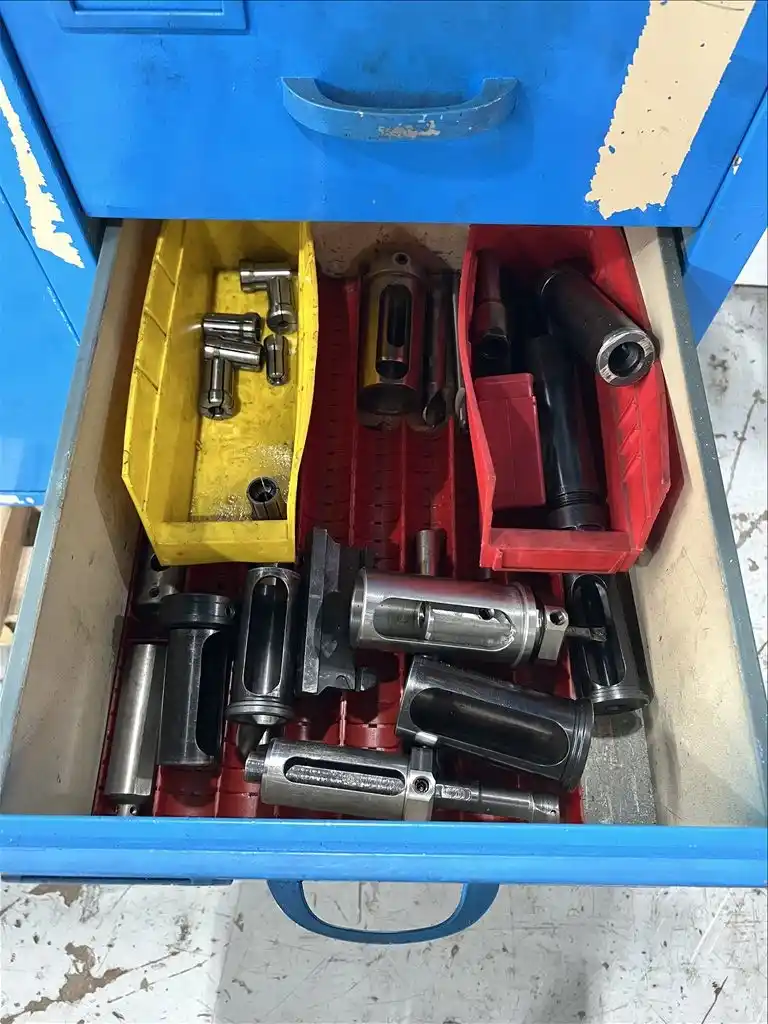

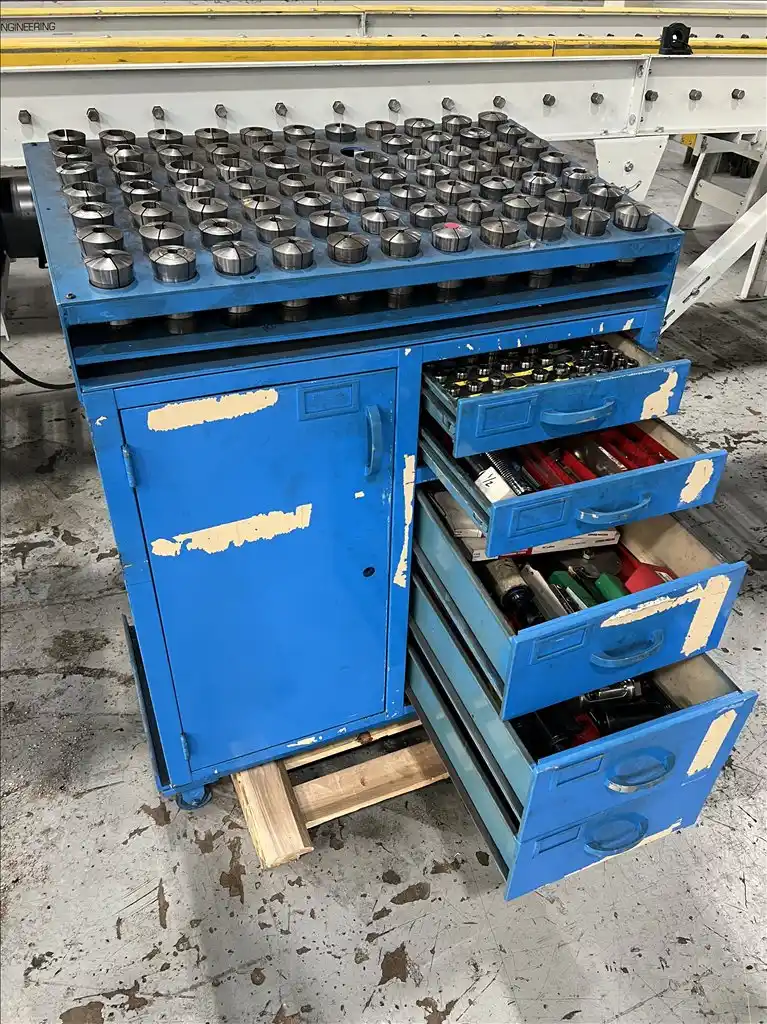

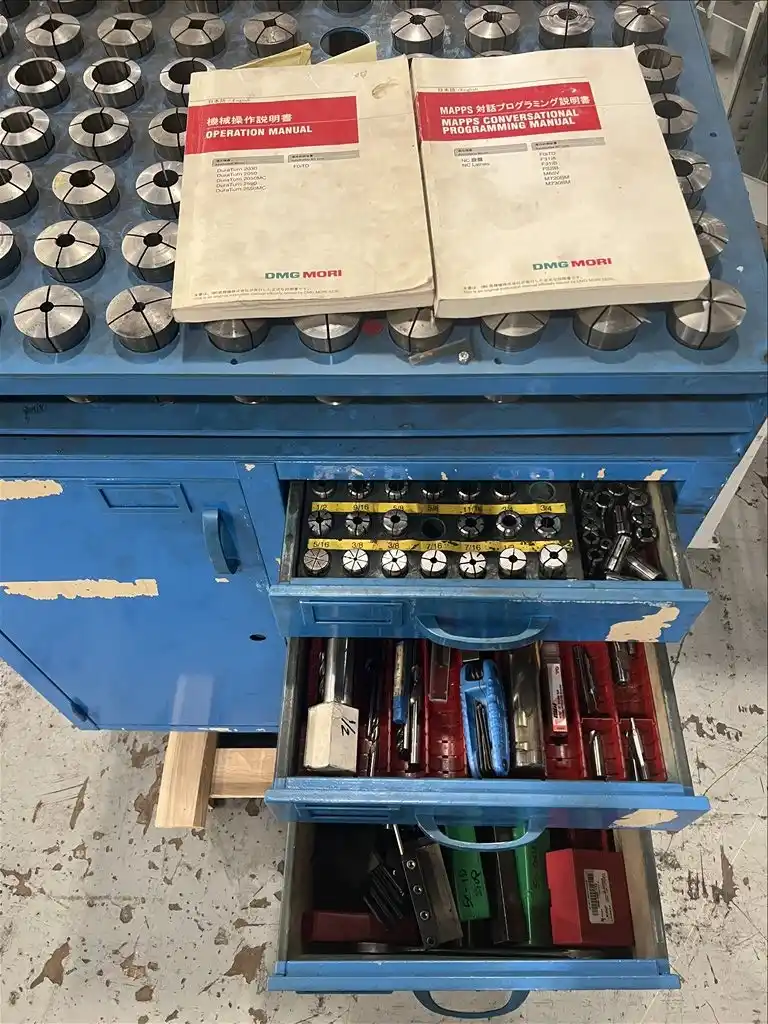

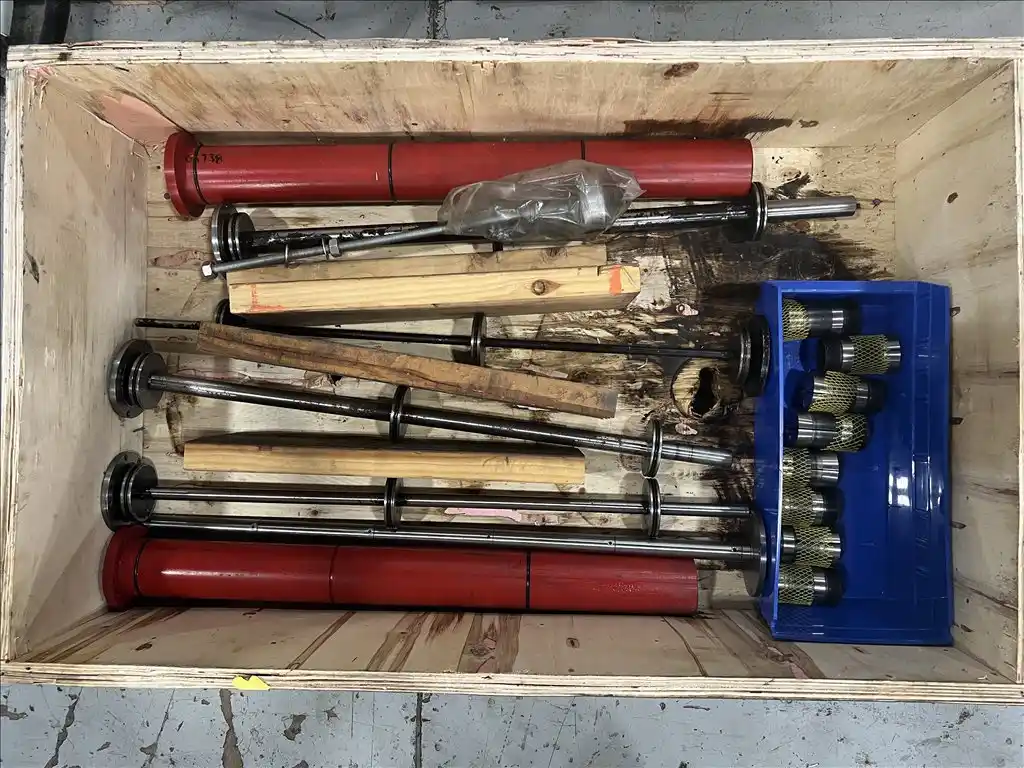

- Large Quantity of Collet Tooling
- Show More
- Show Less
- DMG Mori / Fanuc FOiTD CNC Control
- LNS Quick Load Servo S2 Barfeed
- Chip Conveyor
- Collet Chuck
- Tailstock
- Large Quantity of Collet Tooling
- Show More
- Show Less
More Info
This DMG Mori DuraTurn 2550 is a compact CNC turning center that blends big-machine rigidity with job-shop agility. With a 24″ swing, 21″ max machining length, and 3″ bar capacity, it easily turns shaft work, flanges, and small-batch castings. A collet chuck (ideal for precision bar work), 12-station turret, and 3,500 RPM spindle driven by a 35 HP motor deliver repeatable accuracy on steel, stainless, or aluminum parts. The machine is equipped with an LNS QL Servo S2 barfeed, chip conveyor, tailstock, and a large collet tooling package—giving you DuraTurn-level reliability at used-machine pricing.
Looking for similar equipment?
Explore our inventory of used CNC lathes.
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
