Inventory # 44658 Year: 2019

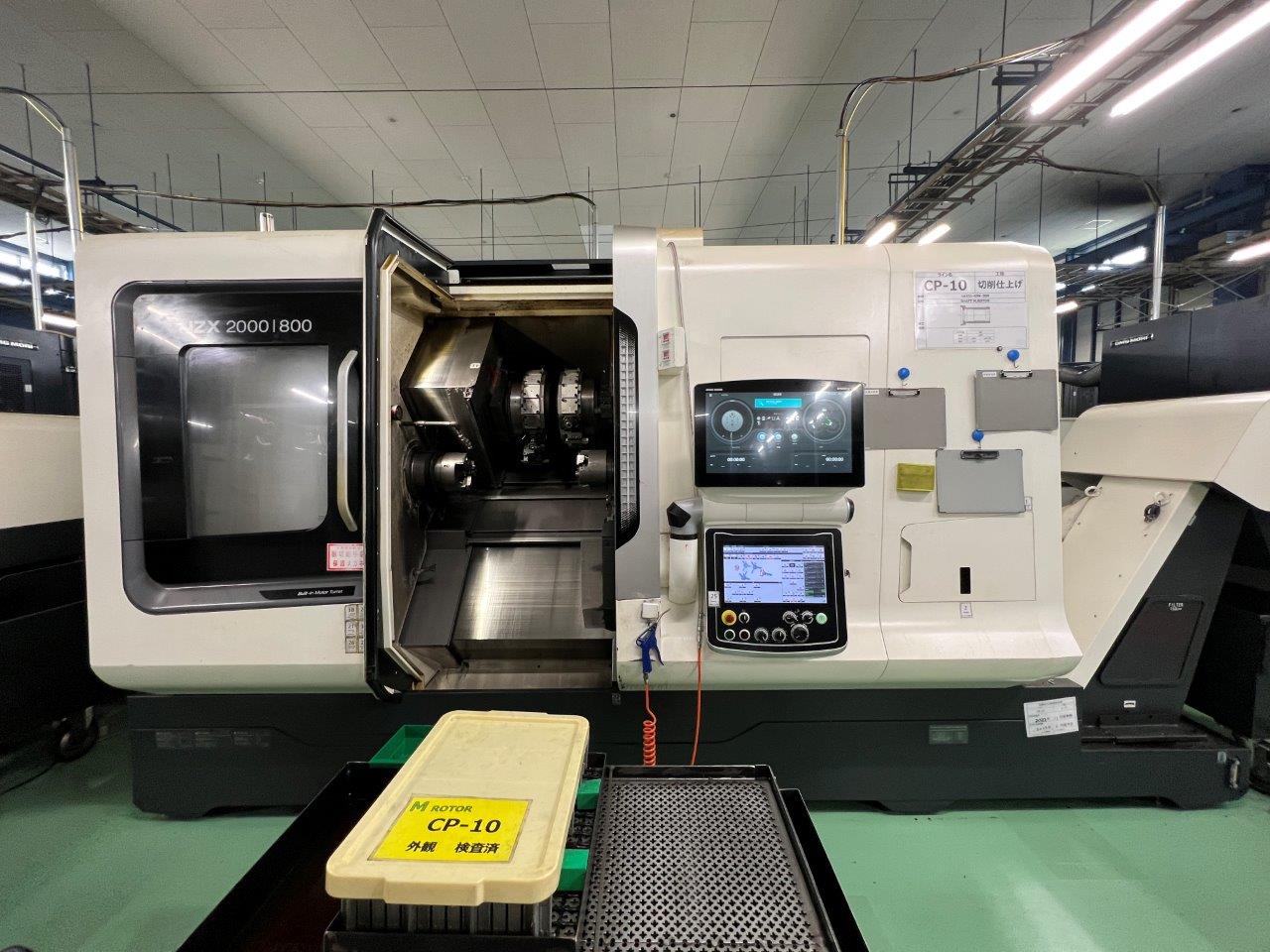

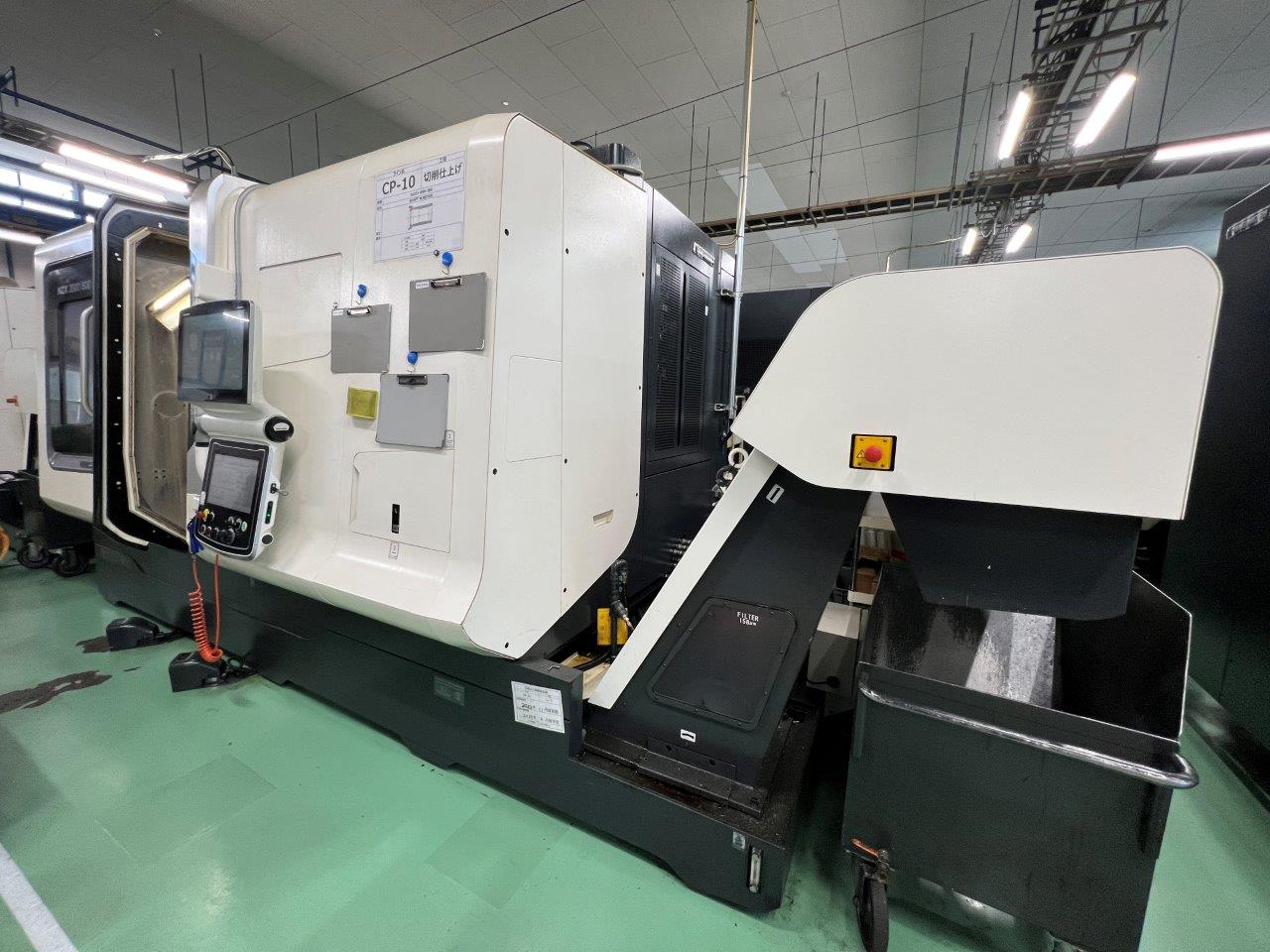

DMG Mori NZX2000/800STY3 CNC Multi-Axis Turning Center
Specifications
- Swing Over Bed: 31.5"
- Swing Over Cross Slide: 31.5"
- Max. Distance Between Spindle Large Noses: 44.4"
- Max. Turning Diameter: 12.5"
- Standard Turning Diameter: 7.9"
- Max. Workpiece Delivery Diameter: 11.8"
- Max. Turning Length: 31.8"
- Bar Capacity: 2.5"
- X1, X2, X3 Travel: 8.2"
- Y1, Y2, Y3 Travel: 4.3"
- Z1, Z3 Travel: 11.8"
- Z2 Travel: 31.8"
- B-Axis Travel: 34.2"

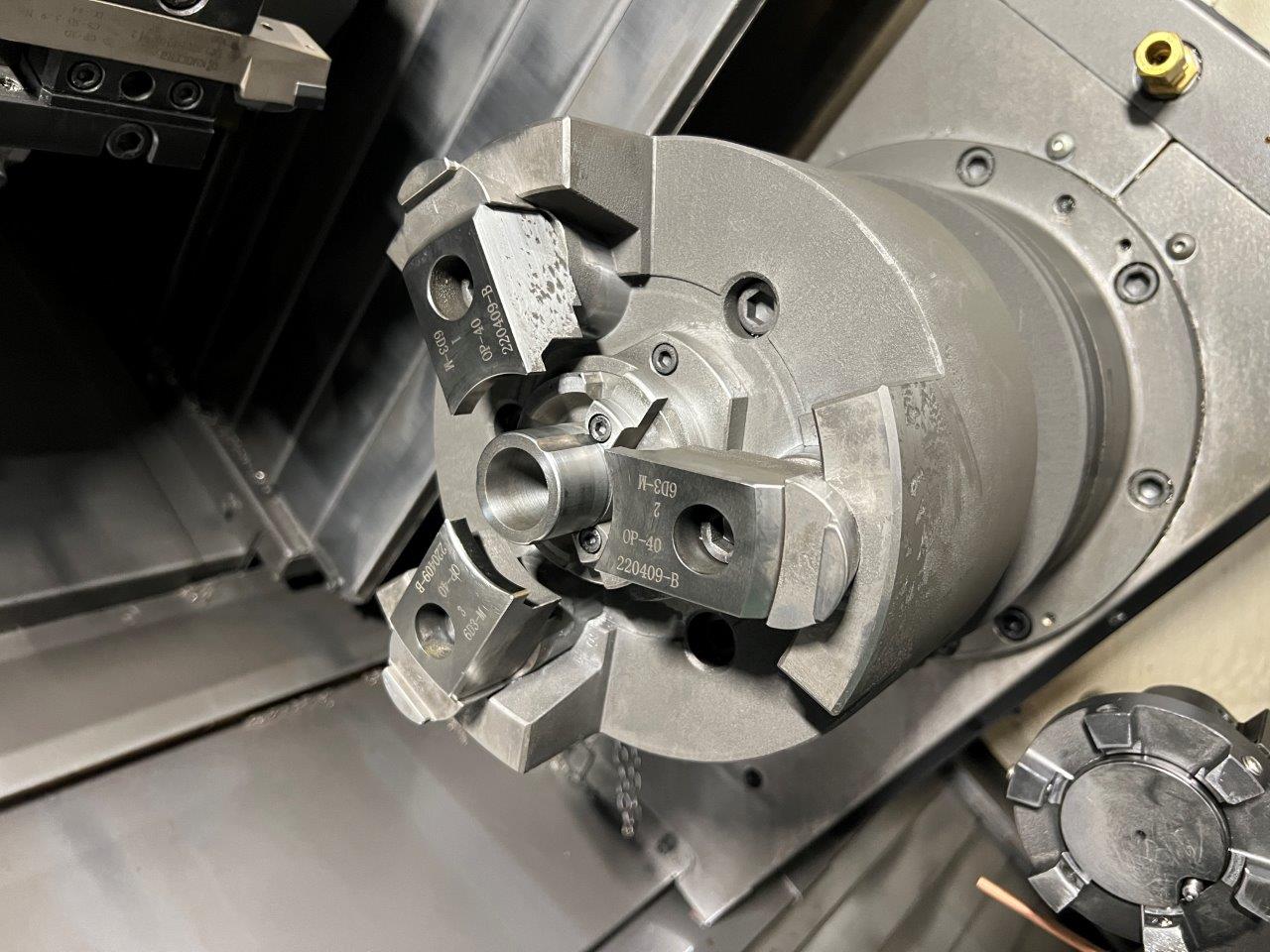

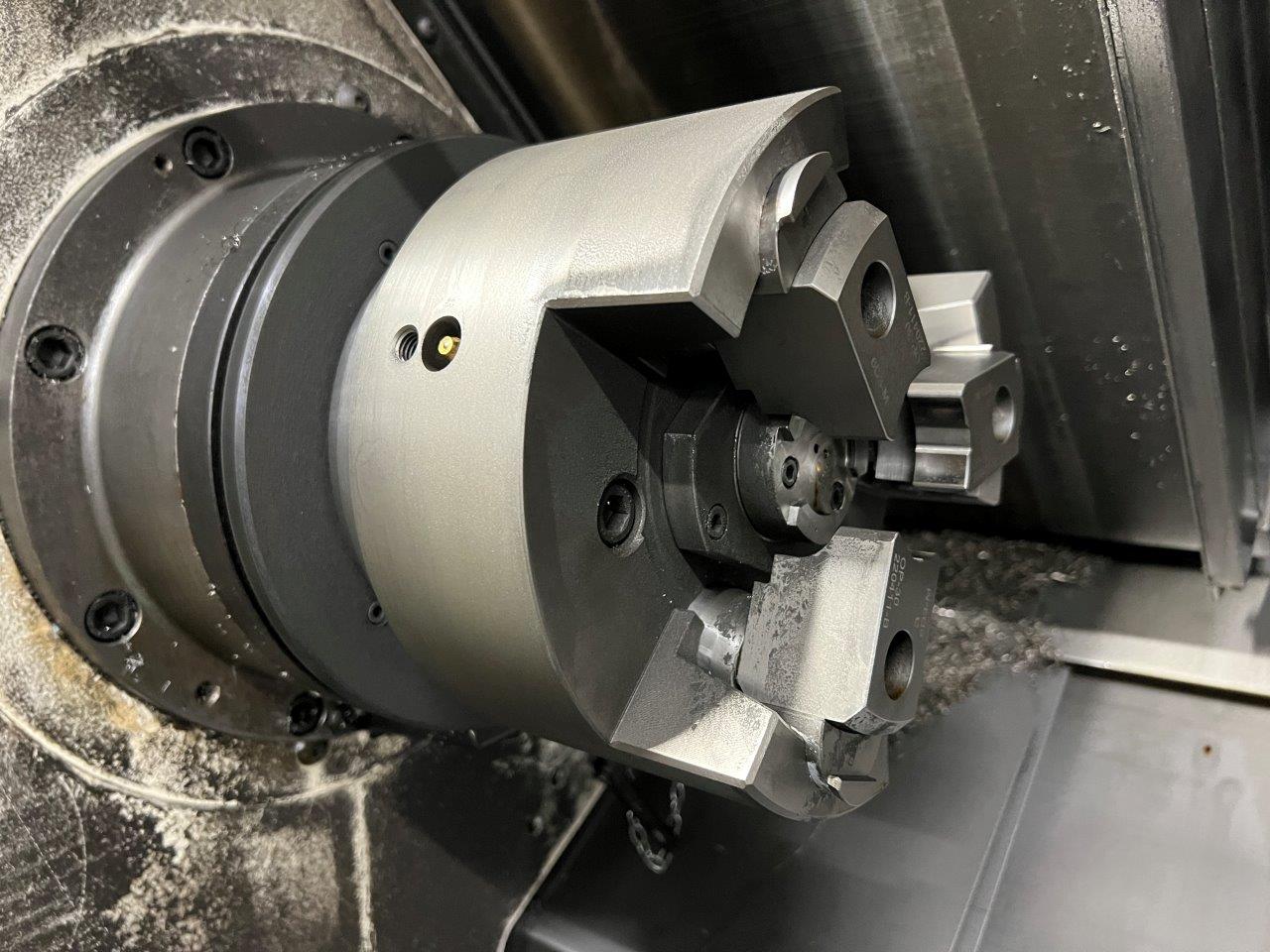

- Chuck Size (Spindle 1 & 2): 8"
- Through Spindle Hole Diameter: 2.9"
- Spindle Bearing Inner Diameter: 4.7"
- Min. Spindle Indexing Increment: 0.001°
- Max Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 30 hp
- Max Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 1181.1 IPM
- Rapid Traverse (Y1, Y2): 787.4 IPM
- Rapid Traverse (Z1, Z2, Z3): 1968.5 IPM

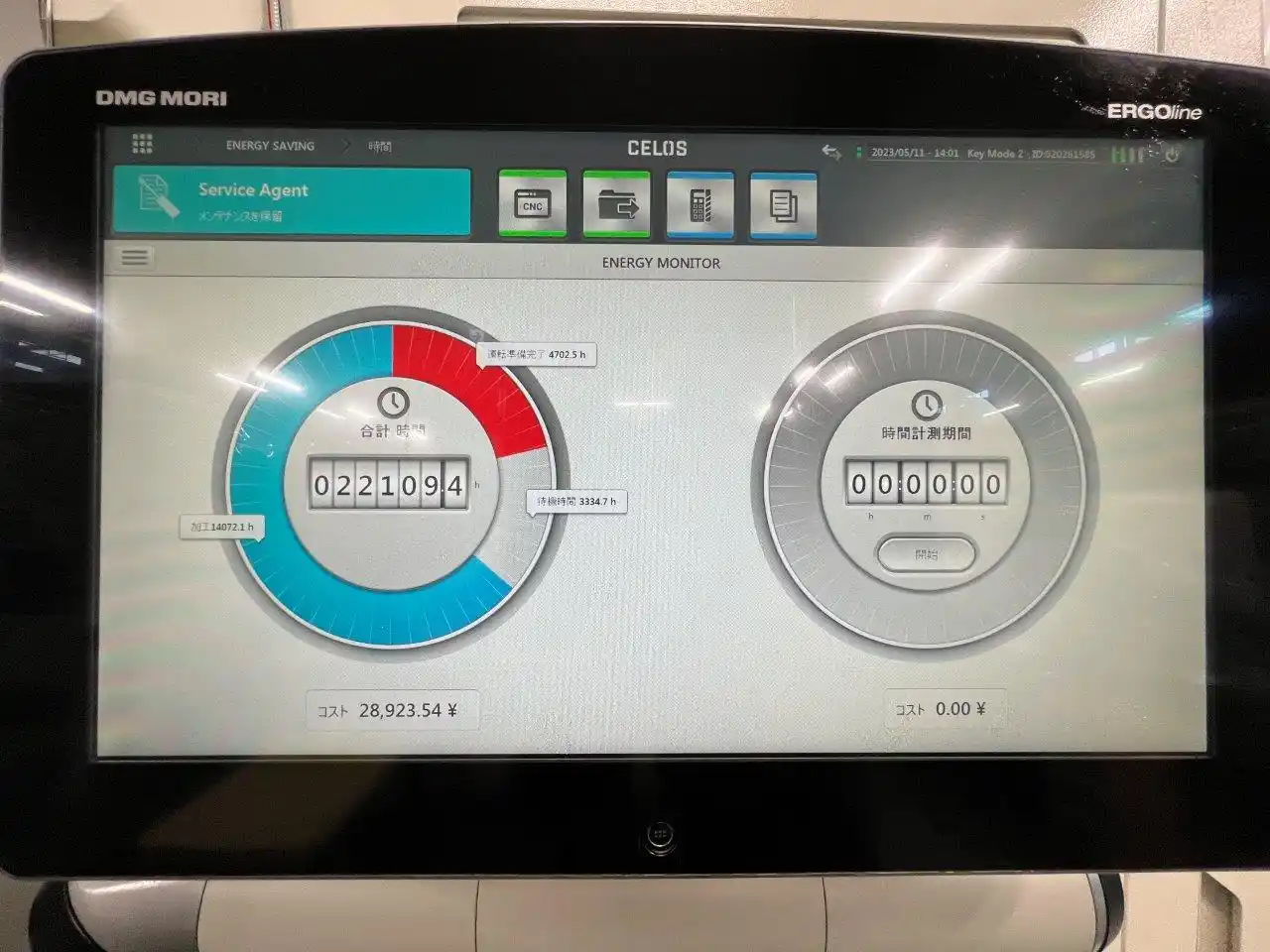

- Power On Time: 22,104 Hours
- Cutting Time: 14,072 Hours
- Show More
- Show Less
- Swing Over Bed: 800.10mm
- Swing Over Cross Slide: 800.10mm
- Max. Distance Between Spindle Large Noses: 1127.76mm
- Max. Turning Diameter: 317.50mm
- Standard Turning Diameter: 200.66mm
- Max. Workpiece Delivery Diameter: 299.72mm
- Max. Turning Length: 807.72mm
- Bar Capacity: 63.50mm
- X1, X2, X3 Travel: 208.28mm
- Y1, Y2, Y3 Travel: 109.22mm
- Z1, Z3 Travel: 299.72mm
- Z2 Travel: 807.72mm
- B-Axis Travel: 868.68mm
- Chuck Size (Spindle 1 & 2): 203.20mm
- Through Spindle Hole Diameter: 73.66mm
- Spindle Bearing Inner Diameter: 119.38mm
- Min. Spindle Indexing Increment: 0.001°
- Max Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 22.37 kw
- Max Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 500.00 mm/sec
- Rapid Traverse (Y1, Y2): 333.33 mm/sec
- Rapid Traverse (Z1, Z2, Z3): 50.00 m/min
- Power On Time: 22,104 Hours
- Cutting Time: 14,072 Hours
- Show More
- Show Less
Equipped With

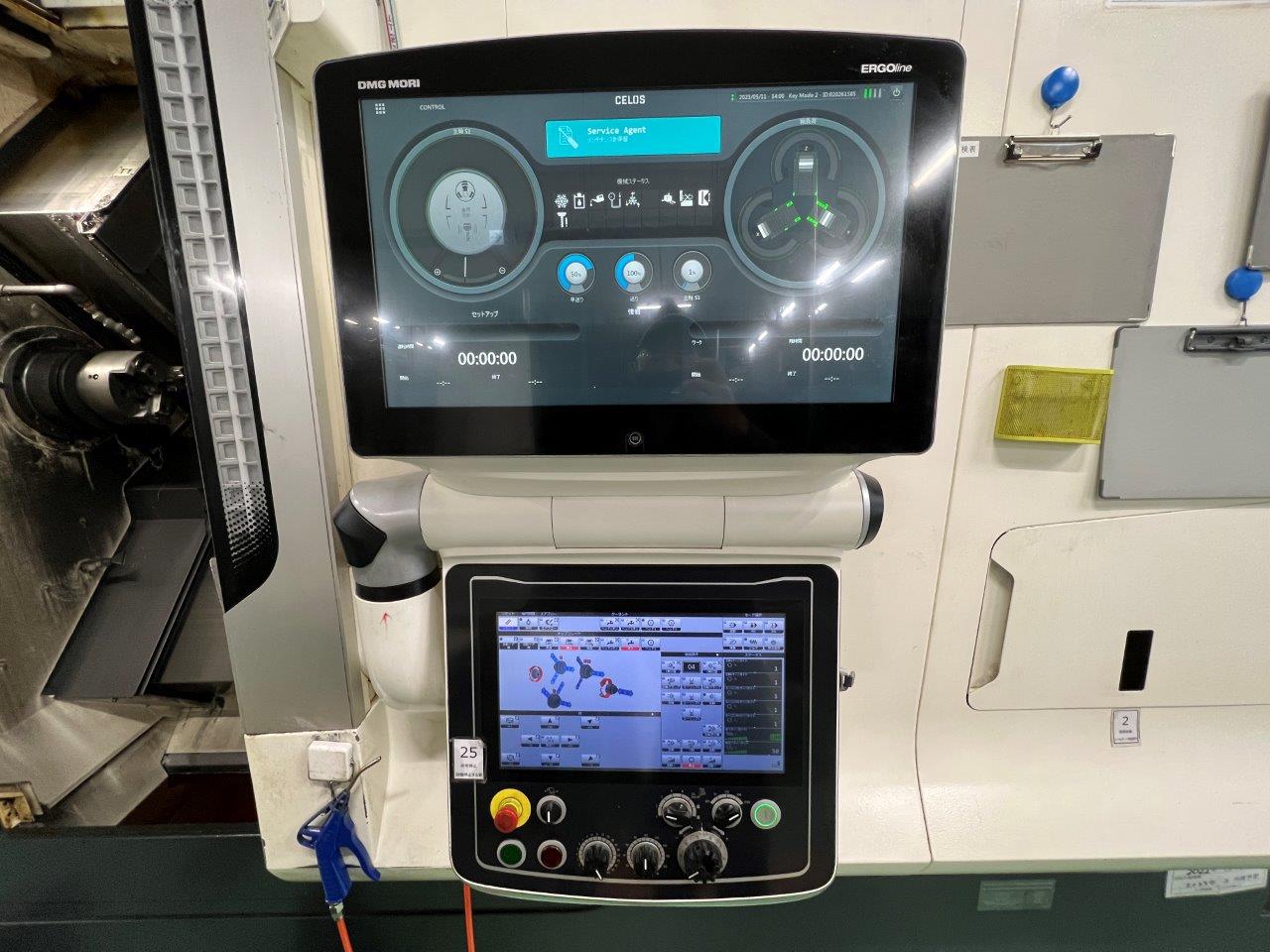

- Fanuc 31iB CELOS-ERGOline Touch CNC Control

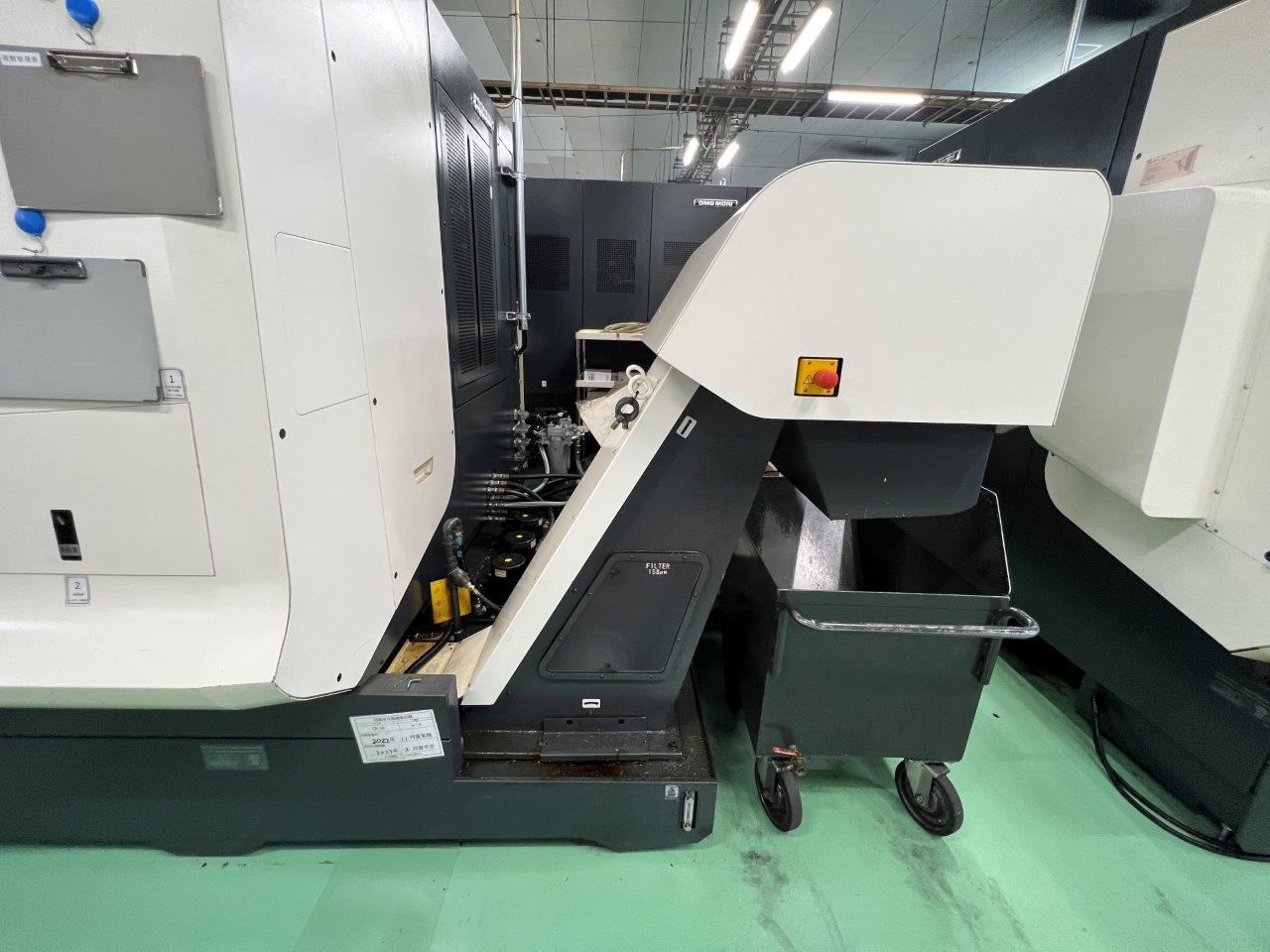

- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
- Fanuc 31iB CELOS-ERGOline Touch CNC Control
- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
More Info

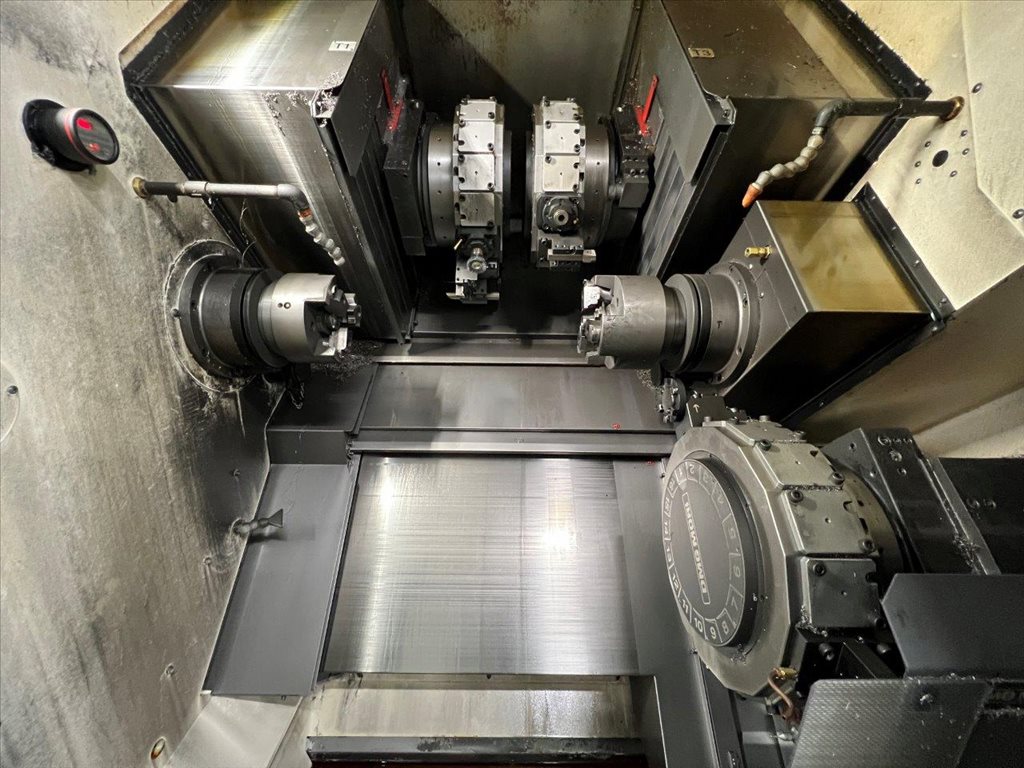

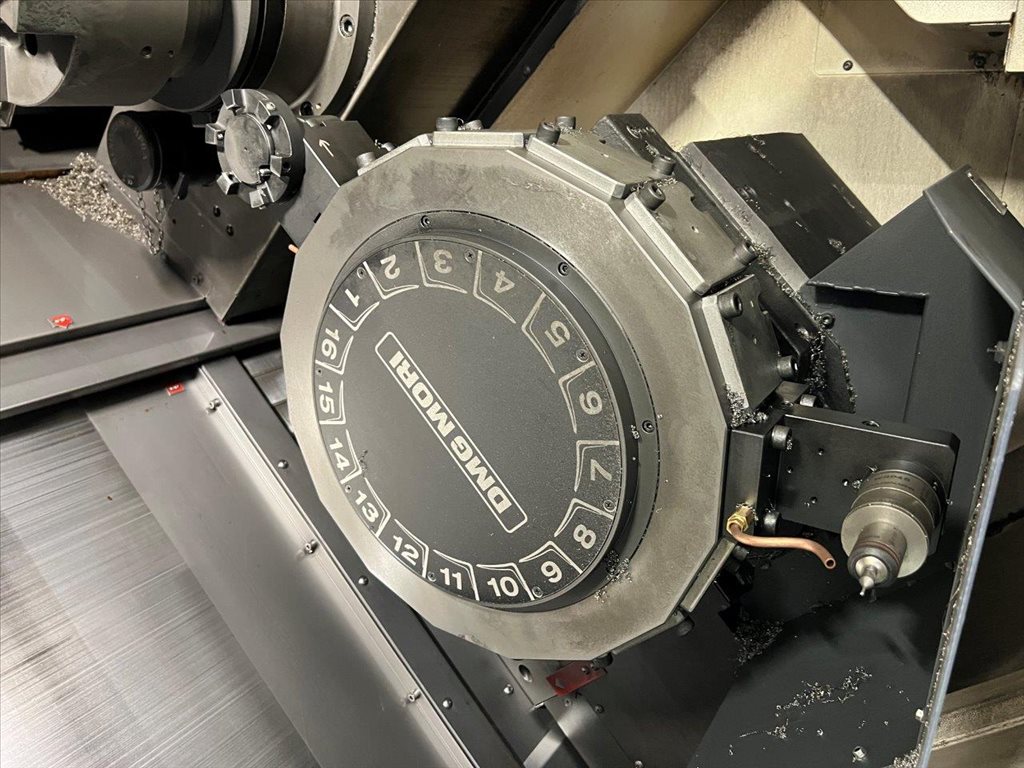

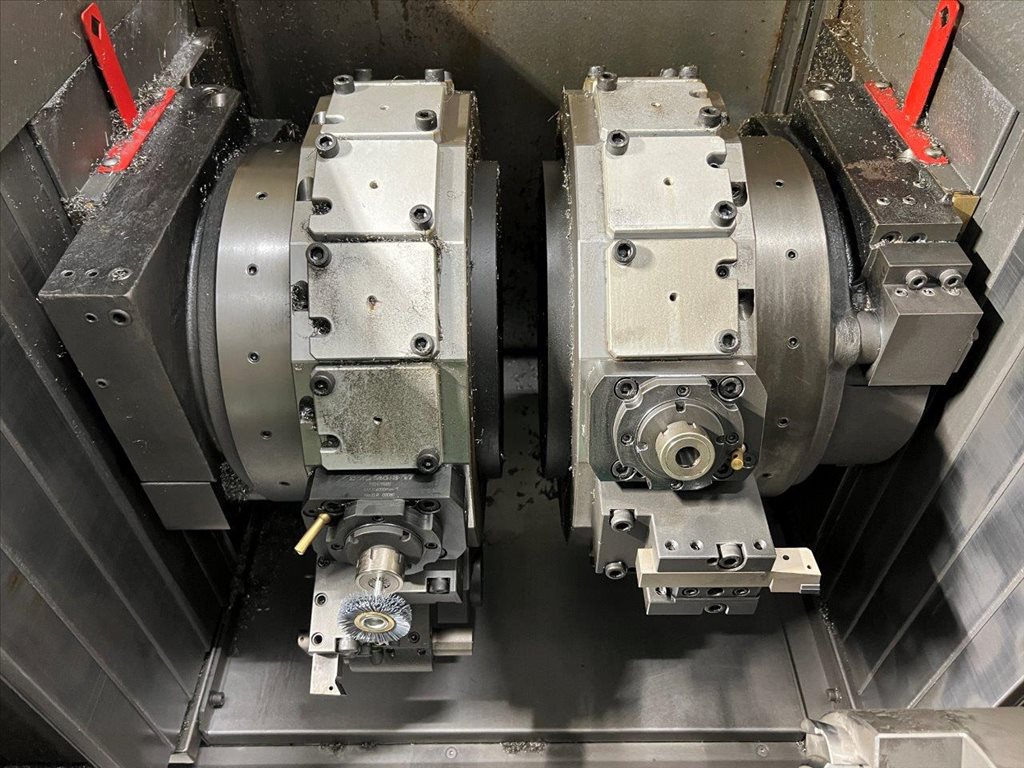

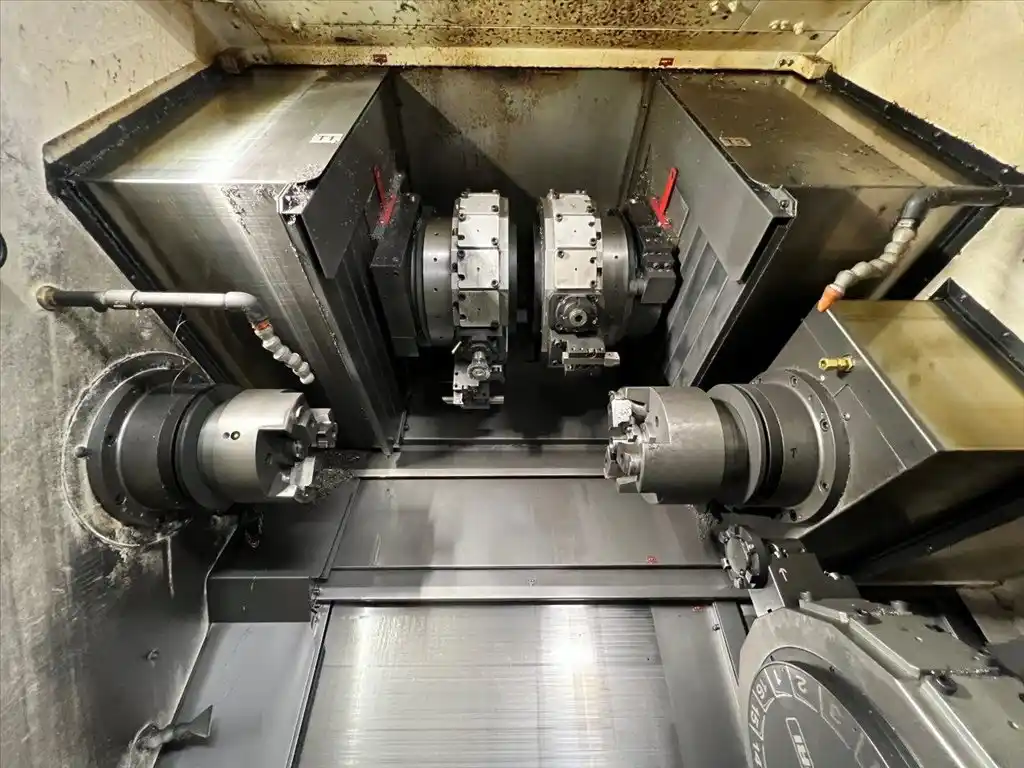

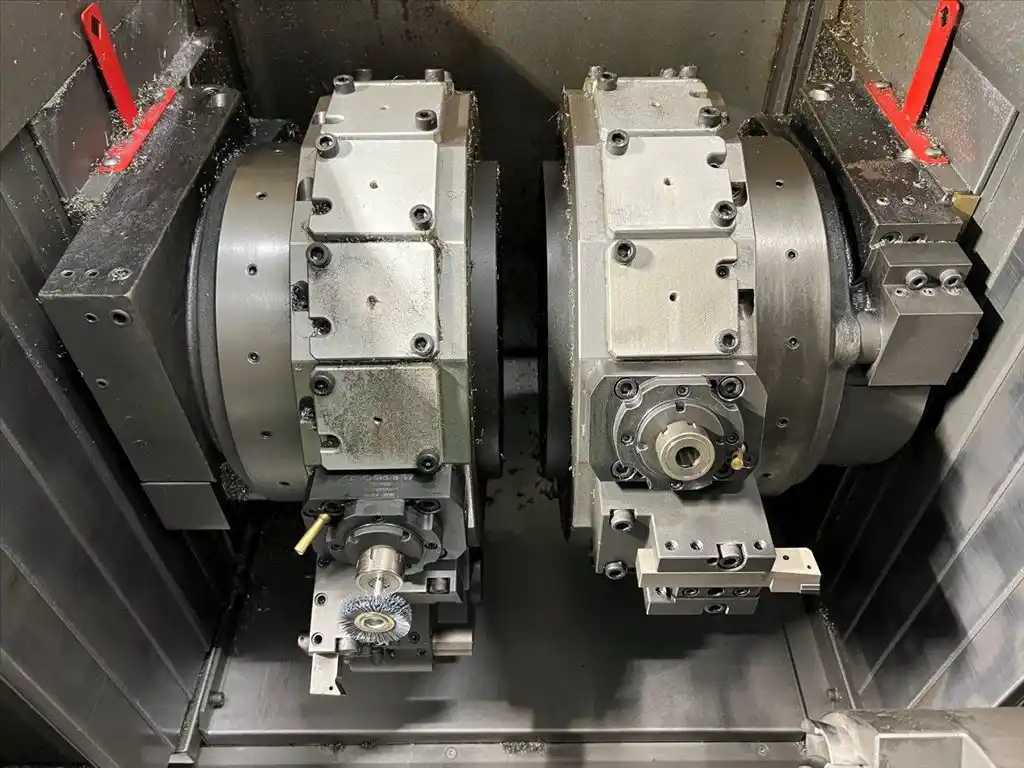

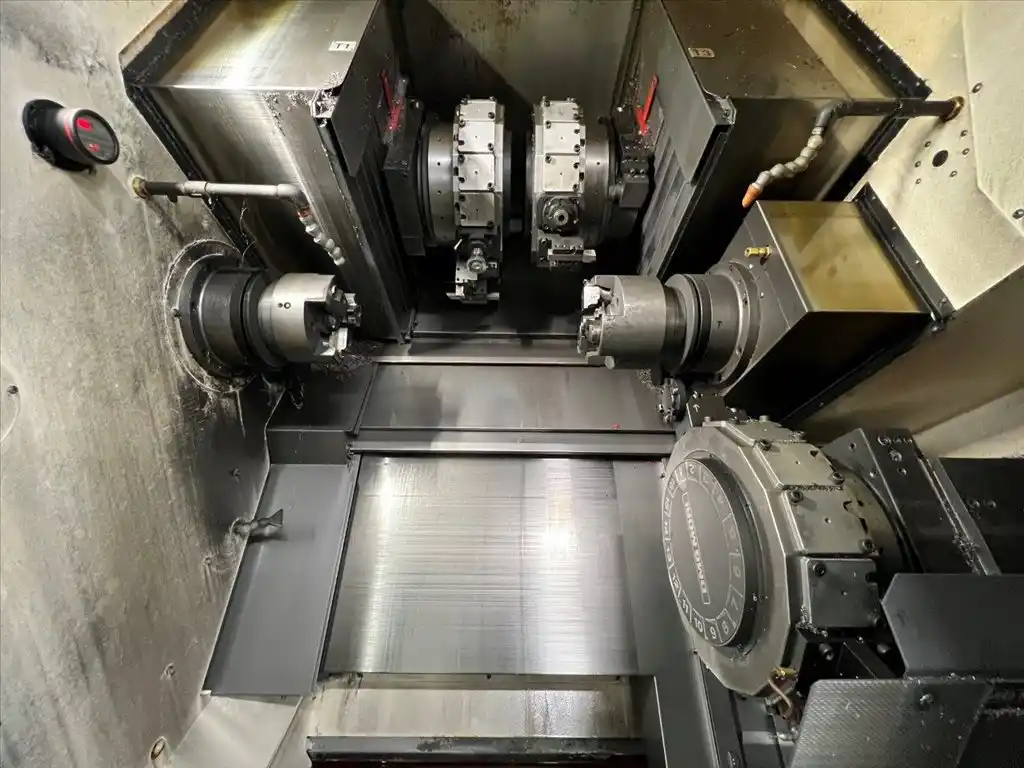

This 2019 DMG Mori NZX2000/800STY3 is a high-performance CNC multi-axis turning center designed to handle precision machining of intricate, multi-feature parts. Its dual spindles and multiple turrets with Y-axis capability allow simultaneous turning, milling, and drilling in one setup—improving accuracy and cutting production times.
This machine is ideal for aerospace, medical, and electronics manufacturing, where tight tolerances and complex geometries are common. From orthopedic implants to precision housings, it supports demanding applications that require both fine detail and reliable throughput. Outfitted with a Fanuc 31iB CELOS-ERGOline control, chip conveyor, tool presetters, and extra chucks, it offers the versatility today’s contract manufacturers rely on.

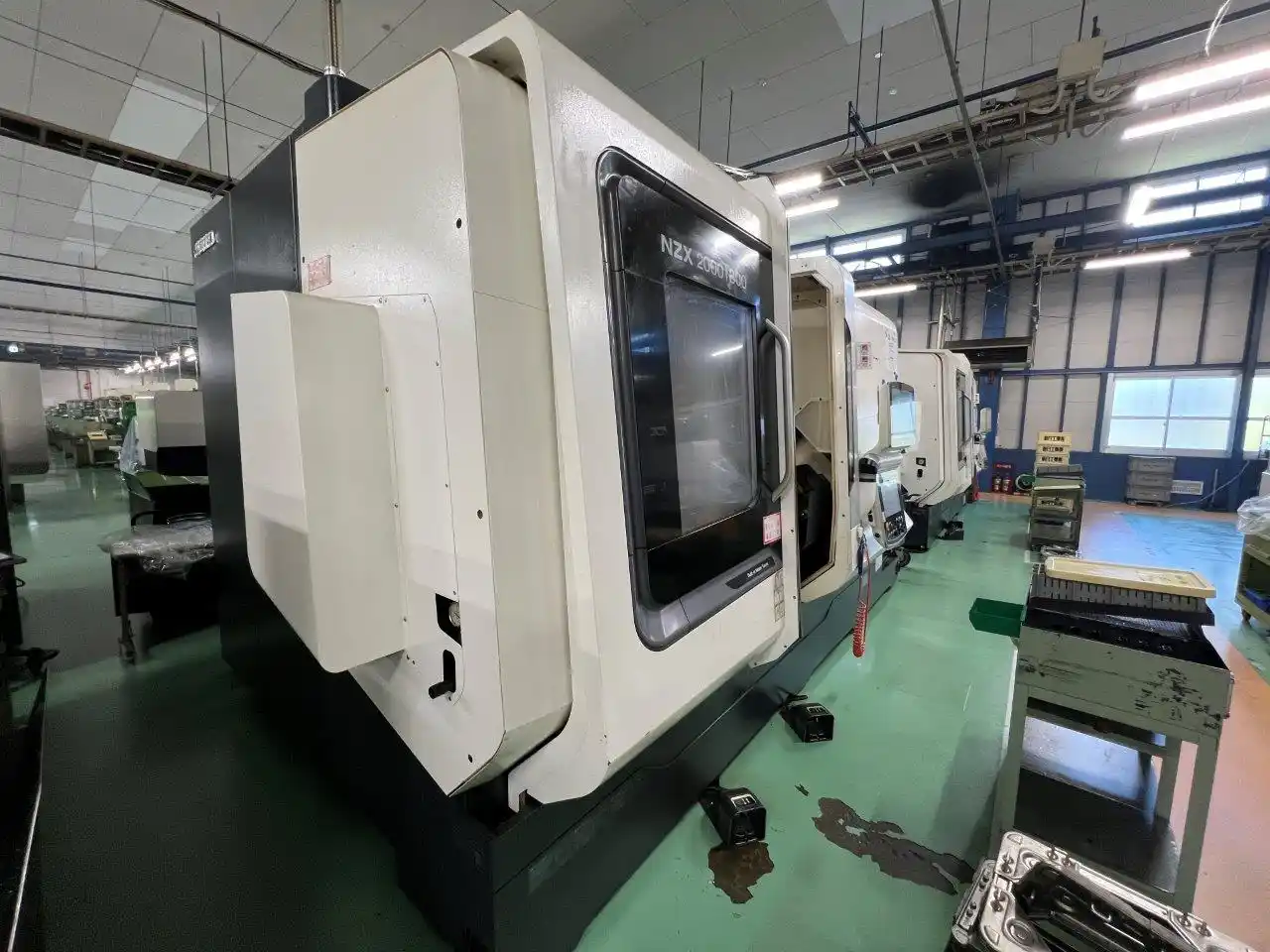

This used DMG Mori NZX2000/800STY3 is available to inspect under power by appointment. We currently have four identical units in stock, making it possible to expand with matched equipment for consistent performance.
Looking for a similar machine? Perfection’s inventory also includes a wide selection of other used CNC lathes & turning centers.
Location & Terms
- Terms: F.O.B.
- Location: Simi Valley, CA
- Disclaimer: Preliminary Specifications....
