Inventory # 44664 Year: 2019

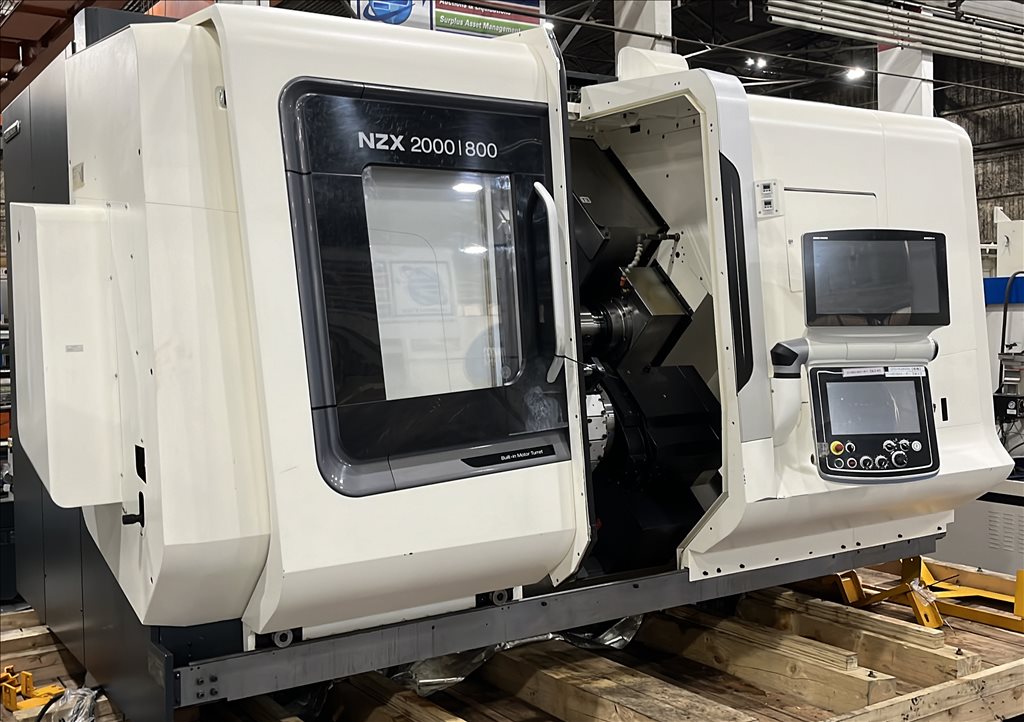

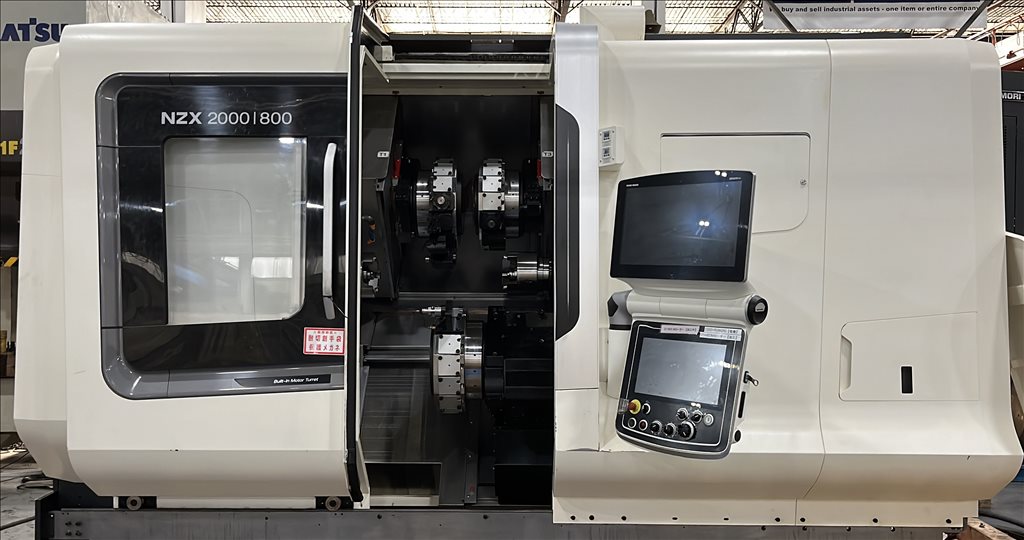

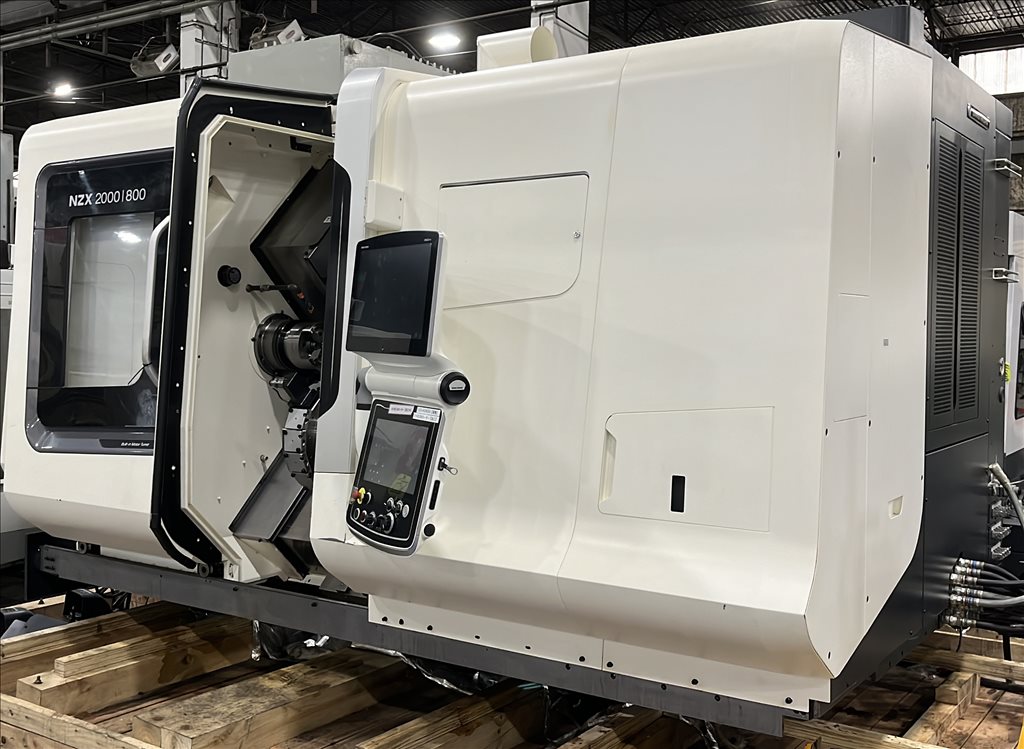

DMG Mori NZX2000/800STY3 CNC Multi-Axis Turning Center
Specifications
- Swing Over Bed: 31.5"
- Swing Over Cross Slide: 31.5"
- Max. Distance Between Spindle Large Noses: 44.4"
- Max. Turning Diameter: 12.5"
- Standard Turning Diameter: 7.9"
- Max. Workpiece Delivery Diameter: 11.8"
- Max. Turning Length: 31.8"
- Bar Capacity: 2.5"
- X1, X2, X3 Travel: 8.2"
- Y1, Y2, Y3 Travel: 4.3"
- Z1, Z3 Travel: 11.8"
- Z2 Travel: 31.8"
- B-Axis Travel: 34.2"

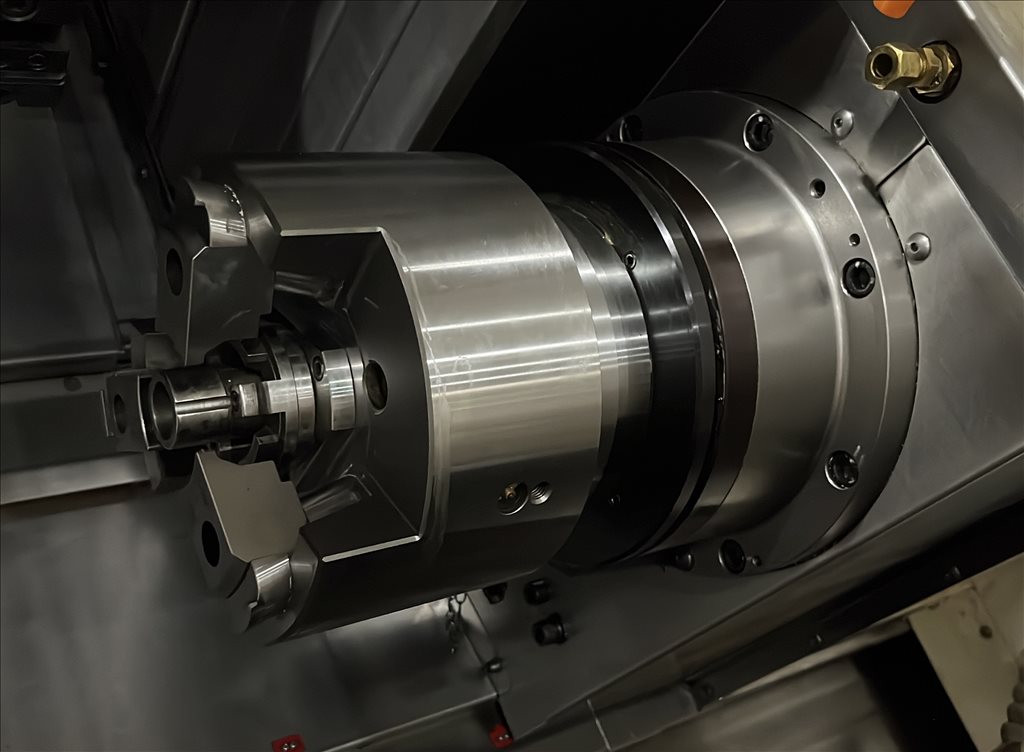

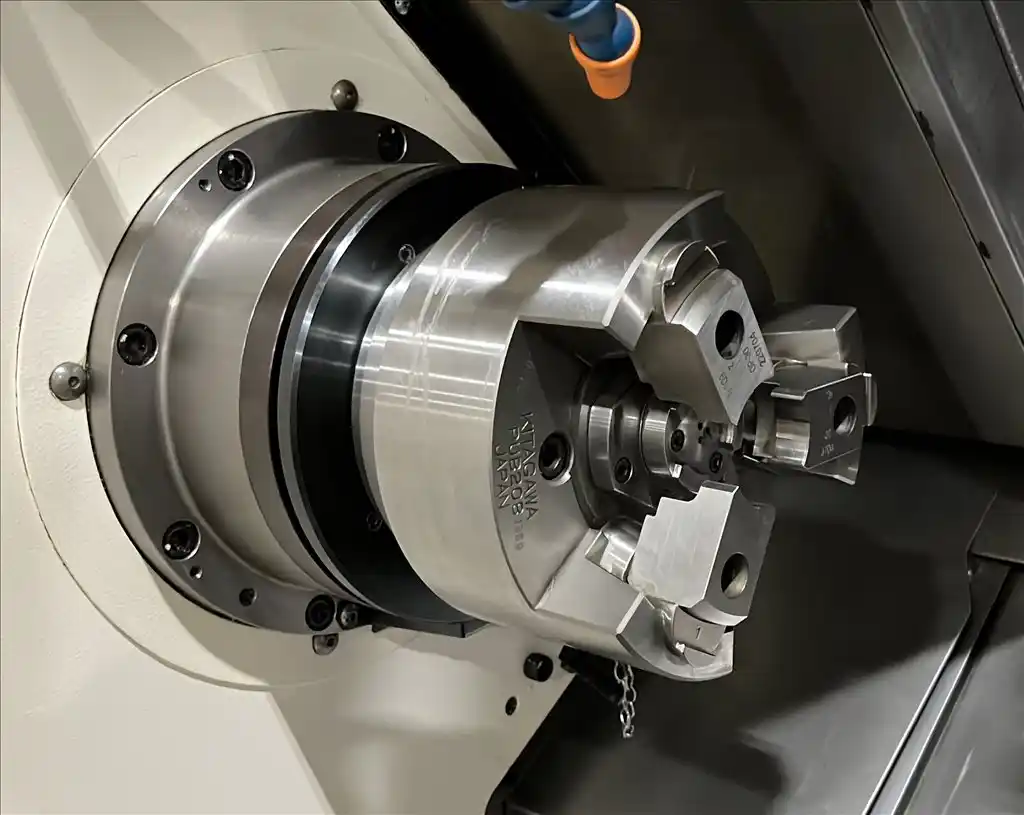

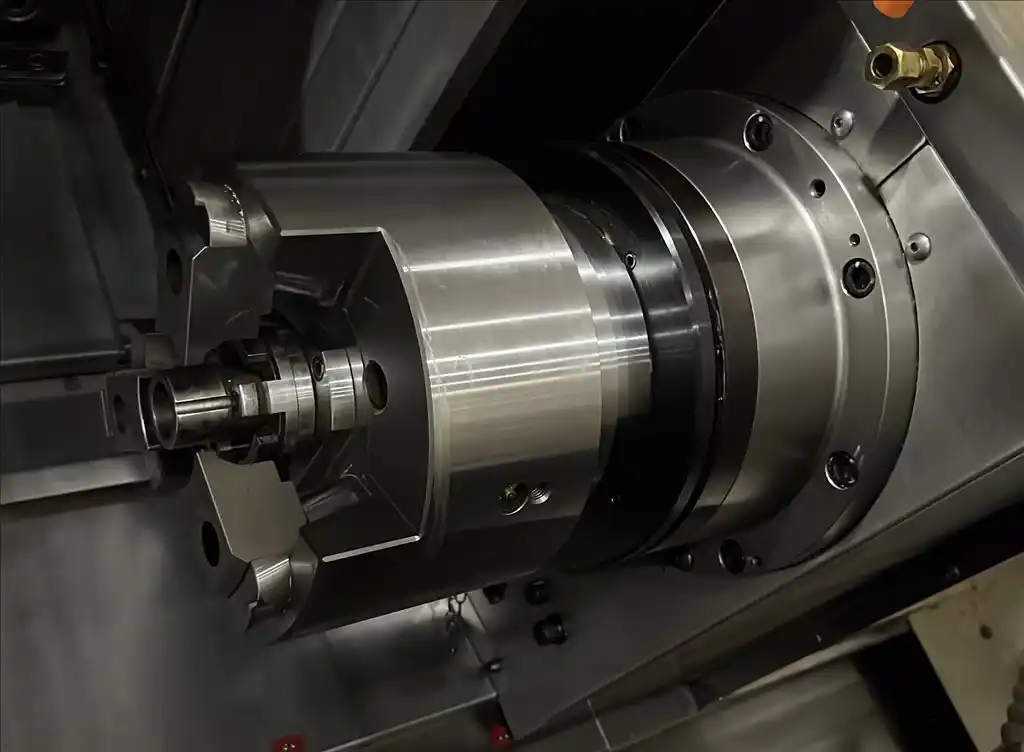

- Chuck Size (Spindle 1 & 2): 8"
- Through Spindle Hole Diameter: 2.9"
- Spindle Bearing Inner Diameter: 4.7"
- Min. Spindle Indexing Increment: 0.001°
- Max. Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 30 hp
- Max. Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 1181.1 IPM
- Rapid Traverse (Y1, Y2): 787.4 IPM
- Rapid Traverse (Z1, Z2, Z3): 1968.5 IPM
- Power On Time: 20,107 Hours
- Cutting Time: 11,207 Hours
- Show More
- Show Less
- Swing Over Bed: 800.10mm
- Swing Over Cross Slide: 800.10mm
- Max. Distance Between Spindle Large Noses: 1127.76mm
- Max. Turning Diameter: 317.50mm
- Standard Turning Diameter: 200.66mm
- Max. Workpiece Delivery Diameter: 299.72mm
- Max. Turning Length: 807.72mm
- Bar Capacity: 63.50mm
- X1, X2, X3 Travel: 208.28mm
- Y1, Y2, Y3 Travel: 109.22mm
- Z1, Z3 Travel: 299.72mm
- Z2 Travel: 807.72mm
- B-Axis Travel: 868.68mm
- Chuck Size (Spindle 1 & 2): 203.20mm
- Through Spindle Hole Diameter: 73.66mm
- Spindle Bearing Inner Diameter: 119.38mm
- Min. Spindle Indexing Increment: 0.001°
- Max. Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 22.37 kw
- Max. Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 500.00 mm/sec
- Rapid Traverse (Y1, Y2): 333.33 mm/sec
- Rapid Traverse (Z1, Z2, Z3): 50.00 m/min
- Power On Time: 20,107 Hours
- Cutting Time: 11,207 Hours
- Show More
- Show Less
Equipped With

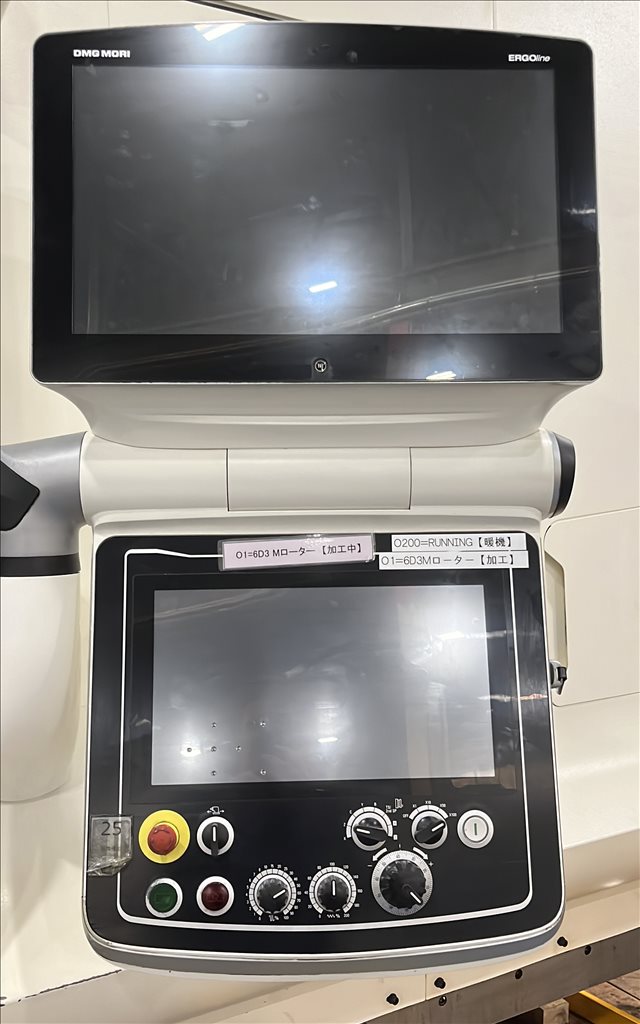

- Fanuc 31iB CELOS-ERGOline Touch CNC Control
- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
- Fanuc 31iB CELOS-ERGOline Touch CNC Control
- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
More Info

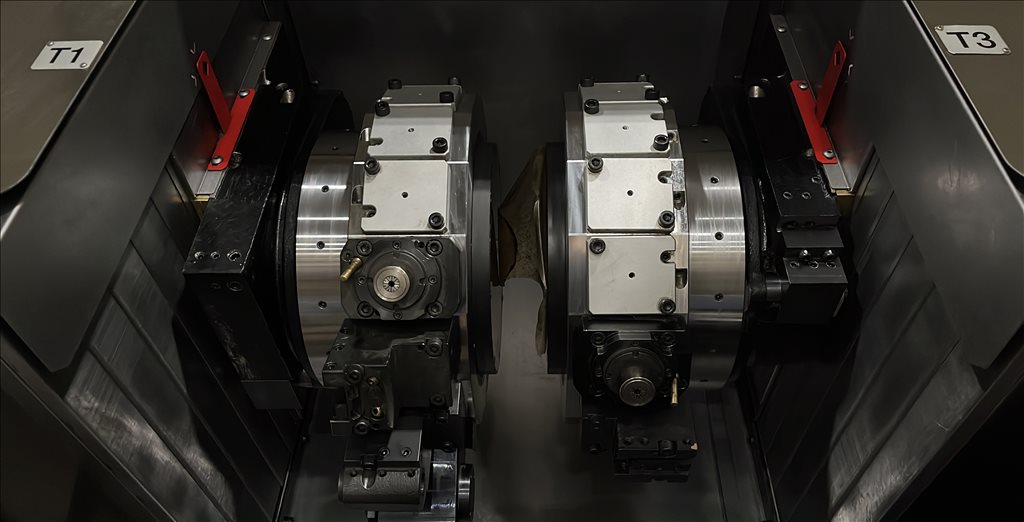

This 2019 DMG Mori NZX2000/800STY3 is a high-performance CNC multi-axis turning center built for efficient production of complex, multi-step components. Its twin-spindle, multi-turret configuration with Y-axis machining enables full part processing in one cycle—reducing setups while boosting accuracy.
This machine is well-suited for automotive, oil & gas, and general machining operations where durability and repeatability are key. From fuel system parts to threaded connectors, it can manage tough materials and high-volume work with ease. Equipped with a Fanuc 31iB CELOS-ERGOline control, chip conveyor, tool presetters, and additional chucks, it provides the performance needed to support production machining environments.
This used DMG Mori NZX2000/800STY3 is available to inspect under power at our Elk Grove Village, IL showroom. With four identical machines available, manufacturers can scale capacity quickly and maintain uniform setups across multiple lines.
Looking for a similar machine? Perfection’s inventory also includes a wide selection of other used CNC lathes & turning centers.
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
