Inventory # 44665 Year: 2019

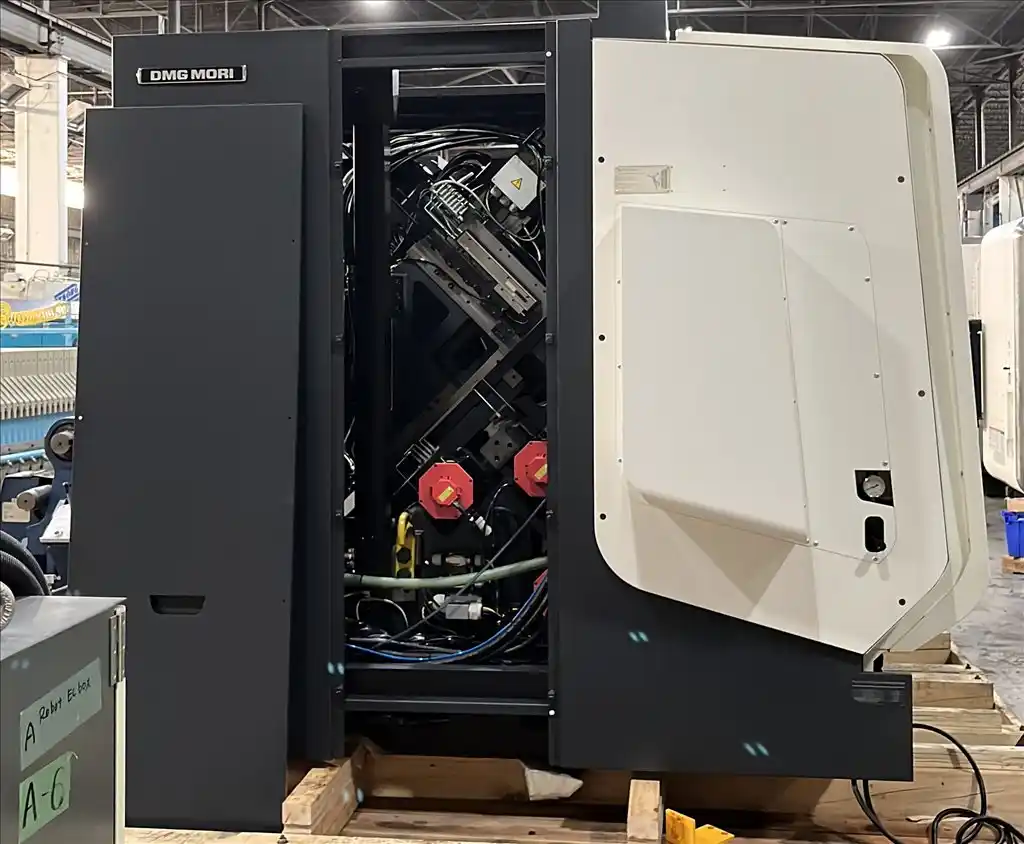

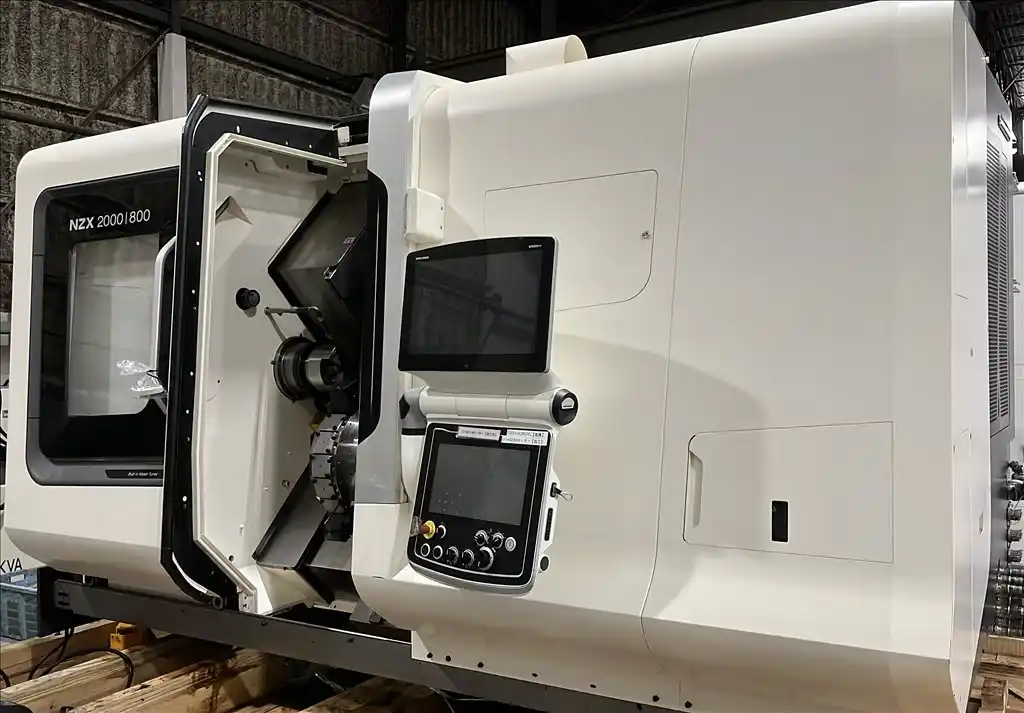

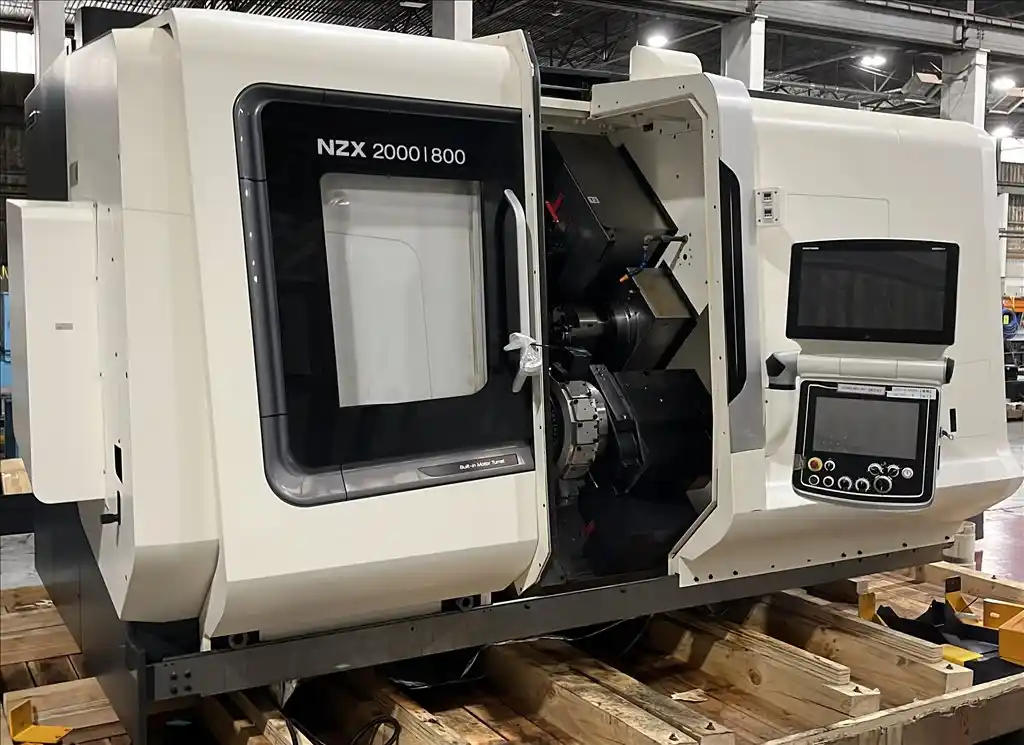

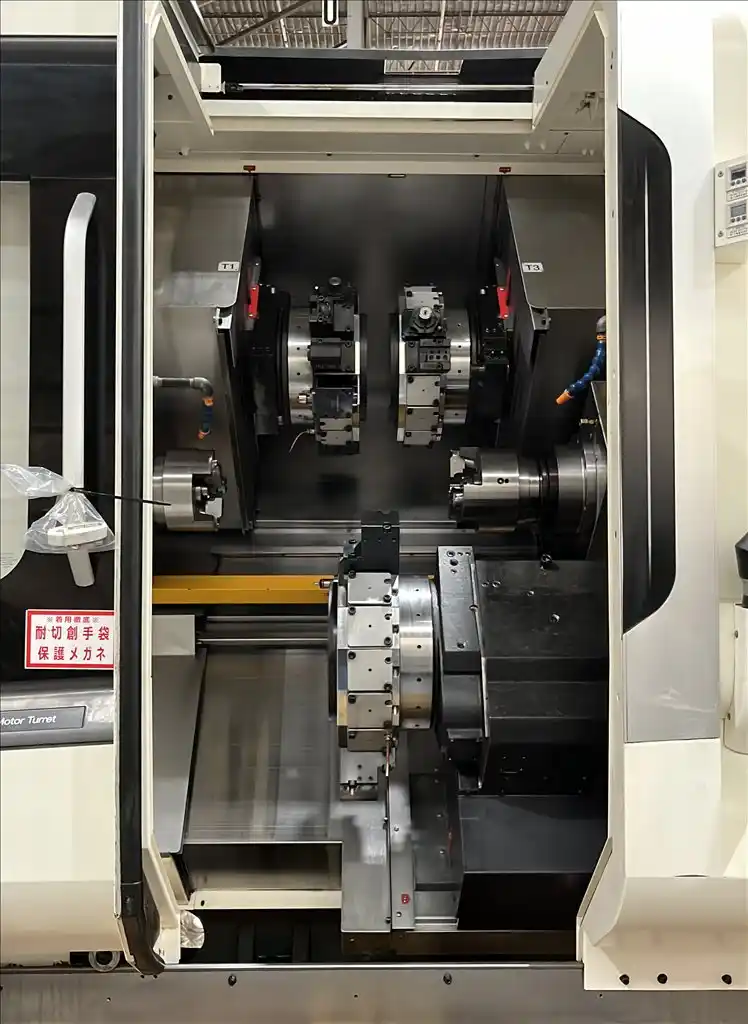

DMG Mori NZX2000/800STY3 CNC Multi-Axis Turning Center
Specifications
- Swing Over Bed: 31.5"
- Swing Over Cross Slide: 31.5"
- Max. Distance Between Spindle Large Noses: 44.4"
- Max. Turning Diameter: 12.5"
- Standard Turning Diameter: 7.9"
- Max. Workpiece Delivery Diameter: 11.8"
- Max. Turning Length: 31.8"
- Bar Capacity: 2.5"
- X1, X2, X3 Travel: 8.2"
- Y1, Y2, Y3 Travel: 4.3"
- Z1, Z3 Travel: 11.8"
- Z2 Travel: 31.8"
- B-Axis Travel: 34.2"

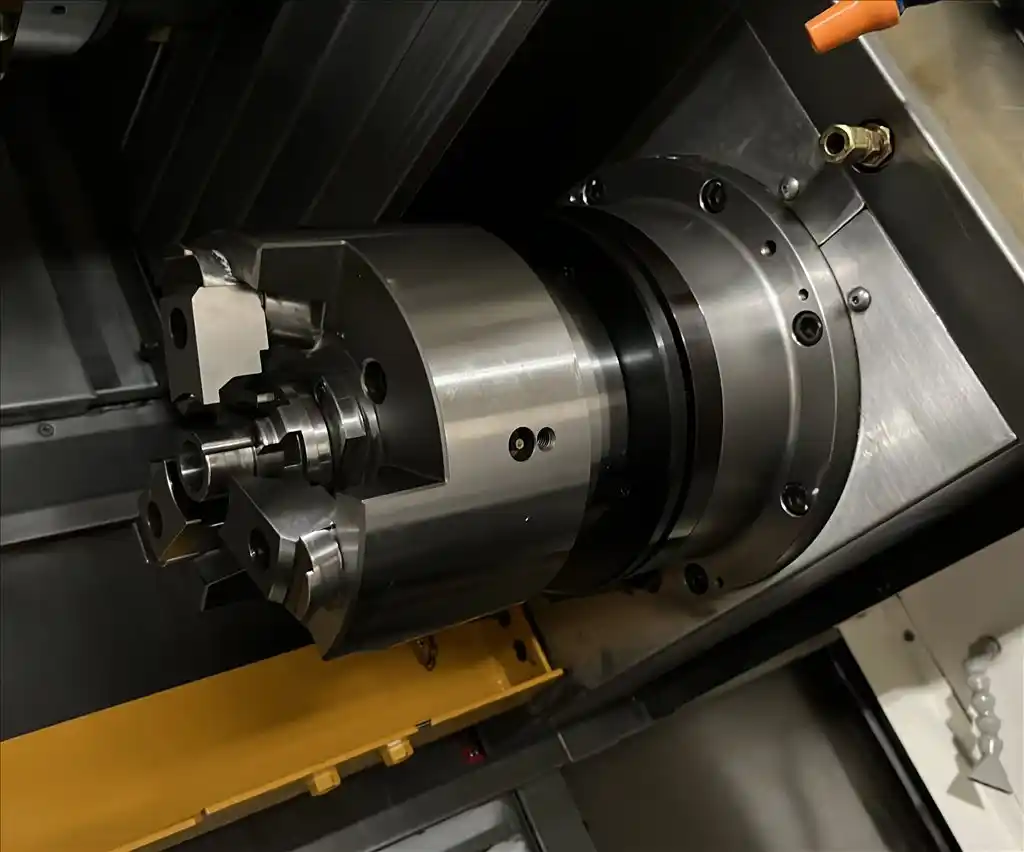

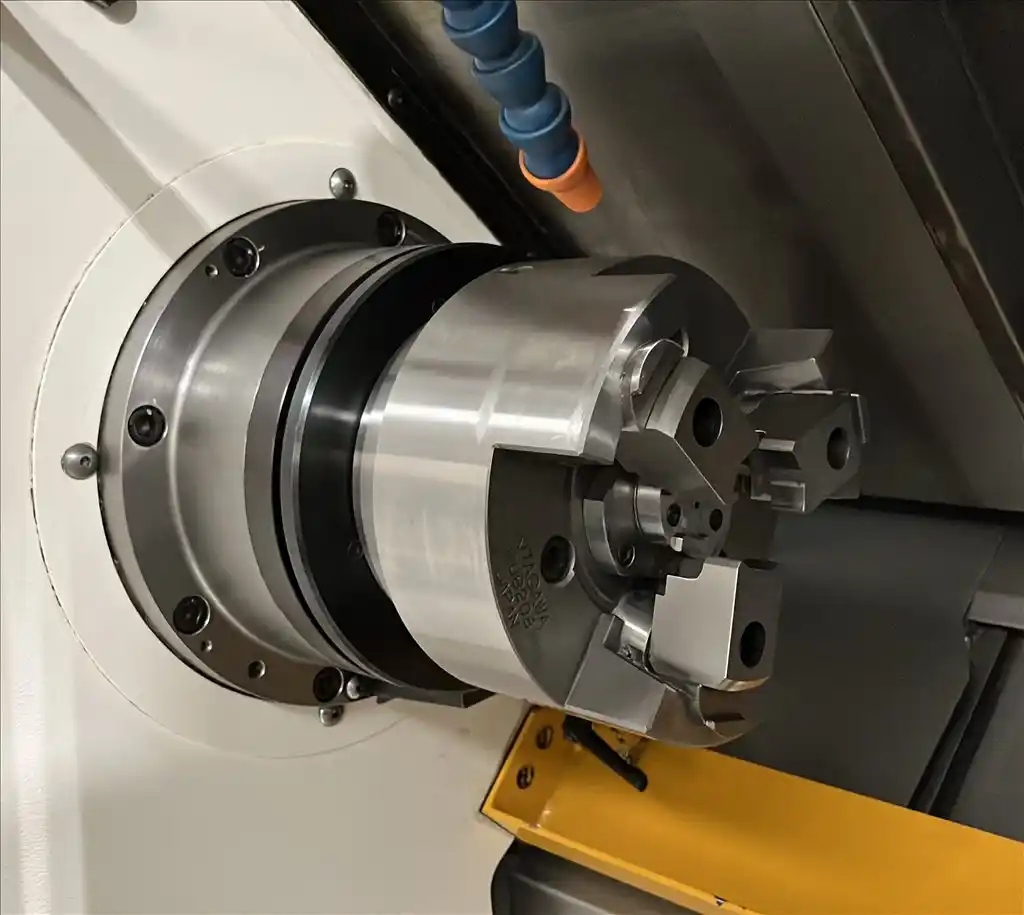

- Chuck Size (Spindle 1 & 2): 8"
- Through Spindle Hole Diameter: 2.9"
- Spindle Bearing Inner Diameter: 4.7"
- Min. Spindle Indexing Increment: 0.001°
- Max Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 30 hp
- Max Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 1181.1 IPM
- Rapid Traverse (Y1, Y2): 787.4 IPM
- Rapid Traverse (Z1, Z2, Z3): 1968.5 IPM
- Power On Time: 20,146 Hours
- Cutting Time: 10,982 Hours
- Show More
- Show Less
- Swing Over Bed: 800.10mm
- Swing Over Cross Slide: 800.10mm
- Max. Distance Between Spindle Large Noses: 1127.76mm
- Max. Turning Diameter: 317.50mm
- Standard Turning Diameter: 200.66mm
- Max. Workpiece Delivery Diameter: 299.72mm
- Max. Turning Length: 807.72mm
- Bar Capacity: 63.50mm
- X1, X2, X3 Travel: 208.28mm
- Y1, Y2, Y3 Travel: 109.22mm
- Z1, Z3 Travel: 299.72mm
- Z2 Travel: 807.72mm
- B-Axis Travel: 868.68mm
- Chuck Size (Spindle 1 & 2): 203.20mm
- Through Spindle Hole Diameter: 73.66mm
- Spindle Bearing Inner Diameter: 119.38mm
- Min. Spindle Indexing Increment: 0.001°
- Max Spindle Speed: 5,000 RPM
- Spindle Motor (1 & 2): 22.37 kw
- Max Rotary Tool Spindle Speed: 6,000 RPM
- Rapid Traverse (X1, X2, X3): 500.00 mm/sec
- Rapid Traverse (Y1, Y2): 333.33 mm/sec
- Rapid Traverse (Z1, Z2, Z3): 50.00 m/min
- Power On Time: 20,146 Hours
- Cutting Time: 10,982 Hours
- Show More
- Show Less
Equipped With

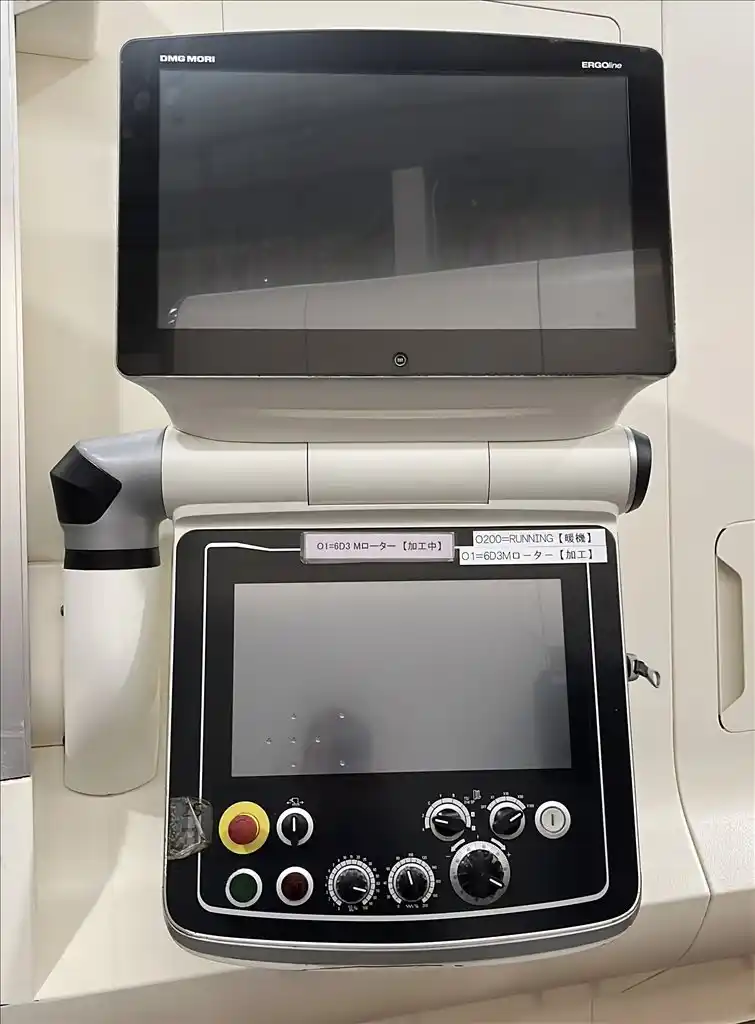

- Fanuc 31iB CELOS-ERGOline Touch CNC Control

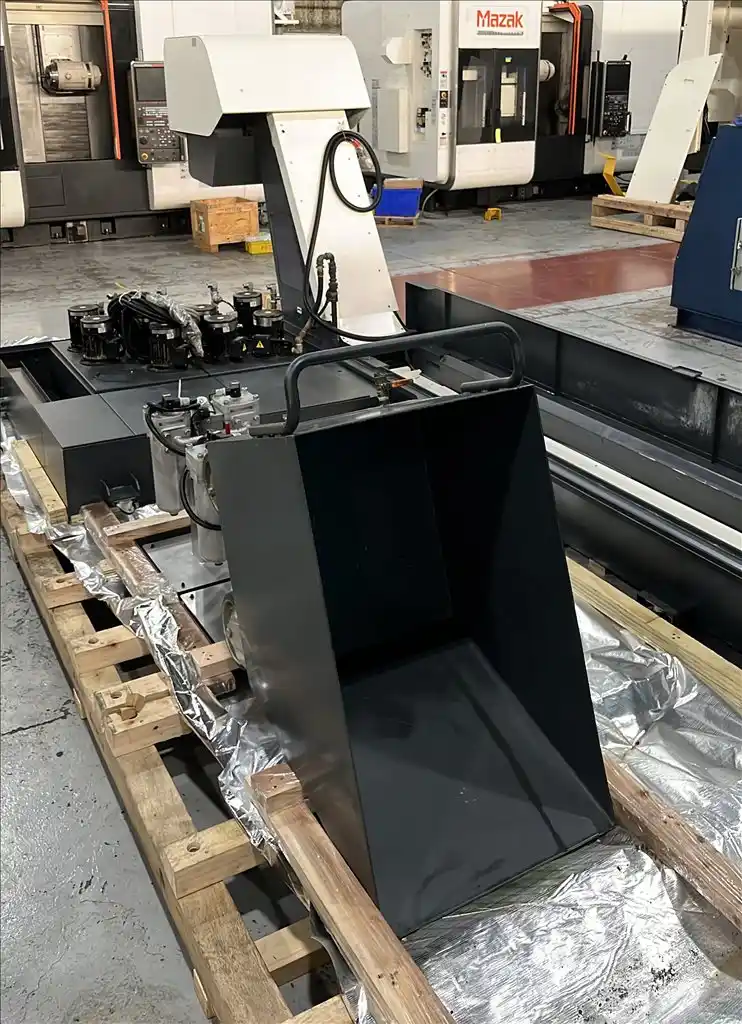

- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
- Fanuc 31iB CELOS-ERGOline Touch CNC Control
- Chip Conveyor
- (2) Tool Presetters
- (2) Additional Chucks
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
