Inventory # 47778 Year: 2020

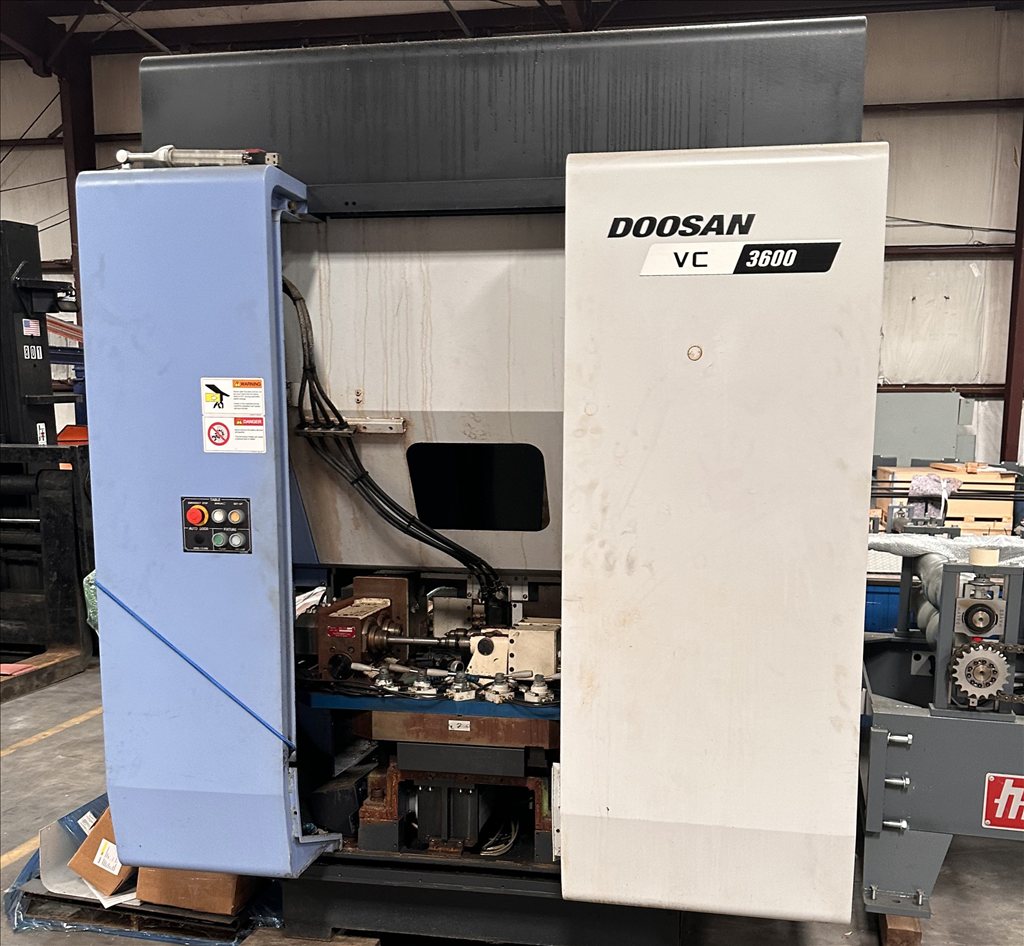

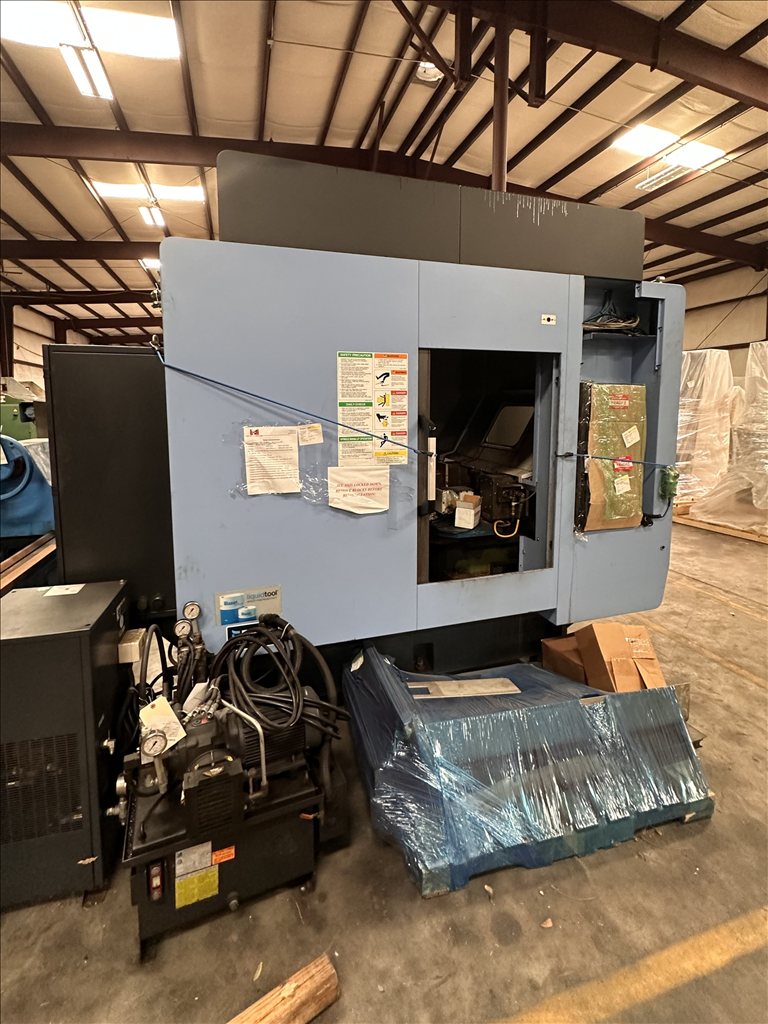

Doosan VC 3600 Twin Pallet 4-Axis Vertical Machining Center

Request a Quote
Measurement

Specifications
  • X-Axis Travel: 20.5"
  • Y-Axis Travel: 14.2"
  • Z-Axis Travel: 18.3"
  • Rapid Traverse Rate (X/Y/Z): 1890 IPM
  • Table Size: (2) 25.6" x 14.8"
  • Max. Workpiece Height: 11.8"
  • Max. Workpiece Weight: 441 Lb.
  • Spindle Speed: 12,000
  • Spindle Motor: 24.8 HP
  • Tool Shank: CAT 40
  • Tooling: 20-ATC
  • Max. Tool Diameter (Continuous): 3.5"
  • Max. Tool Diameter (w/o Adjacent Tools): 4.9"
  • Max. Tool Length: 7.9"
  • Max. Tool Weight: 11 Lb.
  • Show More
  • Show Less
  • X-Axis Travel: 520.70mm
  • Y-Axis Travel: 360.68mm
  • Z-Axis Travel: 464.82mm
  • Rapid Traverse Rate (X/Y/Z): 48.01 m/min
  • Table Size: (2) 650.24mm x 375.92mm
  • Max. Workpiece Height: 299.72mm
  • Max. Workpiece Weight: 200 kg
  • Spindle Speed: 12,000
  • Spindle Motor: 18.49 kw
  • Tool Shank: CAT 40
  • Tooling: 20-ATC
  • Max. Tool Diameter (Continuous): 88.90mm
  • Max. Tool Diameter (w/o Adjacent Tools): 124.46mm
  • Max. Tool Length: 200.66mm
  • Max. Tool Weight: 5 kg
  • Show More
  • Show Less
Equipped With
  • Fanuc 0i-M CNC Control
  • LNS Turbo Rear-Discharge Chip Conveyor w/ Cooling Tank
  • (2) Koma RN 100R-2 High-Speed Multi-Spindle Rotary Tables
  • Renishaw RMP60 Spindle Probe
  • Renishaw RTS-AA Touch Trigger Tool Setter
  • Grease Lubrication System

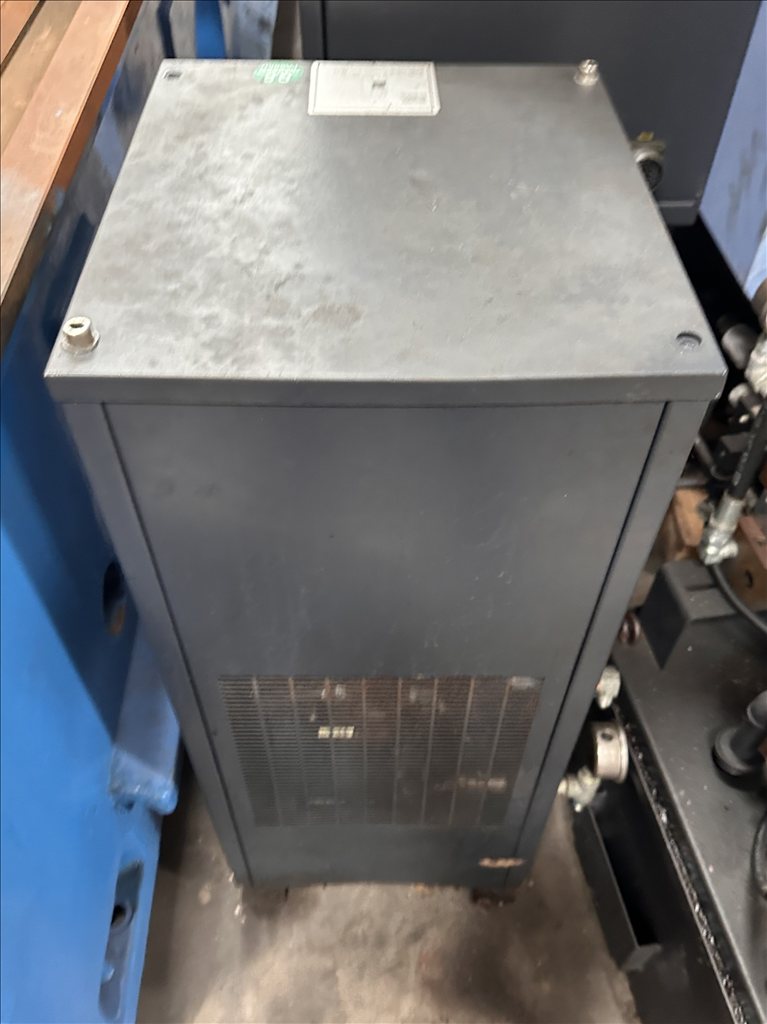

  • Transformer

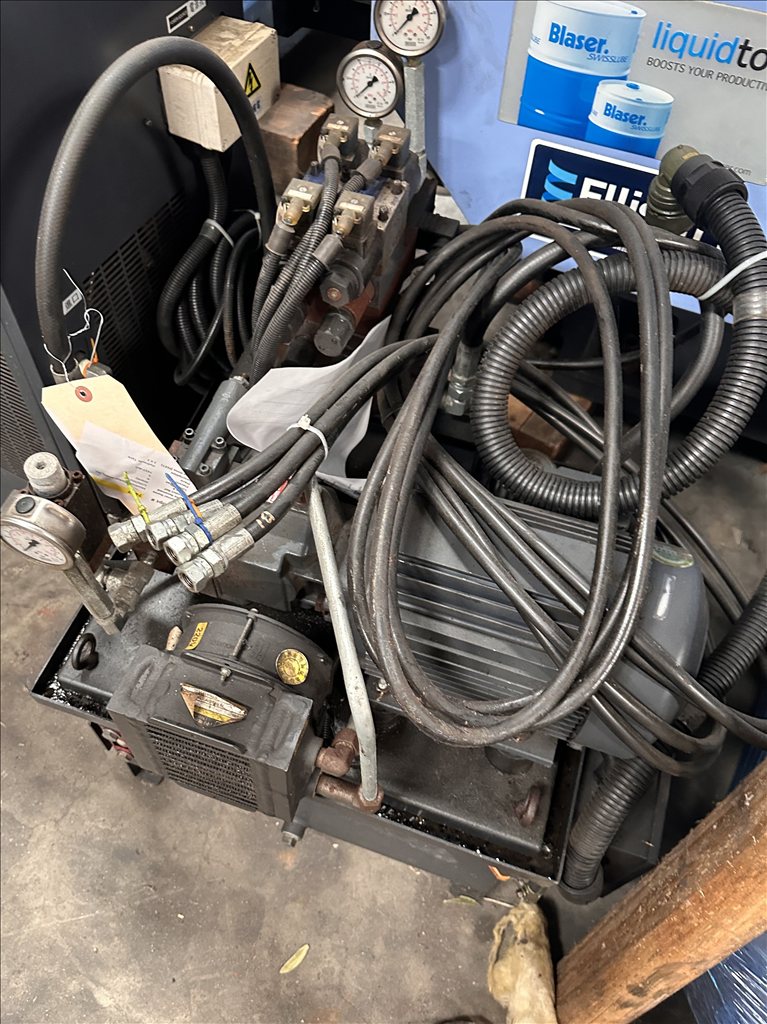

  • Hydraulic Tank
  • Show More
  • Show Less
  • Fanuc 0i-M CNC Control
  • LNS Turbo Rear-Discharge Chip Conveyor w/ Cooling Tank
  • (2) Koma RN 100R-2 High-Speed Multi-Spindle Rotary Tables
  • Renishaw RMP60 Spindle Probe
  • Renishaw RTS-AA Touch Trigger Tool Setter
  • Grease Lubrication System
  • Transformer
  • Hydraulic Tank
  • Show More
  • Show Less
More Info

This Doosan / DN Solutions VC 3600 (Built in 2020) is a dual-pallet vertical machining center that lets you step into twin-table productivity for far less than new pricing. Powered by a Fanuc 0i-M CNC control, the machine has travels of 20.5″ X, 14.2″ Y, and 18.3″Z, and a 12,000 RPM CAT-40 spindle fed by a 20-tool ATC. The pallet changer keeps parts moving while the spindle cuts—ideal for short-cycle production of aluminum or steel components.

This late-model VC 3600 is loaded with automation options: an LNS Turbo rear-discharge chip conveyor (M-code variable speed), Renishaw RMP60 spindle probe, Renishaw RTS-AA tool setter, and two Koma RN 100R-2 high-speed rotary tables (each with dual spindles) fully integrated through the Fanuc 4-axis interface. Four tailstocks for the rotary tables are included, making this a turnkey cell for automotive, medical, and precision job-shop work.

Looking for similar machines?
Explore Perfection Global’s inventory of used vertical machining centers.

Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
