Inventory # 47529 Year: 2017

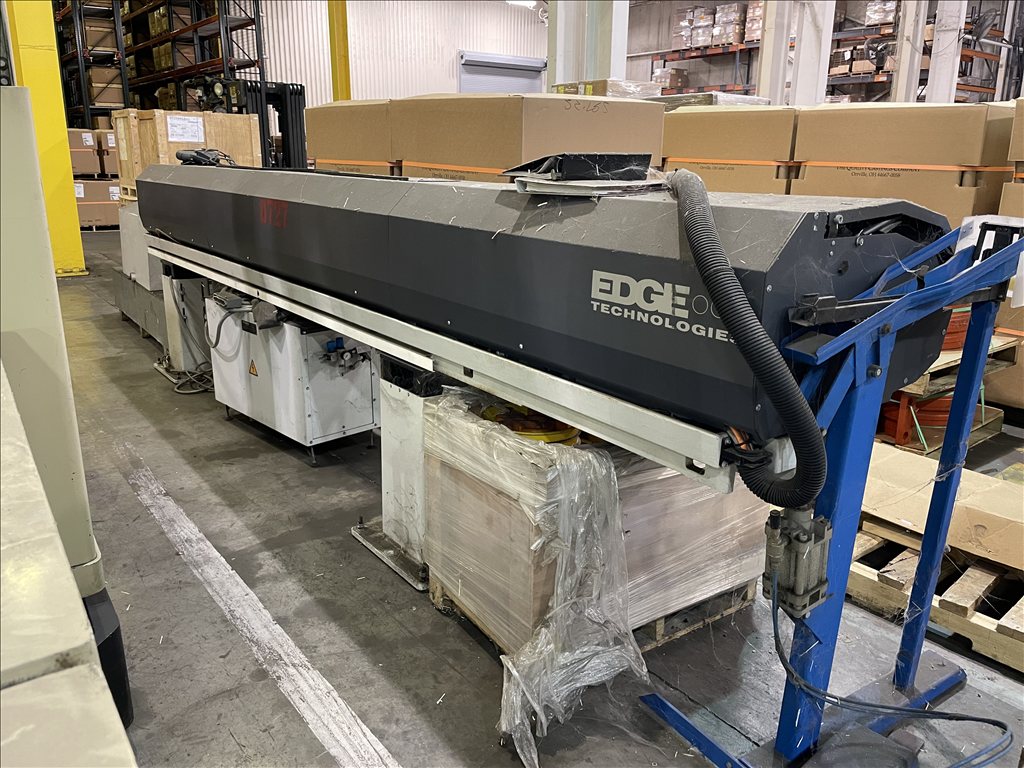

Edge FMB 5-55/3800 "A" Bar Feeder
Specifications
- Bar Diameter Capacity: 0.196" - 2.165"
- Bar Length: 39.4" - 12'5"
- Max. Remnant Length: 20.8"
- Magazine Rack Capacity: 11"
- Magazine Rack Angle: 6° - 20°
- Bar Loading Cycle Time: 35 Seconds w/ 12' Bar
- Operating Voltage: 230V / 3-Phase / 60 Hz
- Show More
- Show Less
- Bar Diameter Capacity: 4.98mm - 54.99mm
- Bar Length: 1000.76mm -3784.60mm
- Max. Remnant Length: 528.32mm
- Magazine Rack Capacity: 279.40mm
- Magazine Rack Angle: 6° - 20°
- Bar Loading Cycle Time: 35 Seconds w/3657.60mmBar
- Operating Voltage: 230V / 3-Phase / 60 Hz
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
