Inventory # 47750

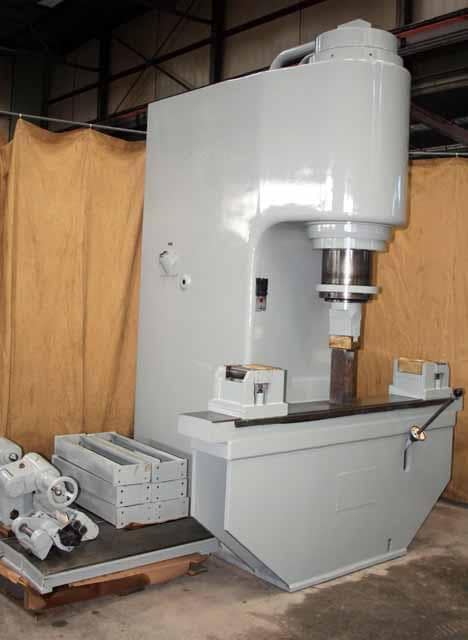

Eitel RP-160 Straightening Press
Specifications

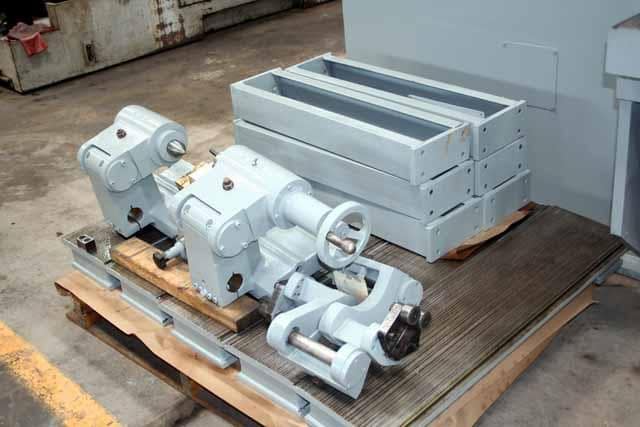

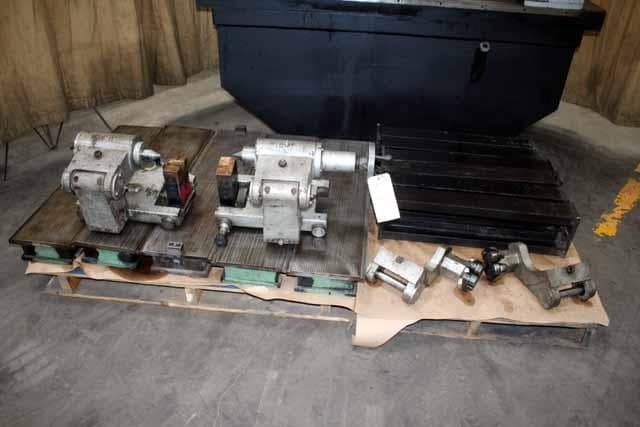

- 175 Ton Eitel RP-160, 79" x 10.75" Straightening Bed, 279" Bed Width Extensions, 72" Length of Pressure Bearing Bed, 375 IPM Ram Speed Up, 90 IPM Ram Speed Down, 10" Stroke, 7/8" Controllable Straightening Stroke, 31.5" Max Daylight, 13-3/4" Min Daylight, 13.75" Depth of Stroke, 19.75" Front of Table to Face, 35" Table Height, 9.5" Centers Height, 25 HP, Complete Electrical Controls, Stroke Control, WR3 Shaft Straightening Attachment
- 175 Ton Eitel RP-160, 79" x 10.75" Straightening Bed, 279" Bed Width Extensions, 72" Length of Pressure Bearing Bed, 375 IPM Ram Speed Up, 90 IPM Ram Speed Down, 10" Stroke, 7/8" Controllable Straightening Stroke, 31.5" Max Daylight, 13-3/4" Min Daylight, 13.75" Depth of Stroke, 19.75" Front of Table to Face, 35" Table Height, 9.5" Centers Height, 25 HP, Complete Electrical Controls, Stroke Control, WR3 Shaft Straightening Attachment
More Info
This Eitel RP-160 is a 175-ton hydraulic straightening press built to correct shafts, bars, weldments, and other long workpieces with exceptional accuracy. Its 79″ × 10.75″ straightening bed extends to 279″ with bolt-on supports, while the 72″ pressure-bearing zone and 31.5″ maximum daylight accommodate hefty parts. A fast 375 IPM ram advance, 90 IPM working feed, and a controllable 7/8″ fine straightening stroke let operators dial-in repeatable results. This RP-160 is a proven solution for shops in rail, forging, heavy repair, and fabricated-steel sectors that need precise, high-force straightening capability without new-machine pricing.
Looking for similar equipment?
Explore Perfection Global’s inventory of used hydraulic straightening presses.
Location & Terms
- Terms: As Is, Where Is
- Location: Lake Bluff, IL
- Disclaimer: Preliminary Specifications....
