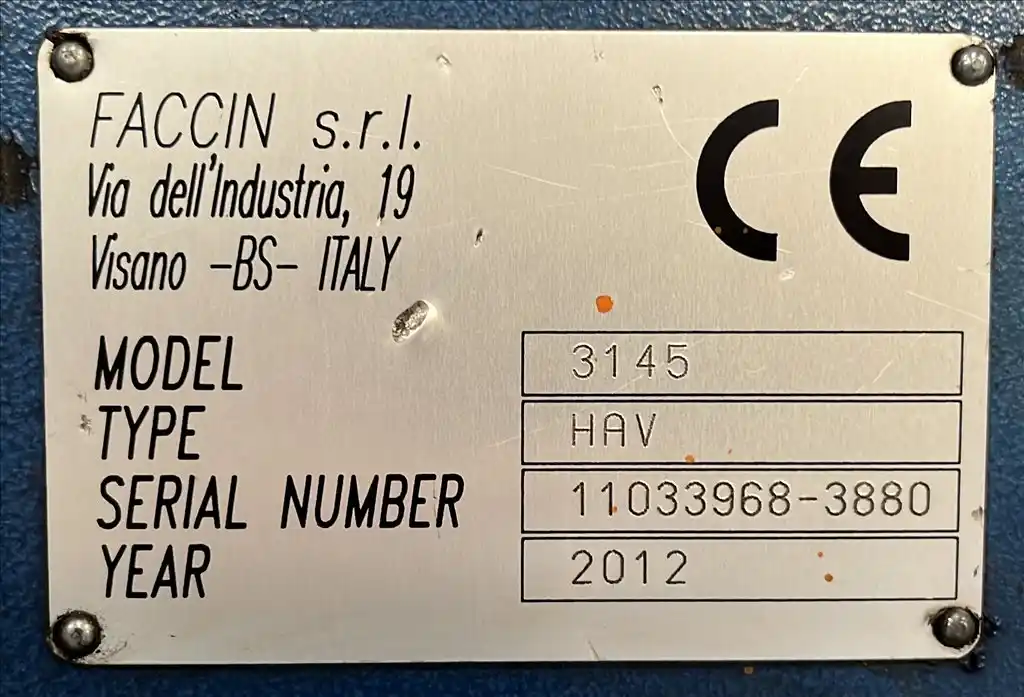

Inventory # 44846 Year: 2012

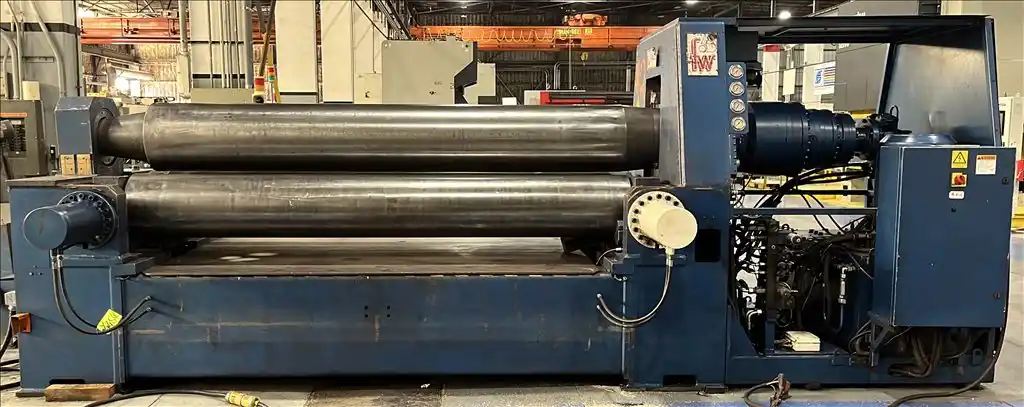

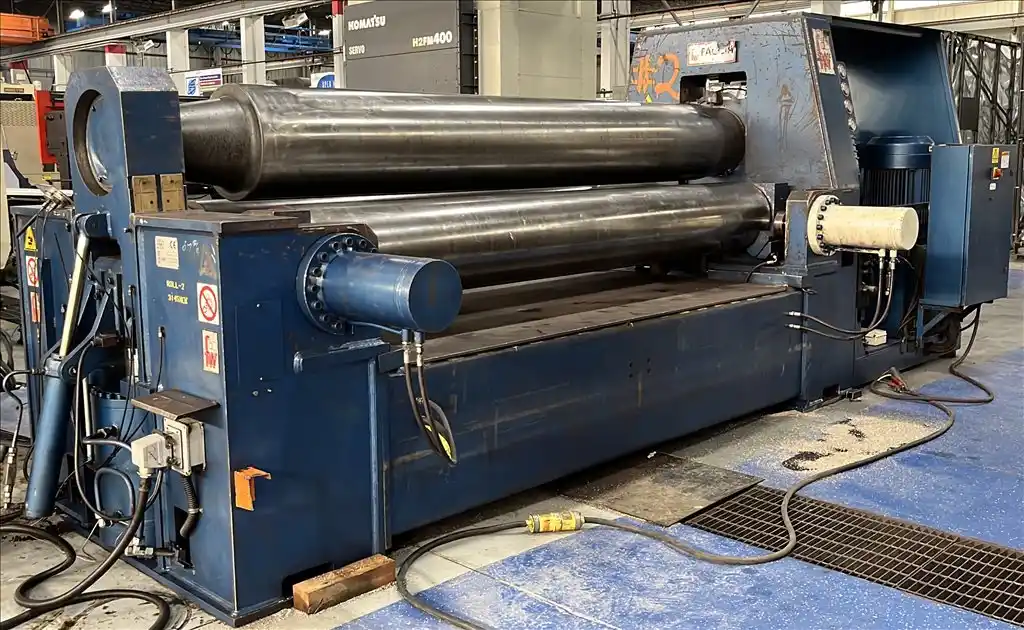

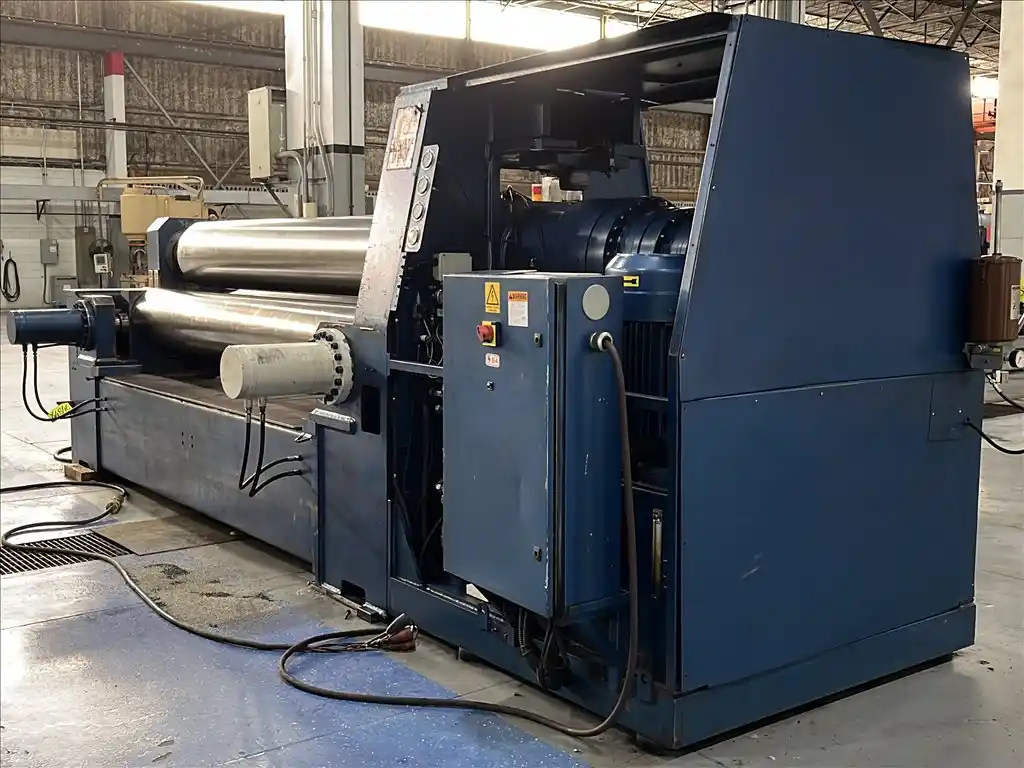

Faccin HAV 3145 3-Roll Variable Geometry Plate Bending Roll
Specifications

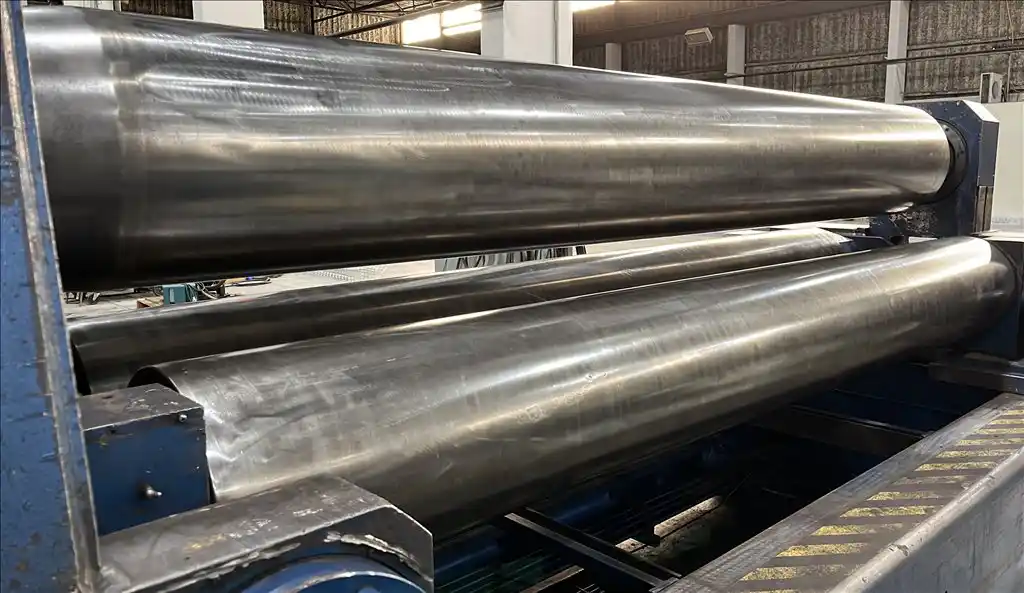

- Length of Rolls: 10'
- Number of Rolls: 3

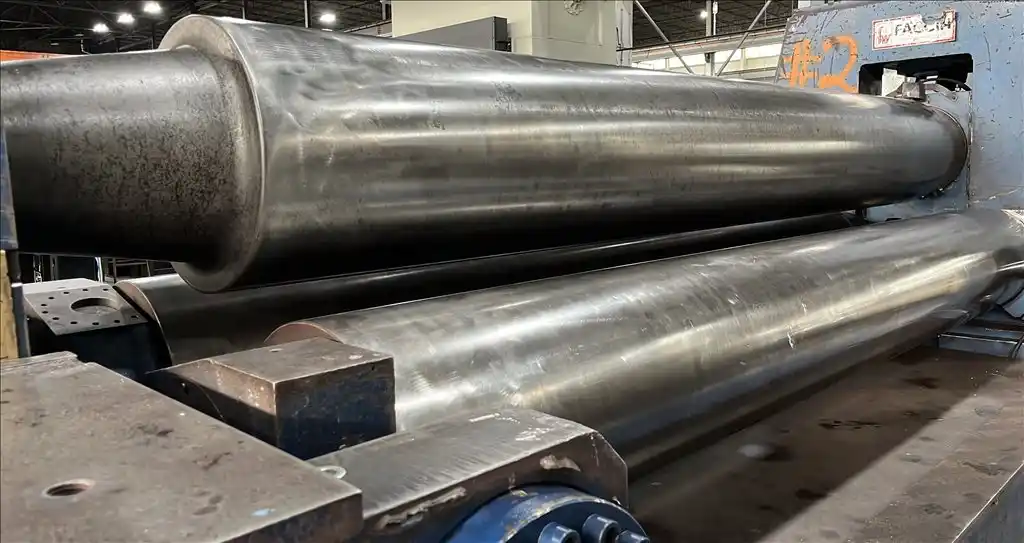

- Top Roll Diameter: 17.7"
- Lateral Rolls Diameter: 15.7"
- Total Power Installed: 59 hp
- Guaranteed Capacities
- Max. Bending Thickness (Full Length): 1.77"
- Max. Prebending Thickness (Full Length): 0.98"
- Ferrule Diameter: 88.58"
- Material Yield Strength: 37,710 PSI
- Max. Bending Thickness (Full Length): 1.26"
- Max. Prebending Thickness (Full Length): 0.79"
- Ferrule Diameter: 24.8"
- Material Yield Strength: 37,710 PSI
- Max. Bending Thickness (Full Length): 1.54"
- Max. Prebending Thickness (Full Length): 0.83"
- Ferrule Diameter: 88.58"
- Material Yield Strength: 52,214 PSI
- Max. Bending Thickness (Full Length): 1.06"
- Max. Prebending Thickness (Full Length): 0.67"
- Ferrule Diameter: 24.8"
- Material Yield Strength: 52,214 PSI
- Max. Bending Thickness (Half Length): 2.2"
- Max. Prebending Thickness (Half Length): 1.22"
- Ferrule Diameter: 88.58"
- Material Yield Strength: 37,710 PSI
- Show More
- Show Less
- Length of Rolls: 3048.00mm
- Number of Rolls: 3
- Top Roll Diameter: 449.58mm
- Lateral Rolls Diameter: 398.78mm
- Total Power Installed: 44.00 kw
- Guaranteed Capacities
- Max. Bending Thickness (Full Length): 44.96mm
- Max. Prebending Thickness (Full Length): 24.89mm
- Ferrule Diameter: 2249.93mm
- Material Yield Strength: 2651.01 kgs./sq.cm.
- Max. Bending Thickness (Full Length): 32.00mm
- Max. Prebending Thickness (Full Length): 20.07mm
- Ferrule Diameter: 629.92mm
- Material Yield Strength: 2651.01 kgs./sq.cm.
- Max. Bending Thickness (Full Length): 39.12mm
- Max. Prebending Thickness (Full Length): 21.08mm
- Ferrule Diameter: 2249.93mm
- Material Yield Strength: 3670.64 kgs./sq.cm.
- Max. Bending Thickness (Full Length): 26.92mm
- Max. Prebending Thickness (Full Length): 17.02mm
- Ferrule Diameter: 629.92mm
- Material Yield Strength: 3670.64 kgs./sq.cm.
- Max. Bending Thickness (Half Length): 55.88mm
- Max. Prebending Thickness (Half Length): 30.99mm
- Ferrule Diameter: 2249.93mm
- Material Yield Strength: 2651.01 kgs./sq.cm.
- Show More
- Show Less
Equipped With

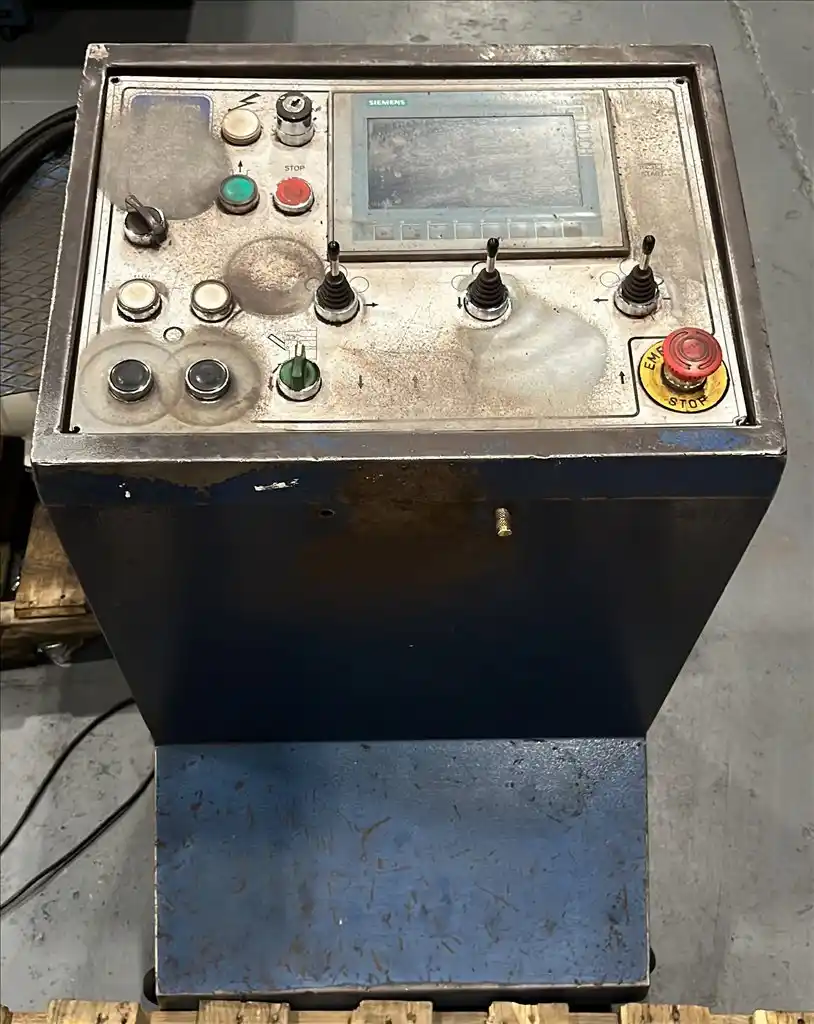

- Siemens PLC Control

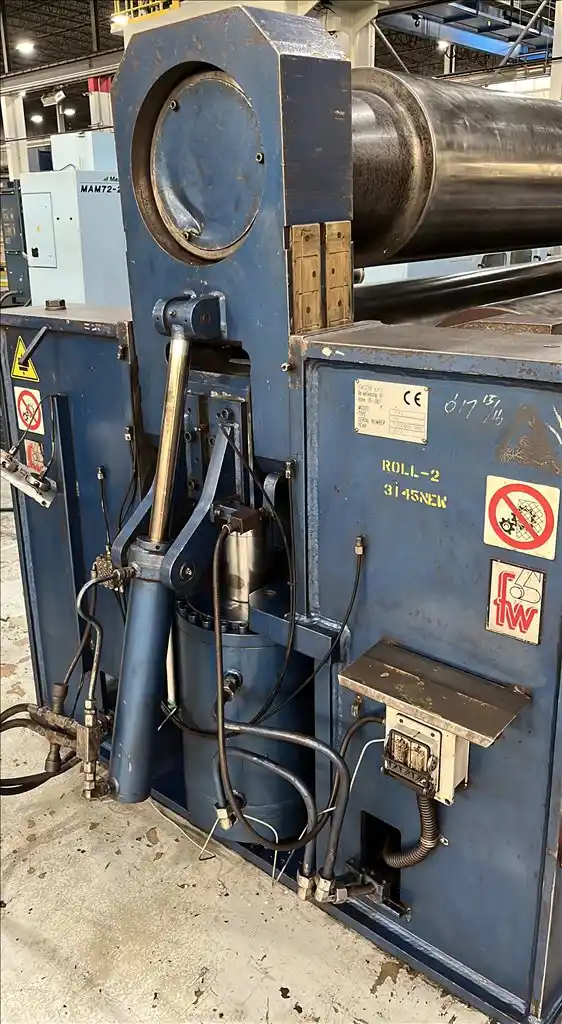

- Hydraulic Drop End
- Siemens PLC Control
- Hydraulic Drop End
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
