Inventory # 46129 Year: 2013

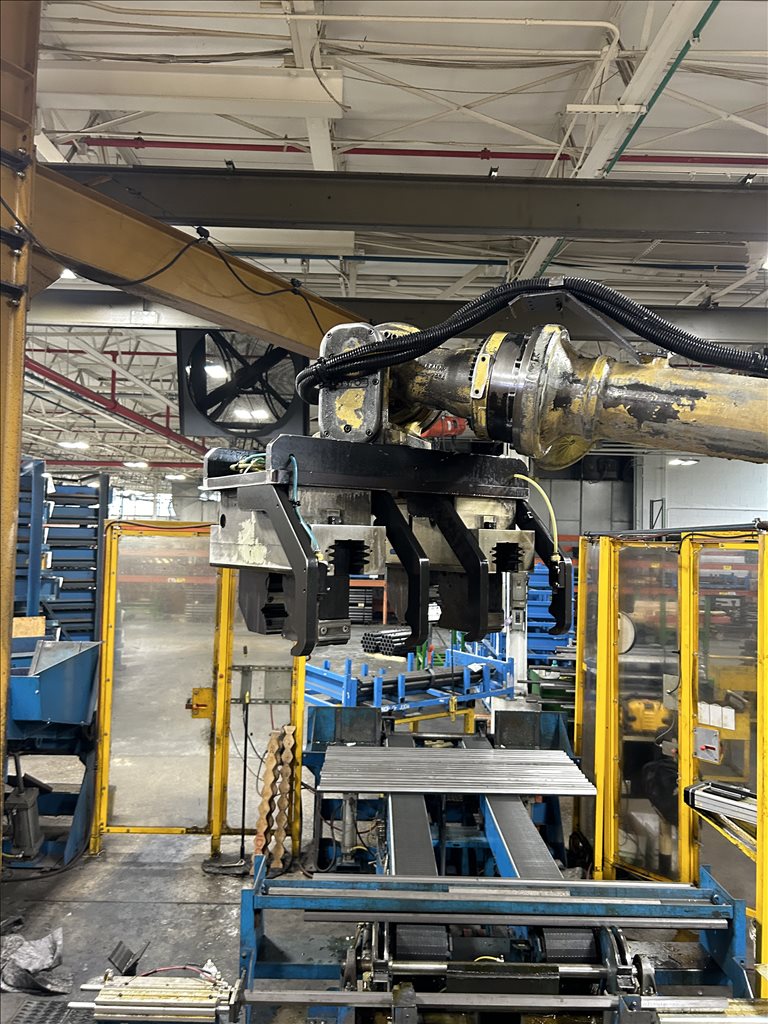

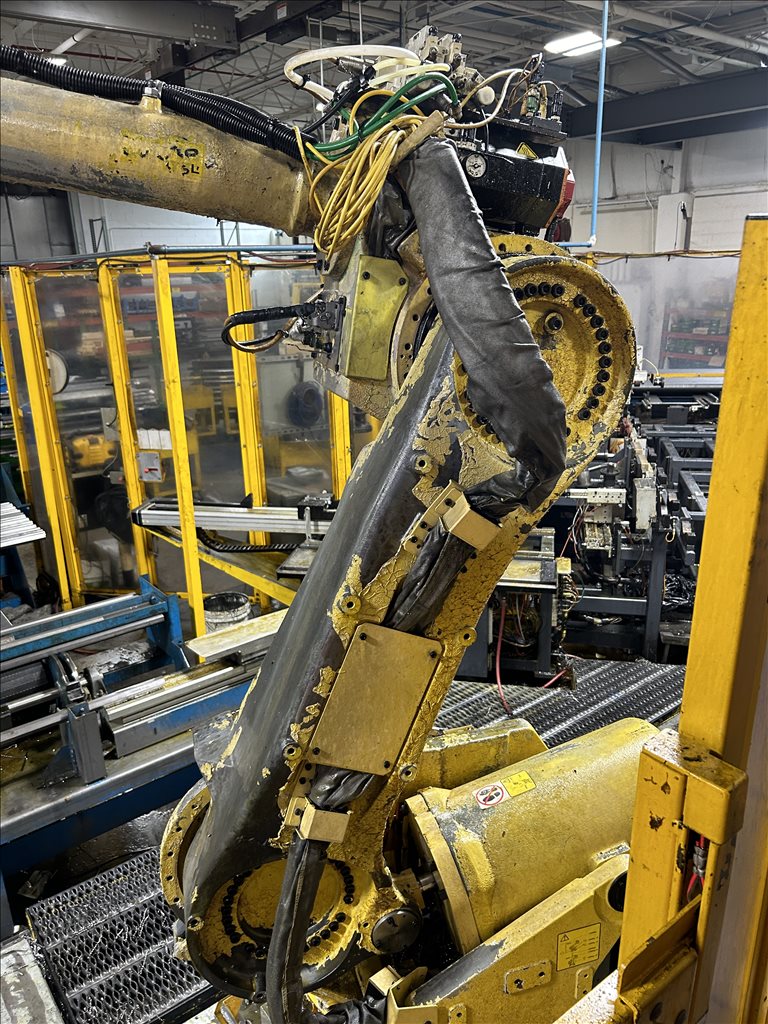

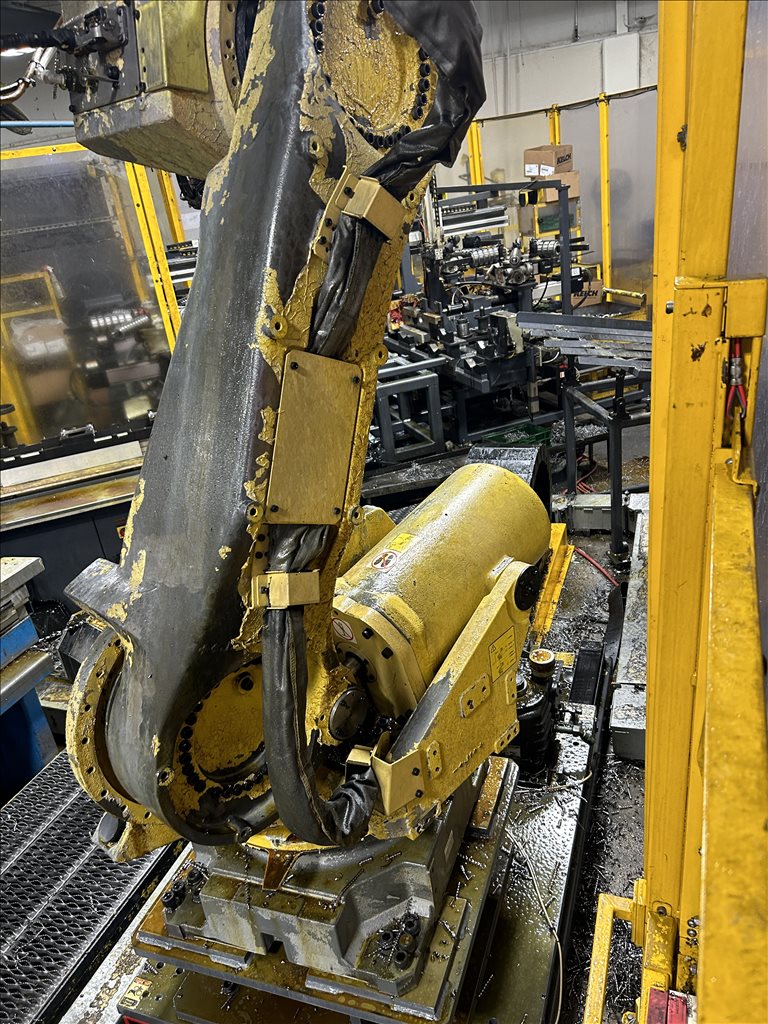

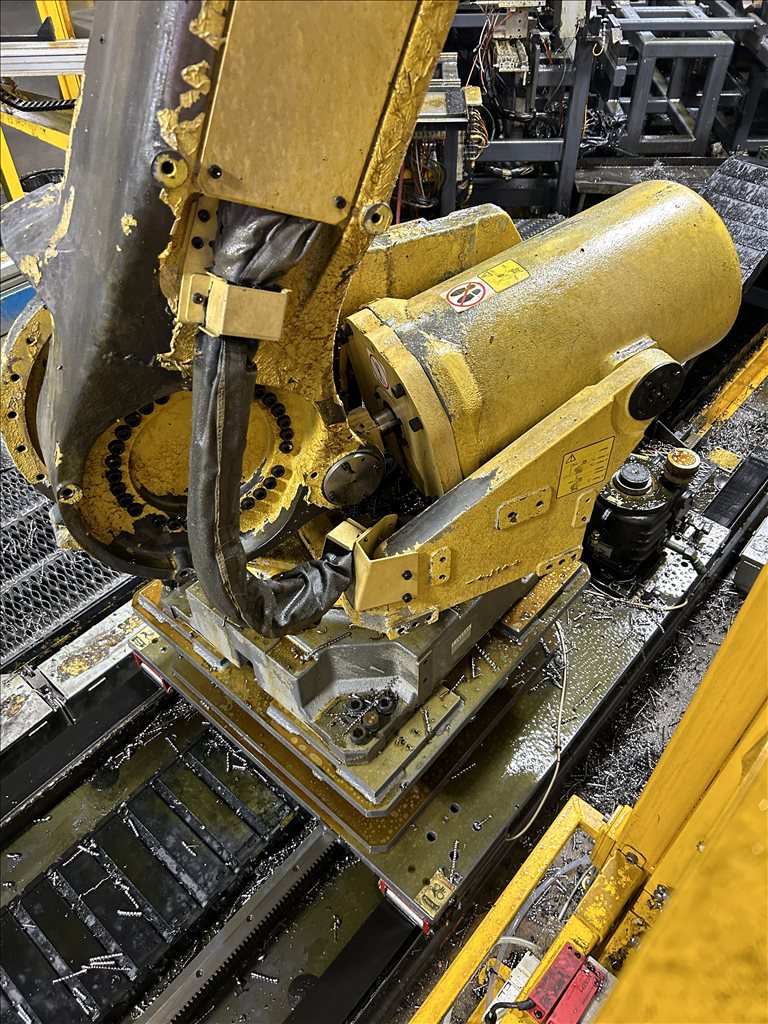

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com FANUC R2000IB/175L INDUSTRIAL ROBOT
Specifications
- Reach: 112.2835"
- J1 Axis: 360° (95°/s)
- J2 Axis: 136° (90°/s)
- J3 Axis: 356.1° (95°/s)
- J4 Axis: 720° (120°/s)
- J5 Axis: 250° (120°/s)
- J6 Axis: 720° (190°/s)
- Max Load Capacity at Wrist: 385.81 lbs
- Max Load Capacity at J2 Base: 1212.54 lbs
- Max Load Capacity at J3 Arm: 44.1 lbs
- Repeatability: +/- 0.0118"
- Show More
- Show Less
- Reach: 2852.00mm
- J1 Axis: 360° (95°/s)
- J2 Axis: 136° (90°/s)
- J3 Axis: 356.1° (95°/s)
- J4 Axis: 720° (120°/s)
- J5 Axis: 250° (120°/s)
- J6 Axis: 720° (190°/s)
- Max Load Capacity at Wrist: 175.00 kg
- Max Load Capacity at J2 Base: 550.00 kg
- Max Load Capacity at J3 Arm: 20.00 kg
- Repeatability: +/- 0.30mm
- Show More
- Show Less
Equipped With

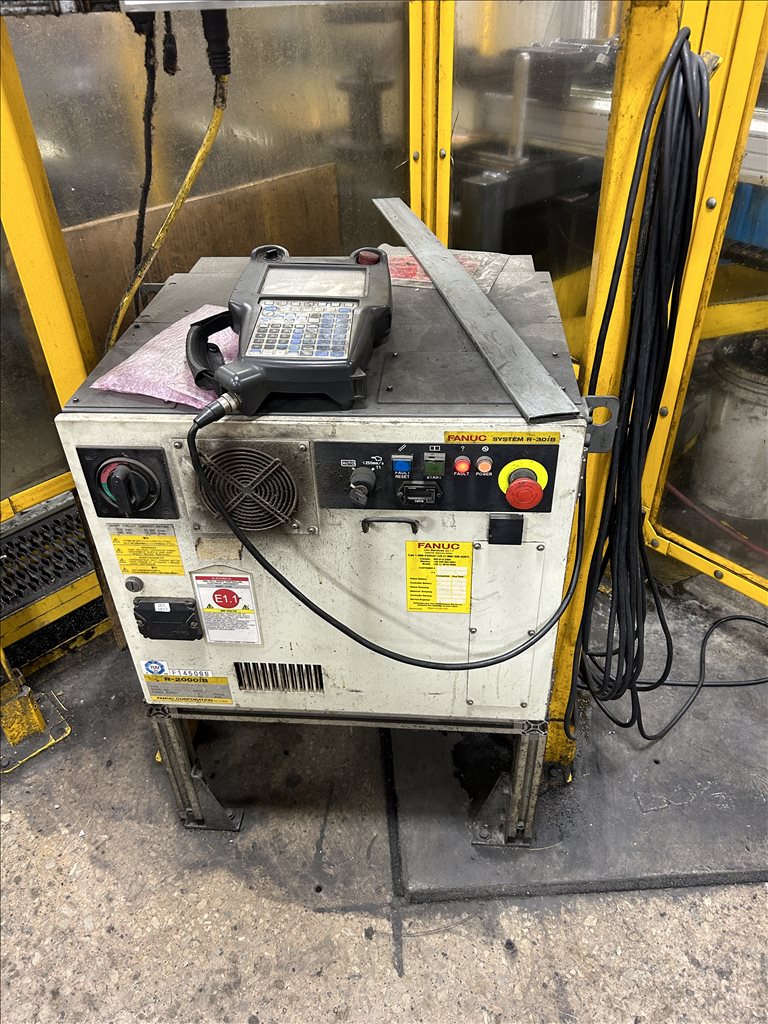

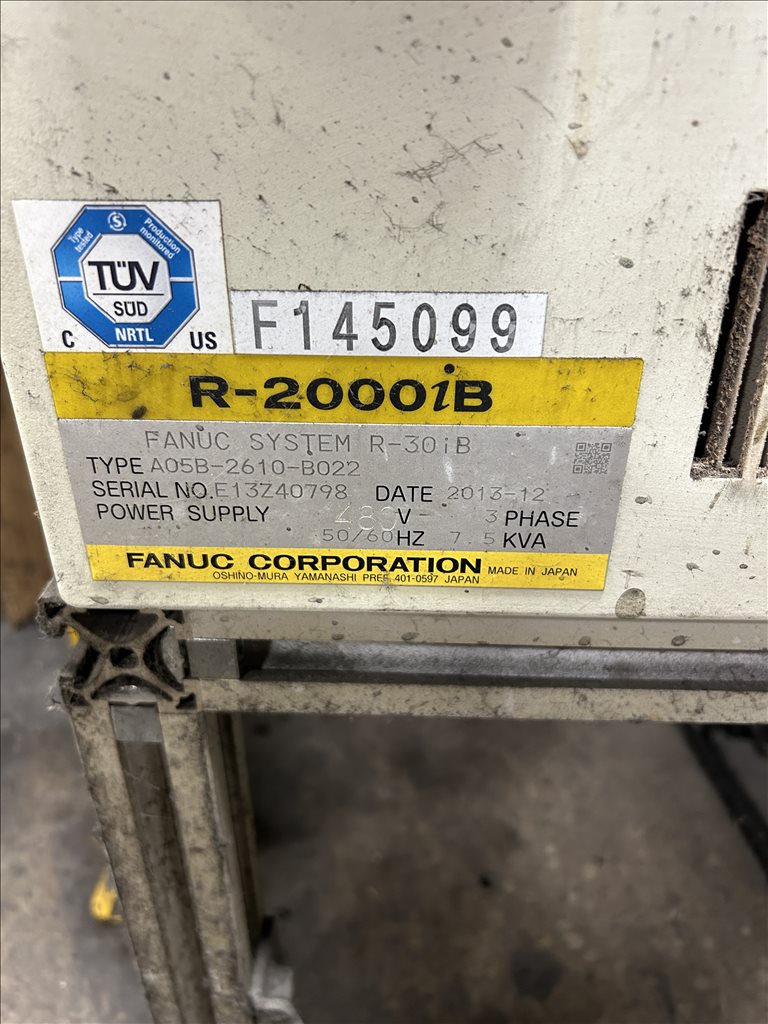

- Fanuc R-30iB Controller
- Fanuc R-30iB Controller
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
