Inventory # 47560

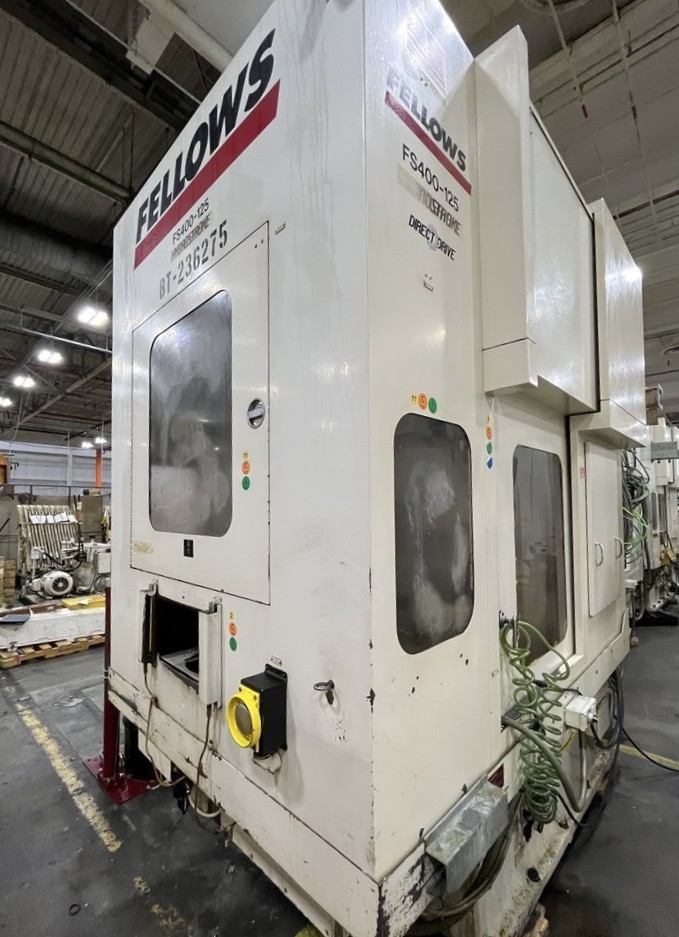

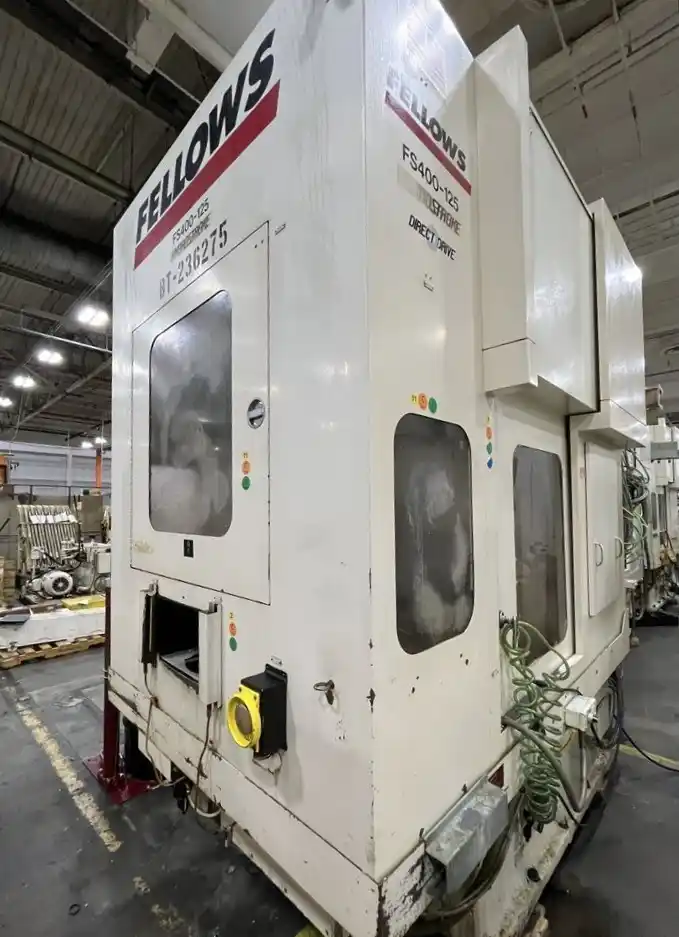

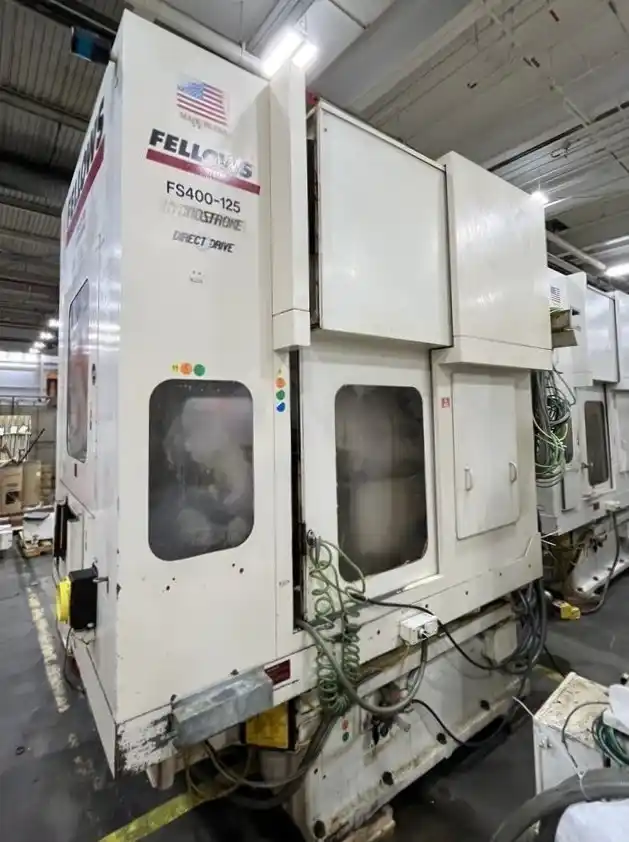

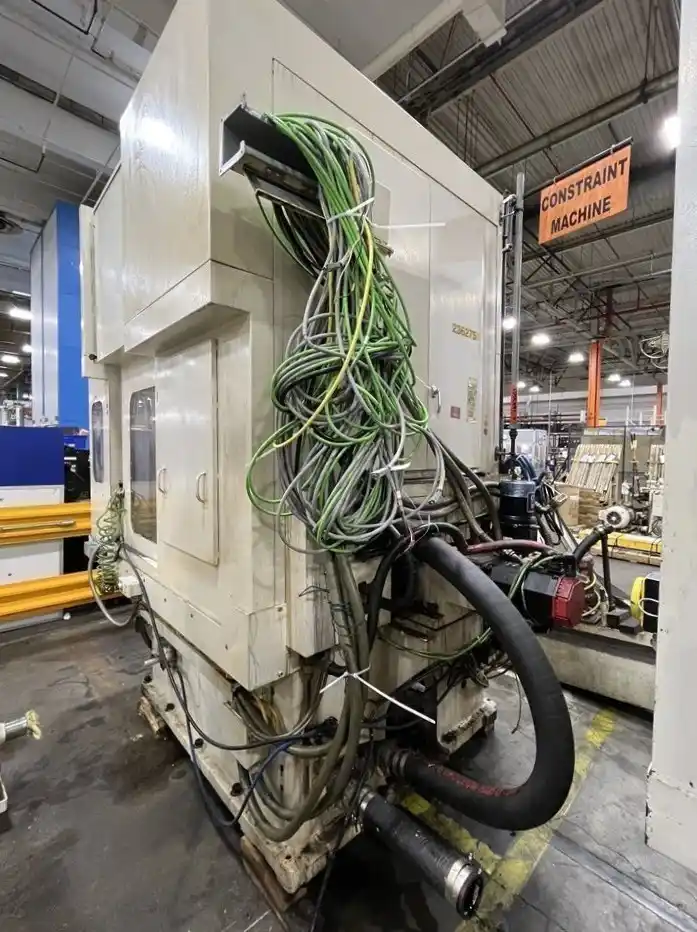

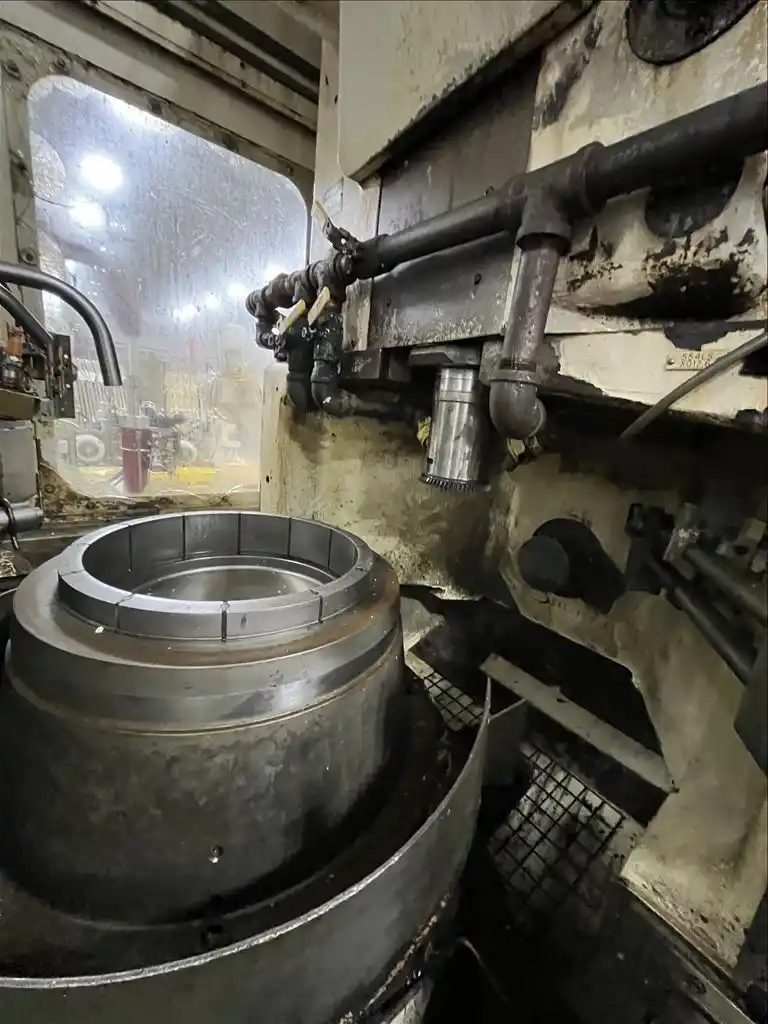

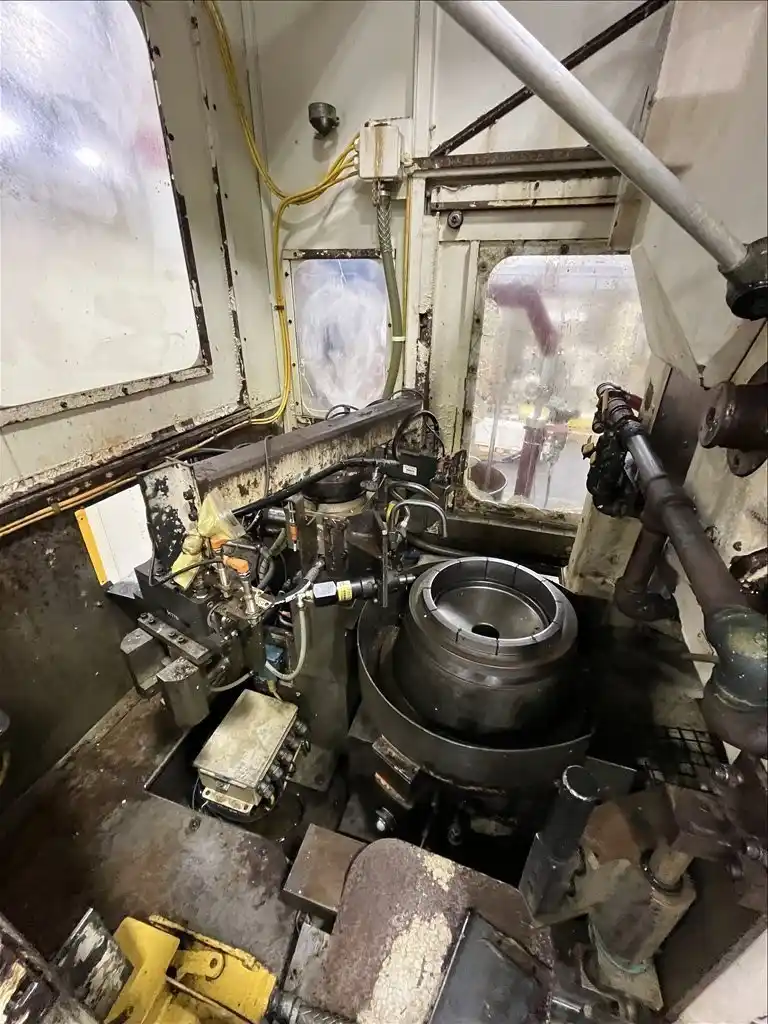

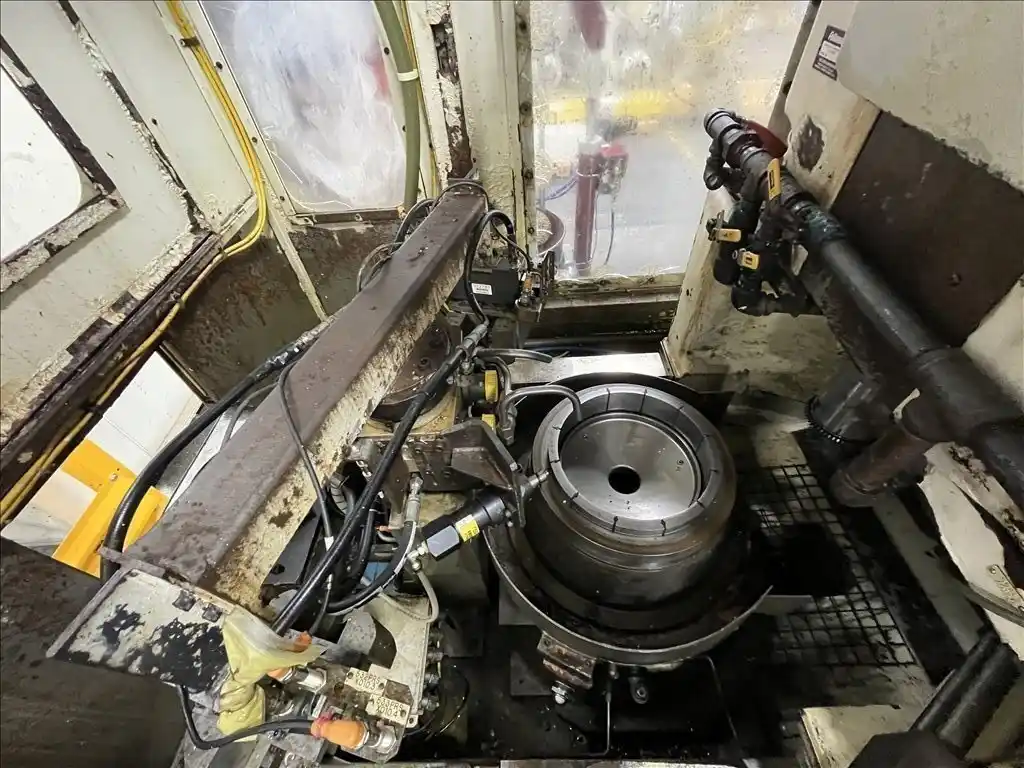

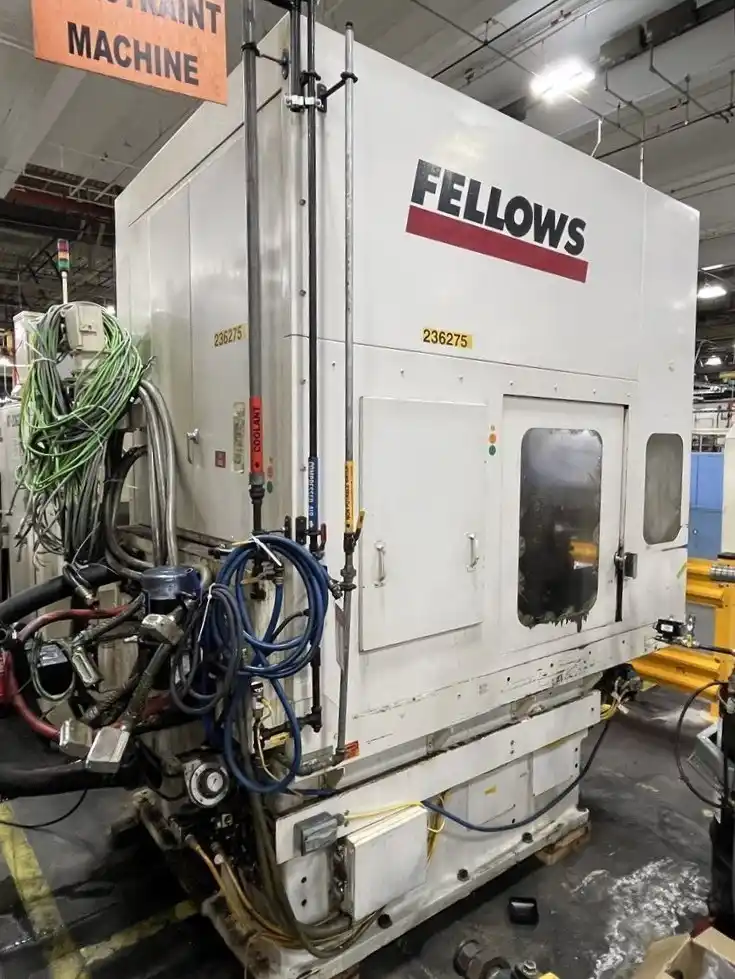

Fellows FS400-125 CNC Gear Shaper

Request a Quote
Measurement

Specifications
  • Max. Gear Diameter: 15.75"
  • Max. Gear Face Width: 4.9"
  • Max. Spindle Travel: 6.7"
  • Max. Helix Angle: 45°
  • Max. Height of Part: 16"
  • Rated Diametral Pitch: 3.5 DP
  • Stroking Speeds: 20-1120 SPM
  • Spindle Diameter: 4"
  • Table Size: 21"
  • Show More
  • Show Less
  • Max. Gear Diameter: 400.05mm
  • Max. Gear Face Width: 124.46mm
  • Max. Spindle Travel: 170.18mm
  • Max. Helix Angle: 45°
  • Max. Height of Part: 406.40mm
  • Rated Diametral Pitch: 3.5 DP
  • Stroking Speeds: 20-1120 SPM
  • Spindle Diameter: 101.60mm
  • Table Size: 533.40mm
  • Show More
  • Show Less
Equipped With

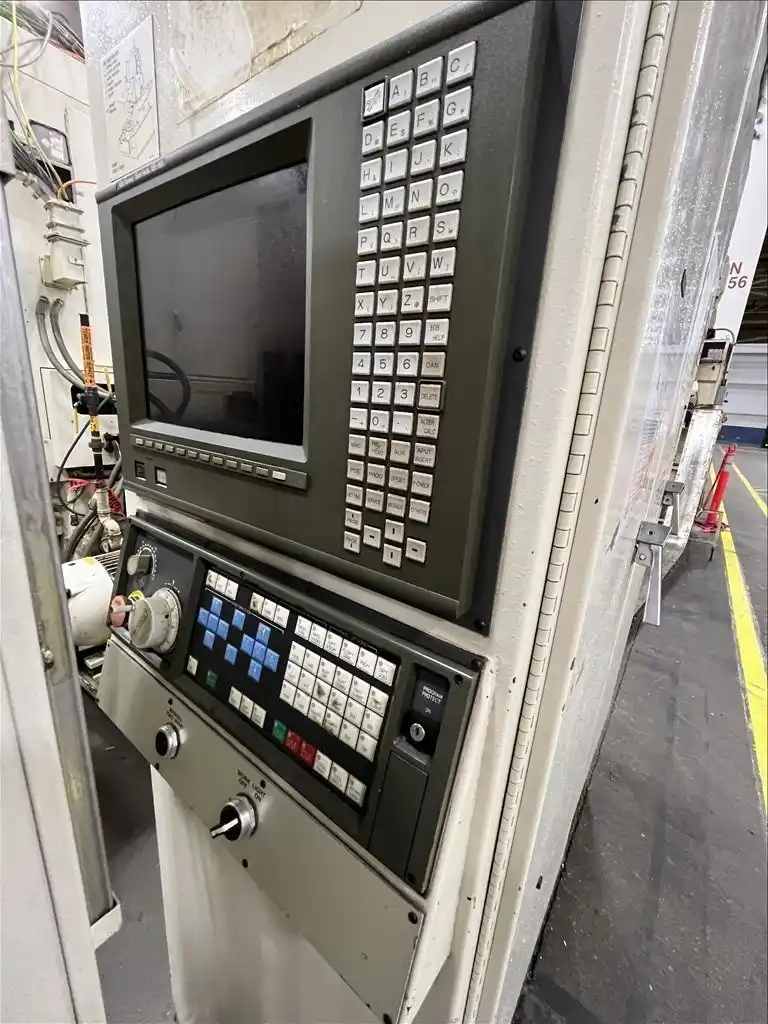

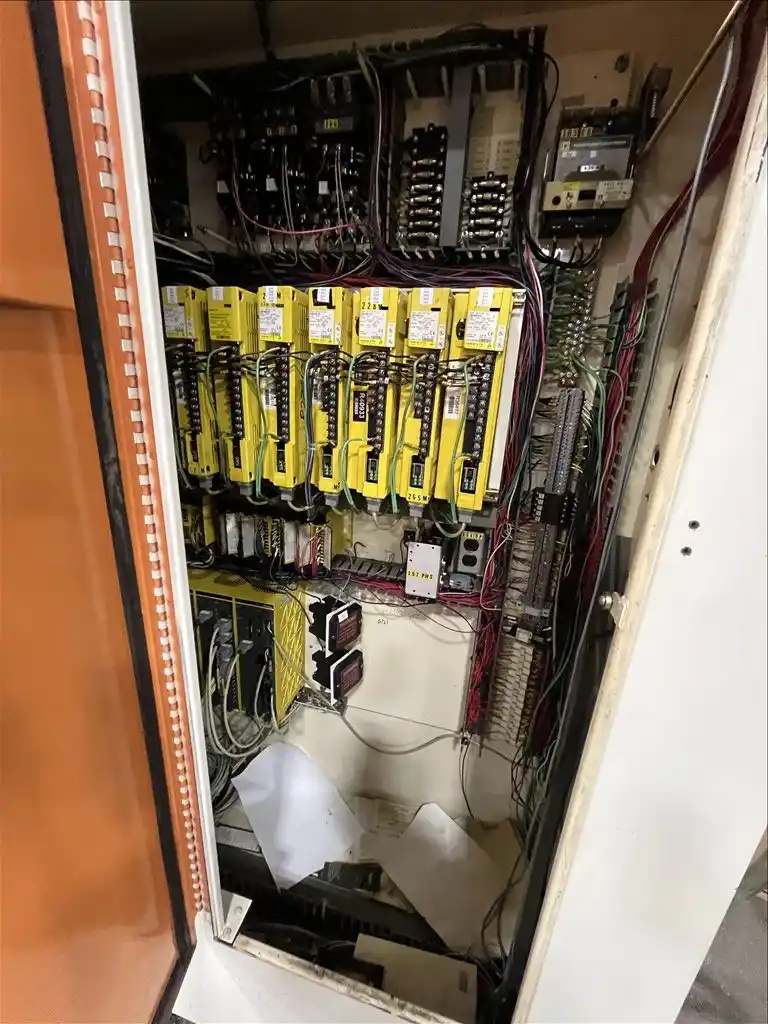

  • Fanuc 15-M CNC Control

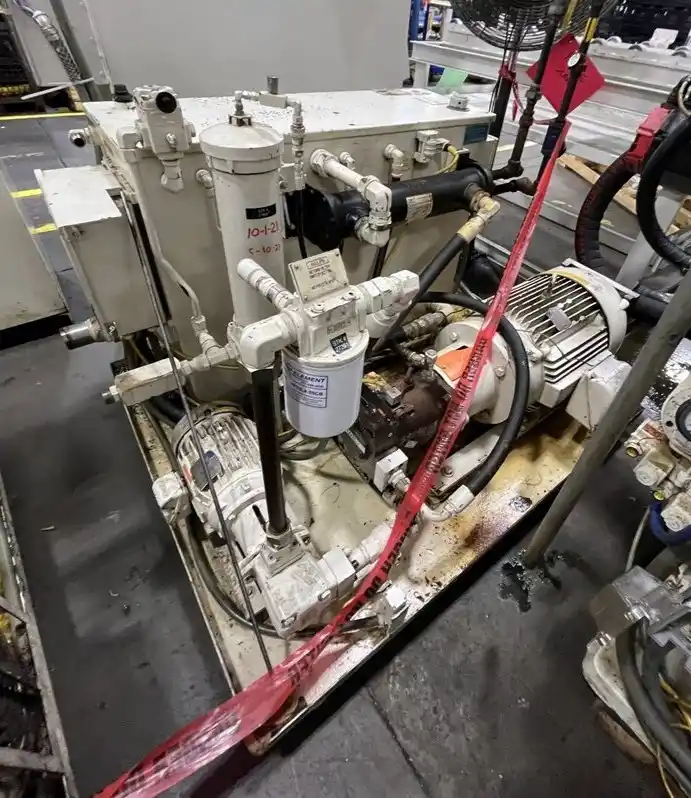

  • Hydraulic Power System

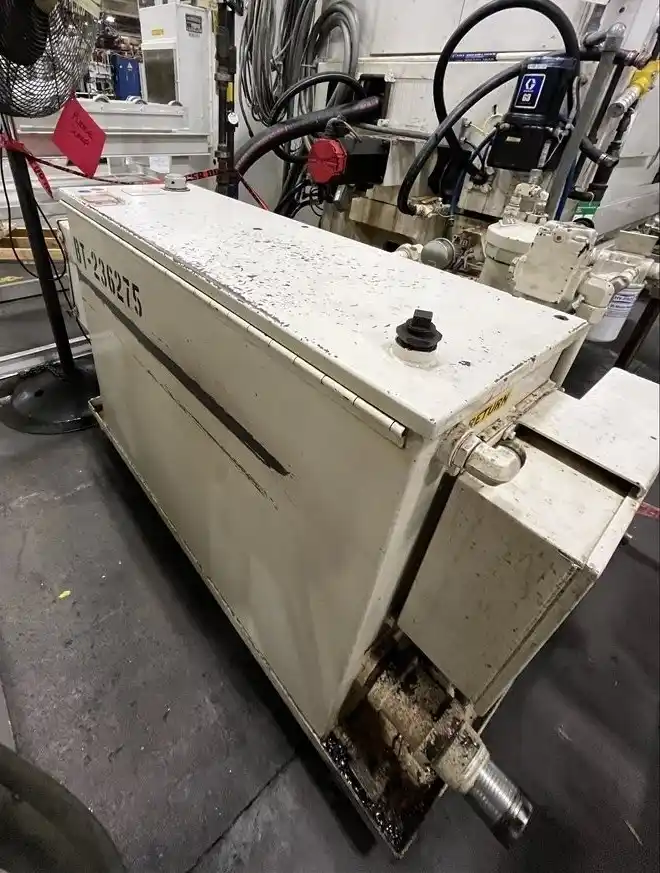

  • Coolant Filter

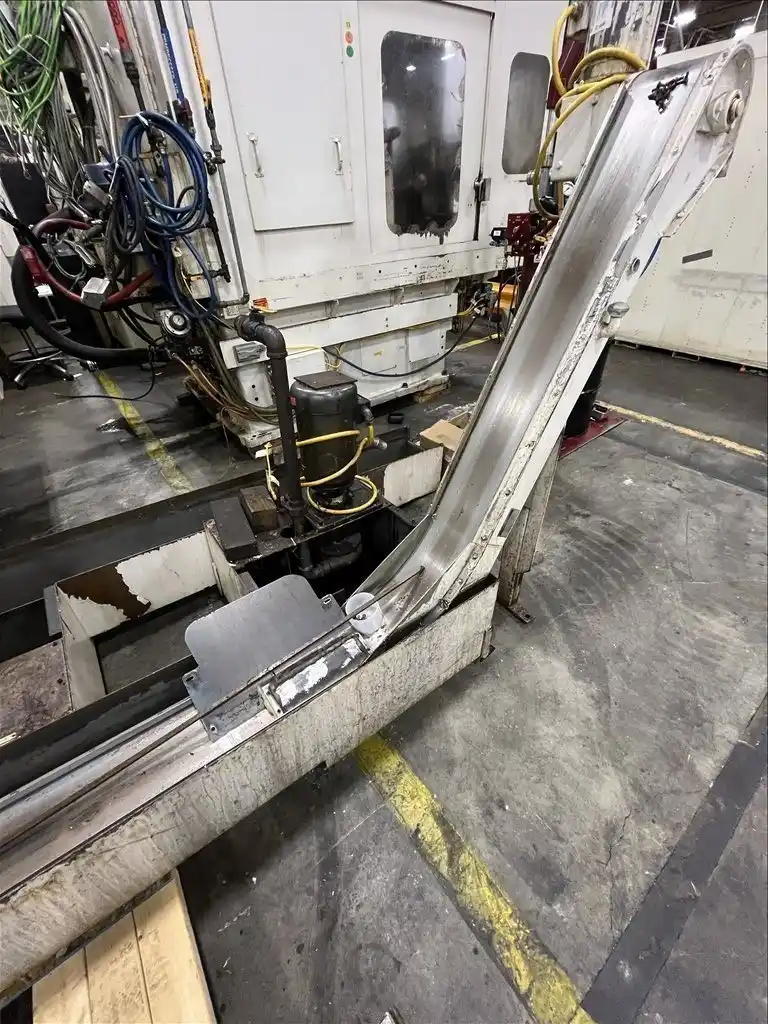

  • Chip Conveyor
  • Fanuc 15-M CNC Control
  • Hydraulic Power System
  • Coolant Filter
  • Chip Conveyor
Location & Terms
  • Terms: As Is, Loaded on Truck
  • Disclaimer: Preliminary Specifications....
