Inventory # 36097

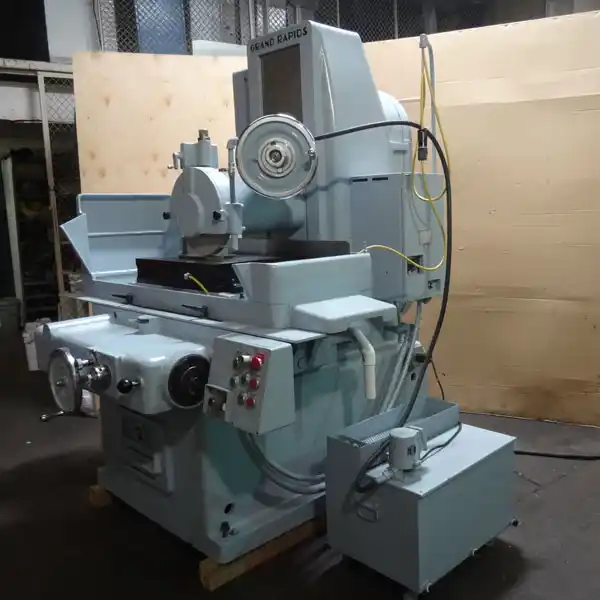

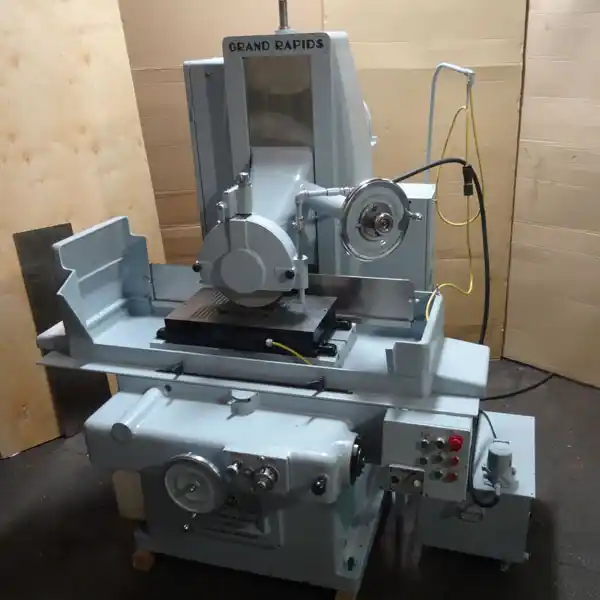

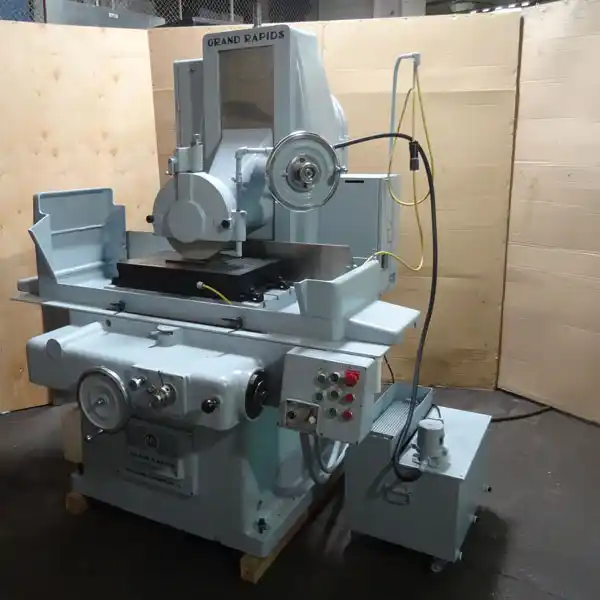

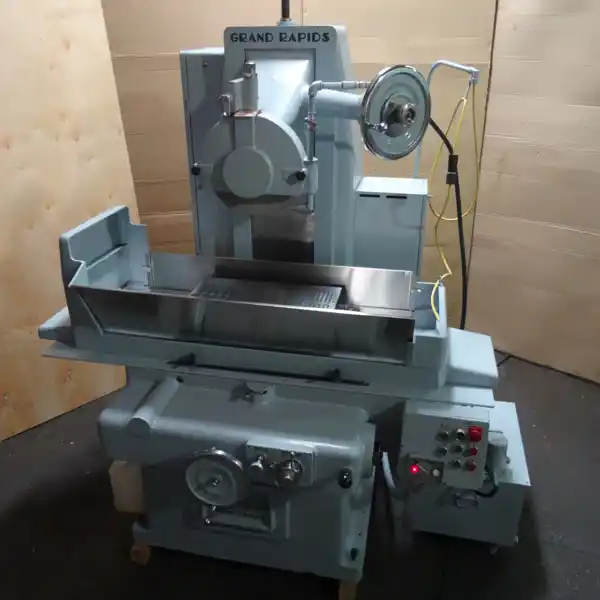

Gallmeyer Livingston Grand Rapids 460 Reciprocating Surface Grinder
Specifications
- Working Surface of Table: 14" x 24"
- Standard Wheel Size: 14" x 1.5" x 5"
- Longitudinal Hydraulic Table Travel: 35.5"
- Traverse Hydraulic Table Travel: 15.75"
- Vertical Movement of Wheel Head: 19"
- Maximum Distance from Wheel to Table (Under 14" Wheel): 18"
- Distance Center of Spindle to Bottom of Spindle Housing: 3"
- Spindle Speeds: 1750 RPM & 2100 RPM
- Hydraulic Pump Motor: 3 HP, 1140 RPM, 220V / 440V, 21 / 10.5 Amps
- Spindle Drive Motor: 7.5 HP , 1750 RPM, 220V / 440V,. 21 / 10.5 Amps
- Show More
- Show Less
- Working Surface of Table: 355.60mm x 609.60mm
- Standard Wheel Size: 355.60mm x 38.10mm x 127.00mm
- Longitudinal Hydraulic Table Travel: 901.70mm
- Traverse Hydraulic Table Travel: 400.05mm
- Vertical Movement of Wheel Head: 482.60mm
- Maximum Distance from Wheel to Table (Under 355.60mm Wheel): 457.20mm
- Distance Center of Spindle to Bottom of Spindle Housing: 76.20mm
- Spindle Speeds: 1750 RPM & 2100 RPM
- Hydraulic Pump Motor: 2.24 kw, 1140 RPM, 220V / 440V, 21 / 10.5 Amps
- Spindle Drive Motor: 5.59 kw , 1750 RPM, 220V / 440V,. 21 / 10.5 Amps
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
