Inventory # 48436 Year: 1962

Gray Futuremill Planer Mill

Request a Quote
Measurement

Specifications
  • Capacity (W x L): 45" x 192"
  • Table Size: 57" x 219"
  • Spindle Speed: 33-566 RPM
  • Spindle Motor: 50 HP
  • Distance From Spindle to Table: 36"
  • Capacity (W x L): 1143.00mm x 4876.80mm
  • Table Size: 1447.80mm x 5562.60mm
  • Spindle Speed: 33-566 RPM
  • Spindle Motor: 37.29 kw
  • Distance From Spindle to Table: 914.40mm
  • Show More
  • Show Less
Equipped With
  • (2) 40" x 60" Magnetic Chucks
  • (1) 24" x 28" Magnetic Chuck

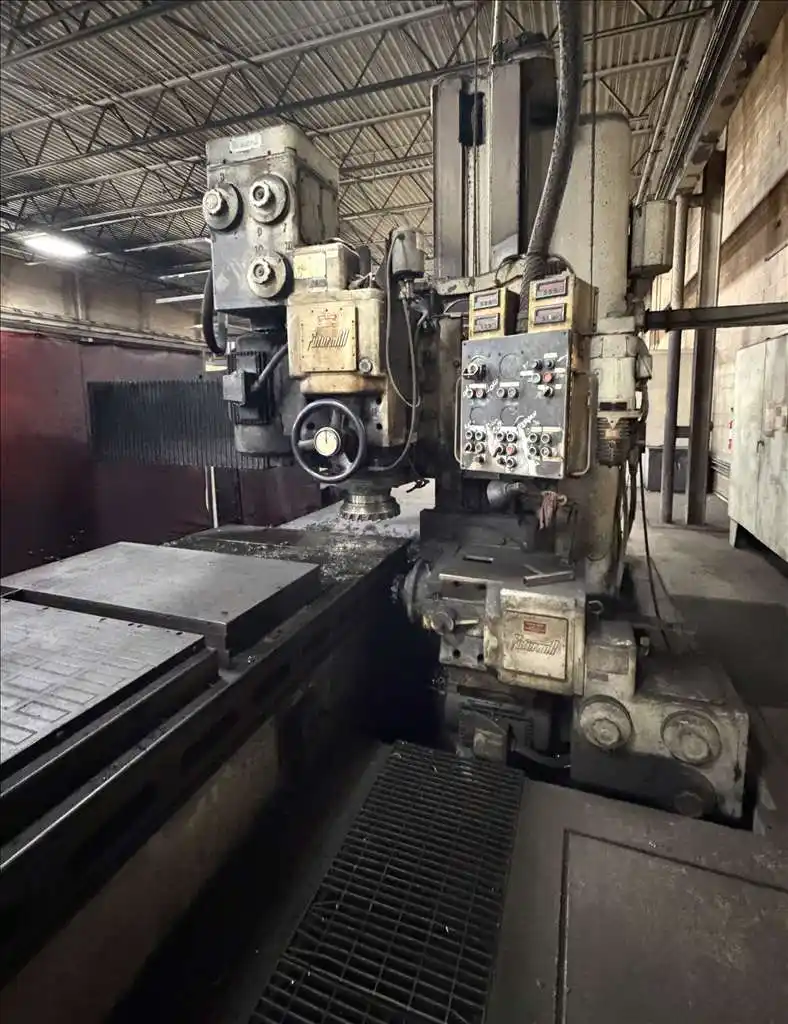

  • Adjustable Height Side Milling Head w/ Quill Feed Gauge
  • Mayfran Lift Up Chip Conveyor
  • In an Approx. 36" Deep Pit w/ Full Length Slat Chip Conveyors Both Front & Back
  • Show More
  • Show Less
  • (2) 1016.00mm x 1524.00mm Magnetic Chucks
  • (1) 609.60mm x 711.20mm Magnetic Chuck
  • Adjustable Height Side Milling Head w/ Quill Feed Gauge
  • Mayfran Lift Up Chip Conveyor
  • In an Approx. 914.40mm Deep Pit w/ Full Length Slat Chip Conveyors Both Front & Back
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
