Inventory # 48170 Year: 2008

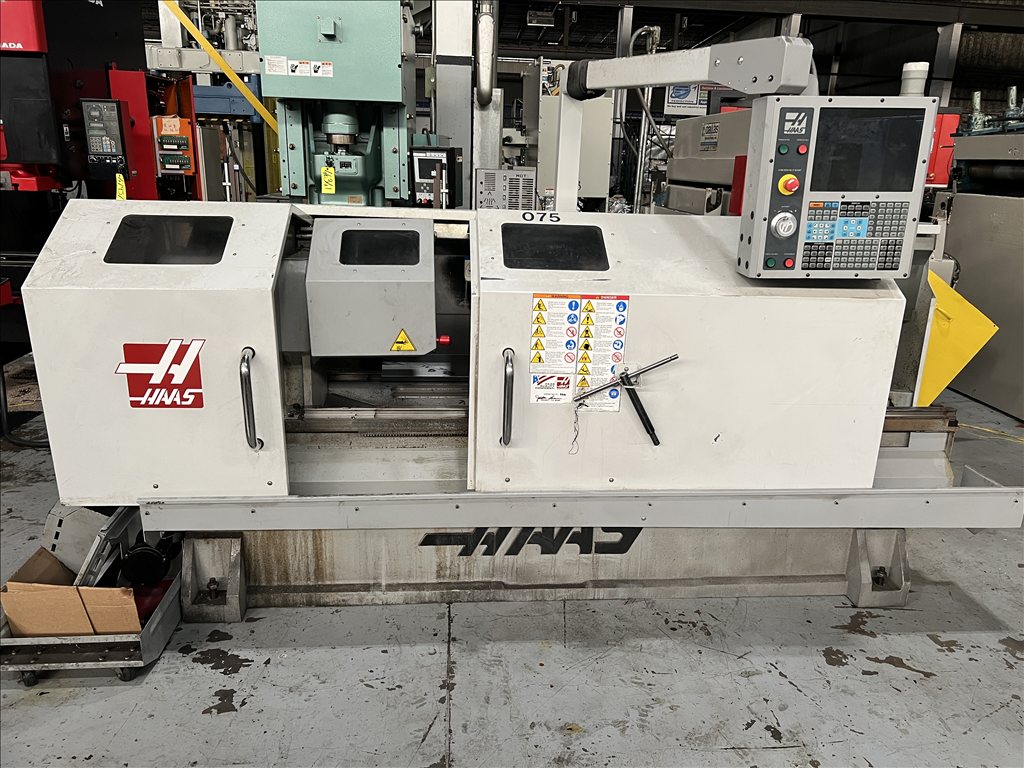

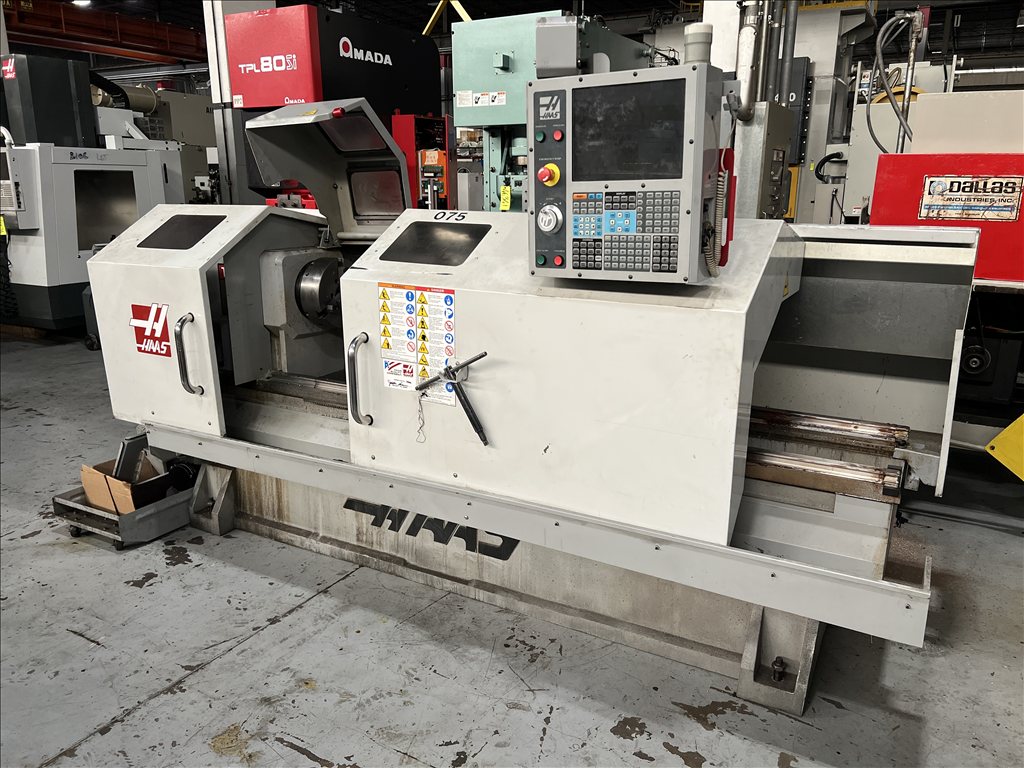

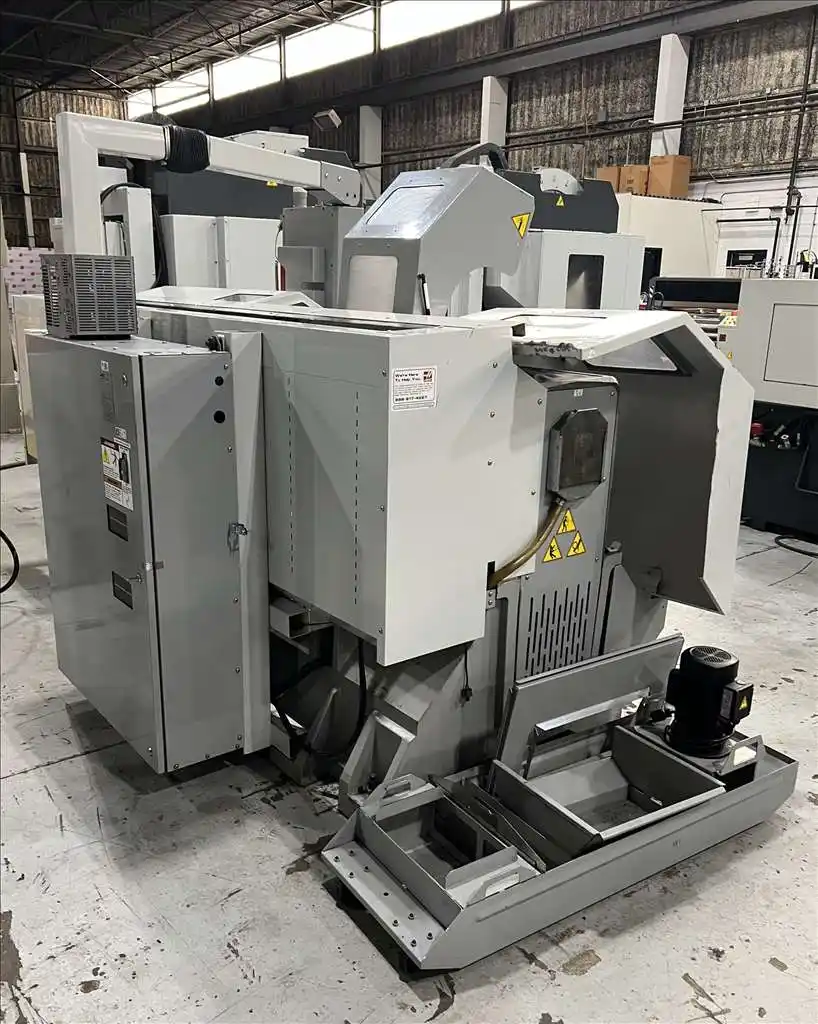

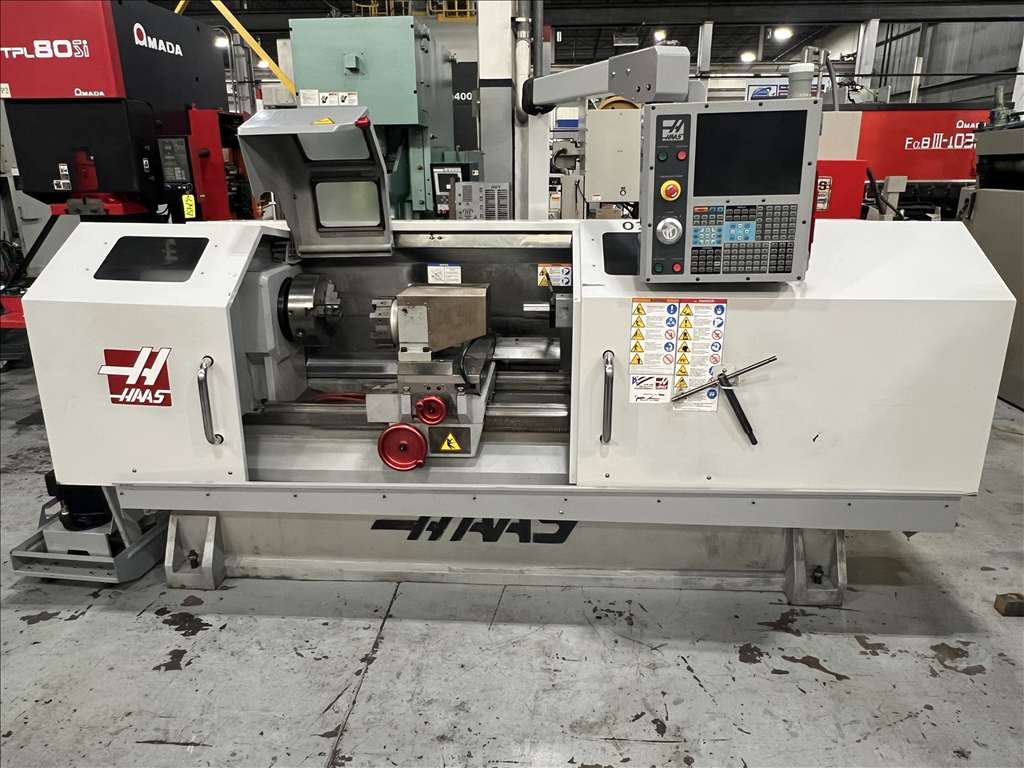

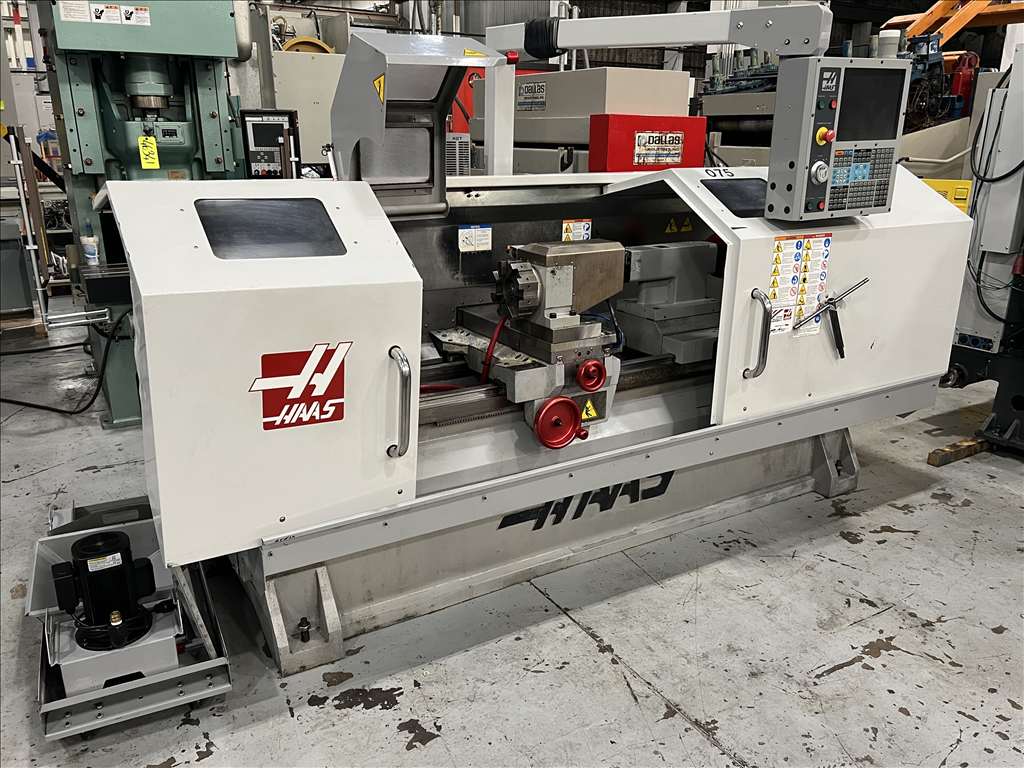

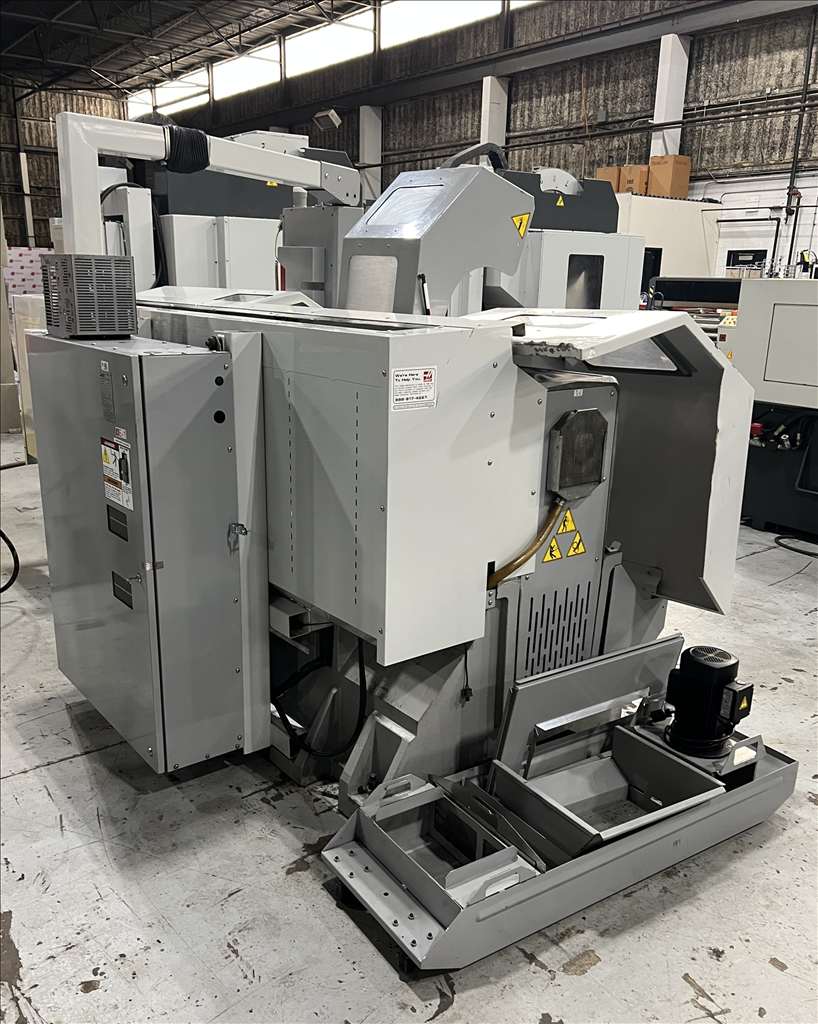

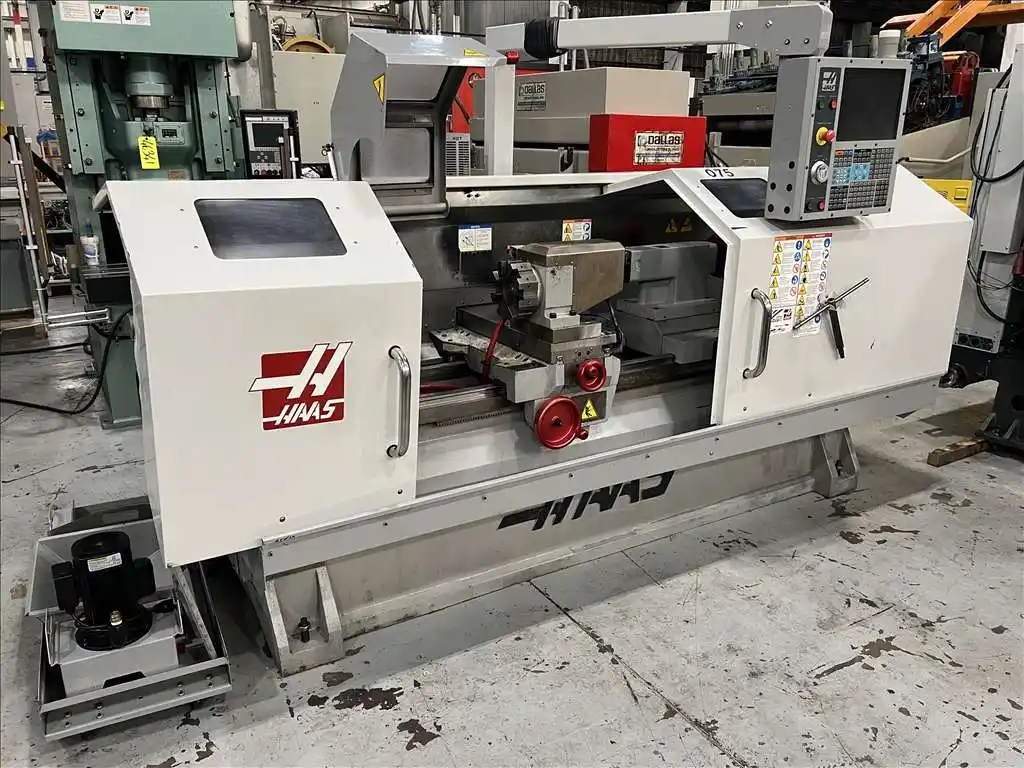

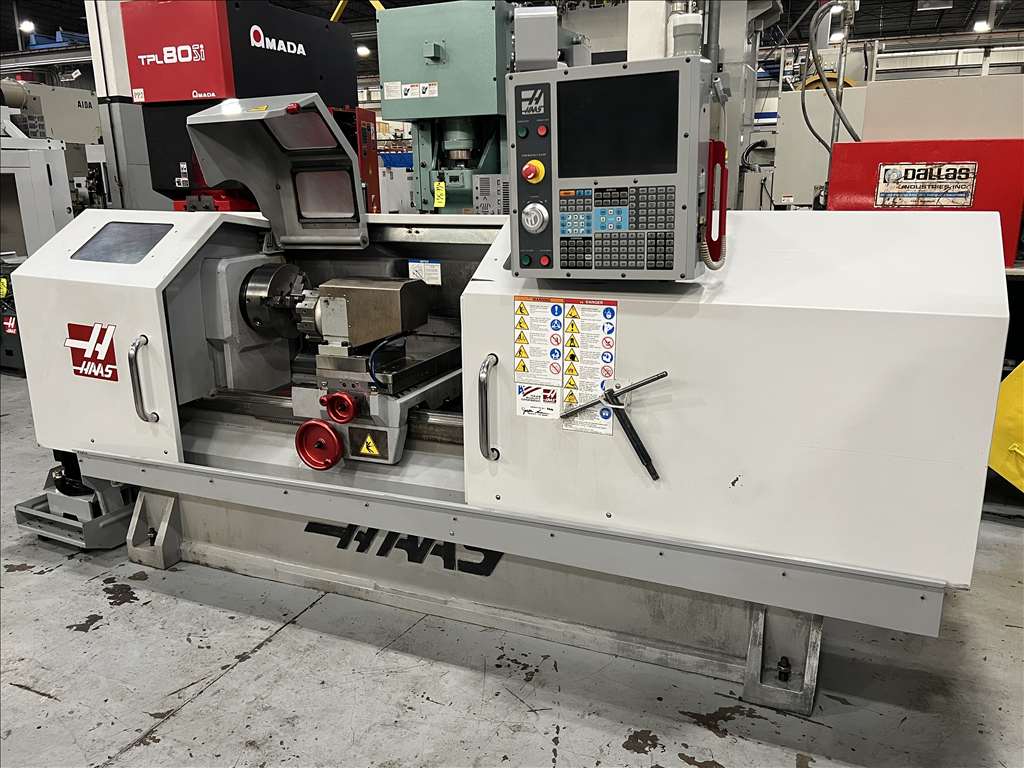

Haas TL-3 CNC Lathe

Request a Quote
Measurement

Specifications

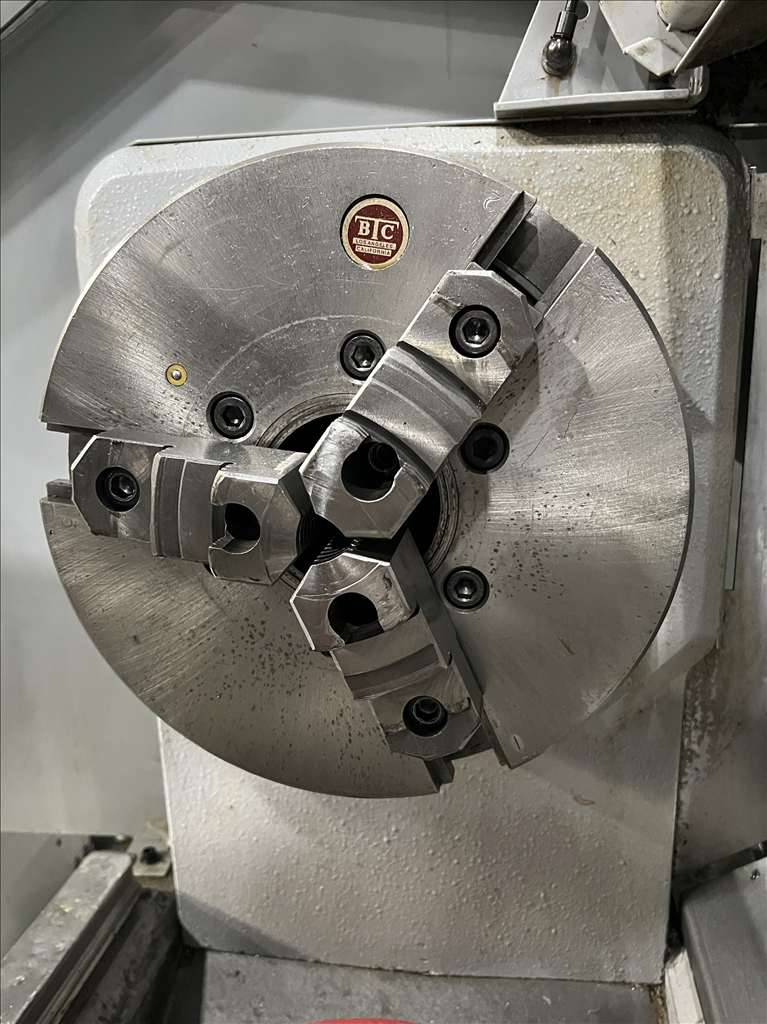

  • Chuck: 12" 3-Jaw
  • Swing: 20"
  • Swing Over Cross-Slide: 13"
  • Max. Turning Length: 60"
  • Distance Between Centers: 60"
  • Max. Turning Diameter: 20"
  • Spindle Bore: 3.5"
  • Spindle Speed: 1800 RPM
  • Spindle Motor: 18 HP

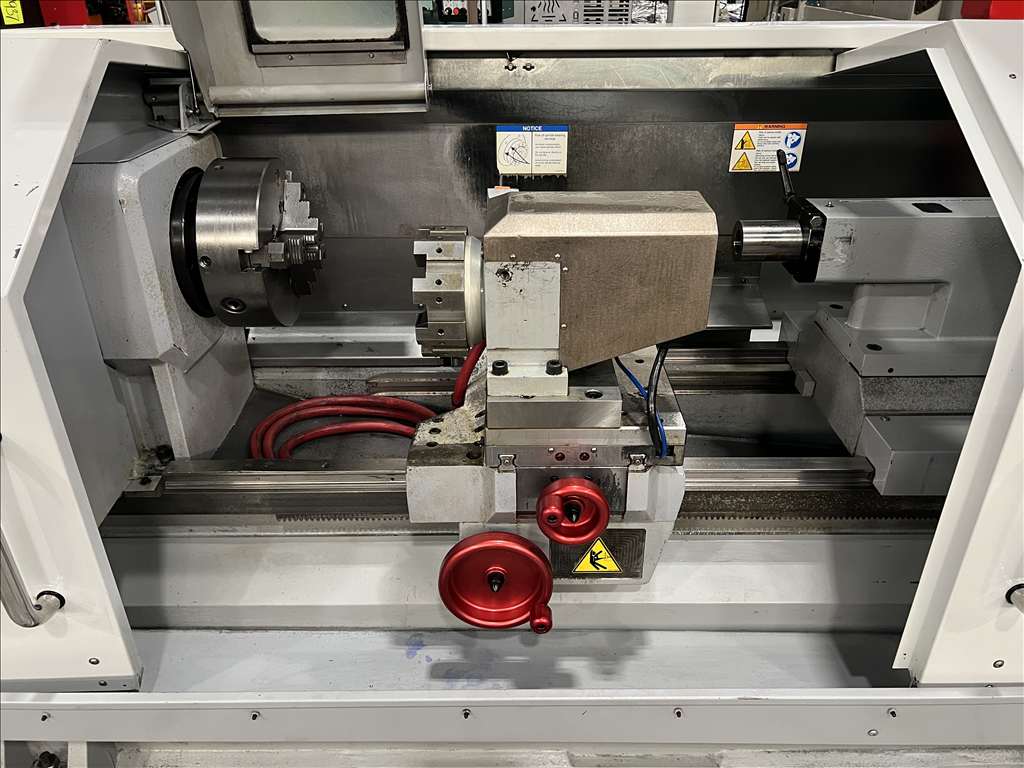

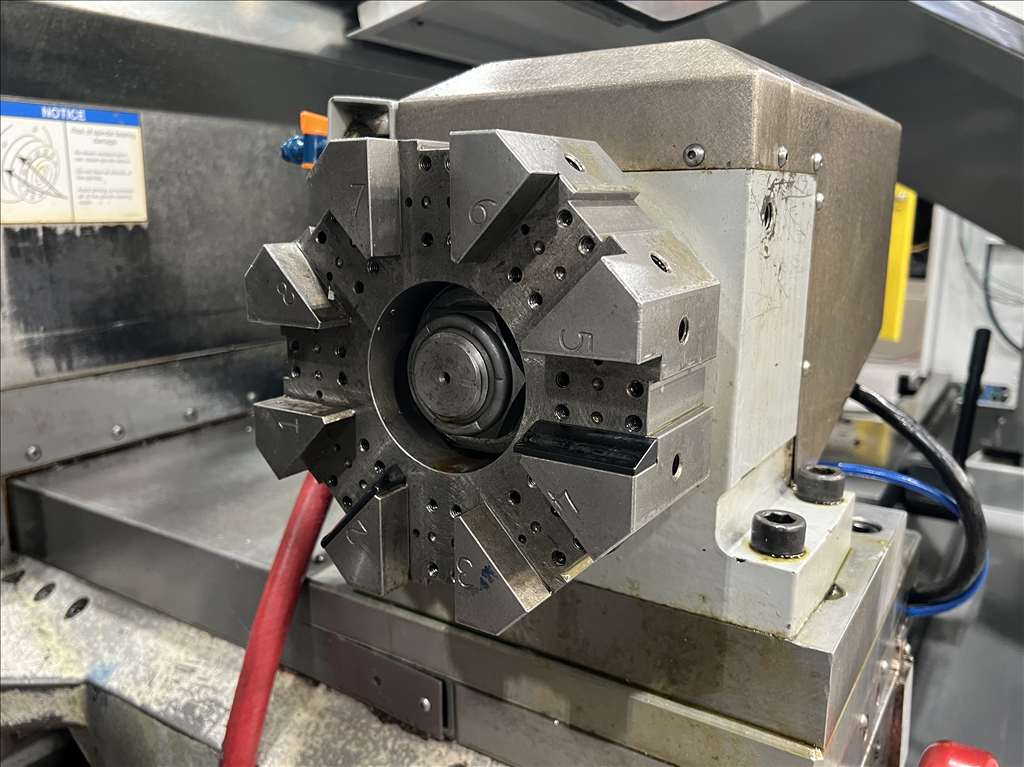

  • Number of Turret Positions: 6
  • X-Axis Travel: 12"
  • Z-Axis Travel: 60"
  • Rapid Traverse (X): 75 IPM
  • Rapid Traverse (Z): 150 IPM
  • Show More
  • Show Less
  • Chuck: 304.80mm 3-Jaw
  • Swing: 508.00mm
  • Swing Over Cross-Slide: 330.20mm
  • Max. Turning Length: 1524.00mm
  • Distance Between Centers: 1524.00mm
  • Max. Turning Diameter: 508.00mm
  • Spindle Bore: 88.90mm
  • Spindle Speed: 1800 RPM
  • Spindle Motor: 13.42 kw
  • Number of Turret Positions: 6
  • X-Axis Travel: 304.80mm
  • Z-Axis Travel: 1524.00mm
  • Rapid Traverse (X): 31.75 mm/sec
  • Rapid Traverse (Z): 63.50 mm/sec
  • Show More
  • Show Less
Equipped With

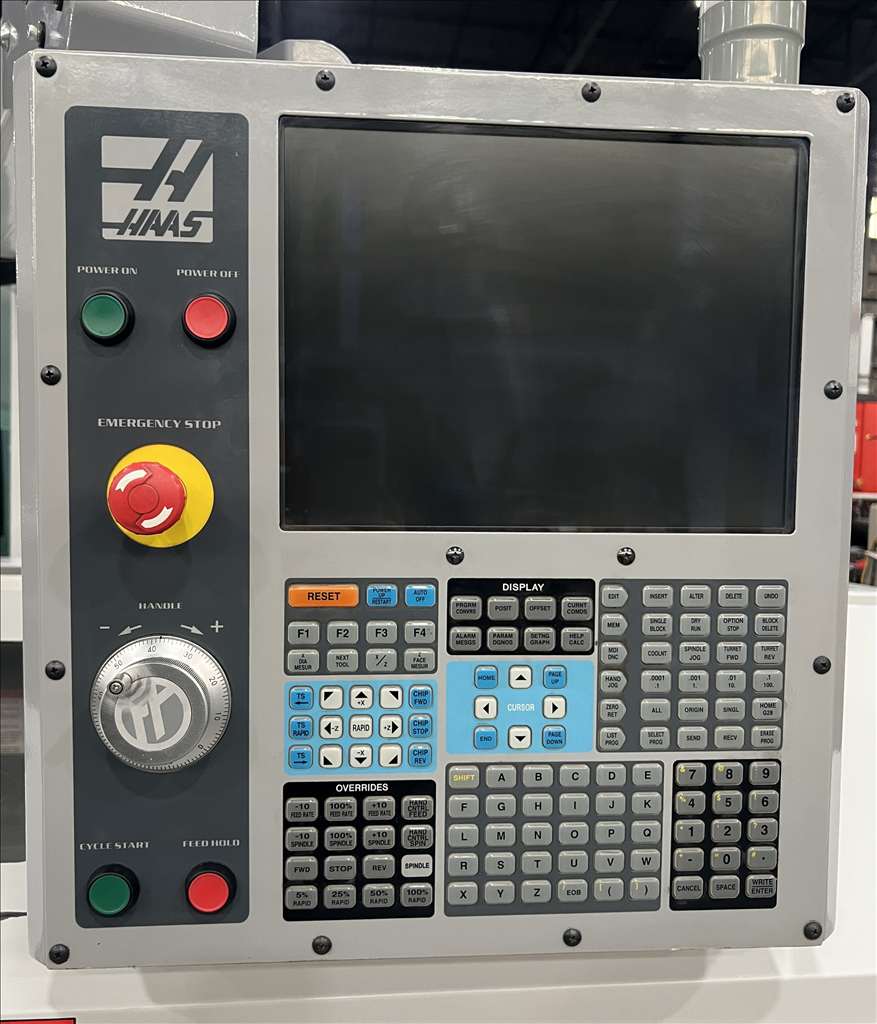

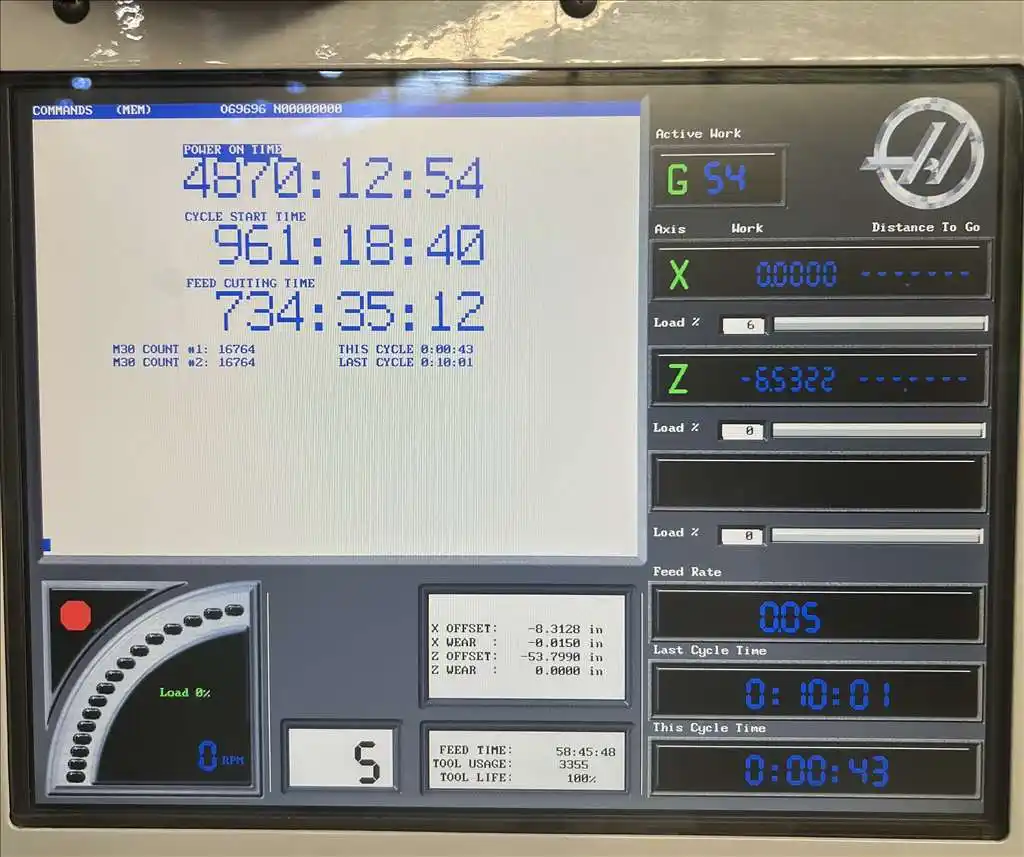

  • Haas CNC Control

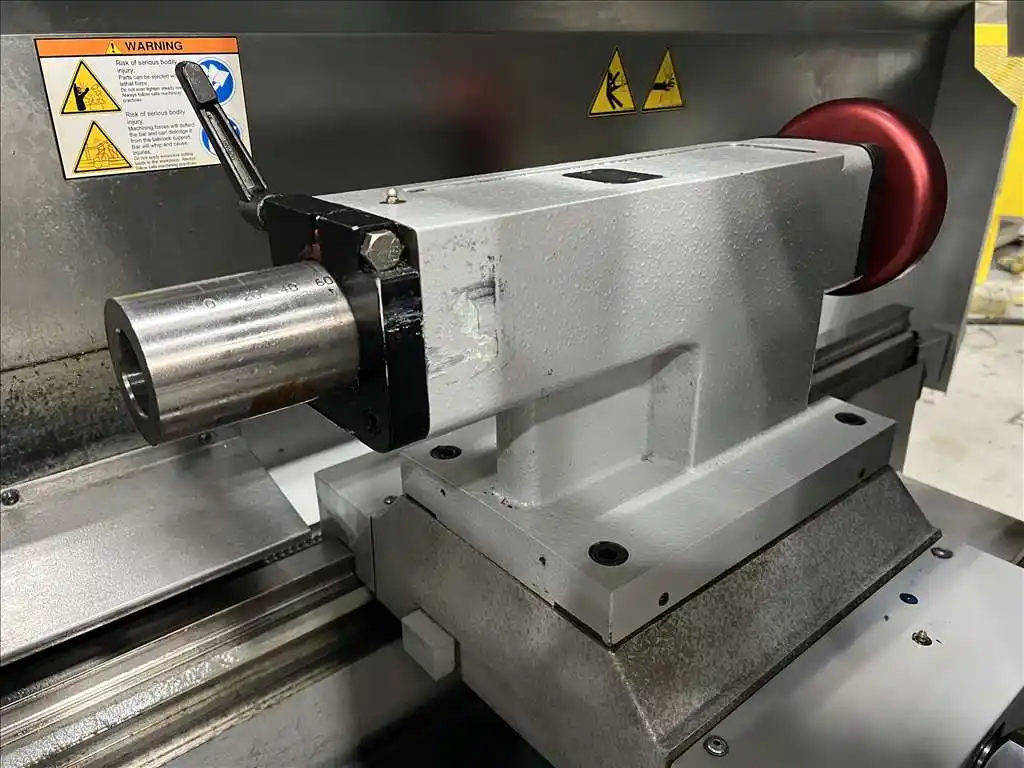

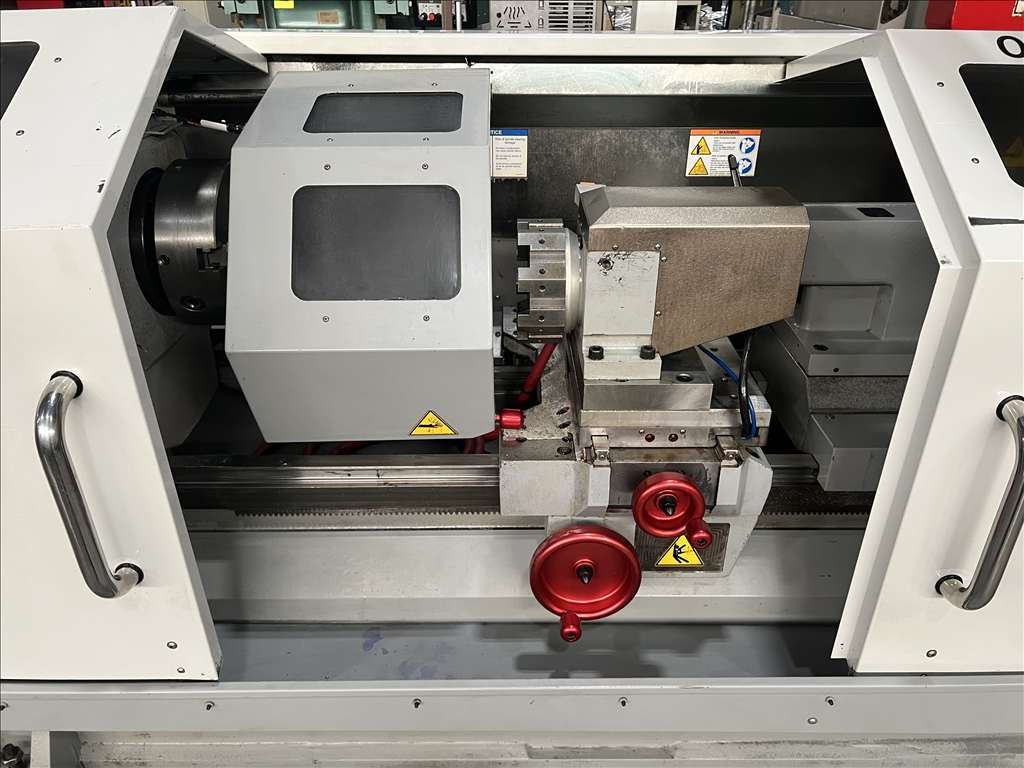

  • Tailstock
  • Haas CNC Control
  • Tailstock
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
