Inventory # 45204 Year: 2019

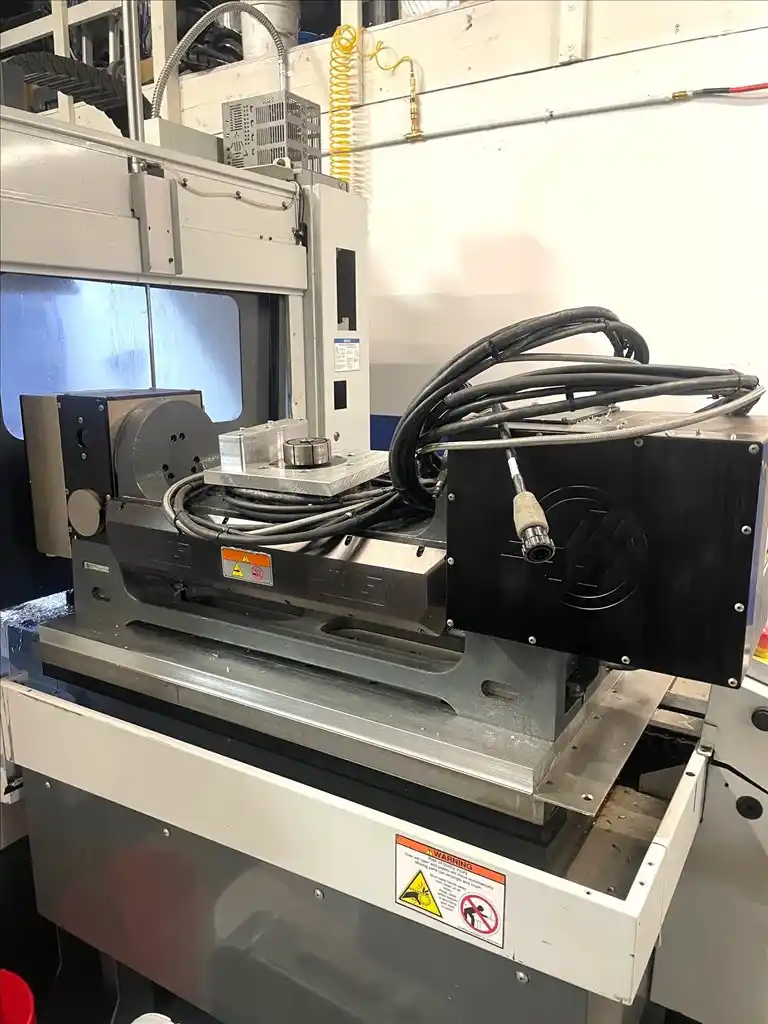

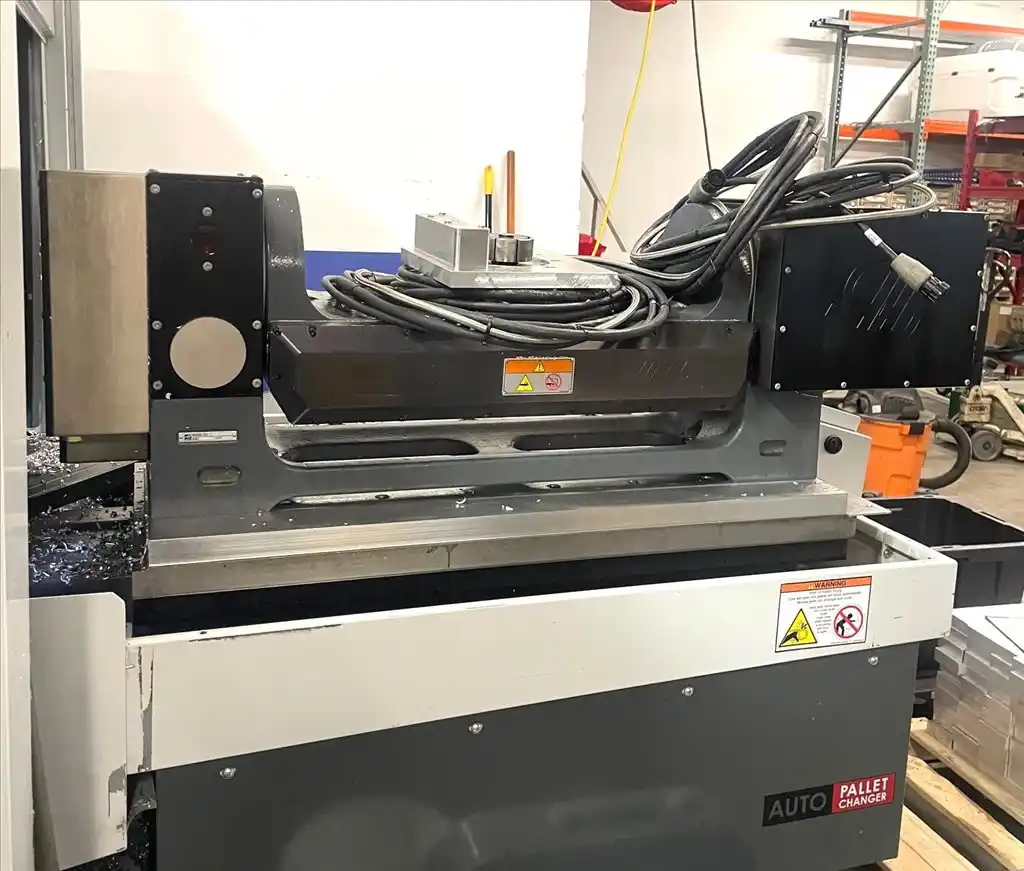

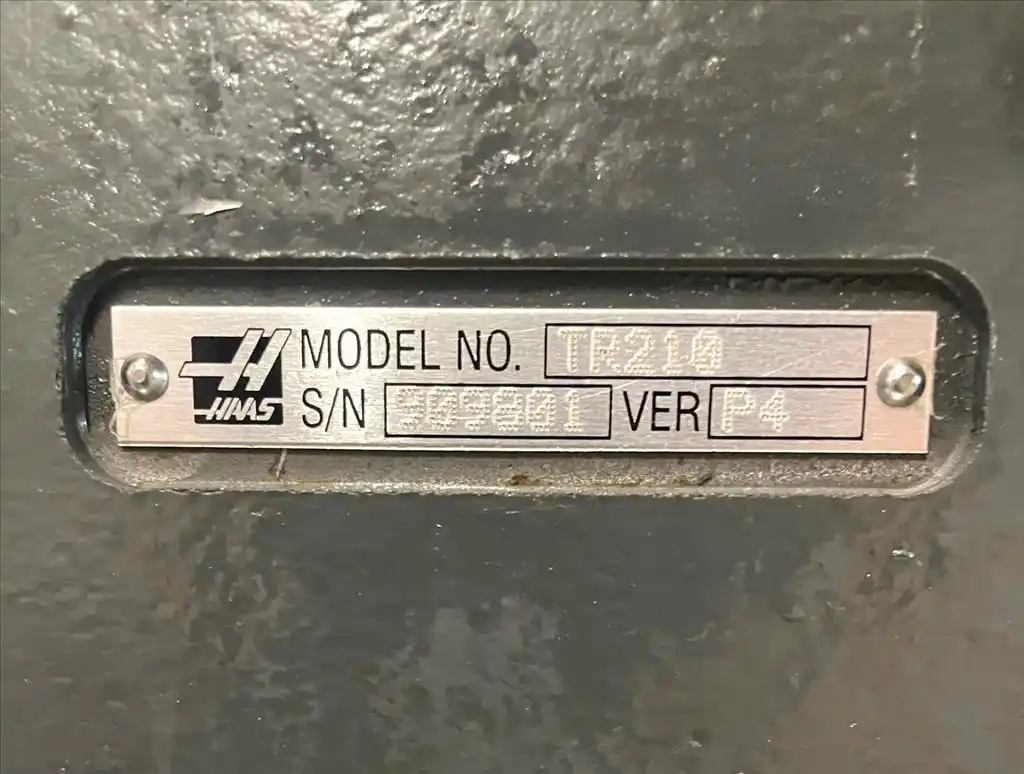

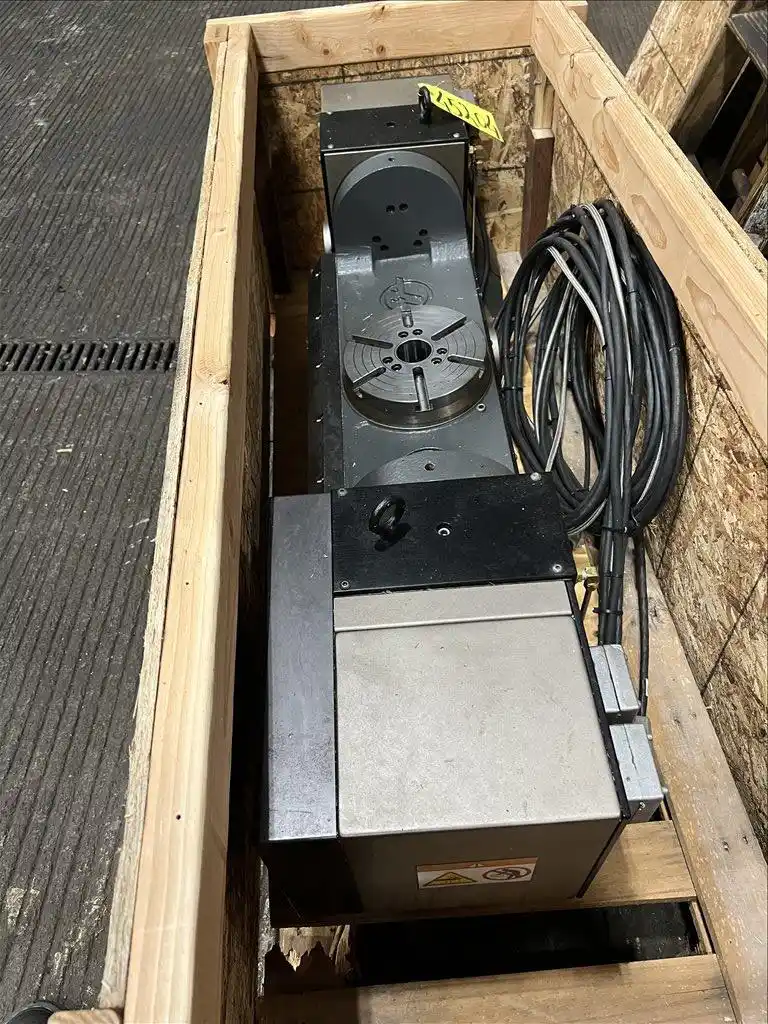

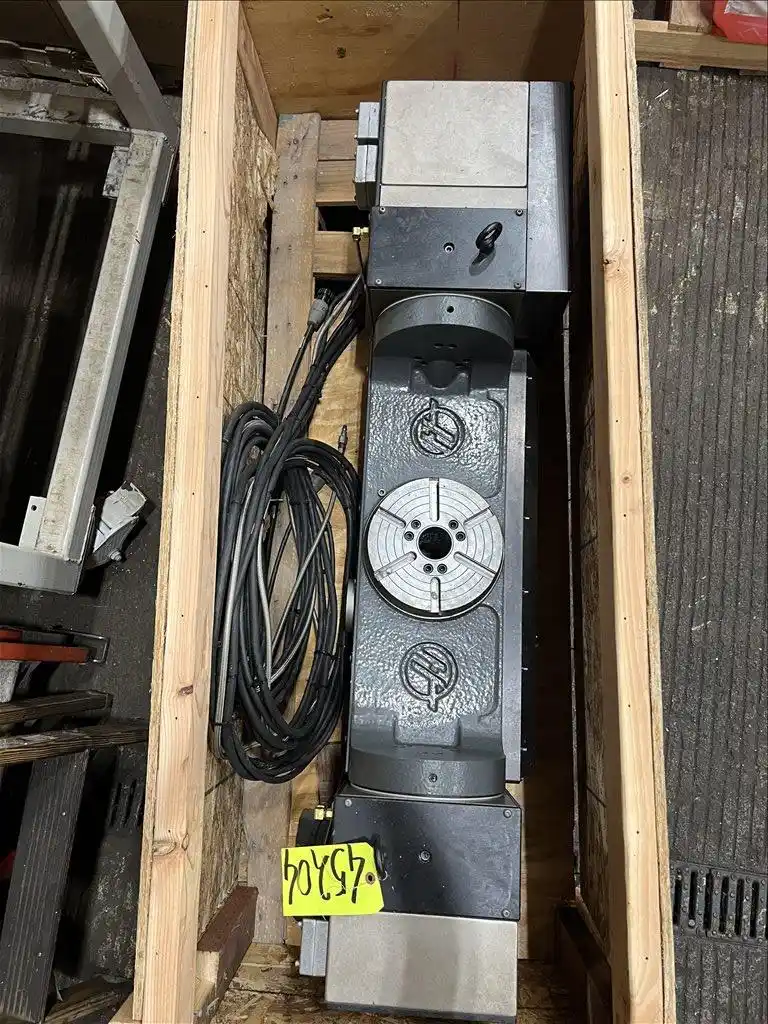

Haas TR-210 Dual-Axis Rotary Trunnion Table
Specifications
- PLATTER
- Platter Diameter: 8.3"
- Max. Weight on Platter: 200 lbs
- Max. Part Swing: 23.5"
- Number of Std T-Slots: 6 @ 60°
- SPINDLE - A (TILT)
- Max. Speed: 60°/sec
- Max. Torque: 300 ft-lb
- Backlash: 30 arc-sec
- Gear Ratio: 90:1
- Timing: 2:1
- Brake Torque @ 100 PSI: 400 ft-lb
- SPINDLE - B (ROTARY)
- Max. Speed: 60°/sec
- Max. Torque: 210 ft-lb
- Max. Runout: 0.0005"
- Backlash: 30 arc-sec
- Gear Ratio: 90:1
- Timing: 2:1
- Brake Torque @ 100 PSI: 200 ft-lb
- INDEXING - A (TILT)
- Max. Rotation/Step: +/- 120°
- Resolution: 0.001°
- Accuracy: +/- 15 arc-sec
- Repeatability: 10 arc-sec
- Show More
- Show Less
- PLATTER
- Platter Diameter: 210 mm
- Max. Weight on Platter: 90 kg
- Max. Part Swing: 596 mm
- Number of Std T-Slots: 6 @ 60°
- SPINDLE - A (TILT)
- Max. Speed: 60°/sec
- Max. Torque: 406 nm
- Backlash: 30 arc-sec
- Gear Ratio: 90:1
- Timing: 2:1
- Brake Torque @ 7.03 kgs./sq.cm. : 542 nm
- SPINDLE - B (ROTARY)
- Max. Speed: 60°/sec
- Max. Torque: 284 nm
- Max. Runout: 0.01mm
- Backlash: 30 arc-sec
- Gear Ratio: 90:1
- Timing: 2:1
- Brake Torque @ 7.03 kgs./sq.cm. : 271 nm
- INDEXING - A (TILT)
- Max. Rotation/Step: +/- 120°
- Resolution: 0.001°
- Accuracy: +/- 15 arc-sec
- Repeatability: 10 arc-sec
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
