Inventory # 47048 Year: 2020

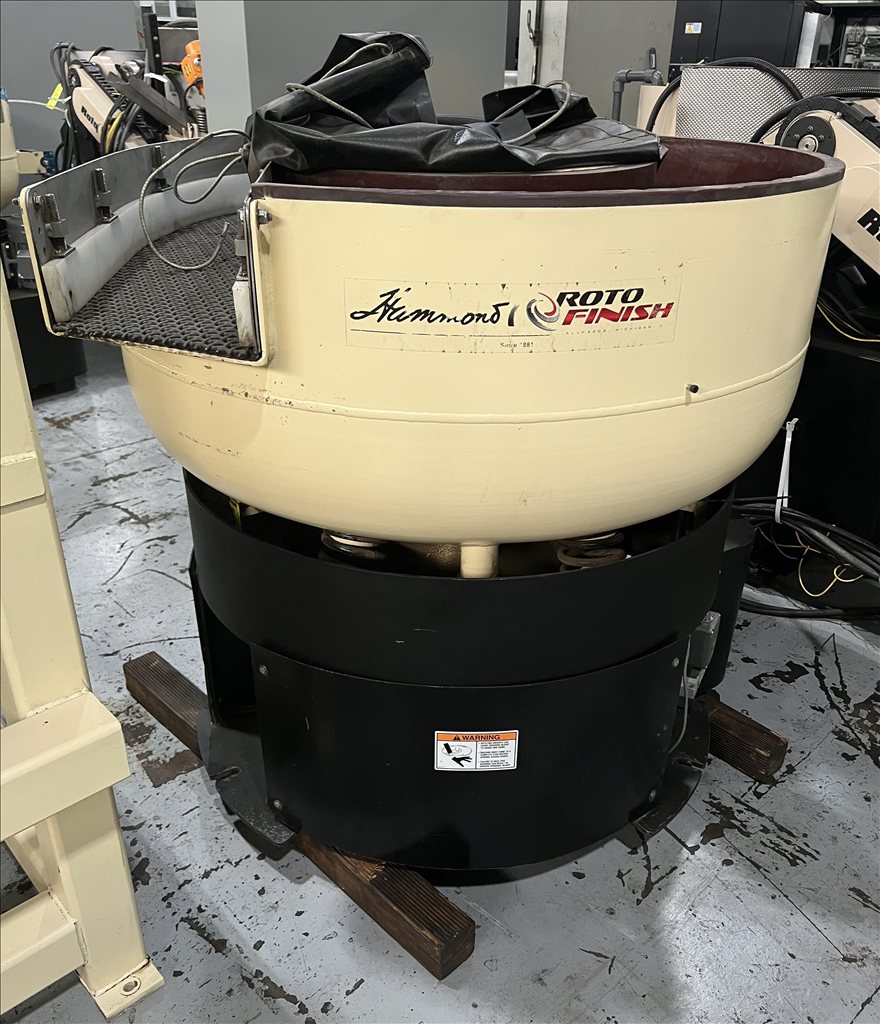

Hammond V-MAX5 Vibratory Finishing Machine W/ Roto-Max Revolution
Specifications
- V-Max5
- Total Capacity: 10.71 cu. ft.
- Max Working Capacity: 5 cu. ft.
- Overall Diameter: 48.7"
- Overall Height: 46.5"
- Process Channel Width: 10.2"
- Center Column Diameter: 26"
- Screen Deck Width: 8"
- Screen Deck Height: 39"
- Base Diameter: 47"
- Drain Sizes / # of Drains: 4" / 3
- Motor: 3 hp
- Hours: 3528 Hours
- Roto-Max Revolution RM-3R
- Total Capacity: 5.107 cu. ft.
- Max Working Capacity: 3 cu. ft.
- Length: 84"
- Width: 51"
- Height: 45"
- Process Bowl Height: 45"
- Process Bowl Diameter: 90"
- Drain Sizes/ # of Drains: 4" / 2
- Motor: 7.5 hp
- Hours: 5663 Hours
- Show More
- Show Less
- V-Max5
- Total Capacity: 300 L
- Max Working Capacity: 150 L
- Overall Diameter: 1236.98mm
- Overall Height: 1181.10mm
- Process Channel Width: 259.08mm
- Center Column Diameter: 660.40mm
- Screen Deck Width: 203.20mm
- Screen Deck Height: 990.60mm
- Base Diameter: 1193.80mm
- Drain Sizes / # of Drains: 101.60mm / 3
- Motor: 2.24 kw
- Hours: 3528 Hours
- Roto-Max Revolution RM-3R
- Total Capacity: 145 L
- Max Working Capacity: 85 L
- Length: 2133.60mm
- Width: 1295.40mm
- Height: 1143.00mm
- Process Bowl Height: 1143.00mm
- Process Bowl Diameter: 2286.00mm
- Drain Sizes/ # of Drains: 101.60mm / 2
- Motor: 5.59 kw
- Hours: 5663 Hours
- Show More
- Show Less
More Info

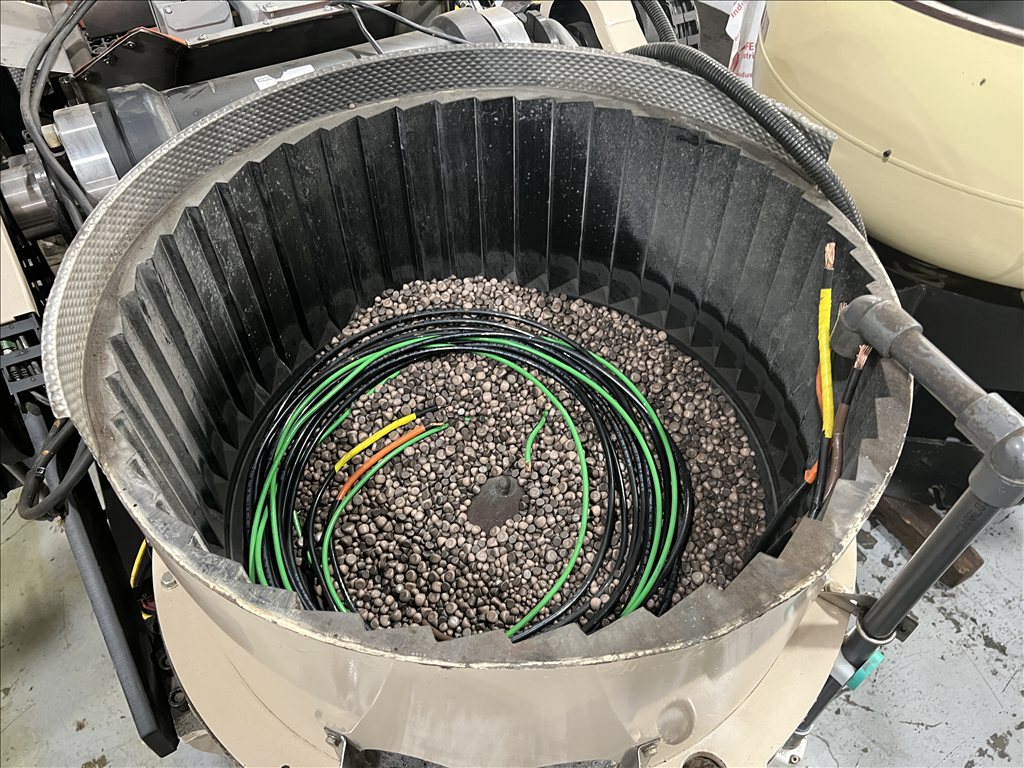

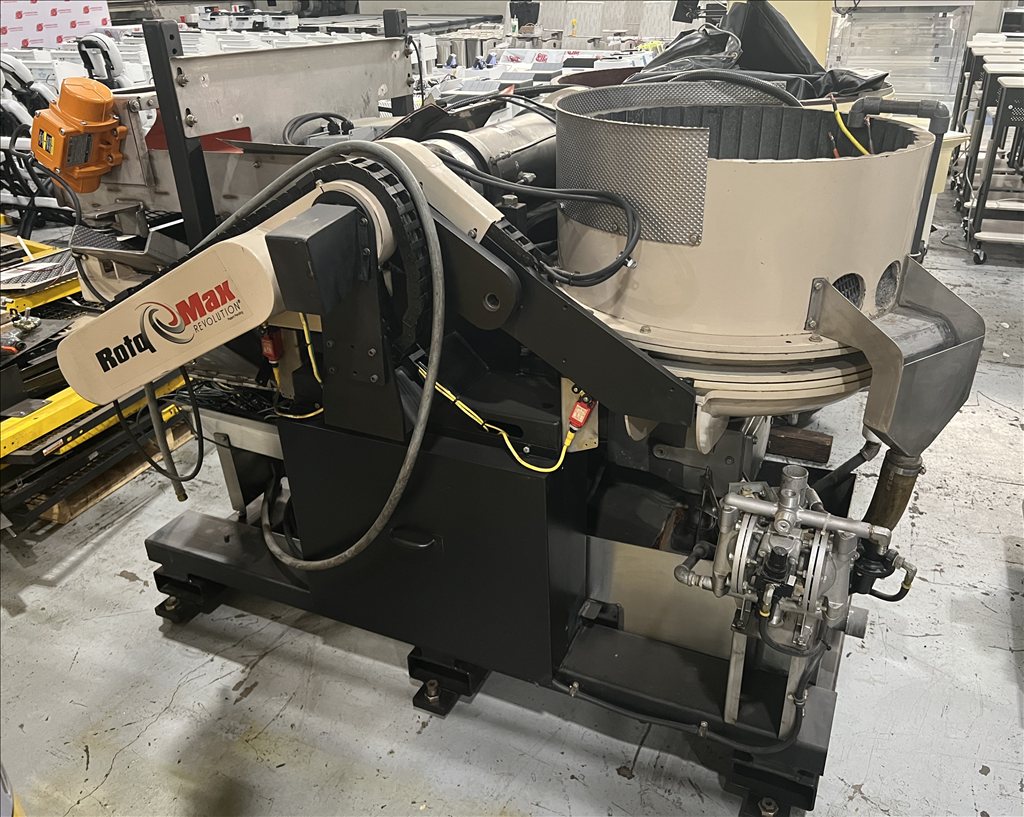

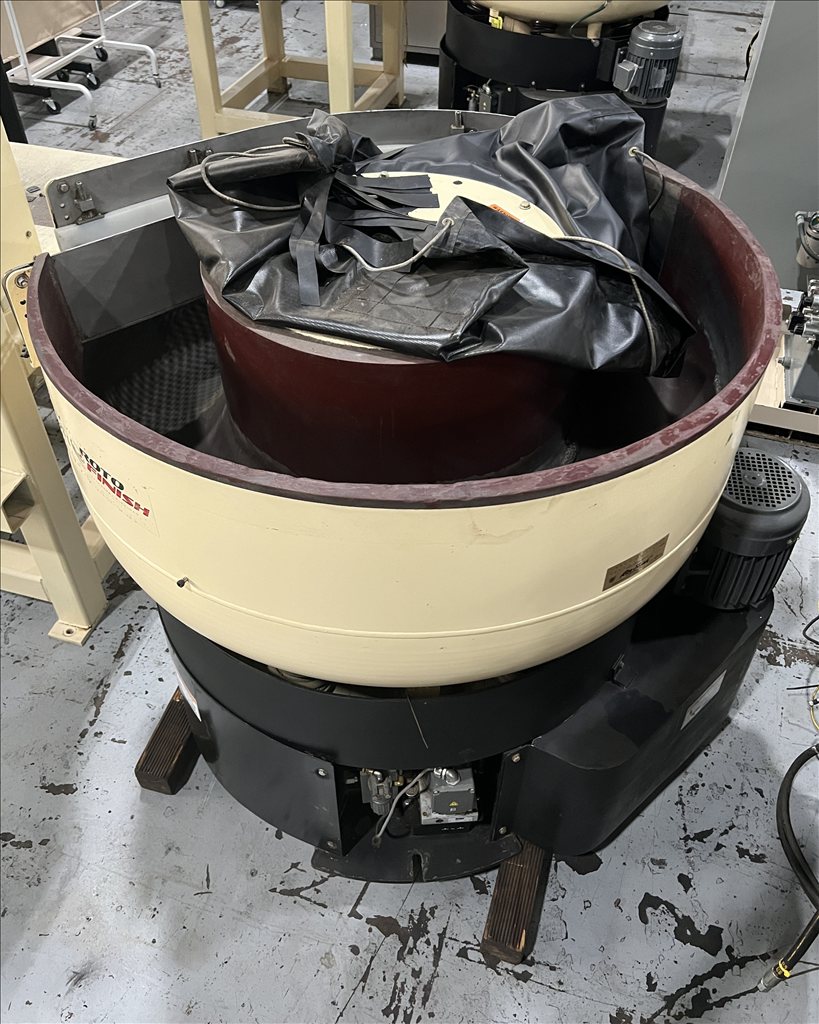

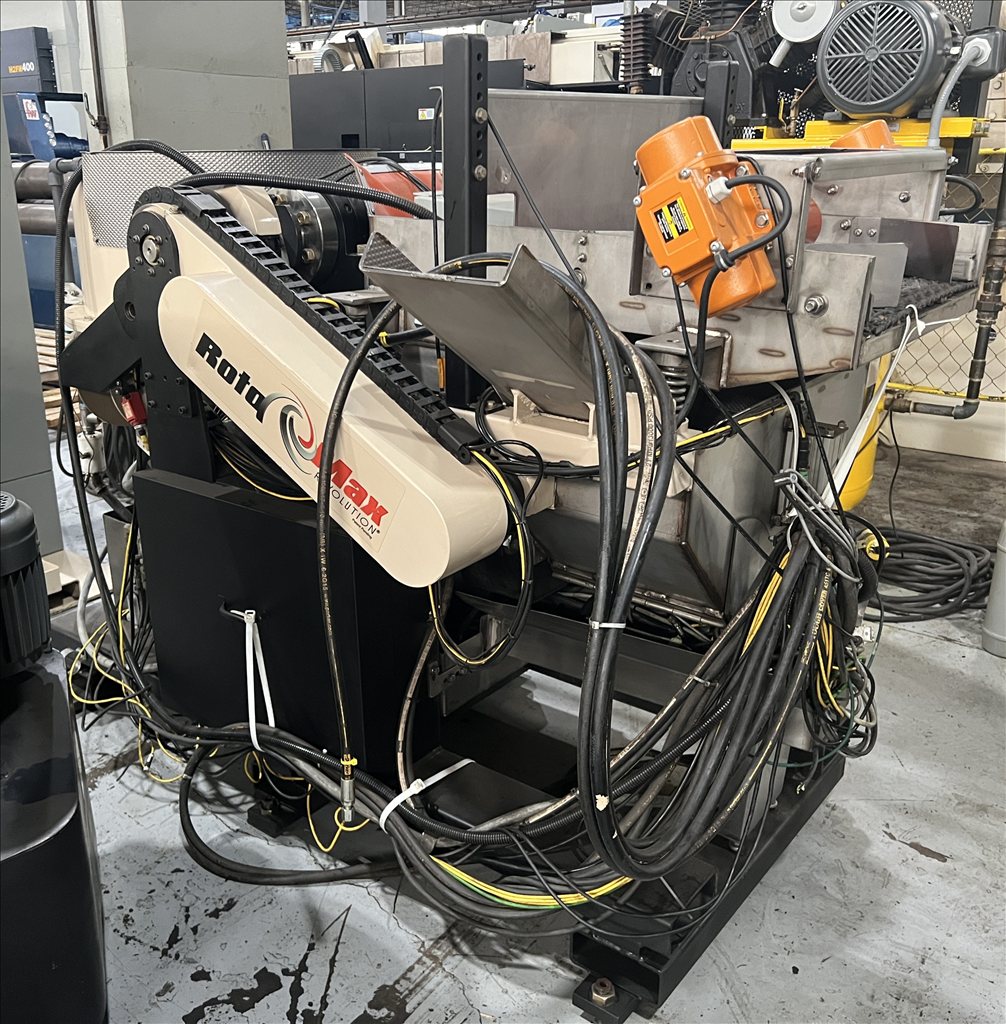

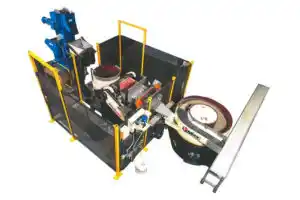

The V-Max 5 vibratory bowl finisher provides up to 50% Cycle Time reduction over conventional vibratory machines. The V-Max 5 is paired with a Roto-Max RM-3R finishing machine, featuring a centrifugal disc section with auto empty into the built-in separator.
This vibratory bowl finisher can be inspected in person, with an appointment. Interested in a similar machine? Check out Perfection’s selection of used finishing machines for sale.
Location & Terms
- Terms: F.O.B.
- Location: Skokie, IL
- Disclaimer: Preliminary Specifications....
