Inventory # 47874

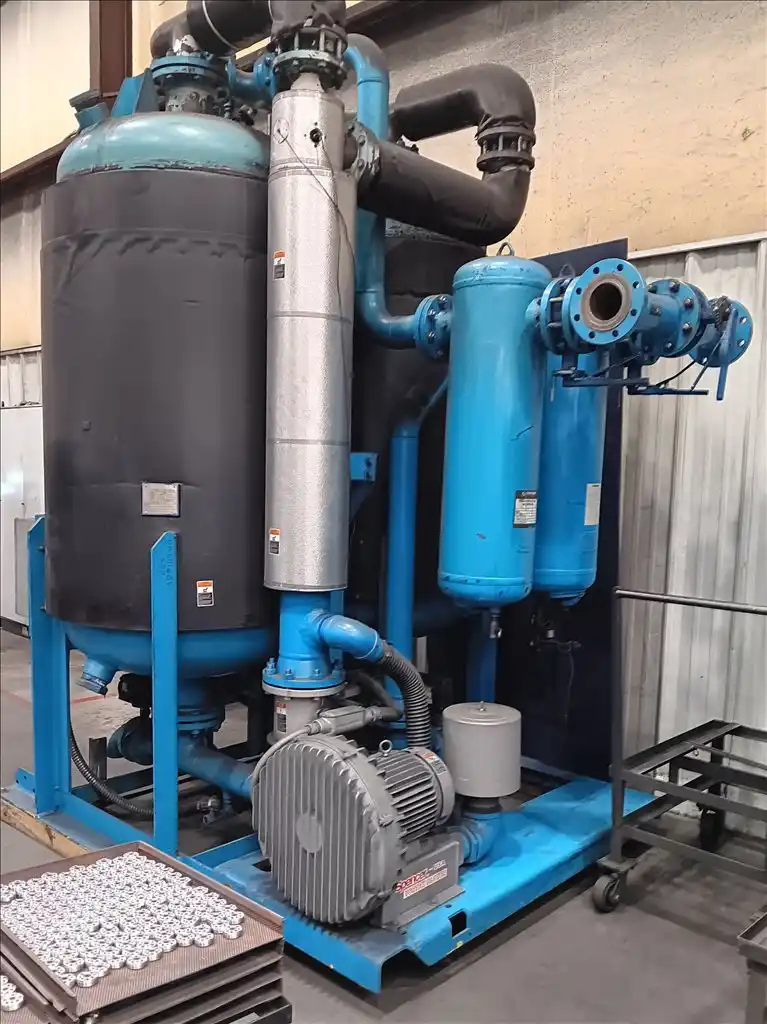

Hankison HBP2200 Blower-Purge Regenerative Desiccant Dryer

Request a Quote
Measurement

Specifications
  • Rated Capacity: 2200 SCFM @ 100 PSIG/100°F
  • Pressure Dew Point: ISO Class 2 -40°F (-40°C)
  • Max. Working Pressure: 150 PSIG
  • Min. Operating Pressure: 60 PSIG
  • Max. Inlet Air Temperature: 120°F
  • Min. Inlet Air Temperature: 40°F
  • Inlet/Outlet Connections: 4" FLG
  • Electrical: 460V/3Ph/60Hz
  • Show More
  • Show Less
  • Rated Capacity: 2200 SCFM @ 7.03 kgs./sq.cm. G/100°F
  • Pressure Dew Point: ISO Class 2 -40°F (-40°C)
  • Max. Working Pressure: 10.55 kgs./sq.cm. G
  • Min. Operating Pressure: 4.22 kgs./sq.cm. G
  • Max. Inlet Air Temperature: 120°F
  • Min. Inlet Air Temperature: 40°F
  • Inlet/Outlet Connections: 101.60mm FLG
  • Electrical: 460V/3Ph/60Hz
  • Show More
  • Show Less
More Info

This Hankison HBP2200 blower purge regenerative desiccant air dryer is designed to deliver reliable ISO 8573.1 Class 2 performance with a consistent -40°F pressure dew point. Unlike heatless or externally heated dryers, this machine regenerates its desiccant beds with a dedicated blower and heater, eliminating costly compressed air loss and reducing energy consumption. The result is lower operating costs while maintaining full system capacity.

This unit features industrial-grade activated alumina desiccant, low-watt density heaters to extend media life, and a quiet high-efficiency blower system engineered for continuous duty. Its standard controls provide real-time tower status, heater monitoring, service reminders, and RS232 connectivity, while rugged NEMA 4 construction ensures long service life even in demanding plant environments.

For manufacturers seeking a dependable large-capacity dryer, this HBP2200 offers near 100% supply-side efficiency at 2200 SCFM, making it a proven solution for aerospace, automotive, electronics, food processing, and other industries where clean, dry compressed air is essential.

Interested in other options? Browse Perfection Global’s full selection of used air dryers.

Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
