Inventory # 43619

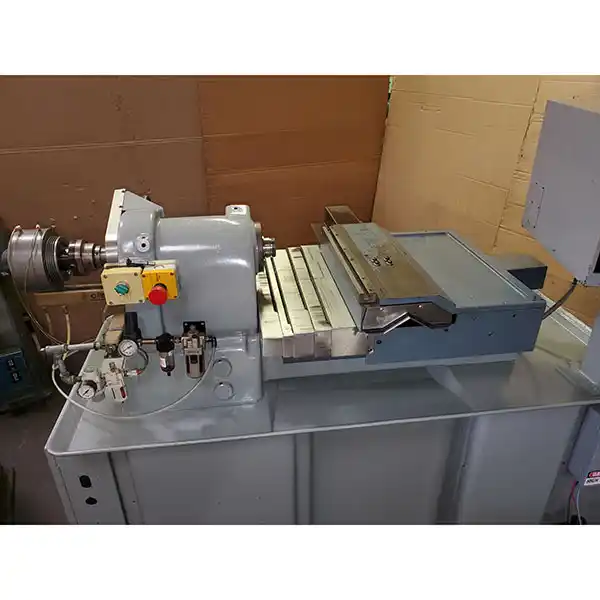

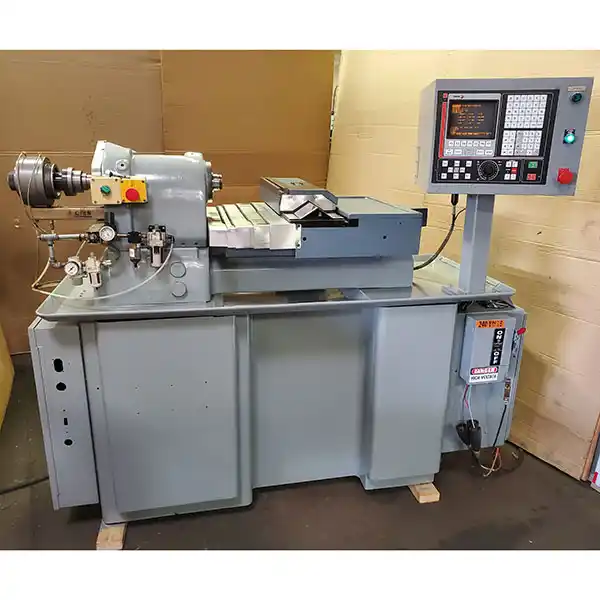

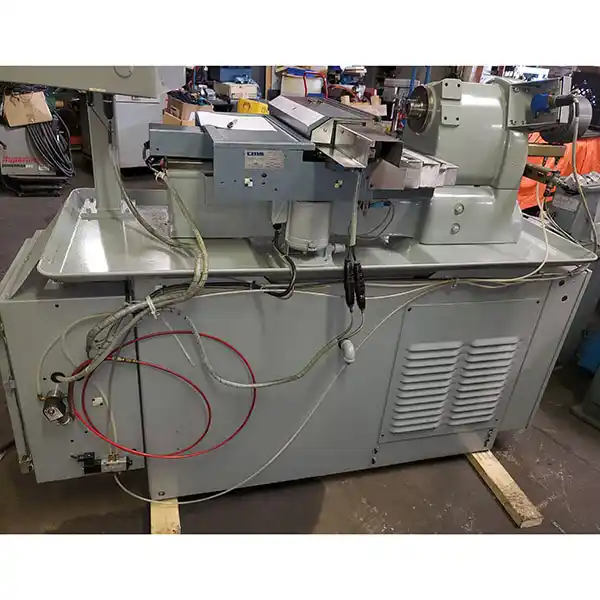

Hardinge AHC CNC Lathe
Specifications
- Max. Distance from Face to Turret to Spindle: 12"
- Max. Spindle Capacity w/ Round 5C Collets: 1.125"
- Max. Spindle Capacity w/ Hexagon 5C Collets: 0.875"
- Max. Spindle Capacity w/ Square 5C Collets: 0.75"
- Spindle Speeds: 125 - 3000 RPM
- Max. Distance from Face to Turret to Spindle: 304.80mm
- Max. Spindle Capacity w/ Round 5C Collets: 28.58mm
- Max. Spindle Capacity w/ Hexagon 5C Collets: 22.23mm
- Max. Spindle Capacity w/ Square 5C Collets: 19.05mm
- Spindle Speeds: 125 - 3000 RPM
- Show More
- Show Less
Equipped With

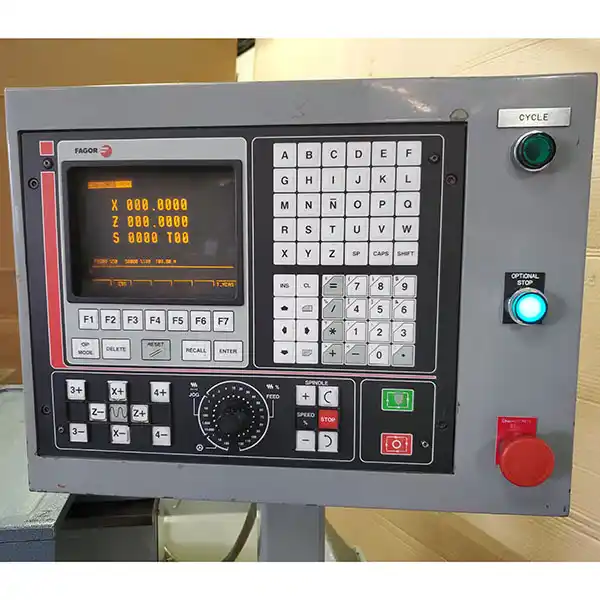

- Fagor CNC Control

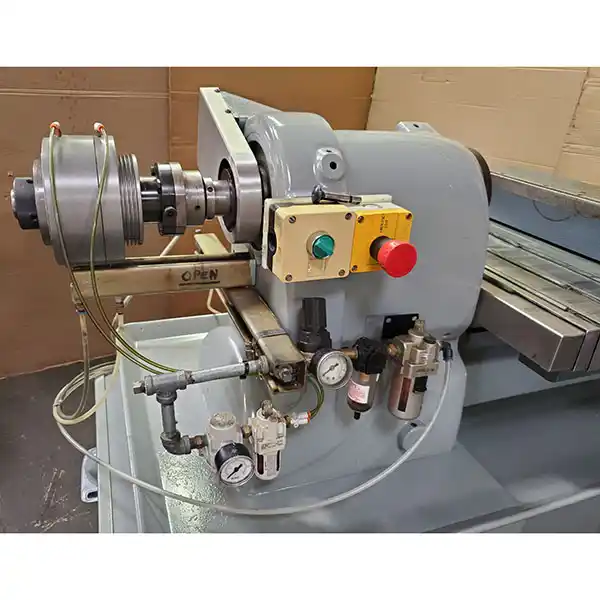

- Dunham Pneumatic 5C Collet Closer
- Fagor CNC Control
- Dunham Pneumatic 5C Collet Closer
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
