Inventory # 44880 Year: 2011

Honor Seiki VL-86A CNC Vertical Turning Center

Request a Quote
Measurement

Specifications
  • Max. Swing Diameter: 39.4"
  • Max. Turning Diameter: 33.9"
  • Max. Turning Height: 31.9"
  • Distance From Spindle Face to Turret Surface: 40.2"
  • Spindle Speed: 25-1500 RPM
  • Spindle Nose: A2-11
  • Spindle Bearing Diameter: 7.9"

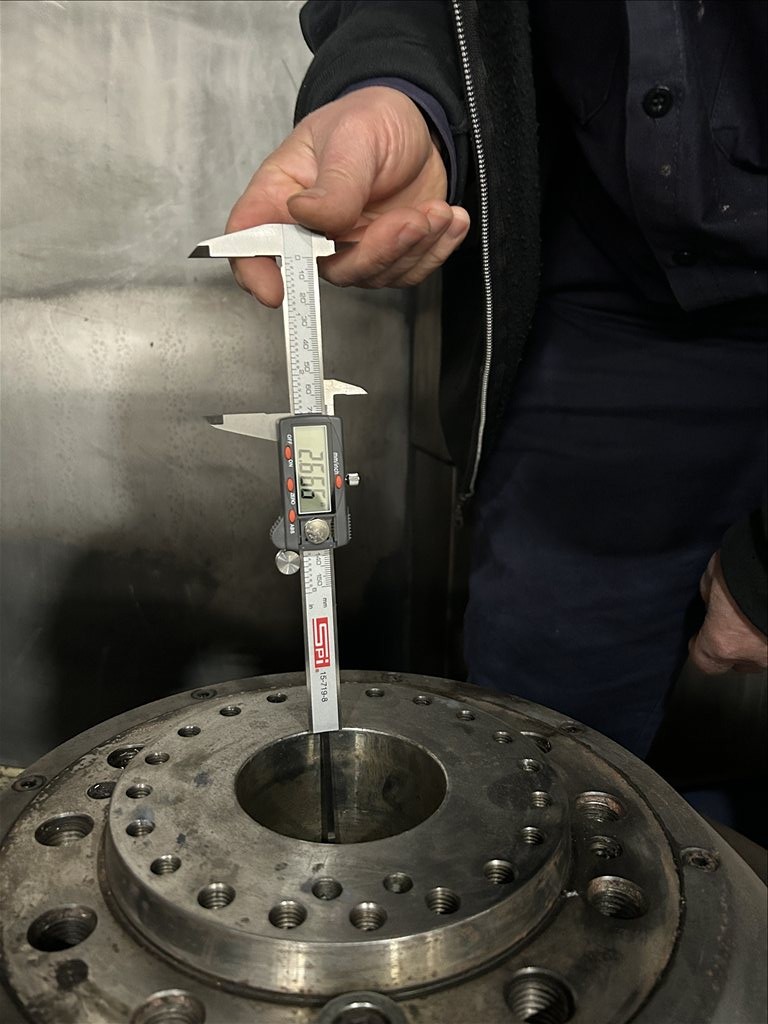

  • Spindle Hole: 3.5"
  • X-Axis Travel: 18.5"
  • Z-Axis Travel: 33.8"
  • Rapid Traverse (X & Y): 787 IPM
  • Number of Tool Positions: 12
  • Standard Turning Tool Size: 1.25"
  • Standard Boring Bar Size: 2"
  • Max. Workpiece Weight: 1874 lbs
  • Machine Hours: Approx. 4,640 Hours
  • Show More
  • Show Less
  • Max. Swing Diameter: 1000.76mm
  • Max. Turning Diameter: 861.06mm
  • Max. Turning Height: 810.26mm
  • Distance From Spindle Face to Turret Surface: 1021.08mm
  • Spindle Speed: 25-1500 RPM
  • Spindle Nose: A2-11
  • Spindle Bearing Diameter: 200.66mm
  • Spindle Hole: 88.90mm
  • X-Axis Travel: 469.90mm
  • Z-Axis Travel: 858.52mm
  • Rapid Traverse (X & Y): 333.16 mm/sec
  • Number of Tool Positions: 12
  • Standard Turning Tool Size: 31.75mm
  • Standard Boring Bar Size: 50.80mm
  • Max. Workpiece Weight: 849.86 kg
  • Machine Hours: Approx. 4,640 Hours
  • Show More
  • Show Less
Equipped With
  • Fanuc 0i-TD CNC Control
  • Chip Conveyor
  • Coolant System w/ Tank
  • Coolant Thru Tool Holder (3 Bar)
  • Hydraulic Power Unit
  • Show More
  • Show Less
  • Fanuc 0i-TD CNC Control
  • Chip Conveyor
  • Coolant System w/ Tank
  • Coolant Thru Tool Holder (3 Bar)
  • Hydraulic Power Unit
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
