Inventory # 43405 Year: 2008

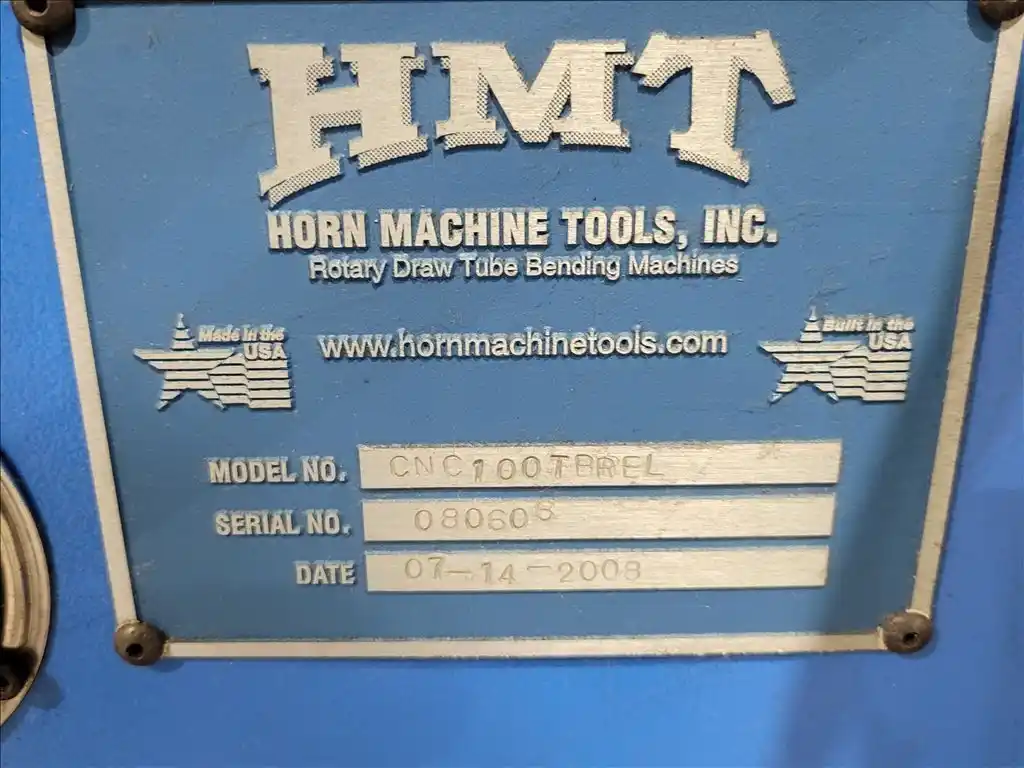

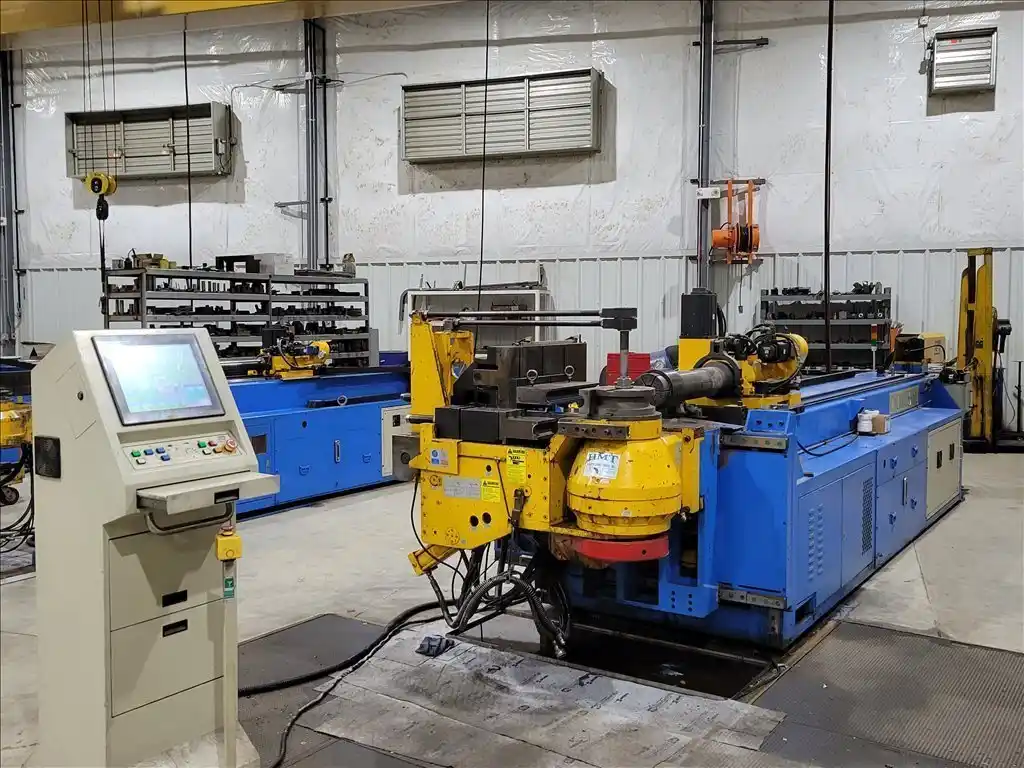

Horn CNC100TBRE-L CNC Tube Bender
Specifications
- Round Tube Bending Capacity
- Mild Steel: 3.94" x 0.12"
- Non-Ferrous: 3.94" x 0.22"
- Stainless: 3.94" x 0.08"
- Square Tube, Mild Steel: 2.76" x 0.12"
- Solid Bar, Mild Steel: 1.57"
- Max. Bending Radius: 1.57" - 13.78"
- Max. Bending Angle: 190°
- Round Tube Rolling Capacity
- Mild Steel: 3.94" x 0.12"
- Non-Ferrous: 3.94" x 0.22"
- Stainless: 3.94" x 0.08"
- Square Tube, Mild Steel: 2.76" x 0.12"
- Solid Bar, Mild Steel: 1.57"
- Max. Difference Between Two Radii: 3.94"
- Max. Length Over Mandrel: 157.48"
- Max. Pipe O.D. for Repeat Feeding: 2.13"
- Working Height: 47.24"
- Tooling Center Line Height: 2.76"
- Bending Speed: 50° / sec
- Bending Accuracy: +/- 0.0004"
- Feed Speed: 378 IPM - 2315 IPM
- Feed Accuracy: 0.004"
- POB Rotation Speed: 120° / 0.004"
- POB Rotation Accuracy: +/- 0.1°
- Hydraulic Motor: 15.0 HP
- Total Power: 56.3 HP
- Show More
- Show Less
- Round Tube Bending Capacity
- Mild Steel: 100mm x 3mm
- Non-Ferrous: 100mm x 5.5mm
- Stainless: 100mm x 2mm
- Square Tube, Mild Steel: 70mm x 3mm
- Solid Bar, Mild Steel: 40mm
- Max. Bending Radius: 40mm - 350mm
- Max. Bending Angle: 190°
- Round Tube Rolling Capacity
- Mild Steel: 100mm x 3mm
- Non-Ferrous: 100mm x 5.5mm
- Stainless: 100mm x 2mm
- Square Tube, Mild Steel: 70mm x 3mm
- Solid Bar, Mild Steel: 40mm
- Max. Difference Between Two Radii: 100mm
- Max. Length Over Mandrel: 4000mm
- Max. Pipe O.D. for Repeat Feeding: 54mm
- Working Height: 1200mm
- Tooling Center Line Height: 70mm
- Bending Speed: 50° / sec
- Bending Accuracy: +/-0.01mm
- Feed Speed: 160 mm/sec - 980 mm/sec
- Feed Accuracy: +/- 0.1mm
- POB Rotation Speed: 120° / 1mm
- POB Rotation Accuracy: +/-0.1°
- Hydraulic Motor: 11.2 kW
- Total Power: 42 kW
- Show More
- Show Less
Equipped With

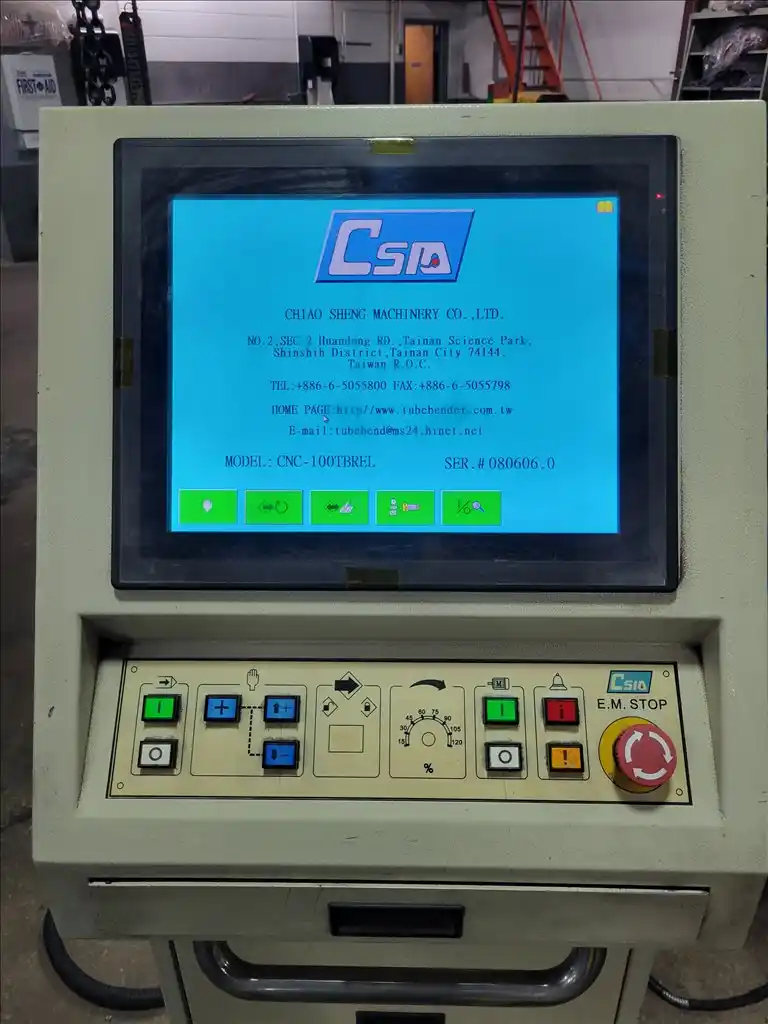

- M3 CNC Control
- Electric Swing Arm
- Anticipated Mandrel Retraction Unit
- Automatic Mandrel Lubricator (20L)
- Double Stack Tooling
- Left Hand Bending
- Facility for Draw Bending and Push Bending
- Y, B, C, X Axes Servo Motor Drive
- Y-Axis Alternative Repeat Feeding or Grip End Feeding Function
- C-Axis Electric Drive
- Z-Axis Hydraulic Cam Lift Device
- Metric and Inch Setting
- 4-Program Auto Mode
- Automatic Positioning of Y-Axis
- Pressure Die Assist
- Air Cooling
- Foot Pedal Cycle
- Wiper Die Bracket
- Show More
- Show Less
- M3 CNC Control
- Electric Swing Arm
- Anticipated Mandrel Retraction Unit
- Automatic Mandrel Lubricator (20L)
- Double Stack Tooling
- Left Hand Bending
- Facility for Draw Bending and Push Bending
- Y, B, C, X Axes Servo Motor Drive
- Y-Axis Alternative Repeat Feeding or Grip End Feeding Function
- C-Axis Electric Drive
- Z-Axis Hydraulic Cam Lift Device
- Metric and Inch Setting
- 4-Program Auto Mode
- Automatic Positioning of Y-Axis
- Pressure Die Assist
- Air Cooling
- Foot Pedal Cycle
- Wiper Die Bracket
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
