Inventory # 43407 Year: 2006

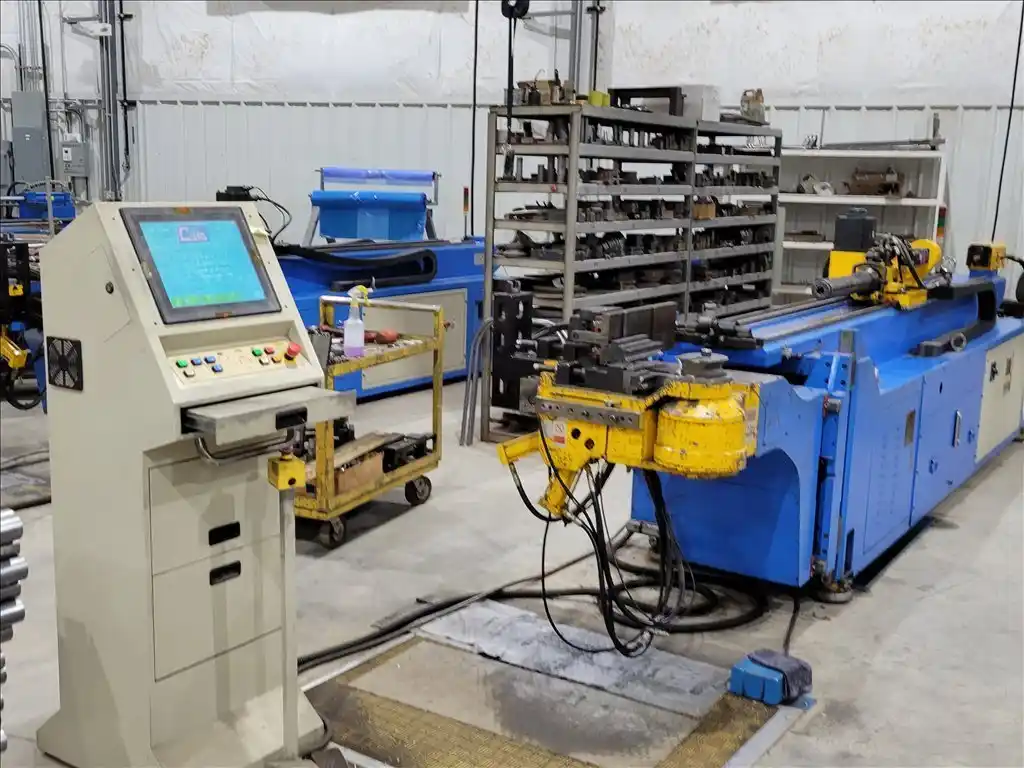

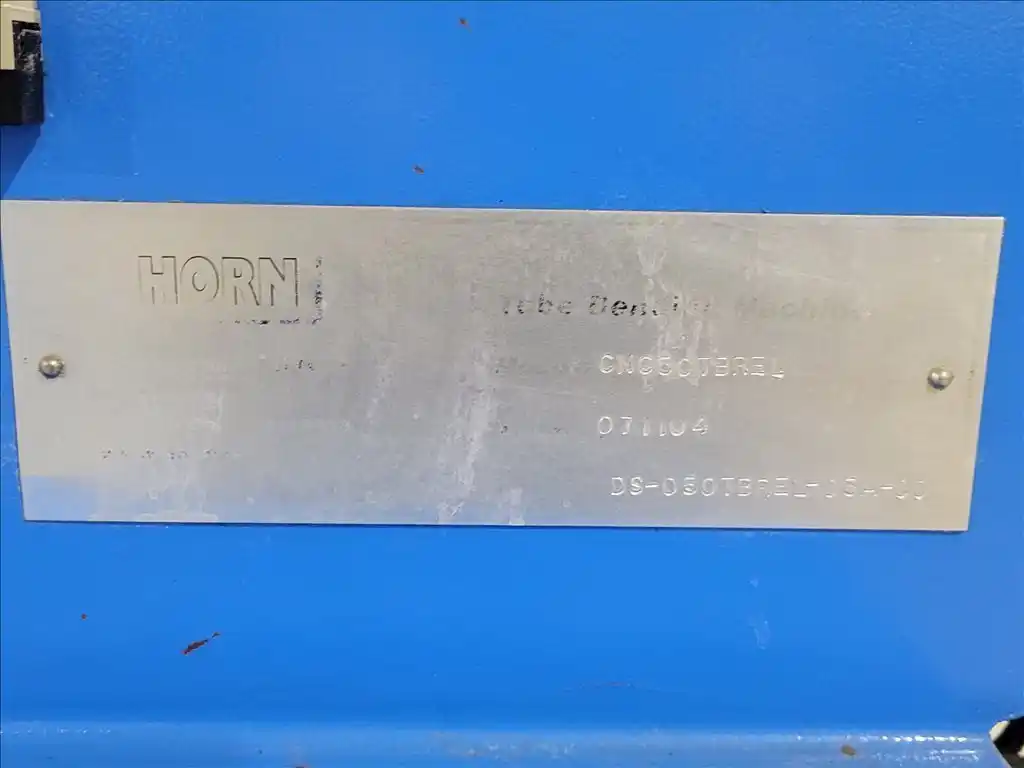

Horn CNC50TBRE CNC Tube Bender
Specifications
- Bending Capacities
- Round Tube, Mild Steel: 2.00" x0.08"
- Round Tube, Non-Ferrous 2.00" x0.14"
- Round Tube, Stainless: 2.00" x0.05"
- Square Tube, Mild Steel: 1.57" x0.08"
- Solid Bar, Mild Steel: 0.98"
- Max. Bending Radius: 1.18" -8.66"
- Max. Bending Angle: 190°
- Rolling Capacities
- Round Tube, Mild Steel: 2.00" x0.08"
- Round Tube, Non-Ferrous: 2.00" x0.14"
- Round Tube, Stainless Steel: 2.00" x0.05"
- Square Tube, Mild Steel: 1.57" x0.08"
- Solid Bar, Mild Steel: 0.98"
- Min. Rolling Radius: 7D
- Max. Difference Between Two Radii: 2.56"
- Max. Length over Mandrel: 125.98"
- Max. Pipe O.D./ For Repeat Feeding: 2.00"
- Working Height: 43.31"
- Tooling Center Line Height: 1.57"
- DOB (Bending) Speed: 105° / sec
- Accuracy of DOB (Bending): +/-0.01°
- DBB (Feeding) Speed: 1724 IPM
- Accuracy of DBB (Feeding): +/-0.00"
- POB (Rotation) Speed: 270° / mm
- Accuracy of POB (Rotation): +/- 0.1°
- Motor for Hydraulic: 5.1HP
- Total Power: 24.1HP
- Max. Pressure: 308.00 lbsf / c
- Show More
- Show Less
- Bending Capacities
- Round Tube, Mild Steel: 50.8mm x 2mm
- Round Tube, Non-Ferrous 50.8mm x 3.5mm
- Round Tube, Stainless: 50.8mm x 1.3mm
- Square Tube, Mild Steel: 40mm x 2mm
- Solid Bar, Mild Steel: 25mm
- Max. Bending Radius: 30mm - 220mm
- Max. Bending Angle: 190°
- Rolling Capacities
- Round Tube, Mild Steel: 50.8mm x 2mm
- Round Tube, Non-Ferrous: 50.8mm x 3.5mm
- Round Tube, Stainless Steel: 50.8mm x 1.3mm
- Square Tube, Mild Steel: 40mm x 2mm
- Solid Bar, Mild Steel: 25mm
- Min. Rolling Radius: 7D
- Max. Difference Between Two Radii: 65mm
- Max. Length over Mandrel: 3200mm
- Max. Pipe O.D./ For Repeat Feeding: 50.8mm
- Working Height: 1100mm
- Tooling Center Line Height: 40mm
- DOB (Bending) Speed: 105° / sec
- Accuracy of DOB (Bending): +/-0.01°
- DBB (Feeding) Speed: 730mm/sec
- Accuracy of DBB (Feeding): +/- 0.1mm
- POB (Rotation) Speed: 270° / mm
- Accuracy of POB (Rotation): +/- 0.1°
- Motor for Hydraulic: 3.8 kw
- Total Power: 18 kw
- Max. Pressure: 140 kgf / c
- Show More
- Show Less
Equipped With
- M3 CNC Control
- Double Stack Tooling
- Right Hand Bending
- Facility for Draw Bending and Push Bending
- Y, B, C, X Axes Servo Motor Drive
- Y-Axis Alternative Repeat Feeding or Grip End Feeding Function
- C-Axis Electric Drive
- Z-Axis Hydraulic Cam Lift Device
- Metric and Inch Setting
- 4-Program Auto Mode
- Automatic Positioning of Y-Axis
- Pressure Die Assist
- Air Cooling
- Foot Pedal Cycle
- Wiper Die Bracket
- Show More
- Show Less
- M3 CNC Control
- Double Stack Tooling
- Right Hand Bending
- Facility for Draw Bending and Push Bending
- Y, B, C, X Axes Servo Motor Drive
- Y-Axis Alternative Repeat Feeding or Grip End Feeding Function
- C-Axis Electric Drive
- Z-Axis Hydraulic Cam Lift Device
- Metric and Inch Setting
- 4-Program Auto Mode
- Automatic Positioning of Y-Axis
- Pressure Die Assist
- Air Cooling
- Foot Pedal Cycle
- Wiper Die Bracket
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
