Inventory # 48715 Year: 1997

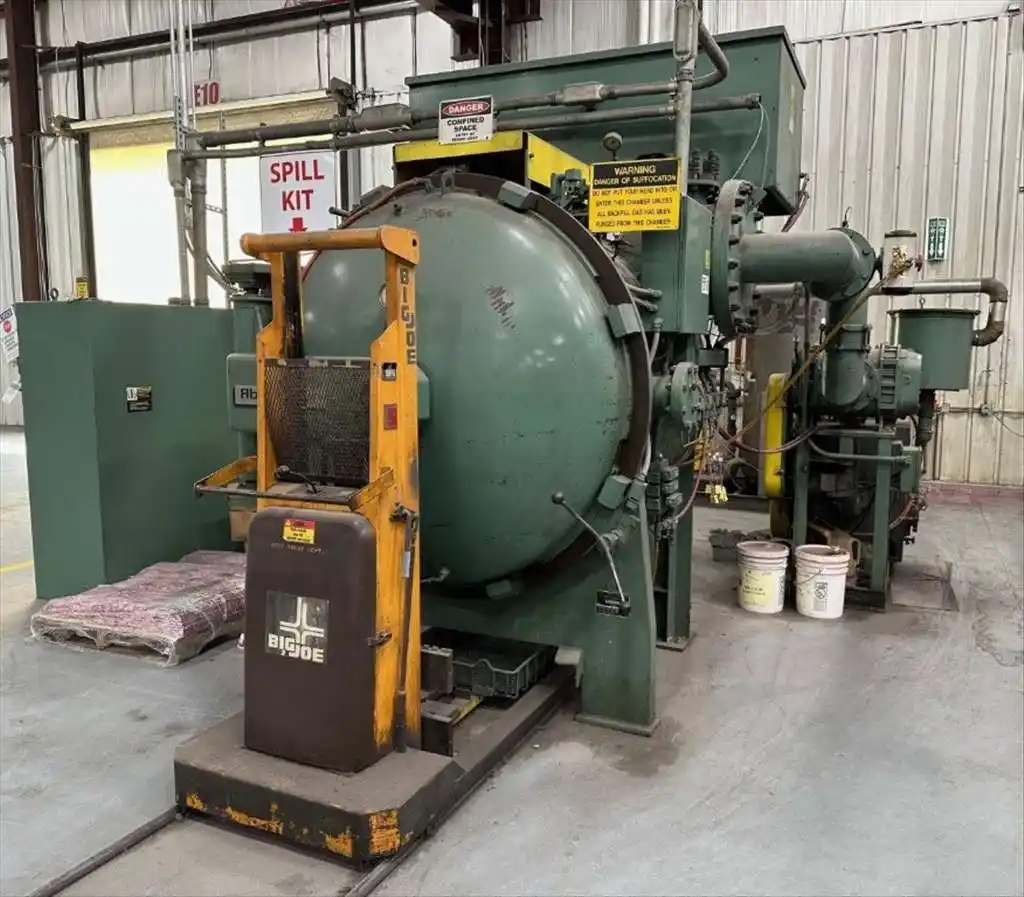

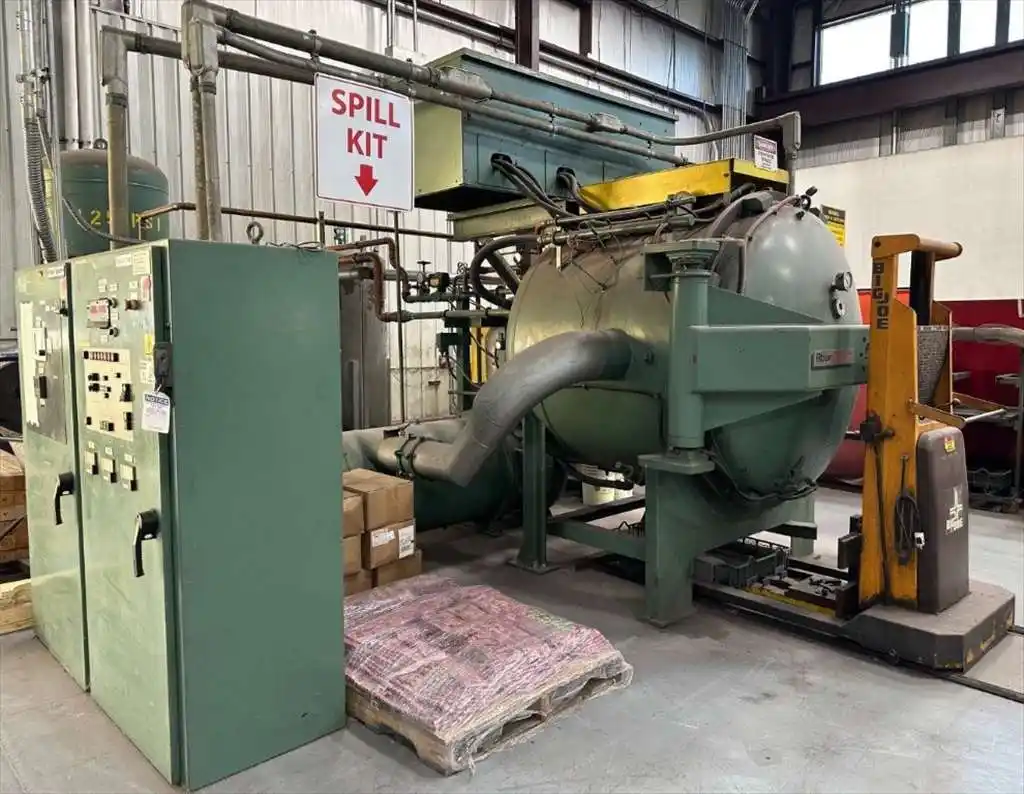

Abar Ipsen MetalMaster HR34x40 2 Bar Nitrogen Quench Horizontal Vacuum Furnace

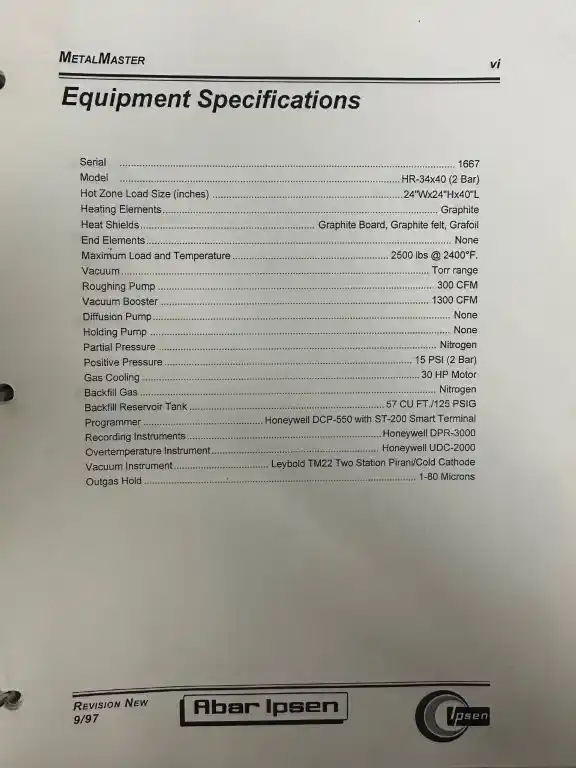

Specifications

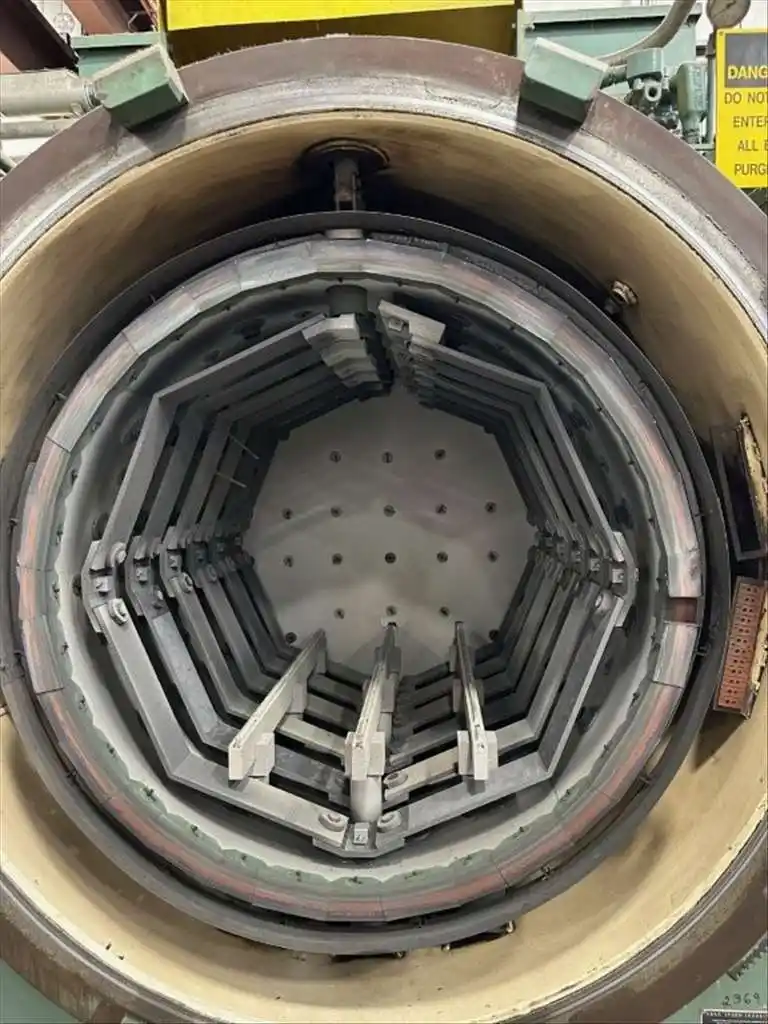

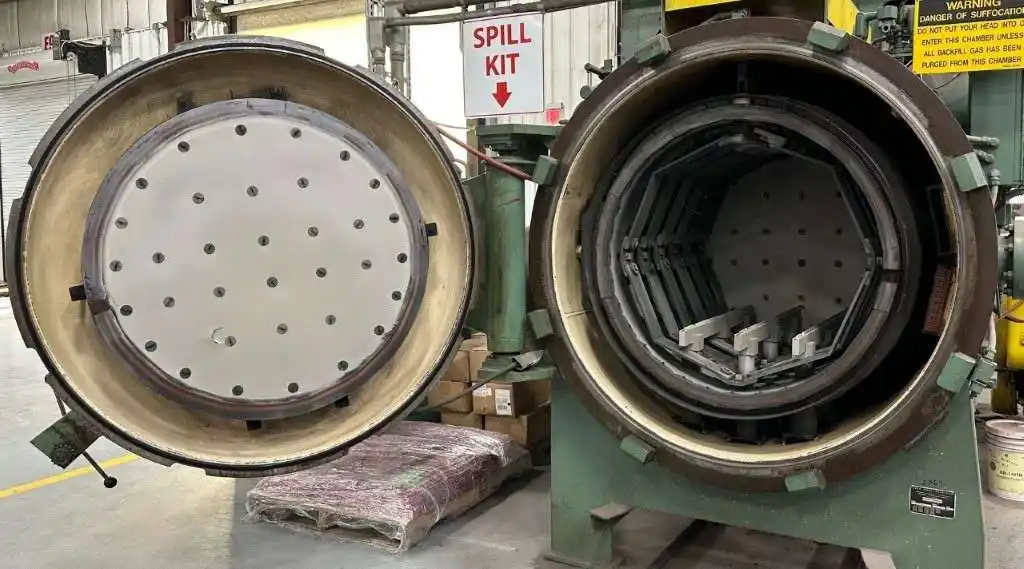

- Hot Zone
- Hot Zone Size: 24"W x 24"H x 40"L

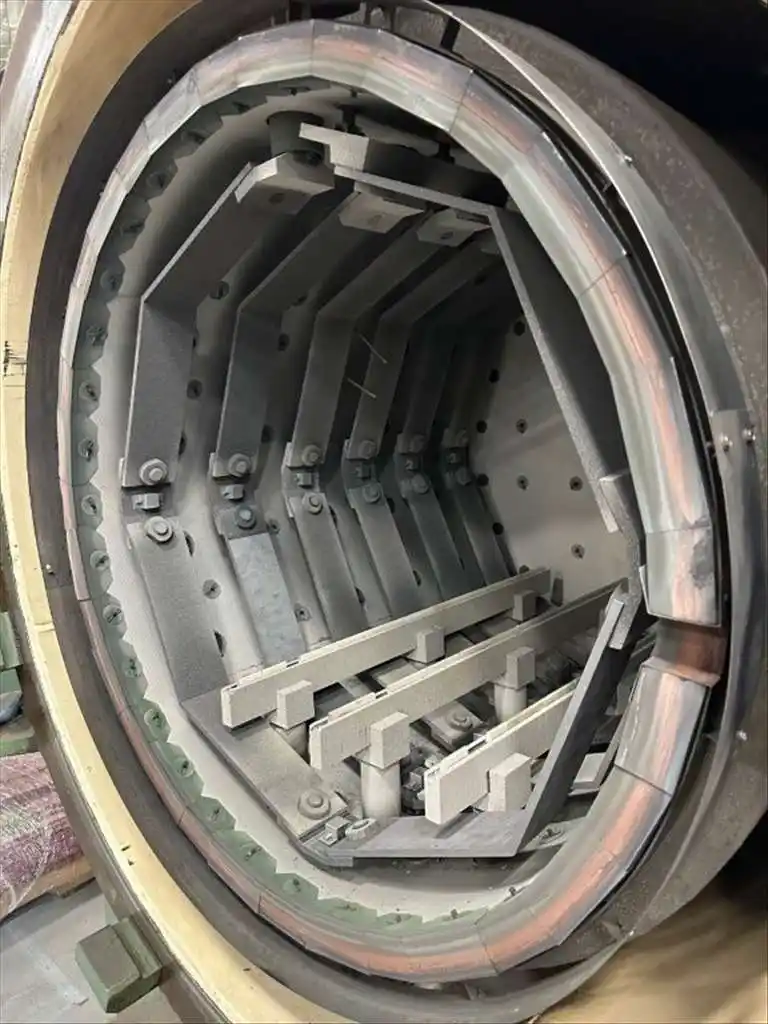

- Heating Elements: Graphite
- Heat Shields: Graphite Board, Graphite Felt, Grafoil
- Capacity
- Max. Load @ Temperature: 2,500 lb. @ 2,400°F
- Vacuum System

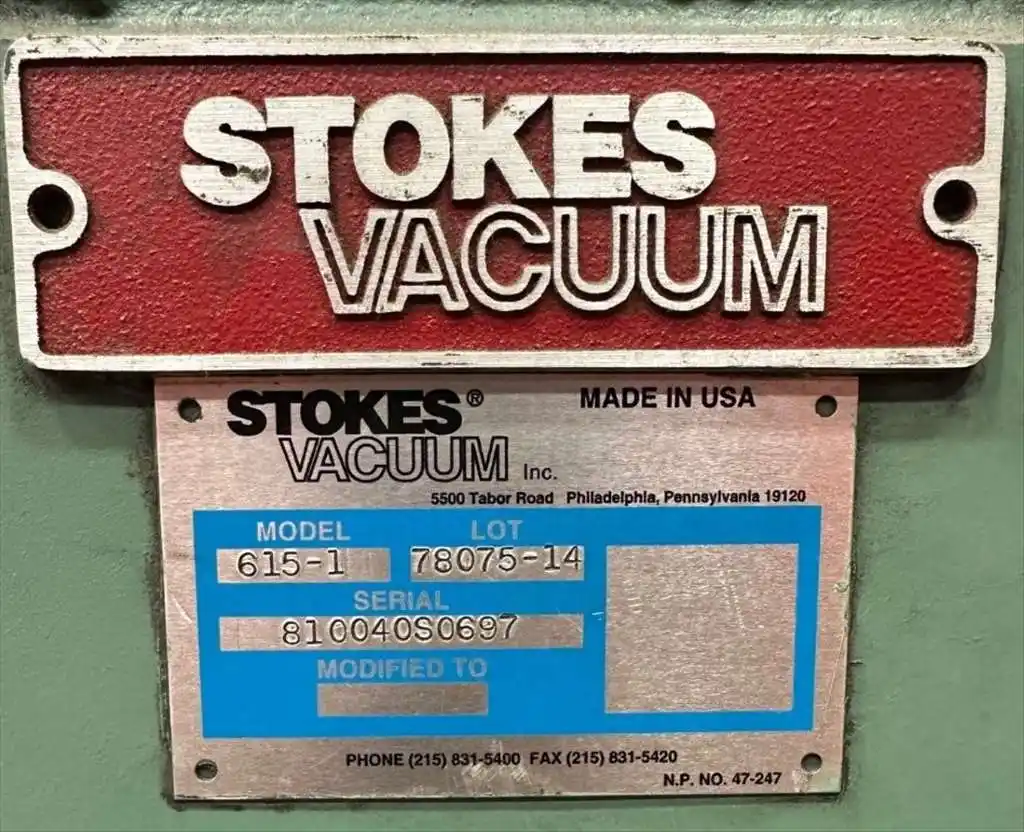

- Roughing Pump: 300 CFM
- Vacuum Booster: 1,300 CFM
- Vacuum Range: 1-80 Microns
- Cooling & Gas System

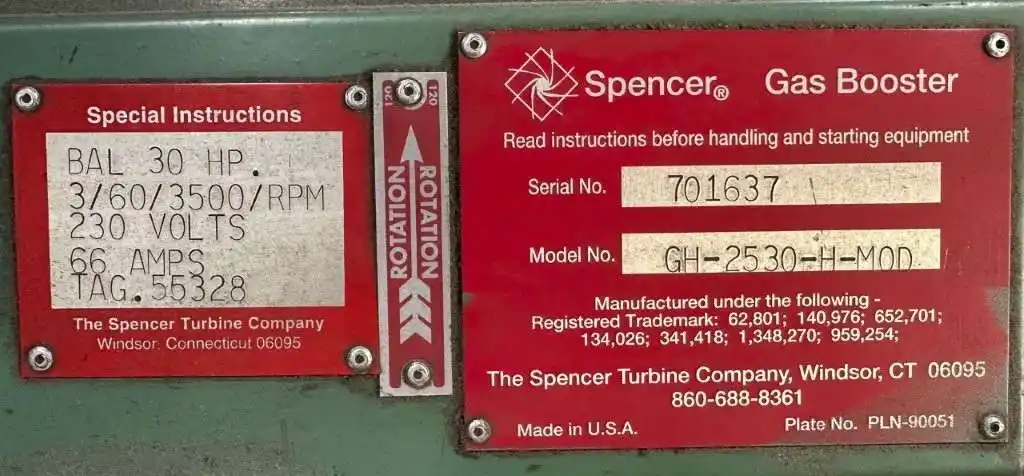

- Gas Cooling Motor: 30 HP
- Backfill Gas: Nitrogen
- Partial Pressure Gas: Nitrogen
- Backfill Reservoir Tank: 57 cu. ft. @ 125 PSIG
- Positive Pressure Rating: 15 PSI (2 Bar)
- Show More
- Show Less
- Hot Zone
- Hot Zone Size: 610mmW x 610mmH x 1016mmL
- Heating Elements: Graphite
- Heat Shields: Graphite Board, Graphite Felt, Grafoil
- Capacity
- Max. Load @ Temperature: 1,134 kg @ 1,316°C
- Vacuum System
- Roughing Pump: 300 CFM
- Vacuum Booster: 1,300 CFM
- Vacuum Range: 1-80 Microns
- Cooling & Gas System
- Gas Cooling Motor: 22.4 kw
- Backfill Gas: Nitrogen
- Partial Pressure Gas: Nitrogen
- Backfill Reservoir Tank: 57 cu. ft. @ 8.8 kgs./sq.cm.
- Positive Pressure Rating: 1.05 kgs./sq.cm.
- Show More
- Show Less
Equipped With

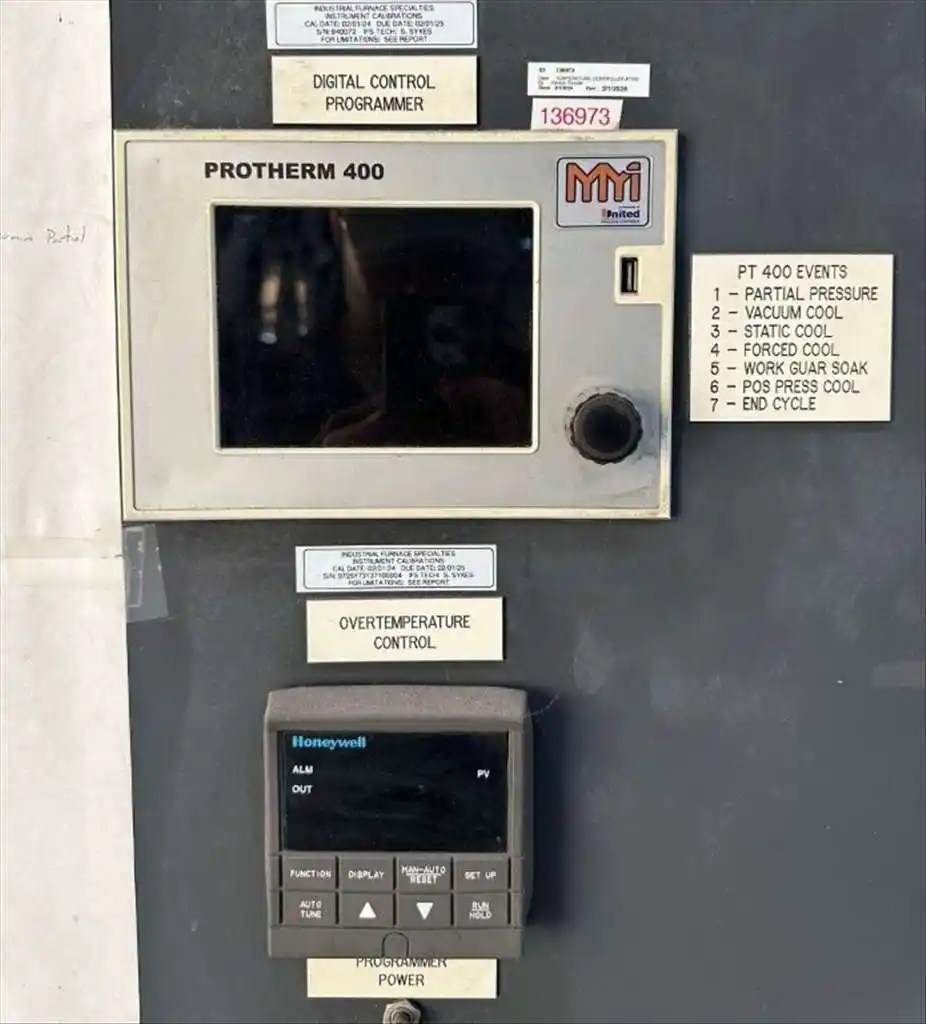

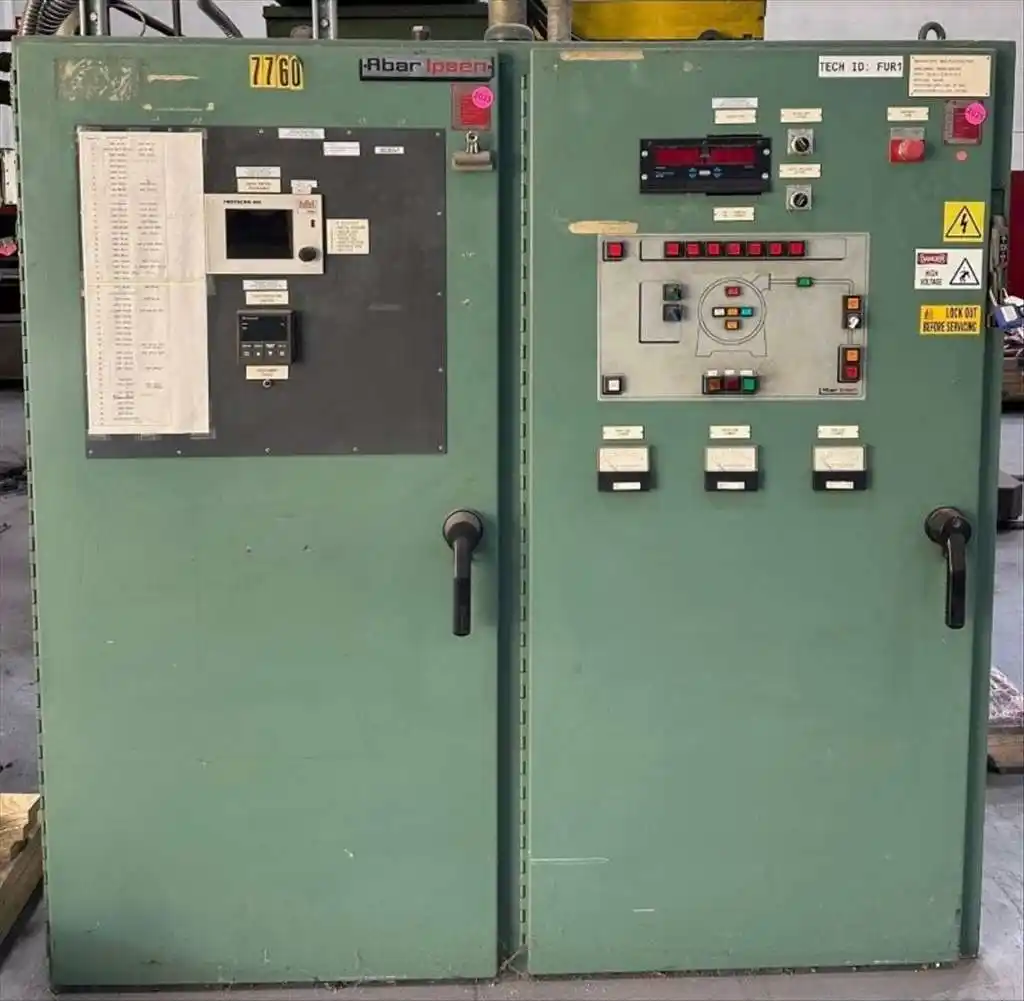

- Protherm 400 Digital Furnace Control
- Honeywell UDC-2000 Overtemperature Control

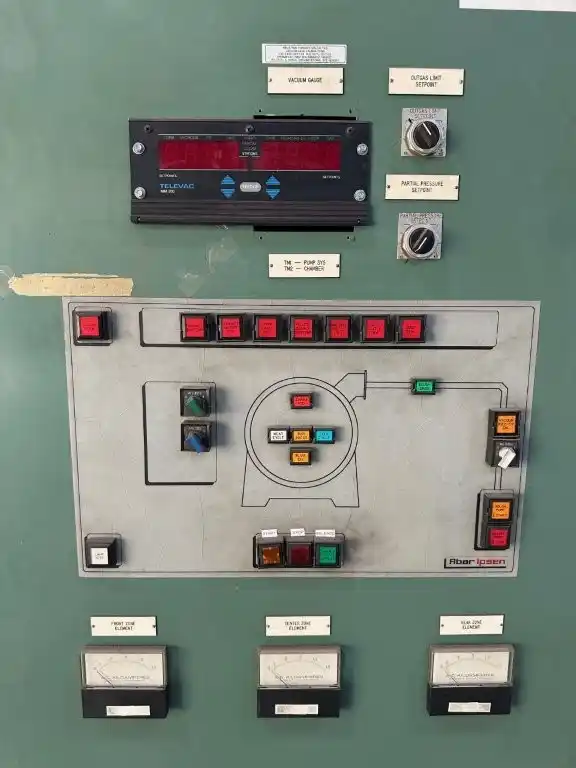

- Two Station Pirani/Cold Cathode Vacuum Instrument

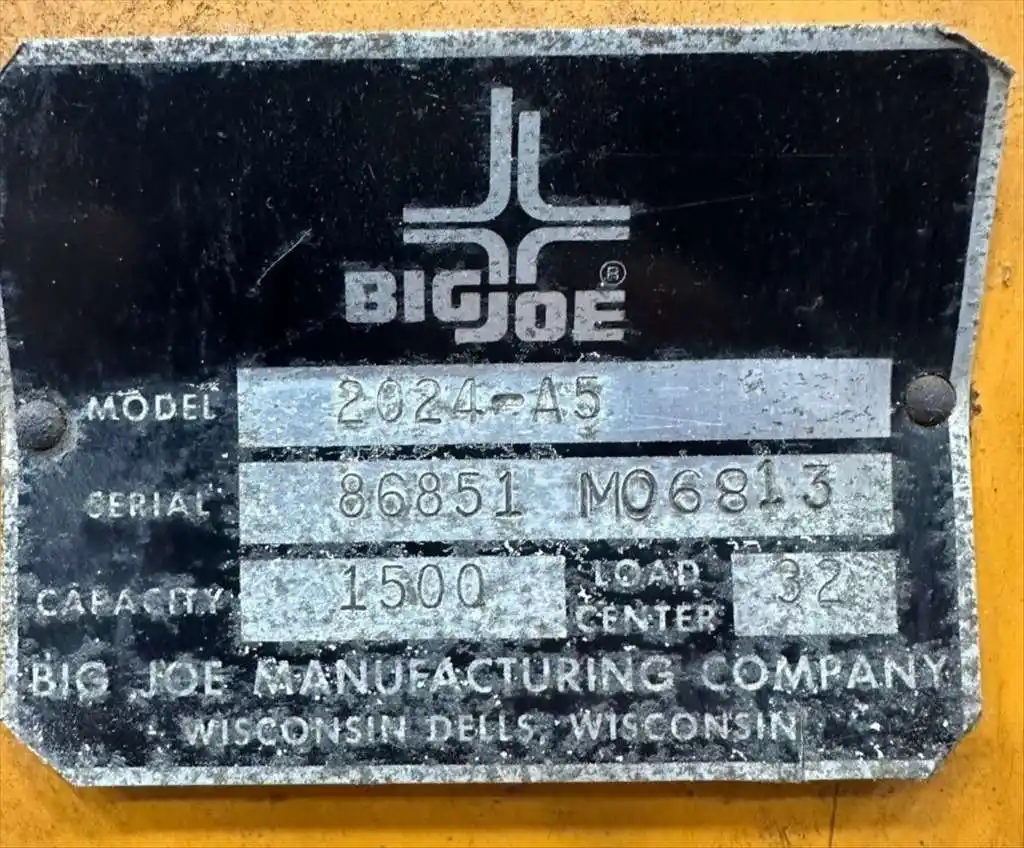

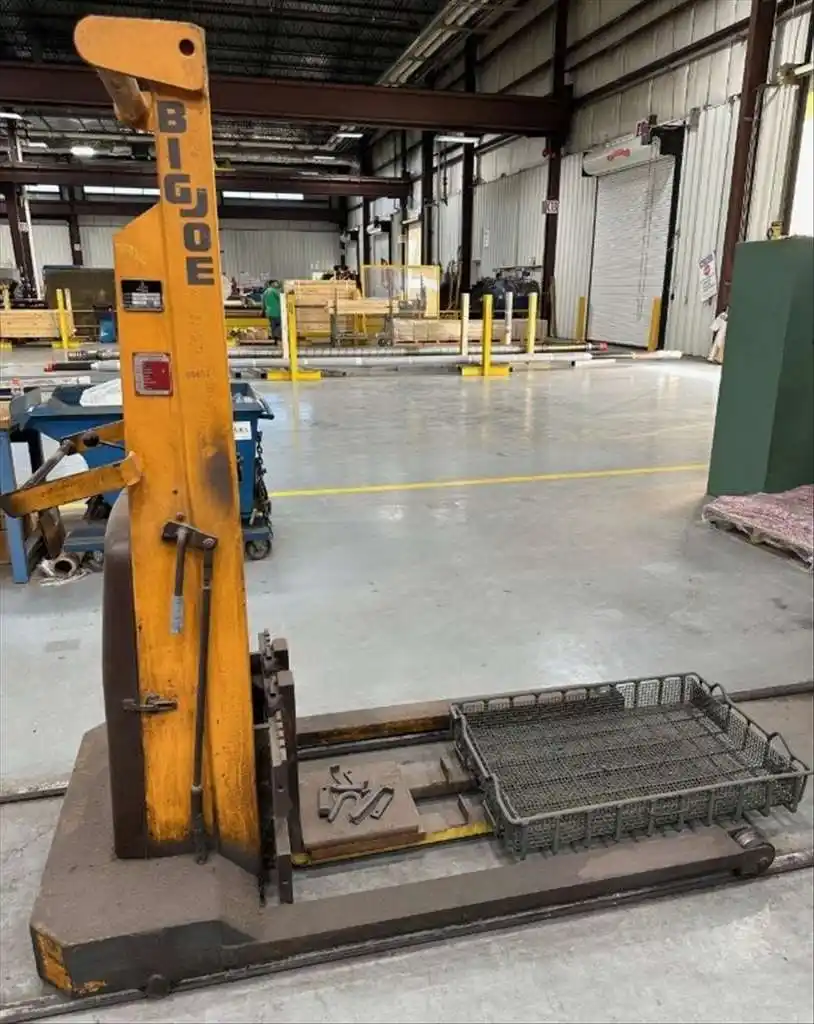

- Big Joe 2024-A5 Straddle Stacker, 1,500 lb. Capacity
- Protherm 400 Digital Furnace Control
- Honeywell UDC-2000 Overtemperature Control
- Two Station Pirani/Cold Cathode Vacuum Instrument
- Big Joe 2024-A5 Straddle Stacker, 680 kg Capacity
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
