Inventory # 48089 Year: 2016 Very Limited Production Usage

GEMA Complete Powder Coat Paint System

Request a Quote
Measurement

Thank you for your interest, please note the following: THIS ITEM IS OFFERED FOR SALE BY "ONLINE AUCTION" and is part of the "Closure of Leading Bicycle Manufacturer" auction. Lots from this online-only auction will begin closing at 10 AM ET on Tuesday, September 9.

Specifications
  • Work Piece Data
  • Max. Height: 46"
  • Max. Width: 30"
  • Max. Length: 17"
  • Min. Part Clearance: +/- 6"
  • Top of Part - Top of Rail Distance (Min): 42"
  • Production Data
  • Conveyor Speed: 12 ft/min
  • Max. Product Throughput: 11,000 lb./hr
  • Max. Coated Area: 2,000 sqft/hr

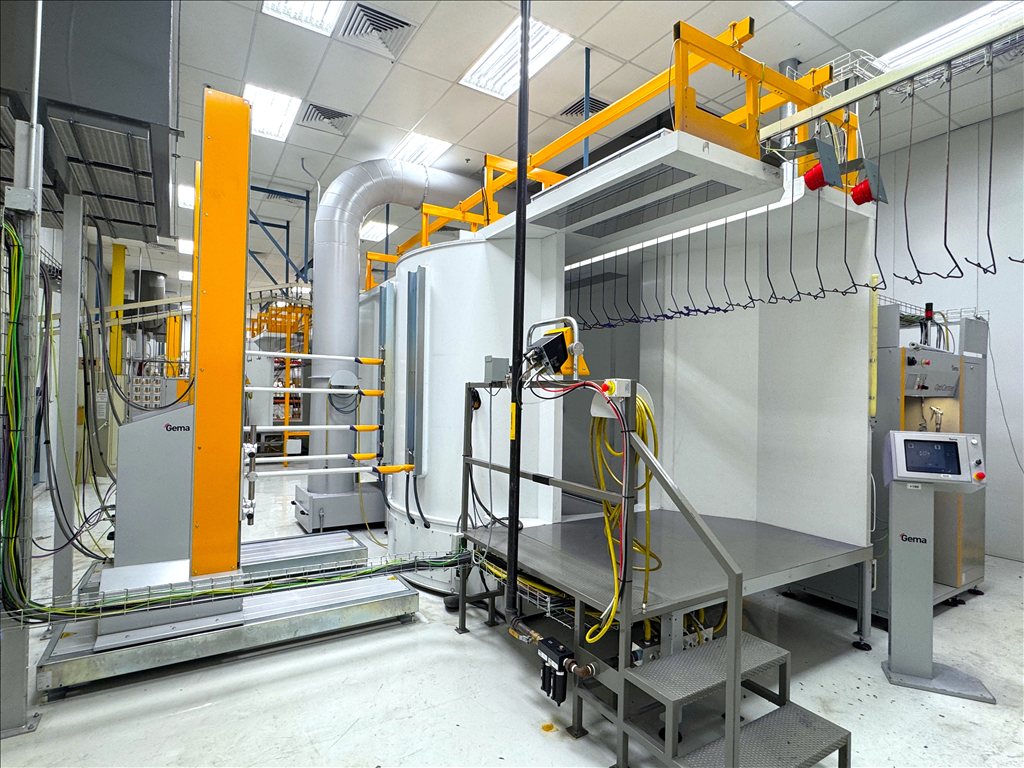

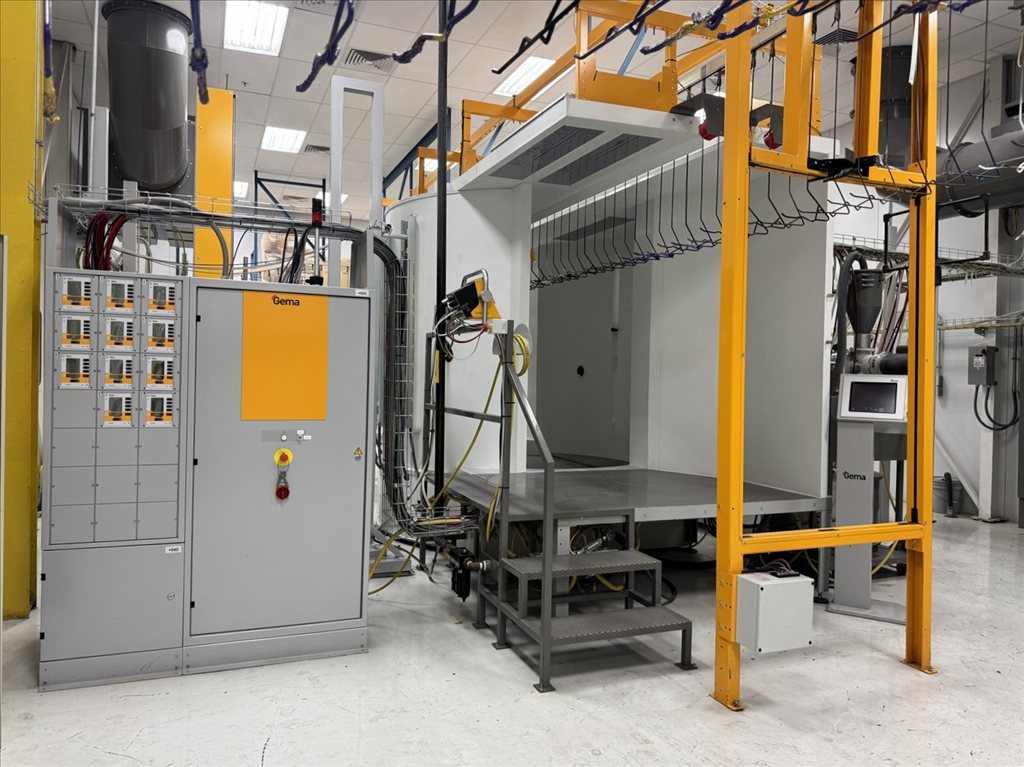

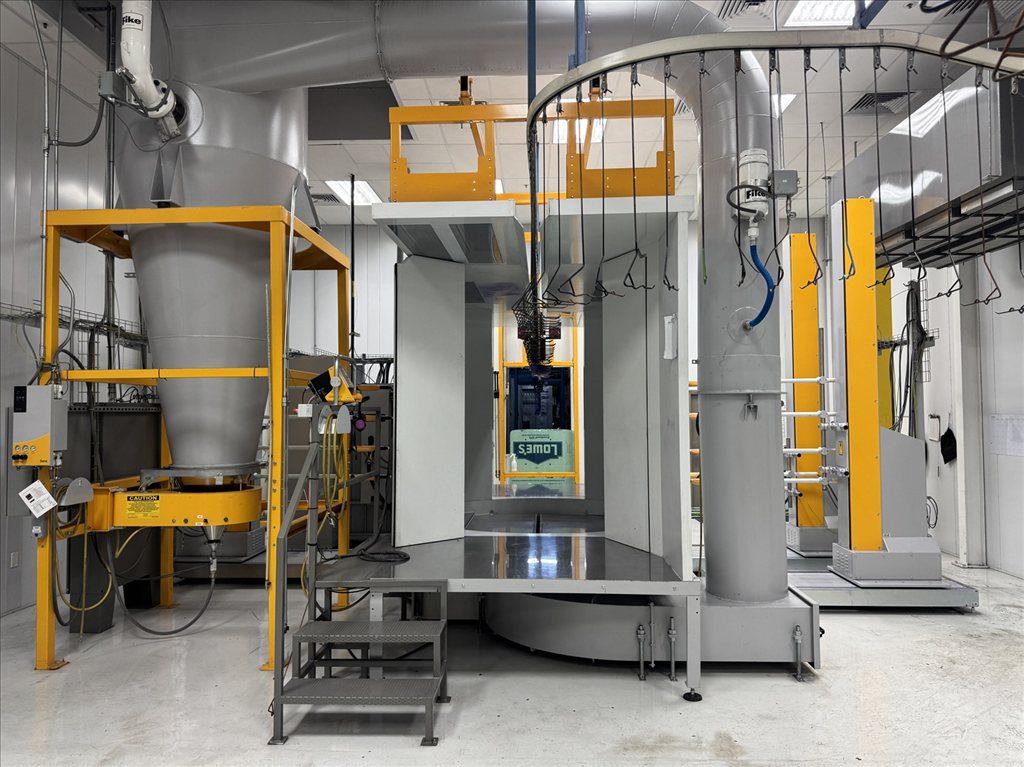

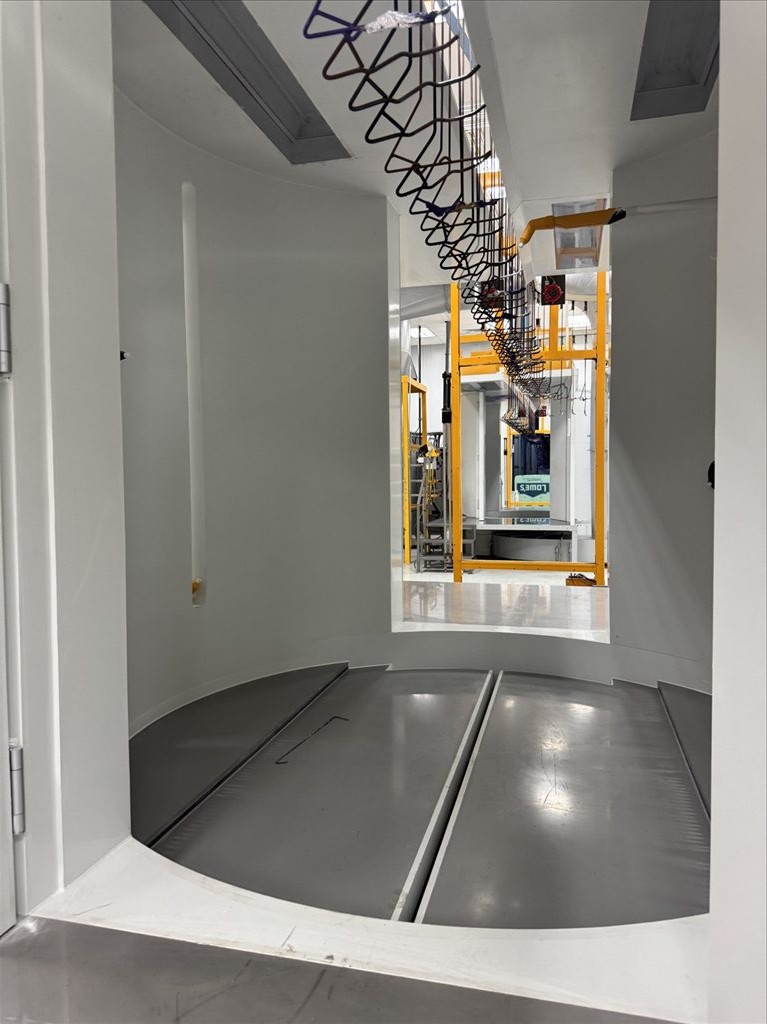

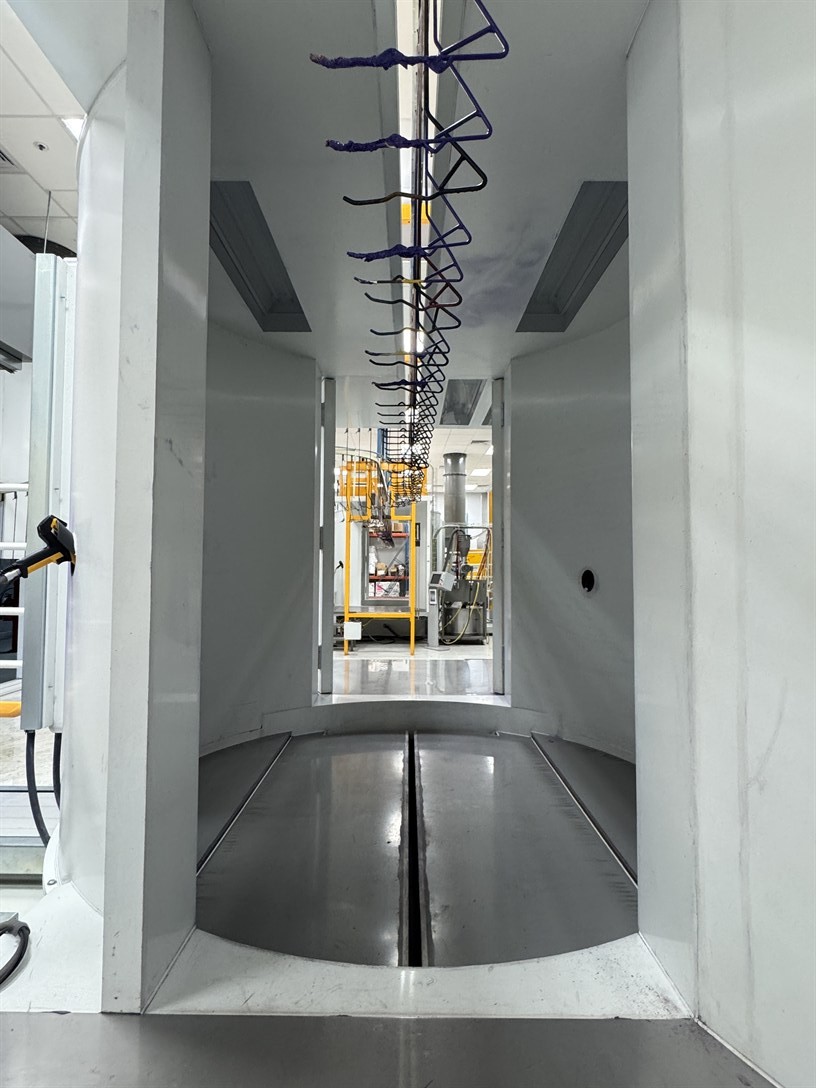

  • MagicCylinder Equiflow QCS04 Base Coat Booth
  • Product Opening: 42"W x 82"H
  • Usable Product Opening Height: 58"
  • Booth Length: 20'
  • Booth Height: 10'
  • Booth Diameter: 8'10"
  • Conveyor Slot Width: 4"
  • Air Flow: 12,000 CFM
  • Opening Face Velocity: 150 LFPM
  • Manual Touch-Up Stations: 2

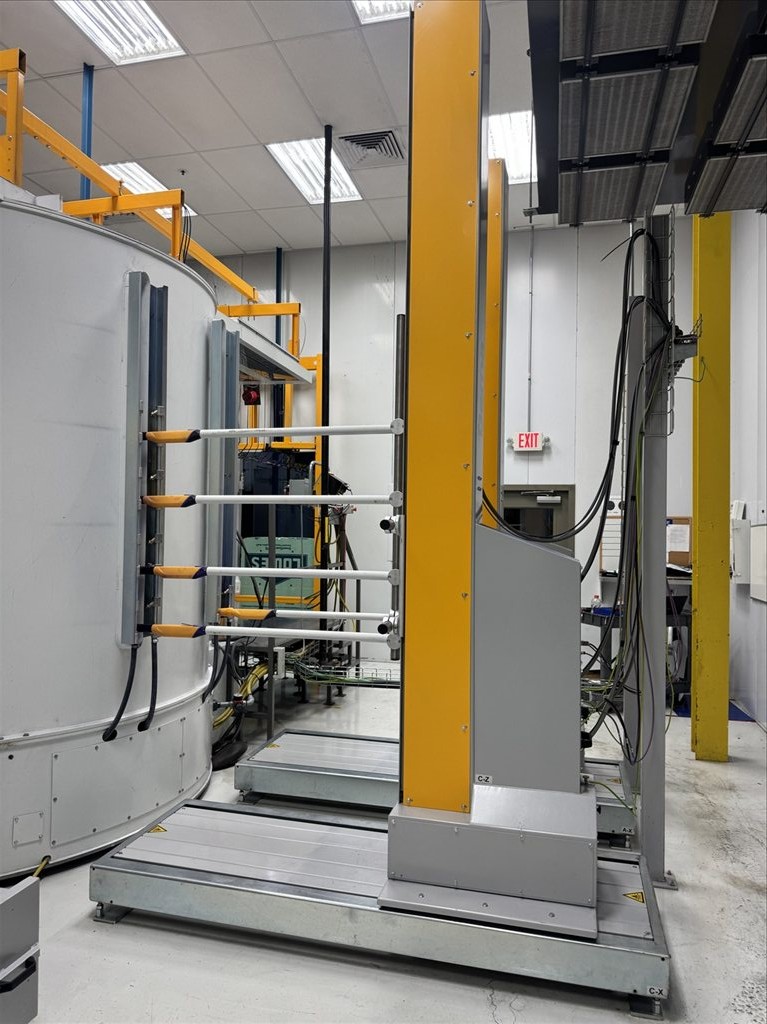

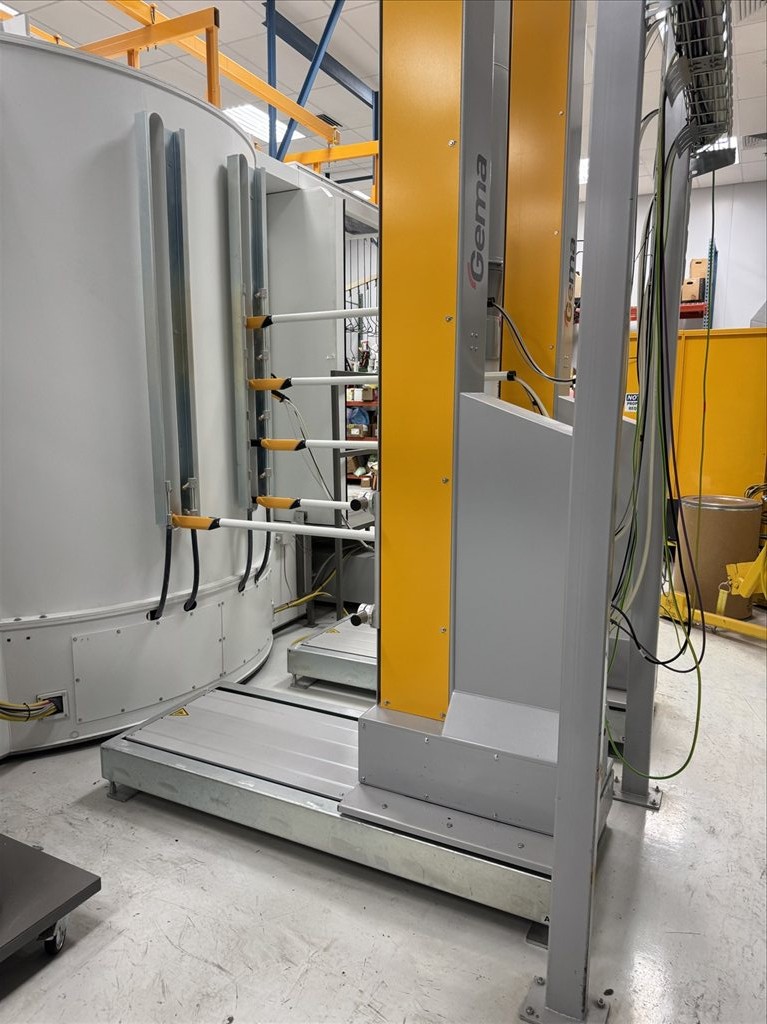

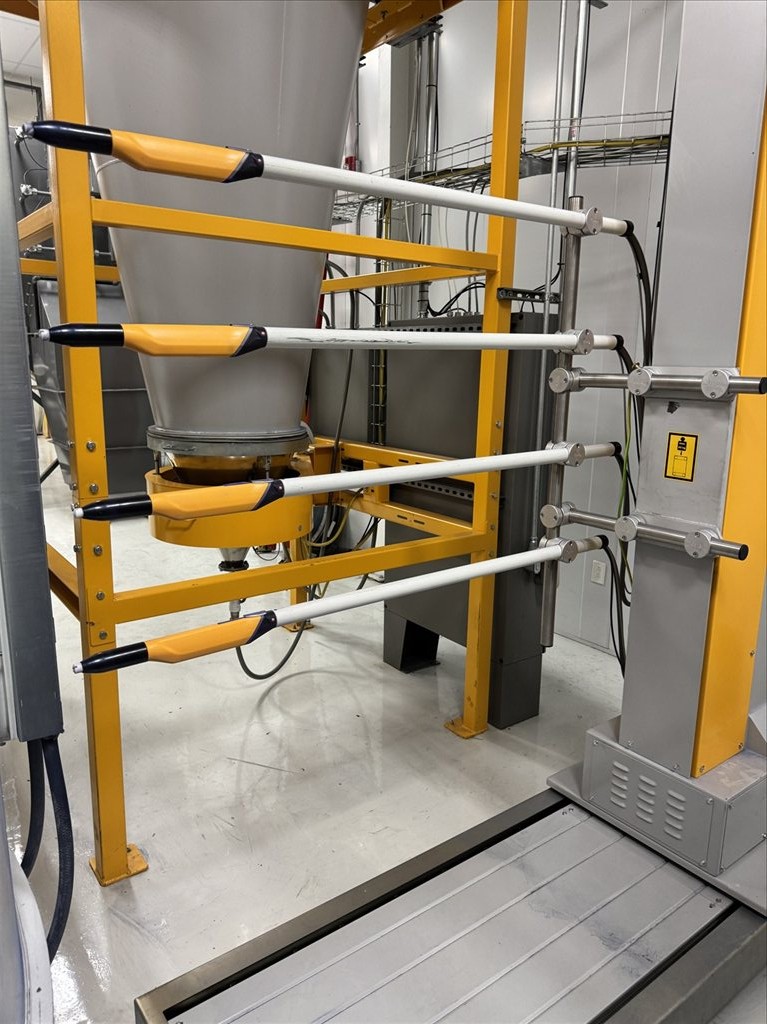

  • Number of Automatic Gun Slots: 3

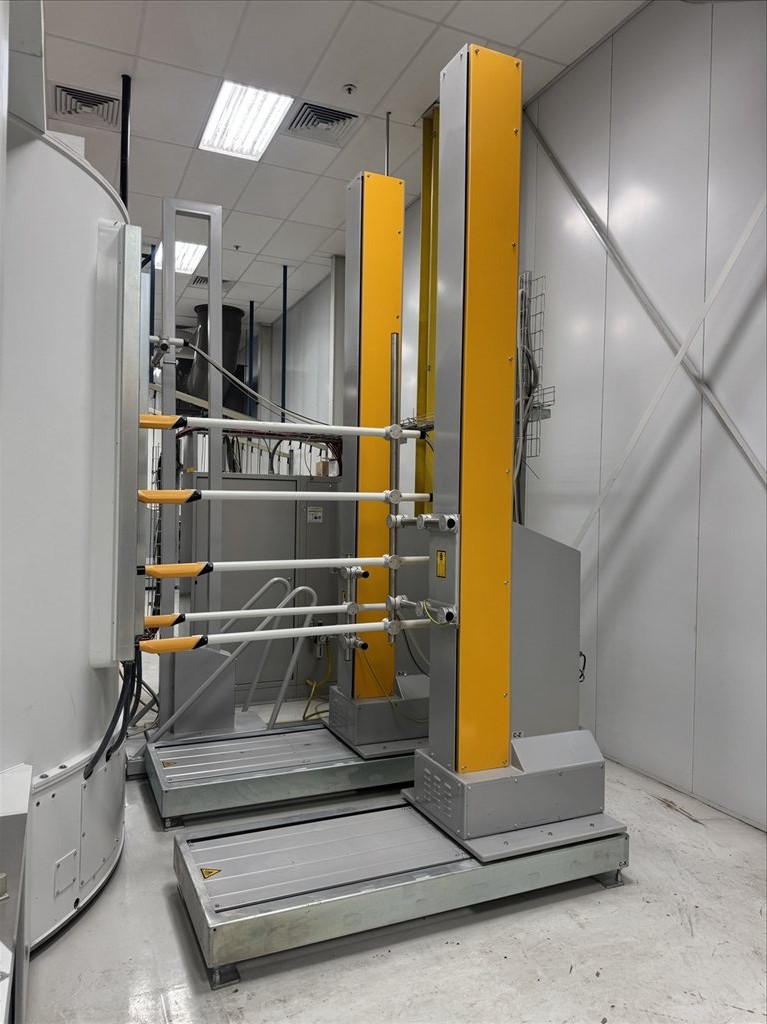

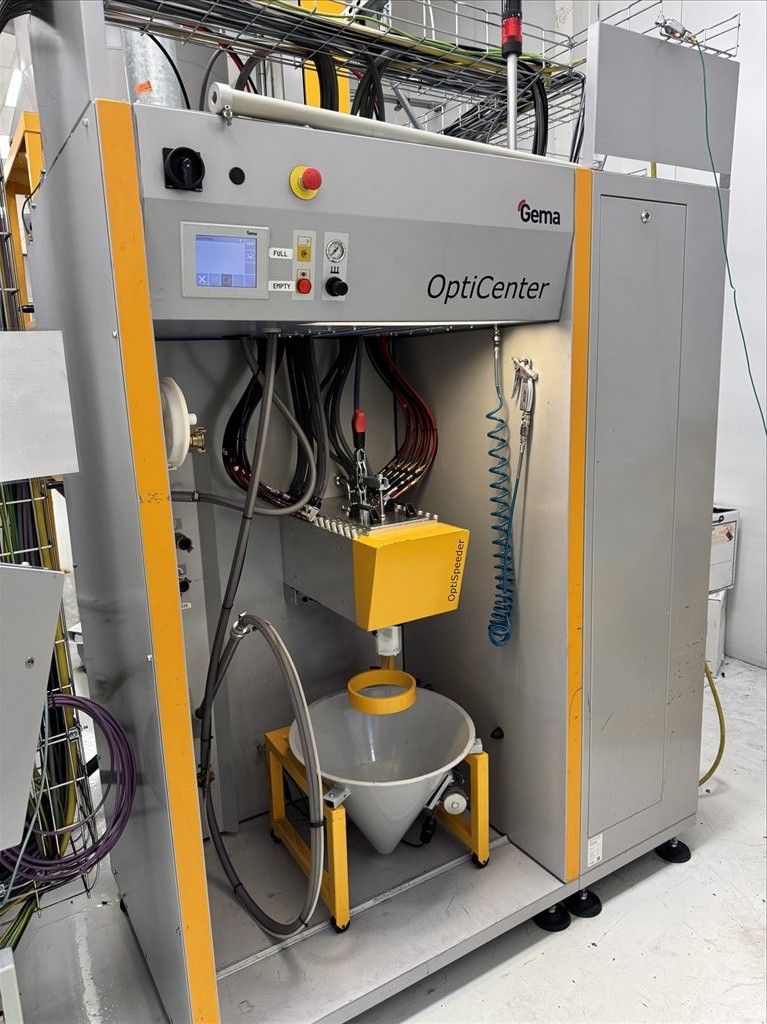

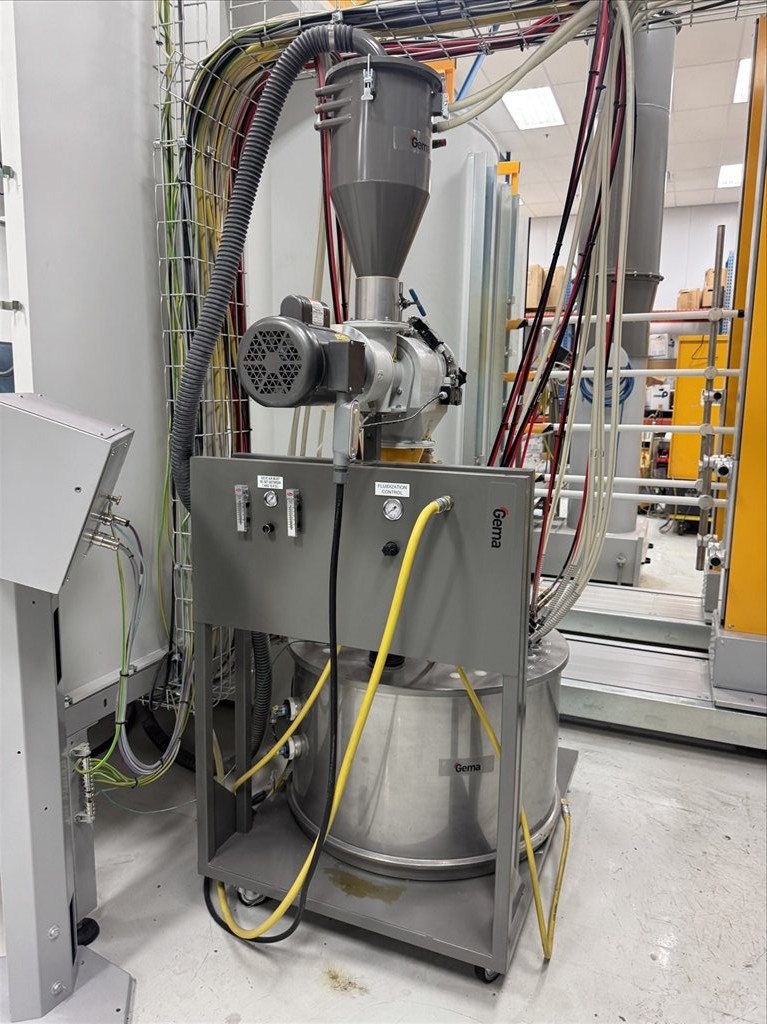

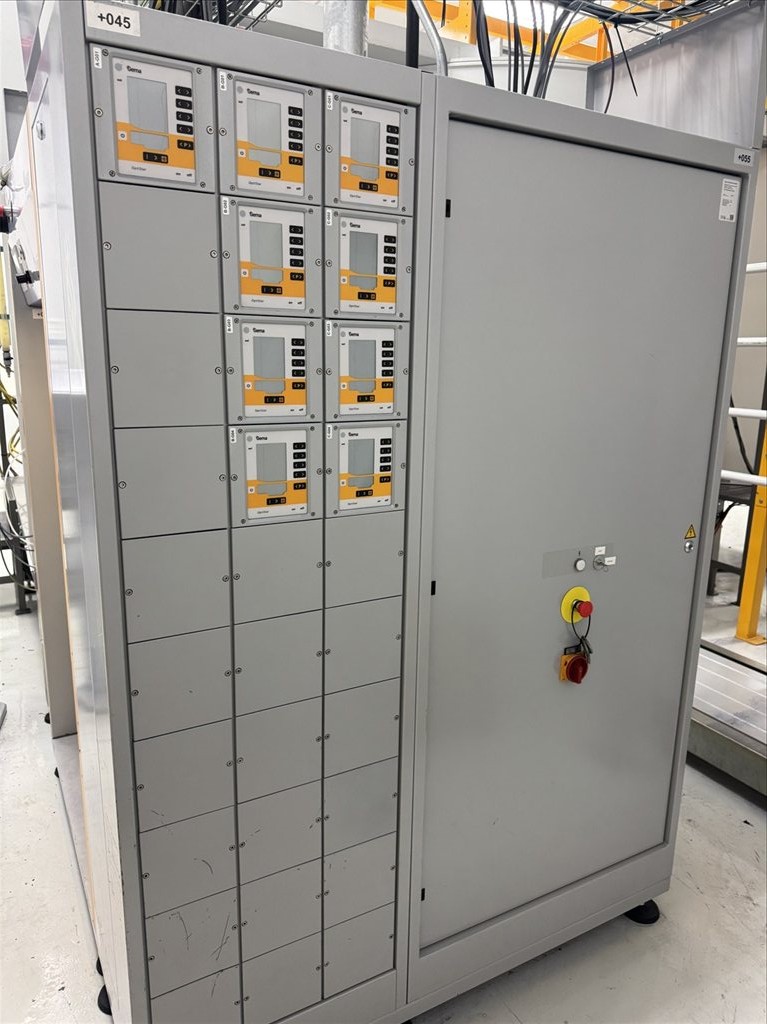

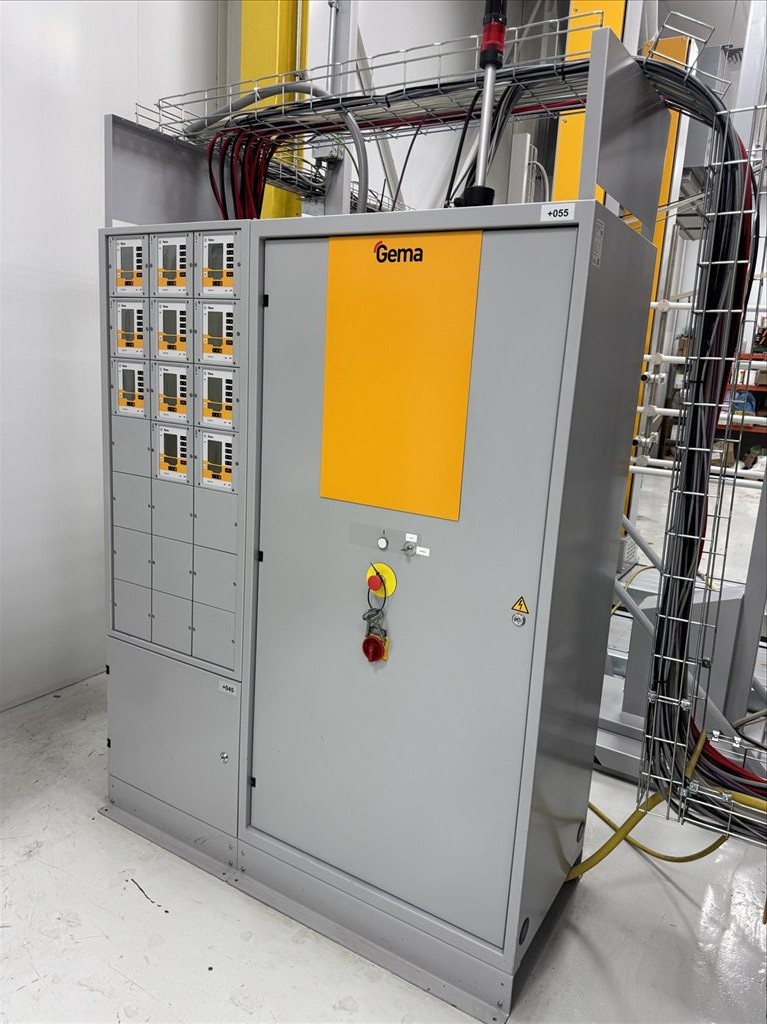

  • Including: Re-Claim System, MagicControl CM30 Control, OptiCenter Intergrated Powder Management System, (9) OptiGun GA03-X Automatic Guns w/ OptiStar Control Units, and More...
  • MagicCylinder Equiflow QCS04 Top & Clear Coat Booth
  • Product Opening: 42"W x 82"H
  • Usable Product Opening Height: 58"
  • Booth Length: 20'
  • Booth Height: 10'
  • Booth Diameter: 8'10"
  • Conveyor Slot Width: 4"
  • Air Flow: 12,000 CFM
  • Opening Face Velocity: 150 LFPM
  • Number of Automatic Gun Slots: 5

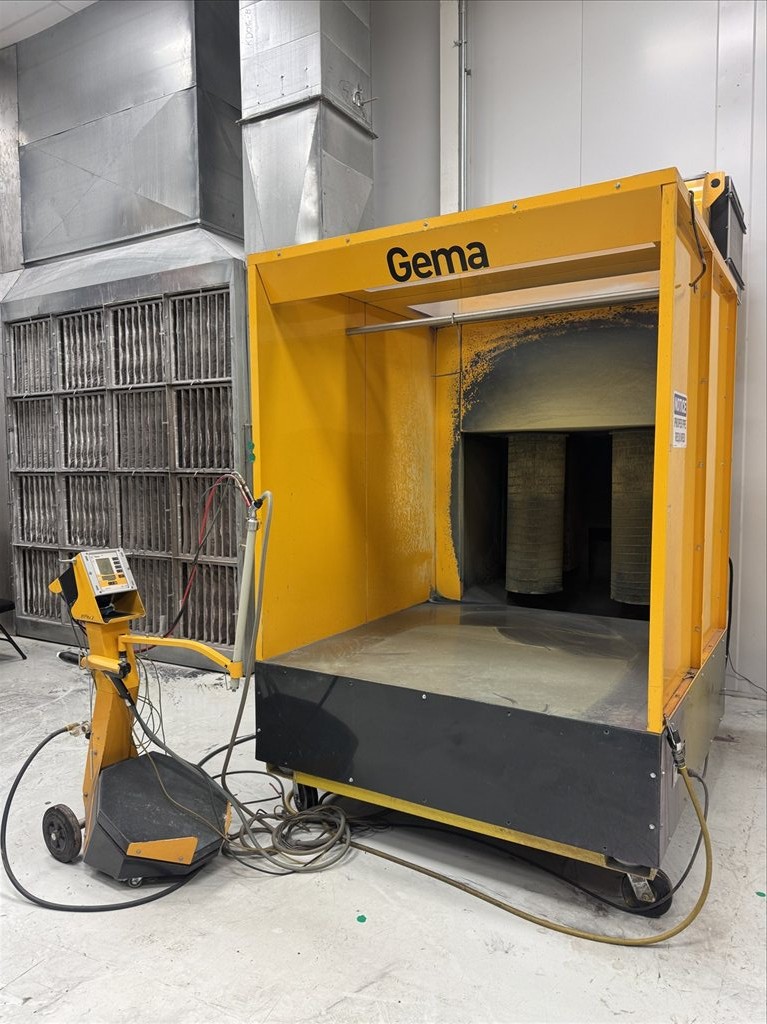

  • Including: MagicControl CM30 Control, (10) OptiGun GA03-X Automatic Guns w/ (11) OptiStar Control Units, (2) OptiFlex2 Manual Guns w/ OptiStar Control Units, and More...

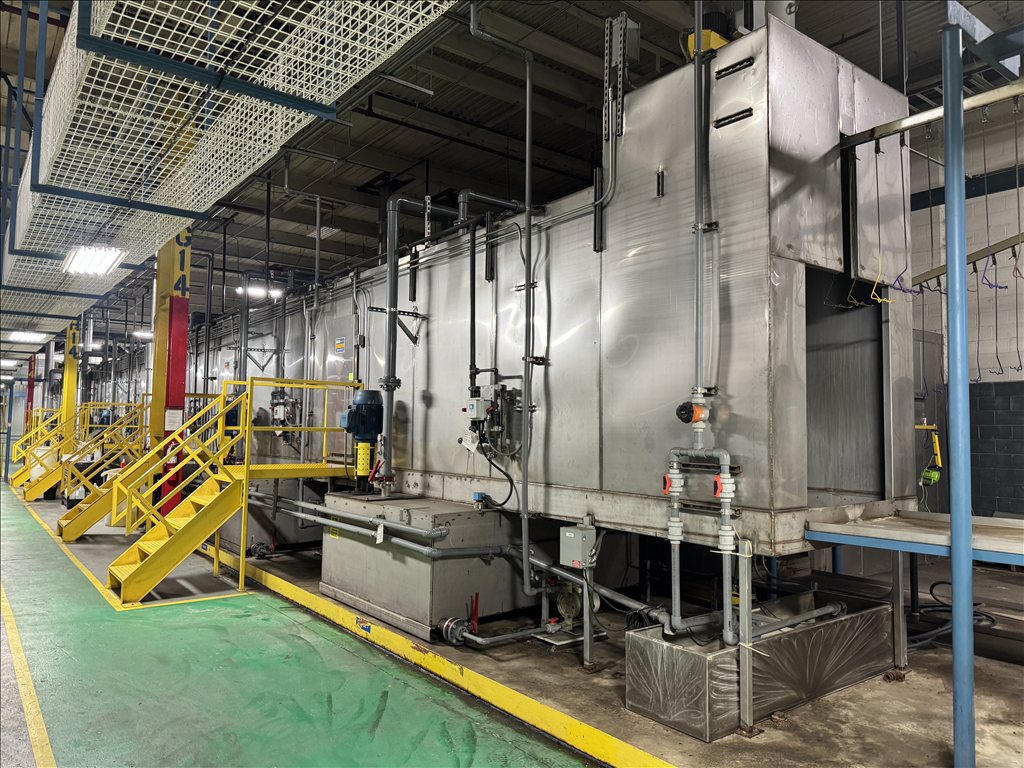

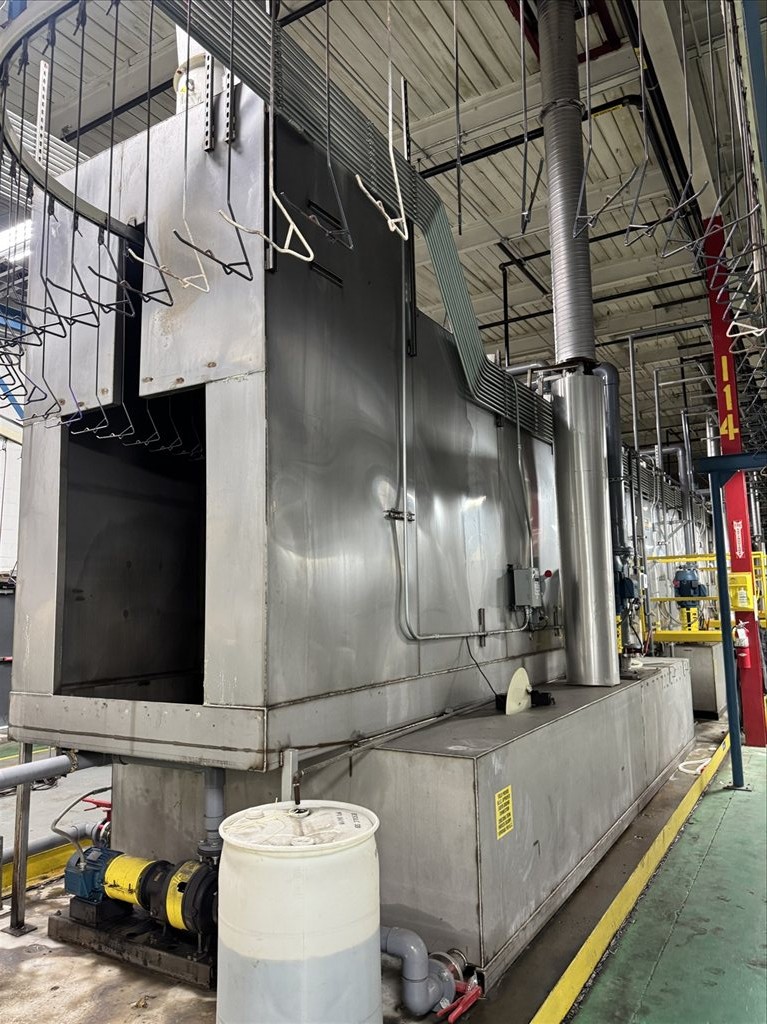

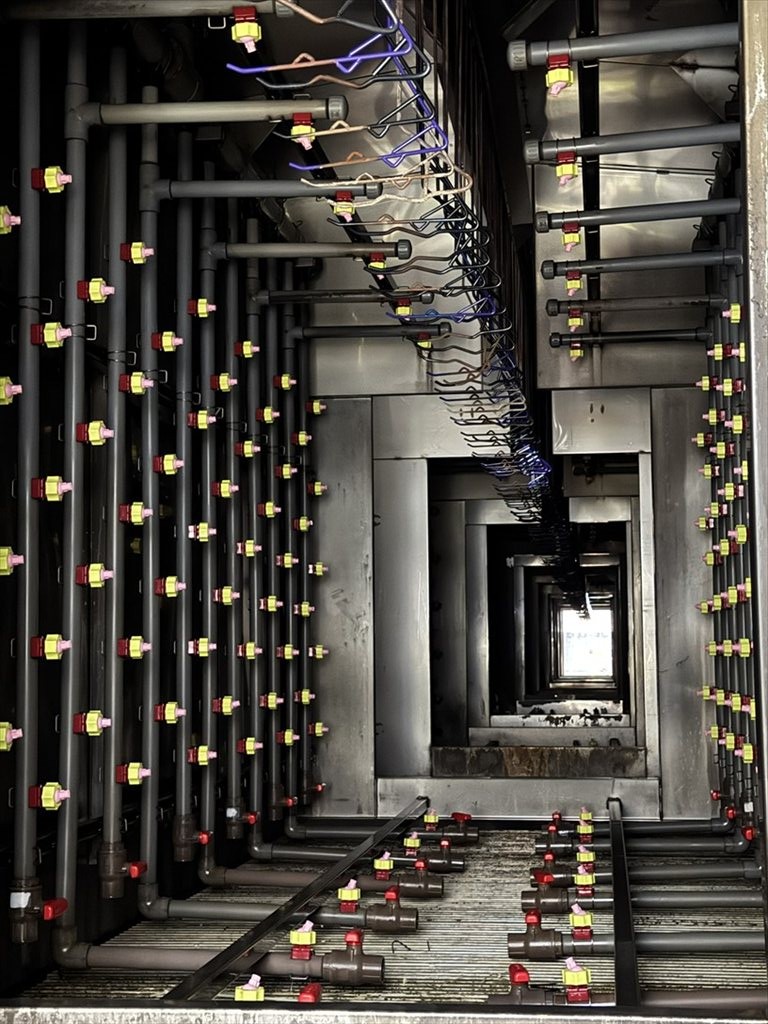

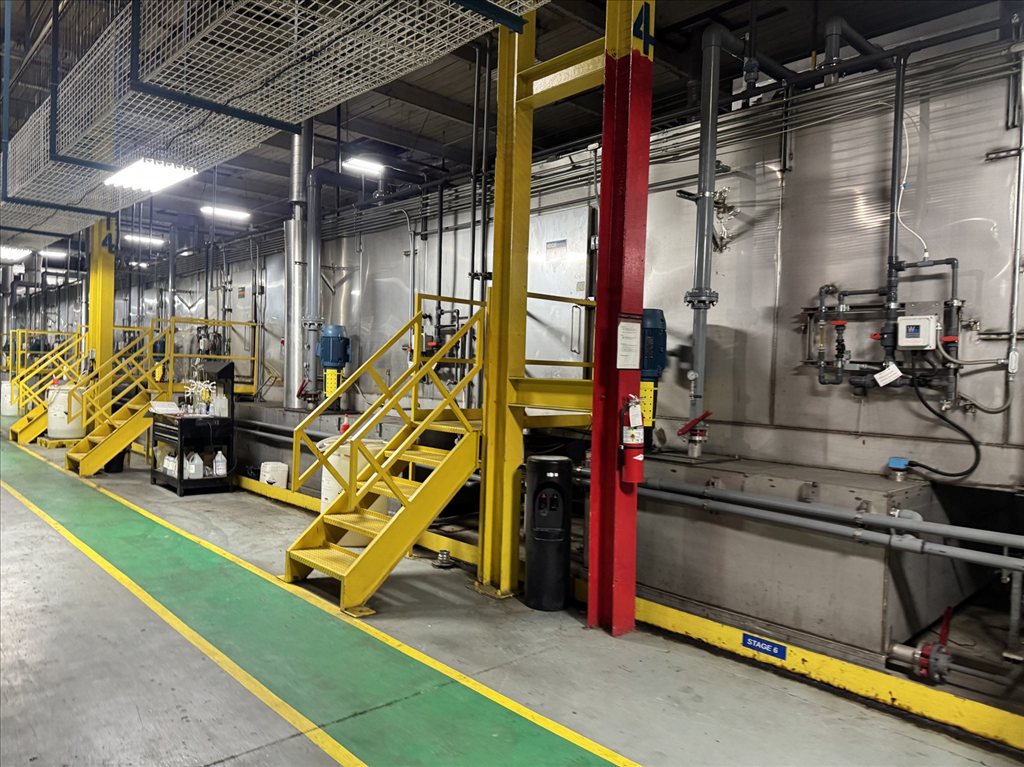

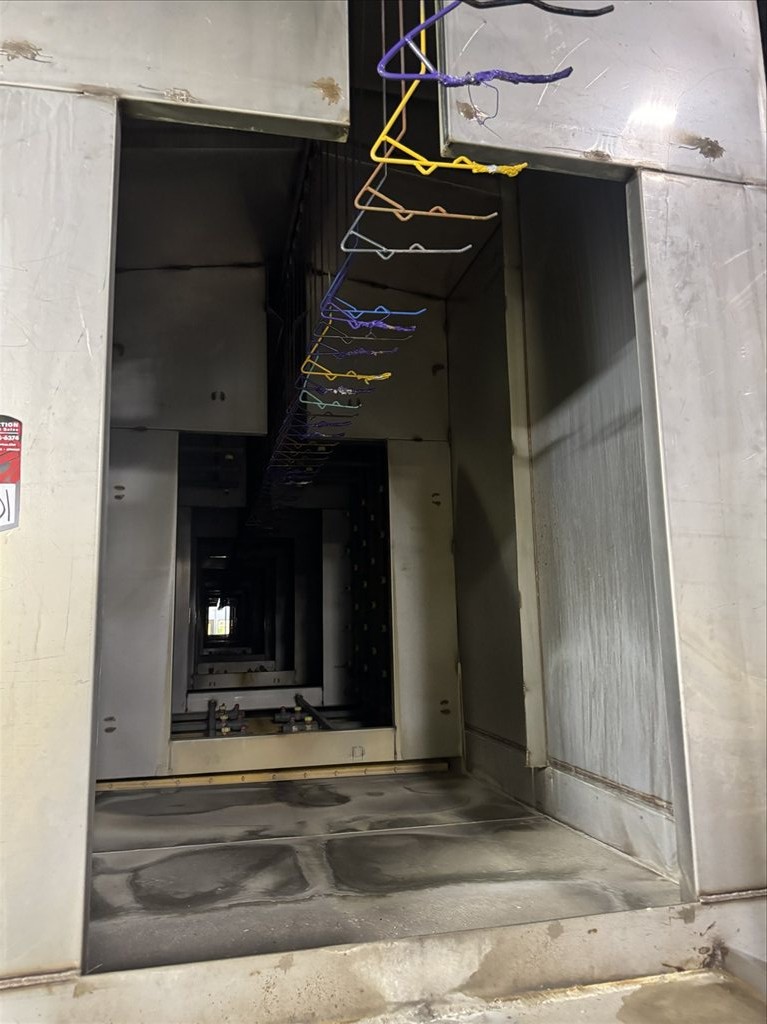

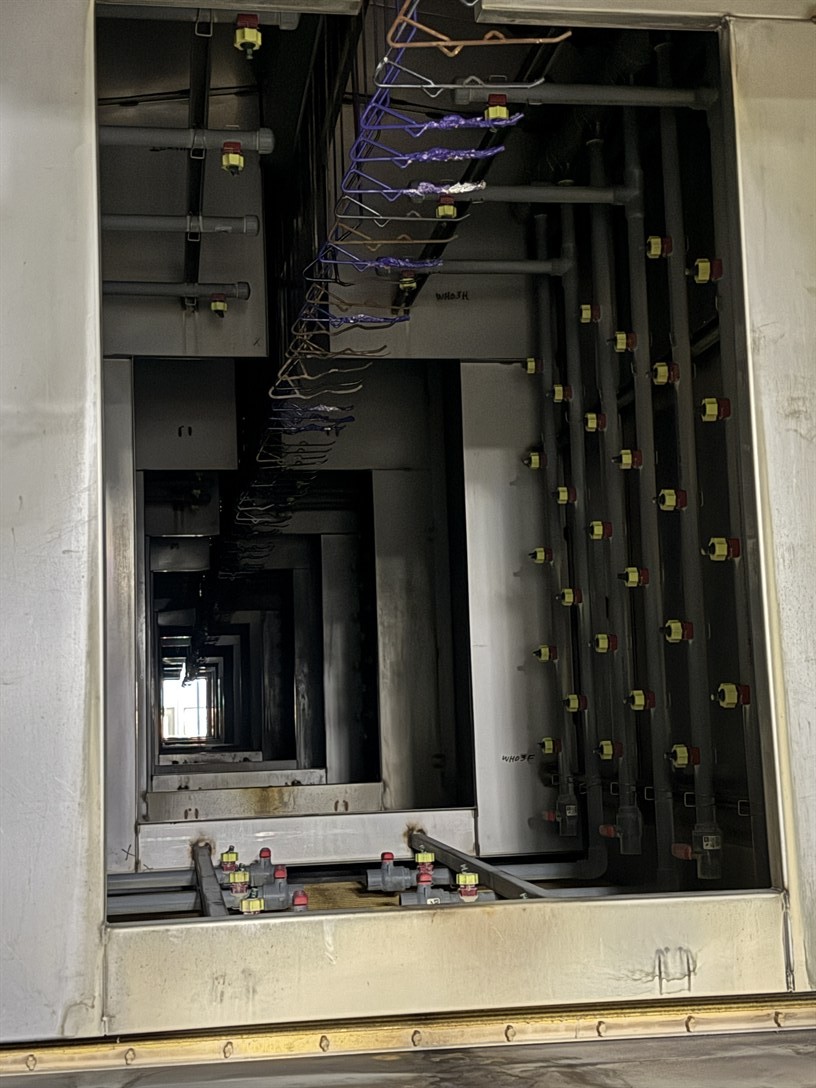

  • KOCH 7-Stage Washer
  • Production Speed: 12 ft/min
  • Part Opening: 3'6"W x 5'H
  • Max. Horizontal Part Length: 17"
  • Max. Vertical Part Height: 4'
  • Max. Part Weight Per Hanger: 25.2 lb.
  • Approx. Housing Dimensions: 131'L x 5'10"W x 8'2"H
  • Approx. Total Height: 11'4"
  • 7-Stages
  • Stage 1: Alkaline Cleaner
  • Stage 2: Water Rinse
  • Stage 3: Descale 59
  • Stage 4: Water Rinse
  • Stage 5: Cleaner/Iron Phosphate
  • Stage 6: Water Rinse
  • Stage 7: Non-Chrome Sealer

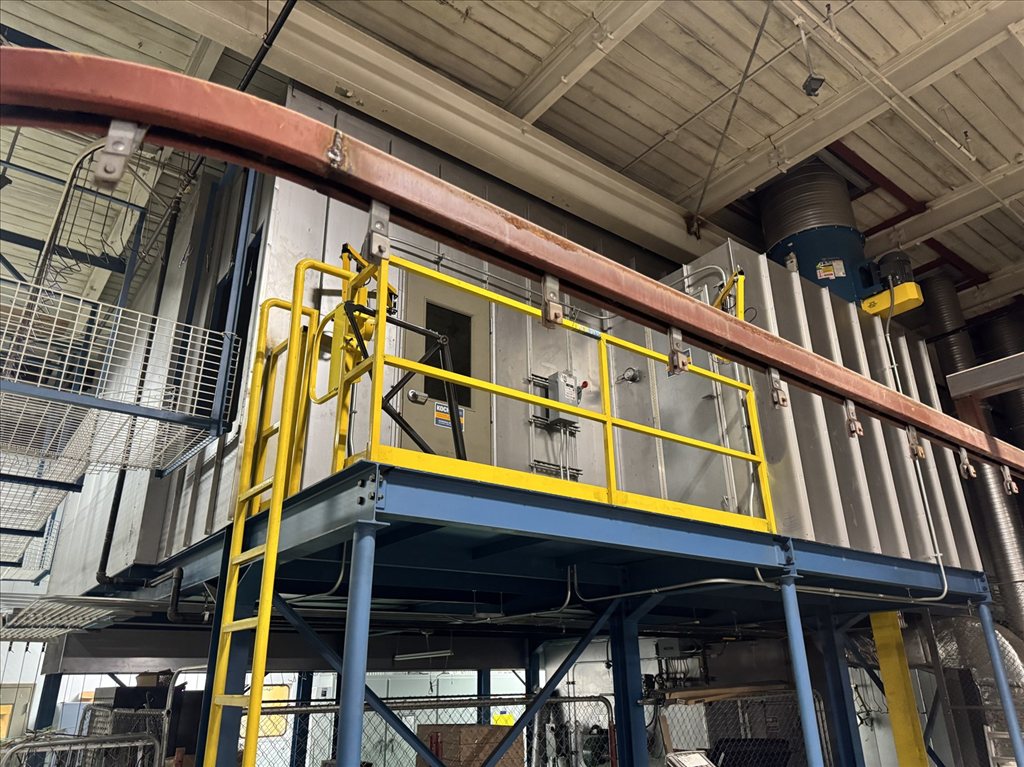

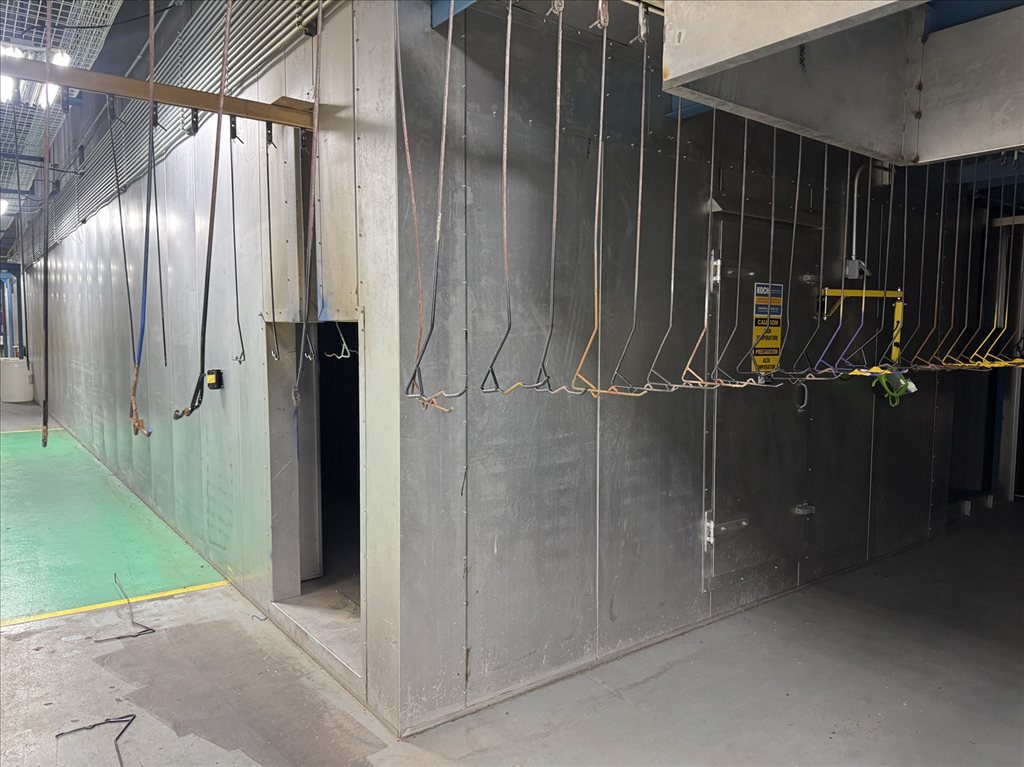

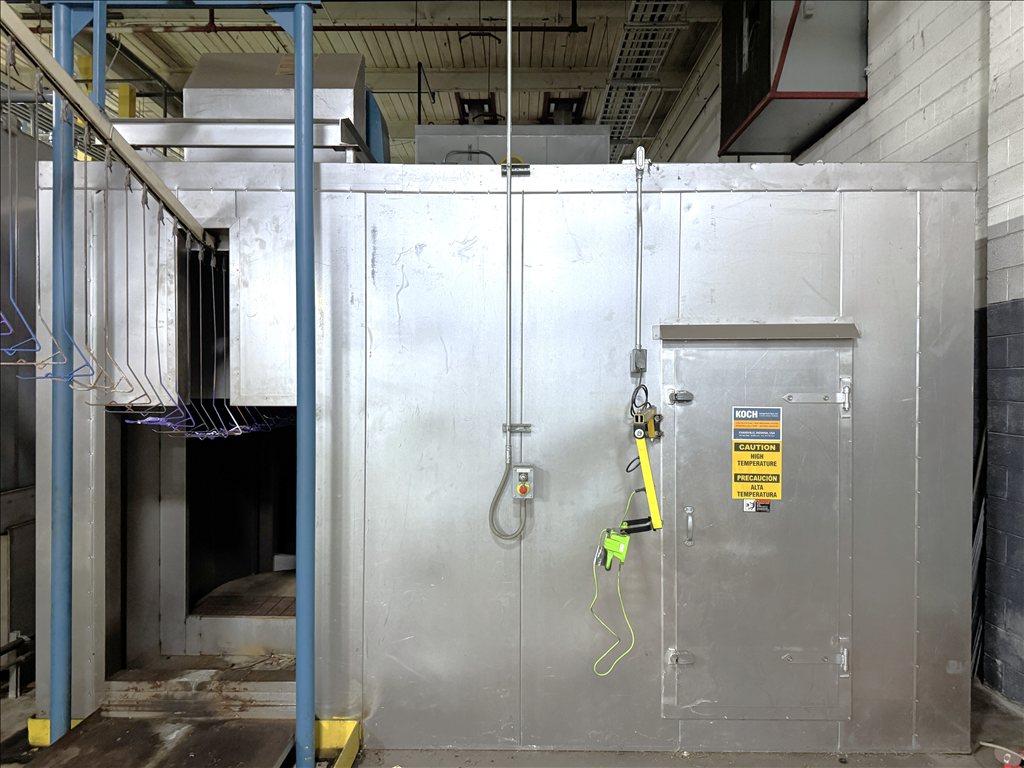

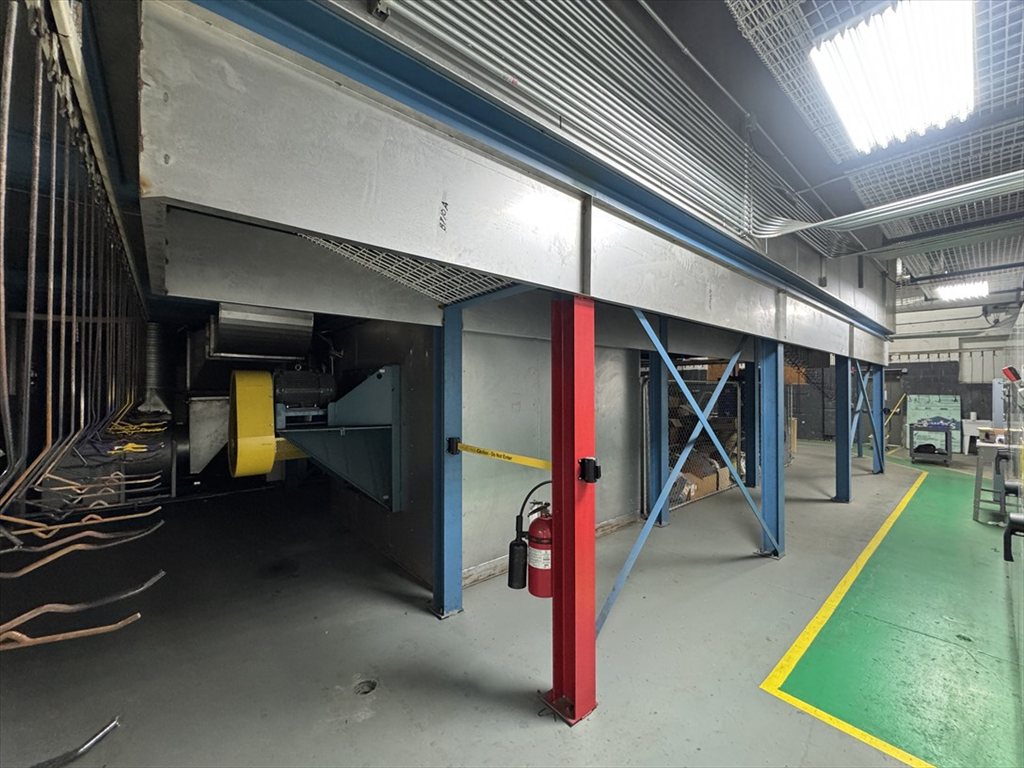

  • KOCH Dry-Off Oven
  • Production Capacity: 1,500,000 BTU/hr.
  • Set Point: 350°F
  • Approx. Oven Dimensions: 47'10"L x 16'2"W x 11'4"H
  • Approx. Cooling Tunnel Dimensions: 47'10"L x 10'8"W x 10'10"H

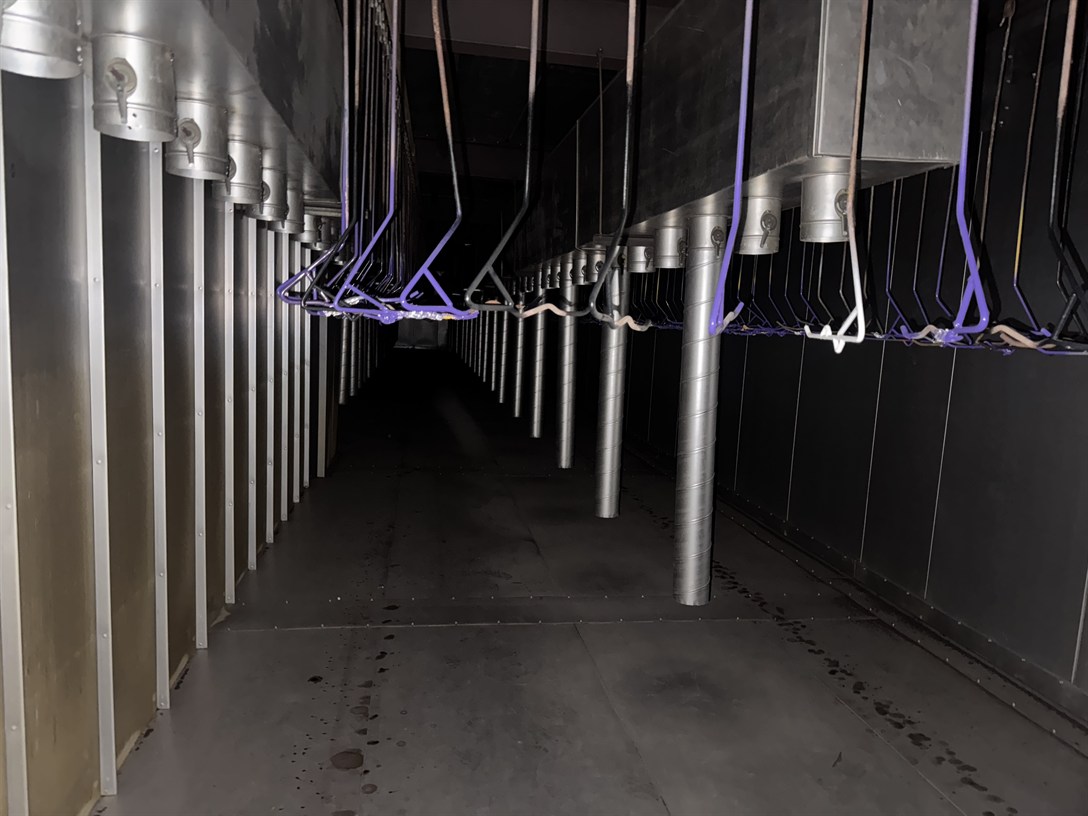

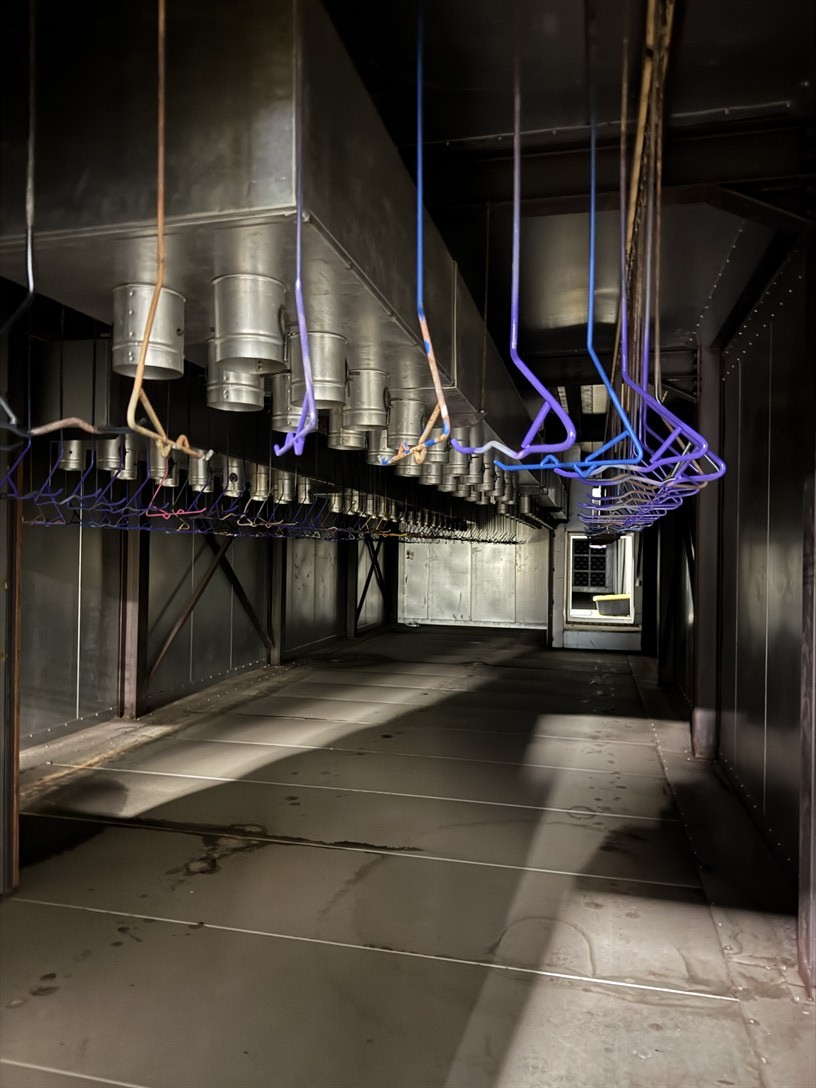

  • GEORGE KOCH 2-Stage Powder Gel Oven
  • Production Capacity: 2,500,000 BTU/hr.
  • Design: Forced Air Convection; Natural Gas Heated
  • Set Point: 500°F
  • Approx. Dimensions: 91'L x 15'7"W x 11'4"H
  • Including: 6” Insulated Wall & Roof Panels, 4” Insulated Floor Panels, PLC Temperature Monitering, (1) Insulated Heater, KochSmart Control System, and More...
  • GEORGE KOCH 2-Stage Powder Cure Oven
  • Production Capacity: 2,500,000 BTU/hr.
  • Design: Electric Convection Oven
  • Set Point: 500°F
  • Approx. Dimensions: 101'L x 15'7"W x 11'4"H
  • Including: 6” Insulated Wall & Roof Panels, 4” Insulated Floor Panels, PLC Temperature Monitering, (1) Insulated Heater, KochSmart Control System, and More...
  • KONTEK 1100-30 WWTS Wastewater Treatment System
  • Concentrate Batch Collection Tank: ~4,000 Gal.
  • Rinse Batch Collection Tank: ~4,000 Gal.
  • Neutralization Tanks: ~1,500 Gal.
  • Rinse Overflow Lift Station: ~150 Gal.
  • Discharge Holding Tank: ~500 Gal.
  • Including: Drain Pumps, Ultrasonic Liquid Level Sensor, pH Sensor & Transmitter, Flow Meters, and Concentrate Overflow Lift Station
  • Modular Paint Room Structure
  • Approx. Dimensions: 90'L x 32'W x 16'H
  • Roll Up Door Dimensions: 8'W x 9'H
  • Number of Man Doors: 3
  • Paint Line Conveyor System
  • Approx. Length: 2,184'
  • Show More
  • Show Less
  • Work Piece Data
  • Max. Height: 1168.40mm
  • Max. Width: 762.00mm
  • Max. Length: 431.80mm
  • Min. Part Clearance: +/- 152.40mm
  • Top of Part - Top of Rail Distance (Min): 1066.80mm
  • Production Data
  • Conveyor Speed: 12 ft/min
  • Max. Product Throughput: 11,000 lb./hr
  • Max. Coated Area: 2,000 sqft/hr
  • MagicCylinder Equiflow QCS04 Base Coat Booth
  • Product Opening: 1066.80mm W x 2082.80mm H
  • Usable Product Opening Height: 1473.20mm
  • Booth Length: 6096.00mm
  • Booth Height: 3048.00mm
  • Booth Diameter: 2692.40mm
  • Conveyor Slot Width: 101.60mm
  • Air Flow: 12,000 CFM
  • Opening Face Velocity: 150 LFPM
  • Manual Touch-Up Stations: 2
  • Number of Automatic Gun Slots: 3
  • Including: Re-Claim System, MagicControl CM30 Control, OptiCenter Intergrated Powder Management System, (9) OptiGun GA03-X Automatic Guns w/ OptiStar Control Units, and More...
  • MagicCylinder Equiflow QCS04 Top & Clear Coat Booth
  • Product Opening: 1066.80mm W x 2082.80mm H
  • Usable Product Opening Height: 1473.20mm
  • Booth Length: 6096.00mm
  • Booth Height: 3048.00mm
  • Booth Diameter: 2692.40mm
  • Conveyor Slot Width: 101.60mm
  • Air Flow: 12,000 CFM
  • Opening Face Velocity: 150 LFPM
  • Number of Automatic Gun Slots: 5
  • Including: MagicControl CM30 Control, (10) OptiGun GA03-X Automatic Guns w/ (11) OptiStar Control Units, (2) OptiFlex2 Manual Guns w/ OptiStar Control Units, and More...
  • KOCH 7-Stage Washer
  • Production Speed: 12 ft/min
  • Part Opening: 1066.80mmW x1524.00mmHH
  • Max. Horizontal Part Length: 431.80mm
  • Max. Vertical Part Height: 1219.20mm
  • Max. Part Weight Per Hanger: 25.2 lb.
  • Approx. Housing Dimensions: 39928.80mmLL x1778.00mmW x2489.20mmH
  • Approx. Total Height: 3454.40mm
  • 7-Stages
  • Stage 1: Alkaline Cleaner
  • Stage 2: Water Rinse
  • Stage 3: Descale 59
  • Stage 4: Water Rinse
  • Stage 5: Cleaner/Iron Phosphate
  • Stage 6: Water Rinse
  • Stage 7: Non-Chrome Sealer
  • KOCH Dry-Off Oven
  • Production Capacity: 1,500,000 BTU/hr.
  • Set Point: 350°F
  • Approx. Oven Dimensions: 14579.60mmL x4927.60mmW x3454.40mmH
  • Approx. Cooling Tunnel Dimensions: 14579.60mmL x3251.20mmW x3302.00mmH
  • GEORGE KOCH 2-Stage Powder Gel Oven
  • Production Capacity: 2,500,000 BTU/hr.
  • Design: Forced Air Convection; Natural Gas Heated
  • Set Point: 500°F
  • Approx. Dimensions: 27736.80mmLL x4749.80mmW x3454.40mmH
  • Including: 152.40mm Insulated Wall & Roof Panels, 101.60mm Insulated Floor Panels, PLC Temperature Monitering, (1) Insulated Heater, KochSmart Control System, and More...
  • GEORGE KOCH 2-Stage Powder Cure Oven
  • Production Capacity: 2,500,000 BTU/hr.
  • Design: Electric Convection Oven
  • Set Point: 500°F
  • 30784.80mmLL x4749.80mmW x3454.40mmH
  • Including: 152.40mm Insulated Wall & Roof Panels, 101.60mm Insulated Floor Panels, PLC Temperature Monitering, (1) Insulated Heater, KochSmart Control System, and More...
  • KONTEK 1100-30 WWTS Wastewater Treatment System
  • Concentrate Batch Collection Tank: ~ 15140 liters
  • Rinse Batch Collection Tank: ~ 15140 liters
  • Neutralization Tanks: ~ 5678 liters
  • Rinse Overflow Lift Station: ~ 568 liters
  • Discharge Holding Tank: ~ 1893 liters
  • Including: Drain Pumps, Ultrasonic Liquid Level Sensor, pH Sensor & Transmitter, Flow Meters, and Concentrate Overflow Lift Station
  • Modular Paint Room Structure
  • Approx. Dimensions: 27432.00mmLL x9753.60mmWW x4876.80mmHH
  • Roll Up Door Dimensions: 2438.40mmWW x2743.20mmHH
  • Number of Man Doors: 3
  • Paint Line Conveyor System
  • Approx. Length: 665683.20mm
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Location: Manning, SC
  • Disclaimer: Preliminary Specifications....
