Inventory # 46764 Year: 2016

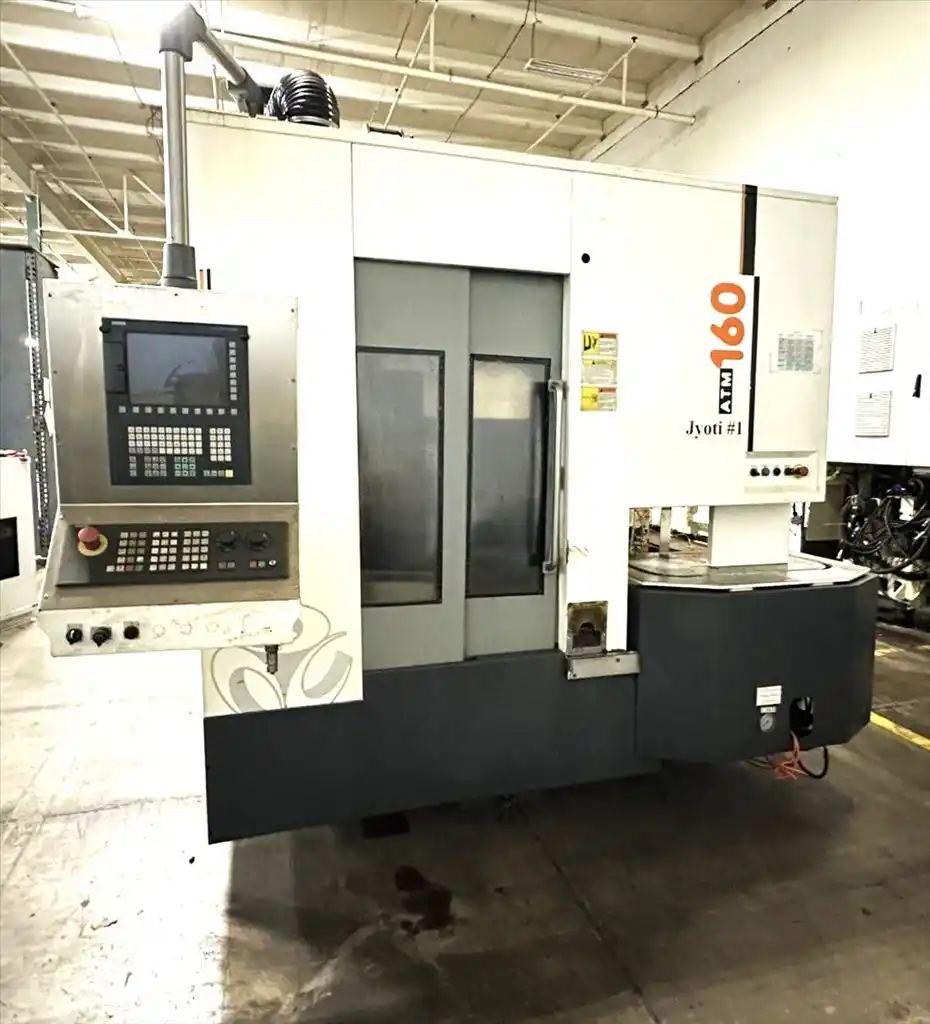

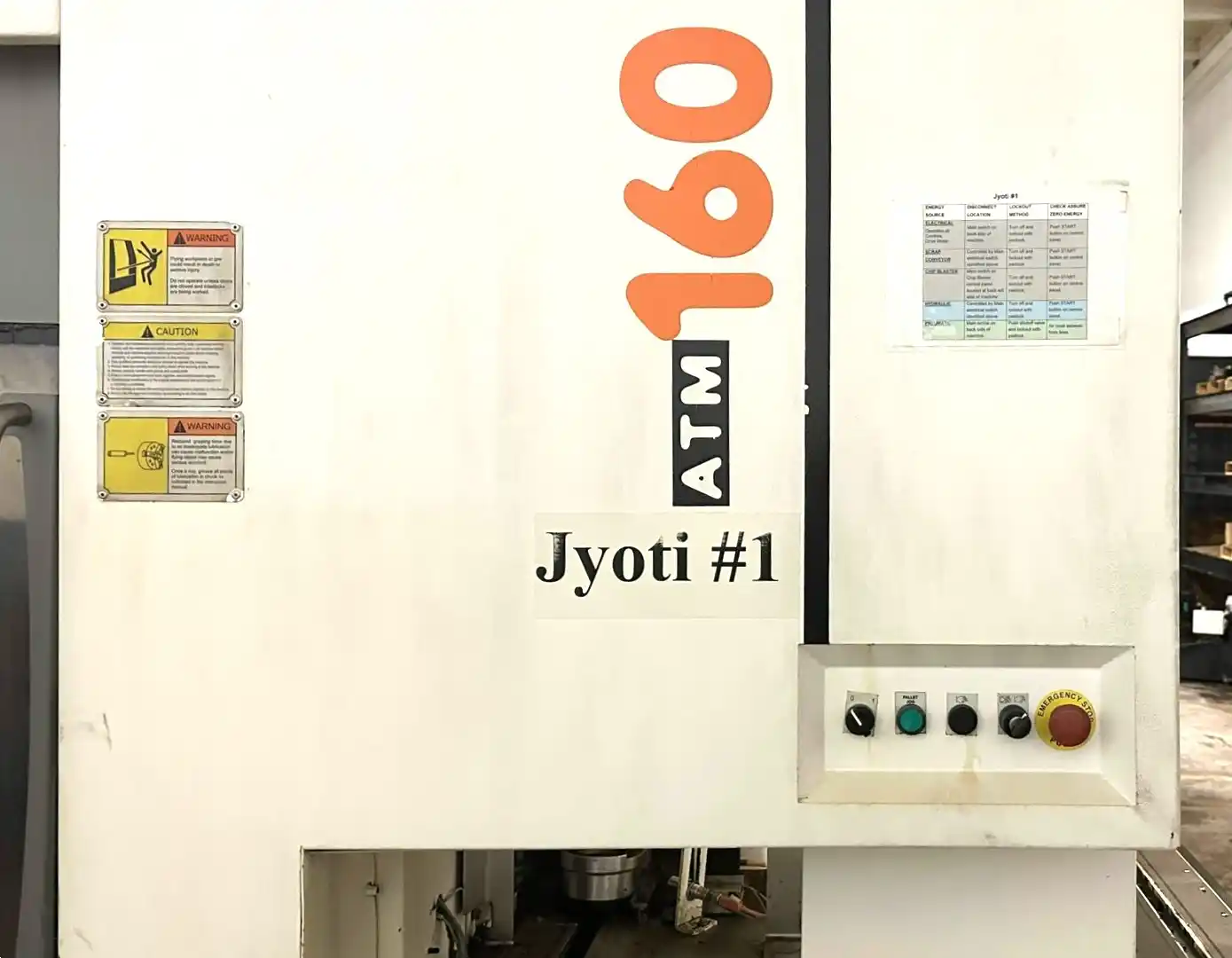

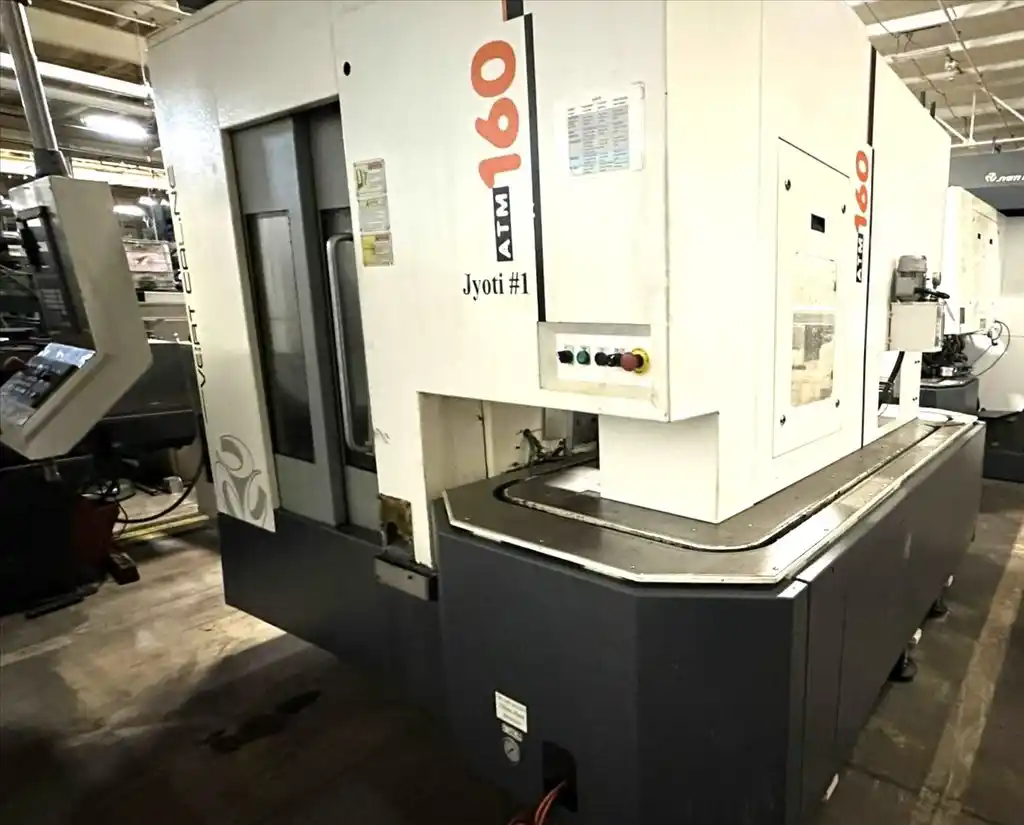

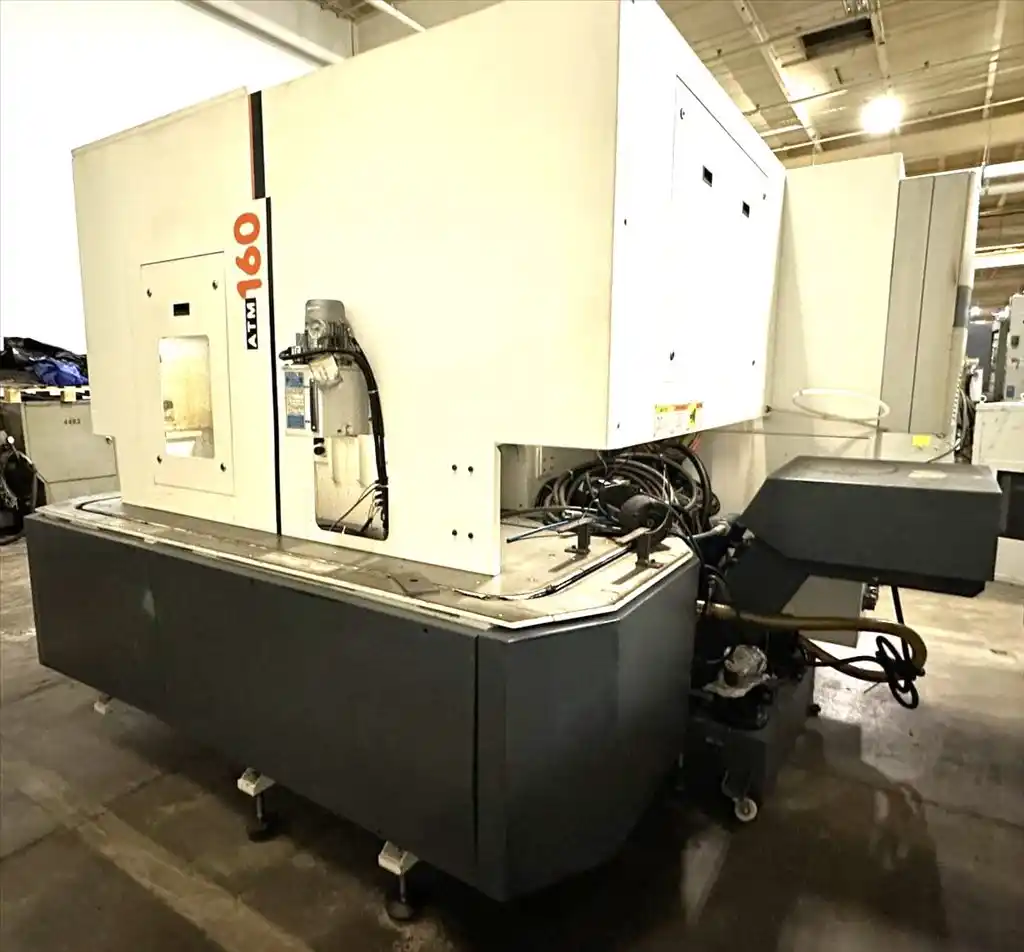

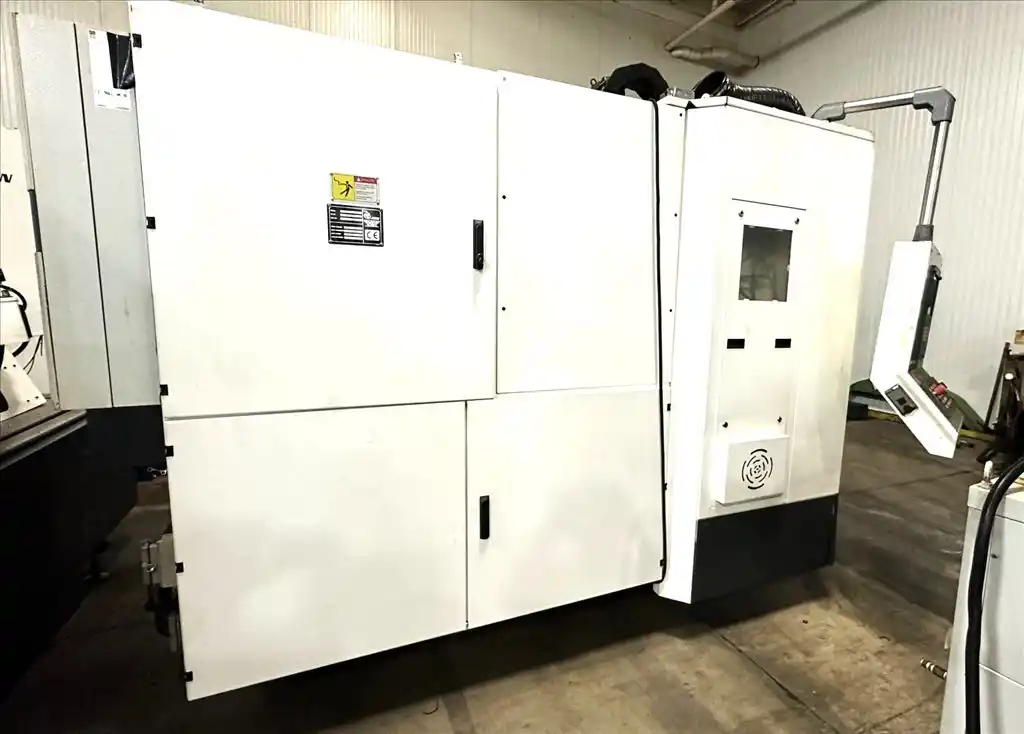

Jyoti ATM 160 CNC Inverted Vertical Turning Lathe
Specifications
- Capacity
- Standard Chuck Size: 6”
- Maximum Turning Length: 7.87”
- Max. Turning Dia: 6”
- Travels
- Cross (X-Axis) Travel: 27.5
- Longitudinal (Z-Axis) Travel: 11.8”
- Traverse (Y-Axis): 7.87”
- Rapid Feed M/Min: 50
- Main Spindle
- Spindle Motor Power: 9/75 kW
- Spindle Nose: Flat dia. 140
- Speed Range: 50-7000 RPM
- Full Power Speed Range: 1500-4500 RPM
- C Axis Resolution: 0001°
- Turret
- Type: Live Tool Servo
- No. of Stations: 12
- Max. Boring Bar Dia: 1.5
- Tool Size (Cross Sectional): .98” x .98”
- Max No. of Rotating Tools: 12
- Live tool spindle power: 41 kW
- Auto Loader
- Type of Drive: ACservo
- Max. Job Size: Dia 6.3” x Height 7.9”
- Max Possible Job Weight: 22 lbs
- Max No. of Job with Max Size: 22
- Accuracy (As per VDI / DGQ 3441)
- Positioning Uncertainty (P): mm 0.010
- Repeatability (Ps medium): mm 0.005
- Show More
- Show Less
- Capacity
- Standard Chuck Size: 152.40mm
- Maximum Turning Length: 199.90mm
- Max. Turning Dia: 152.40mm
- Travels
- Cross (X-Axis) Travel: 27.5
- Longitudinal (Z-Axis) Travel: 299.72mm
- Traverse (Y-Axis): 199.90mm
- Rapid Feed M/Min: 50
- Main Spindle
- Spindle Motor Power: 9/75 kW
- Spindle Nose: Flat dia. 140
- Speed Range: 50-7000 RPM
- Full Power Speed Range: 1500-4500 RPM
- C Axis Resolution: 0001°
- Turret
- Type: Live Tool Servo
- No. of Stations: 12
- Max. Boring Bar Dia: 1.5
- Tool Size (Cross Sectional): 24.89mm x 24.89mm
- Max No. of Rotating Tools: 12
- Live tool spindle power: 41 kW
- Auto Loader
- Type of Drive: ACservo
- Max. Job Size: Dia 160.02mm x Height 200.66mm
- Max Possible Job Weight: 9.98 kg
- Max No. of Job with Max Size: 22
- Accuracy (As per VDI / DGQ 3441)
- Positioning Uncertainty (P): mm 0.010
- Repeatability (Ps medium): mm 0.005
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is, As Removed From Service
- Disclaimer: Preliminary Specifications....
