Inventory # 46765 Year: 2017

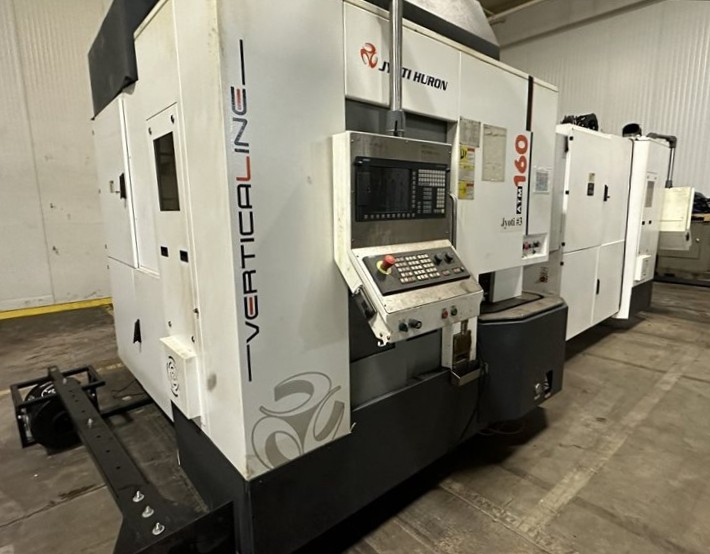

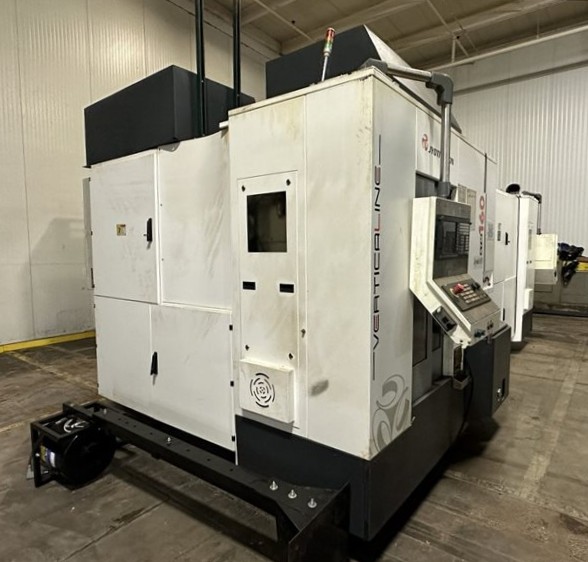

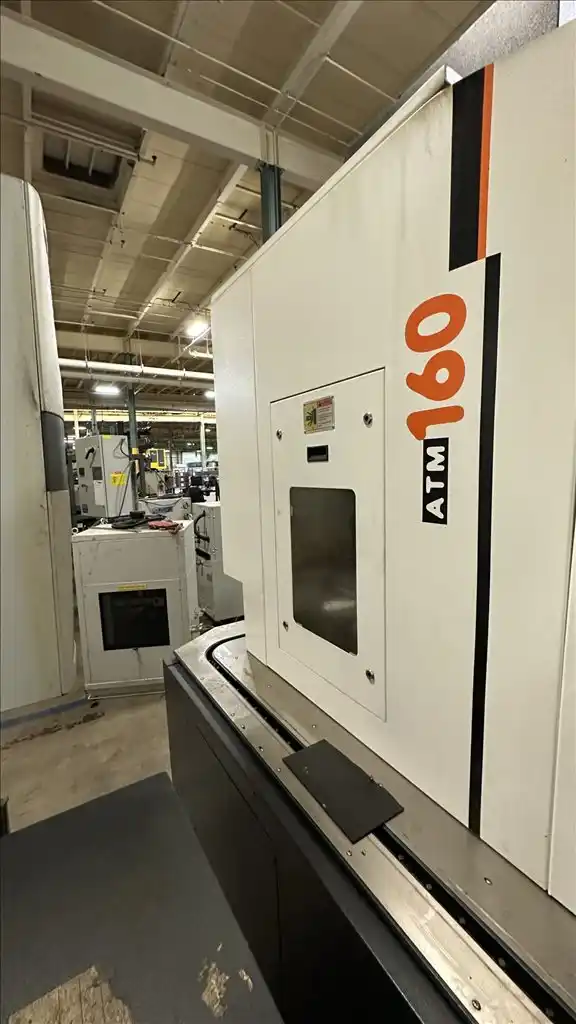

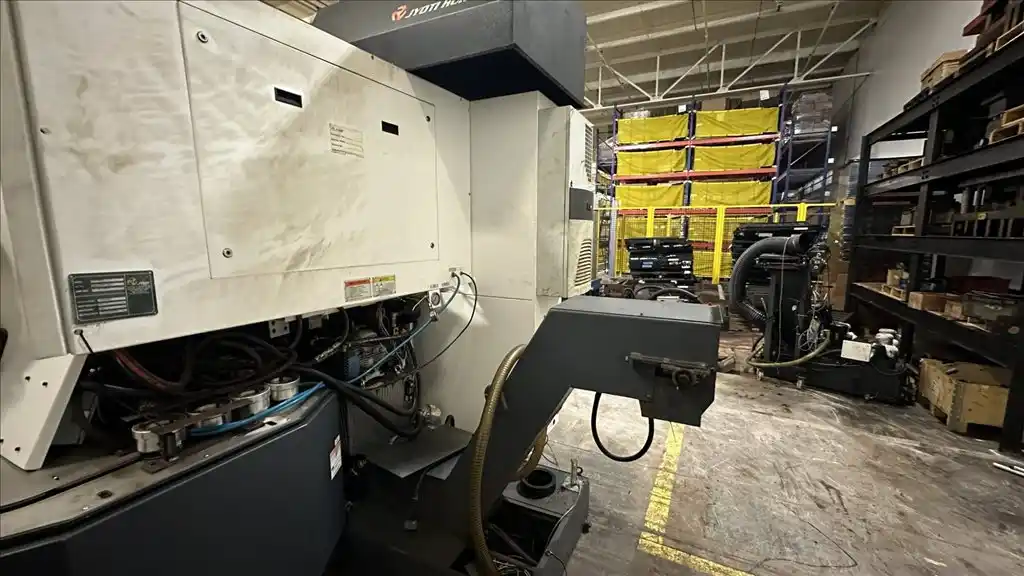

Jyoti ATM 160 CNC Inverted Vertical Turning Lathe
Specifications
- Standard Chuck Size: 6”
- Maximum Turning Length: 7.87”
- Max. Turning Dia: 6”
- Cross (X-Axis) Travel: 27.5"
- Longitudinal (Z-Axis) Travel: 11.8”
- Traverse (Y-Axis): 7.87”
- Rapid Feed: 164 FPM
- Speed Range: 50-7000 RPM
- Full Power Speed Range: 1500-4500 RPM
- C Axis Resolution: .0001°
- Turret Type: Live Tool Servo
- No. of Stations: 12
- Max. Boring Bar Dia: 1.5"
- Tool Size (Cross Sectional): .98” x .98”
- Max no. of Rotating Tools: 12
- Live Tool Spindle Power: 55 hp
- Type of Drive: AC Servo
- Max. Job Size: Dia 6.3” x Height 7.9”
- Max Possible Job Weight: 22 lbs
- Positioning Uncertainty (P): 0.00039"
- Repeatability (Ps Medium): 0.00019"
- Show More
- Show Less
- Standard Chuck Size: 152.40mm
- Maximum Turning Length: 199.90mm
- Max. Turning Dia: 152.40mm
- Cross (X-Axis) Travel: 698.50mm
- Longitudinal (Z-Axis) Travel: 299.72mm
- Traverse (Y-Axis): 199.90mm
- Rapid Feed: 833.12 mm/sec
- Speed Range: 50-7000 RPM
- Full Power Speed Range: 1500-4500 RPM
- C Axis Resolution: .0001°
- Turret Type: Live Tool Servo
- No. of Stations: 12
- Max. Boring Bar Dia: 38.10mm
- Tool Size (Cross Sectional): 24.89mm x 24.89mm
- Max no. of Rotating Tools: 12
- Live Tool Spindle Power: 41.01 kw
- Type of Drive: AC Servo
- Max. Job Size: Dia 160.02mm x Height 200.66mm
- Max Possible Job Weight: 9.98 kg
- Positioning Uncertainty (P): 0.01mm
- Repeatability (Ps Medium): 0.005mm
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
