Inventory # 46763 Year: 2016

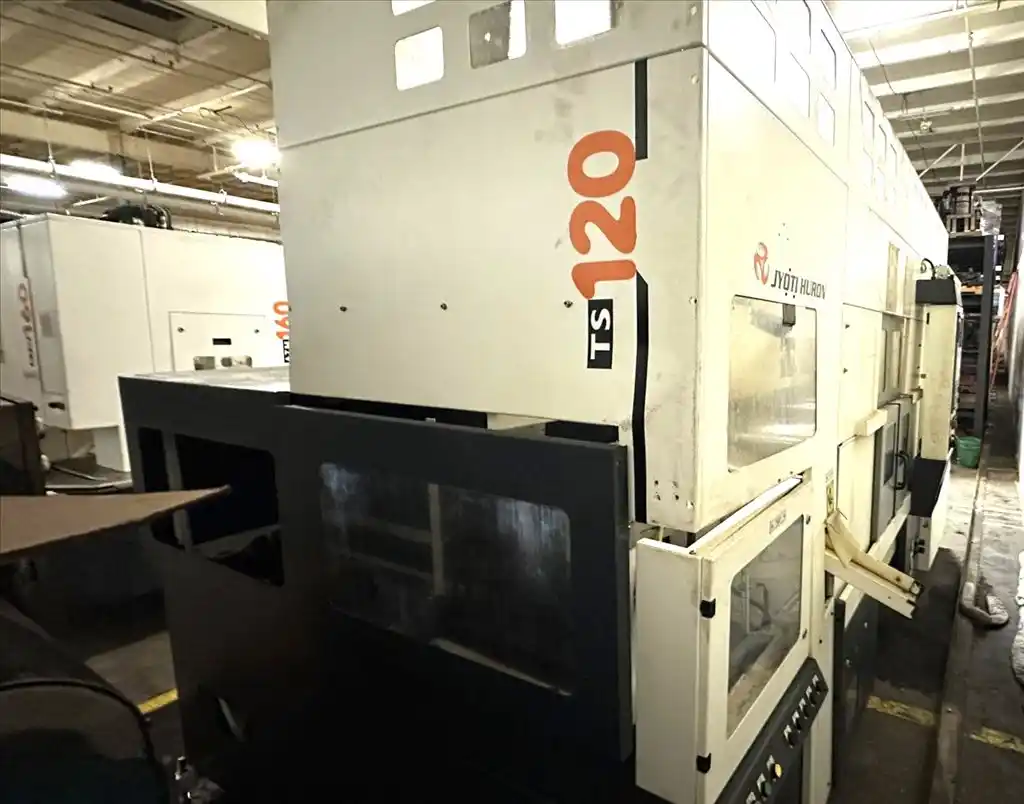

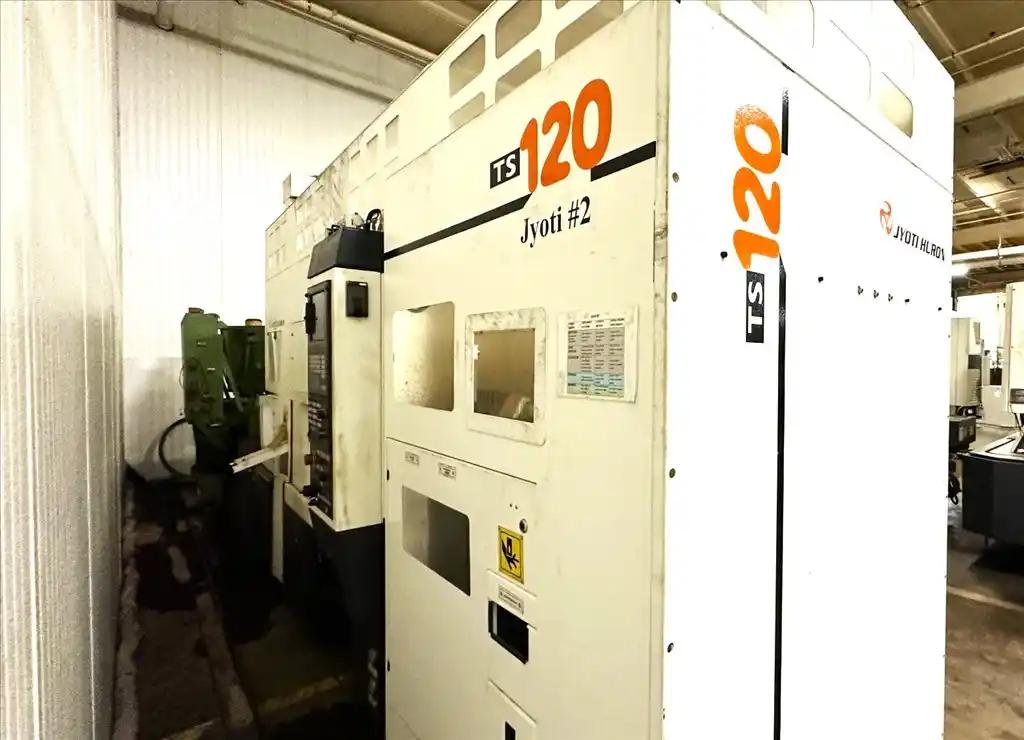

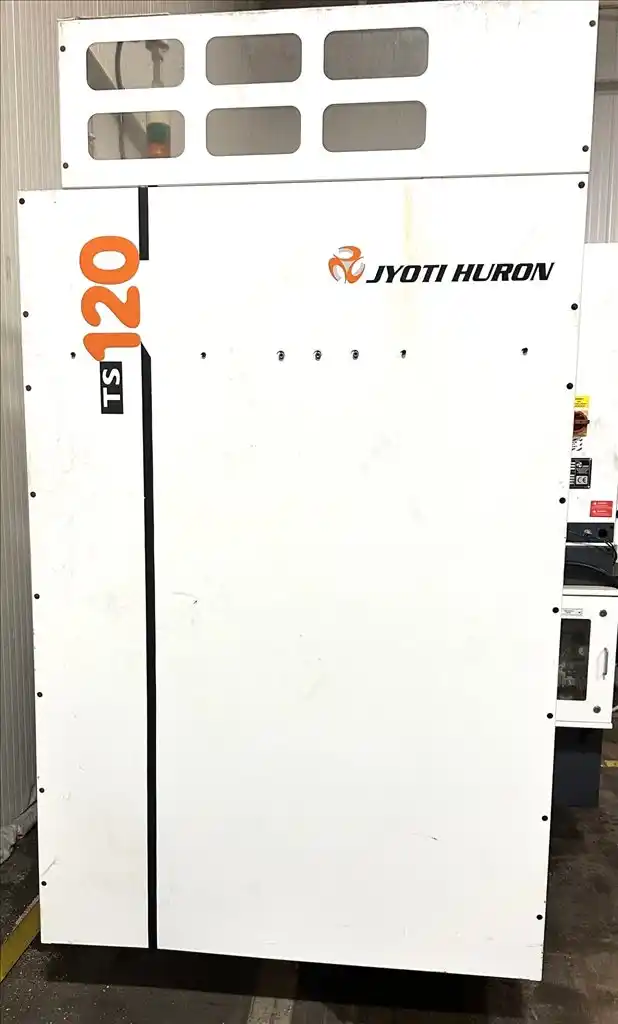

JYOTI TS 120 TWIN SPINDLE CNC CHUCKER LATHE 2016
Specifications
- X-Axis Travel 3"
- Z-Axis Travel 5.7"
- Rapid Feed X & Y Axis M/Min 24
- Number of Spinldes 2
- Spindle Motor Power Siemens kw 8.3/5/5
- Spinldle Motor Power Fanuc kw 7.5/5.5
- Spindle Motor Range 50-4500 RPM
- Spindle Nose A2-5
- Number of Turret 2 [16(8=8)]
- Indexing Time: Sec 05
- Chuck Size 6.5"

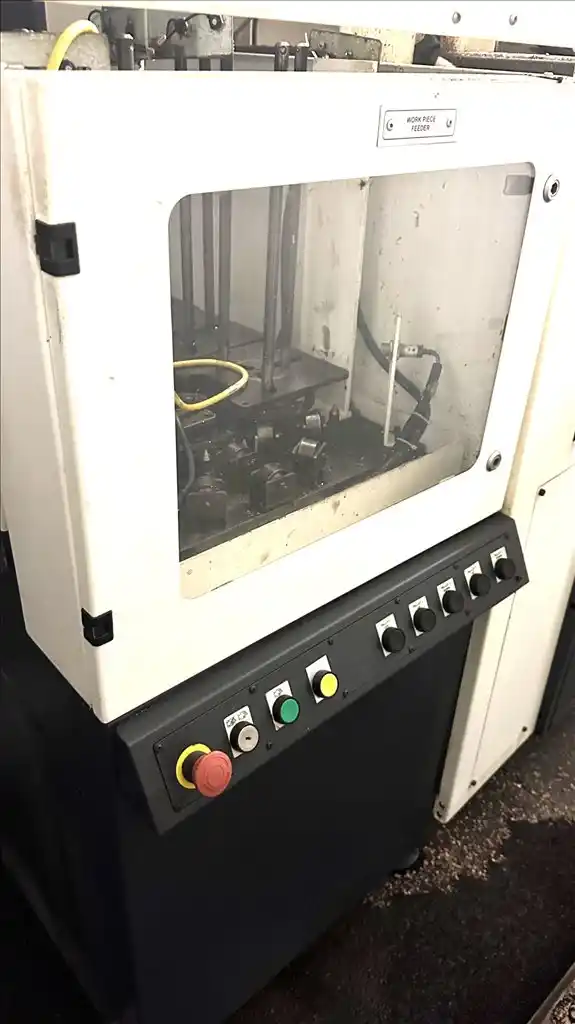

- Work Piece Dimension (Loader Capacity) 4.7? x 3.1”
- Max. Part Weight (No. of Parts) KG 3(2)
- Loader X (Left/Right) Axis Stroke: 72.8”
- Max. Speed (X-Axis) M/Min 120
- Loader Y (Up/Down) Axis Stroke 22"
- Max. Speed (Y-Axis) M/Min 90
- Loader Z (Front/Rear) Axis Stroke: 6”
- Max. Speed (Z-Axis) M/Min 50
- Standard Loading Time Sec. 7
- Accuracy (As per VDI/DGQ 3441)
- Positioning Uncertainty (P) mm 0.007
- Repeatability (Ps medium) mm 0.005
- Show More
- Show Less
- X-Axis Travel 76.20mm
- Z-Axis Travel 144.78mm
- Rapid Feed X & Y Axis M/Min 24
- Number of Spinldes 2
- Spindle Motor Power Siemens kw 8.3/5/5
- Spinldle Motor Power Fanuc kw 7.5/5.5
- Spindle Motor Range 50-4500 RPM
- Spindle Nose A2-5
- Number of Turret 2 [16(8=8)]
- Indexing Time: Sec 05
- Chuck Size 165.10mm
- Work Piece Dimension (Loader Capacity) 119.38mm x 78.74mm
- Max. Part Weight (No. of Parts) KG 3(2)
- Loader X (Left/Right) Axis Stroke: 1849.12mm
- Max. Speed (X-Axis) M/Min 120
- Loader Y (Up/Down) Axis Stroke 558.80mm
- Max. Speed (Y-Axis) M/Min 90
- Loader Z (Front/Rear) Axis Stroke: 152.40mm
- Max. Speed (Z-Axis) M/Min 50
- Standard Loading Time Sec. 7
- Accuracy (As per VDI/DGQ 3441)
- Positioning Uncertainty (P) mm 0.007
- Repeatability (Ps medium) mm 0.005
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is, As Removed From Service
- Disclaimer: Preliminary Specifications....
