Inventory # 47434 Year: 2010

Kellenberger KEL-VARIA UR 175/1000 CNC Universal ID/OD Cylindrical Grinder

Send a text message to yourself or a friend

Note: On submit, this will open your devices SMS application

Message will say:

Perfection Global Equipment: https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-makes-for-manufacturers/?ProductNumber=47434

Inventory # 47434 Year: 2010
https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-makes-for-manufacturers/?ProductNumber=47434

Kellenberger KEL-VARIA UR 175/1000 CNC Universal ID/OD Cylindrical Grinder

Request a Quote
Measurement

Specifications
  • Distance Between Centers: 39.4"
  • Height of Centers: 6.9"
  • Grinding Length: 39.4"
  • Maximum Grinding Diameter: 13.7"
  • Longitudinal Slide (Z-Axis)
  • Z-Axis Max. Travel: 45.3"
  • Rapid Traverse: 590.6 IPM
  • Resolution: 0.00000394"
  • Swiveling Range of Upper Table: 9°
  • Wheelslide (X-Axis)
  • X-Axis Max. Travel: 12.6"
  • Rapid Traverse Speed: 295.3 IPM
  • Resolution: 0.00000394"
  • Wheelhead
  • Left GW: 19.7" × 3.2" × 8"
  • Right GW: 15.8" × 2.5" × 5"
  • Spindle Speed: 1000 - 2150 RPM
  • Maximum Circumferential Speed: 8,858 SFPM
  • Grinding Wheelhead Swivels: +30° / -120°
  • Internal Grinding Spindle Speed: 12,000 - 30,000 RPM
  • Workhead
  • Type: Standard
  • Spindle Speeds: 8 - 800 RPM
  • Spindle Nose: ASA 5
  • Spindle Taper: MT 5
  • Swiveling Range: -10° / +100°
  • Micro Adjustment: +/- 0.0167°
  • Tailstock
  • Internal Taper: MT #4
  • Sleeve Stroke: 1.97"
  • Maximum Range of Correction: +/- 0.0059"
  • Show More
  • Show Less
  • Distance Between Centers: 1000 mm
  • Height of Centers: 175 mm
  • Grinding Length: 1000 mm
  • Maximum Grinding Diameter: 348 mm
  • Longitudinal Slide (Z-Axis)
  • Z-Axis Max. Travel: 1150 mm
  • Rapid Traverse: 15 m/min
  • Resolution: 0.1 µm
  • Swiveling Range of Upper Table: 9°
  • Wheelslide (X-Axis)
  • X-Axis Max. Travel: 320 mm
  • Rapid Traverse Speed: 7.5 m/min
  • Resolution: 0.1 µm
  • Wheelhead
  • Left GW: 500 mm × 80 mm × 203.2 mm
  • Right GW: 400 mm × 63 mm × 127 mm
  • Spindle Speed: 1000 - 2150 RPM
  • Maximum Circumferential Speed: 45m/s
  • Grinding Wheelhead Swivels: +30° / -120°
  • Internal Grinding Spindle Speed: 12,000 - 30,000 RPM
  • Workhead
  • Type: Standard
  • Spindle Speeds: 8 - 800 RPM
  • Spindle Nose: ASA 5
  • Spindle Taper: MT 5
  • Swiveling Range: -10° / +100°
  • Micro Adjustment: +/- 0.0167°
  • Tailstock
  • Internal Taper: MT #4
  • Sleeve Stroke: 50 mm
  • Maximum Range of Correction: +/- 0.15 mm
  • Show More
  • Show Less
Equipped With
  • Heidenhain GRINDplusIT CNC Controller

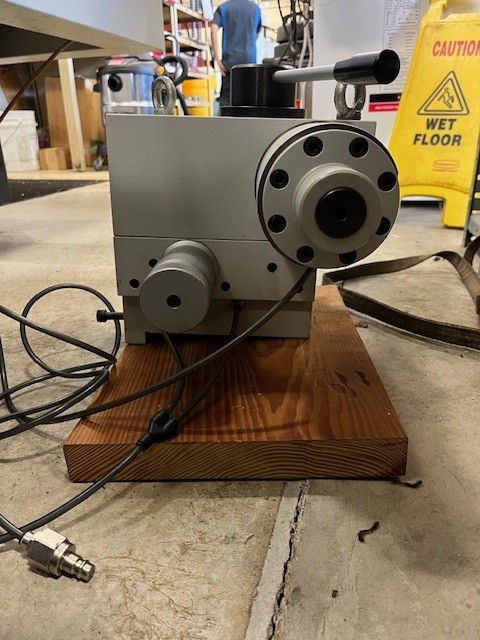

  • UR 1-2-3 Workhead
  • MPV-1230 Internal Grinding Attachment
  • B-Axis
  • Dressing Devices
  • Ebbco PMF-24000IL-3 Inline Spindle Cooling Chiller
  • KEL-POLY Software Package
  • KEL-BALANCE Semi-Automatic Balancer
  • KEL-TOUCH Wheel And Workpiece Contact Sensor Loaded w/ Options
  • Show More
  • Show Less
  • Heidenhain GRINDplusIT CNC Controller
  • UR 1-2-3 Workhead
  • MPV-1230 Internal Grinding Attachment
  • B-Axis
  • Dressing Devices
  • Ebbco PMF-24000IL-3 Inline Spindle Cooling Chiller
  • KEL-POLY Software Package
  • KEL-BALANCE Semi-Automatic Balancer
  • KEL-TOUCH Wheel And Workpiece Contact Sensor Loaded w/ Options
  • Show More
  • Show Less
More Info

The Kellenberger KEL-VARIA UR 175/1000 is a high-precision CNC universal cylindrical grinder, built for versatility in complex grinding applications. Equipped with a Heidenhain CNC control, B-axis swivel, and a UR 1-2-3 workhead, it enables efficient multi-angle grinding. The machine features an integrated internal grinding spindle, supporting both ID and OD grinding in one setup. This machine is loaded with optional features… call or request a quote for complete details! Looking for similar machines? Explore Perfection’s inventory of used cylindrical grinders for sale.

Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
