Inventory # 37839

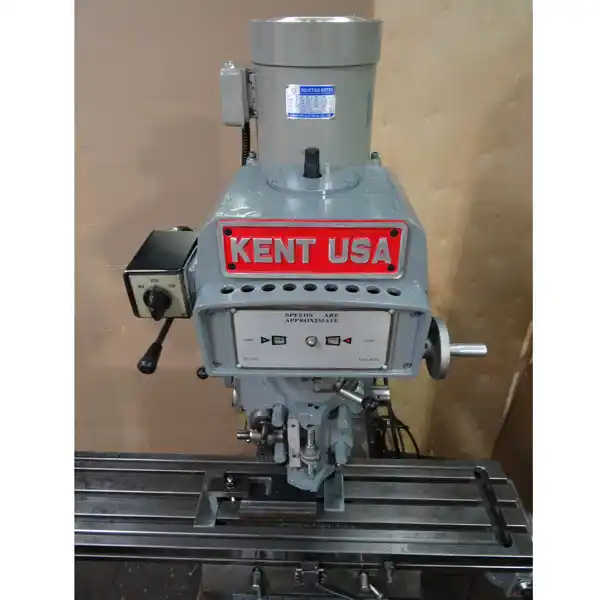

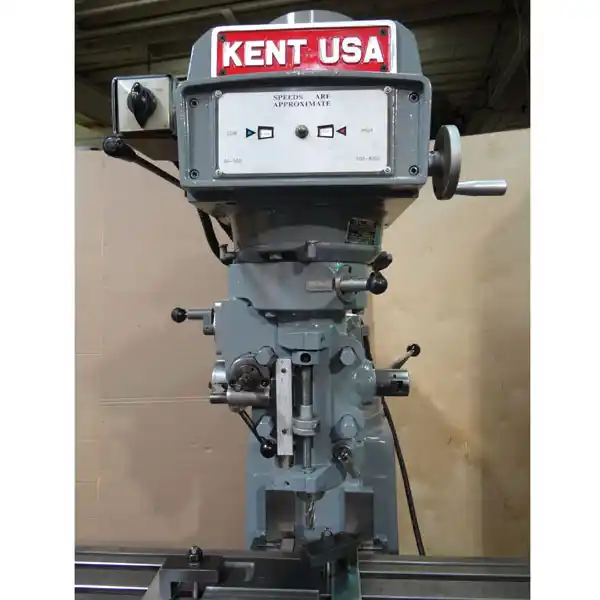

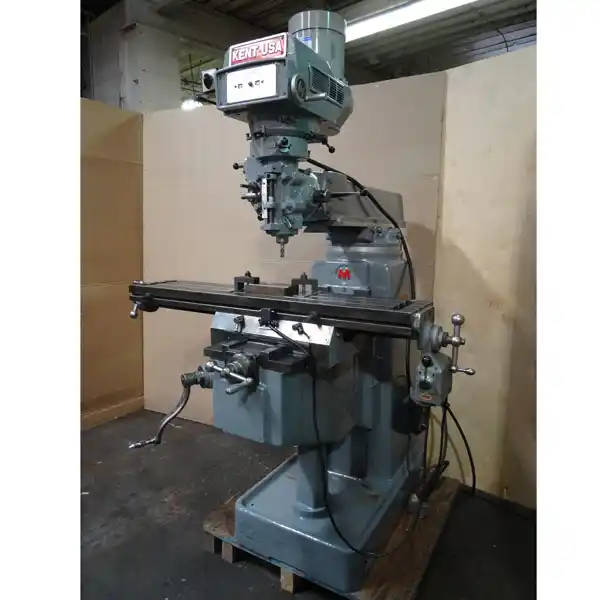

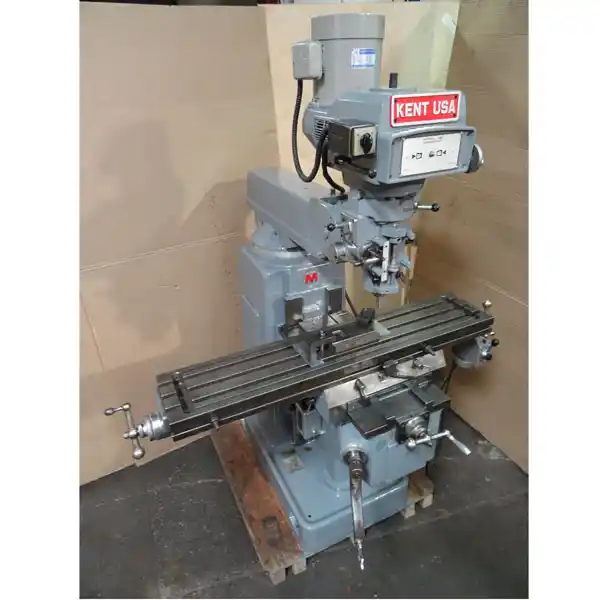

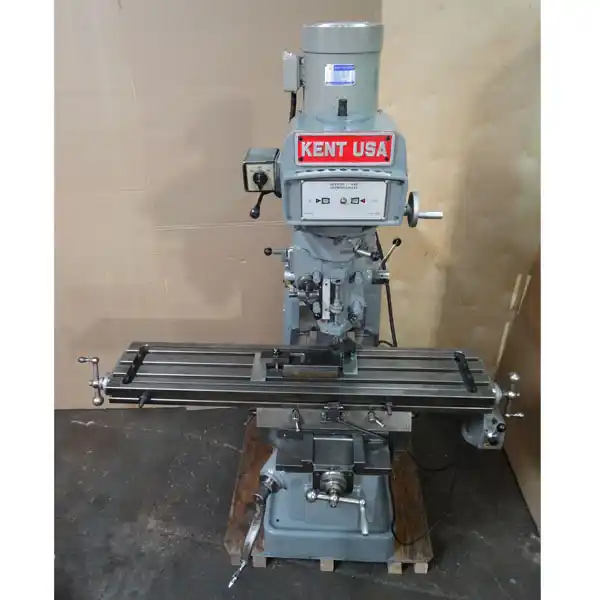

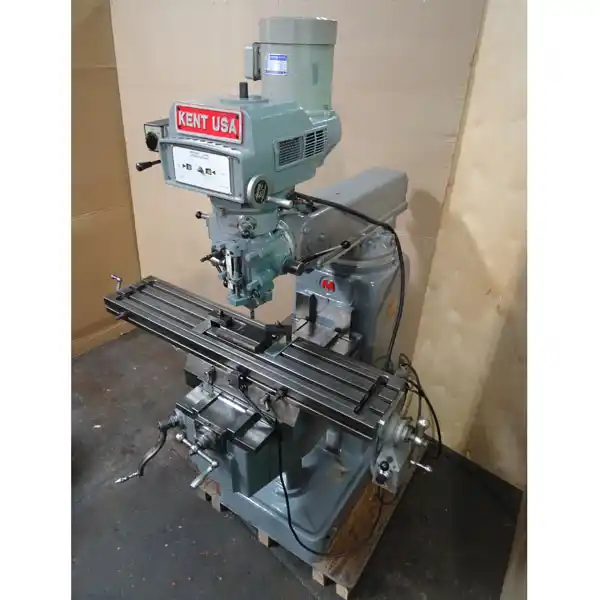

Kent KTM4VK Vertical Knee Mill
Specifications
- X-Axis Travel: 30"
- Y-Axis Travel: 16'
- Quill Travel: 5"
- Knee Travel: 16"
- Ram Travel: 24"
- Table Size: 10" x 50"
- T-Slots: 3 on 2.5"
- T-Slot Size: 5/8"
- Spindle Taper: R8
- Spindle Speeds, Low Range: 60 - 500 RPM
- Spindle Speeds, High Range: 500 - 4200 RPM
- Throat Distance Minimum: 4-1/4"
- Throat Distance Maximum 28-1/4"
- Max. Milling Feedrate: 35 IPM
- Show More
- Show Less
- X-Axis Travel: 762.00mm
- Y-Axis Travel: 4876.80mm
- Quill Travel: 127.00mm
- Knee Travel: 406.40mm
- Ram Travel: 609.60mm
- Table Size: 254.00mm x 1270.00mm
- T-Slots: 3 on 63.50mm
- T-Slot Size: 15.88mm
- Spindle Taper: R8
- Spindle Speeds, Low Range: 60 - 500 RPM
- Spindle Speeds, High Range: 500 - 4200 RPM
- Throat Distance Minimum: 107.95mm
- Throat Distance Maximum 717.55mm
- Max. Milling Feedrate: 14.82 mm/sec
- Show More
- Show Less
Equipped With
- 3 HP 3-Phase Motor
- 230 / 460 VAC (Currently Wired @ 230 VAC)
- 8.5 / 4.2 Amps
- 2.24 kw 3-Phase Motor
- 230 / 460 VAC (Currently Wired @ 230 VAC)
- 8.5 / 4.2 Amps
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
