Inventory # 45013 Year: 1992

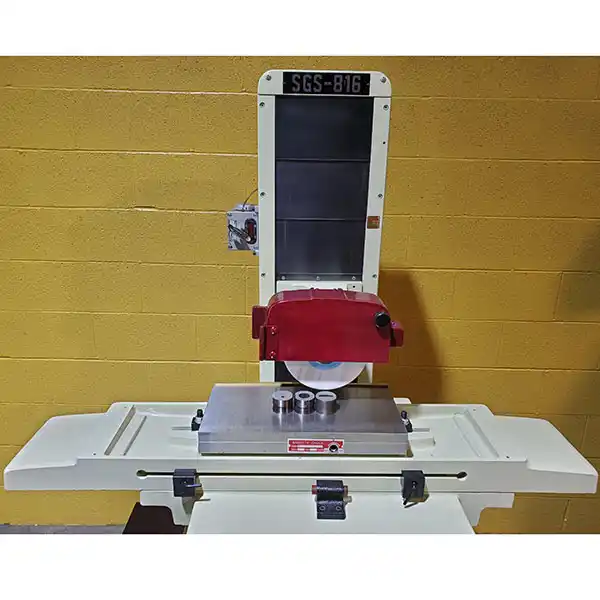

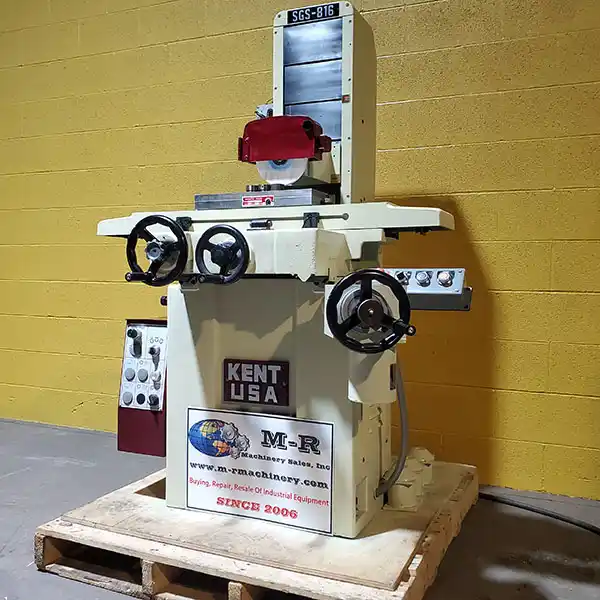

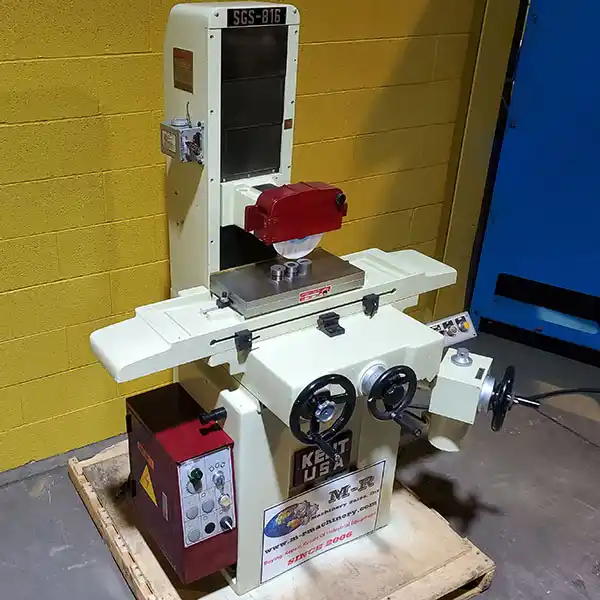

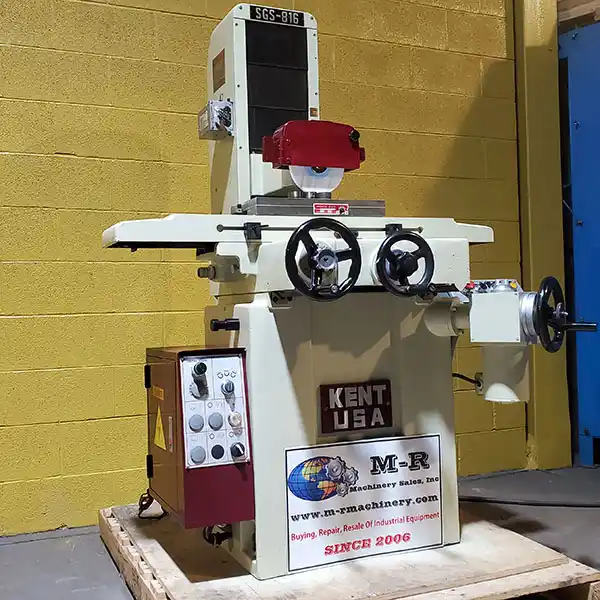

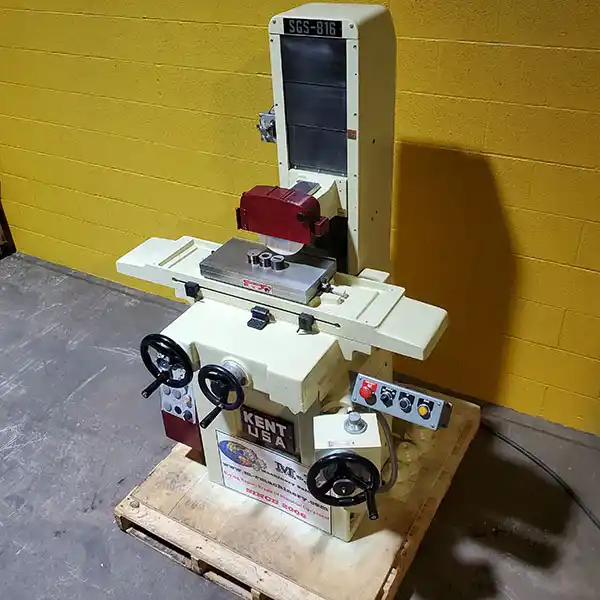

Kent SGS-816 Surface Grinder
Specifications
- Max Grinding Surface (W x L): 8" x 16"
- Max Horizontal Travel: 17"
- Max Cross Travel: 8"
- Distance Between Table Surface and Spindle Center: 18"
- Downfeed Handwheel Per Graduation: 0.001"
- Per Revolution: 0.1"
- Cross Feed Handwheel Per Graduation: 0.0005"
- Per Revolution: 0.2"
- Auto Downfeed Per Graduation: 0.0001"
- Per Revolution: 0.01"
- Logitudinal Travel Adjusting: 2" - 16"
- Crossfeed Travel (Adjustable): 0" - 8-1/4"
- Spindle Motor: 2 hp
- Show More
- Show Less
- Max Grinding Surface (W x L): 203.20mm x 406.40mm
- Max Horizontal Travel: 431.80mm
- Max Cross Travel: 203.20mm
- Distance Between Table Surface and Spindle Center: 457.20mm
- Downfeed Handwheel Per Graduation: 0.03mm
- Per Revolution: 2.54mm
- Cross Feed Handwheel Per Graduation: 0.01mm
- Per Revolution: 5.08mm
- Auto Downfeed Per Graduation: 0.00mm
- Per Revolution: 0.25mm
- Logitudinal Travel Adjusting: 50.80mm - 406.40mm
- Crossfeed Travel (Adjustable): 0.00mm - 209.55mm
- Spindle Motor: 1.49 kw
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
