Inventory # 43611 Year: 2015

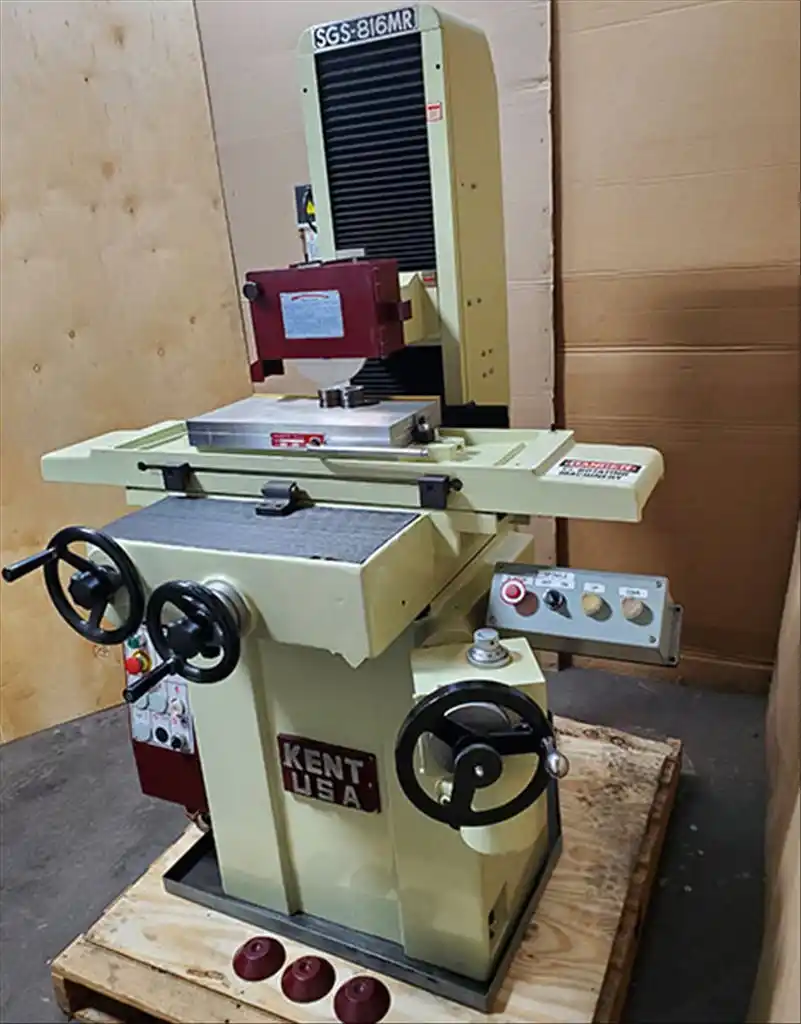

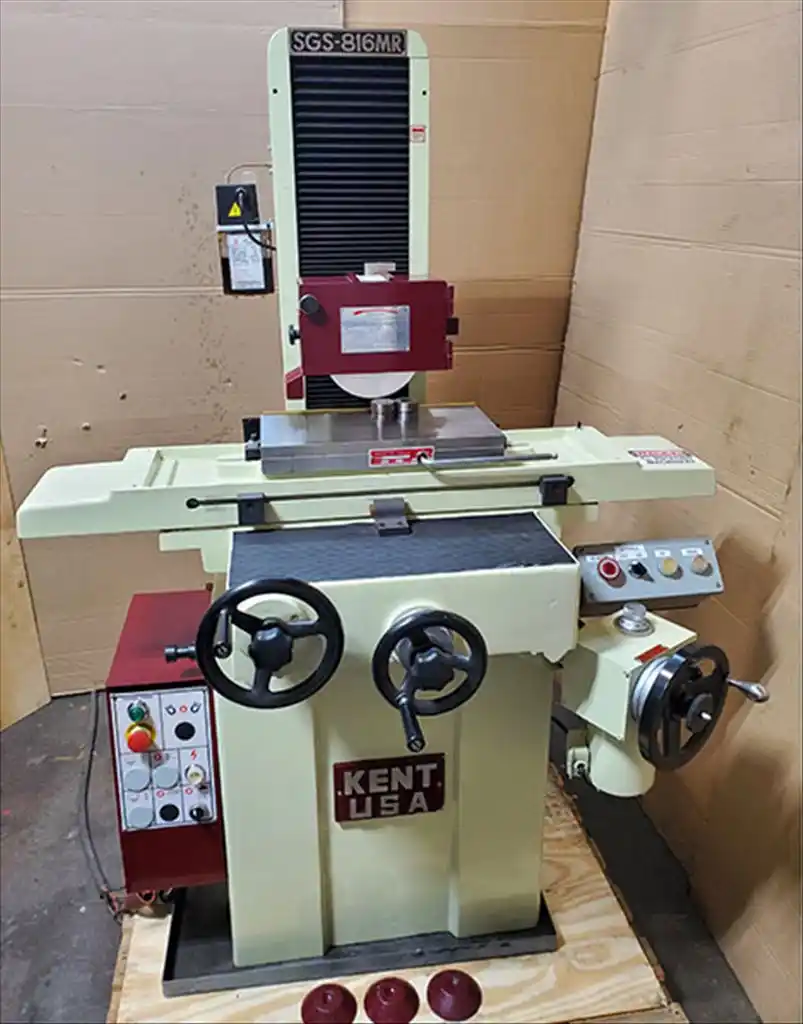

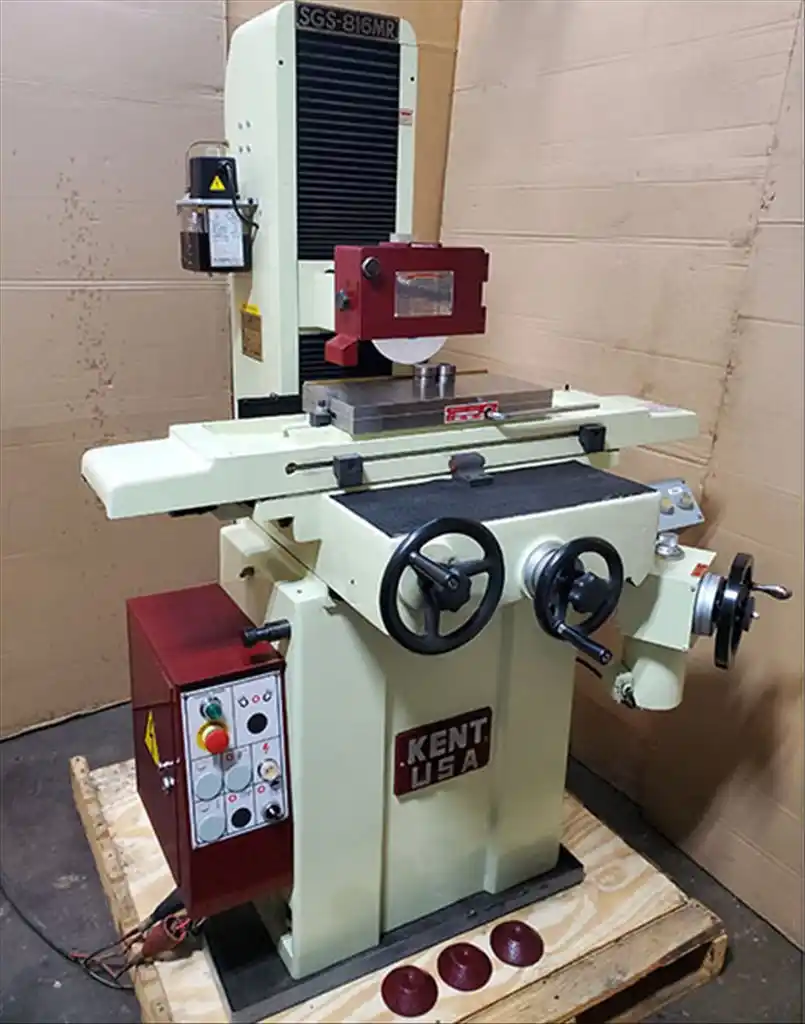

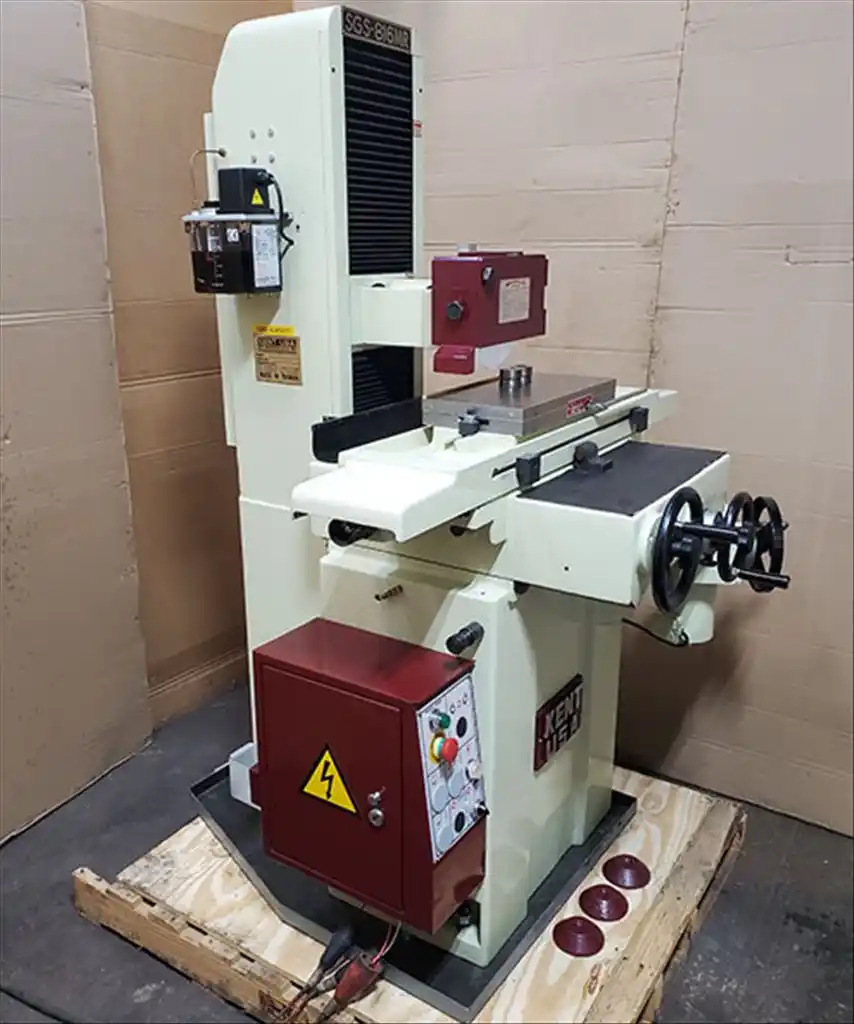

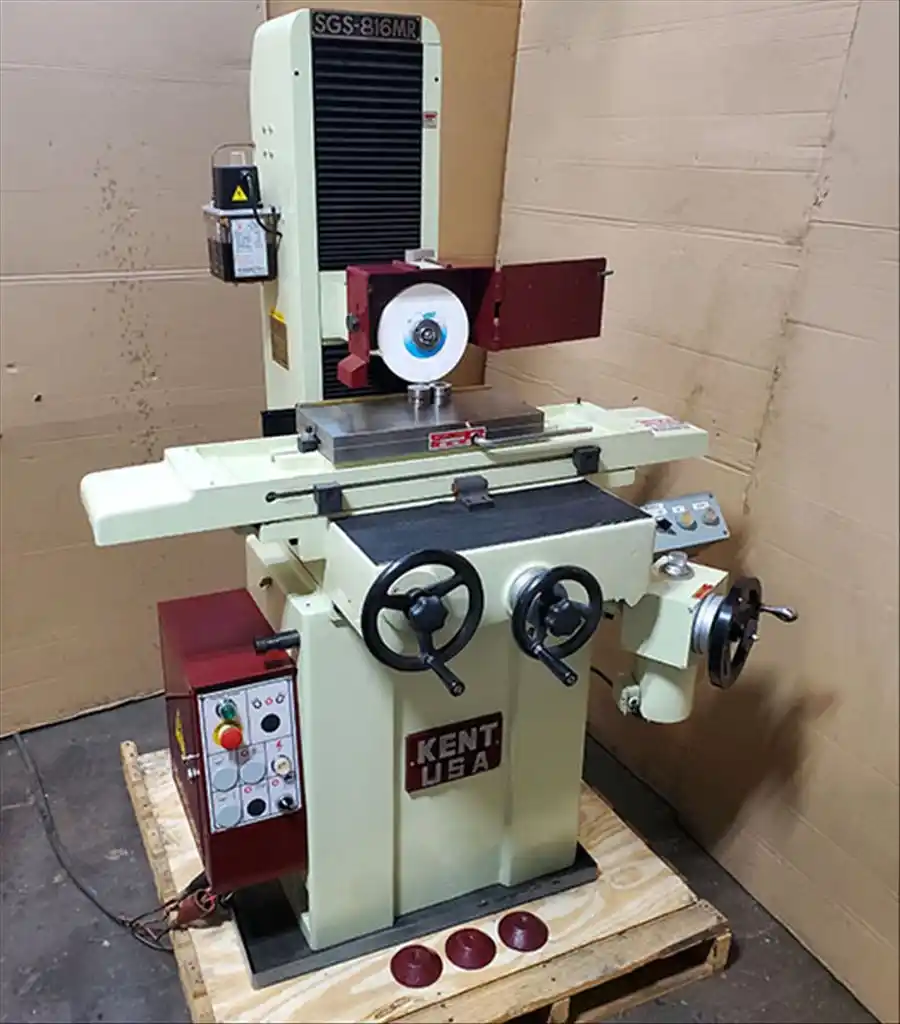

Kent SGS-816MR Surface Grinder
Specifications
- Max. Grinding Surface (W x L): 8" x 16"
- Max. Horizontal Travel: 17"
- Max. Cross Travel: 8"
- Distance Between Table Surface and Spindle Center: 18"
- Downfeed Handwheel Per Graduation: 0.001"
- Downfeed Handwheel Per Revolution: 0.1"
- Cross Feed Handwheel Per Graduation: 0.0005"
- Cross Feed Handwheel Per Revolution: 0.2"
- Auto Downfeed Per Graduation: 0.0001"
- Auto Downfeed Per Revolution: 0.0001"
- Longitudinal Travel Adjustment: 2" - 16"
- Crossfeed Travel Adjustment: 0" - 8.25"
- Show More
- Show Less
- Max. Grinding Surface (W x L): 203.20mm x 406.40mm
- Max. Horizontal Travel: 431.80mm
- Max. Cross Travel: 203.20mm
- Distance Between Table Surface and Spindle Center: 457.20mm
- Downfeed Handwheel Per Graduation: 0.03mm
- Downfeed Handwheel Per Revolution: 2.54mm
- Cross Feed Handwheel Per Graduation: 0.01mm
- Cross Feed Handwheel Per Revolution: 5.08mm
- Auto Downfeed Per Graduation: 0.00mm
- Auto Downfeed Per Revolution: 0.00mm
- Longitudinal Travel Adjustment: 50.80mm - 406.40mm
- Crossfeed Travel Adjustment: 0.00mm - 209.55mm
- Show More
- Show Less
Equipped With
- 2 HP Spindle Motor
- 1.49 kw Spindle Motor
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
