Inventory # 47094 Year: 2022 Like New, Low Hours

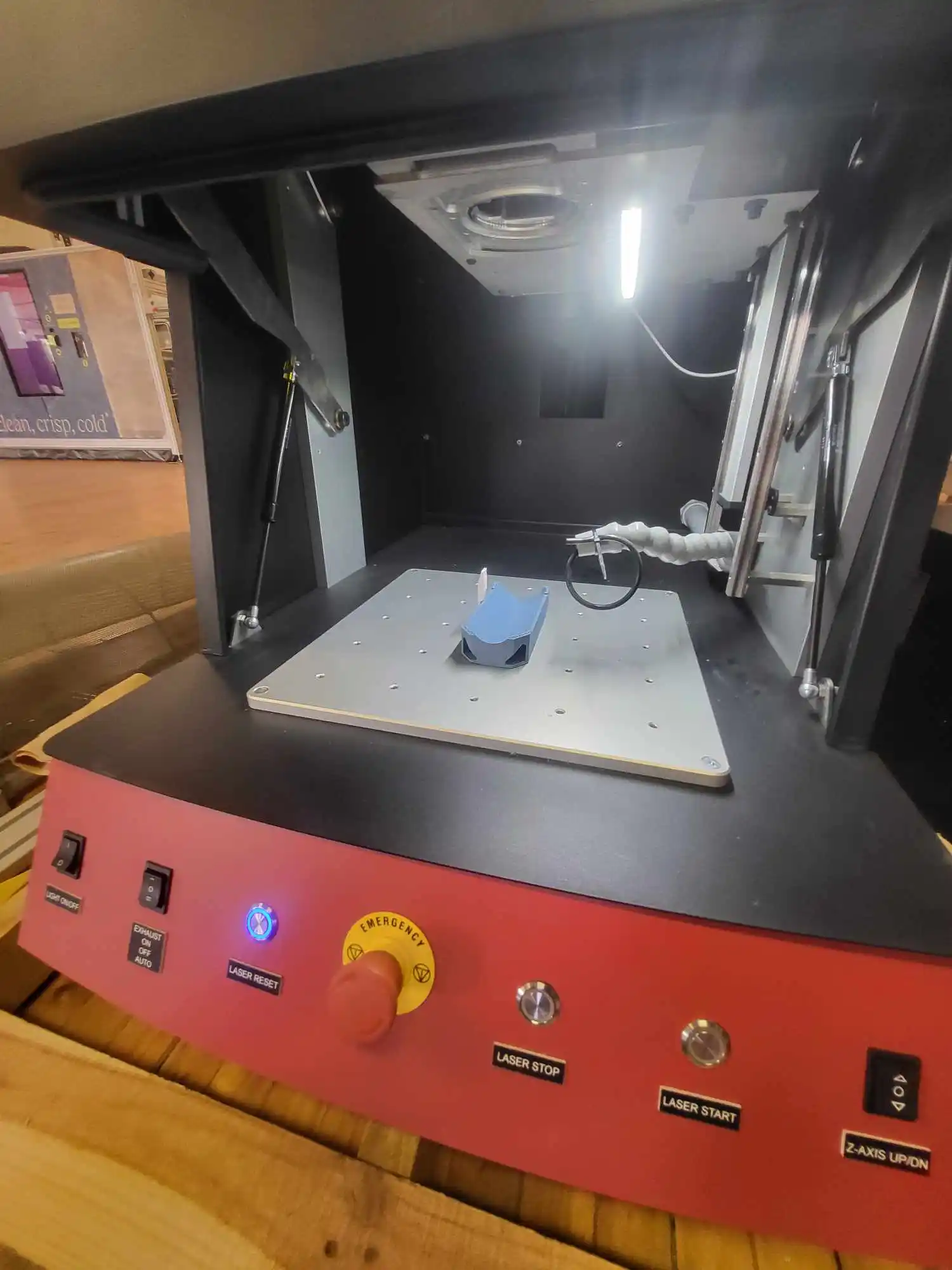

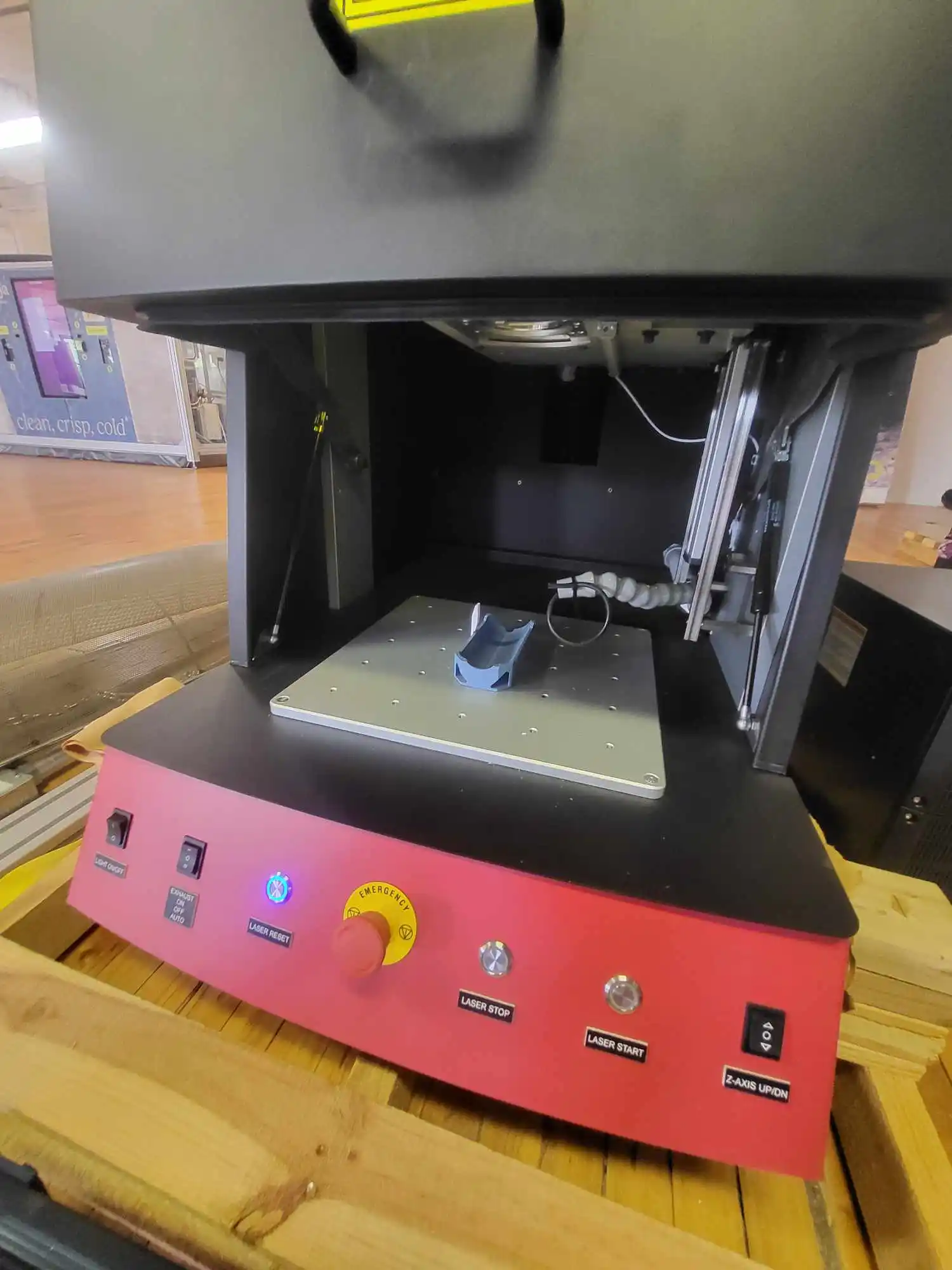

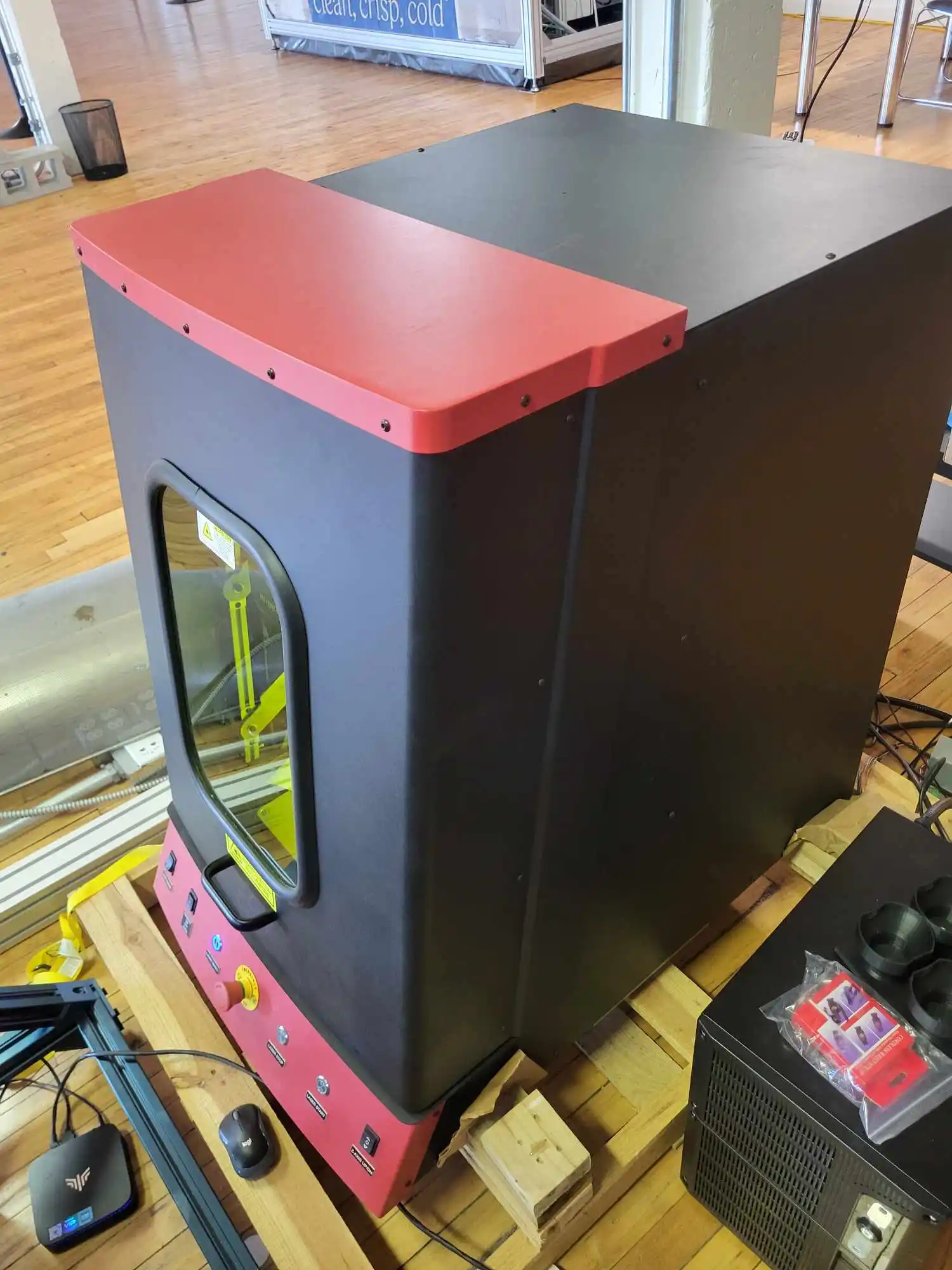

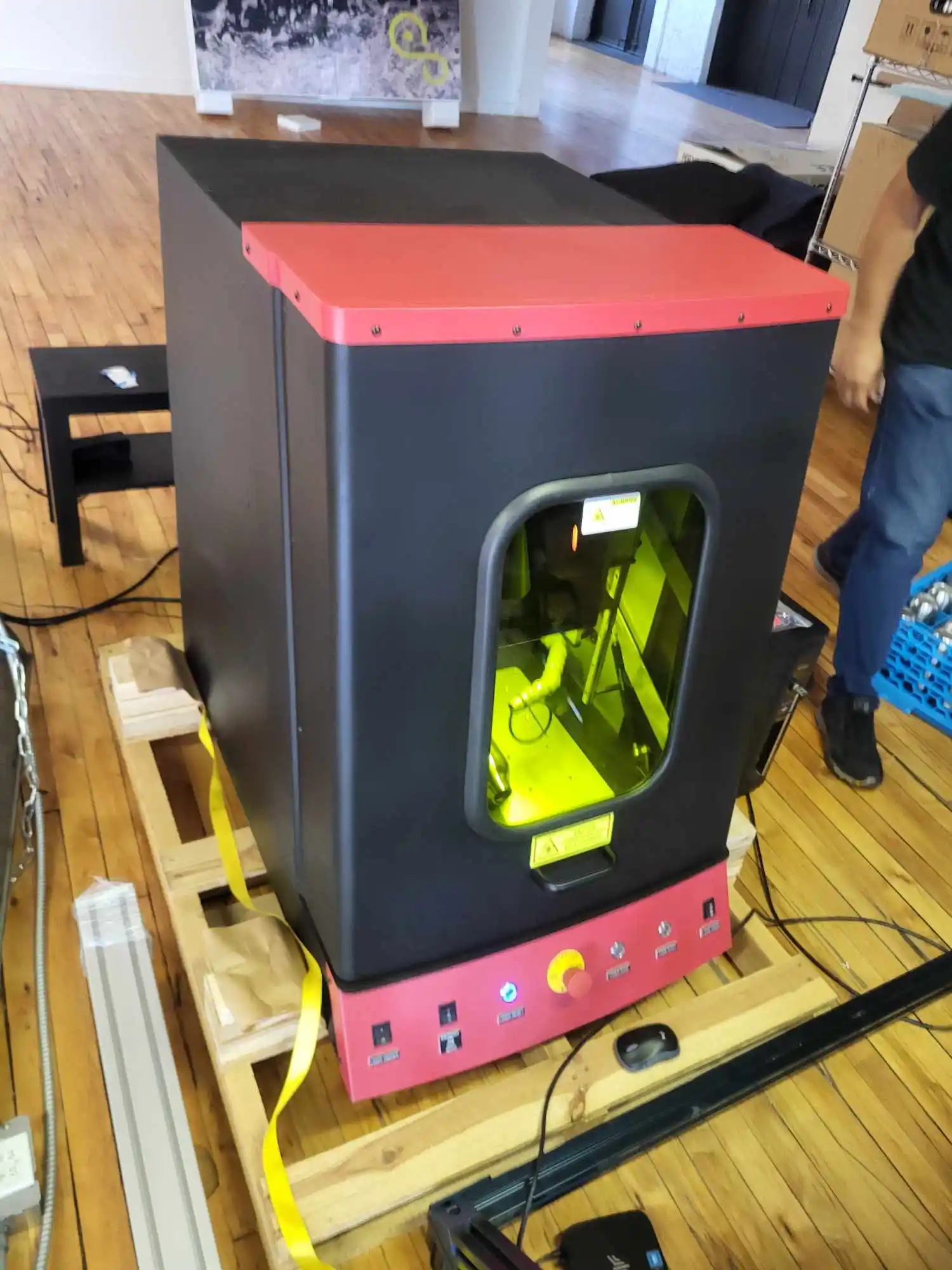

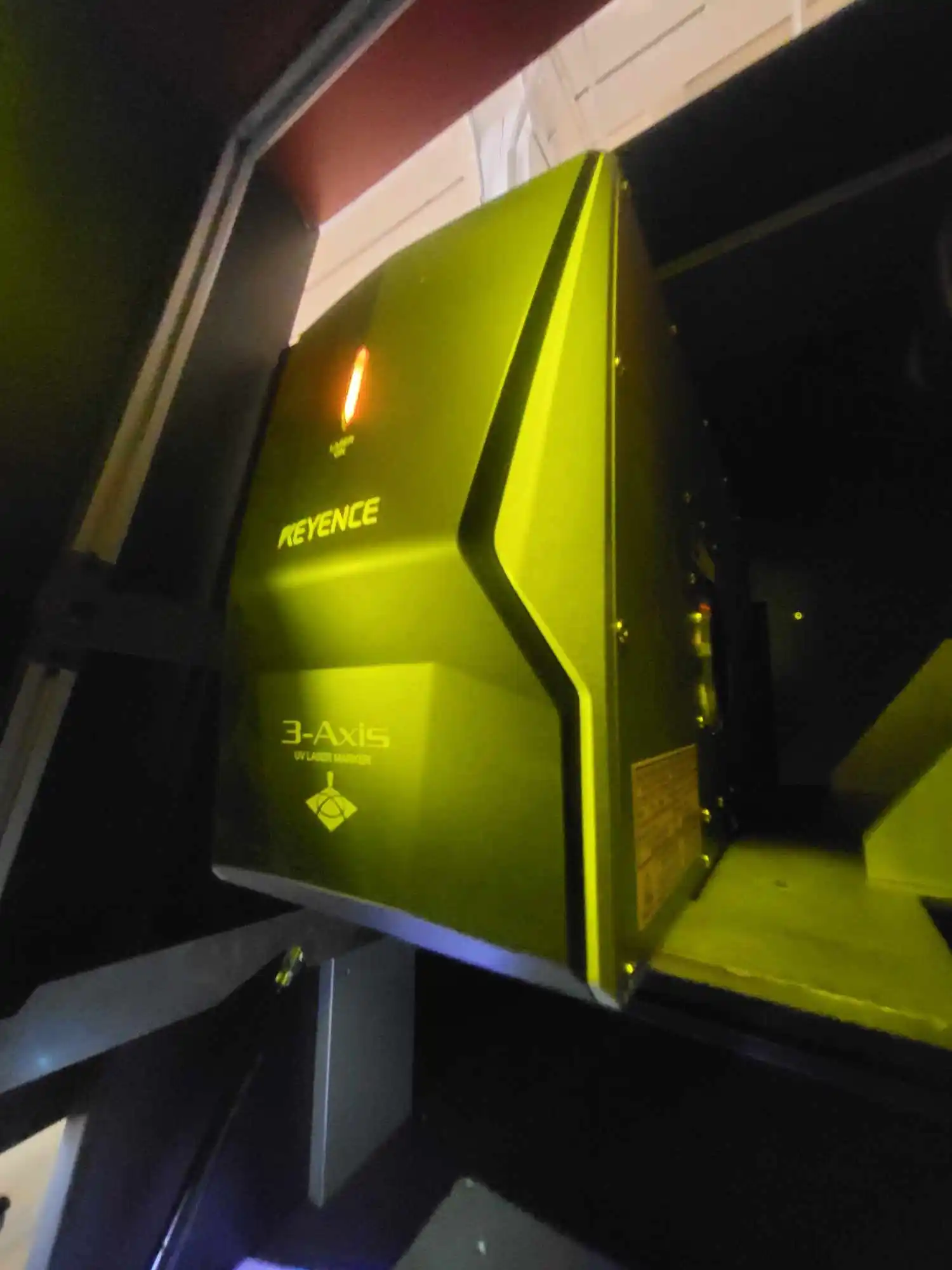

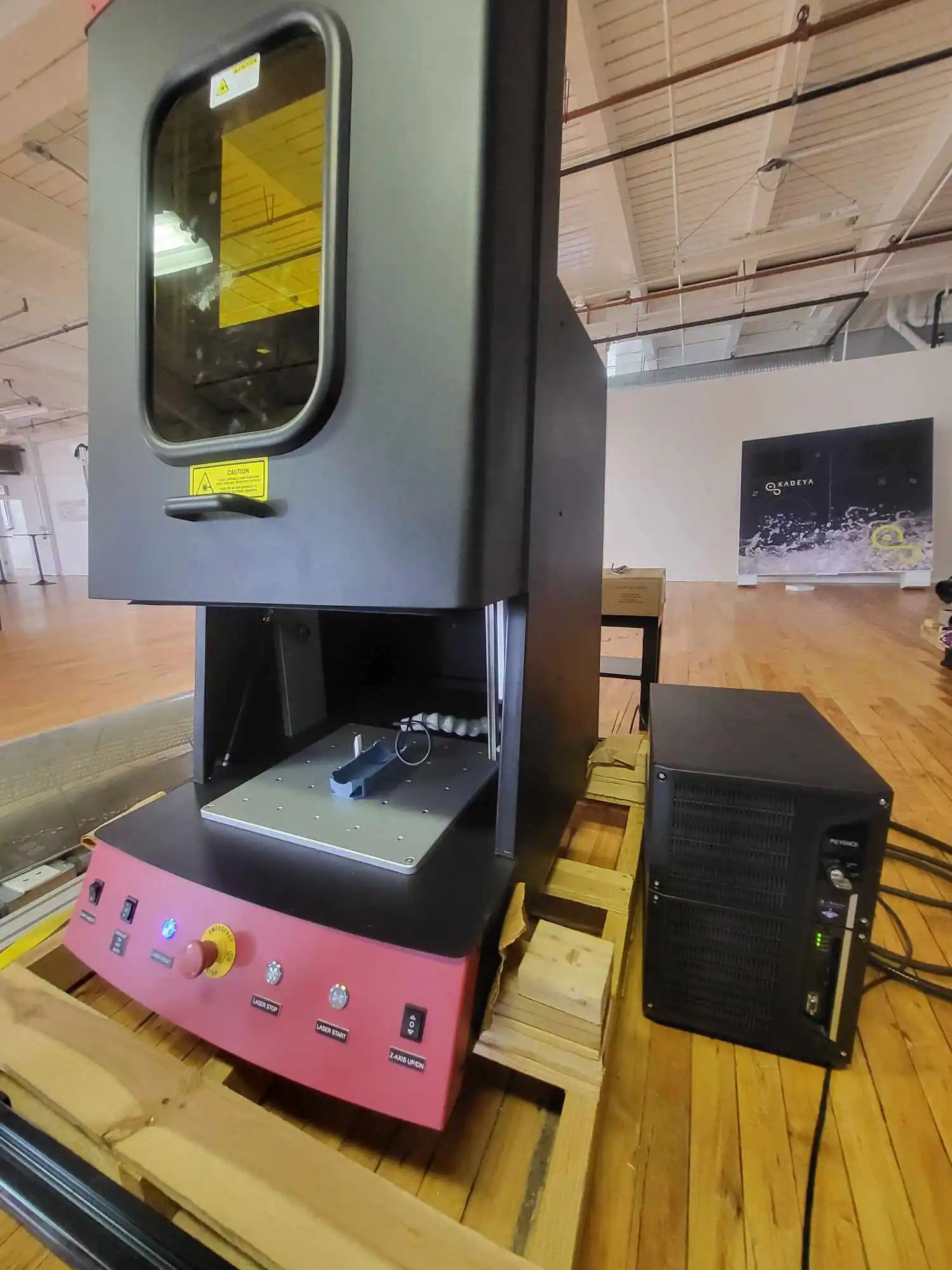

Keyence MD-U1012C 3-Axis Laser Marker
Specifications
- Marking Method: XYZ 3-Axis Simultaneous Scanning Method
- XY Scanner: Digital Galvo Scanner
- Z Scanner: Linear Motor
- Marking Laser Wavelength: 355nm
- Marking Laser Output: 3W/40 kHz (Output Focal Point: 2.5W)
- Q-Switch Frequency CW (Continuous Wave): 40 to 400 kHZ
- Marking Area: 12.99" x 12.99" x 1.65"
- Standard Working Distance (±Variable Width): 11.81" (±0.83")
- Marking Resolution: 5 µm
- Scan Speed: Max. 314.96 IPS
- Built In Power Meter: Thermopile
- 📄 Download Keyence Product Specs PDF
- Show More
- Show Less
- Marking Method: XYZ 3-Axis Simultaneous Scanning Method
- XY Scanner: Digital Galvo Scanner
- Z Scanner: Linear Motor
- Marking Laser Wavelength: 355nm
- Marking Laser Output: 3W/40 kHz (Output Focal Point: 2.5W)
- Q-Switch Frequency CW (Continuous Wave): 40 to 400 kHZ
- Marking Area: 329.95mm x 329.95mm x 41.91mm
- Standard Working Distance (Variable Width): 299.97mm (±21.08mm )
- Marking Resolution: 5 m
- Scan Speed: Max. 8000mm/s
- Built In Power Meter: Thermopile
- 📄 Download Keyence Product Specs PDF
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
